  • Jeep Wrangler JK/JL (07-22) Elite Series LED Fog Lights (Steel Bumper)

Jeep Wrangler JK/JL (07-22) Elite Series LED Fog (White / Yellow)

(0) No Reviews yet

Brand: Diode Dynamics




PART #: 1 x DD5163P


Upgrade your Jeep Wrangler's steel bumper with Diode Dynamics' revolutionary Elite Series Fog Lamps. Redefine your fog light experience with these advanced LEDs that outperform industry norms. Their patented optic, multi-die emitters, and full-copper circuit boards deliver a dazzling output, five times brighter than traditional halogens. Setting up is a breeze with the plug-and-play design, providing heightened visibility in challenging conditions within minutes. Enjoy a wider, smoother, and glare-free light pattern, thanks to the precisely engineered single-piece PMMA lens that meets legal on-road criteria. Take your pick between a cool white 6000K or a high-contrast selective yellow 3000K option, both guaranteeing exceptional efficiency. With an integrated amber accent light for added sophistication, these USA-assembled lamps are backed by an impressive 8-year limited warranty. Elevate your driving adventure with Diode Dynamics – a reputable trailblazer in automotive LED lighting innovation.


  • Enhanced Performance: Elevate your Jeep Wrangler with Diode Dynamics' Elite Series Fog Lamps for steel bumper models.
  • Superior LEDs: 5x brighter than halogens, patent-pending optics, and easy plug-and-play installation.

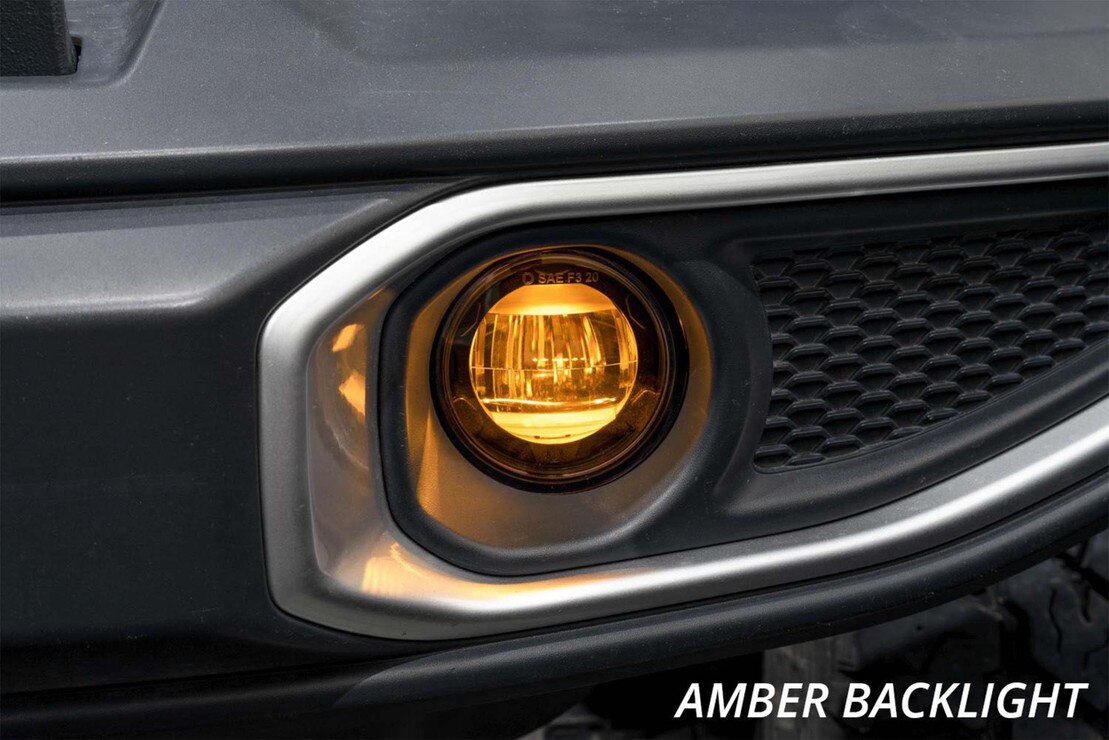

  • Lighting Options: Choose 6000K cool white or 3000K selective yellow light with an integrated amber accent.
  • 8-Year Warranty: USA-assembled lamps with an impressive 8-year limited warranty.

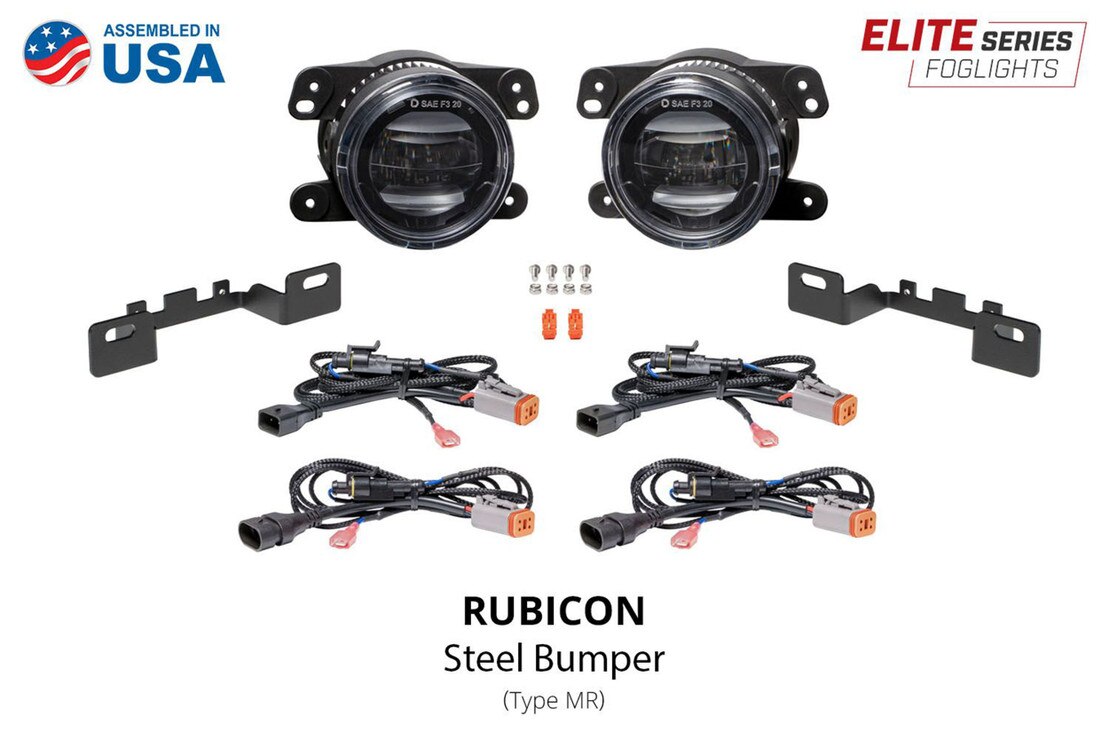

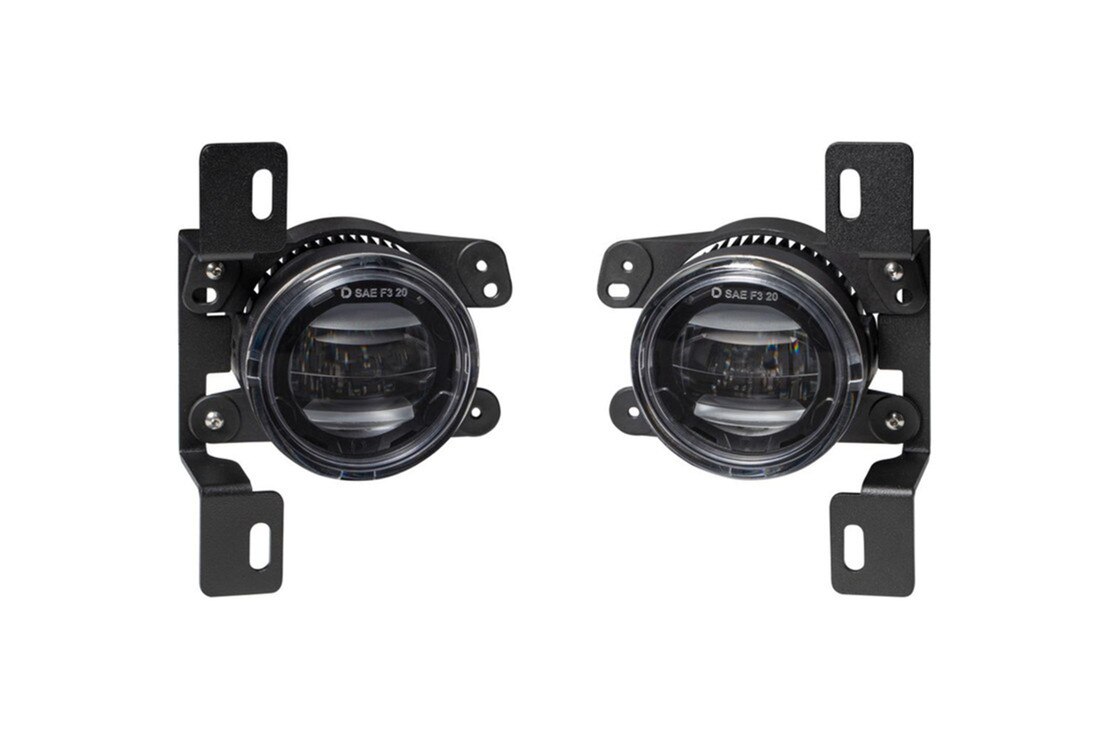

  • Fog Lights: 2x (One Pair) Elite Series Type MR Fog Lights

  • Wiring: 2x (One Pair) Plug-n-Play 9005/9006 4-pin DT Backlight Tap Wires / 5202 4-pin DT Backlight Tap Wires (2x T-taps included)


This product is covered by a 3 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

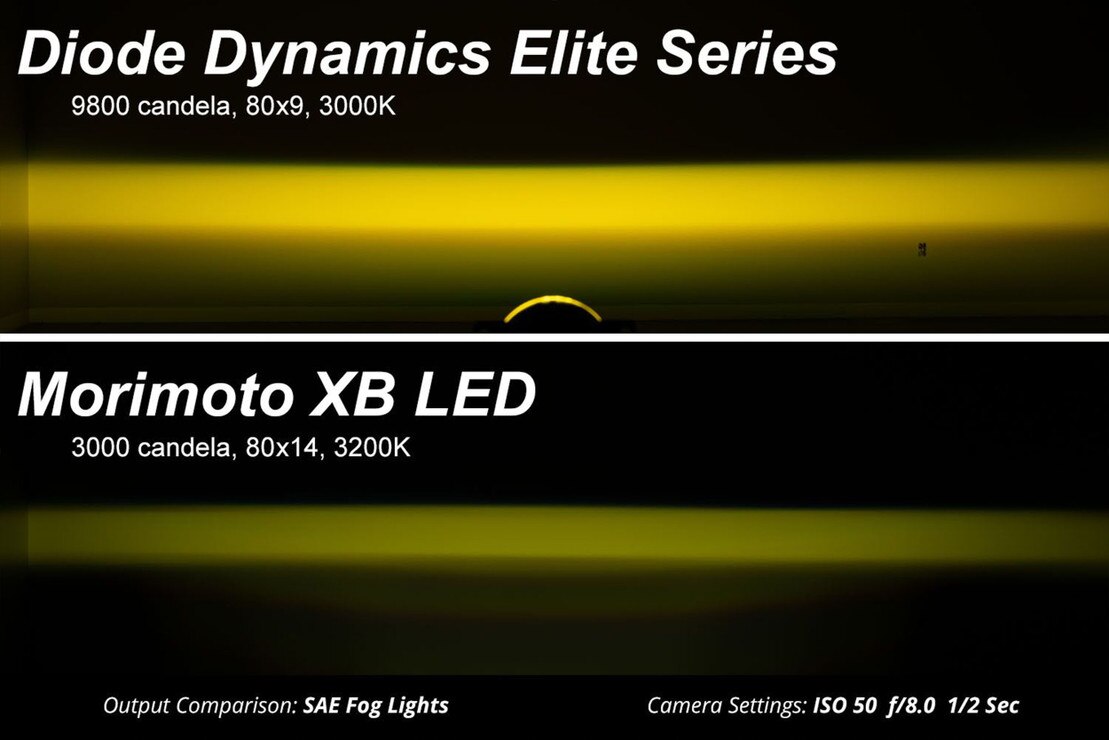

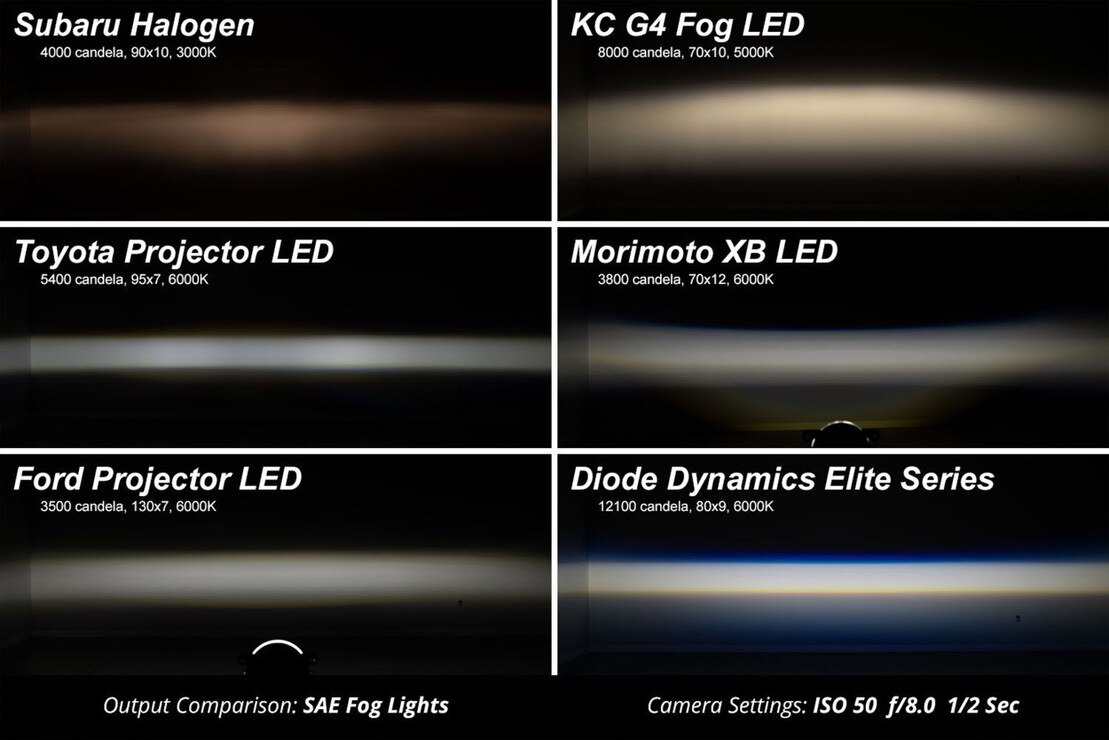

  • Intensity: 1,850 lm / 10,200 cd (White), 1,650 lm / 8,700 cd (Yellow)

  • Color Temp: 6000K (White), 3000K (Yellow)

  • Power: Main Beam White: 17w, Main Beam Yellow: 15w, Backlight: 0.3w

  • Input Voltage: 9-16v

  • Current: Main Beam White: 1.3A, Main Beam Yellow: 1.2A, Backlight: 0.025A

  • Input: Deutsch DT Input (Polarity Specific)

  • Material: Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting

  • Compliance: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern

  • IP Rating: IP68 Waterproof

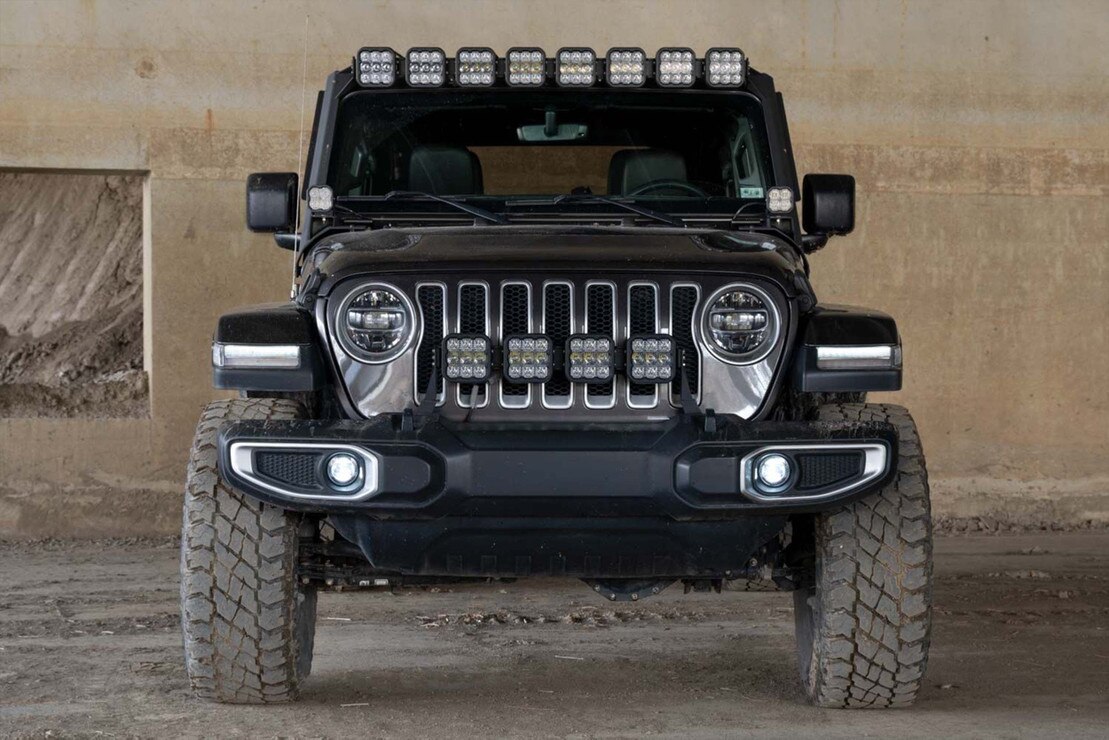

  • Jeep Wrangler JK: 2007-2018 (Fits Steel Bumper Only)

  • Jeep Wrangler JL: 2018-2022 (Fits Steel Bumper Only)

  • Plastic Bumper Version: Can be found at this Link

  • NOTE: This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.
