  • Jeep Wrangler JK/JL (07-22) Elite Series LED Fog Lights (Plastic Bumper)

Jeep Wrangler JK/JL (07-22) Elite Series LED Fog (White / Yellow)

(0) No Reviews yet

Brand: Diode Dynamics




PART #: 1 x DD5130P


Transform your Jeep Wrangler driving adventures with Diode Dynamics' revolutionary Elite Series Fog Lamps. These extraordinary LEDs redefine fog light capabilities, going beyond industry norms. Their innovative design, featuring a patent-pending optic, multi-die emitters, and full-copper circuit boards, delivers a dazzling illumination that's five times brighter than conventional halogens. Installing them is a breeze, thanks to the plug-and-play setup, granting you improved visibility in challenging weather conditions almost instantly. The meticulously engineered single-piece PMMA lens ensures a broader, more even, and glare-free light distribution that adheres to legal on-road requirements. Whether you opt for the crisp 6000K cool white or the high-contrast 3000K selective yellow, you're guaranteed unparalleled efficiency. Adding a touch of elegance is the integrated amber accent light. Crafted in the USA, these lamps come with an impressive 8-year limited warranty, a testament to their quality.


  • Elevate Your Jeep Experience: Diode Dynamics' Elite Series Fog Lamps redefine fog light performance.
  • 5x Brighter LEDs: With patent-pending optics and multi-die emitters, they outshine halogens.
  • Easy Installation: Plug-and-play setup for enhanced visibility in minutes.
  • Precise Light Pattern: PMMA lens ensures a legal, glare-free pattern.
  • Color Options & Warranty: Choose 6000K white or 3000K yellow light, with an 8-year warranty.

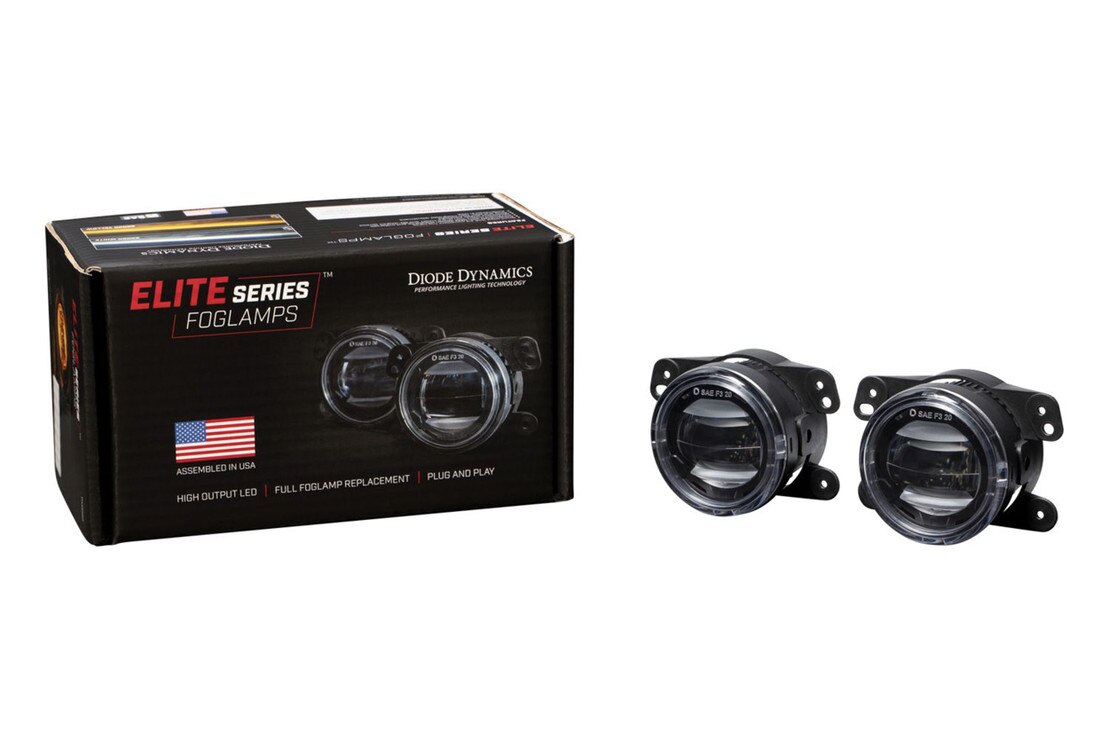

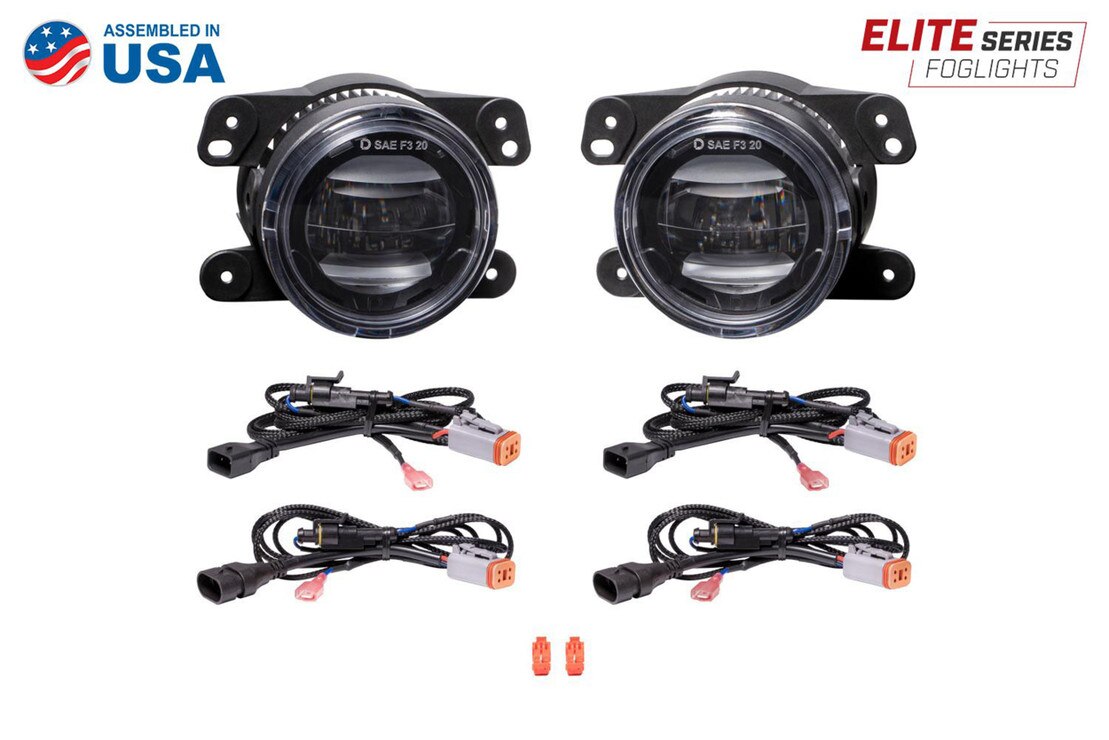

  • Fog Lights: 2x (One Pair) Elite Series Type M Fog Lights

  • Wiring: 2x (One Pair) Plug-n-Play 9005/9006 4-pin DT Backlight Tap Wires / 5202 4-pin DT Backlight Tap Wires (2x T-taps included)


This product is covered by a 3 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.


  • Intensity: 1,850 lm / 10,200 cd (White), 1,650 lm / 8,700 cd (Yellow)

  • Color Temp: 6000K (White), 3000K (Yellow)

  • Power: Main Beam White: 17w, Main Beam Yellow: 15w, Backlight: 0.3w

  • Input Voltage: 9-16v

  • Current: Main Beam White: 1.3A, Main Beam Yellow: 1.2A, Backlight: 0.025A

  • Input: Deutsch DT Input (Polarity Specific)

  • Material: Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting

  • Compliance: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern

  • IP Rating: IP68 Waterproof


  • Jeep Wrangler JK: 2007-2018 (Fits Plastic Bumper Only)

  • Jeep Wrangler JL: 2018-2022 (Fits Plastic Bumper Only)

  • Steel Bumper Version: Can be found at this Link

  • NOTE: This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.
