DESCRIPTION
FEATURES & BENEFITS
- Upgrade Your Bumper: Diode Dynamics' Elite Series Fog Lamps enhance your Jeep Gladiator.

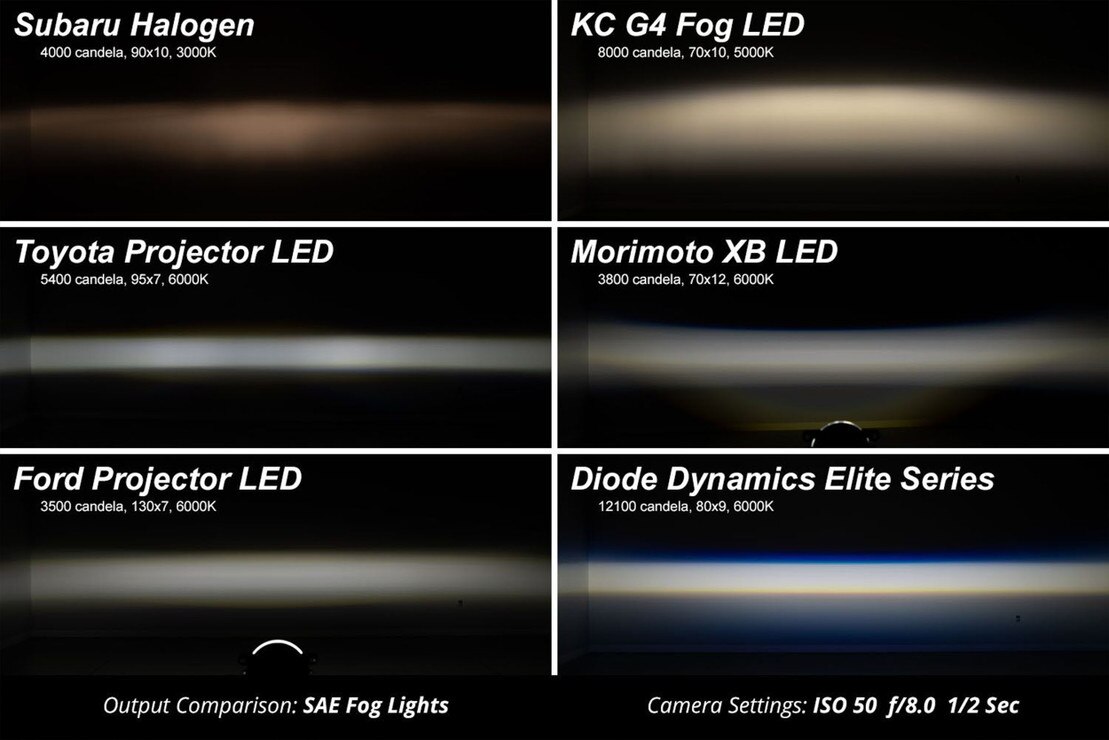

- 5x Brighter Output: These LEDs outshine traditional fog lights with advanced technology.
- Easy Installation: Plug-and-play setup for improved visibility in minutes.
- Optimal Light Pattern: A PMMA lens ensures a legal, glare-free light pattern.

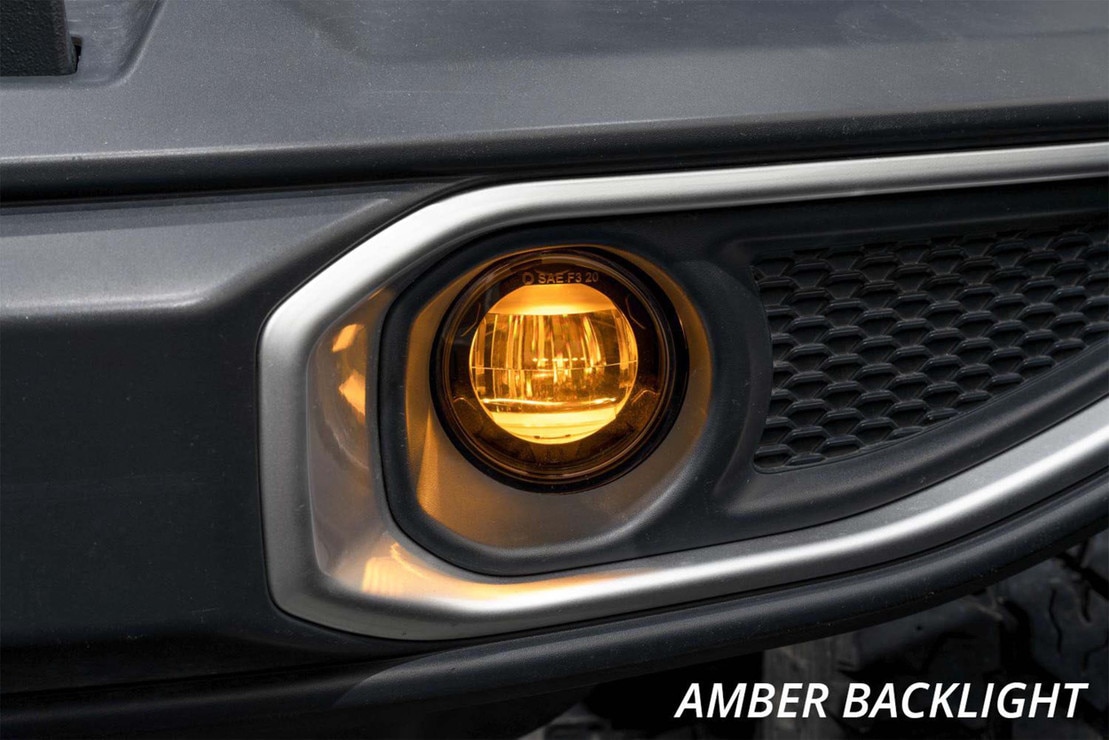

- Customizable Options: Choose 6000K or 3000K colors with an integrated amber accent light.

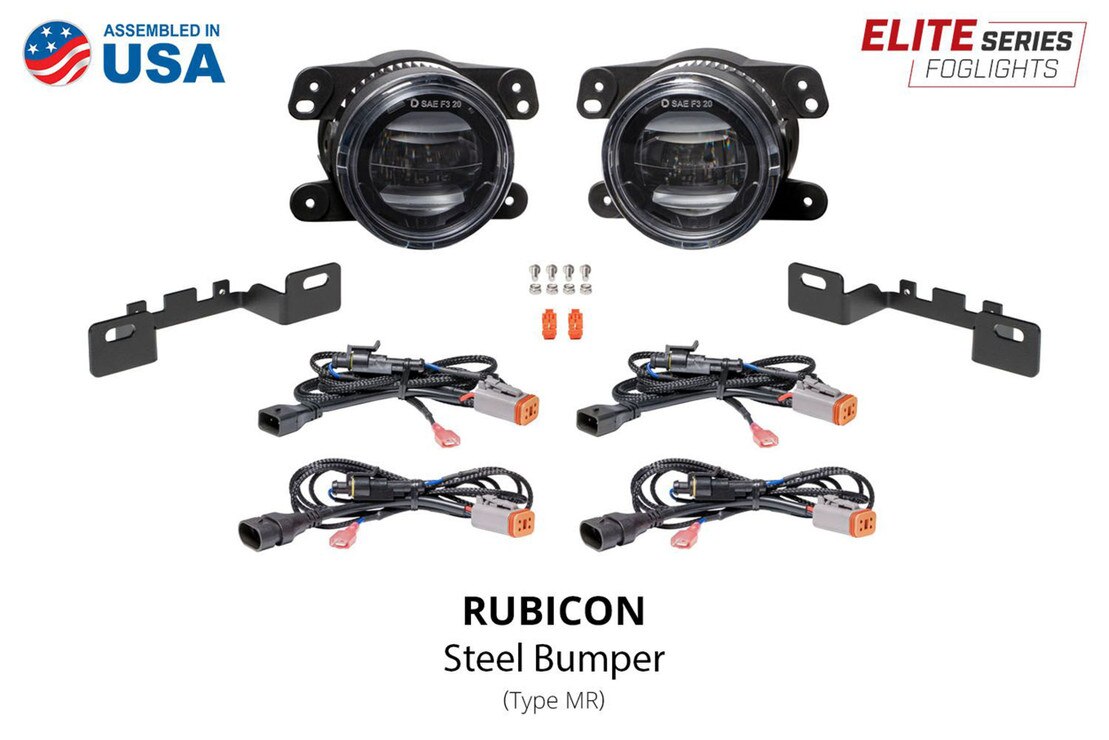

WHAT’S INCLUDED

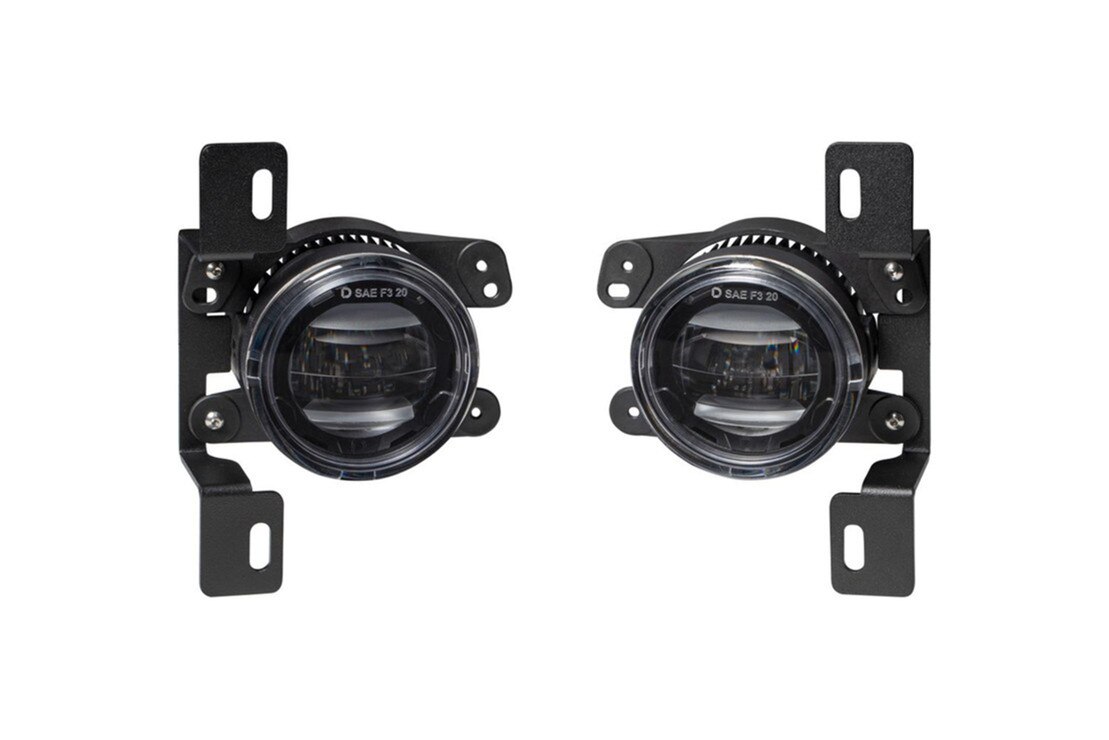

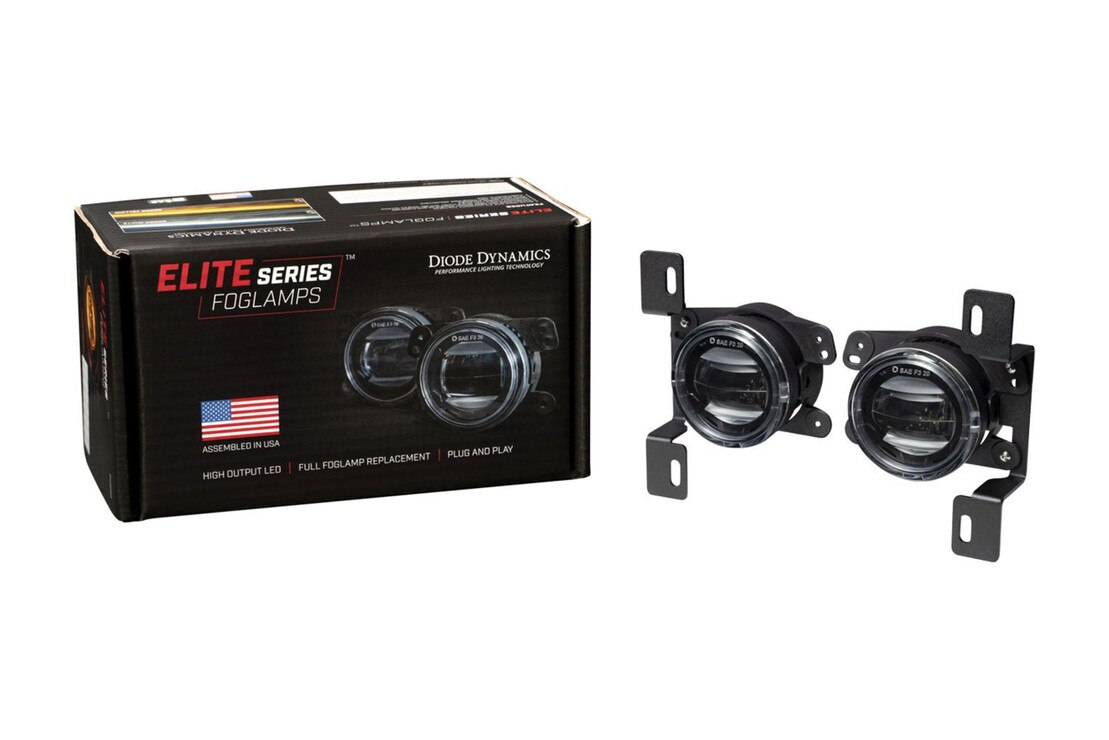

Fog Lights : 2x (One Pair) Elite Series Type MR Fog Lights
Wiring : 2x (One Pair) Plug-n-Play 9005/9006 4-pin DT Backlight Tap Wires / 5202 4-pin DT Backlight Tap Wires (2x T-taps included)
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS

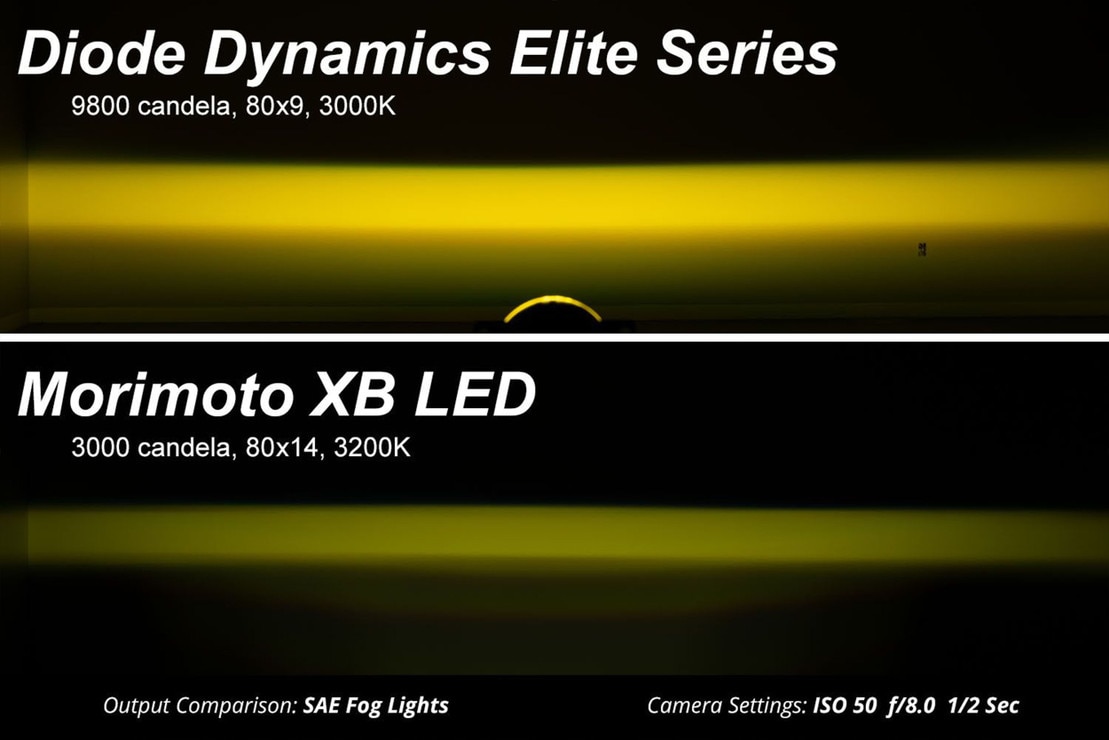

Intensity : 1,850 lm / 10,200 cd (White), 1,650 lm / 8,700 cd (Yellow)
Color Temp : 6000K (White), 3000K (Yellow)
Power : Main Beam White: 17w, Main Beam Yellow: 15w, Backlight: 0.3w
Input Voltage : 9-16v
Current : Main Beam White: 1.3A, Main Beam Yellow: 1.2A, Backlight: 0.025A

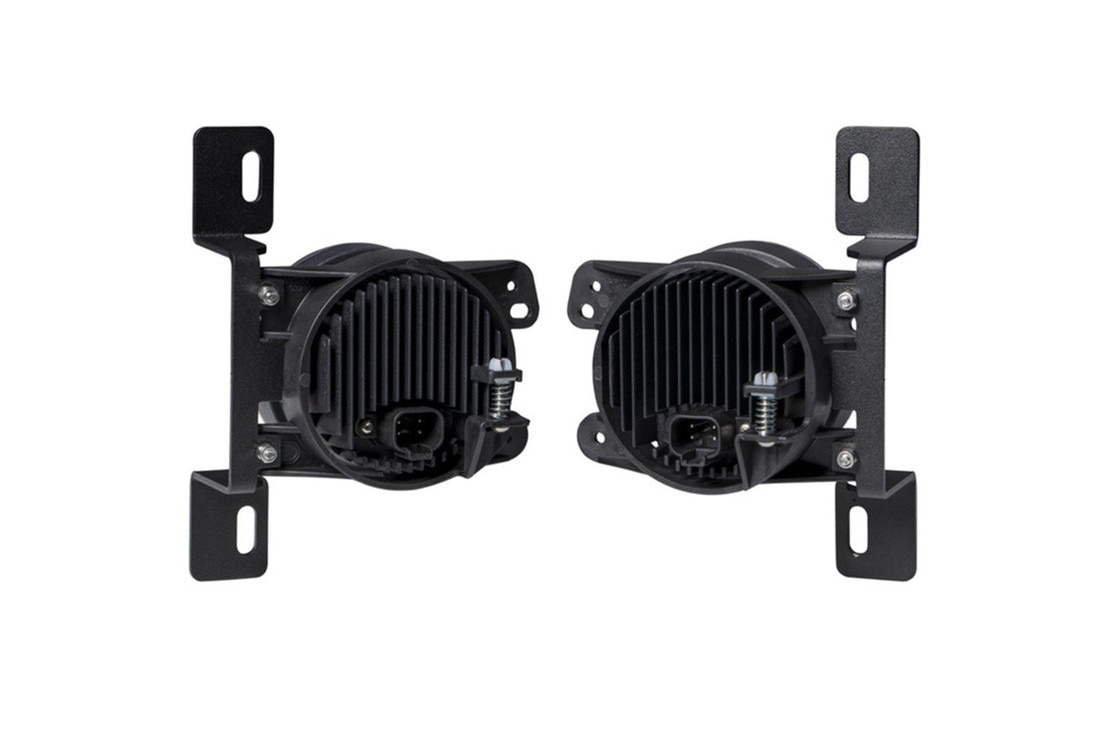

Input : Deutsch DT Input (Polarity Specific)
Material : Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting
Compliance : SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern
IP Rating : IP68 Waterproof
COMPATIBILITY

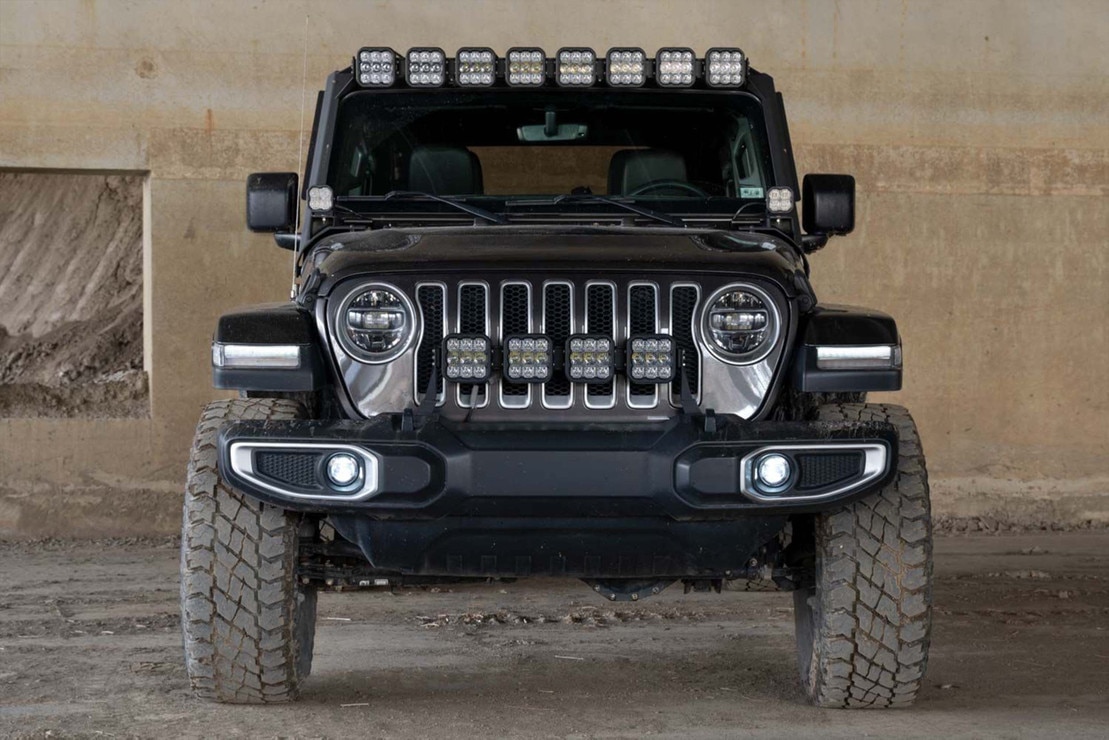

Jeep Gladiator JT : 2020-2022 (Fits Steel Bumper Only)
Plastic Bumper Version : Can be found at this Link
NOTE : This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.
