  • Jeep Gladiator JT (20-22) Elite Series LED Fog Lights (Plastic Bumper)

Jeep Gladiator JT (20-22) Elite Series LED Fog Lights (Plastic Bumper)

(0) No Reviews yet
Questions?

Brand: Diode Dynamics

3P-DD94-TRS

$233.95 Original Price:$259.9510% OFF

PRODUCT OPTIONS

PART #: 1 x DD5130P



DESCRIPTION

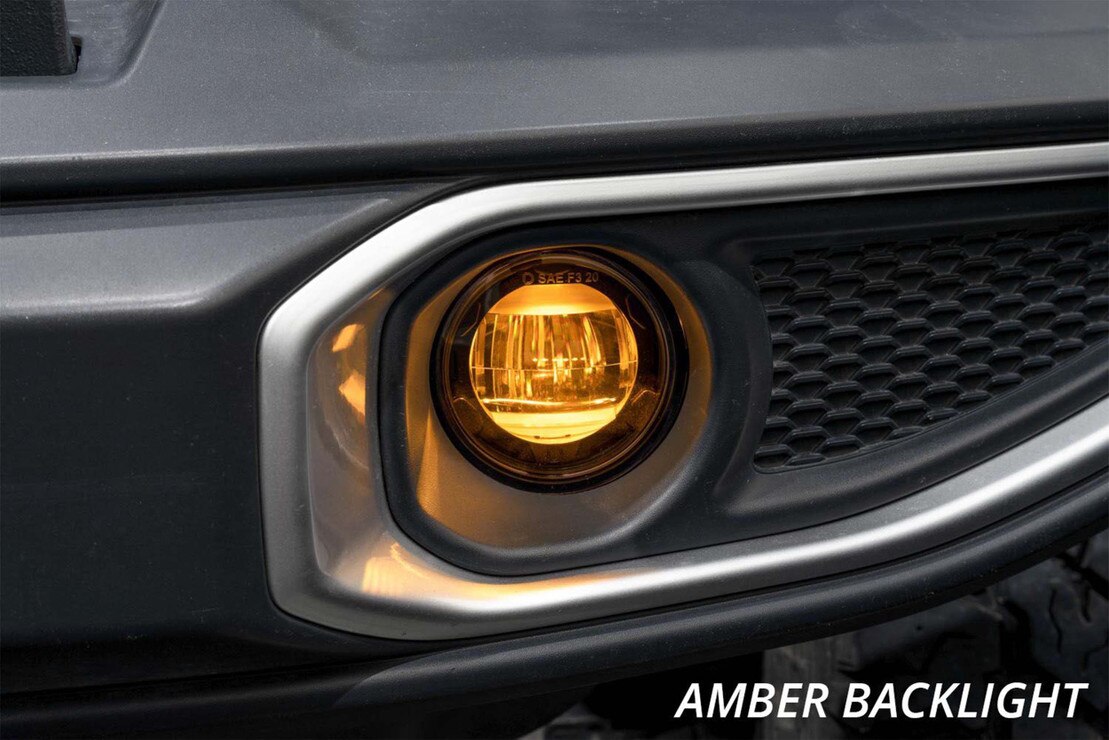

Transform your Jeep Gladiator into a powerhouse of illumination with Diode Dynamics' revolutionary Elite Series Fog Lamps. These advanced LEDs are engineered to outshine the ordinary, setting new benchmarks for fog light performance. Unleashing a brilliance five times stronger than conventional halogens, they incorporate pioneering features like a patent-pending optic, multi-die emitters, and full-copper circuit boards. With an effortless plug-and-play installation, you'll revel in heightened visibility during adverse conditions in a matter of minutes. Crafted for precision, their single-piece PMMA lens ensures a broader, more seamless, and glare-resistant light dispersion that meets legal on-road requisites. Tailor your experience by selecting either the sleek 6000K cool white or the high-contrast selective 3000K yellow option, both guaranteeing unparalleled efficiency. The integrated amber accent light adds a touch of elegance, while these USA-manufactured lights are backed by an impressive 8-year limited warranty.

FEATURES & BENEFITS

  • Enhanced Performance: Diode Dynamics' Elite Series Fog Lamps elevate your Jeep Gladiator's performance.

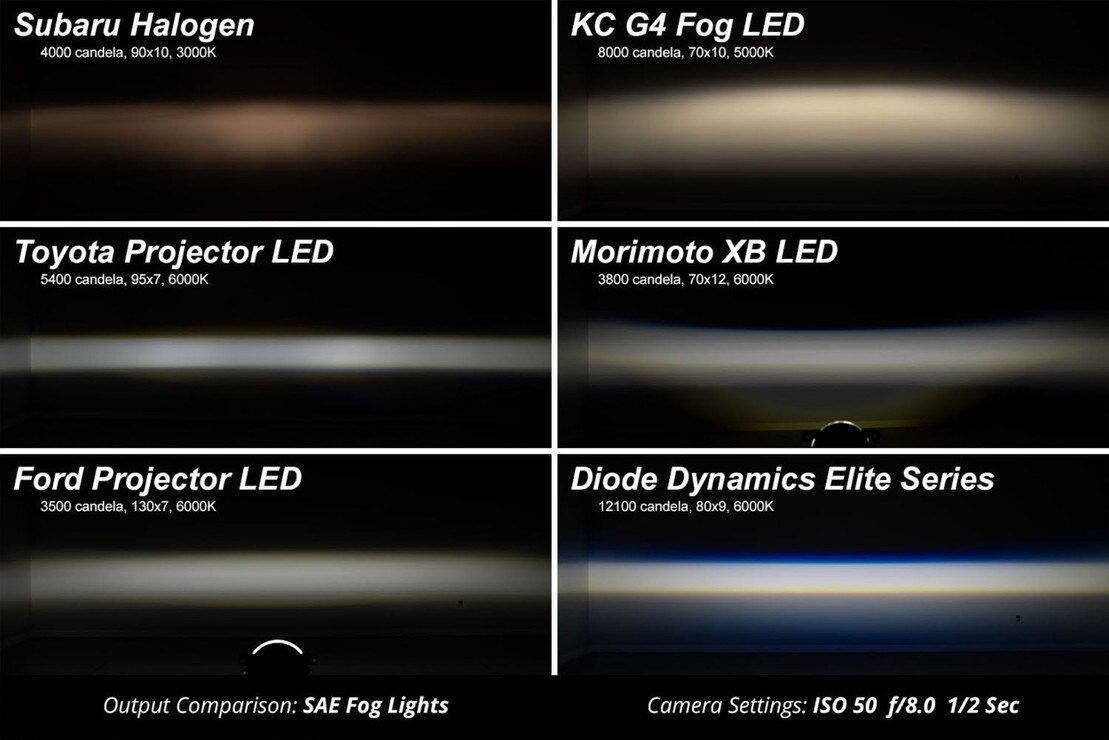

  • 5x Brighter: With innovative optics, they are 5 times brighter than halogens.
  • Easy Installation: Quick plug-and-play setup for improved visibility.
  • Legal Compliance: Glare-free light dispersion meets legal requirements.
  • Color Options & Warranty: Choose 6000K or 3000K variants, backed by an 8-year warranty.

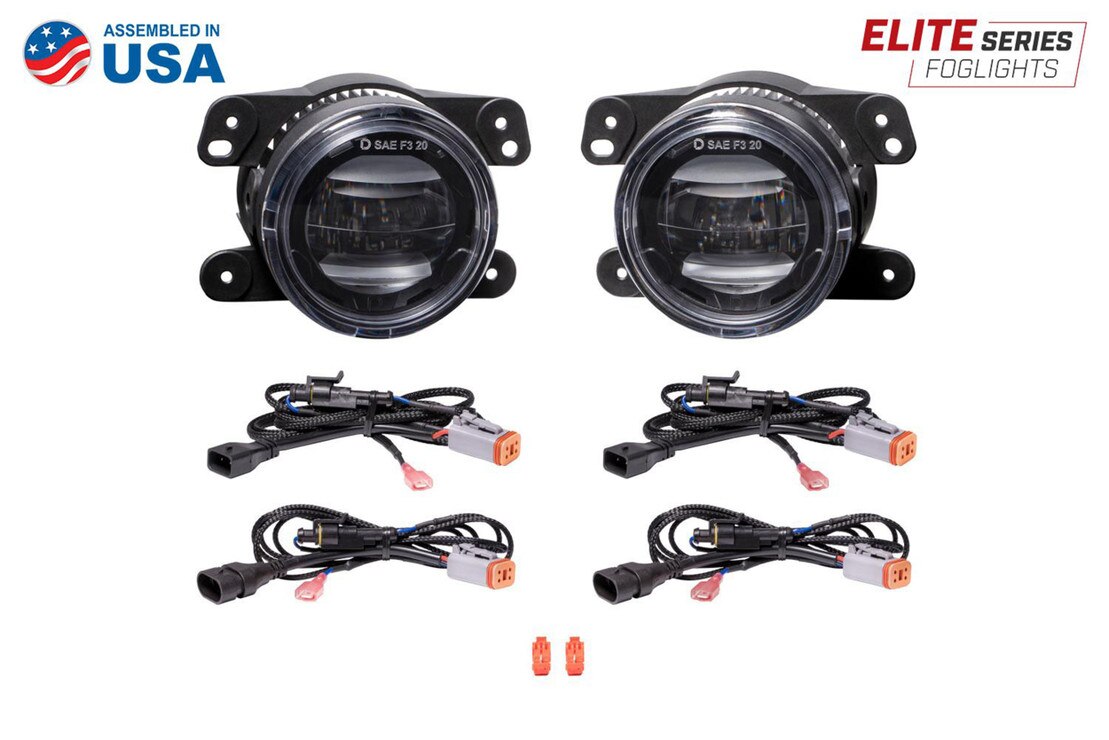

WHAT’S INCLUDED

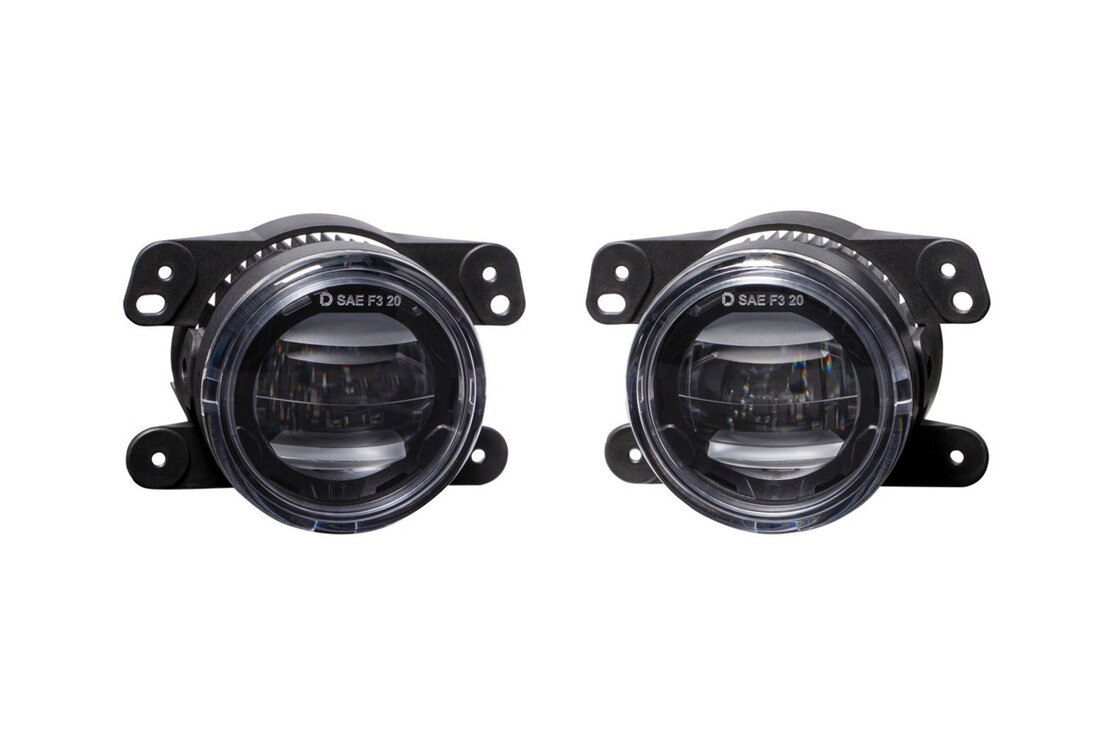

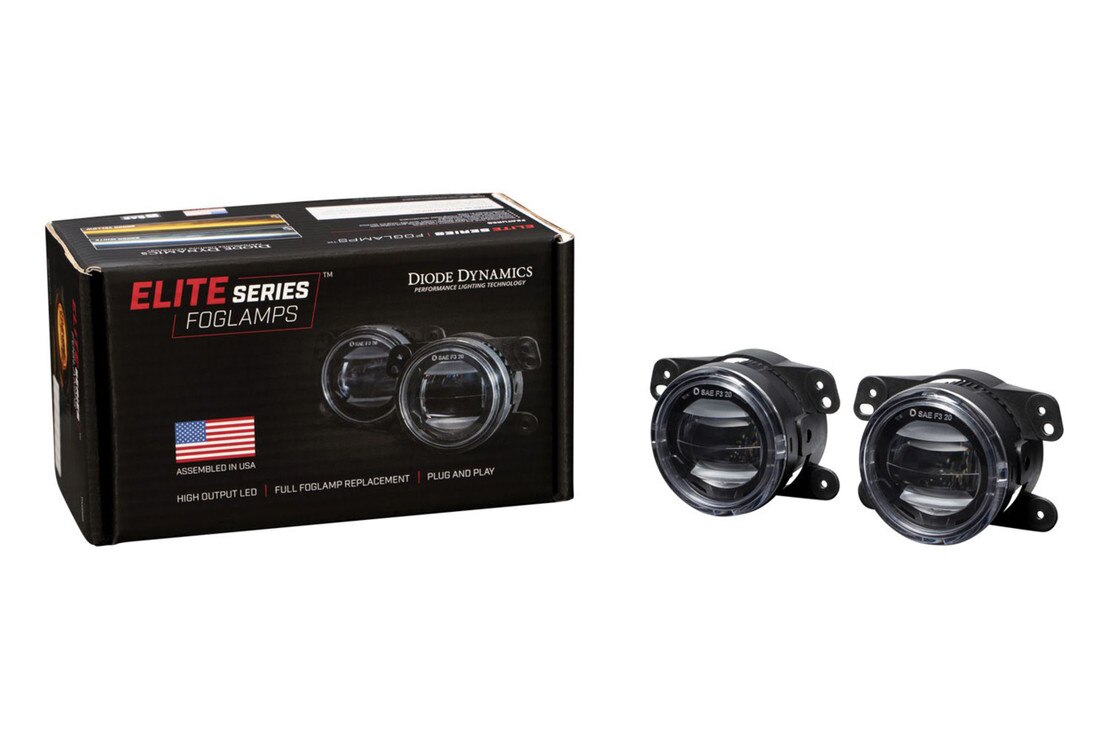

  • Fog Lights : 2x (One Pair) Elite Series Type M Fog Lights

  • Wiring : 2x (One Pair) Plug-n-Play 9005/9006 4-pin DT Backlight Tap Wires / 5202 4-pin DT Backlight Tap Wires (2x T-taps included)

WARRANTY INFORMATION

This product is covered by a 3 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

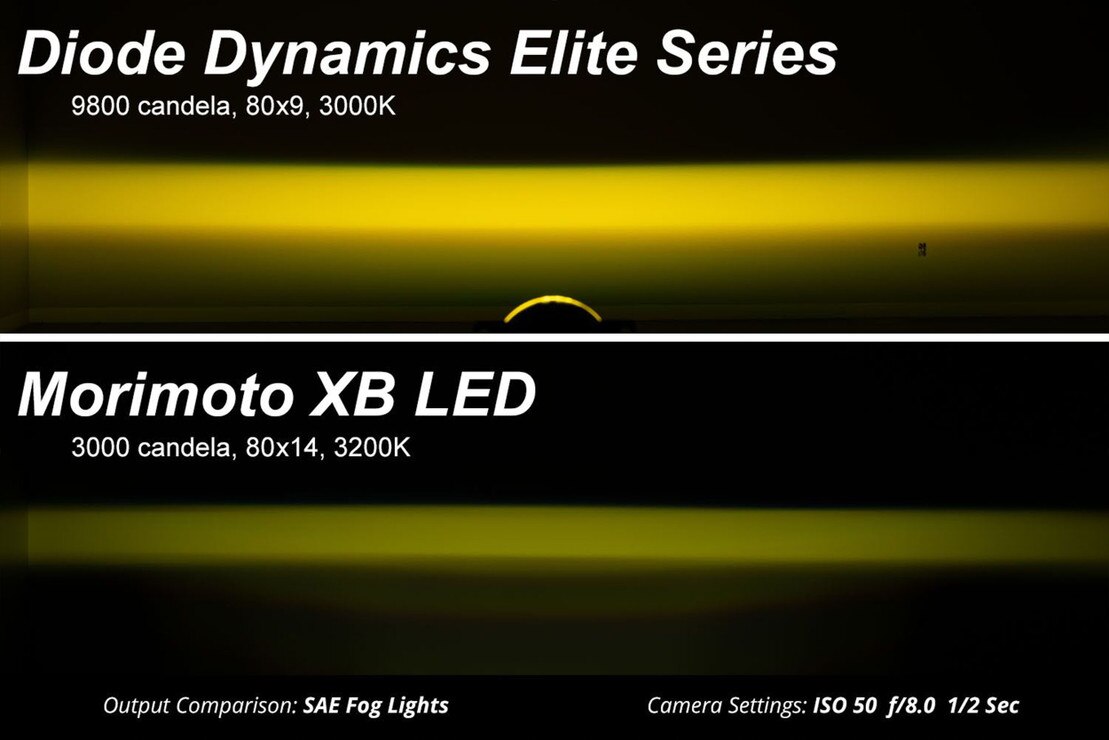

  • Intensity : 1,850 lm / 10,200 cd (White), 1,650 lm / 8,700 cd (Yellow)

  • Color Temp : 6000K (White), 3000K (Yellow)

  • Power : Main Beam White: 17w, Main Beam Yellow: 15w, Backlight: 0.3w

  • Input Voltage : 9-16v

  • Current : Main Beam White: 1.3A, Main Beam Yellow: 1.2A, Backlight: 0.025A

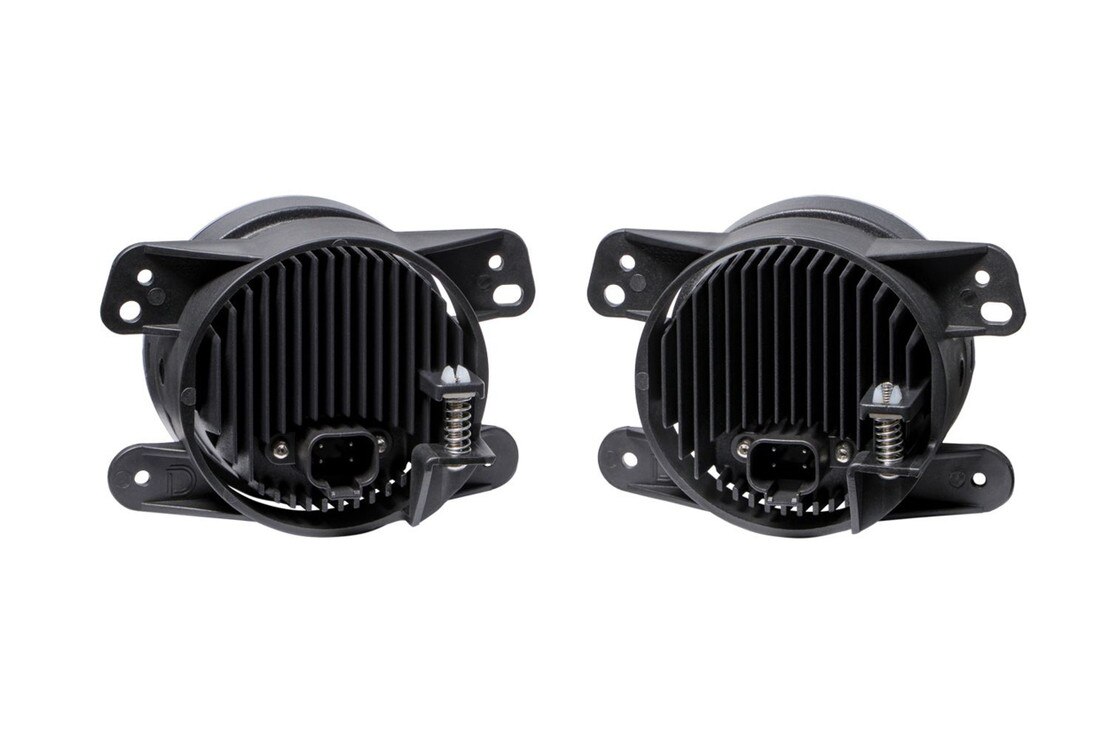

  • Input : Deutsch DT Input (Polarity Specific)

  • Material : Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting

  • Compliance : SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern

  • IP Rating : IP68 Waterproof

COMPATIBILITY

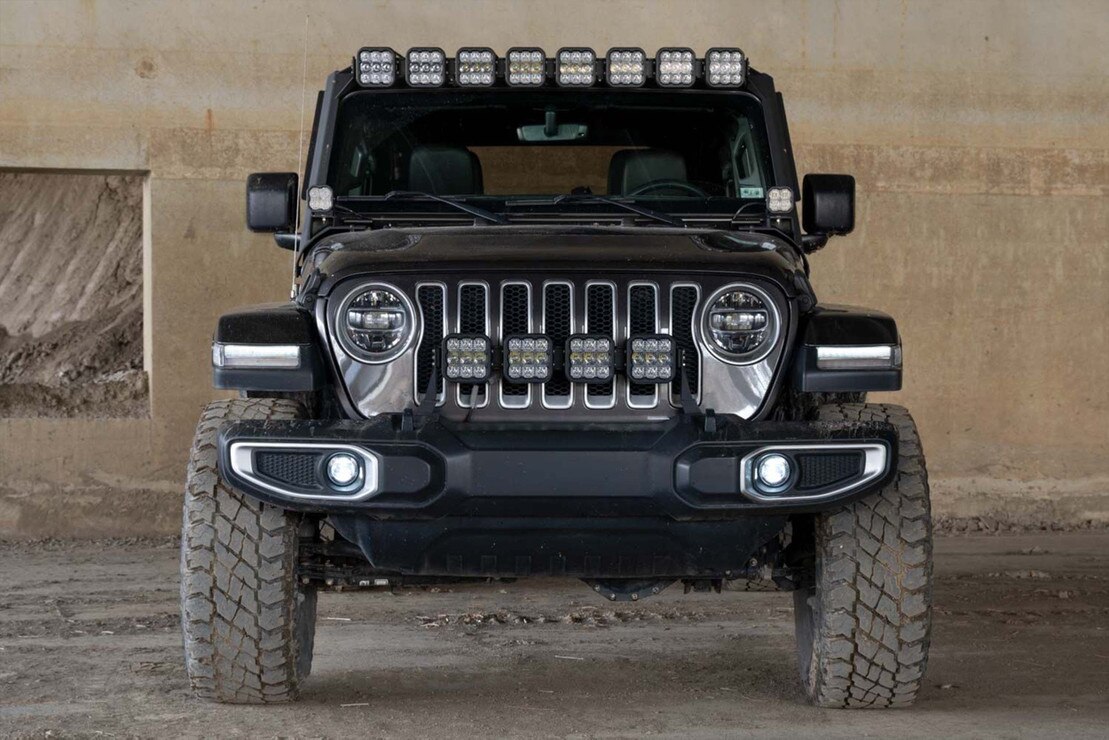

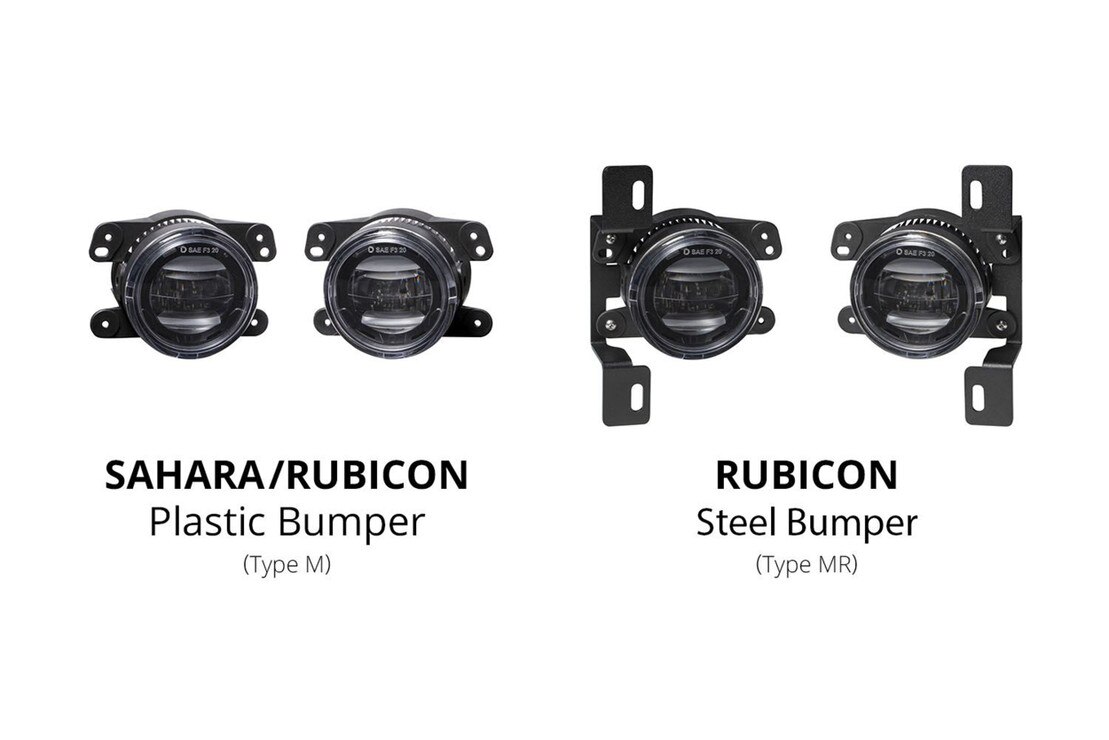

  • Jeep Gladiator JT : 2020-2022 (Fits Plastic Bumper Only)

  • Steel Bumper Version : Can be found at this Link

  • NOTE : This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.
