DESCRIPTION
FEATURES & BENEFITS
- Powerful Illumination: Up to 4300 lumens in high beam mode for exceptional brightness.
- Original Design: Unique and all-new, standing out in the market.
- Durable Build: Die-cast housings double as heat sinks for longevity.
- Wide Compatibility: Fits 4x6" headlights and classic cars/trucks.
- Precision Optics: Kuria Optic projector lens ensures a precise beam pattern in low beam mode.
WHAT’S INCLUDED
Headlight : 1x Sealed4 Bi-LED Headlight

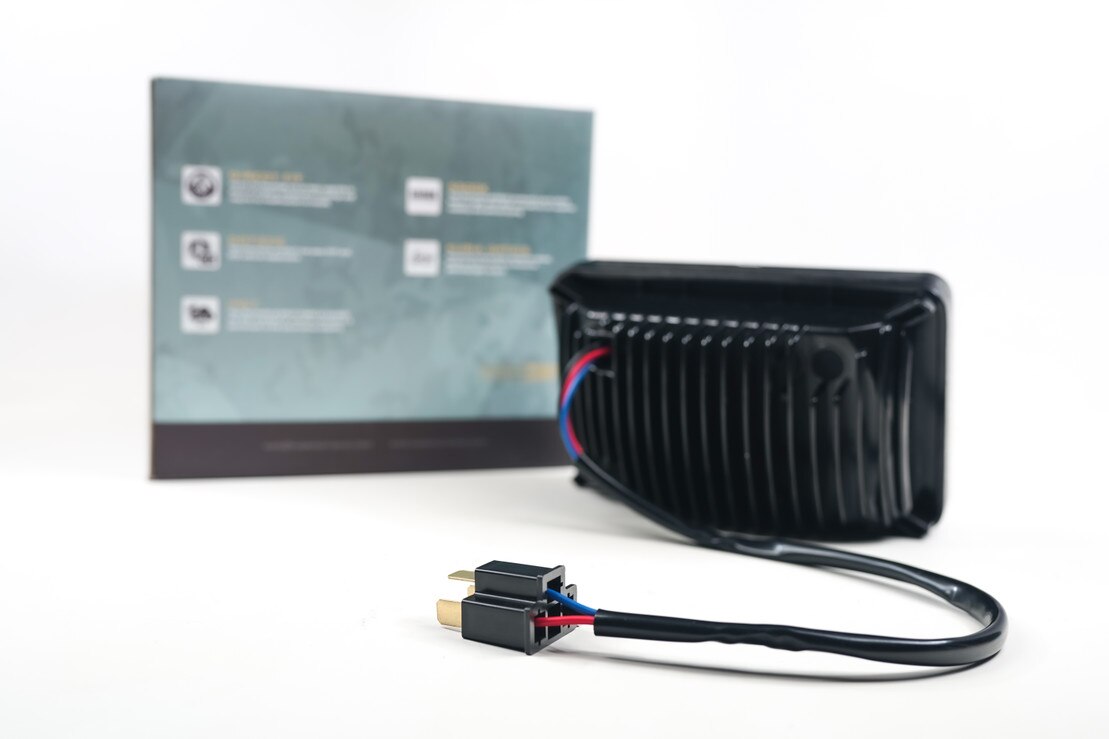

Wiring : H4 Male Input
WARRANTY INFORMATION
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.
TECHNICAL SPECIFICATIONS
Intensity : 2,400lm (Low), 4,300lm (High)
Power : 20w (Low), 35w (High)
Input : H4
Traffic Pattern : LHD Only
Material : Aluminum (Housing), Polycarbonate (Lens)
Light Source : Nichia NCSW170C 5000K (Pure White)

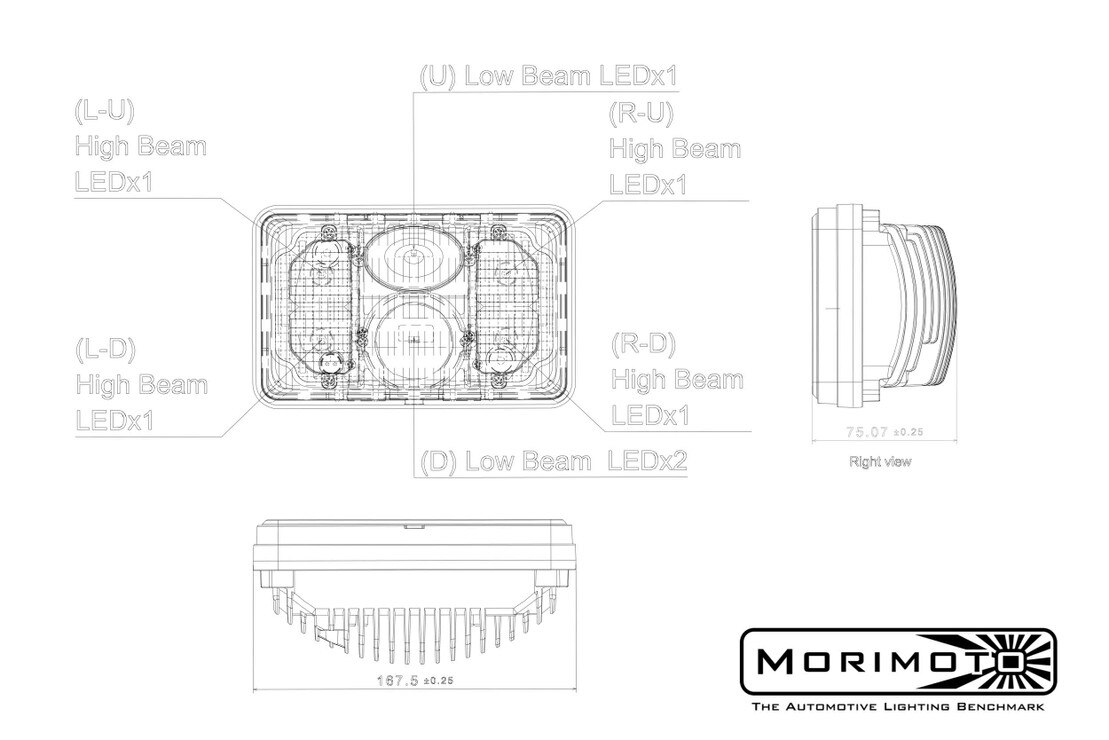

LINE DRAWINGS
COMPATIBILITY
Sealed Beam Standards : H4651, H4652, H4656, H4666, HP6545, HP4651, HP4656, HP4666
Input Wiring : H4 3-pin (low/high/ground)
Buick Century : 1976-1988
Buick Electra : 1976-1990
Buick Estate Wagon : 1977-1983
Buick LeSabre : 1977-1986
Buick Regal : 1982-1987
Buick Riviera : 1977-1985
Buick Skyhawk : 1977-1988
Buick Skylark : 1986-1988
Chevrolet Astra : 2001
Chevrolet Aveo : 2013
Chevrolet Blazer : 1987-1997
Chevrolet C10 : 1980-1986
Chevrolet C10 Suburban : 1980-1986
Chevrolet C20 : 1980-1987
Chevrolet C20 Suburban : 1980-1986
Chevrolet C2500 : 1988-1989
Chevrolet C3500 : 1988-1989
Chevrolet C4500 Kodiak : 2003-2009
Chevrolet C5500 Kodiak : 1990-2009
Chevrolet Camaro : 1982-1992
Chevrolet Caprice : 1976-1986
Chevrolet Cavalier : 1982-1987
Chevrolet Celebrity : 1982-1985
Chevrolet Chevelle : 1976-1977
Chevrolet El Camino : 1976-1987
Chevrolet Impala : 1977-1985
Chevrolet K10 : 1981-1986
Chevrolet K10 Suburban : 1980-1986
Chevrolet K20 : 1980-1986
Chevrolet K20 Suburban : 1980-1986
Chevrolet K2500 : 1988-1989
Chevrolet K30 : 1981-1986
Chevrolet K3500 : 1988-1989
Chevrolet K5 Blazer : 1980-1986
Chevrolet Monte Carlo : 1976-1988
Chevrolet Monza : 1975-1980
Chevrolet Nova : 1985-1988
Chevrolet R10 : 1987
Chevrolet R10 Suburban : 1987-1988
Chevrolet R20 : 1987-1988
Chevrolet R20 Suburban : 1987-1988
Chevrolet R2500 : 1989
Chevrolet R2500 Suburban : 1989-1991
Chevrolet R30 : 1987-1988
Chevrolet R3500 : 1989-1991
Chevrolet S10 : 1992-1997
Chevrolet Suburban : 1987-1992
Chevrolet T6500 : 1997-2009
Chevrolet T7500 : 1997-2009
Chevrolet T8500 : 2004-2009
Chevrolet V10 : 1987
Chevrolet V10 Suburban : 1987-1988
Chevrolet V20 : 1987
Chevrolet V20 Suburban : 1987-1988
Chevrolet V30 : 1987-1988
Dodge Caravan : 1989-1991
Dodge Charger : 1978-1987
Dodge Stealth : 1992-1993
Ford Mustang : 1979-1997
Freightliner Classic : 2002-2010
Freightliner FLD112 : 1991-2006
Freightliner FLD120 : 1988-2011
GMC Caballero : 1982-1987
GMC Jimmy : 1982-1996
GMC Sonoma : 1991-1997
Kenworth T400 : 1989-2018
Kenworth T600A : 1986-2007
Kenworth T800 : 1987-2018
Kenworth W900 : 1985-2019
Lincoln Town Car : 1982-1988
Oldsmobile 98 : 1977-1989
Oldsmobile Calais : 1985-1987
Oldsmobile Cutlass Calais : 1980-1991
Oldsmobile Cutlass Ciera : 1982-1996
Oldsmobile Cutlass Cruiser : 1980-1994
Oldsmobile Cutlass Salon : 1980-1986
Oldsmobile Cutlass Supreme : 1976-1988
Oldsmobile Delta 88 : 1977-1991
Peterbilt 357 : 1988-2008
Peterbilt 378 : 1989-2007
Peterbilt 379 : 1986-2007
Pontiac Firebird : 1977-1981
Pontiac Grand Prix : 1976-1987
Interchange Part Number : 4pcs 4x6 Glass LED Headlights, 4x6 inch LED headlight, 4x6 headlight housing + H4 LED headlight, H4656, H4666, H4651, H6545, H4652
Manufacturer Part Number : 1002-W-XC-4PCS, 2PC Black 4x6 LED Headlights, 4pcs 4x6 Glass LED Headlights, 4x6 inch Rectangular LED Headlight, 5D 4x6 inch headlight, Pair 4x6 LED Headlights Hi-Lo Beams, Teammade744
OE/OEM Part Number : 1994-1997 S10 Headlight, 4x6 LED headlights, HHH-2509FGHJSZBS, HHH-4SBHG2SDHGTG, HHH01310189XXCFR
Superseded Part Number : HHH-2509FGHJSZBS
Just when you think: You've done your research and come across every last option in the 4x6" Sealed Beam LED market, these should catch your attention. While it's true there's only so many ways you can package a set of low and high beam LED-based optics into a small rectangular headlight; Morimoto's Sealed4 pulls it off in the most functional and attractive setup possible
Proprietary: The Morimoto Sealed4 is all-new, all-original from the ground up. Until now, there were basically three distinct products on the market. You have the high-end J.W. Speaker 8800 at the top of the totem poll. Then there are the cheap J.W. Speaker knock-offs, re-branded by companies A,B, and C...and last but not least you have the options like the Truck-Lite reflector-based 4x6" lights...again, re-branded by company X,Y, and Z. The Morimoto Sealed4 LED headlights are unlike anything else on the market.

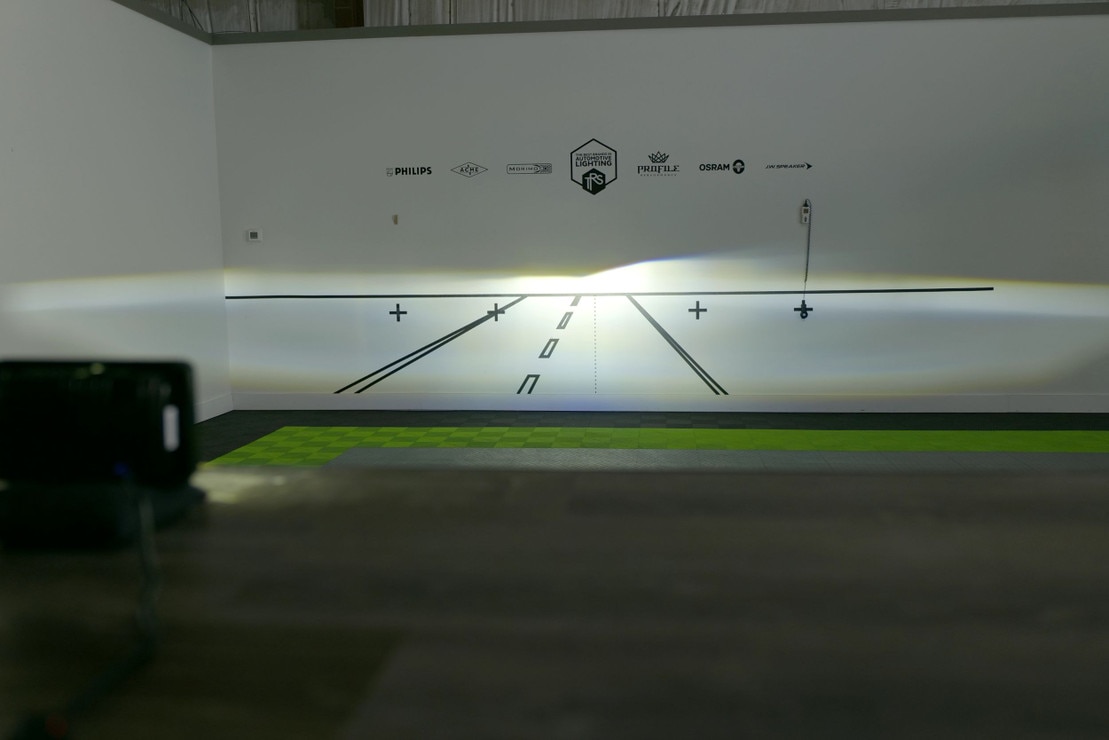

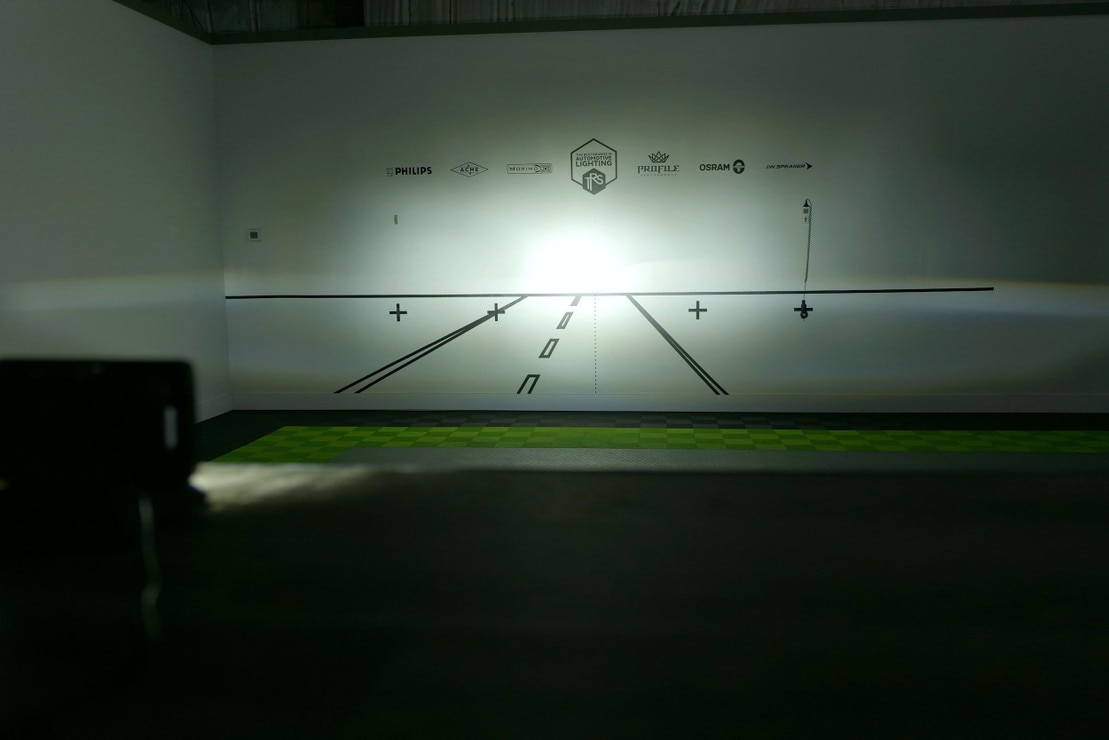

Output: In low beam mode, Nichia NCSW170C Series LED's paired with Morimoto's advanced Kuria Optic projector lens array efficiently distributes 2400 lumens on the road in a properly LHD-stepped beam pattern. In high beam mode, the Sealed4 illuminates an extra set of optics, upping the overall output to 4300 mosquito-melting lumens there.
Quality: No expense was spared when designing the Sealed4. The heart of the headlight is powered with high quality LEDs from Nichia-Japan. These aren't cheap emitters to begin with. Your classic car has already withstood the test of time and the UV-coated polycarbonate lens will take a another couple decades worth of abuse without fading. You can feel the precision in the heavy-duty die-cast housings that double as a heat-sink. A special PWM LED driver resides inside of the headlight to keep the LED's running at their peak intensity, even during prolonged periods of use.
4x6" Standard: Designed to replace all 4x6" rectangular headlights, these are cross compatible with other sizes, found in the compatibility section below. The Sealed4 offers full low and high beam functionality. They come standard with H4 3-pin male inputs and should be plug and play on most classic cars / trucks.
