Ford Super Duty (20-22) SS3 Fog Lights

(0) No Reviews yet
Questions?

Brand: Diode Dynamics

3P-DD154-TRS

$639.95

PRODUCT OPTIONS

PART #: 1 x DD7576



*Guaranteed Fitment

DESCRIPTION

Overview. The Stage Series Fog Pocket Kit compatible with Ford, Super Duty F250/F350/F450/F550 2020-2022 from Diode Dynamics allows you to mount four SS3 LED Pods in the factory bumper openings. This kit adds some serious functionality to your Bronco with both road-legal fog lights and powerful offroad lighting. This kit includes application-specific brackets that were CAD-designed to install using factory mounting points. No cutting or drilling required! Lighting for Every Situation. This kit includes two SS3 LED Pods in the SAE-compliant fog beam pattern and two SS3 LED pods in the combo beam pattern. This combination gives you different options whether you are on or offroad. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. Independent Control.With the included harness and adapters, the two SS3 Fog pods and two SS3 offroad pods in this kit can be controlled independently, allowing you to switch between road-legal fog lights and offroad lights with ease. The included H10-size or Molex adapters connect the SS3 fog pods to your factory halogen or LED fog light connecter, while the off-road lights in this kit are controlled with either the included 3-way toggle switch, or a factory-installed aux switch.

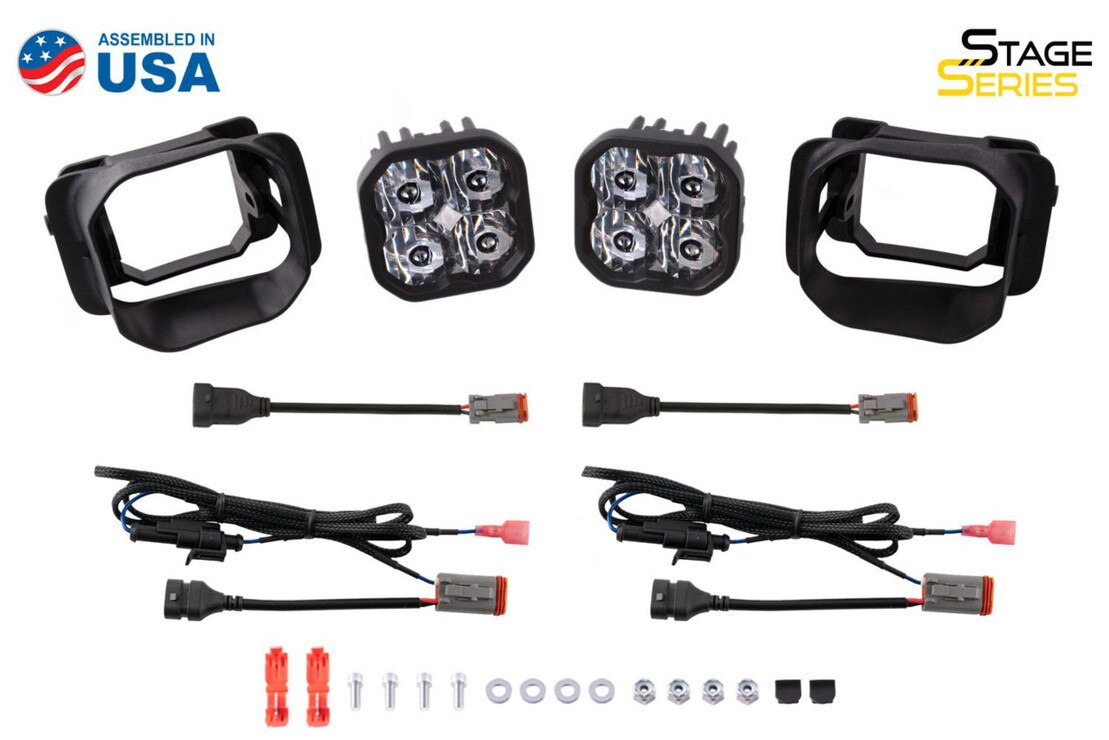

WHAT’S INCLUDED

  • Brackets : Two (2) Ford Super Duty fog pocket brackets

  • Pods : Four (4) As Selected

  • Wiring : One (1) Dual Fog Pocket Backlight Splitter, One (1) Heavy Duty Dual Output Wiring Harness, One (1) 9006 Backlight Tap Wire Kit

  • Hardware : Mounting Hardware and Guide

WARRANTY INFORMATION

This product is covered by a 8 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

COMPATIBILITY

  • Ford Super Duty : 2020-2022

COMPLIANCE

Designed in accordance with SAE Standards

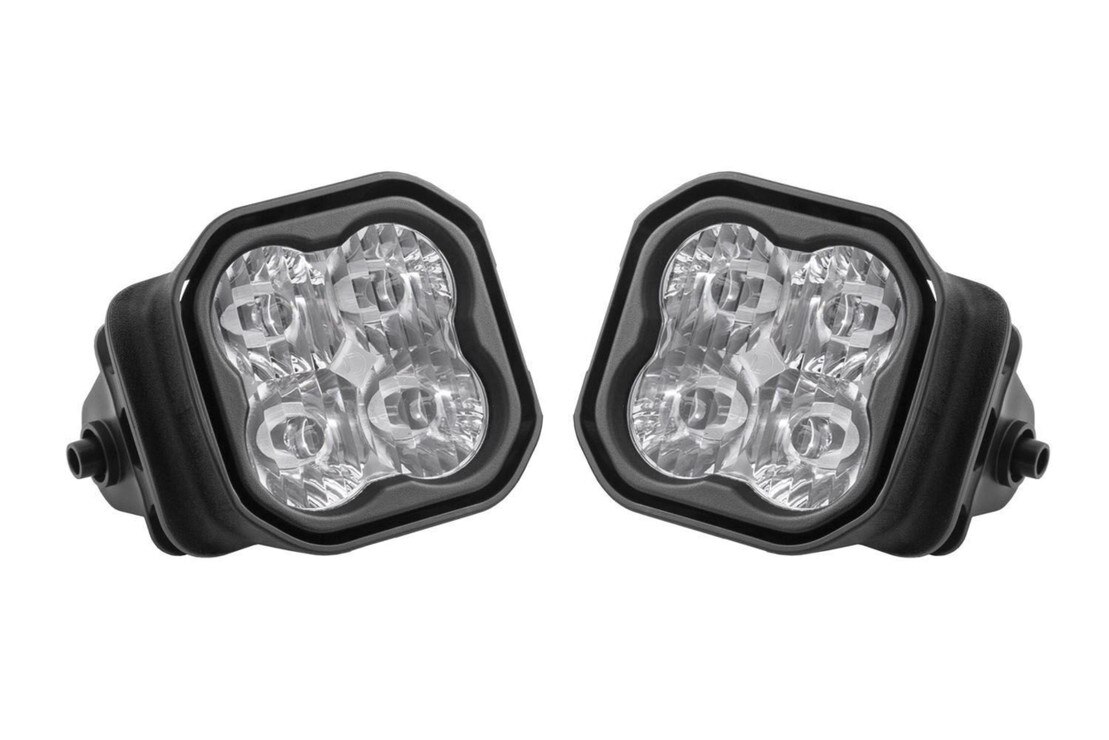

Upgrade the fog lights on your vehicle with our SS3 Fog Light Bracket Kit! Featuring higher output intensity than any other 3in light on the market these LED pods have been designed for maximum functionality with custom-engineered TIR optics shining in highly useful beam patterns all in a durable package. With the included round bezel the SS3 Fog Kit has a clean factory-style appearance only much brighter!

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the SS3 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.

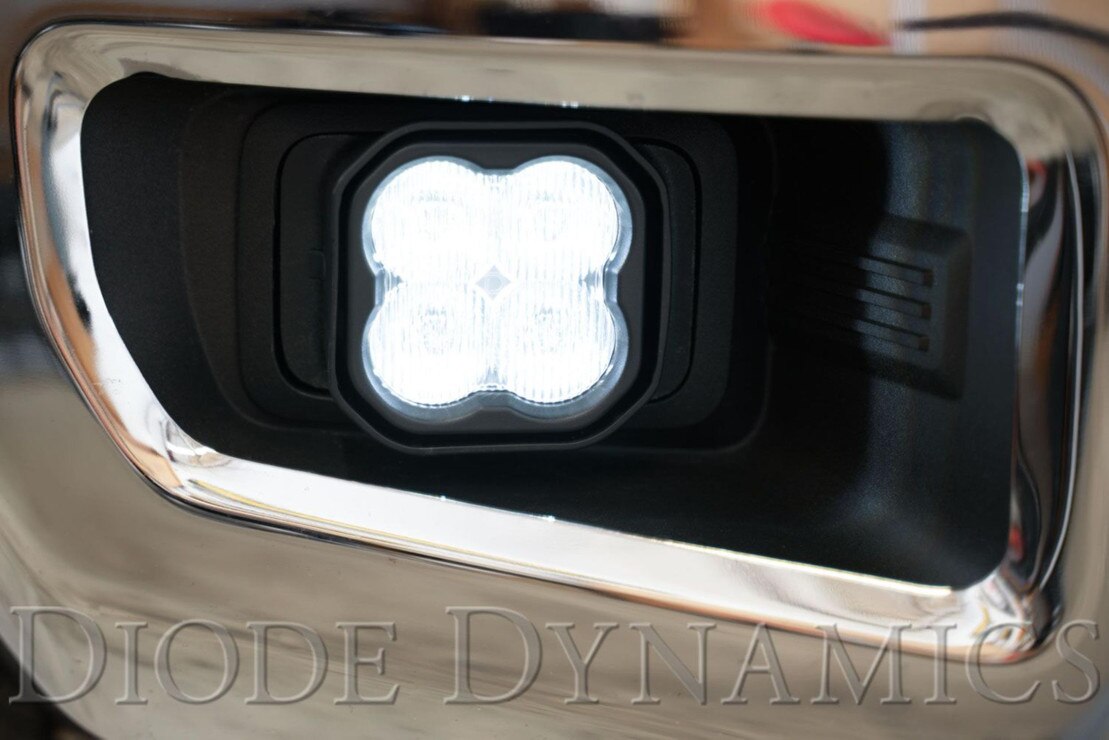

Plug and Play. Thanks to custom-molded brackets the SS3 Fog Light Bracket Kit can be installed on your vehicle in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! Wire adapters are included to connect the lights to your factory bulb sockets - no additional wiring needed!

SAE Compliant. When installed as a pair and aimed in accordance with your state's regulations the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light and the Fog pattern meets SAE J583 standard as a Foglamp for legal on-road use.
