DESCRIPTION
FEATURES & BENEFITS
- Improved Visibility: 33% more light in low beam, 100% more in high beam for better driving safety.

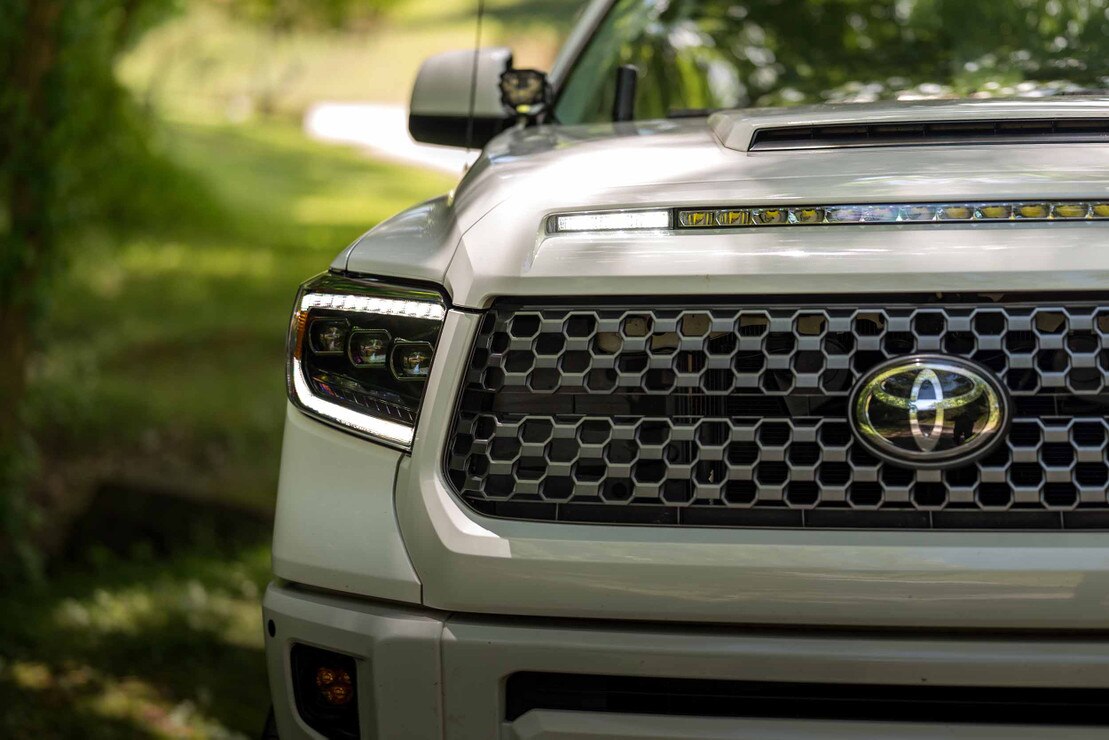

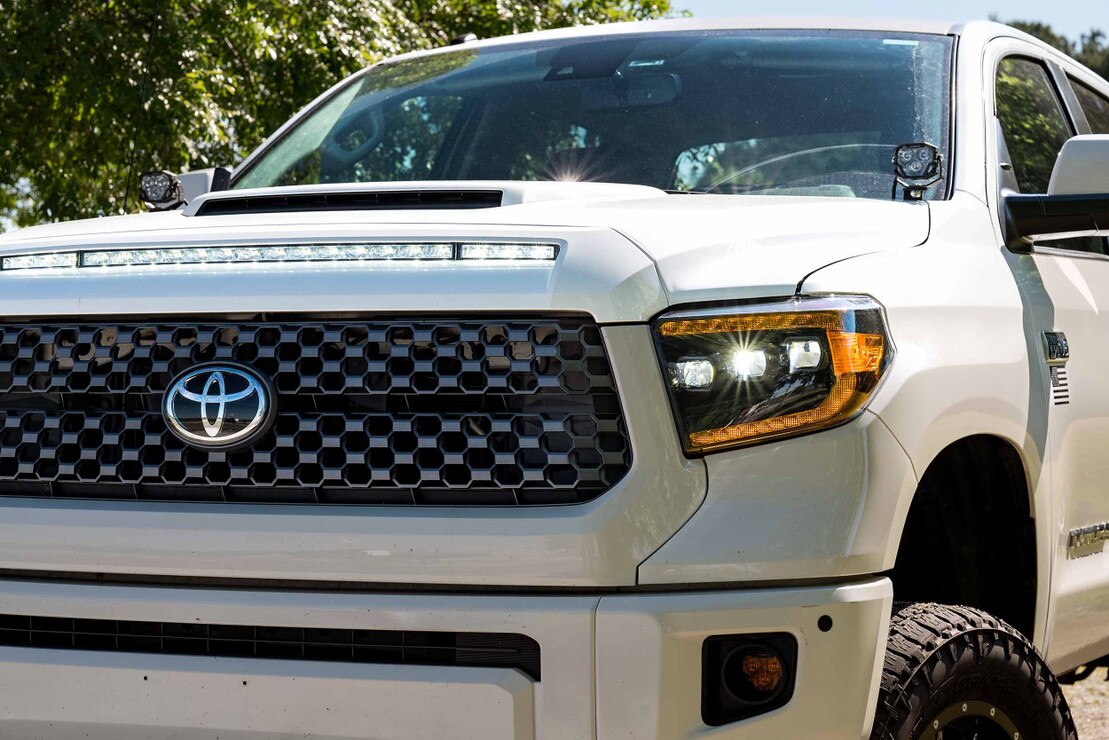

- Customizable DRLs: Choose between white or all-amber Sequential LED DRLs powered by Osram LEDs.
- Easy Installation: Plug-and-play design with no modifications required, preserving your factory warranty.

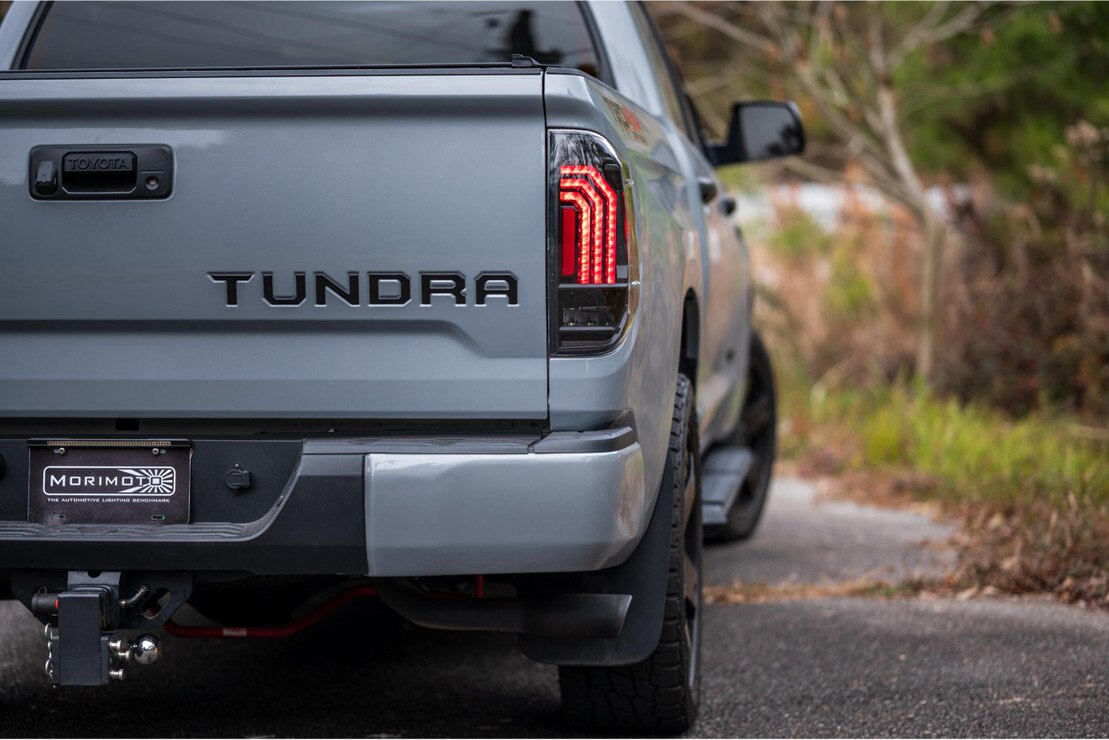

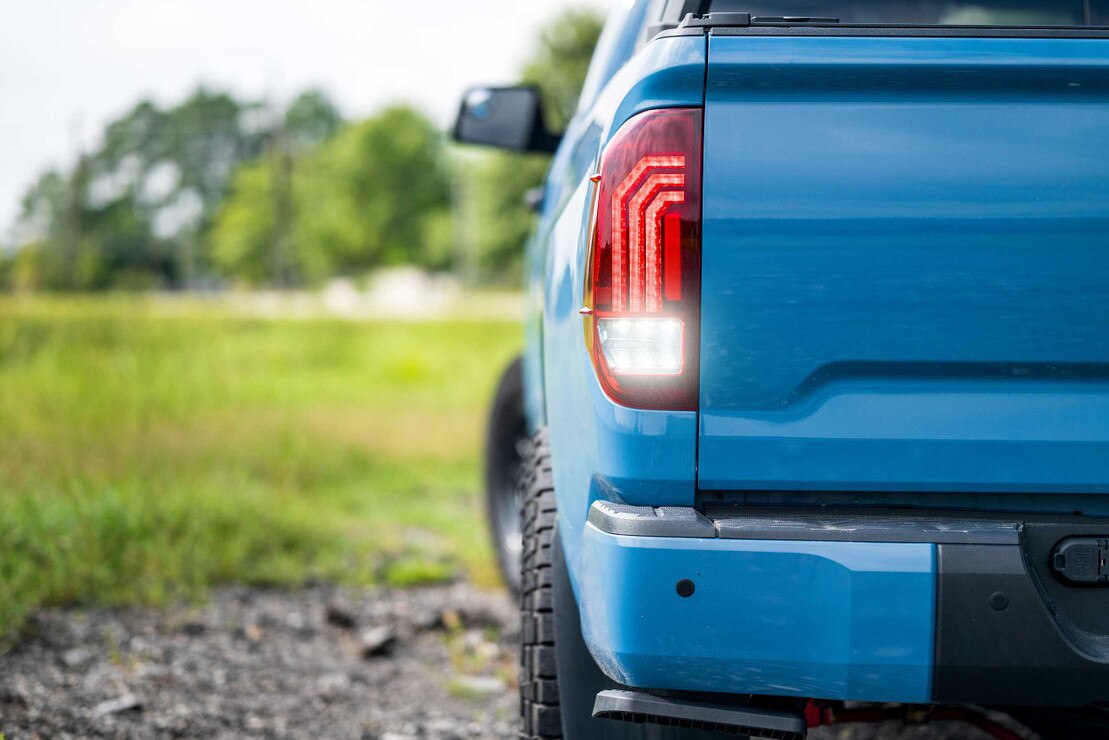

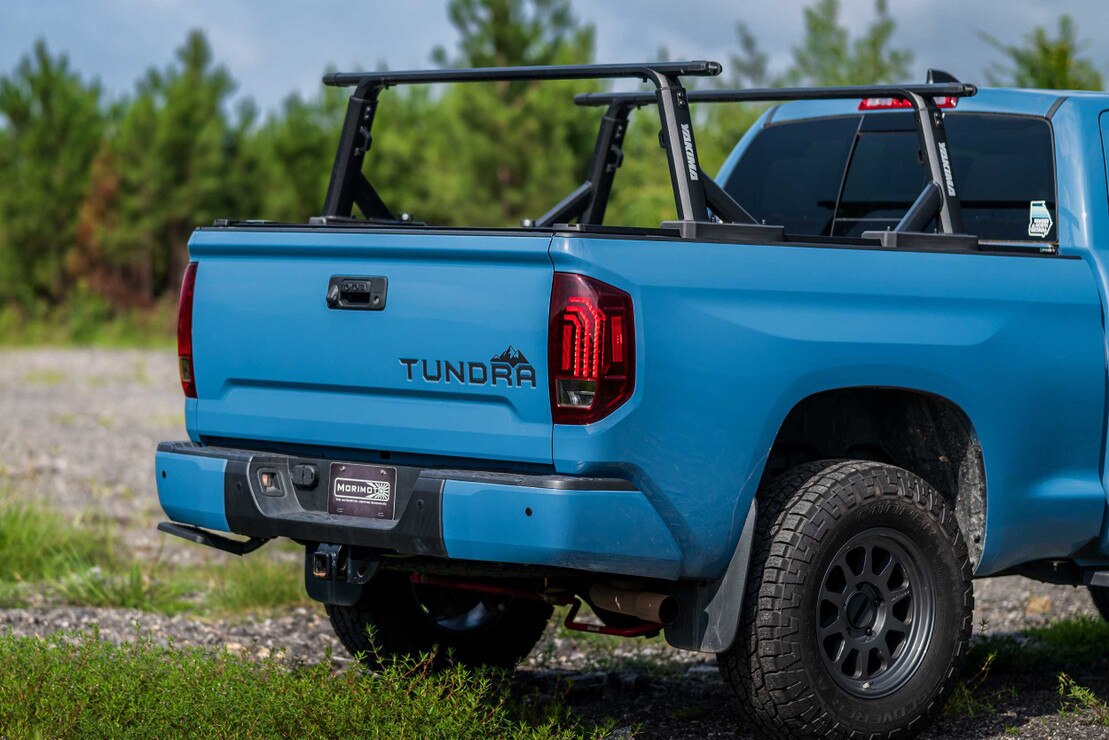

- Stylish Taillights: Illuminated light blades and customizable amber LED turn signals with bright reverse lights.
- Durable Build: UV-coated lenses, die-cast aluminum heat sinks, and tough plastic housings for long-lasting performance.

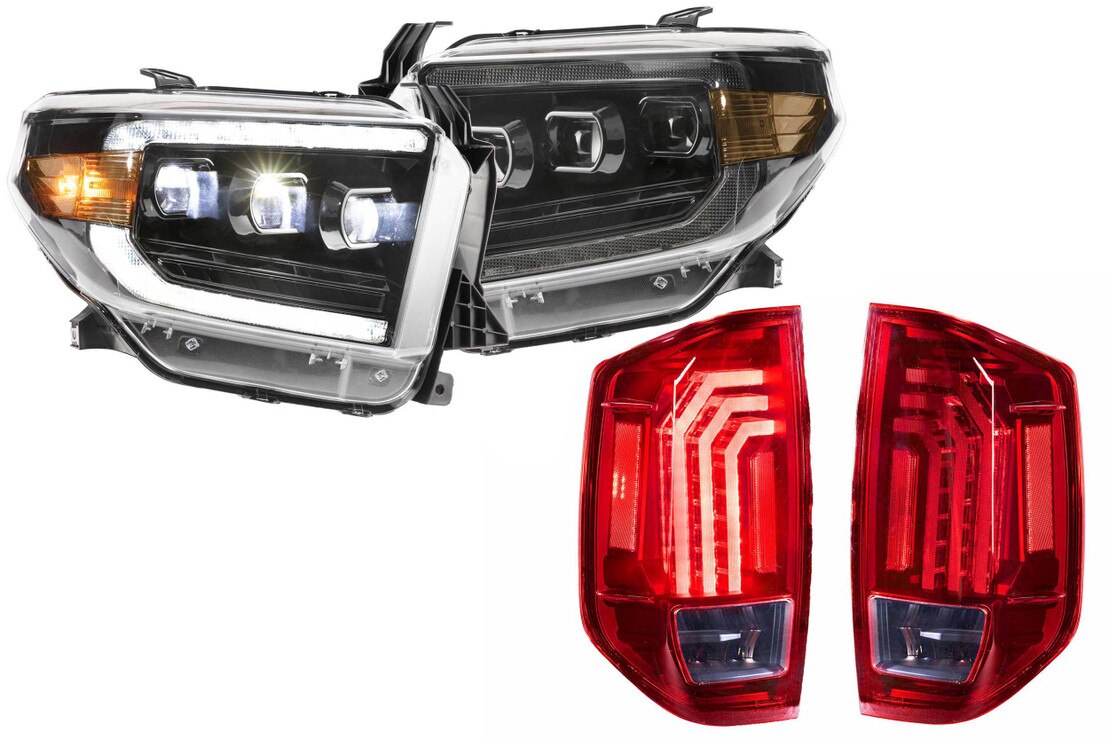

WHAT’S INCLUDED
Headlight Choices :
Morimoto XB Evo LED Headlights: 14-21 Toyota Tundra (Selectable White / Amber DRL) Click for Details
Morimoto XB Evo Hybrid LED Headlights: 14-21 Toyota Tundra (White DRL) Click for Details

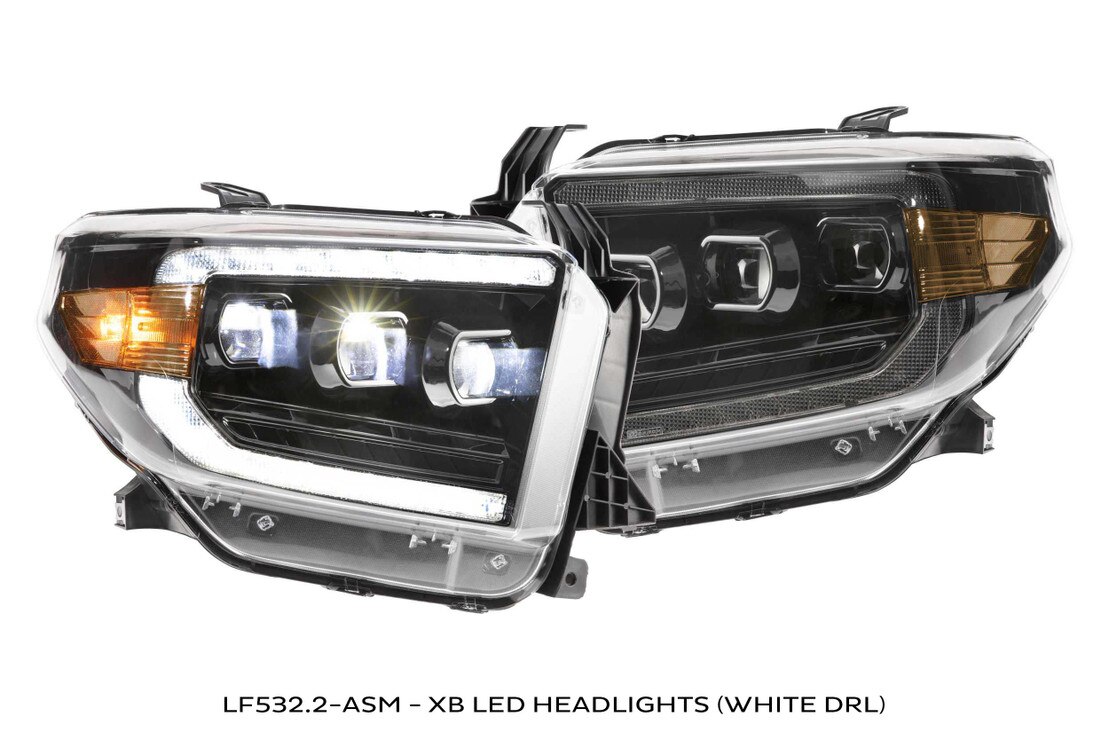

Morimoto XB LED Headlights: 14-21 Toyota Tundra (White DRL) Click for Details

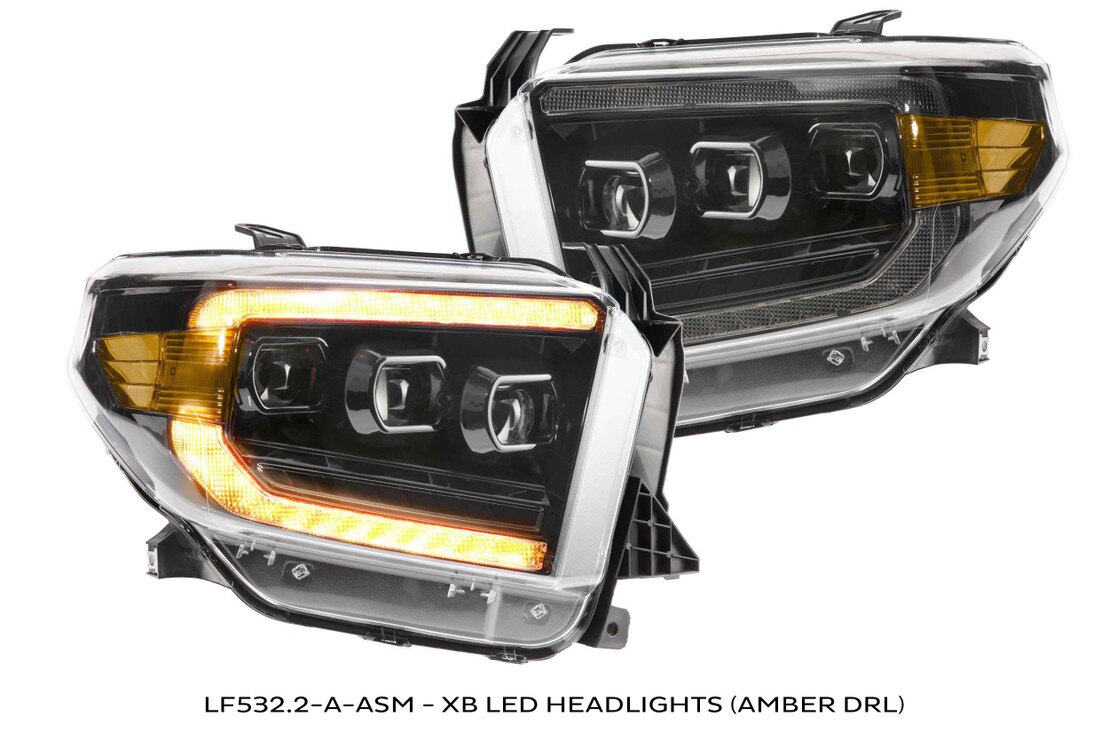

Morimoto XB LED Headlights: 14-21 Toyota Tundra (Amber DRL) Click for DetailsTail Light Choices :

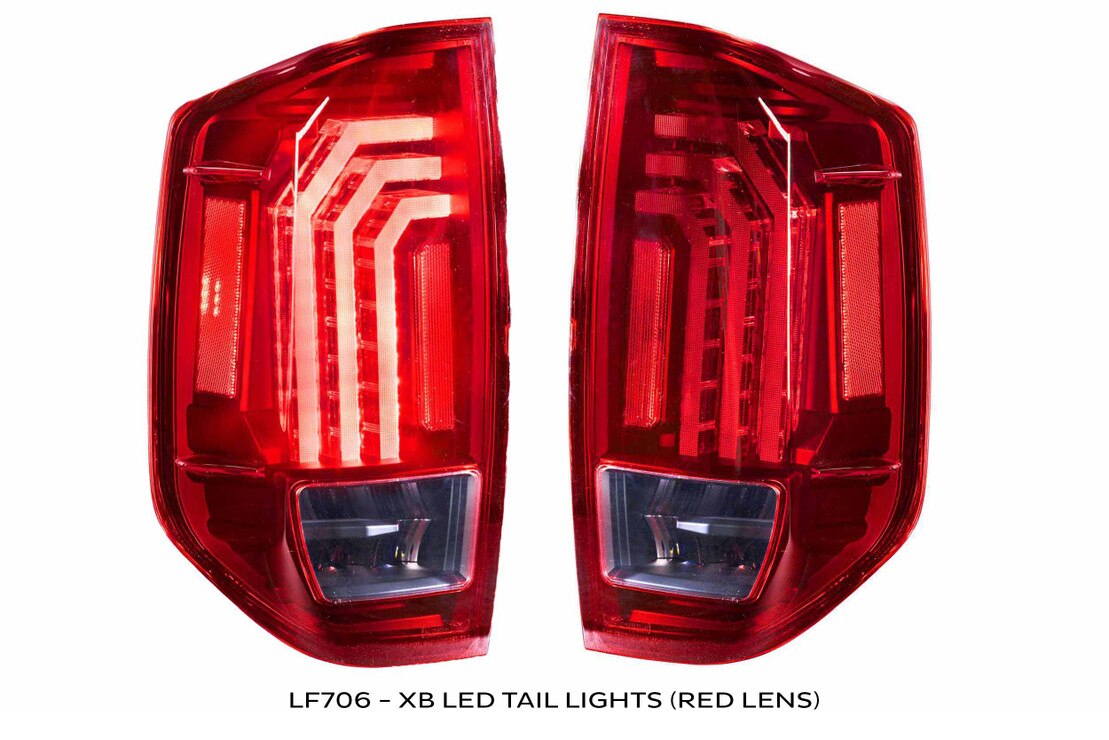

Morimoto XB LED Tail Lights: 14-21 Toyota Tundra (Red Lens) Click for Details

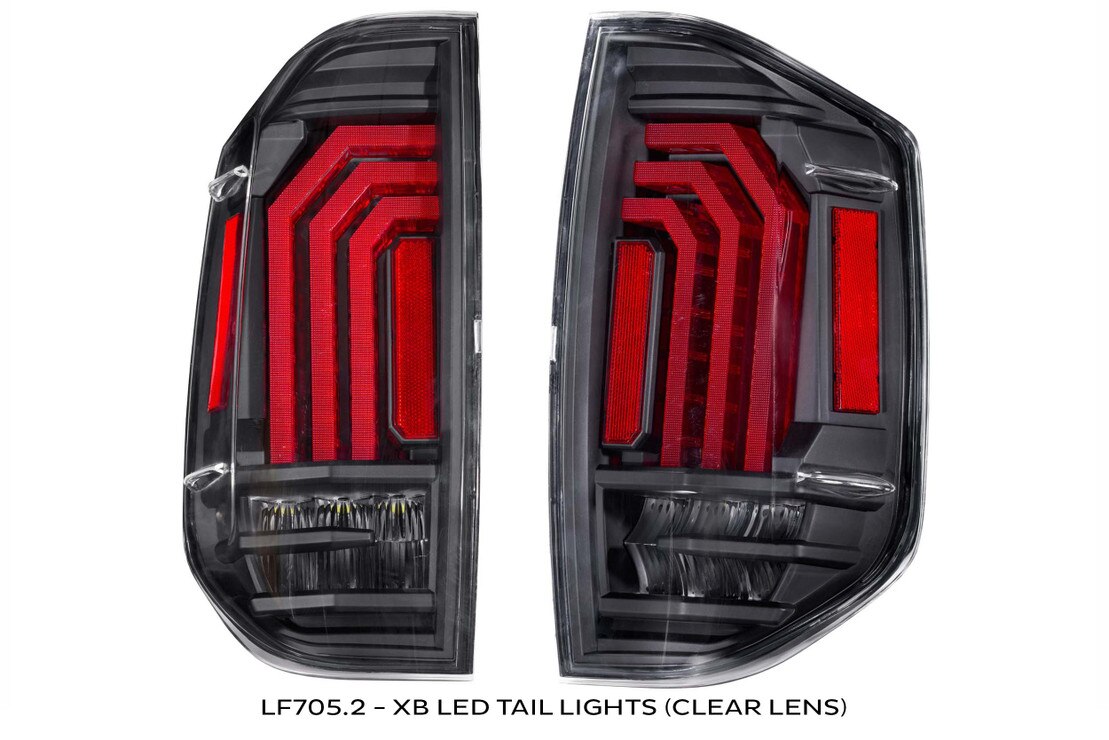

Morimoto XB LED Tail Lights: 14-21 Toyota Tundra (Clear Lens) Click for Details
WARRANTY INFORMATION
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.
TECHNICAL SPECIFICATIONS
XB Evo Headlights (LF2-532) :
Traffic Pattern : LHD / Right Hand Traffic Only (US/CA Standard)
Output (Standard Drivers) : DOT (FMVSS108) Compliant (LB2V and UB2)
Output (Supercharged Drivers) : Off-Road use only
Main Optics : 1x Type 1 Ishida Optic Bi-LED, 1x Low-Beam Reflector Assist, 1x High-Beam Reflector Assist
Functions : Low, High, Park, Turn, DRL, Welcome, and Lens Heating
Turn Signal Modes : Sequential or Fade Off (Configurable)
DRL Colors : White or Amber (Configurable)
Frost-Free System : Logic-controlled 50w ceramic w/ circulation fans
Internal Finish : Two-Tone Piano Black and Titanium w/ contrasting textures
Side marker : Amber side reflex reflector (DOT compliant)
Lens Details : Polycarbonate with proprietary anti-UV hard coating
XB Evo Hybrid Headlights (LF2-532Y) :
Traffic Pattern : LHD / Right Hand Traffic Only (US/CA Standard)
Output (Standard Drivers) : DOT (FMVSS108) Compliant (LB2V and UB2)
Output (Supercharged Drivers) : Off-Road use only
Main Optics : 1x Type 1 Ishida Optic Bi-LED, Low-Beam Reflector Assist, High-Beam Reflector Assist
Functions : Low, High, Park, Turn, and DRL
Turn Signal Mode : Fade-Off Only
DRL Color : White Only
Internal Finish : Piano Black
Side marker : Amber side reflex reflector (DOT compliant)
Lens Details : Polycarbonate with proprietary anti-UV hard coating
Headlights :
Traffic Pattern : LHD Only
Input : Toyota Multi-Pin OEM
Functions : DRL (White or Amber), Turn, Parking, Low, High
Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Optic : Kuria Optic Bi-LED
UV Coating : Momentive UVHC3000
Tail Lights :
Input : Toyota Multi-Pin OEM
Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Light Source : SSC LED
Brake Light : Red (Bright)
Parking Light : Red (Dim)
Turn Signal : Amber
COMPATIBILITY
Toyota Tundra : 2014-2021
XB Evo / XB Evo Hybrid Headlights : Compatible with 2014-2021 North American Toyota Tundra
Motorized Adjusters : Retains OE-style motorized adjusters
XB Evo Family Replaces OE Toyota Part # : 81150-0C211, 81150-0C140, 81150-0C130, 81110-0C211, 81110-0C140, 81110-0C130, 81110-0C210, 81150-0C210
Optional Supercharged Drivers : LF2-DRVSC10 fits LF2-532 and LF2-532Y (off-road use only)

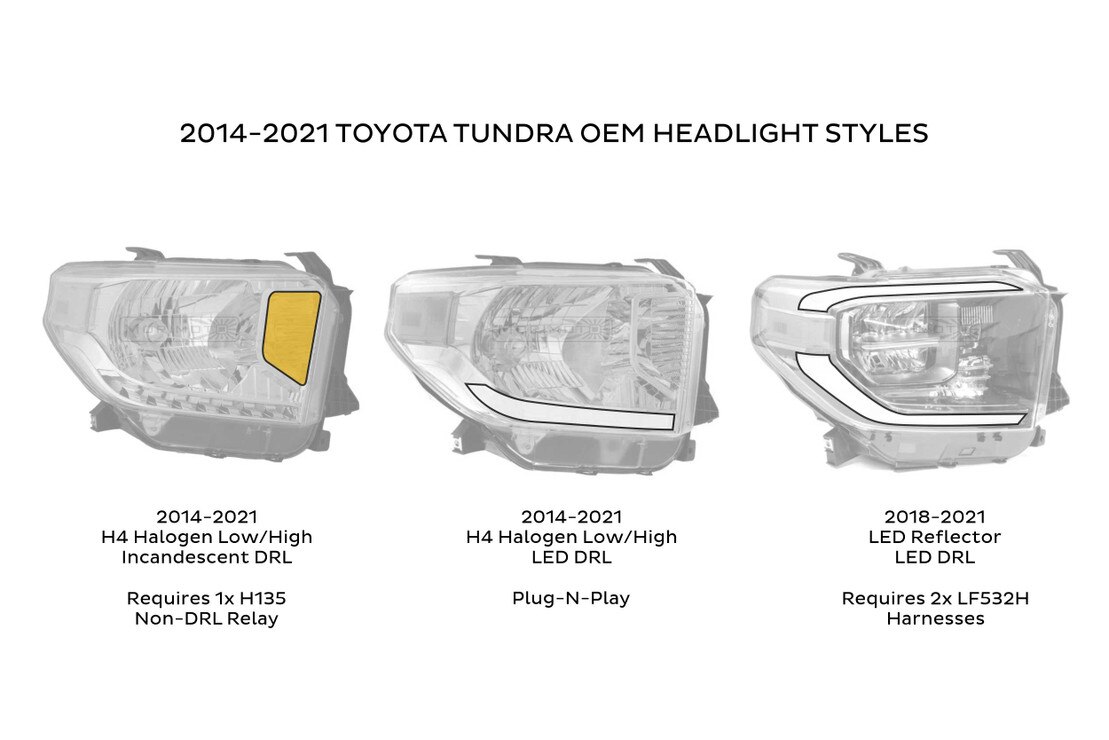

Legacy XB Headlights : Trucks without LED DRL require the optional Non-DRL Relay; trucks with OEM LED headlights require the applicable OEM LED adapters
Legacy XB Replaces Toyota Part # : 811100C091, TO2503219, 811500C091, TO2502219, 811100C081, 811500C111
Tail Lights : Compatible with 2014-2021 Toyota Tundra
NOTE : These products were developed for North American / US-spec vehicles. Compatibility outside North America may vary and is not guaranteed.
