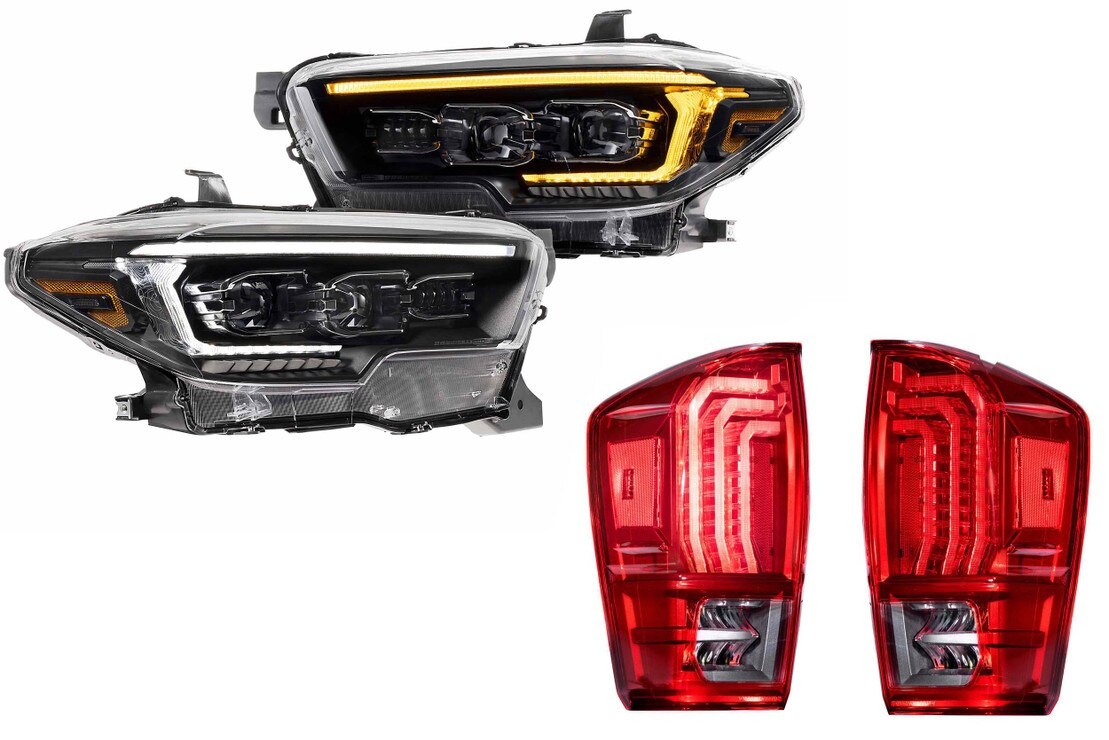

Toyota Tacoma (16-23) Headlight & Tail Light Combo

(0) No Reviews yet

Brand: Morimoto

B-BND-2016TACO-TRS

$2,449.00

Quantity	Price

PRODUCT OPTIONS

XB LED Headlights (Choose Version)

Tail Lights (Choose Color)

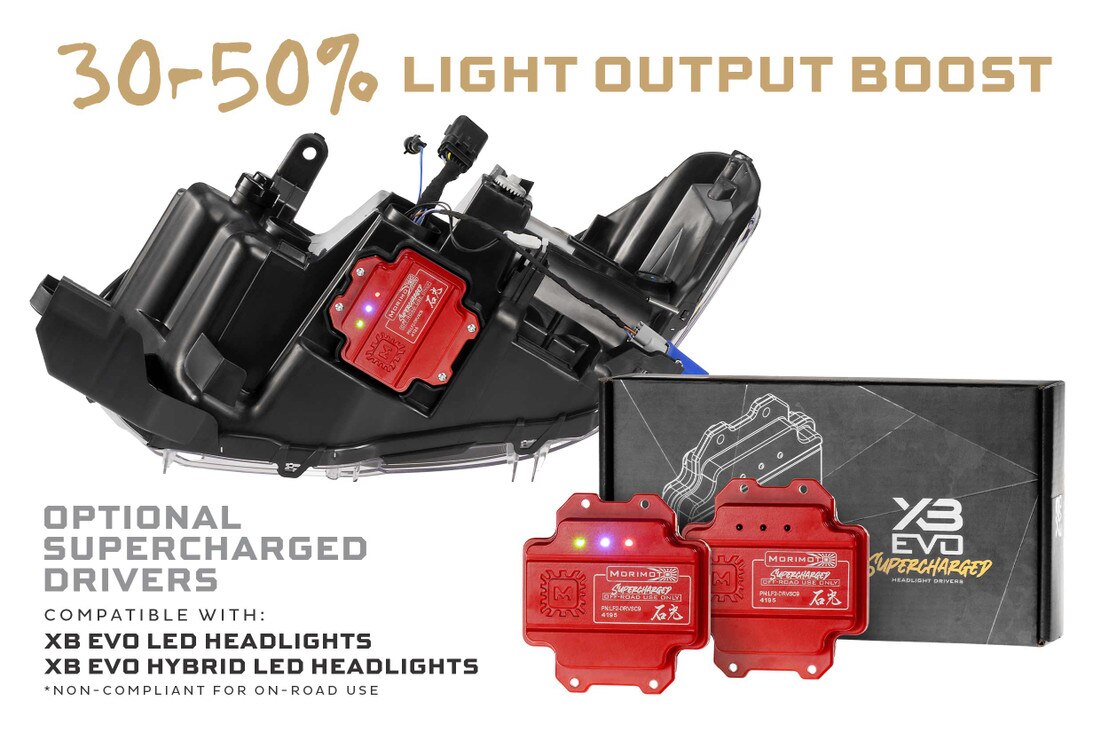

Optional Supercharged Drivers

Optional Backup Light Boost Bar

Dielectric Grease (Recommended)

PART #: 1 x LF2-530, 1 x LF703.2

Quantity:

*Guaranteed Fitment

Easy Return

DESCRIPTION

Upgrade your Toyota Tacoma with the ultimate Morimoto lighting bundle, combining the XB Evo headlights or XB Evo Hybrid headlights, and XB LED Tail Lights for unmatched style and performance. The XB Evo headlights are packed with advanced features like a patent-pending heating system that prevents frost buildup in snowy conditions and customizable DRLs and turn signals. With premium Bi-LED projectors and a five-year warranty, these headlights offer exceptional brightness and quality that will last the life of your Tacoma. For a more affordable option, the XB Evo Hybrid headlights deliver the same powerful Bi-LED projectors found in the premium model. They provide a bright, wide low beam and high beam for superior visibility, powered by top-grade Nichia LEDs, and come with a five-year warranty for lasting reliability. The Morimoto XB LED Tail Lights enhance your Tacoma's style and safety with illuminated light blades, amber turn signal illumination, and bright LED reverse lights. Easy plug-and-play installation and durable construction with UV-treated polycarbonate and injection-molded ABS ensure these tail lights will perform and last. This bundle offers a complete lighting upgrade with top-tier quality, easy installation, and industry-leading warranties.

FEATURES & BENEFITS

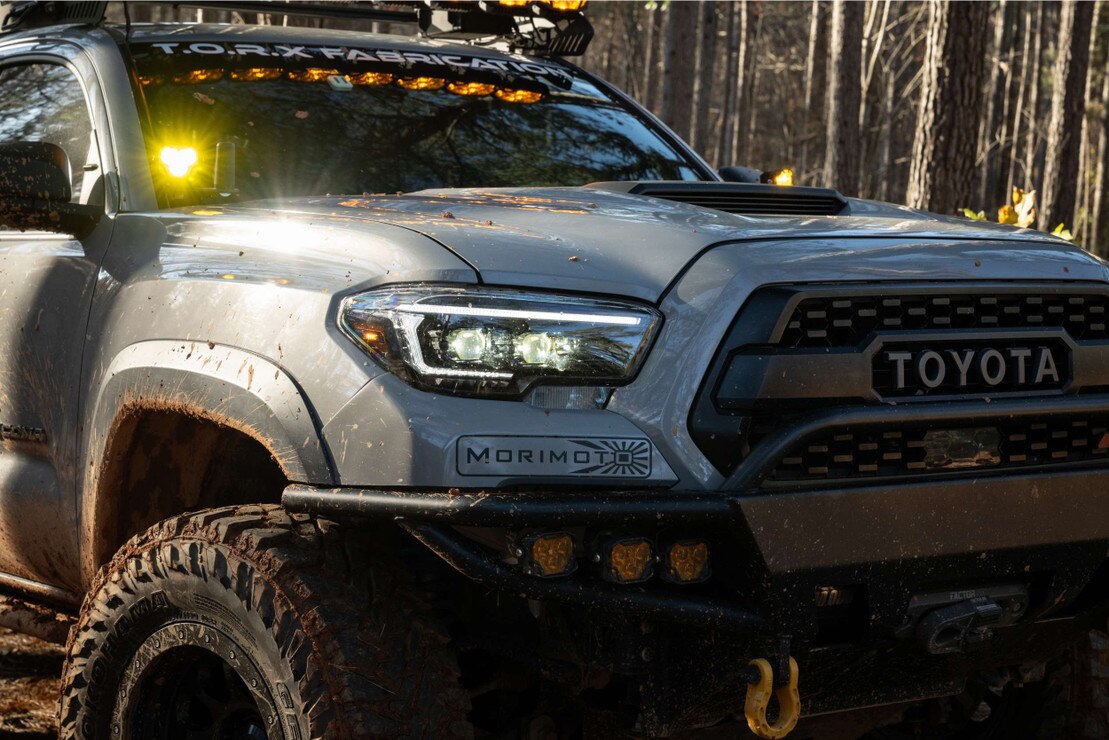

XB Evo Headlights: Feature frost-reducing heating, customizable DRLs/turn signals, and a dynamic startup sequence for style and performance.
XB Evo Hybrid Headlights: Offer bright Bi-LED projectors and Nichia LEDs for high output at a more affordable price.

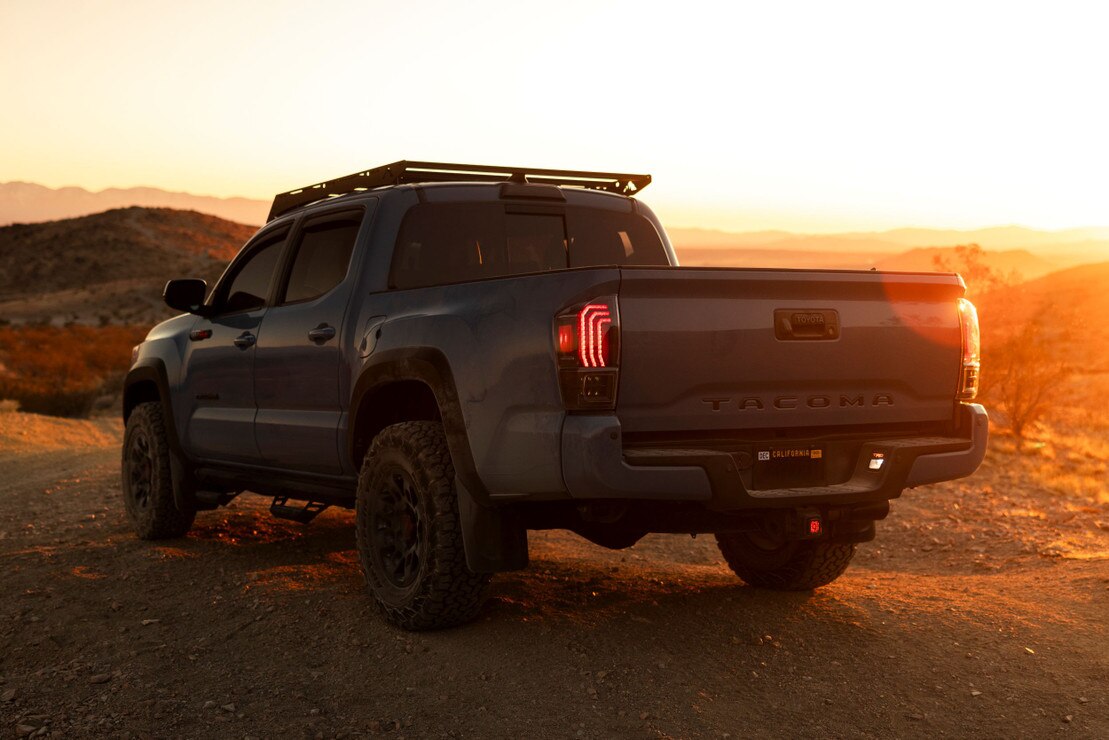

XB LED Tail Lights: Include amber turn signals, LED reverse lights, and enhanced visibility with TIR optics.

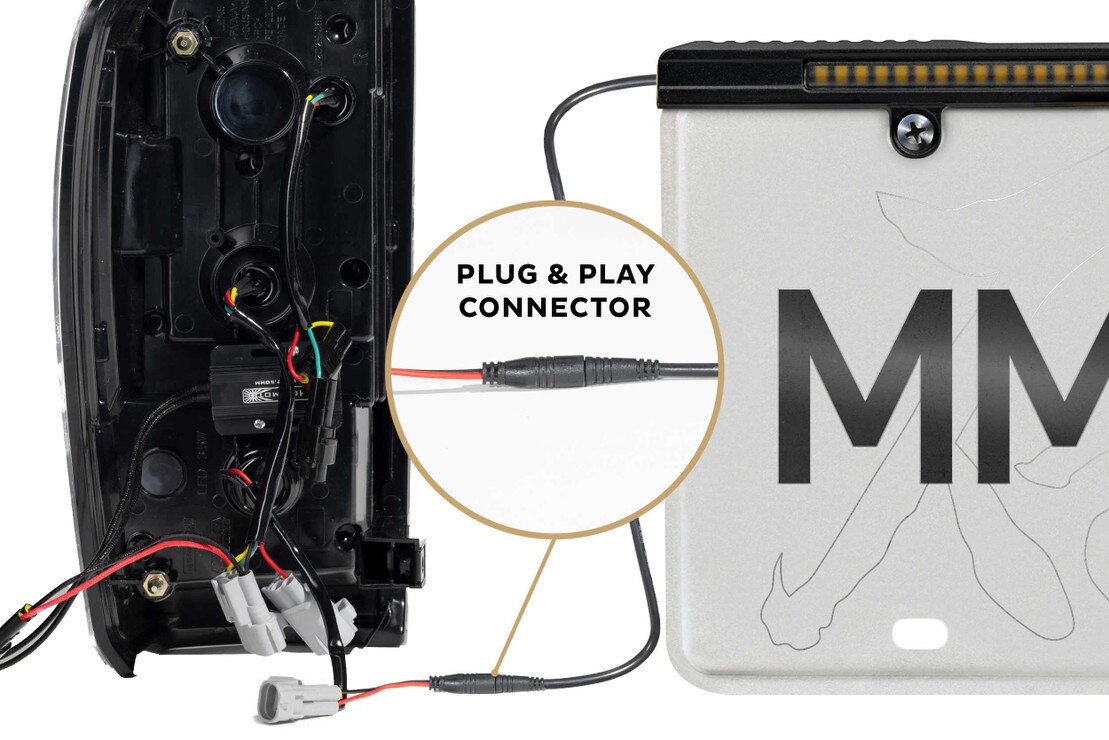

Easy Installation: Plug-and-play design with durable construction for long-lasting reliability.
5-Year Warranty: All components are backed by a 5-year warranty for peace of mind.

WHAT’S INCLUDED

Headlight Choices :

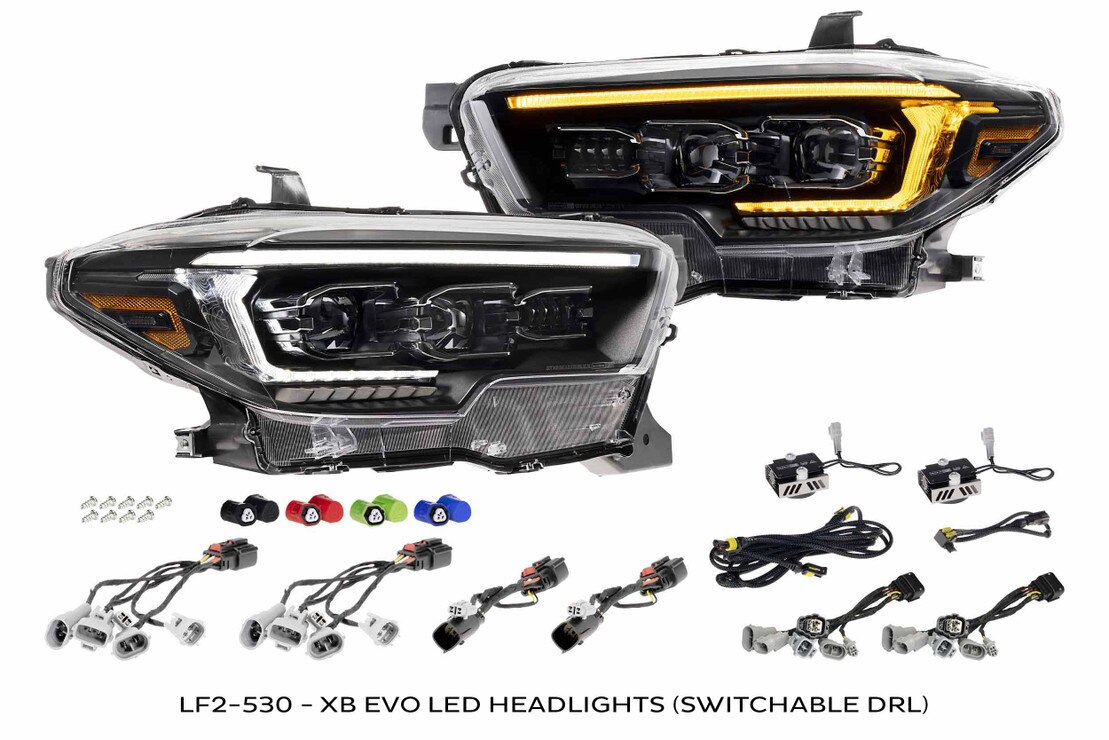

Morimoto XB Evo LED Headlights: 16-23 Toyota Tacoma (White/Amber DRL) Click for Details

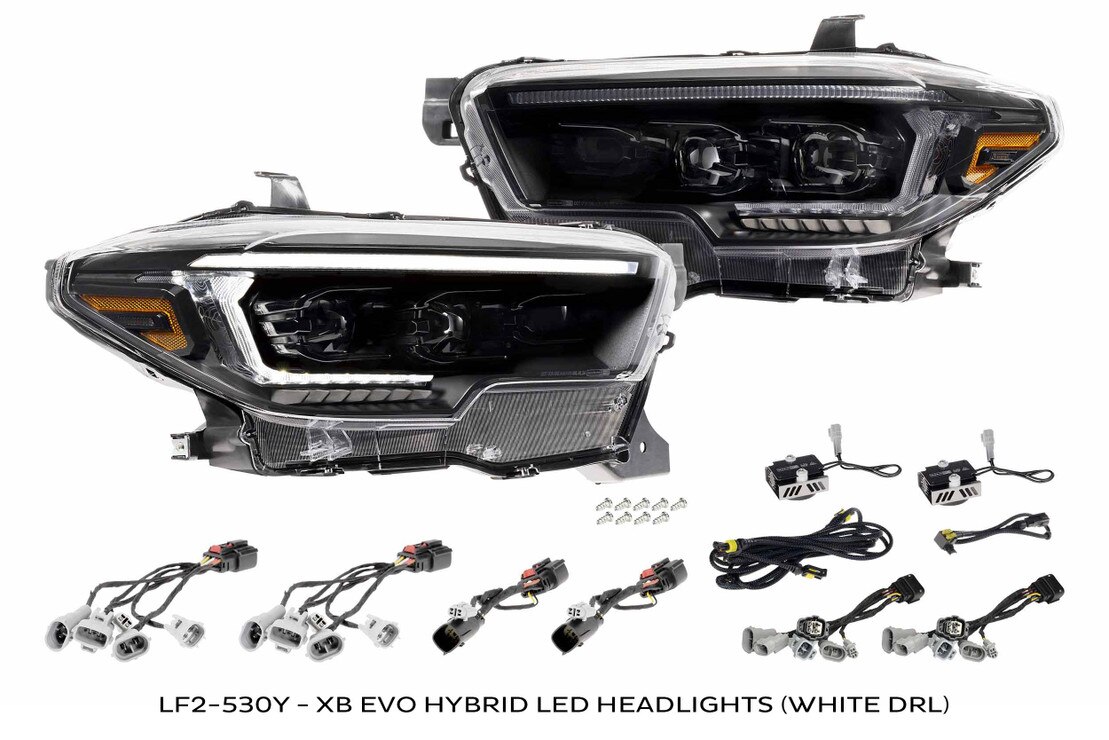

Morimoto XB Evo Hybrid LED Headlights: 16-23 Toyota Tacoma (White DRL) Click for Details
Tail Light Choices :

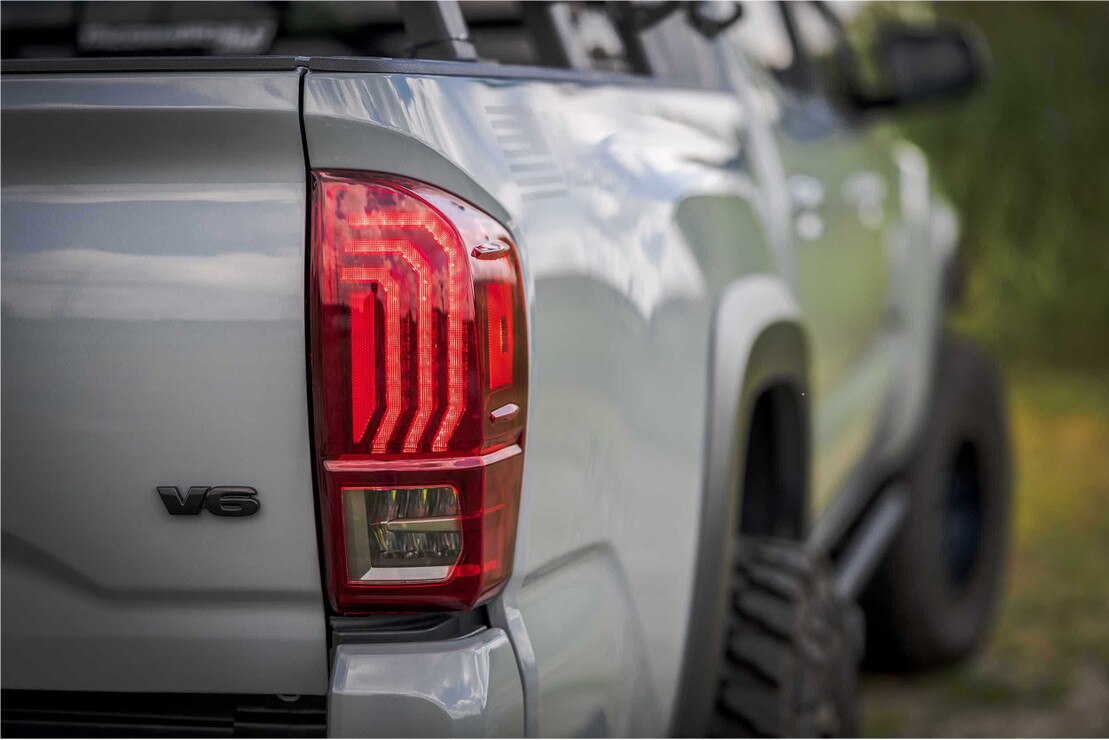

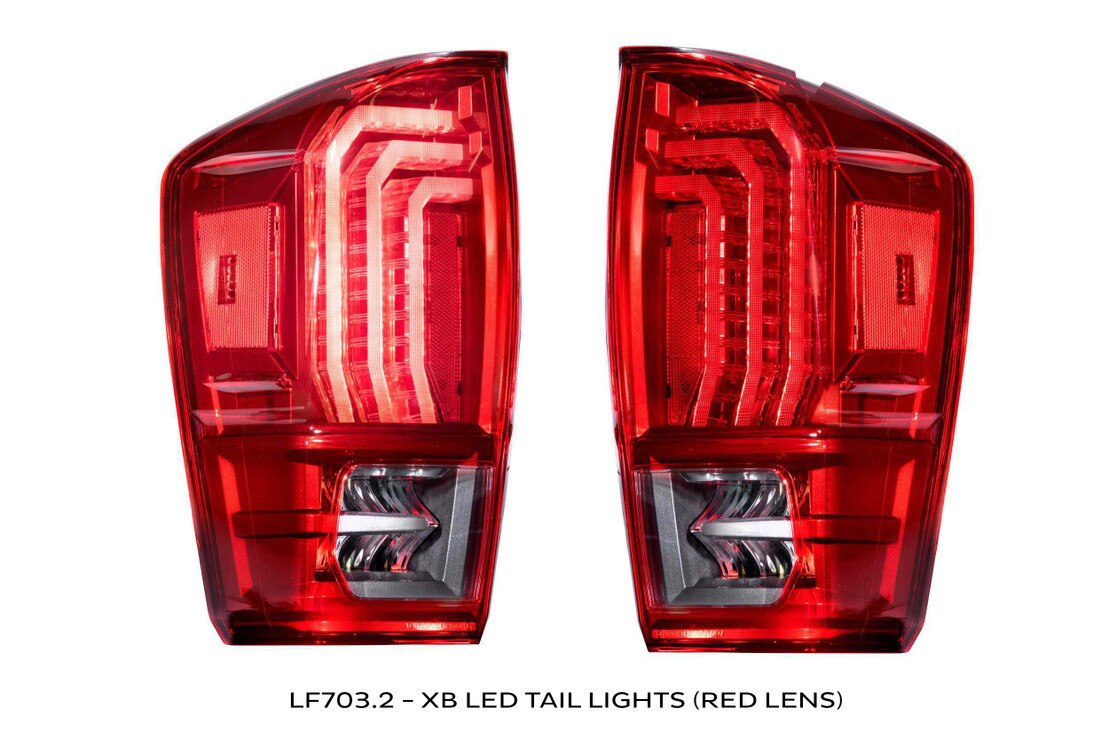

Morimoto XB LED Tail Lights: 16-23 Toyota Tacoma (Red Lens) Click for Details

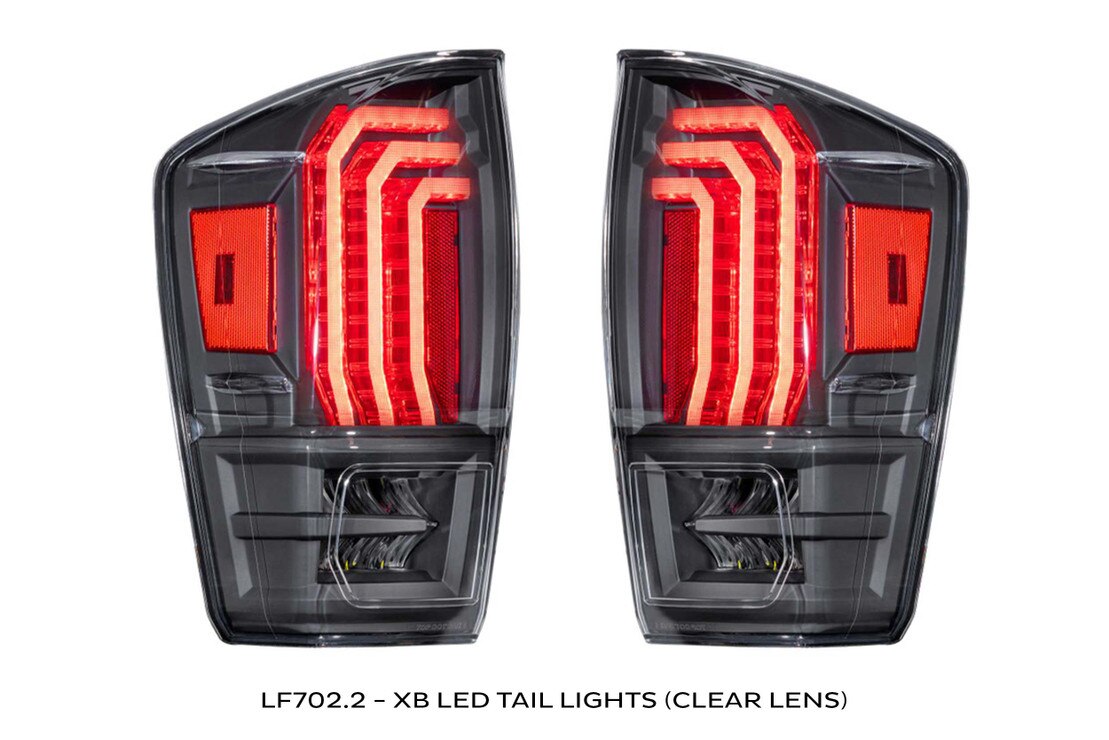

Morimoto XB LED Tail Lights: 16-23 Toyota Tacoma (Clear Lens) Click for Details

WARRANTY INFORMATION

This Morimoto product includes a Five (5) Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

TECHNICAL SPECIFICATIONS

Headlights :
Traffic Pattern : LHD / Right Hand Traffic Only
Output (Standard Drivers) : DOT (FVMSS108) Compliant (LB2V and UB2)
Output (Supercharged Drivers) : Non-Compliant
Main Optics : 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
High Beam Assist : 1x Type D Ishida Optic HB (4x Nichia NCSW131G @ 750mA)
Functions : Low, High, Park, Turn, DRL, Welcome, and Lens Heating
Turn Signal Modes : Sequential or Fade Off (Integrated)
DRL Colors : White or Amber (Integrated)
DRL/Signal Optics : Glass-like 3D TIR Optics with Topography sidewall pattern
Frost-Free System : Logic Controlled 50W Ceramic w/ circulation fans
Internal Finish : Two-Tone Piano Black and Titanium w/ contrasting textures
Side marker : Amber side reflex reflector (DOT compliant)
Wiring : Plug n Play for all sub-models within model year range
Lens Details : Polycarbonate with UV-Shield Hard coating (Exceeds OE Toyota benchmark)
Tail Lights :
Input : Toyota Multi-Pin OEM
Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Light Source : SSC LED
Brake Light : Red (Bright)
Parking Light : Red (Dim)
Turn Signal : Amber

COMPATIBILITY

Toyota Tacoma : 2016-2023 (SR, SR5, TRD Sport, TRD Off-Road, Limited, Trail Special Edition, and TRD Pro)
Compliance : Meets all DOT, SAE and FMVSS108 Standards*
Supercharged Drivers : LF2-DRVSC9*
*NOTE : Installation of Optional Supercharged Drivers results in non-compliant intensity. Not for on-road use in USA or Canada.
Replaces Toyota Part # : 8115004270, 8111004270, 8115004280, 8111004280, 8115004250, 8111004250, 8115004260, 8111004260, 8156004170, 8155004170, 8156004180, 8155004180, 8156004190, 8155004190, 8156004200, 8155004200, 8156004181, 8155004181, 8156004230, 8155004230, 8156004210, 8155004210, 8156004220, 8155004220, TO2800197, TO2801197, TO2800198, TO2801198, TO2800199, TO2801199, TO2800201, TO2801201, TO2800203, TO2801203, TO2800207, TO2801207, TO2800206, TO2801206, TO2800205, TO2801205
NOTE : These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.

COMPLIANCE

Meets all DOT, SAE, and FMVSS108 Standards. *NOTE: Installation of Optional Supercharged Drivers in headlights results in non-compliant intensity. Not for on-road use in USA or Canada.
