Toyota 4Runner (14-24) Headlight & Tail Light Combo

(0) No Reviews yet
Questions?

Brand: Morimoto

B-BND-4RNNR-TRS

$2,408.00

PRODUCT OPTIONS

PART #: 1 x LF2-531, 1 x LF738



*Guaranteed Fitment
Easy Return

DESCRIPTION

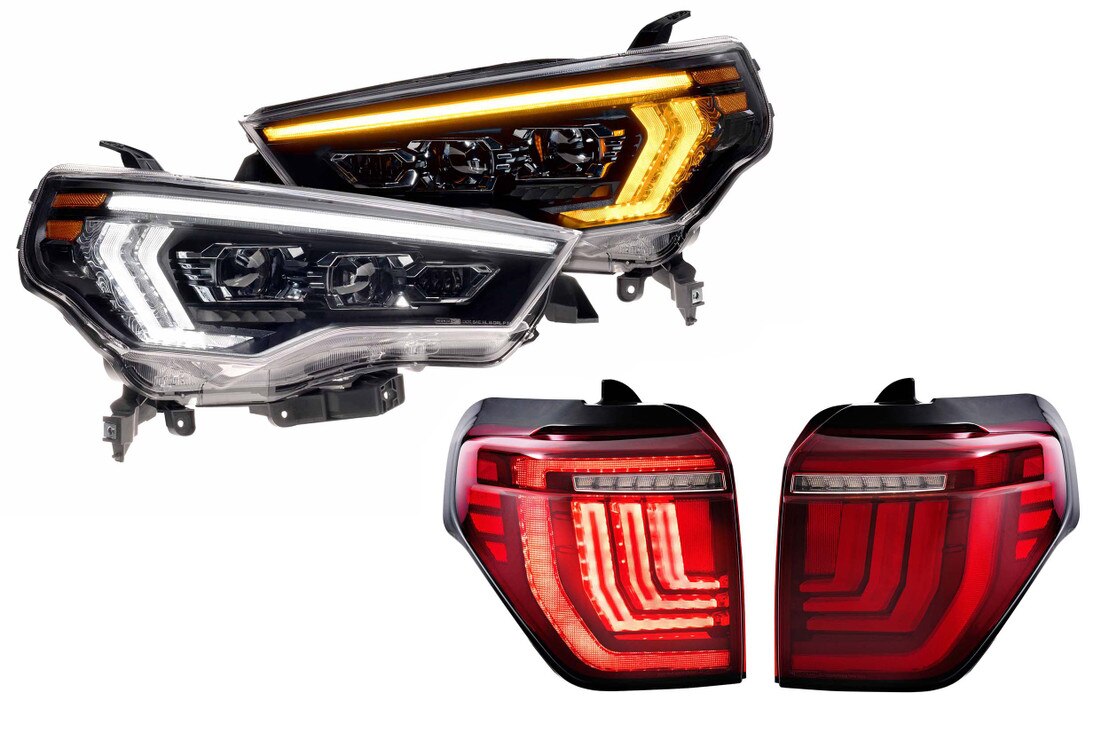

Upgrade your 5th Gen Toyota 4Runner with the Morimoto XB Evo Lighting Bundle, a complete set of premium headlights and tail lights designed to deliver cutting-edge performance, safety, and style. The XB Evo Headlights represent the best of what Morimoto has to offer. These high-end lights feature powerful Bi-LED projectors for exceptional low and high beam output, a startup animation, and a patent-pending lens heating system to reduce frost buildup in cold conditions. The signal swap system lets you customize the daytime running light (DRL) and turn signal behavior, with full-time white or amber DRL options. Built to last, they're backed by a five-year warranty. The XB Evo Hybrid Headlights offer the same Bi-LED projector performance found in the flagship Evo model, but without the lens heating system or a switchable DRL. With OE-grade Nichia LEDs and Morimoto's signature styling, these headlights provide incredible light output, wide coverage, and rock-solid reliability. Like the Evo, they're fully compliant with DOT and SAE standards and include a five-year warranty. The XB LED Tail Lights complete the bundle with aggressive 3D light blade styling and enhanced functionality. They feature ultra-bright brake lights, amber sequential turn signals, and an optional Backup-Boost reverse light bar for added visibility. Designed to match the 4Runner's rugged look, they're plug-and-play, DOT compliant, and built to perform. This bundle combines style, safety, and performance, all backed by Morimoto's industry-leading warranty.

FEATURES & BENEFITS

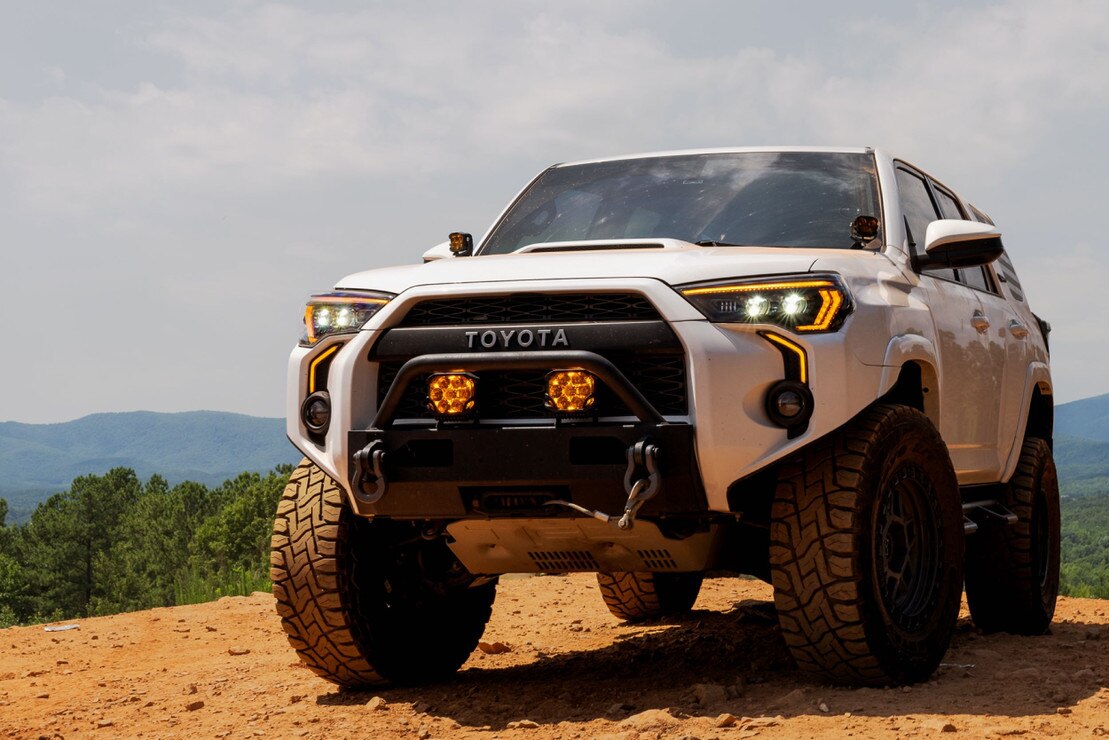

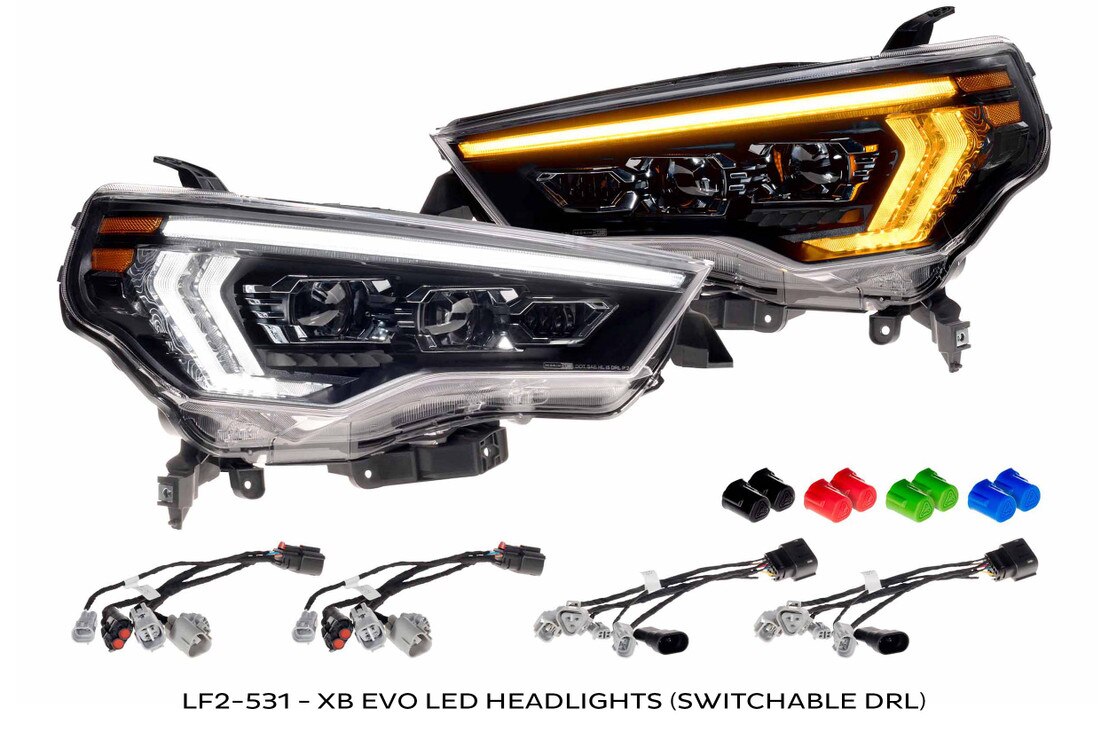

  • XB Evo Headlights: Bi-LED projectors, customizable DRL/turn signals, startup animation, and lens heating.

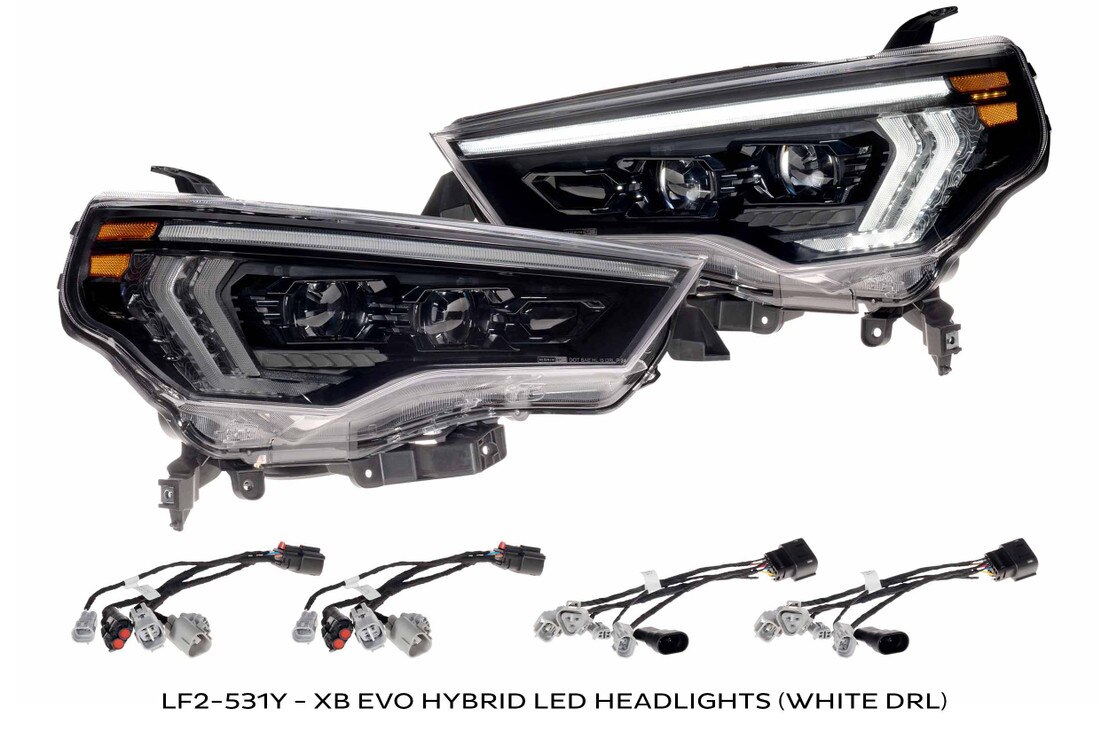

  • XB Evo Hybrid Headlights: Same projector performance as Evo at a lower price, with OE-grade Nichia LEDs.

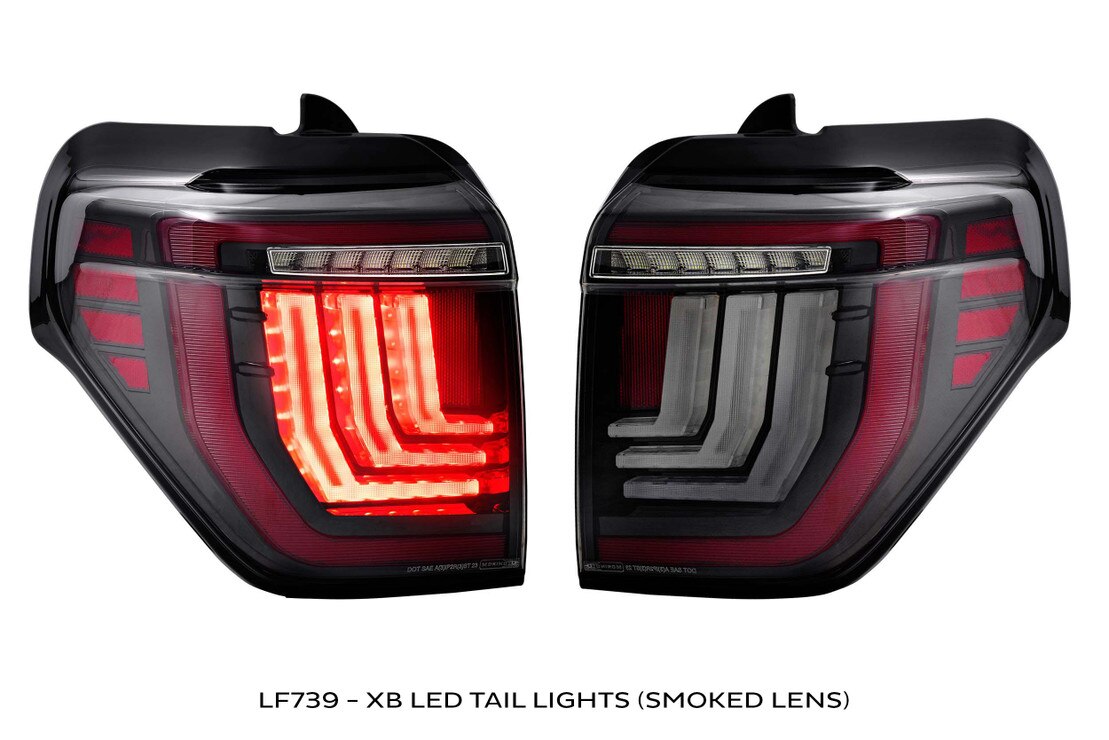

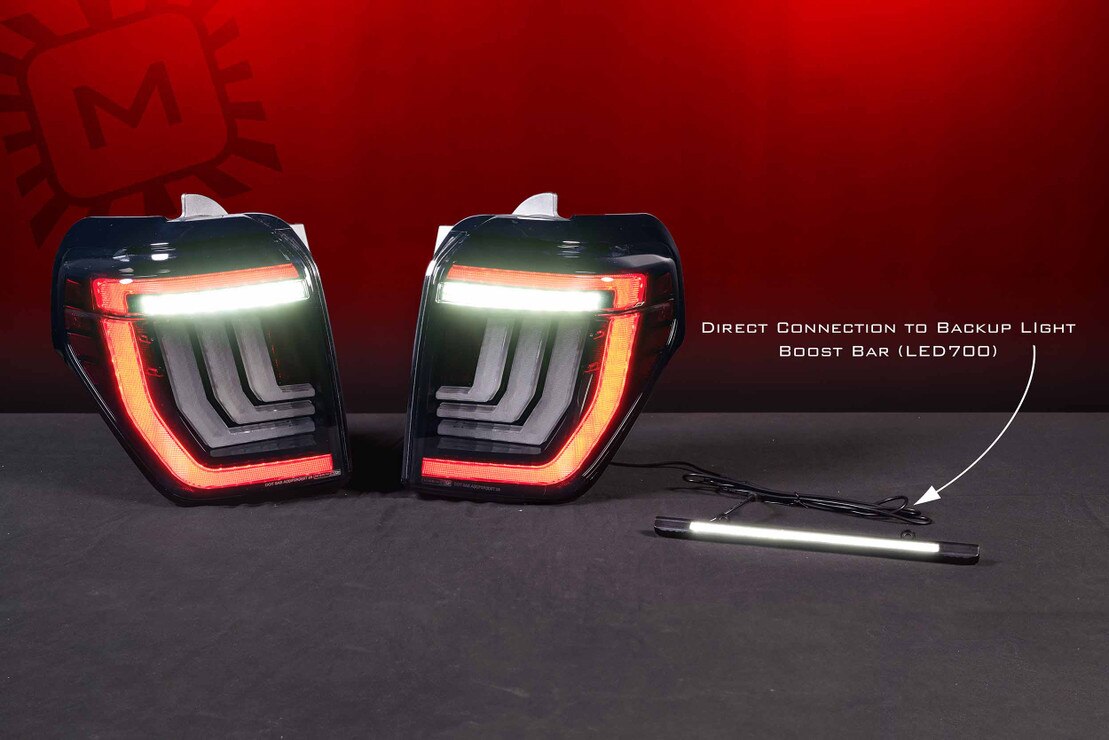

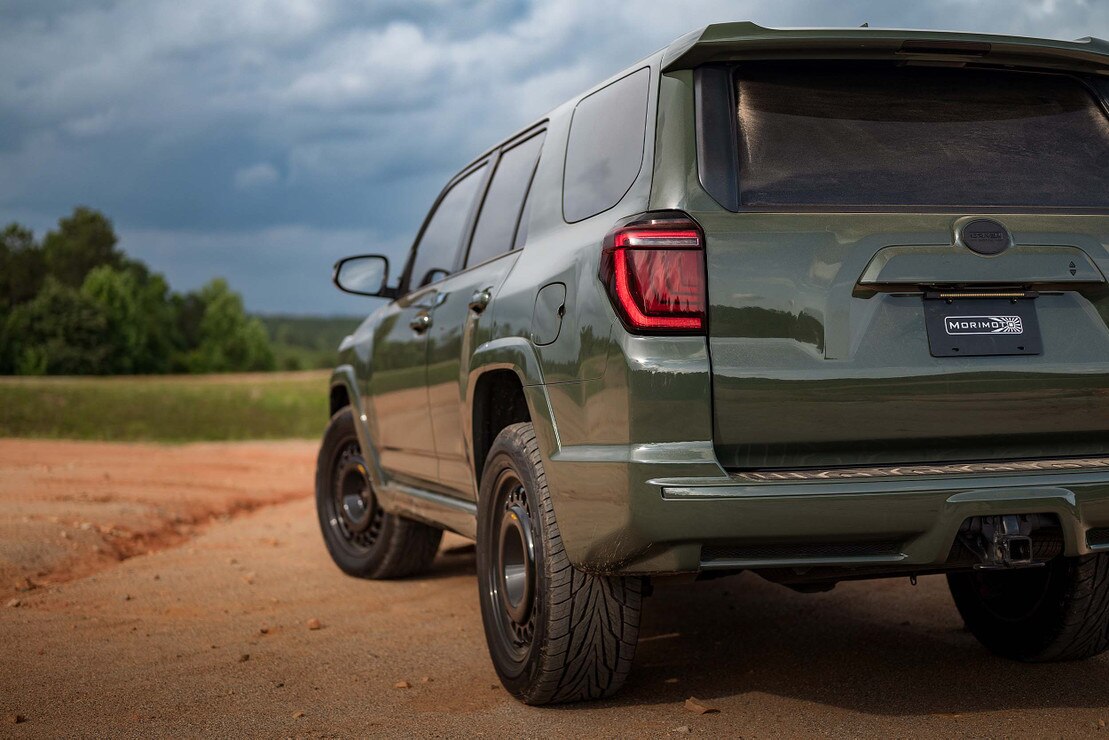

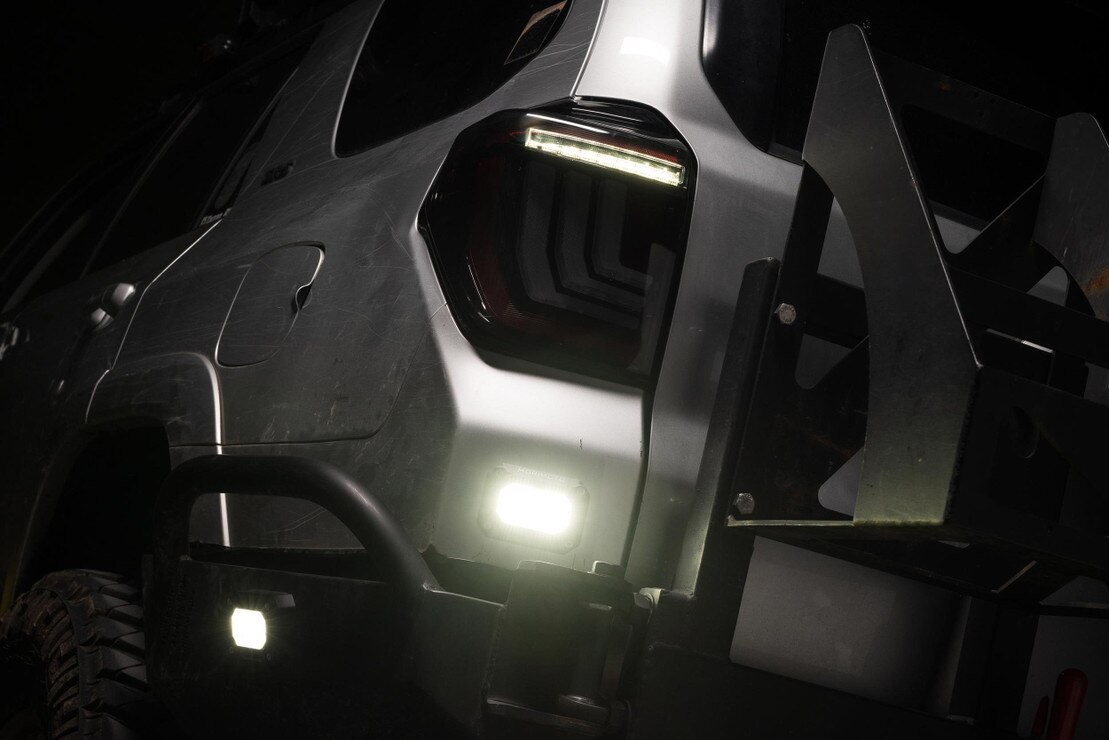

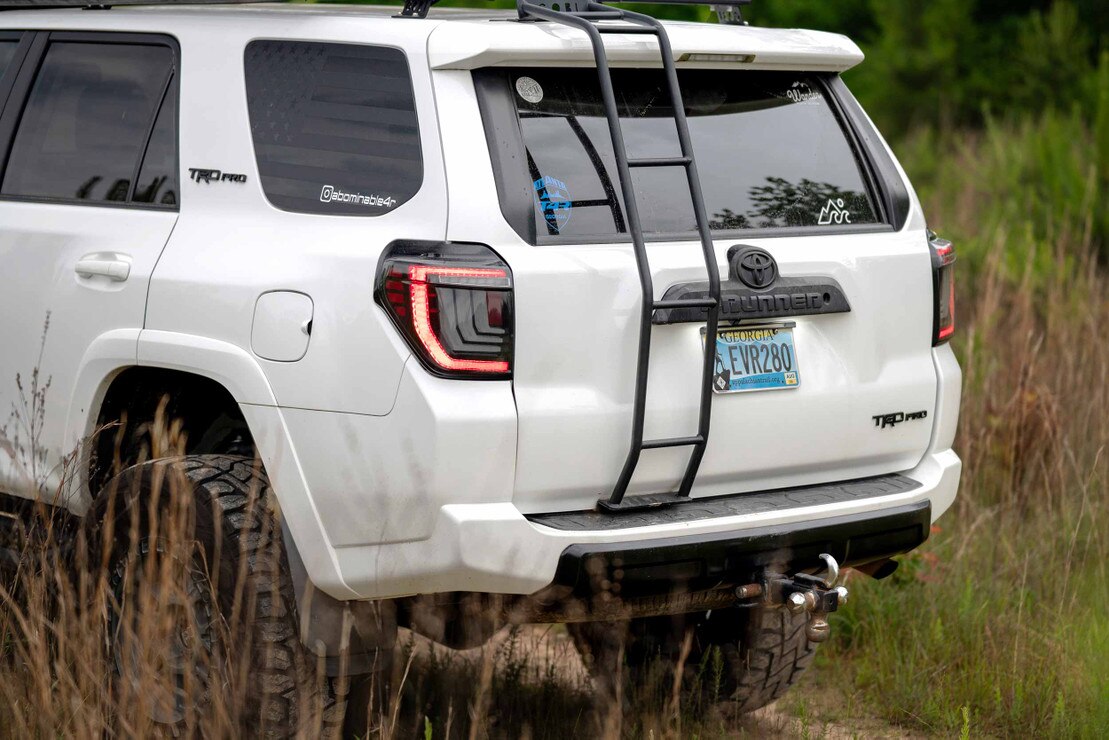

  • XB LED Tail Lights: 3D light blades, bright brake lights, amber sequential signals, and optional reverse boost.
  • DOT/SAE Compliant: Fully street legal and built to last.
  • 5-Year Warranty: Backed by Morimoto’s industry-leading support.

WHAT’S INCLUDED

WARRANTY INFORMATION

This Morimoto product includes a Five (5) Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

TECHNICAL SPECIFICATIONS

  • Headlights:

  • Traffic Pattern: LHD / Right Hand Traffic Only

  • Output (Standard Drivers): DOT (FVMSS108) Compliant (LB2V and UB2)

  • Output (Supercharged Drivers): Non-Compliant

  • Main Optics: 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)

  • High Beam Assist: 1x Type D Ishida Optic HB (4x Nichia NCSW131G @ 750mA)

  • Functions: Low, High, Park, Turn, DRL, Welcome, and Lens Heating

  • Turn Signal Modes: Sequential or Fade Off (Integrated)

  • DRL Colors: White or Amber (Integrated)

  • DRL/Signal Optics: Glass-like 3D TIR Optics with Topography sidewall pattern

  • Frost-Free System: Logic Controlled 50W Ceramic w/ circulation fans

  • Internal Finish: Two-Tone Piano Black and Titanium w/ contrasting textures

  • Side marker: Amber side reflex reflector (DOT compliant)

  • Wiring: Plug n Play for all sub-models within model year range

  • Lens Details: Polycarbonate with UV-Shield Hard coating (Exceeds OE Toyota benchmark)

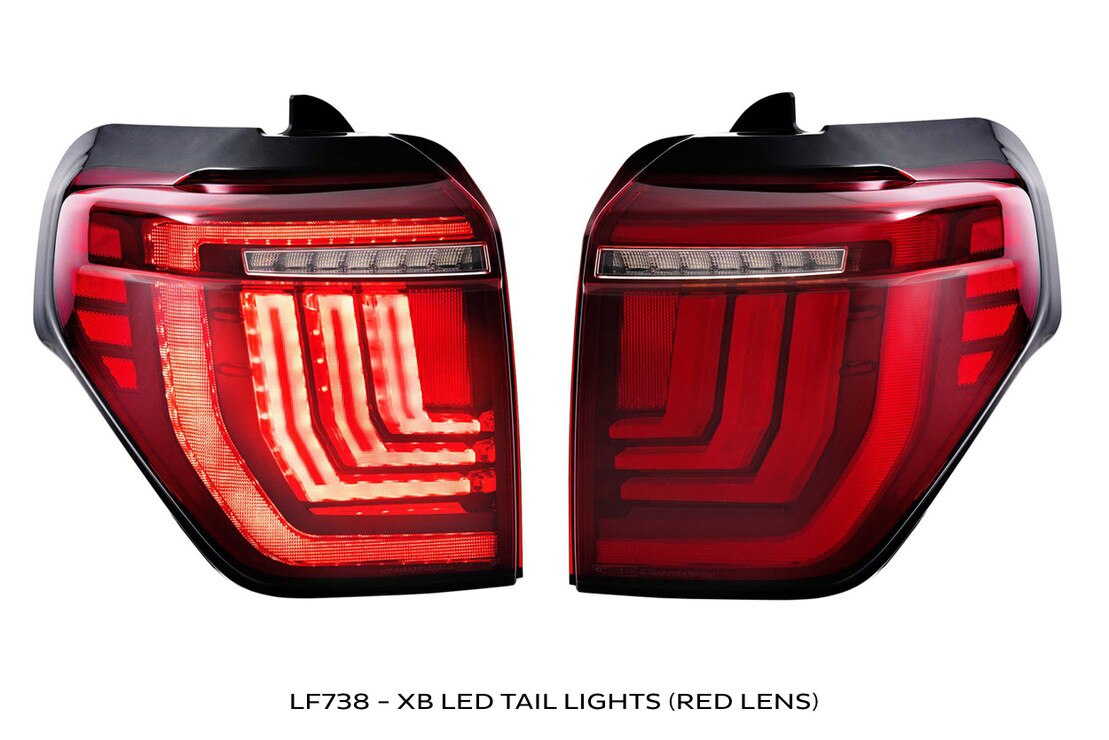

  • Tail Lights:

  • Input: Toyota Multi-Pin OEM

  • Material: ABS Plastic (Housing), Red-Tinted UV-Resistant Polycarbonate (Lens)

  • Light Source: SSC LED

  • Reverse Light: White

  • Brake Light: Red

  • Parking Light: Red

  • Turn Signal: Amber

COMPATIBILITY

  • Toyota 4Runner: 2014-2024 (All Trims)

  • Compliance: Meets all DOT, SAE and FMVSS108 Standards*

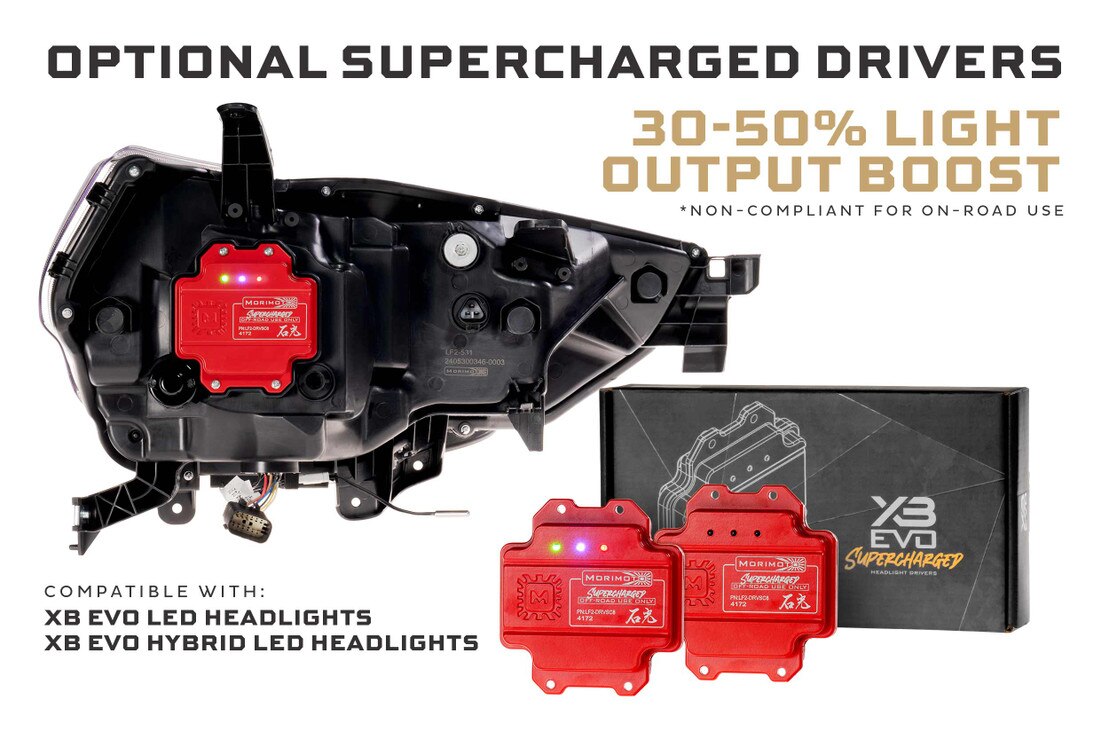

  • Supercharged Drivers: LF2-DRVSC8*

  • *NOTE: Installation of Optional Supercharged Drivers results in non-compliant intensity. Not for on-road use in USA or Canada.

  • Replaces Toyota Part #: 81170-35571, 81130-35541, 8117035571, 8113035541, 81561-35392, 81561-35390, 81561-35391, 81551-35402, 81551-35400, 81561-35360, 81561-35370

  • NOTE: These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.

COMPLIANCE

Meets all DOT, SAE, and FMVSS108 Standards. *NOTE: Installation of Optional Supercharged Drivers in headlights results in non-compliant intensity. Not for on-road use in USA or Canada.
