Bonus Turn Signal Conversion Harness (2015-2019 Subaru WRX / STi)

(0) No Reviews yet
Questions?

Brand: TRS

B-WIR-WRXTAILTURN-TRS

$13.16 Original Price:$68.0081% OFF

PRODUCT OPTIONS

PART #: 2 x H800



Items in this Kit are on CLEARANCE!
Clearance Items are Non-Refundable

DESCRIPTION

Introducing the ultimate solution for your Subaru WRX or WRX STi - our innovative tail light module! This sleek module effortlessly transforms your stock tail light housing, relocating the turn signal to the brake light position. This ingenious upgrade not only enhances the aesthetics of your vehicle but also increases safety with additional backup lighting intensity. Installation is a breeze, and there's no need to remove your tail lights - our in-line harnesses handle everything. The included T-Tap connector lets you customize your turn signal socket's power source, making it a versatile addition to your vehicle. Upgrade today for a brighter, safer, and more stylish driving experience with our Subaru WRX Tail Light Module! Don't miss out on this game-changing accessory!

FEATURES & BENEFITS

  • Enhanced Aesthetics: Transforms your Subaru WRX or WRX STi tail lights for a sleek and stylish look.
  • Improved Safety: Increases backup lighting intensity for safer driving.
  • Effortless Installation: No need to remove tail lights; in-line harnesses simplify the process.
  • Customizable Power Source: T-Tap connector lets you choose the turn signal socket's power source.
  • Versatile Upgrade: Compatible with LED bulbs, making it a versatile addition to your vehicle.

WHAT’S INCLUDED

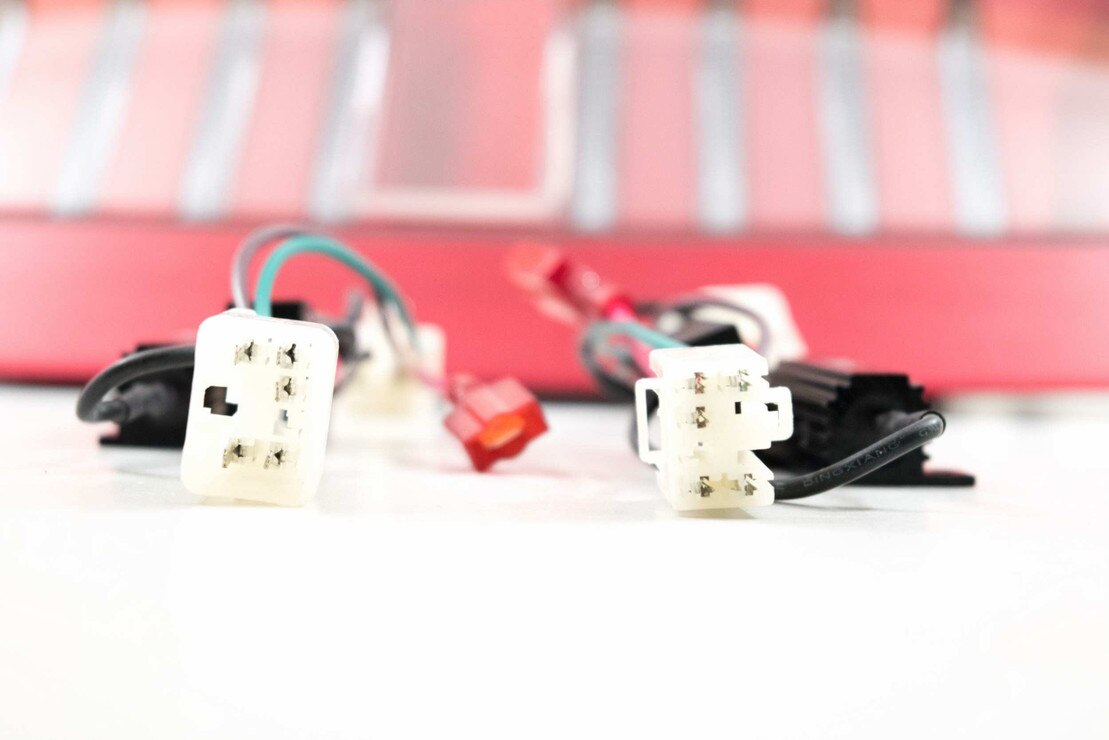

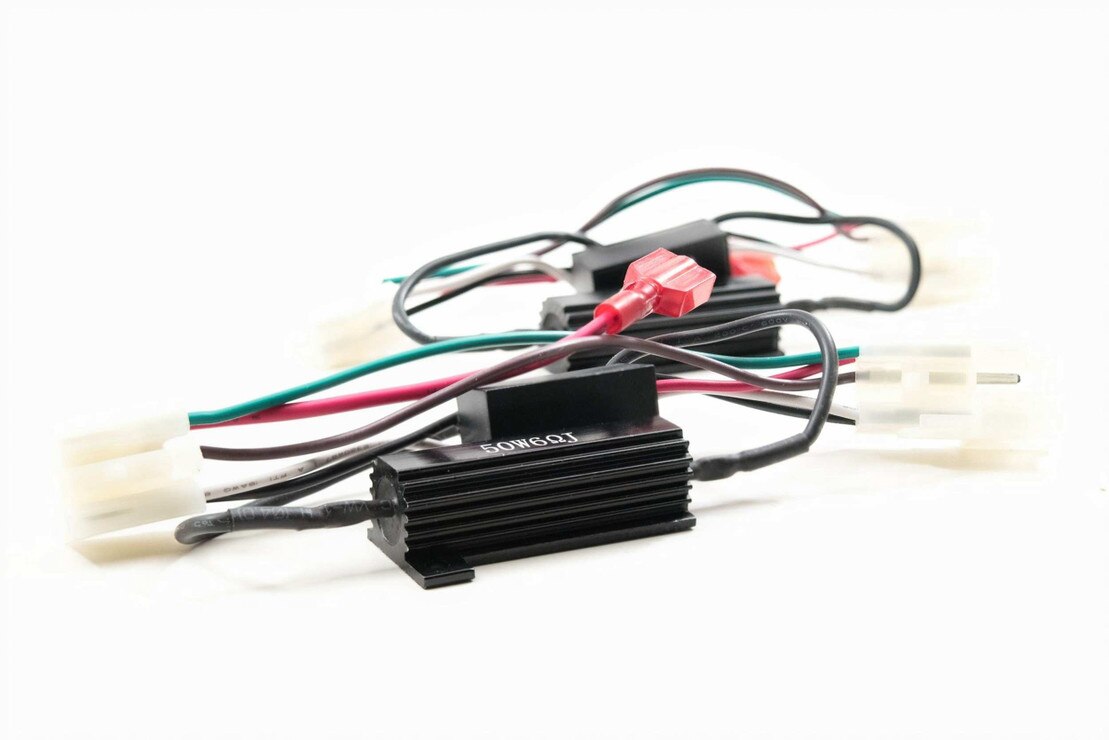

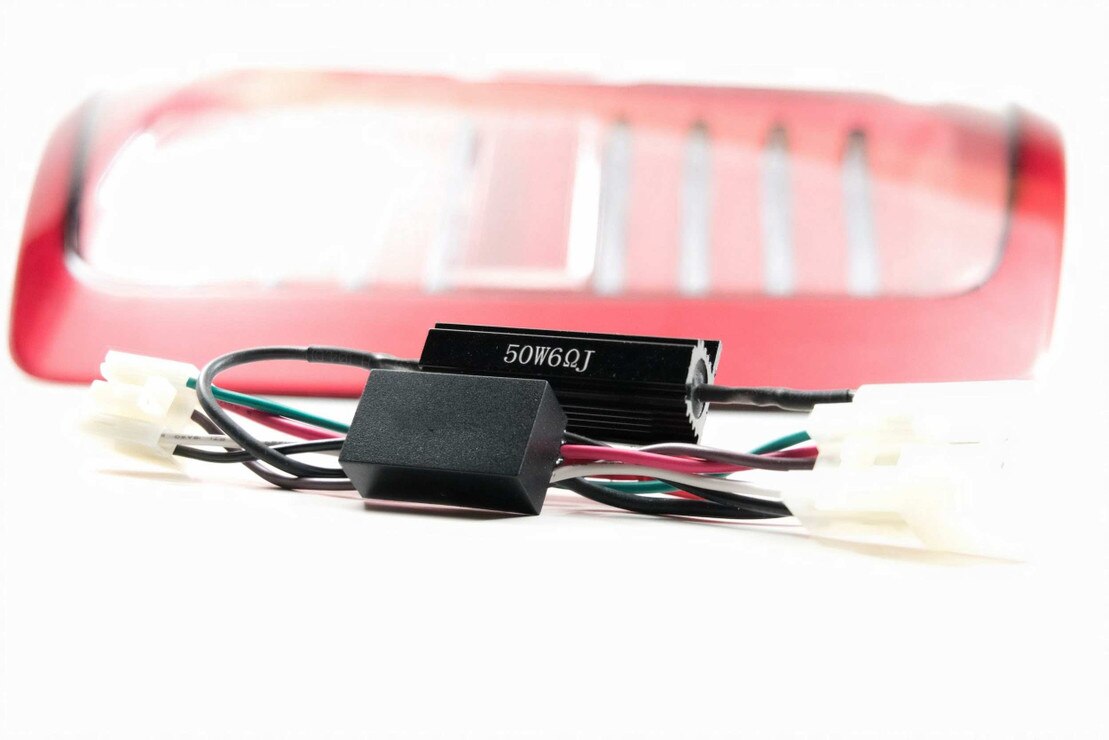

  • Modules: 2x 15-19 WRX / Sti Tail-Turn Modules

  • Wire Taps: 2x T-Taps

WARRANTY INFORMATION

This product includes a 3 Year limited warranty, serviced and supported by our team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, contact us. Refunds Not Accepted.

TECHNICAL SPECIFICATIONS

  • Purpose: Moves rear turn signal function to brake lights

  • Installation: Plug and Play

COMPATIBILITY

  • Subaru WRX/STI: 2015-2020

What's it do? This simple module plugs in to the back of the stock tail light housings on the 2015+ Subaru WRX and WRX STi and moves the separate turn signal (a 7443 bulb) to the stock brake light position. This allows the 7443 socket to be freed up, which can then be upgraded alongside the 921 reverse light for additional back up lighting intensity!

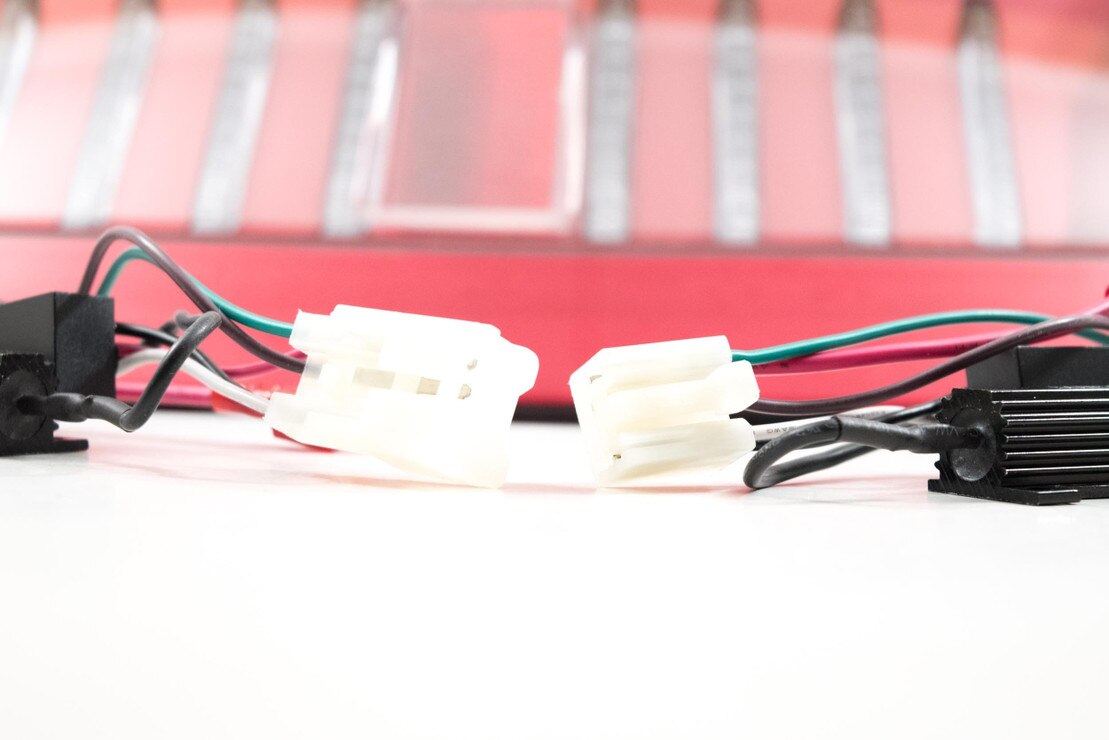

Installation Process No tail light removal necessary! These in-line harnesses do all the work for you. Just match up the stock connectors on each side and plug 'er up!


About that T-Tap The remaining connector (a blade terminal / t-tap) allows you to select if and how you want the OEM turn signal socket to receive power. For this, you must use an LED bulb as incandescent bulbs (like stock) require too much power. Green = Backup Light. Red = Turn Signal. Yellow = Running Light. Black (Input Side) = Brake Light. Black (Output Side) = Brake and Turn Signal.
