• Home
  • /
  • 5202/2504: S-V.4 LED Bulbs

5202/2504: S-V.4 LED Bulbs

(0)No Reviews yet
Questions?

Brand: SV4

B-LHB-SV4-5202-TRS

Videos

$198.00 $220.00

PRODUCT OPTIONS

5202: S-V.4 LED Bulb

PART #: 2 x SN.LED100

In stock, ships for free on Friday.

DESCRIPTION

Introducing the S-V.4 LED Bulbs SN.LED100 - the ultimate upgrade for your vehicle's illumination needs! Harness cutting-edge LED chip technology that guarantees unmatched brightness and a flawless beam pattern. Unlike other bulbs, our S-V.4 boasts a seamless light output from its advanced multi-core LED chip design, eliminating the need for multiple stacked chips. Experience premium thermal management with the S-V.4's top-tier 6063 aluminum construction, ensuring optimal heat dissipation and corrosion resistance. Equipped with a high-speed micro-fan, this bulb remains reliable even in extreme conditions. Our intelligent thermal system maintains safety by dimming the light if needed. Don't compromise on design -- the S-V.4 is engineered with a compact form factor that fits snugly into any fog light housing, while its CANBUS compliance guarantees flicker-free operation. With easy plug-and-play installation and a 2-year warranty, the S-V.4 is the ultimate solution for enhanced visibility and a modern, sleek appearance.

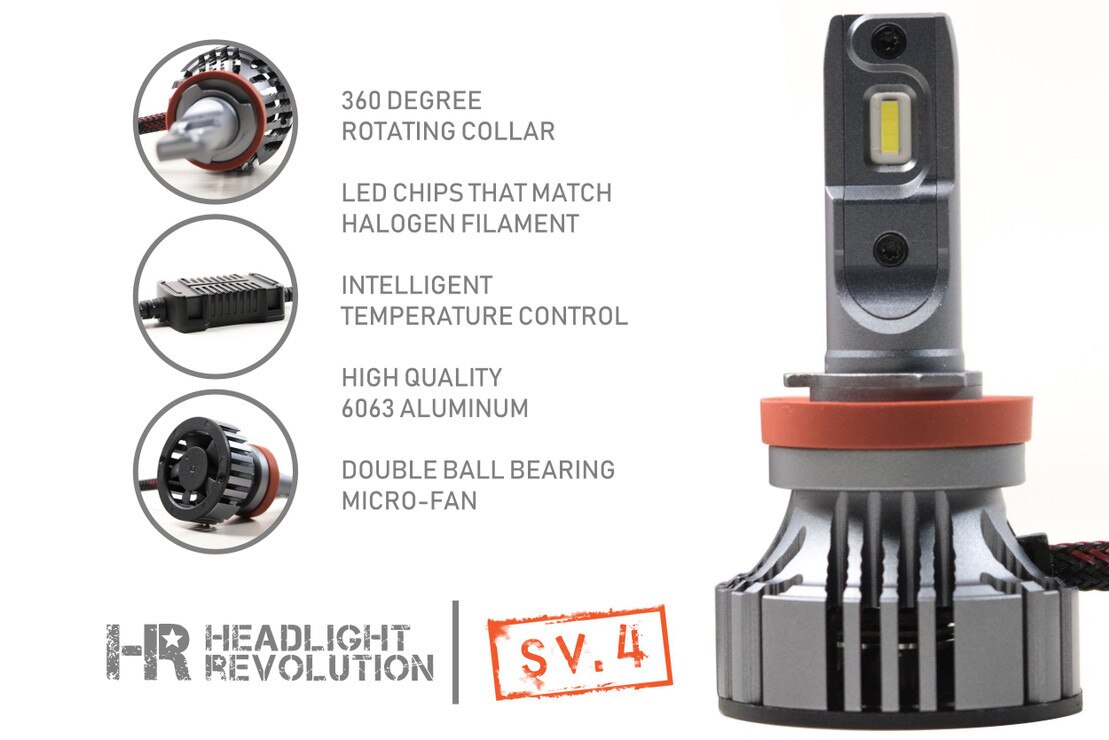

FEATURES & BENEFITS

  • Advanced LED Chip: Unparalleled brightness with flawless beam pattern.
  • Premium Thermal Management: 6063 aluminum for heat dissipation and corrosion resistance.
  • Reliable Micro-Fan: Ensures consistent performance in all conditions.
  • Compact Design: Snug fit for easy installation in any fog light housing.
  • CANBUS Compliance: Flicker-free, seamless integration with vehicle systems.

WHAT’S INCLUDED

  • LED Bulbs : 2x (One Pair) 5202/2504 S-V.4 LED Bulbs

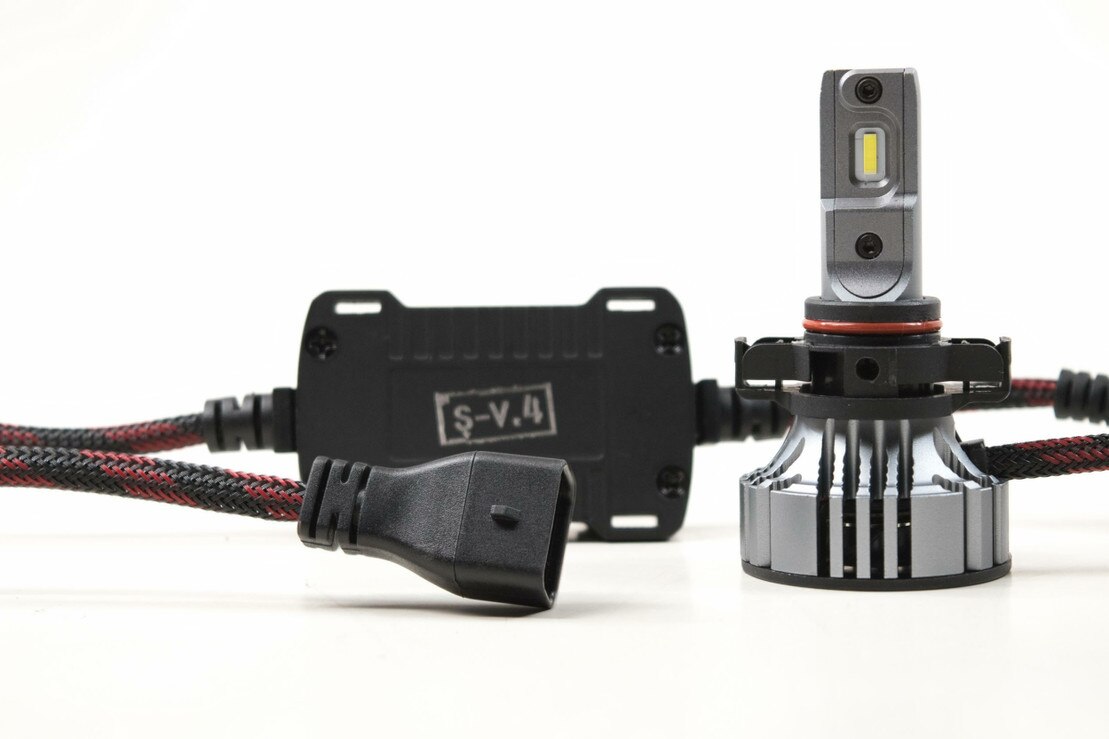

  • LED Drivers : 2x S-V.4

  • Wiring : 5202 Plug and Play Inputs

WARRANTY INFORMATION

This product includes a 2 Year limited warranty, serviced and supported by our team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, contact us.
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

TECHNICAL SPECIFICATIONS

  • Intensity : 3,600lm

  • Power : 36w

  • Input Voltage : 8-32V DC

  • Light Color : 6000K (Cool White)

LINE DRAWINGS

COMPATIBILITY

  • ALIASES : 5202, 5204, PS24W, PS24WFF, PSX24W, PSX24, 2504, 5201, 9009, H16-EU, H16 Type B / 5202-style, 12085, 12085LLC1, 12086, 12086FFC1, 12276, 12276WVUB1, PS19W, P24W, P24, PS24N, 7201, 7202, PG20-3, PG20-7

  • OEM NUMBERS : General Motors 15839897; ACDelco 15839897; Mopar L000PSX24W; Mopar L0PSX24W; Chrysler L000PSX24W; Jeep L000PSX24W; Philips 12086FFC1 (PS24W); Philips 12276WVUB1 (PSX24W); OSRAM 5202 (PS24W); OSRAM 2504 (PSX24W); HELLA 8GA 223 569-001 (PSX24W); HELLA 358107841 (2504 / PSX24W); CEC 5202; CEC 2504; Eiko 06153 / 5202; Service Pro 5202; Sylvania 5202BP; Sylvania 2504BP

  • AFTERMARKET SKUS : Auxbeam XD000559 - 5202/5201/PS24W/H16-EU Q5 LED fog/DRL bulbs; Morimoto LED2025 - 5202 2Stroke 4.0 LED bulb; GTR Lighting GTR.LED735 - 5202/2504/PSX24W Ultra 2.0 LED bulbs; Diode Dynamics DD0477P - 5202/PSX24W White SL2 LED bulbs pair; Diode Dynamics DD0477S - 5202/PSX24W White SL2 LED single; Diode Dynamics DD0478P - 5202/PSX24W Yellow SL2 LED bulbs pair; Diode Dynamics DD0478S - 5202/PSX24W Yellow SL2 LED single; Diode Dynamics 5202/PSX24W HP48 LED bulbs; Diode Dynamics 5202/PSX24W XP80 LED bulbs; Lasfit LCplus5202 - 5202/2504/PSX24W LC Plus LED fog bulbs; Lasfit LAplus5202 - 5202/2504/PSX24W LA Plus LED fog bulbs; Lasfit LDplus5202 - 5202/2504/PSX24W LD Plus switchback LED fog bulbs; Sylvania 5202 / 5202BP - Basic halogen fog bulb; Sylvania 2504 / 2504BP - Basic PSX24W halogen fog bulb; Philips 12086FFC1 - PS24W standard halogen; Philips 12276WVUB1 - PSX24W WhiteVision ultra halogen; Philips 11086U2500CX - Ultinon Access PS24W/PSX24W LED fog bulbs; OSRAM 5202 - Original Line PS24W 12V 24W bulb; OSRAM 2504 - Original Line PSX24W 12V 24W bulb; HELLA 8GA 223 569-001 - PSX24W 12V 24W bulb; HELLA 358107841 - 2504/PSX24W 12V 24W bulb; SEALIGHT XF1 2504/PSX24W - 2504/PSX24W LED fog bulbs; Super Bright LEDs GTHL-5202 - 5202/H16-EU/PS24W LED fog bulbs; Super Bright LEDs GTHL-PSX24W - PSX24W/2504 LED fog bulbs; Alla Lighting 2504 PSX24W / 12276 - LED fog light bulbs; Alla Lighting 5201/5202 PS24W / 12085 - LED fog/DRL bulbs

  • FITMENT : Cars & Trucks

  • Chevrolet Avalanche : 2007-2013 (Fog Light)

  • Chevrolet Camaro (selected Trims) : 2010-2013 (Fog Light)

  • Chevrolet Colorado : 2015-2019 (Fog Light)

  • Chevrolet Silverado 1500 : 2007-2015 (Fog Light)

  • Chevrolet Silverado 2500 HD : 2007-2020 (Fog Light)

  • Chevrolet Silverado 3500 HD : 2007-2020 (Fog Light)

  • Chevrolet Sonic : 2017-2020 (Fog Light)

  • Chevrolet Spark : 2016-2020 (Fog Light)

  • Chevrolet Suburban : 2019-2020 (Fog Light)

  • Chevrolet Suburban 1500 : 2007-2014 (Fog Light)

  • Chevrolet Suburban 2500 : 2007-2013 (Fog Light)

  • Chevrolet Tahoe : 2007 (Fog Light)

  • Chevrolet Tahoe (selected Trims) : 2008-2014 (Fog Light)

  • Chevrolet Traverse : 2019-2020 (Fog Light)

  • Chevrolet Trax : 2019-2020 (Fog Light)

  • Chrysler 200 : 2011-2012 (Fog Light)

  • Chrysler 300 (selected Trims) : 2010 (Fog Light)

  • Chrysler Sebring (selected Trims) : 2010 (Fog Light)

  • Dodge Avenger : 2010-2012 (Fog Light)

  • Dodge Caliber : 2010-2012 (Fog Light)

  • Dodge Challenger (selected Trims) : 2011-2014 (Fog Light)

  • Dodge Charger (selected Trims) : 2010-2014 (Fog Light)

  • Dodge Dakota : 2010 (Fog Light)

  • Dodge Durango (selected Trims) : 2011-2013 (Fog Light)

  • Dodge Grand Caravan : 2010-2019 (Fog Light)

  • Dodge Journey : 2010, 2019 (Fog Light)

  • Dodge Journey (selected Trims) : 2011-2018 (Fog Light)

  • Dodge Nitro : 2010-2011 (Fog Light)

  • Ford Escape : 2007-2012 (Fog Light)

  • GMC Acadia (selected Trims) : 2007-2012 (Fog Light)

  • GMC Canyon : 2015-2020 (Fog Light)

  • GMC Sierra 1500 : 2009-2015 (Fog Light)

  • GMC Sierra 1500 (selected Trims) : 2007-2008 (Fog Light)

  • GMC Sierra 2500 HD : 2007-2020 (Fog Light)

  • GMC Sierra 3500 HD : 2007-2020 (Fog Light)

  • GMC Yukon : 2014, 2019-2020 (Fog Light)

  • GMC Yukon (selected Trims) : 2007-2013 (Fog Light)

  • GMC Yukon XL : 2019-2020 (Fog Light)

  • GMC Yukon XL 1500 : 2009-2014 (Fog Light)

  • GMC Yukon XL 1500 (selected Trims) : 2007-2008 (Fog Light)

  • GMC Yukon XL 2500 : 2007-2013 (Fog Light)

  • Jeep Cherokee : 2019 (Fog Light)

  • Jeep Cherokee (selected Trims) : 2014-2019 (Fog Light)

  • Jeep Compass : 2010-2013 (Fog Light)

  • Jeep Gladiator (selected Trims) : 2020 (Fog Light)

  • Jeep Grand Cherokee (selected Trims) : 2011 (Fog Light)

  • Jeep Patriot : 2010-2017 (Fog Light)

  • Jeep Wrangler : 2010-2016 (Fog Light)

  • Jeep Wrangler (selected Trims) : 2017-2020 (Fog Light)

  • Subaru BRZ : 2013-2016 (Fog Light)

  • Subaru Crosstrek (selected Trims) : 2017-2018 (Fog Light)

  • Subaru Impreza (selected Trims) : 2012-2016 (Fog Light)

  • Subaru XV Crosstrek (selected Trims) : 2013-2014 (Fog Light)

  • Volkswagen Routan (selected Trims) : 2010-2014 (Fog Light)

COMPLIANCE

APPLICATION: HID and LED bulbs are street legal in the USA for Fog Light use only. Not compliant with DOT / FMVSS108 and not street legal in the USA for Headlights. Legal for off-road use in Snowmobile and ATV headlights and off-road racing use only auxiliary or forward lighting. International street legality varies by country. For detailed clarification on street use, CLICK HERE
Note: This usage regulation is not unique to this item. All LED and HID bulbs from all other brands, regardless of marketing claims, are prohibited from street use in halogen headlights in the USA.

HOMOLOGATION ECE: NO

DOT/SAE/FMVSS108: NO (NOT STREET LEGAL IN HEADLIGHTS IN USA)

Cutting-Edge LED Chip Technology: We challenge you to find another bulb on the market that produces as much light as the V.4 while still retaining a perfect beam pattern! The V.4 LED fog light bulbs utilize the newest multi-core LED chip styles that feature one long crystal over the entire diode array to create a seamless light output source. Most LED fog light bulbs on the market essentially create 2, 3, 4, or 6 different light sources by stacking 2-6 different chips together in a line. The NLW1860CV2 chips are based on XD14 technology developed by CREE, this custom designed LED chip has no light gap between diodes which gives it a closer function compared to the original filament bulb, thus achieving a greater beam accuracy that works best in any fog light or fog light housing.

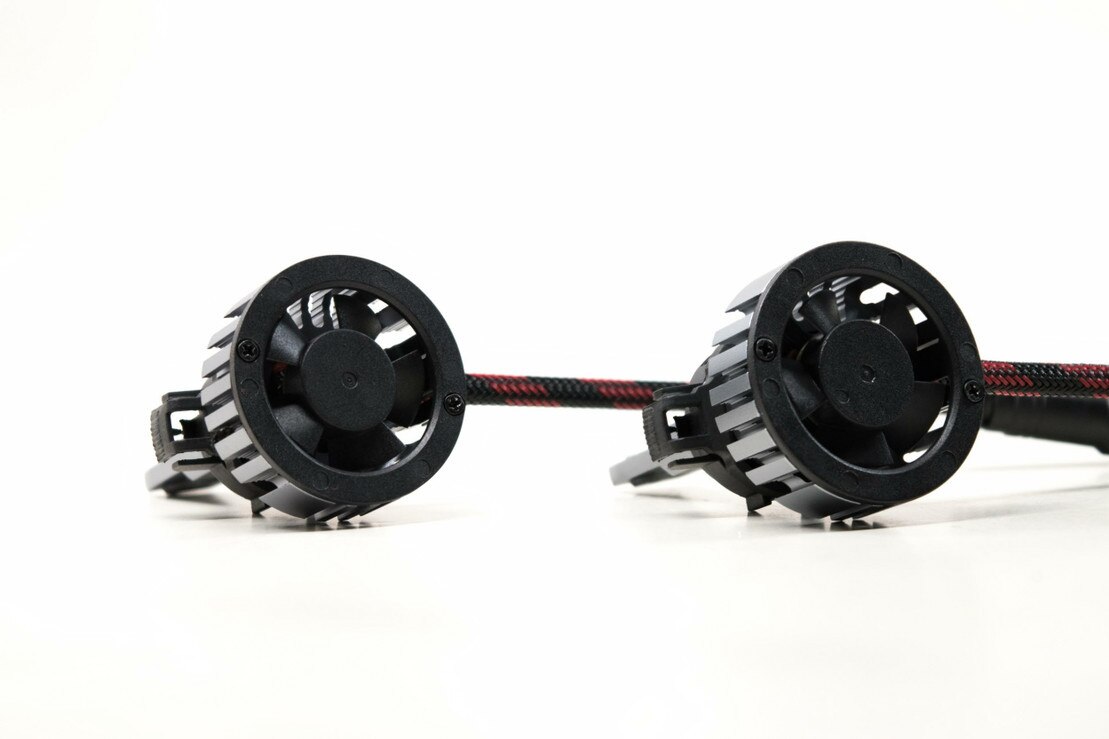

Thermal Management: The V.4 LED fog light bulbs are built from the highest quality 6063 aluminum material originally designed for aircraft and space craft applications. This material has amazing heat dissipation qualities as well as is 100% corrosion resistant in automotive applications. On the bottom of the heat sink lies a high-speed double ball bearing micro-fan that is fully submersible and waterproof! If the fan stops working, the sophisticated thermal management system inside the bulb will dim the fog light until it is safe to use. Considering that these bulbs can be up to 6x brighter than your original bulbs, even at 50% power, they will still be safe to use on the street in most situations. The heavy duty LED bulb power driver has a built in smart fan circuit that ramps up the speed of the cooling fan as necessary so it's as quiet as possible when it can be.


Compact Design: Most LED fog light bulbs that use a fan-based active cooling system are known for not being small or easy to fit inside fog light housings with a dust cover. The V.4 is designed to be as compact as possible. The mounting depth is 20-25mm on most bulb variants, low profile enough to fit even the most demanding of spaces! The heat sink / fan diameter is only 39mm! The LED driver on this bulb is larger than the previous generation, but it is still the right size to fit inside most fog light housings comfortably.


CANBUS Compliant: Do your LED fog light bulbs flicker, pulse, give you errors and warnings on the dash? Do they even work at all?? Chances are your vehicle employs some version of CANBUS or PWM to control the lighting functions. These complex OEM systems rely on the physical readings of your original fog light filament to determine of your bulbs are operating properly. Simply put, when you install an LED fog light bulb, that function sometime determines that the bulb is broken, or missing entirely and will cause the truck to malfunction. Sometimes this means they don't come on at all, other times they flash, and sometimes they will suddenly shut off while you're driving! All of these things are solved by the built in CANBUS integration circuit found already inside the V.4 LED driver. Sometimes an extra PWM module may still be necessary, but this bulb is totally plug and play on the vast majority of vehicles on the road today, even brand new models!


Dimming: The V.4 bulbs dim less and less bright until they turn off at 8V DC.


DRL: If the DRL function is lower than 8V DC, the bulbs will just not turn on at all. But if they use CANBUS or PWM at 12V DC they will work normally.


CANBUS: Some vehicles use CANBUS function to monitor and control your fog light and fog light bulbs. The V.4 has a slightly larger LED driver than normal because the CANBUS anti-flicker and anti-error circuitry is built in! No external components should be needed to install these bulbs with a CANBUS-Equipped vehicle. Easy plug and play installation. 2 year warranty.


Want your fog lights: to shine brighter and further but your current bulbs just aren't cutting it? Want to get rid of that old yellow light tint and give your ride an updated look with a cool white light beam? Look no further! These LED fog light bulbs will cast a precise light beam that will give you increased visibility, a wider viewing angle, and a much longer lifetime over conventional halogen bulbs.


The V.4: comes in every popular style to replace any fog light or fog light bulb. Match the bulb number of your original application (example: 9005, 9006, H4, H13, etc...) with the matching V.4 LED fog light bulb and replace bulb for bulb. Fits all applications including projectors, and fog lights with dust shield covers.
