2Stroke PWM Anti-Flicker Harness

(0) No Reviews yet
Questions?

Brand: Morimoto

B-CX-MMPWM

$0.00

PRODUCT DETAILS

PART #: 1 x B-CX-MMPWM



DESCRIPTION

FEATURES & BENEFITS

  • Stable Illumination: Our 2Stroke Anti-Flicker Harnesses ensure flicker-free LED headlights.
  • Powerful Capacitors: 10K mF Capacitors guarantee smooth power delivery to LED bulbs.
  • Durable Design: Die-cast construction provides maximum protection against elements.
  • Easy Installation: Plug-and-play setup eliminates complex wiring.
  • Daytime Running Lights: Perfect for pulsed and low voltage setups, ensuring consistent lighting.

WHAT’S INCLUDED

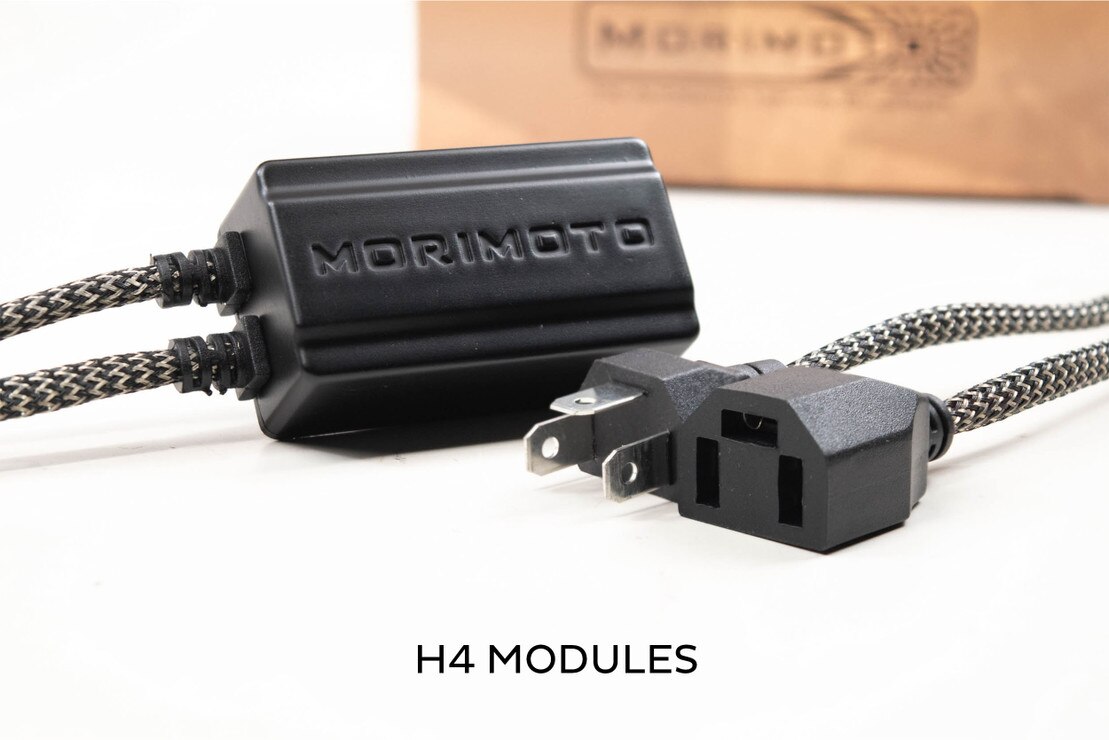

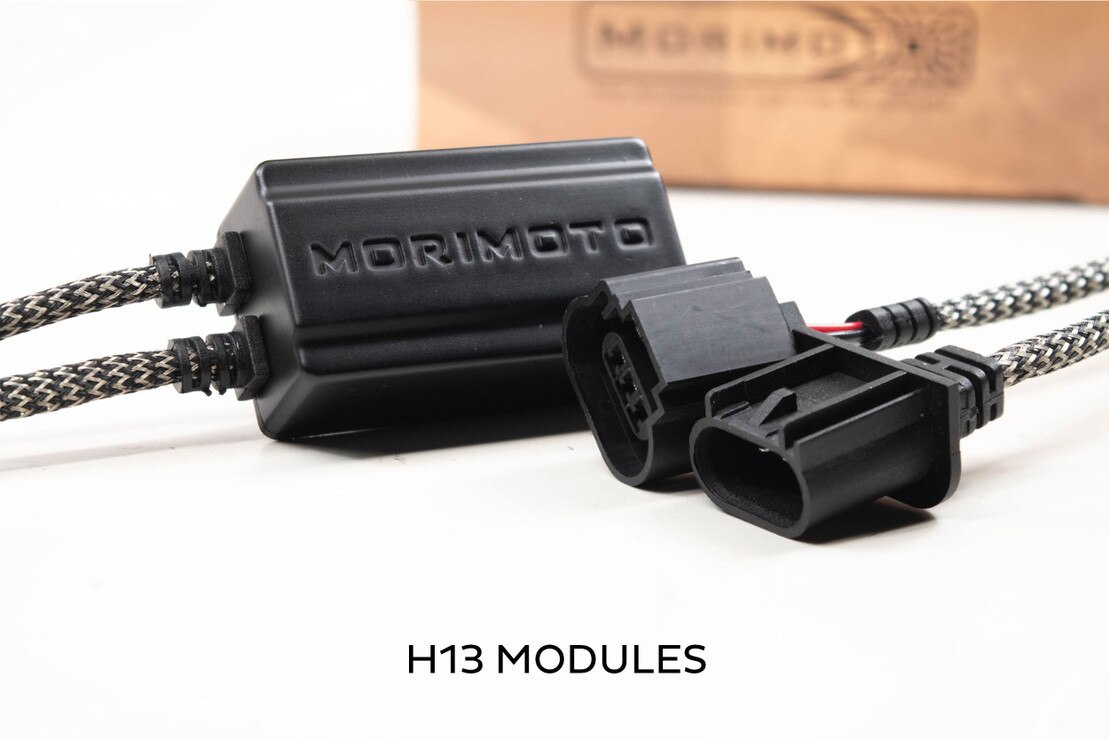

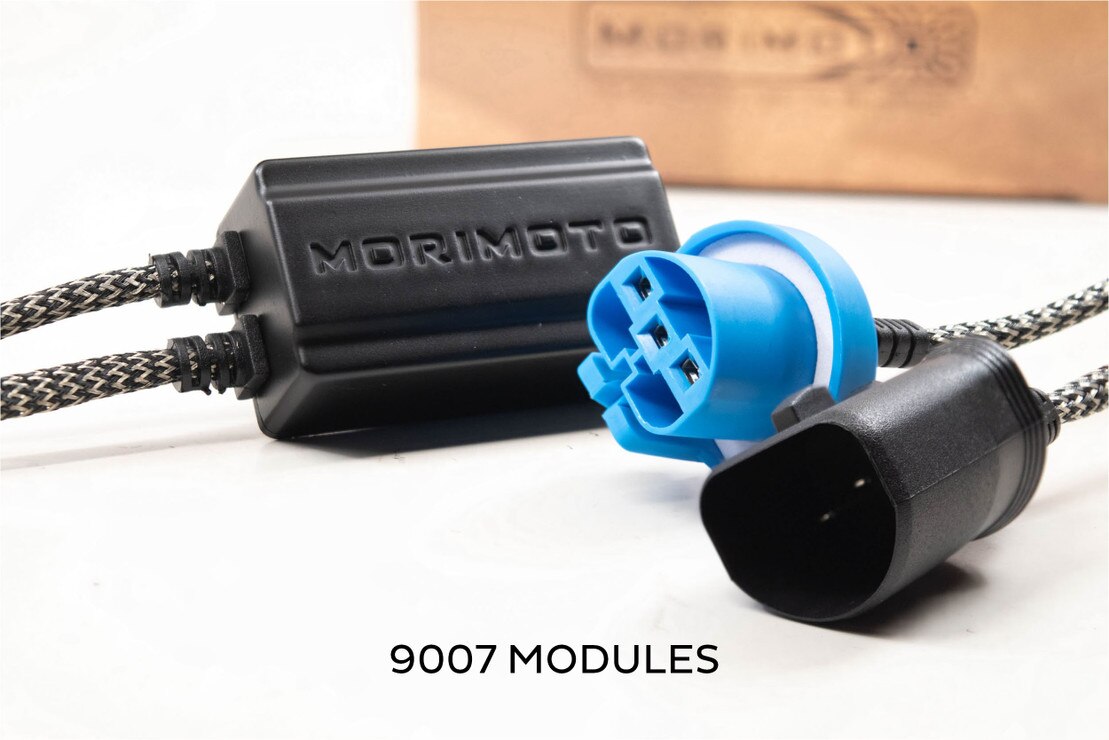

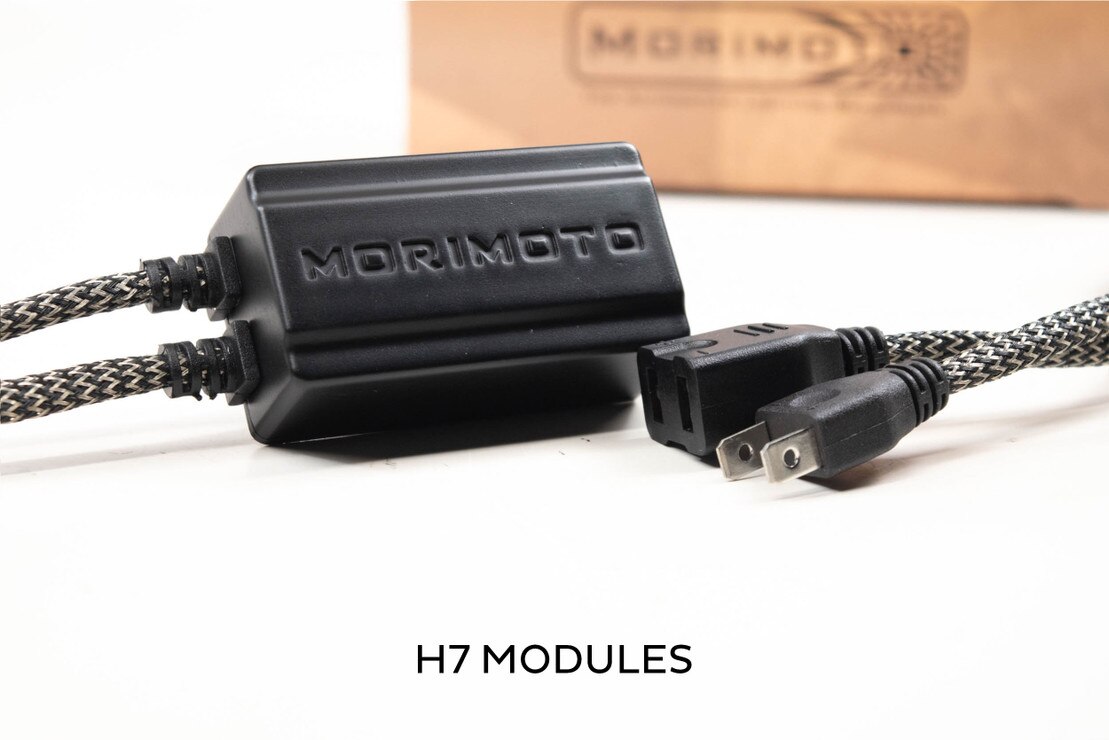

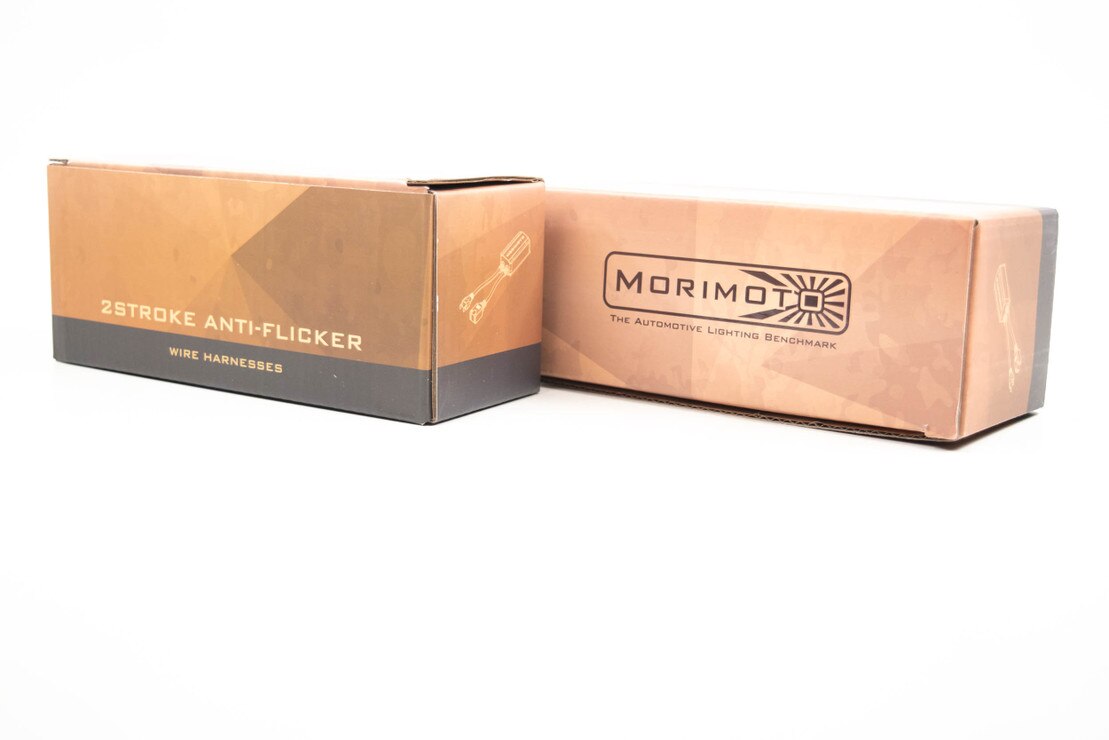

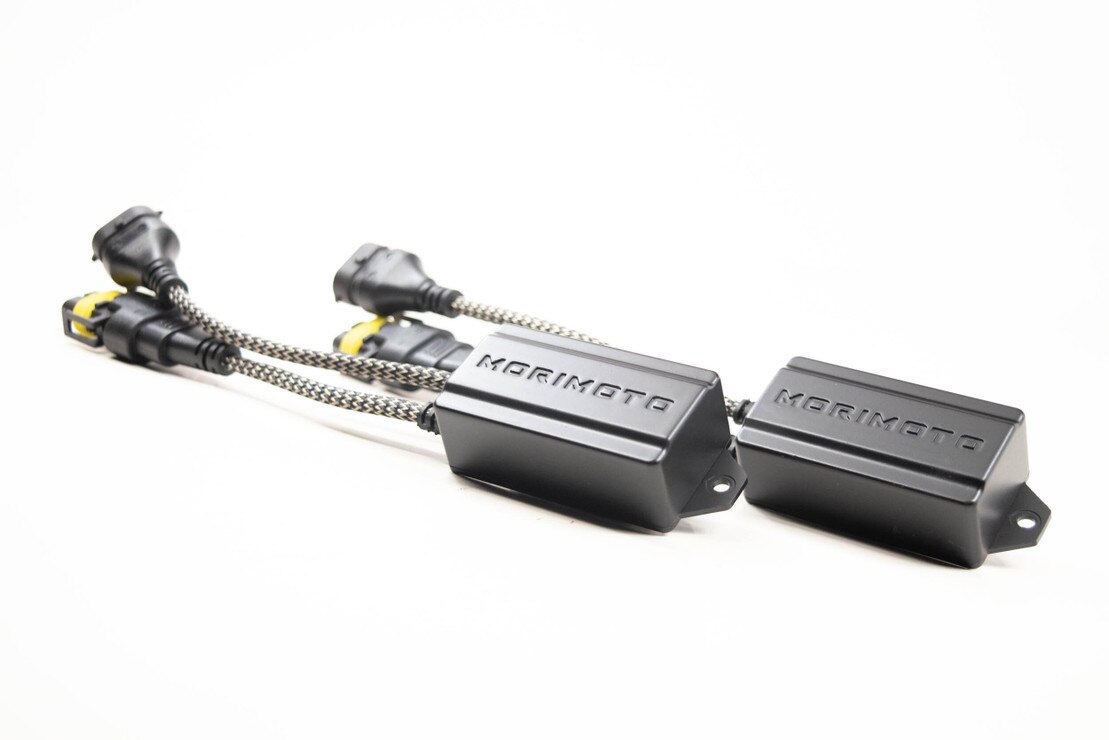

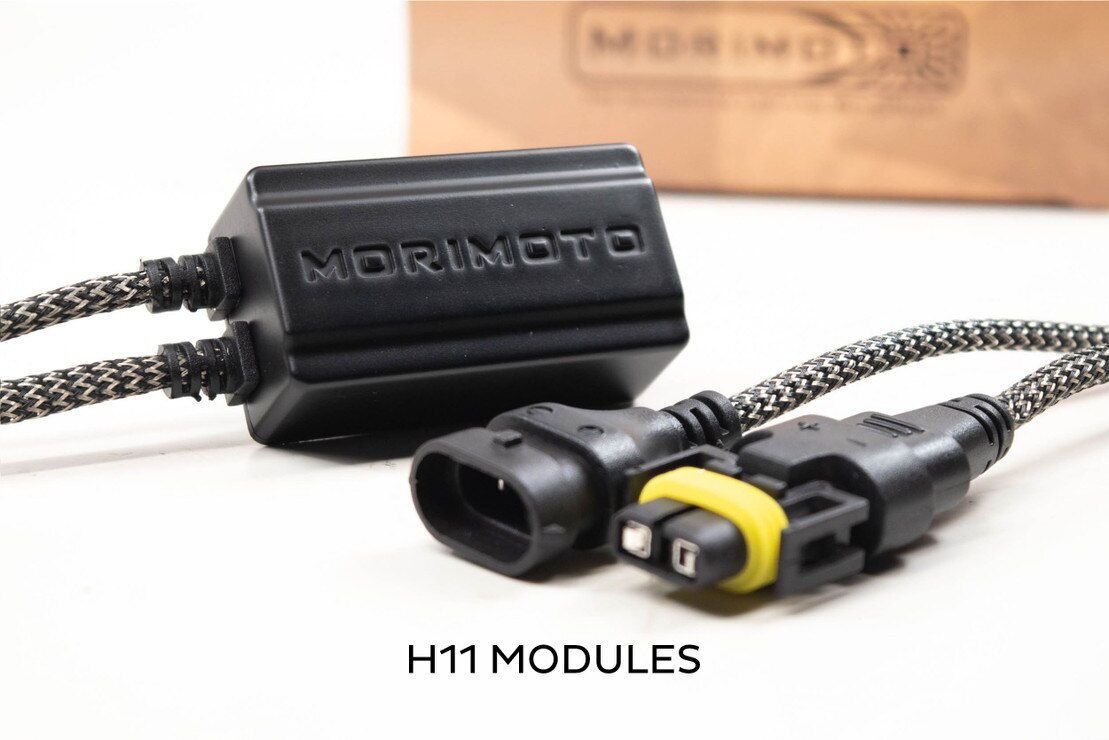

  • Modules : 2x (One Pair) Morimoto 2Stroke Anti-Flicker Harnesses (Choose Size)

WARRANTY INFORMATION

Warranty: Not Eligible
Returns: Not Accepted

TECHNICAL SPECIFICATIONS

  • Input/Output : Size-Specific

  • Material : Cast Aluminum

  • Length : 150mm (Input and output)

COMPATIBILITY

  • LOW BEAMS : Normal / PWM Pulsed

  • HIGH BEAMS : Normal / PWM Pulsed

  • FOG LIGHTS : Normal / PWM Pulsed

  • DRLS : Normal / PWM Pulsed

  • ELECTRICAL SYSTEMS : 12V

  • LED HEADLIGHT BULBS : All brands

  • NOTE : Not Compatible with 2Stroke 3.0!

  • Do I need PWM / Anti-Flicker Modules? : When using in Fog Lights: Unlikely. With low beams that double as Daytime Running Light: Likely.With high beams that double as Daytime Running Light: Likely. When the vehicle is late model American (Chrysler, Dodge, Jeep, Ford, GM): Likely.

INSTALLATION DOCUMENTS

Flicker-Free: Is the way to be! But unfortunately if you're trying to run a set of LED headlight bulbs on a circuit that runs off pulsed voltage, then you're out of luck. Out of luck unless you've got a set of the 2Stroke Anti-Flicker harnesses that is!


Designed: With some massive 10K mF Capacitors inside to help absorb the pulsing current coming from the factory wiring, then release it in a smooth fashion out into the LED bulb drivers, they're quite simple and effective.

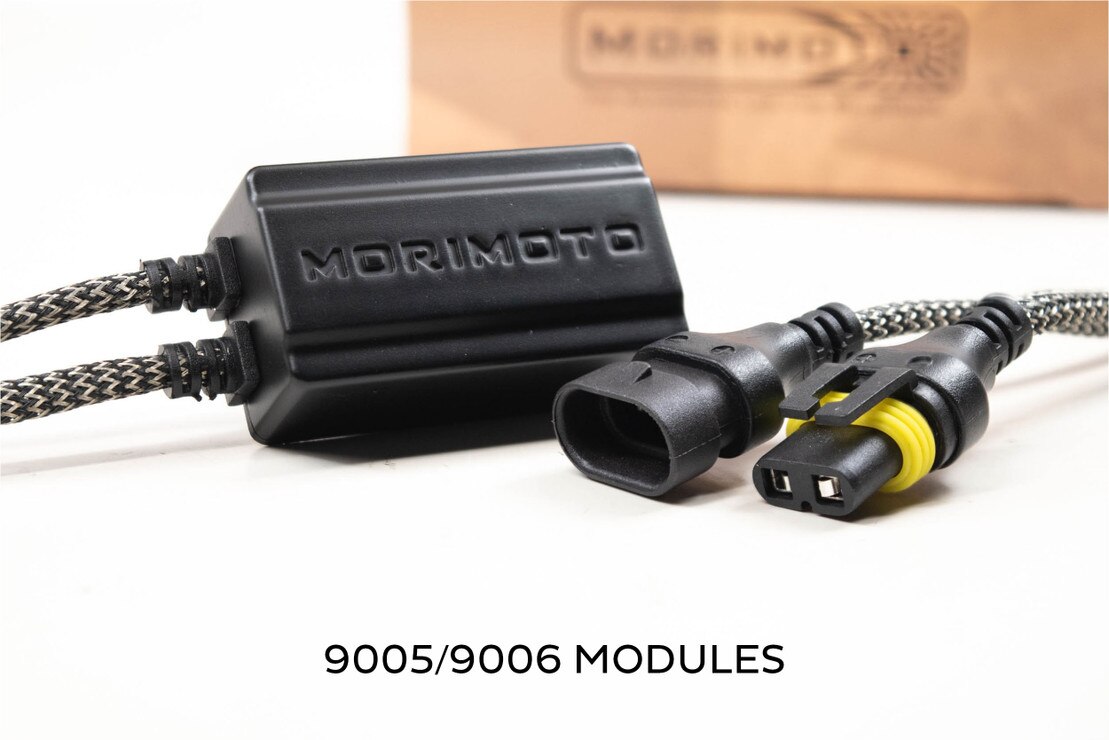

In and Out: No need for complicated wiring to solve this common issue. The 2Stroke Anti-Flickers are easy to setup. With a standard 9006 Male Input and a standard 9006 female output - in most cases you can just "plug n play" in between the factory wiring and the Drivers on your bulbs.


Daytime Running Lights: Often run off both pulsed voltage, and low voltage. It's important to understand which one your car uses - because if you're having issues with a low voltage setup, these will not solve that problem (since they don't increase the voltage coming from the car...they just smooth it out).


Construction: Can't fault that! These things are really nice looking. With a matte black extruded aluminum shell surrounding the goods inside, they're well protected and weather resistant too. High quality titanium-colored techflex mesh insulation provides extra abrasion resistance for the input and output wiring too.
