Professional Lux Meter
[ In Stock: pieces ]
Starting at $X.XX/month with
Maximum Lux: Want to be like a professional retrofitter and measure before/after differences in light output? Do it the right way with the Morimoto MotoMeter--the new standard in aftermarket lighting performance measuring tools.

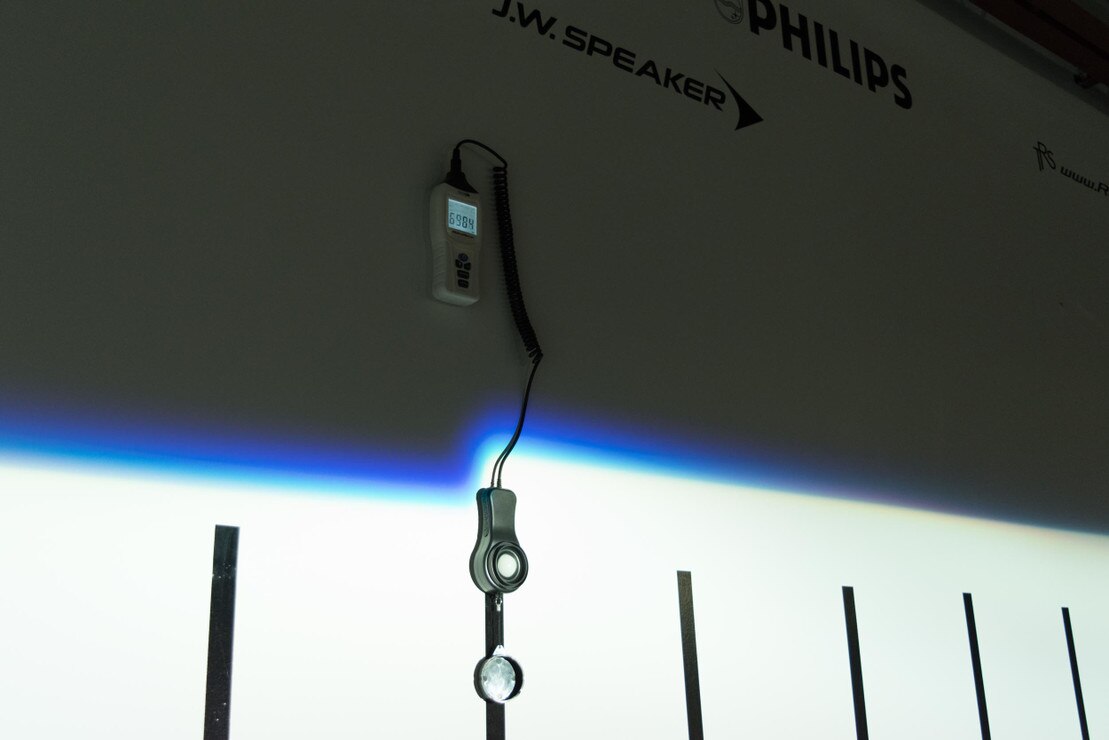

Location Location: While many measure solely at the hot spot (the most intense point of light at the center of the beam), it's also important to check for glare (light spillage above the cutoff line) and intensity at the edges. Proper dispersion of the beam = better visibility, and isn't that the idea behind all of this?

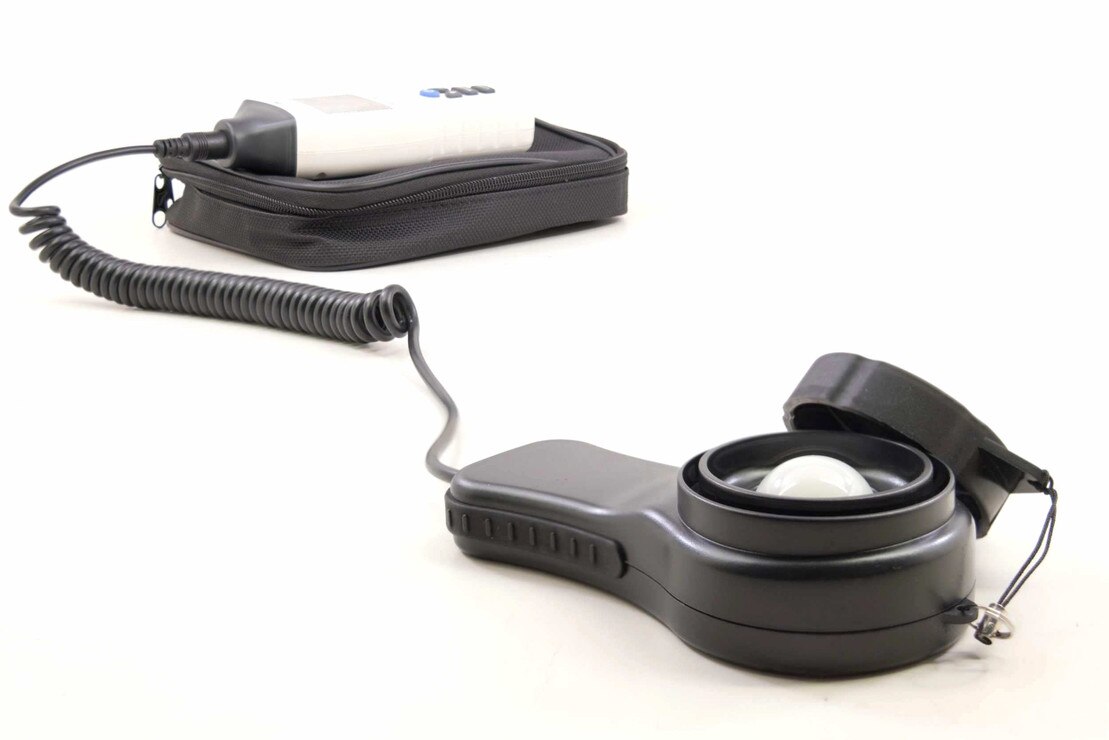

Easy To Use: The optical eye can be held at the location of choice remotely from the display or hard-mounted to a surface via double-sided tape or heavy duty velcro patches. For consistency, a permanent mount is recommended but not required.
Trusted: For more than a decade, we've worked hard to earn our killer reputation. Car guys world-wide know that TRS carries the internet's best selection of high performance automotive and powersport lighting products at the best prices, and we've got the best, most knowledgeable team of real enthusiasts to help back it up. If we sell it, then you bet we've put it to the test on our own cars, trucks, and bikes. Need a recommendation on parts for your project? Got a tech question? Wholesale inquiry? Contact us!
METER: 1x Morimoto MotoMeter
BATTERY: 1x 9V (Not Included)
WARRANTY: 1 Year
DISPLAY: 4 Digit LCD
MEASURING RANGE: 0-400k Lux; 0Fc-40k Fc
SPECTRAL RESPONSE: CIE Photopic
OVER RANGE INDICATION: LCD Displays '-OL-' or '-LO-'
ACCURACY: +/- 3% rdg +/-0.5%f.s. (<10,000Lux)
SAMPLING RATE: 2/sec
PHOTO DETECTOR: Silicone photo-diode with spectral response filter
POWER SUPPLY: 1x 9V Battery (Not Included)
PHOTO DETECTOR LEAD LENGTH: Approx. 2.5m
BATTERY LIFE: >30h
OPERATING CONDITIONS: -20C to +60C
STORAGE CONDITIONS: -20C to +60C
DIMENSIONS: 158mm x 62mm x 32mm
