Jeep Wrangler JL (2018+) Sealed7 LED Headlights

(0) No Reviews yet
Questions?

Brand: Morimoto

B-ASY-JLSEALED7-TRS

$499.00

PRODUCT OPTIONS

PART #: 1 x LF518



*Guaranteed Fitment
Easy Return

DESCRIPTION

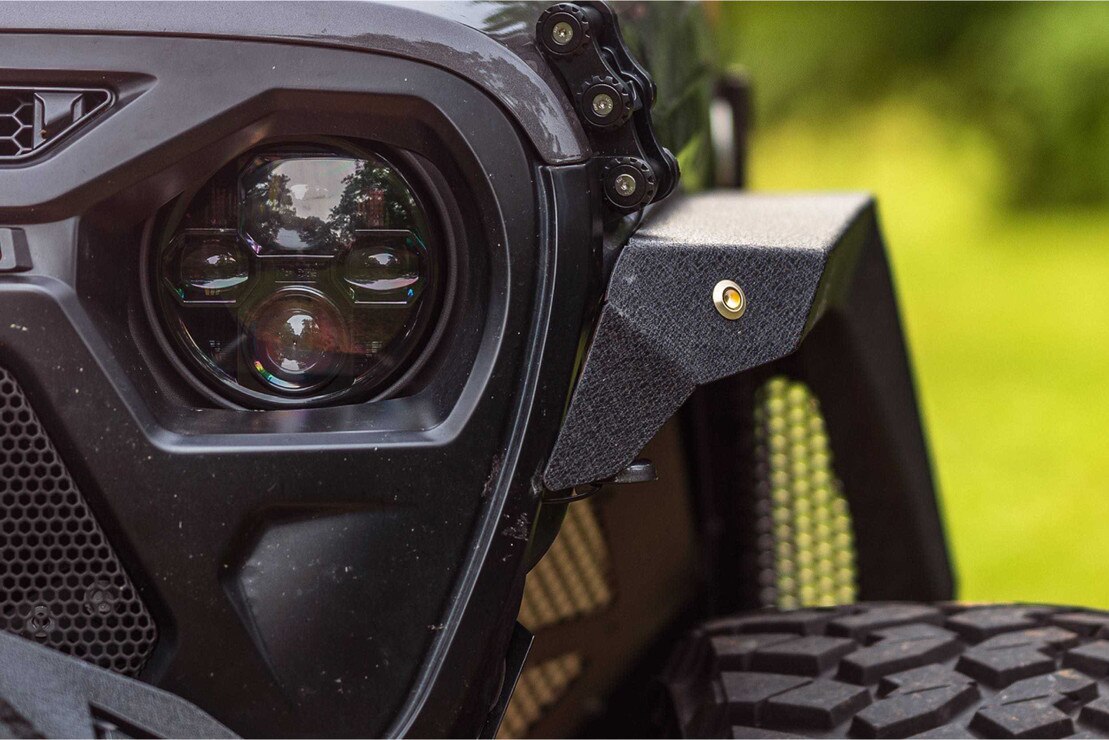

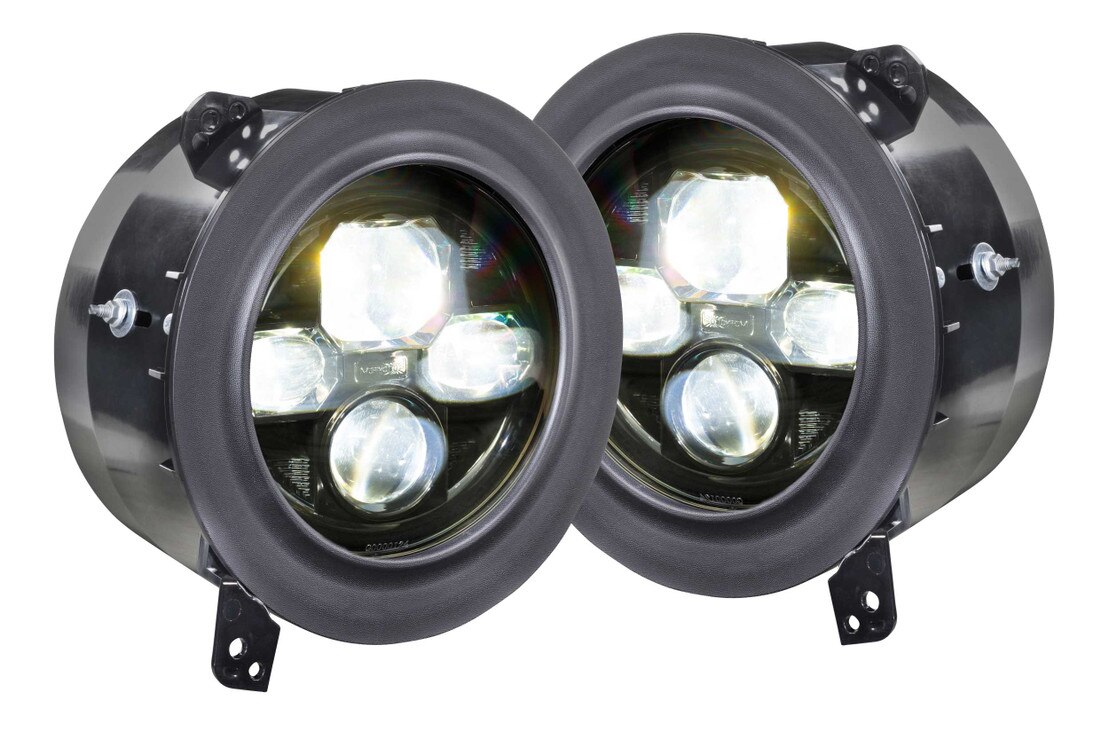

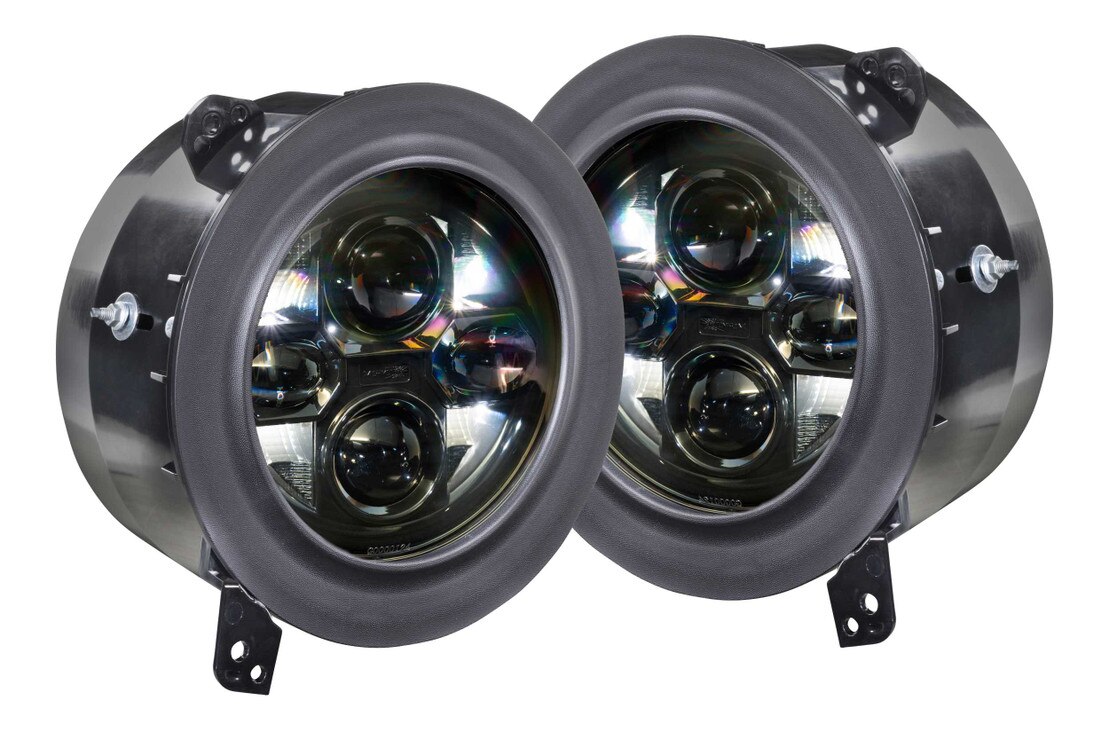

The Morimoto Sealed7 headlights are a top choice for Jeep Wrangler JL owners looking to upgrade their headlights. These headlights offer better style, performance, and features compared to the original ones. They use high-quality LEDs from Nichia and Philips-Lumileds, making them very bright and efficient. The low and high beams use the same powerful LEDs found in Morimoto's 4Banger off-road LED pods, providing about 3000 lumens in low beam and nearly 4000 lumens in high beam mode. This makes night driving safer and clearer. The headlights also feature a special quad-optic setup that works as a daytime running light and a turn signal. When you turn, the white daytime light switches to a flashing signal and then goes back to white when done. This makes the Jeep more visible and stylish. The Sealed7 headlights are built to last with a shatter-proof UV coated Polycarbonate lens and sturdy die-cast housings that act as heat sinks. They also have an anti-flicker LED driver inside to ensure a steady light even when the power supply varies.

FEATURES & BENEFITS

  • Superior Performance: Uses Nichia LEDs, delivering 3000 lumens in low beam and 4000 lumens in high beam mode.
  • Advanced Optics: Equipped with Morimoto's Kuria Optic projector lens for efficient light distribution.

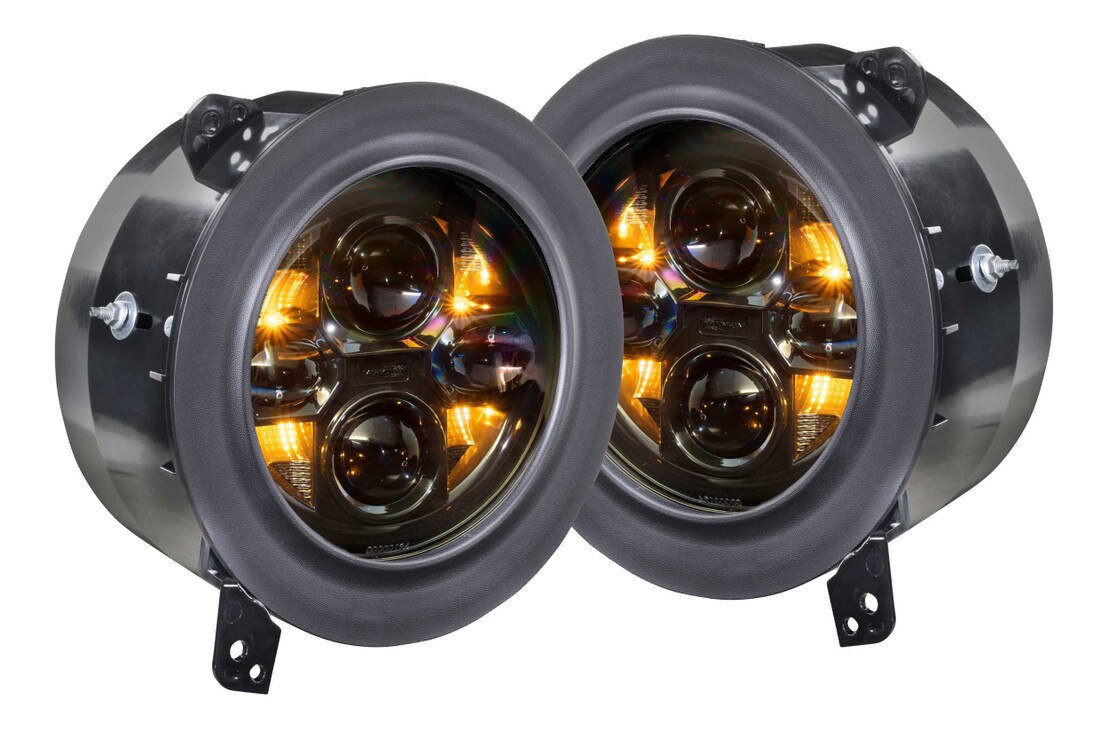

  • DRL and Switchback: Quad-optic setup acts as a bright white DRL and switchback turn signal, flashing amber when signaling.
  • Easy Installation: 3-wire DRL/Signal input for simple setup with nearby lights.
  • High-Quality Build: Shatter-proof, UV-coated lens and die-cast housings for durability.

WHAT’S INCLUDED

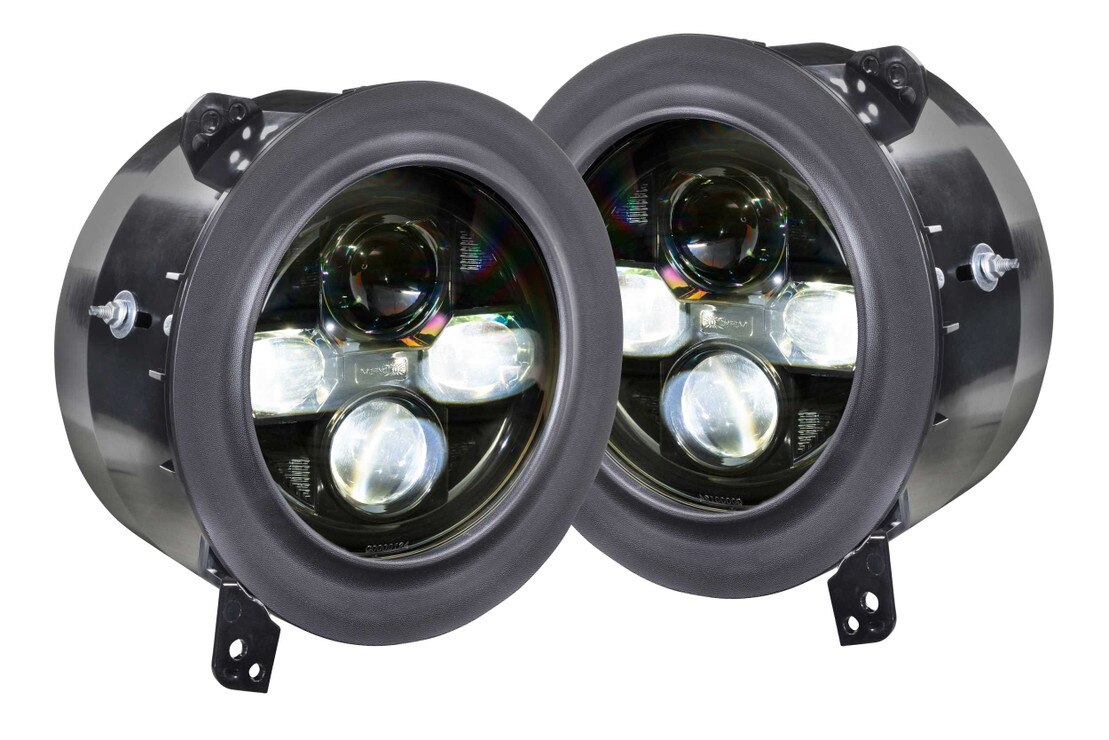

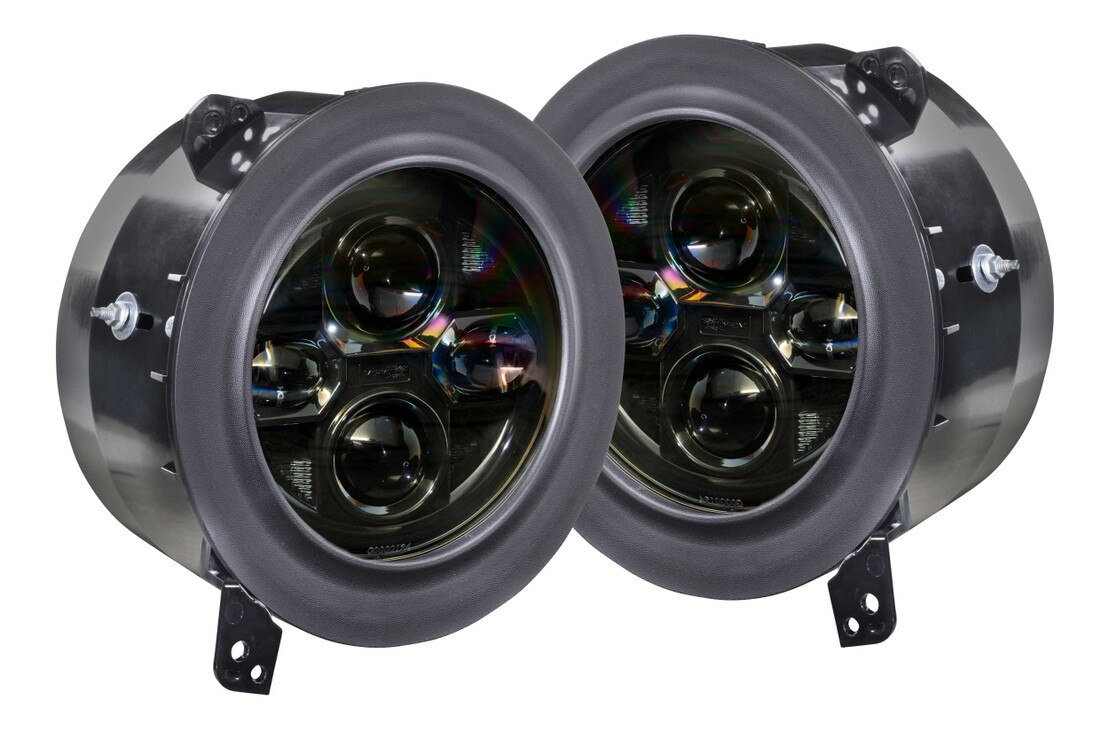

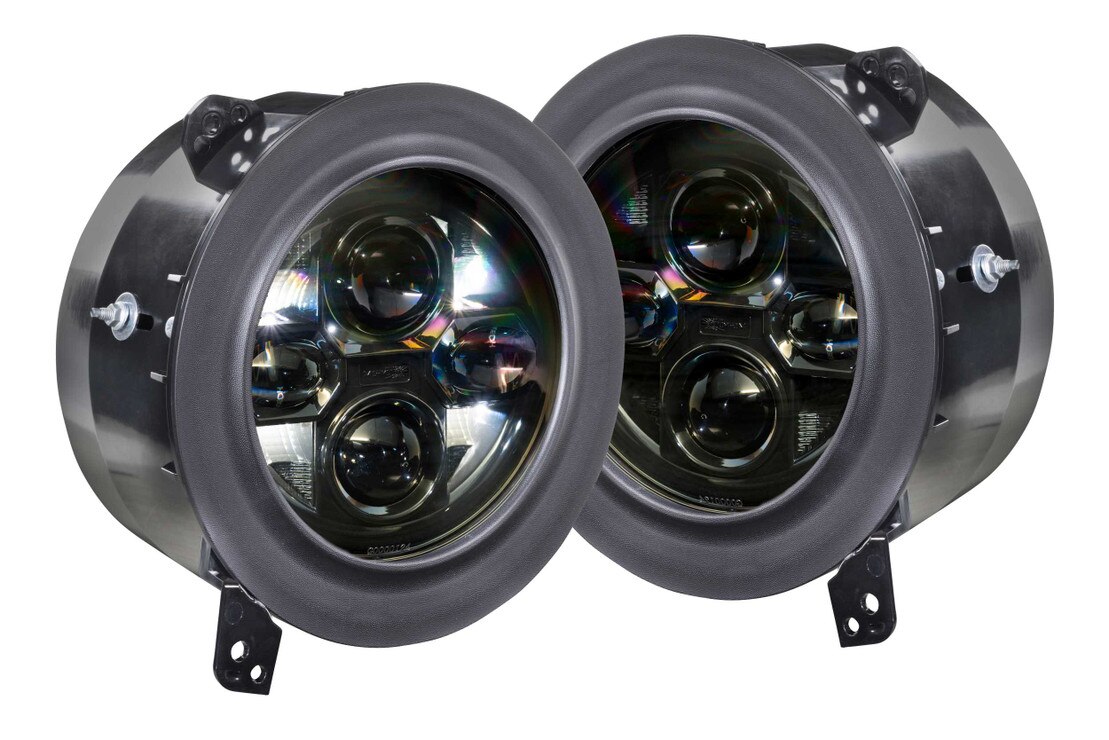

  • Headlights: 2x (One Pair) 2018+ Jeep Wrangler JL Sealed7 Headlights

  • Wiring: Plug and Play Wire Harness

  • Taps: For DRL/Turn Signal Operation

WARRANTY INFORMATION

This Morimoto product includes a 5 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

TECHNICAL SPECIFICATIONS

  • Traffic Pattern: LHD Only

  • Input: Delphi Multi-Pin OE Connection

  • Functions: Low and High Beam

  • Material: Power-coated Die-Cast Housing, UV-Treated Polycarbonate Lens

  • Optic: Kuria Optic Hi/Lo

  • Intensity: 2,860 Lumens (Low), 1020 Lumens (High)

  • LED: Nichia NCSW170C, Philips Luxeon 3535L

  • Kelvin Rating: 6300K

  • UV Coating: Momentive UVHC3000

LINE DRAWINGS

COMPATIBILITY

  • Jeep JL Wrangler: 2018+

  • Jeep JT Gladiator: 2020+

COMPLIANCE

DOT, SAE, FMVSS108 Standards

INSTALLATION DOCUMENTS

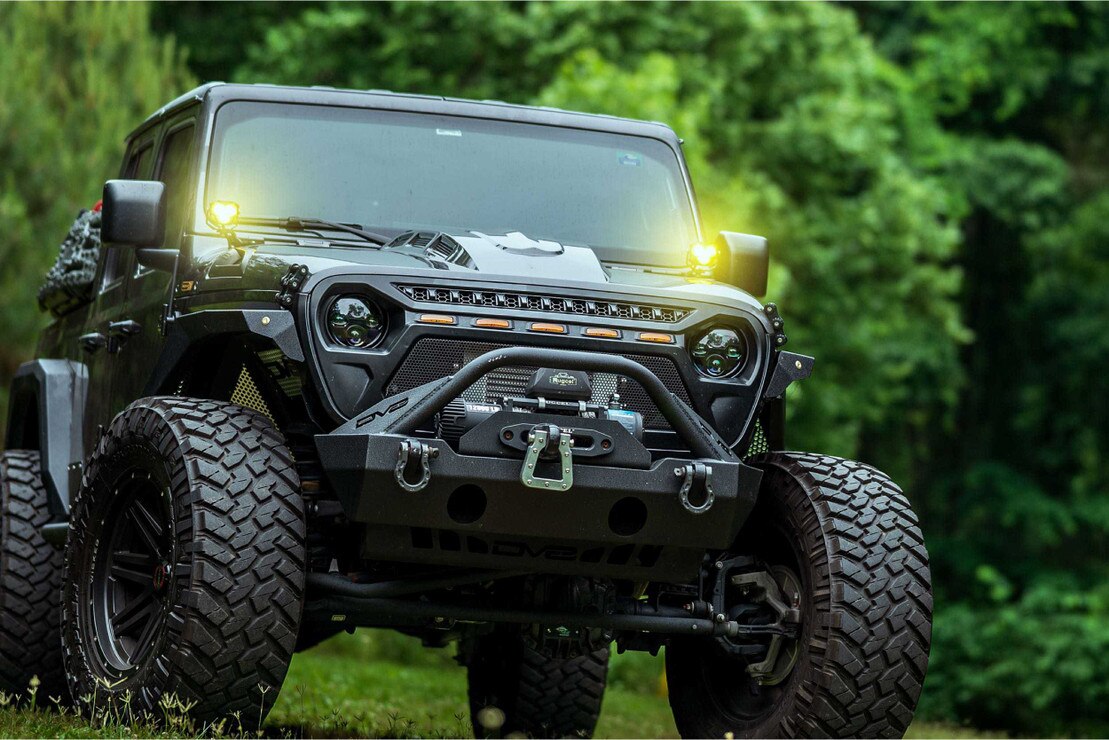

Wrangler JL: While every biz in the aftermarket has a catalog full of products for the new Wranglers, including headlights, somehow no brand has yet to deliver anything worthy of replacing the OEM headlights. When it comes to style, performance, features, quality, and compatibility: the Morimoto Sealed7 headlights are the category killer that every JL owner has been waiting for!


Output: The low and high beam optics are powered by the same LEDs used in the new 4Banger offroad LED pods (Nichia NCSW170--pair that with Morimoto's advanced Kuria Optic projector lens and the Sealed7 efficiently distributes roughly 3000 lumens on the road in a properly LHD-stepped beam pattern. Because the Sealed7 runs all optics together in high beam mode, the output is intensified to nearly 4000 mosquito-melting lumens there!


DRL / Switchback: The quad-optic setup at the corners acts as a high-intensity white daytime running light as well as a switchback turn signal to compliment the blinkers in the lower grille. The switchback setup on the turn signal will automatically interrupt the white DRL, flash, and then return to white once the signal stops. The 3-wire DRL/Signal input makes setup on your Wrangler easy too, since it can be tapped into the turn signals / parking lights that live nearby.


Quality: No expense was spared on the Sealed7 Spec sheet. At their core, Japanese LEDs from from Nichia and Philips-Lumileds. The UV coated Polycarbonate lens is shatter proof and will take years of abuse without fading. You can feel the precision in the heavy-duty die-cast housings that double as a heat-sink for the powerful LEDs. A special anti-flicker LED driver resides inside of the headlight to keep the LED's running strong despite inconsistent power-supply from the headlight circuit.
