Jeep Wrangler JK (07-17) Sealed7 Headlights

(0) No Reviews yet
Questions?

Brand: Morimoto

B-ASY-JKSEALED7-TRS

$480.00

PRODUCT OPTIONS

PART #: 1 x LF516



*Guaranteed Fitment
Easy Return

Items in this Kit are on CLEARANCE!
Clearance Items are Non-Refundable

DESCRIPTION

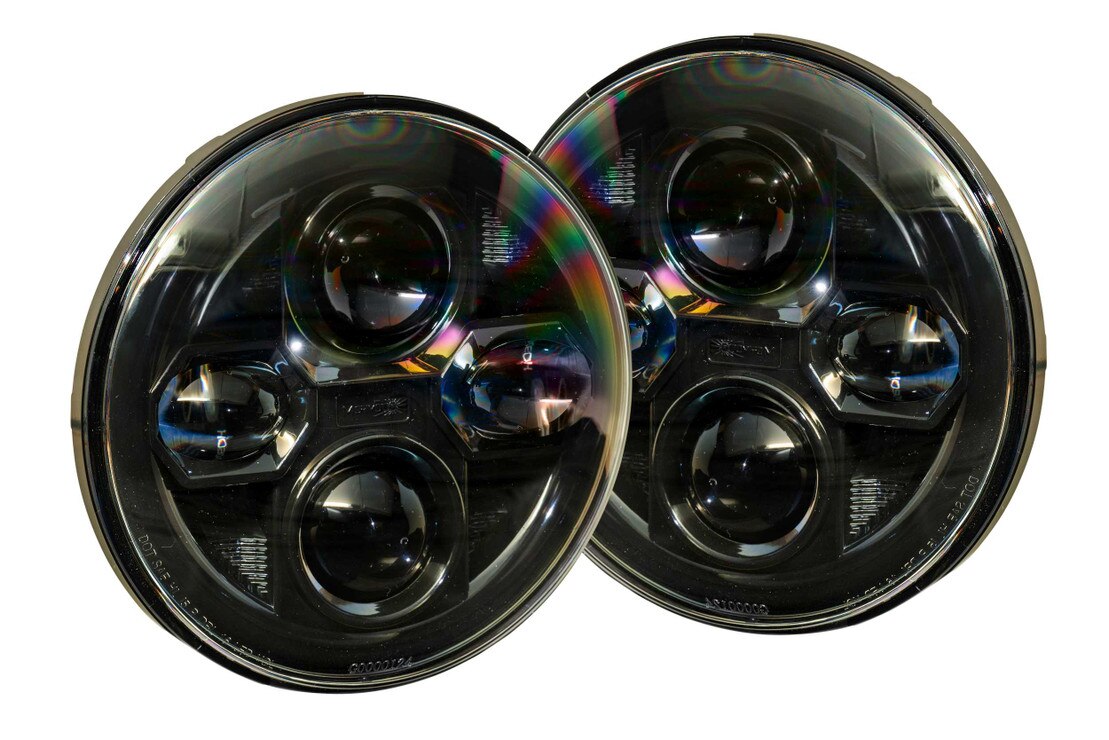

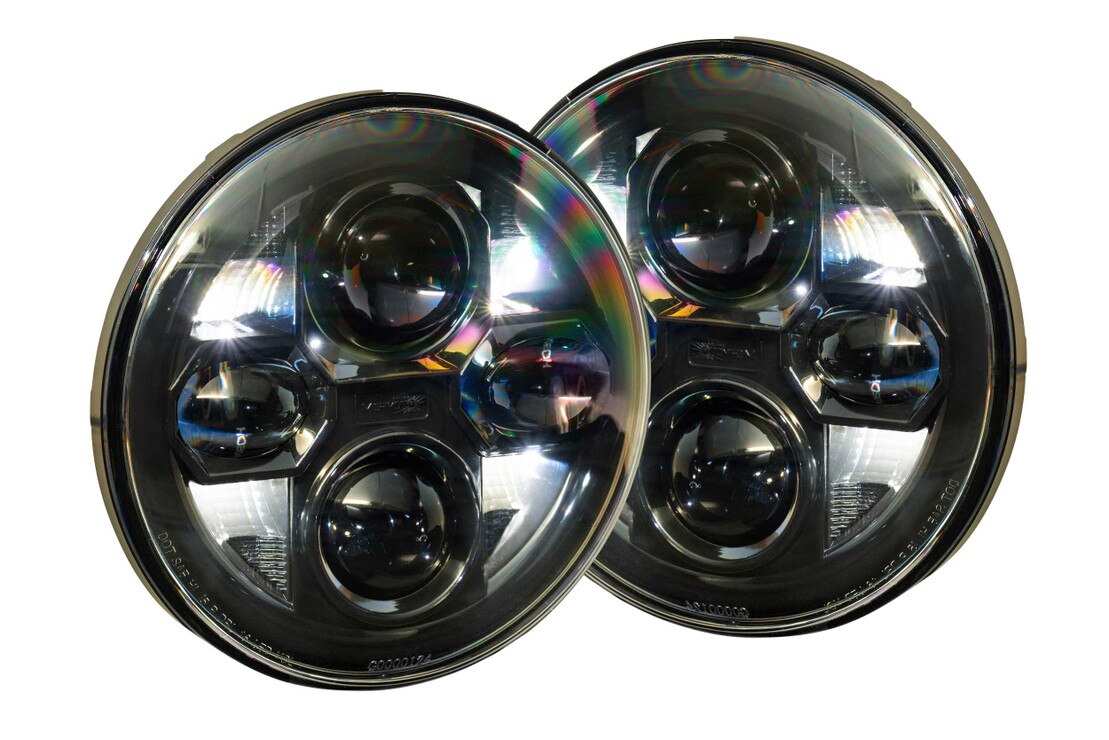

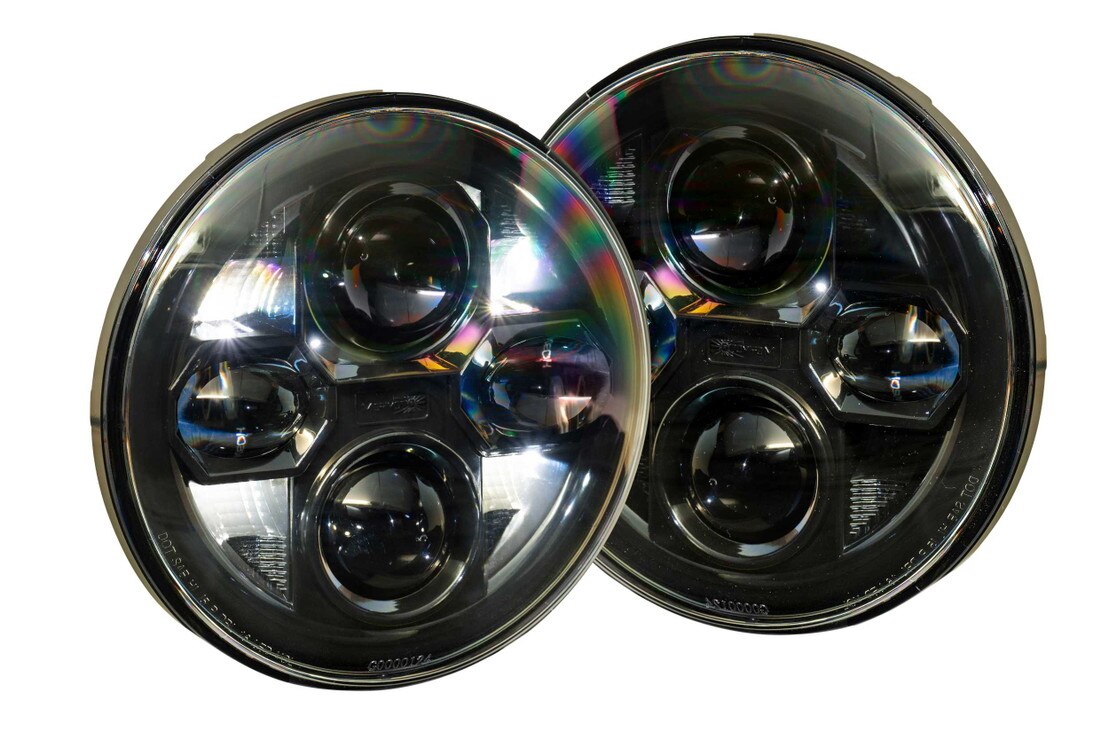

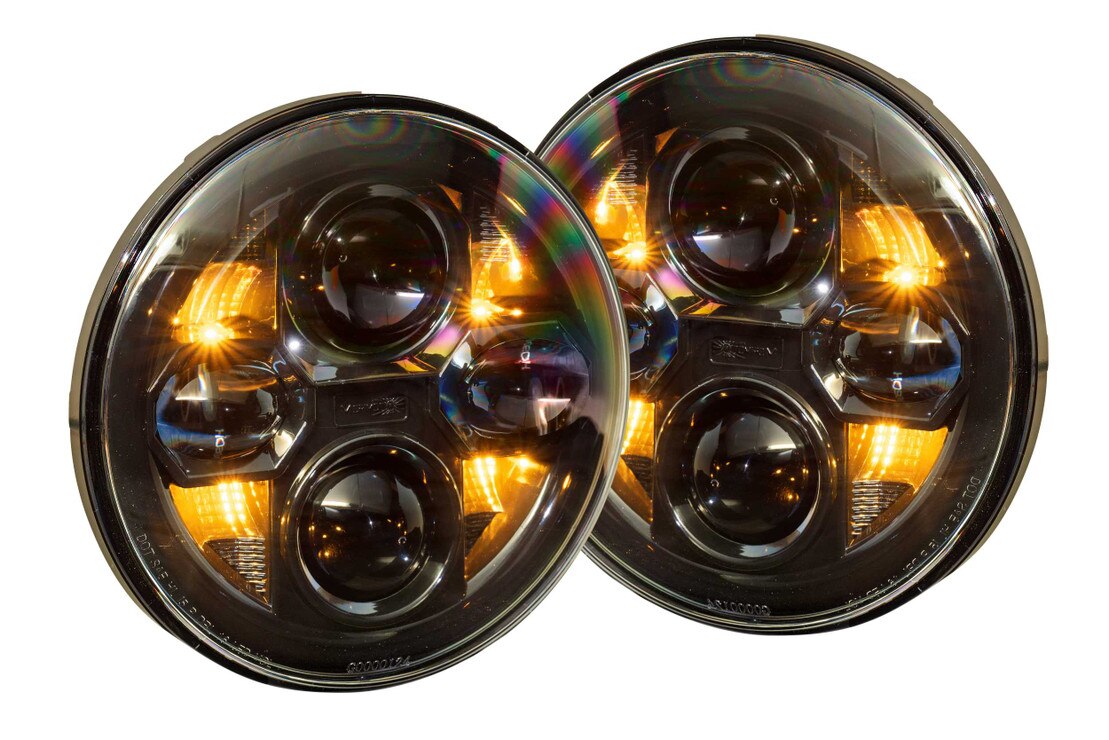

The Morimoto Sealed7 Headlights, the ultimate solution for Wrangler JK owners seeking top-tier performance and style. Designed to replace all 7in Round / PAR56 headlights, these headlights feature advanced Nichia and Philips-Lumileds LEDs that deliver a powerful 3000 lumens for low and high beams, with an intense 4000 lumens in high beam mode. The quad-optic setup includes high-intensity white daytime running lights and switchback turn signals for added safety and style. Crafted with a UV-coated shatterproof Polycarbonate lens and heavy-duty die-cast housings that double as heat sinks, these headlights are built to last and maintain precision. An anti-flicker LED driver ensures consistent performance, even in the face of inconsistent power supply. These headlights come standard with H13/9008 male inputs, tailored for Wrangler JK use, and can easily adapt with an H4 adapter for versatile compatibility. Upgrade your Wrangler JK with the Morimoto Sealed7 Headlights for unparalleled quality, performance, and style.

FEATURES & BENEFITS

  • High-Performance LEDs: Nichia and Philips-Lumileds LEDs deliver 4000 lumens of brilliant light.
  • Precision Beam: Stepped beam pattern for precise and efficient road illumination.
  • DRL & Turn Signals: Quad-optic setup for stylish DRLs and safety-enhancing switchback turn signals.
  • Durable & Cool: Shatter-proof UV-coated lens, die-cast housings as heat-sinks for long-lasting use.
  • Easy Install: Fits 7in Round/PAR56 headlights, H13/9008 male inputs for Wrangler JK, H4 adapter compatible.

WHAT’S INCLUDED

  • Headlights: 2x (One Pair) 07-17 Jeep Wrangler JK Sealed7 Headlights

  • Wiring: Plug and Play Wire Harness

  • Taps: For DRL/Turn Signal Operation

WARRANTY INFORMATION

This Morimoto product includes a 5 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

TECHNICAL SPECIFICATIONS

  • Traffic Pattern: LHD Only

  • Input: Delphi Multi-Pin OE Connection

  • Functions: Low and High Beam

  • Material: Power-coated Die-Cast Housing, UV-Treated Polycarbonate Lens

  • Optic: Kuria Optic Hi/Lo

  • Intensity: 2,860 Lumens (Low), 1020 Lumens (High)

  • LED: Nichia NCSW170C, Philips Luxeon 3535L

  • Kelvin Rating: 6300K

  • UV Coating: Momentive UVHC3000

LINE DRAWINGS

COMPATIBILITY

  • Jeep JK Wrangler: 2007-2017

COMPLIANCE

DOT, SAE, FMVSS108 Standards

INSTALLATION DOCUMENTS

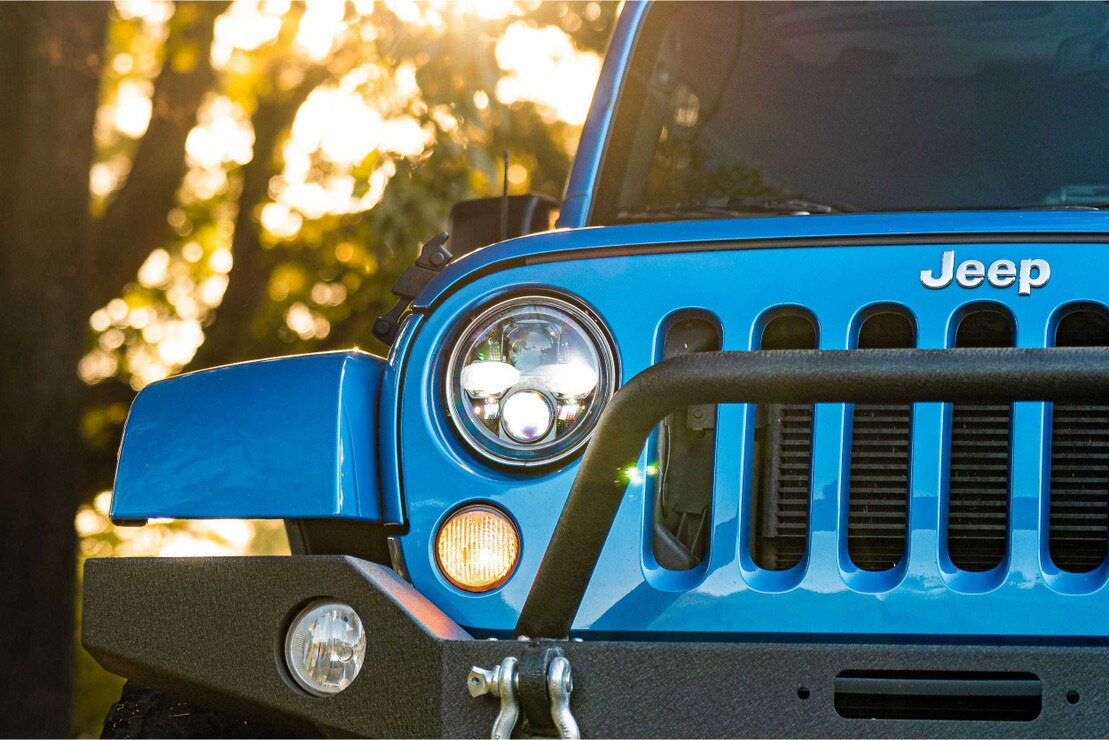

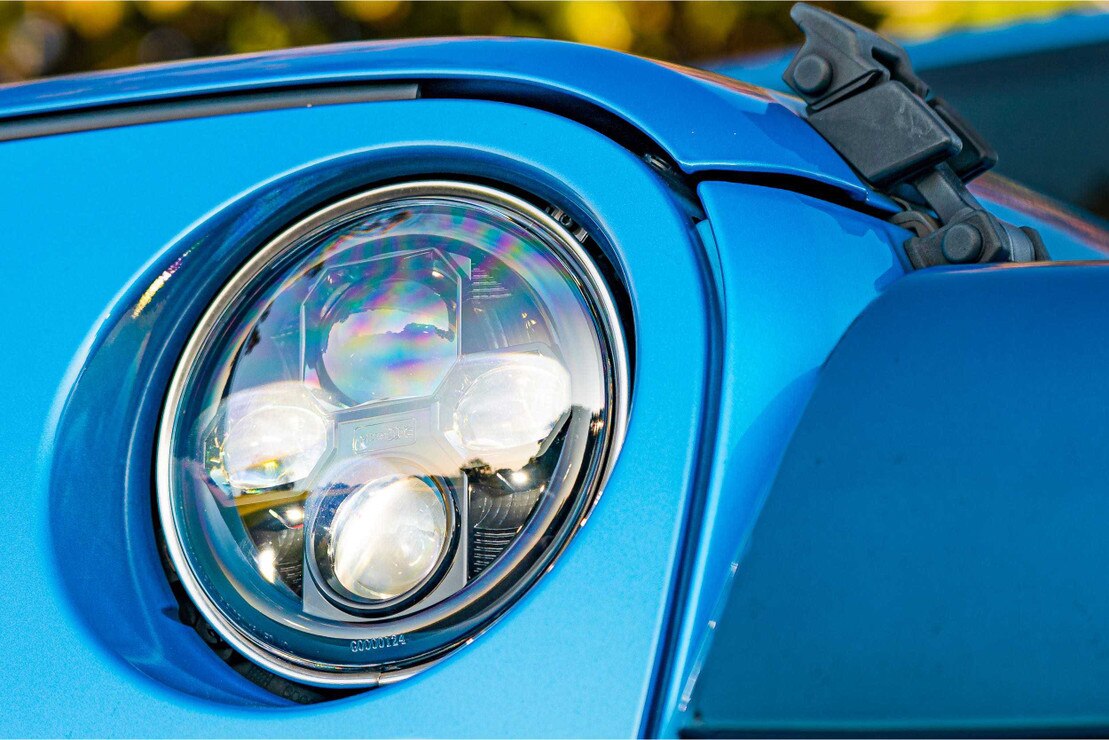

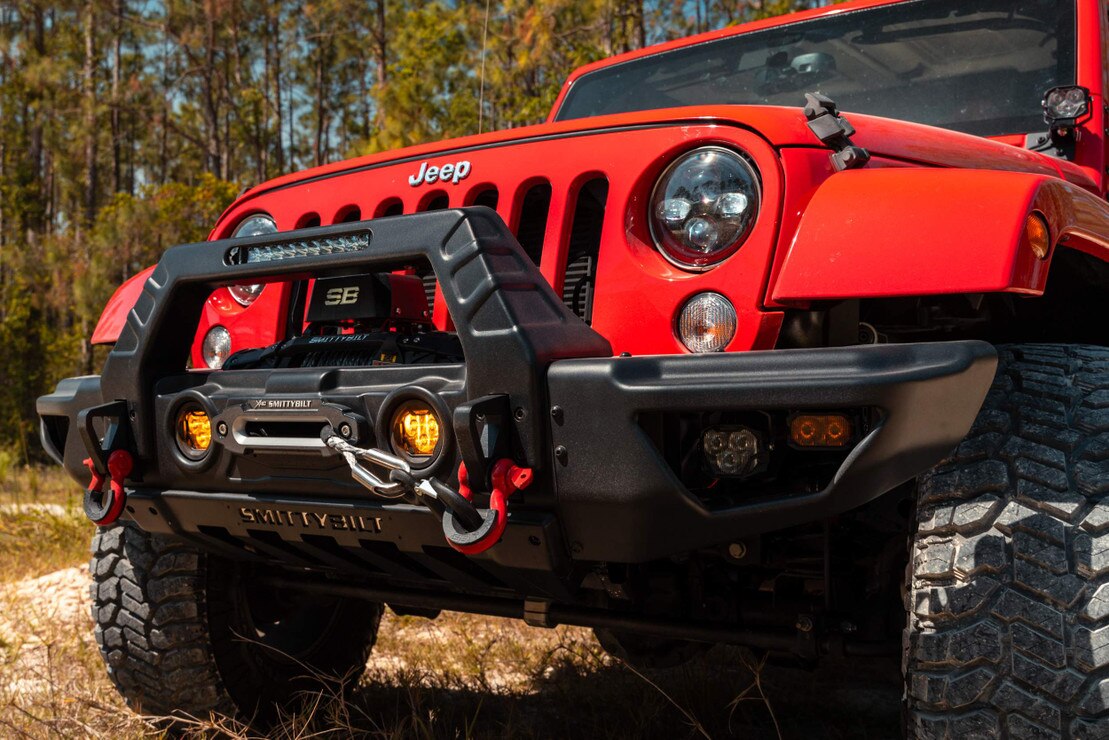

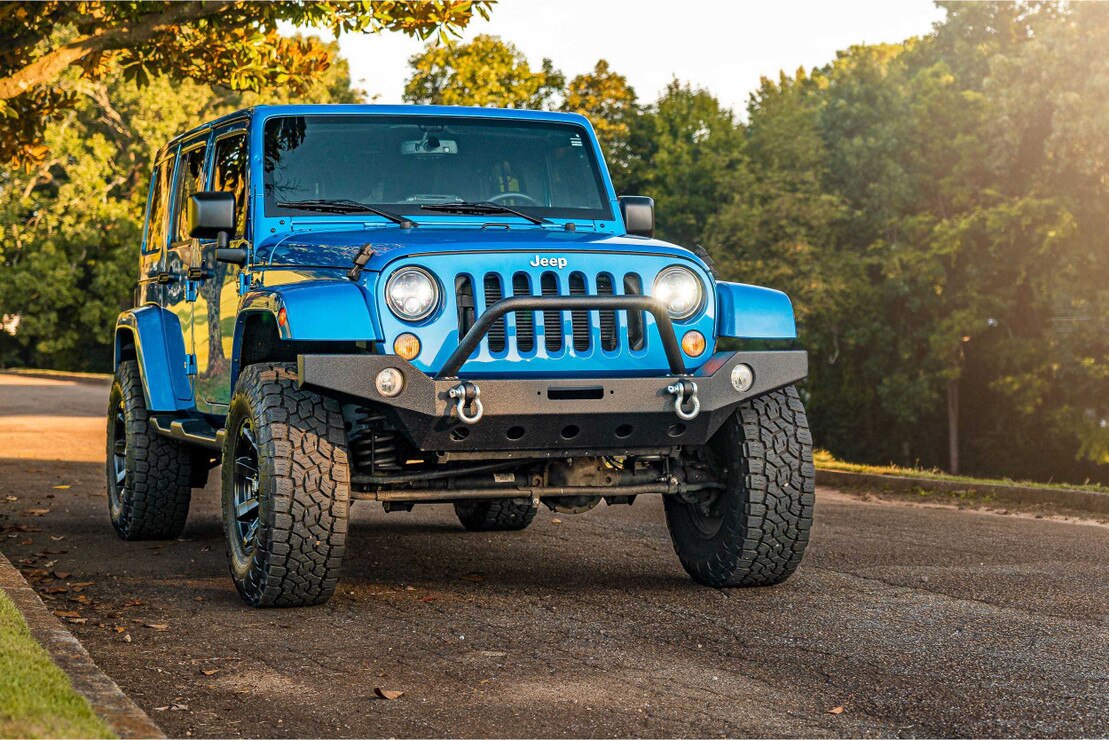

Wrangler JK: While every biz in the aftermarket has a catalog full of products for the Wrangler JK, including headlights, somehow no brand has yet to deliver anything worthy of replacing the OEM headlights. When it comes to clean-style, performance, features, quality, and compatibility; the Morimoto Sealed7 headlights are the category killer that every JK owner has been waiting for!


Output: The low and high beam optics are powered by the same LEDs used in the new 4Banger offroad LED pods (Nichia NCSW170--pair that with Morimoto's advanced Kuria Optic projector lens and the Sealed7 efficiently distributes roughly 3000 lumens on the road in a properly LHD-stepped beam pattern. Because the Sealed7 runs all optics together in high beam mode, the output is intensified to nearly 4000 mosquito-melting lumens there!

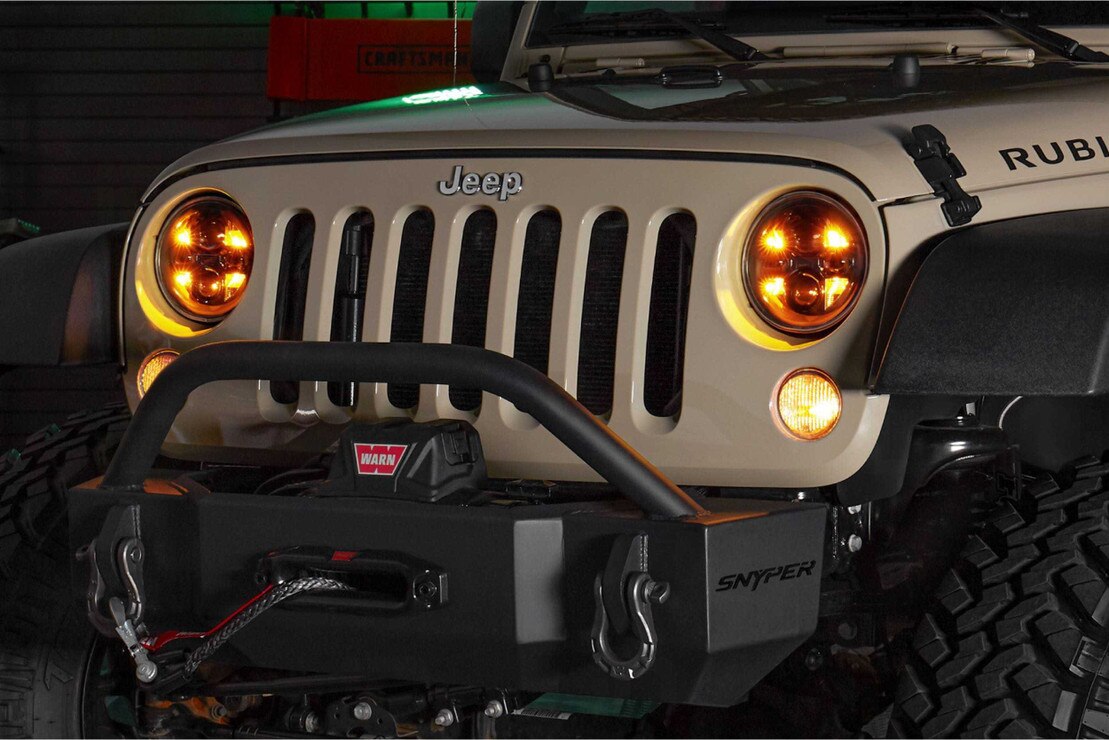

DRL / Switchback: The quad-optic setup at the corners acts as a high-intensity white daytime running light as well as a switchback turn signal to compliment the blinkers in the lower grille. The switchback setup on the turn signal will automatically interrupt the white DRL, flash, and then return to white once the signal stops. The 3-wire DRL/Signal input makes setup on your Wrangler easy too, since it can be tapped into the turn signals / parking lights that live nearby.


Quality: No expense was spared on the Sealed7 Spec sheet. At their core, Japanese LEDs from from Nichia and Philips-Lumileds. The UV coated Polycarbonate lens is shatter proof and will take years of abuse without fading. You can feel the precision in the heavy-duty die-cast housings that double as a heat-sink for the powerful LEDs. A special anti-flicker LED driver resides inside of the headlight to keep the LED's running strong despite inconsistent power-supply from the headlight circuit on later model JKs.


7" Standard: Designed to replace all 7in Round / PAR56 headlights, the Sealed7 offers full low and high beam functionality. They come standard with H13/9008 male inputs, tailored for use on the Wrangler JK - but can easily use an H4 adapter to go old school.
