MotoCycle: Dual Output (H7)X.B-H161
[ In Stock: pieces ]
Power Delivery: The MotoCycle relay harness is designed to deliver steady voltage to your HID system directly from the bike's battery. Factory headlight outputs are really only designed to power a halogen light bulb and with the not-so-stable electrical systems on motorcycles - that could mean bad news for the longevity of your upgraded headlights without a harness.
One of a Kind: The Morimoto H7 Dual-Output Motorcycle specific harness is the first and only high-quality harness on the market that's designed for retrofitting HID's into the headlights on motorcycles. It's been a staple in our product line for years as the right go-to for the job.
In Comparison: To any other harness we offer, the MotoCycle spec's wire lengths are ideal for the layout on a motorcycle. It is not designed for a car's engine bay and has to be modified or rigged to work on a bike - this one should be ready to go out of the box. You can checkout this video. to get an idea how it hooks up.
Light Up: Each harness will power two HID ballasts from one input trigger. Perfect for retrofitting a pair of projectors or HIDs in your low beams (or high beams)
Work of Art: Aside from being a technical masterpiece that works like a charm, it's also a work of art. With its braided TechFlex insulation and sleek-looking black anodized relay - it will surely look factory-fresh when routed through your fairings.
Trusted: For more than a decade, we've worked hard to earn our killer reputation. Car guys world-wide know that TRS carries the internet's best selection of high performance automotive and powersport lighting products at the best prices, and we've got the best, most knowledgeable team of real enthusiasts to help back it up. If we sell it, then you bet we've put it to the test on our own cars, trucks, and bikes. Need a recommendation on parts for your project? Got a tech question? Wholesale inquiry? Contact Us

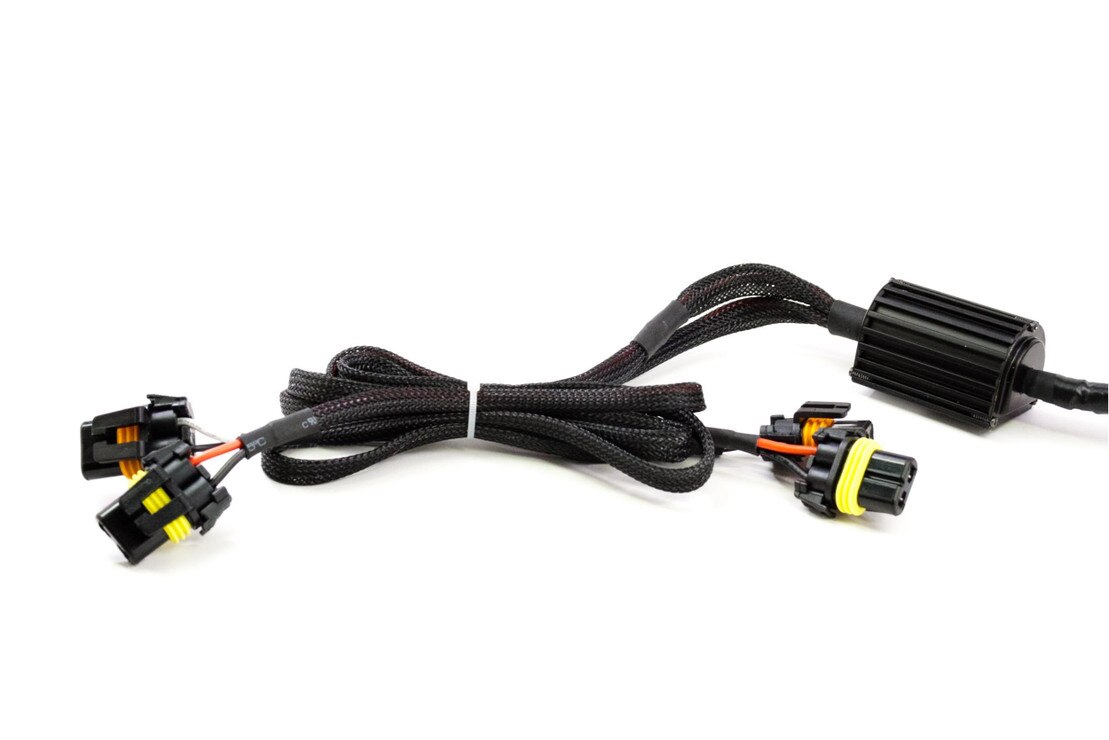

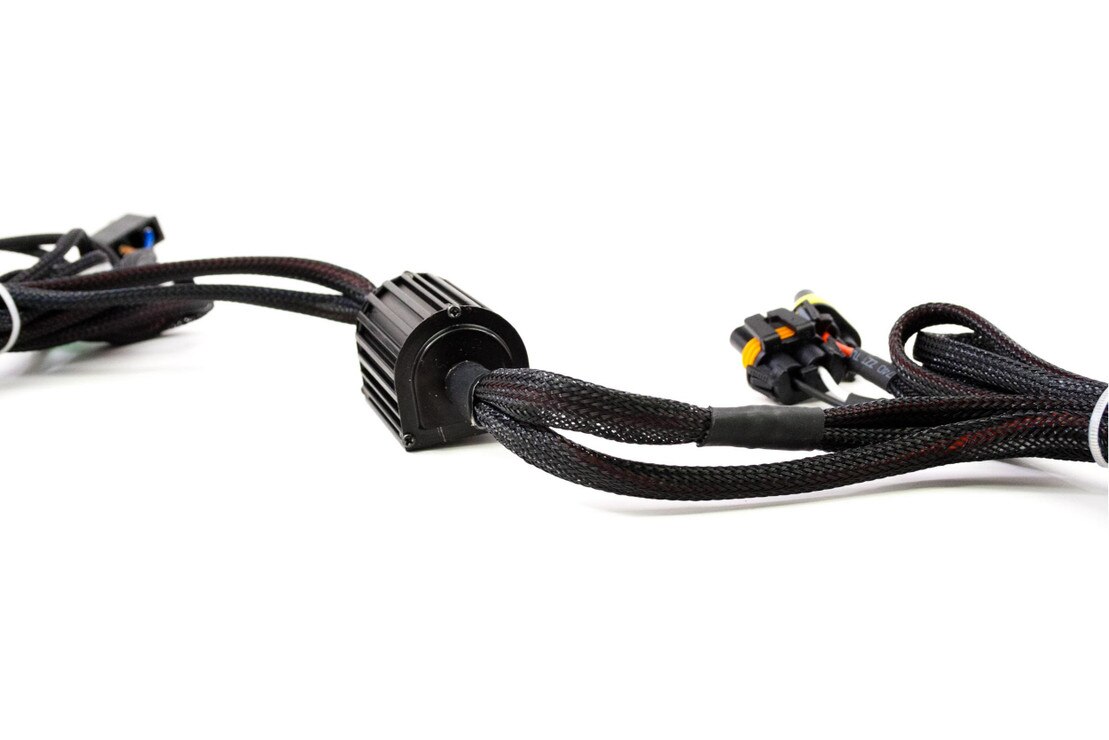

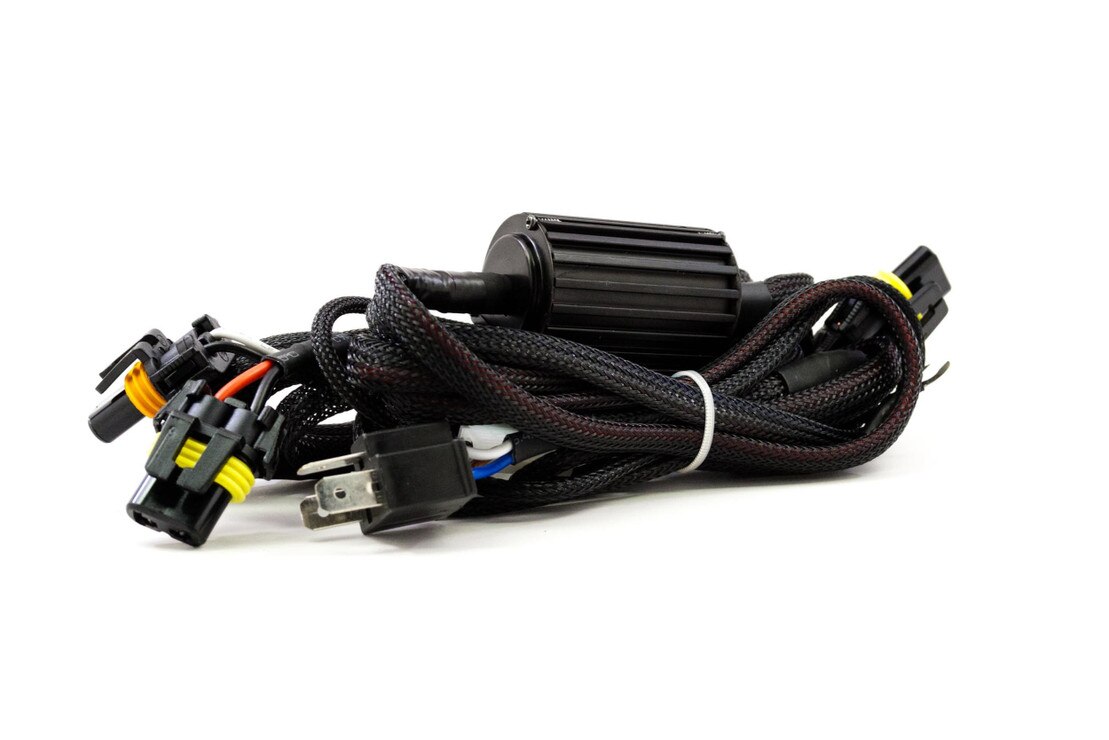

HARNESS: 1x MotoCycle H7 Dual Output
RELAY: Inline Morimoto Control Box
WARRANTY: 2 Years
SWAG: Morimoto Decal
ORIGINAL BULB: H7 (Low Beam or High Beam)
MOTORCYCLES: All Types / Styles
HID SYSTEMS: 35w or 55w
TIME DELAY: Yes
INPUT TRIGGER: 1x H7 Male
BALLAST OUTPUTS: 2x 9006 Female
12V POWER: 1x Nickel-Plated Ring-Type
GROUND: 1x Nickel-Plated Ring-Type
FUSE: Inline 25A
