GTi-R 1.0 Projector Shroud

(0) No Reviews yet
Questions?

Brand: Morimoto

B-SHR-GTIR-TRS

$38.00

PRODUCT OPTIONS

PART #: 2 x S210



Easy Return

DESCRIPTION

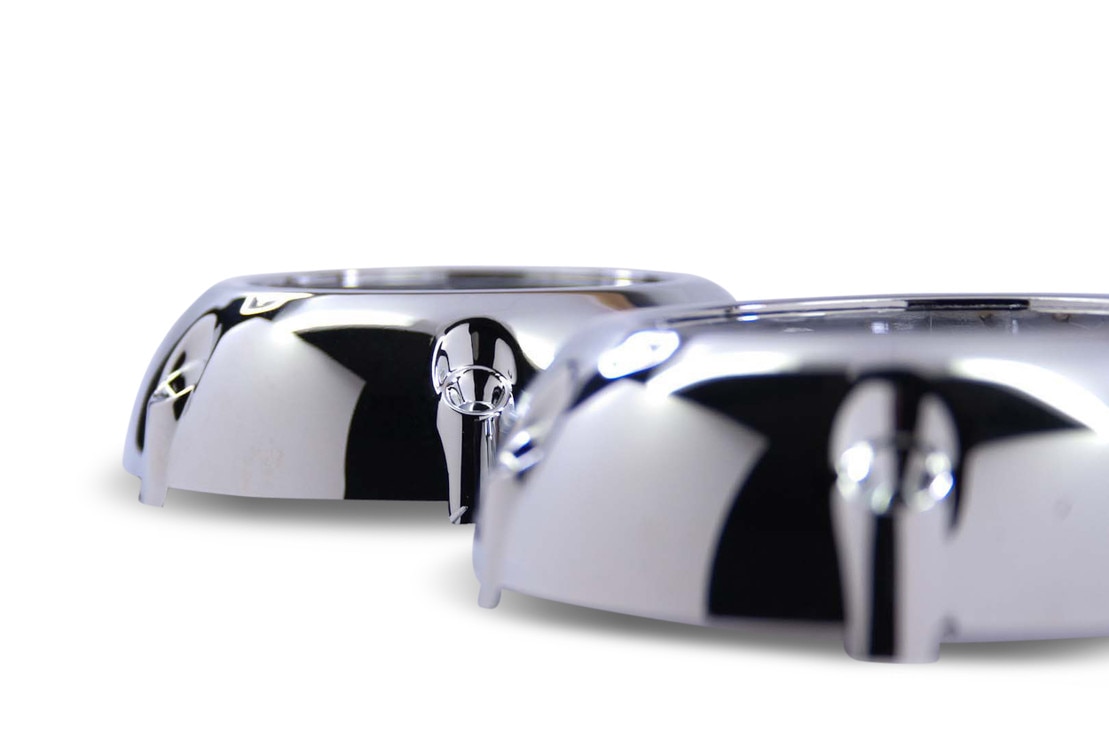

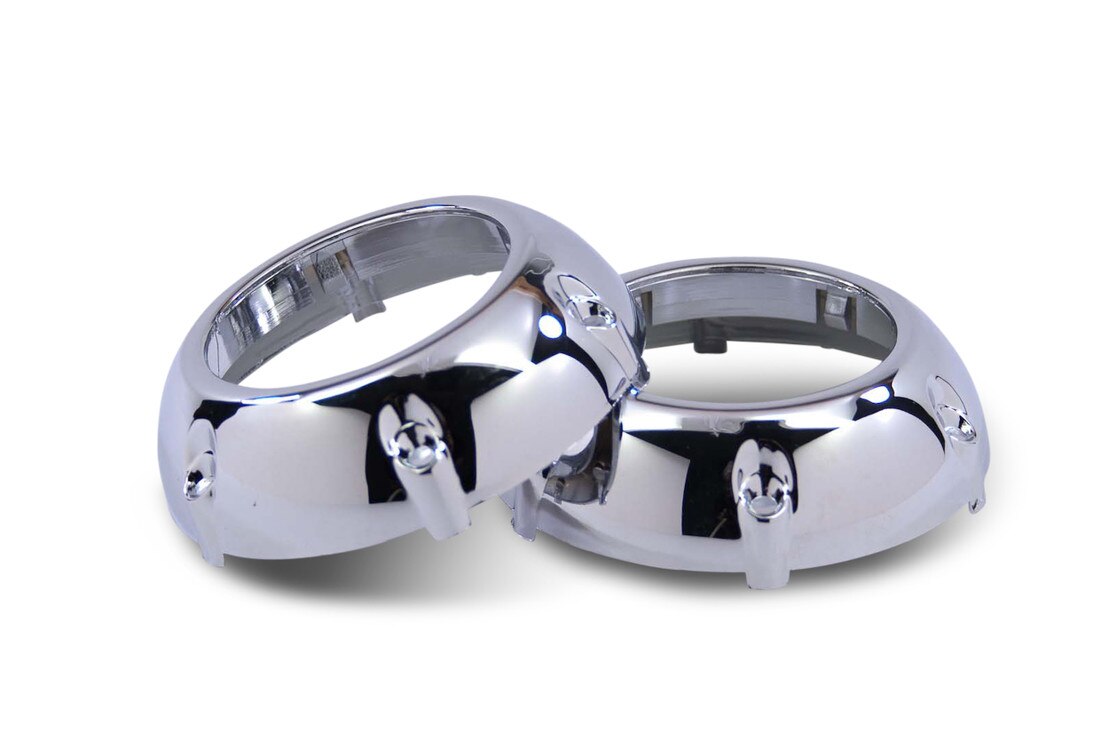

The GTi-R projector shrouds offer a sleek, circular design with evenly spaced dimples, drawing inspiration from the iconic VW GTI. Despite their compact size, these shrouds effectively conceal many projector types, making them ideal for smaller headlights or quad retrofits. Crafted from premium plastic, they boast durable metalized chrome finishes, ensuring longevity and resistance to deformation or flaking even under the heat of 35W HID bulbs. While Centric Rings for easier installation are not included, they are highly recommended. Additionally, the shrouds support easy customization with LED Halos, such as the Profile Pivot and Profile Pixel systems, enhancing the aesthetic appeal of projector retrofits. Trim-friendly construction allows for easy adaptation to various projector and headlight housing geometries, with tools like a Dremel hand tool recommended for the job.

FEATURES & BENEFITS

  • Compact Design: Sleek circular design with evenly spaced dimples inspired by VW GTI.
  • Effective Concealment: Covers many projector types, ideal for smaller headlights or quad retrofits.
  • Premium Materials: High-quality plastic with durable metalized chrome finishes.
  • Customization Options: Supports easy customization with LED Halos for enhanced aesthetics.
  • Trim-Friendly: Easily adaptable to various projector and headlight housing geometries.

WHAT’S INCLUDED

  • Shrouds: 2x (One Pair) GTi-r 1.0 Projector Shrouds

  • Optional Accessories: Centric Rings and Halos

WARRANTY INFORMATION

This Morimoto product includes a 5 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

TECHNICAL SPECIFICATIONS

  • Dimensions: 112mm DIA, 36mm D

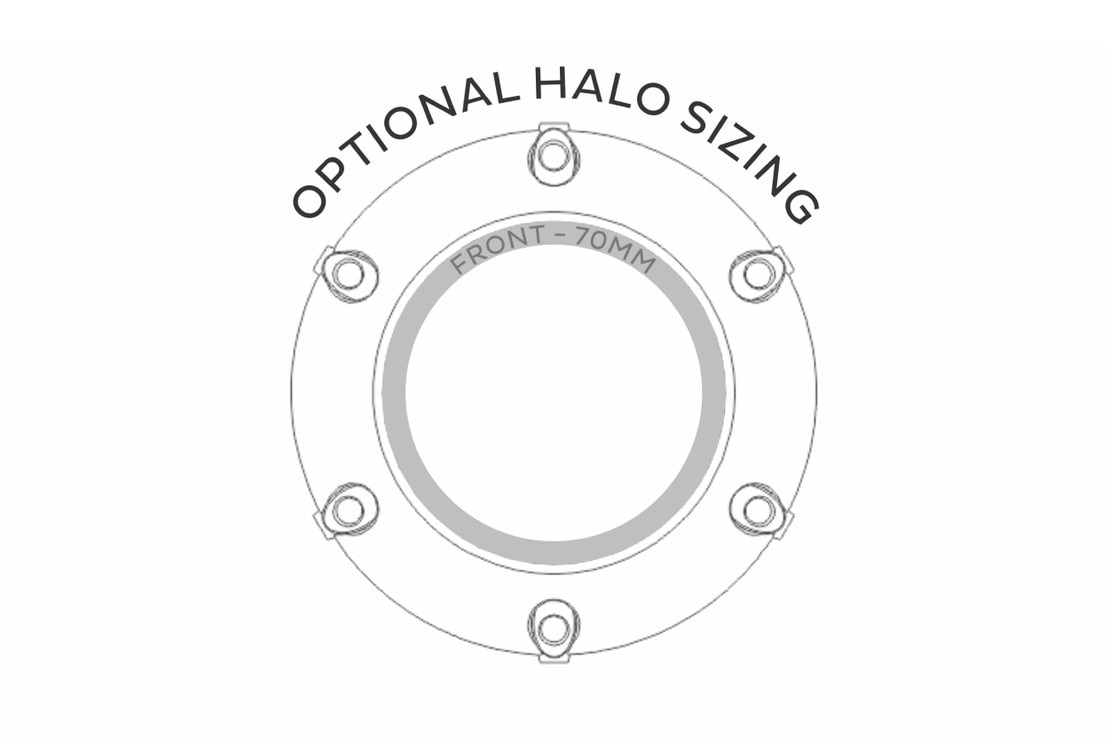

  • Halo Sizing: 70mm (Front)

  • Finish: Forever Finish Chrome

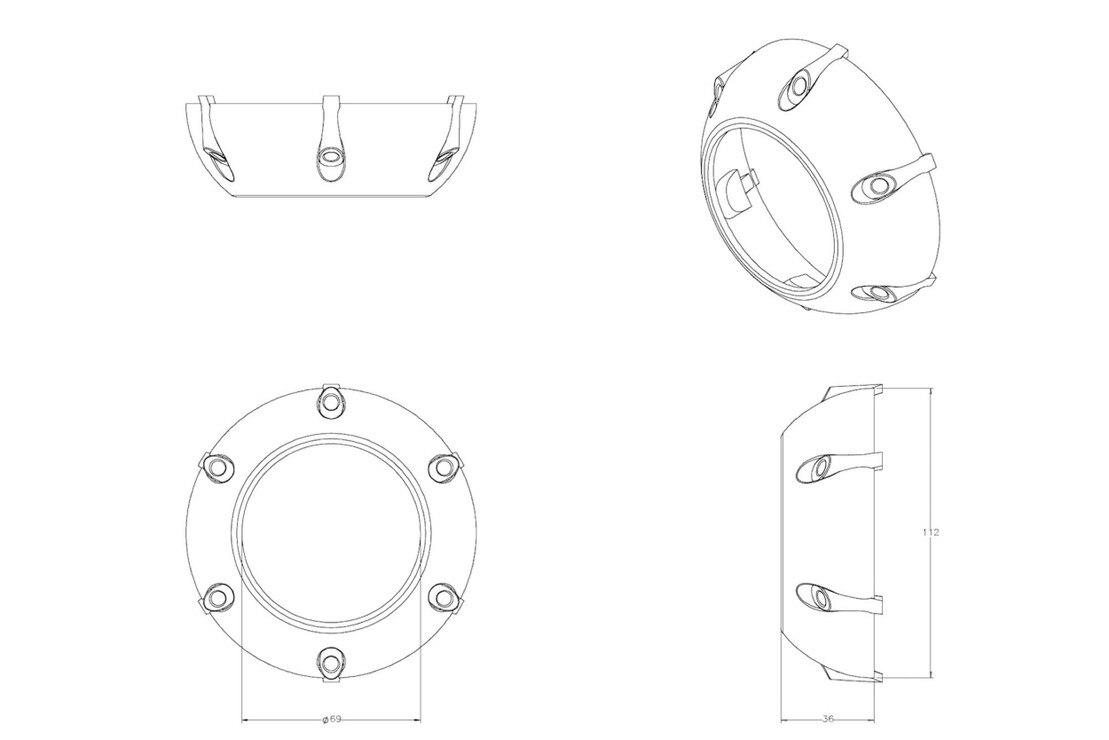

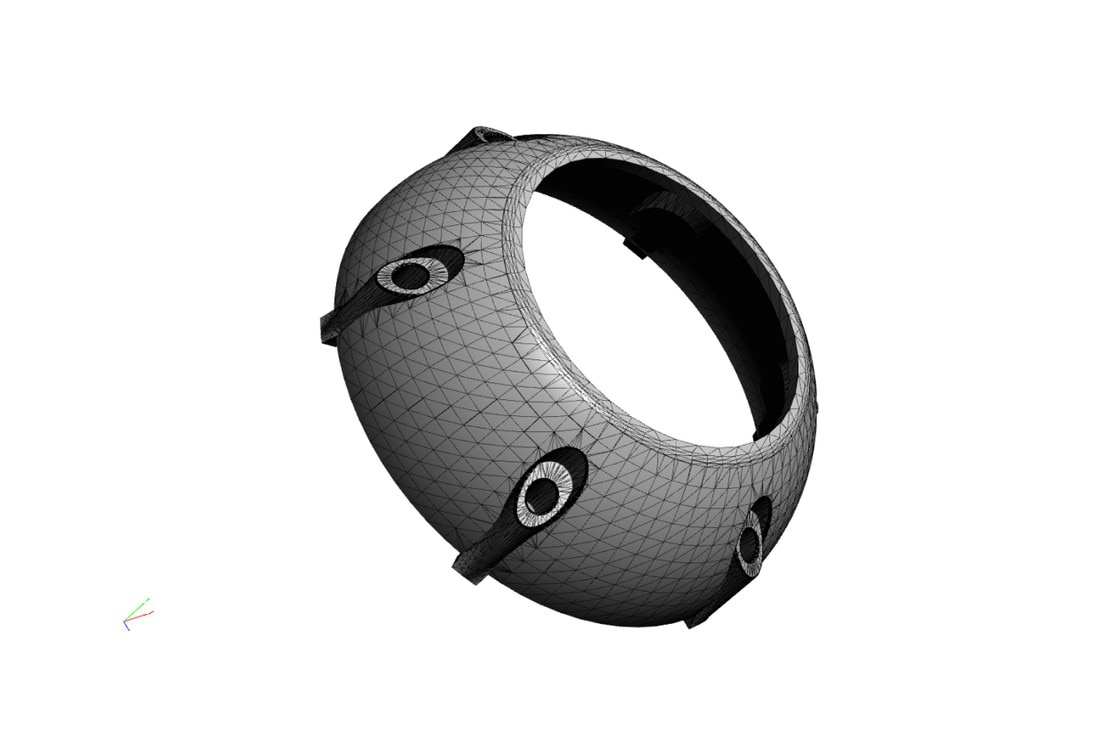

LINE DRAWINGS

COMPATIBILITY

  • MORIMOTO PROJECTORS: All except Matchbox

  • OEM PROJECTORS: Most except TL, LS430, LS460, Q45

  • LENS DIAMETERS: 2.5in and 3in Compatible

  • MOUNTS WITH: Centric Rings and/or JB Quik Weld

INSTALLATION DOCUMENTS

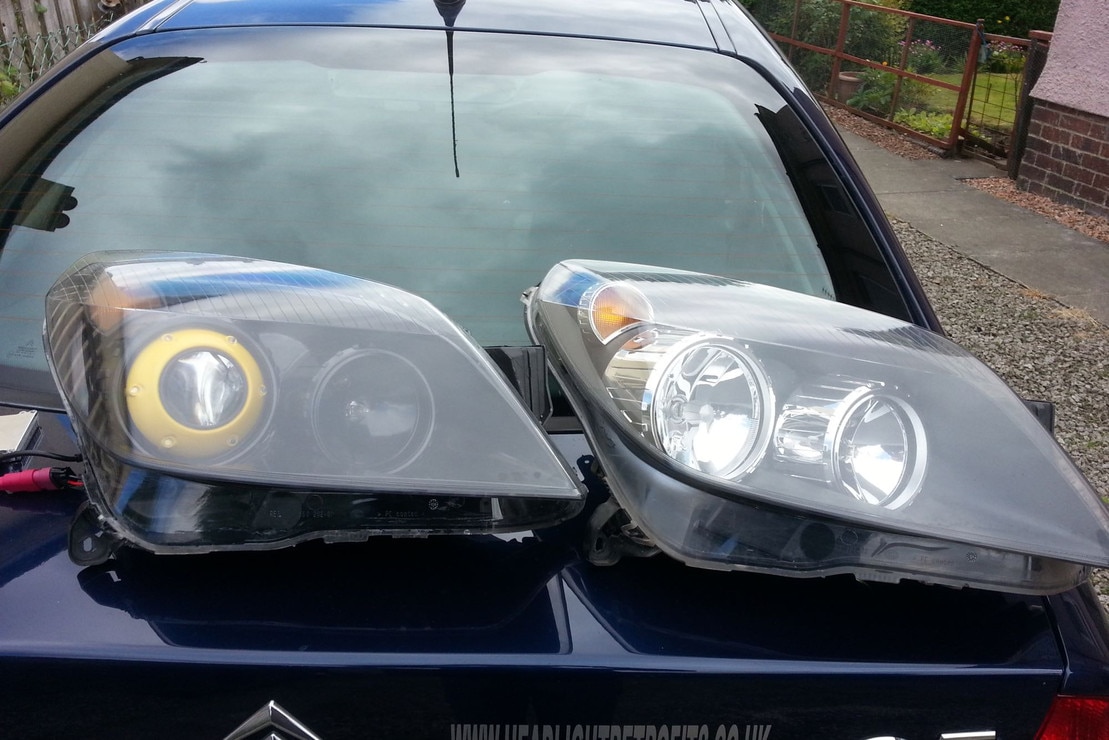

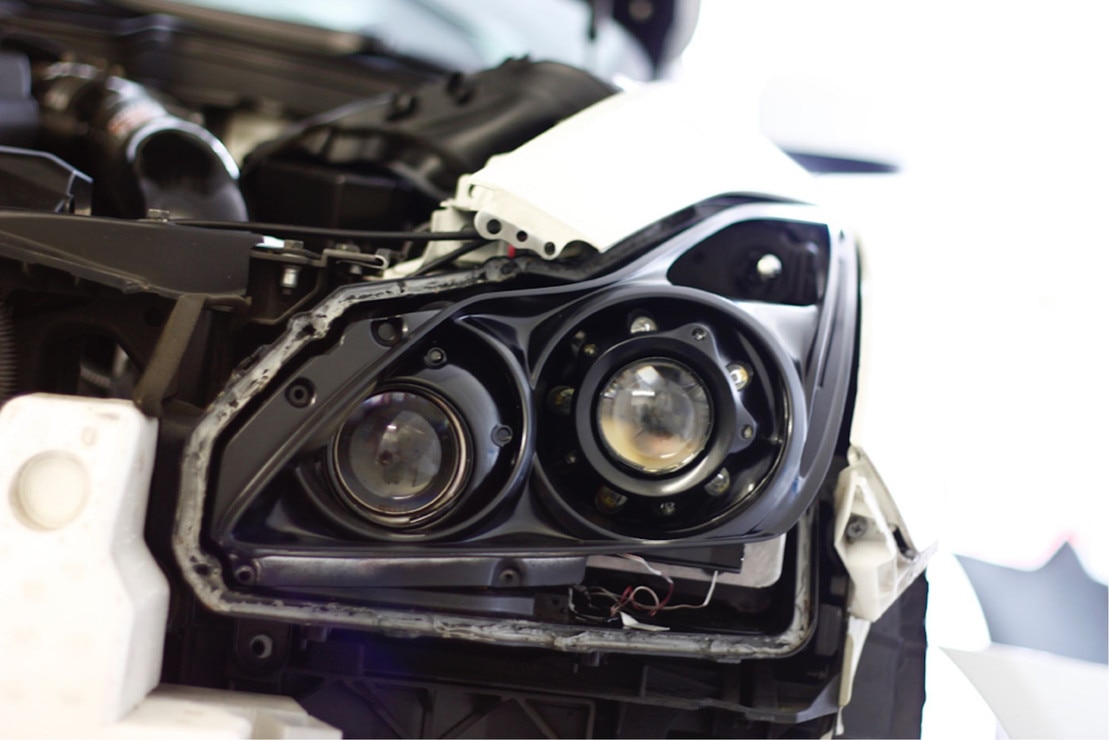

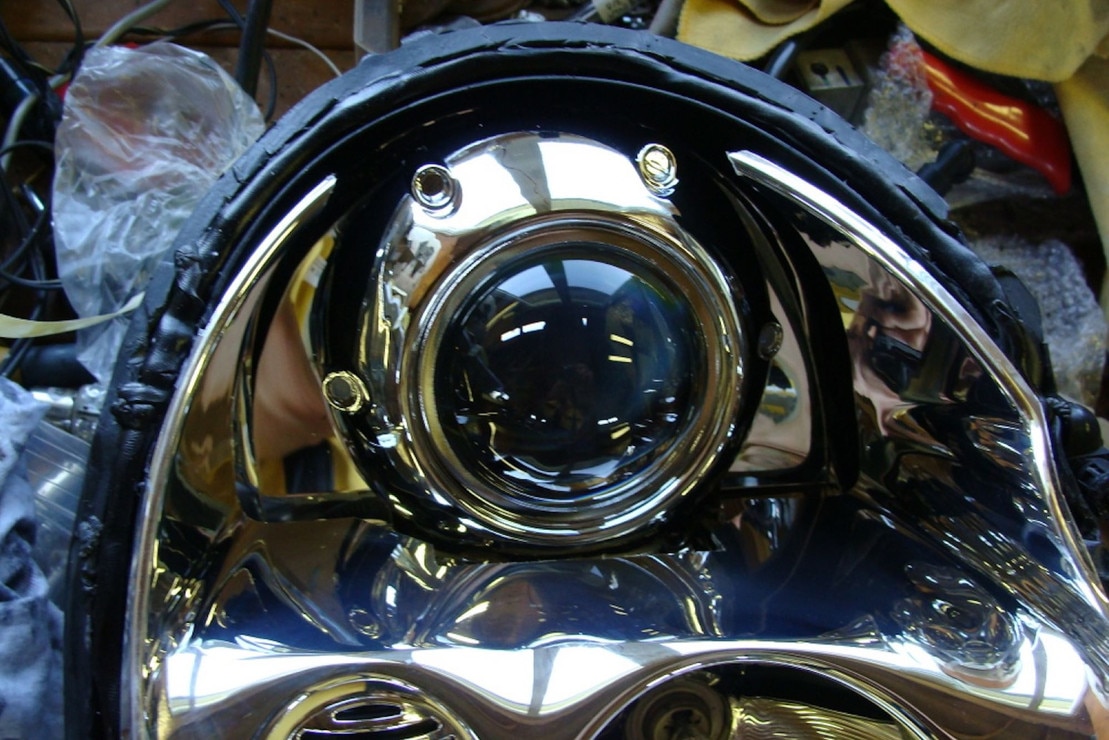

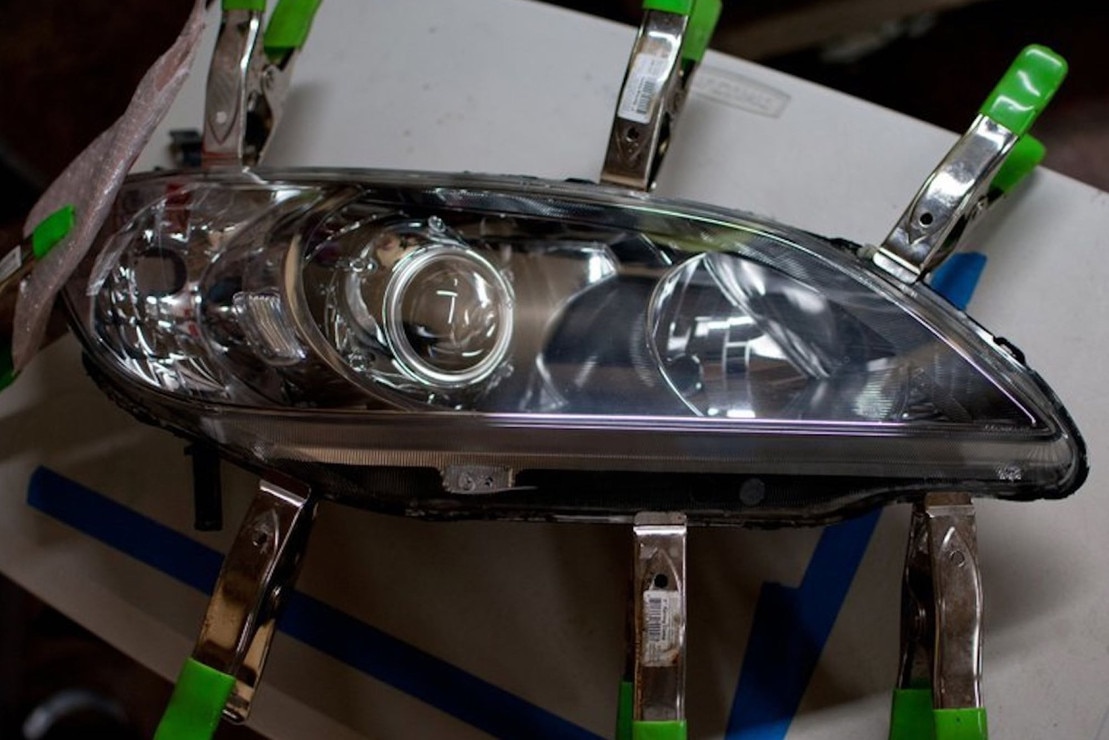

GTi-R: A smaller fully circular shape coupled with a series of dimples evenly arrayed around the face define the look of this clean design. Inspired by the VW GTI. Though small in size, these bezels still manage to completely cover many projectors from view, making them popular for smaller headlights or quad retrofits.


In Comparison: Don't make the mistake of thinking all shrouds are created equal. Even though less expensive alternatives may be available elsewhere: Morimoto shrouds are made from the highest quality plastic and have by far the most durable metalized chrome finishes. The cheap-o's out there are flimsy enough to deform from the heat just a 35W HID bulb, and their chrome finish easily flakes off.

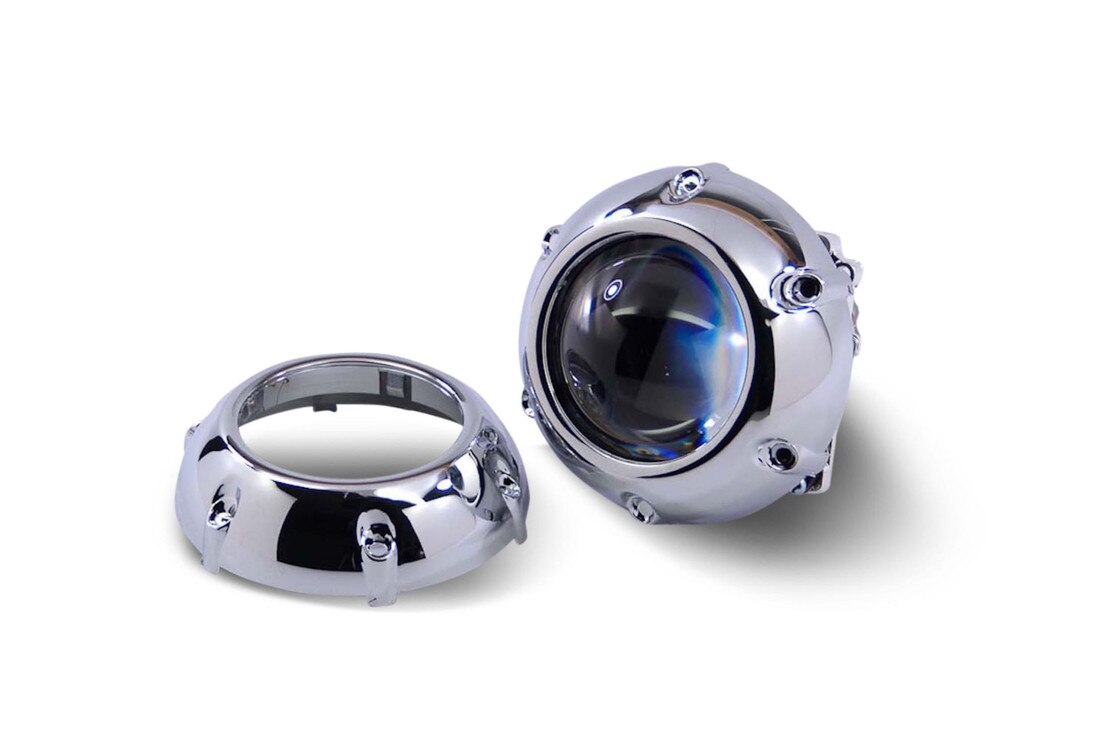

Mounting: Centric Rings are not included by default, but are highly recommended to improve ease of installation on many projectors. The Centric Rings are simple reducers that clip into the shroud to reduce the inside diameter, making them more of a "press fit" onto the lens holder of the projector. JB Quik Weld is also recommended in order to prevent the shrouds from vibrating loose over time.


LED Halos: Are a unique and effective way to further customize the look of your projector retrofit. The Profile Pivot (switchback) and Profile Pixel (RGB) systems are easy to mount on the front of your shrouds, are reliable, and of course awesome looking. To determine which size is best for you - check out the size-guide in the "In Action" images section below.


Trimming: Please note that trimming shrouds is a common task when retrofitting. Whether required to clear part of the projector, or fit within the geometry of your headlight housing; it's normal. Luckily, they're made of plastic - making that easily possible. We recommend a Dremel hand tool with EZ Lock cutting wheels to make the job easy.
