Jeep Gladiator JT (20-24) Sealed7 LED Headlights

(0) No Reviews yet
Questions?

Brand: Morimoto

B-ASY-JTSEALED7-TRS

$599.00

PRODUCT OPTIONS

PART #: 1 x LF518



*Guaranteed Fitment
Easy Return

DESCRIPTION

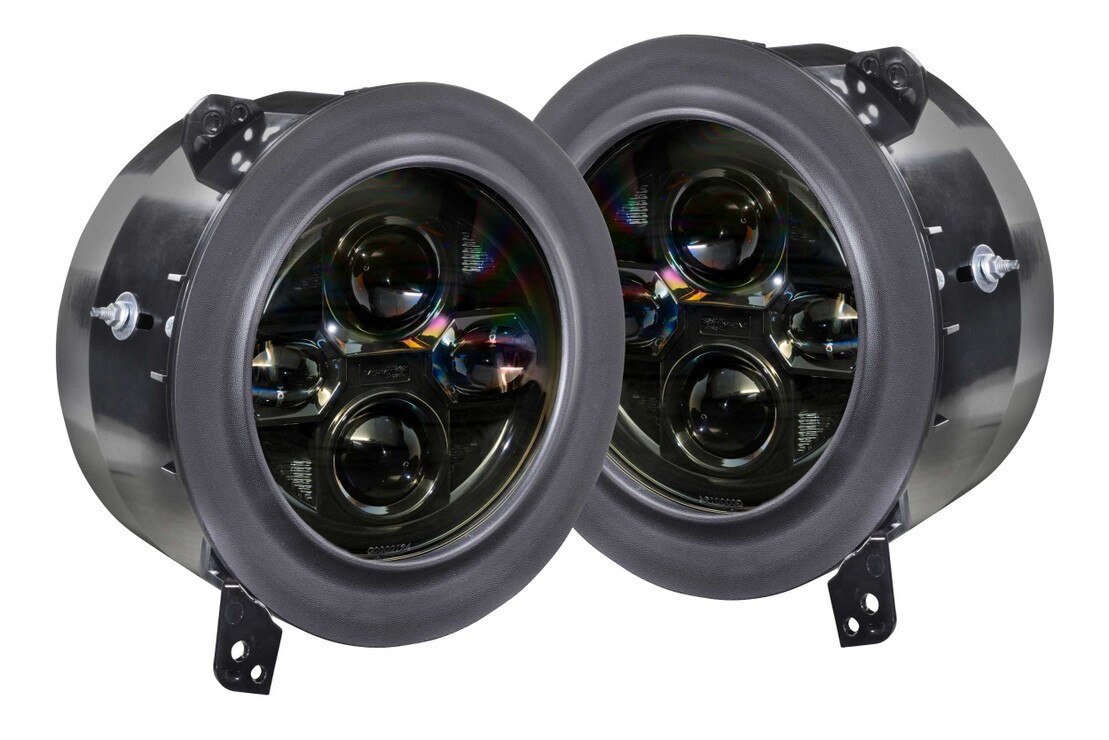

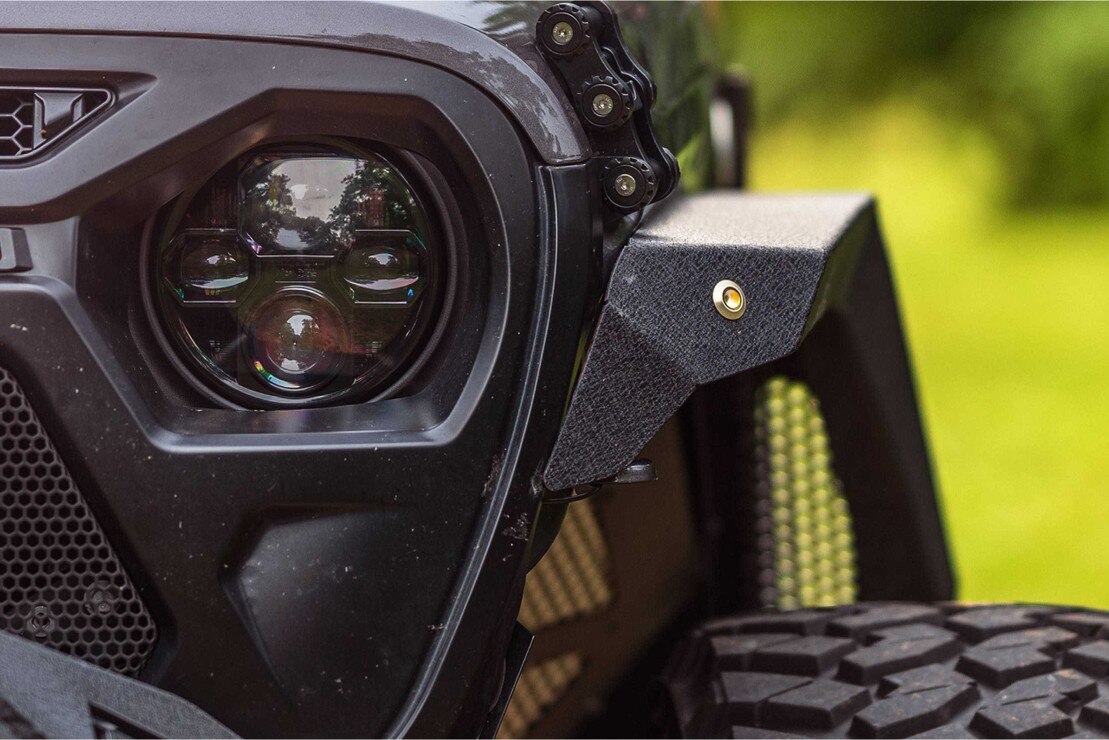

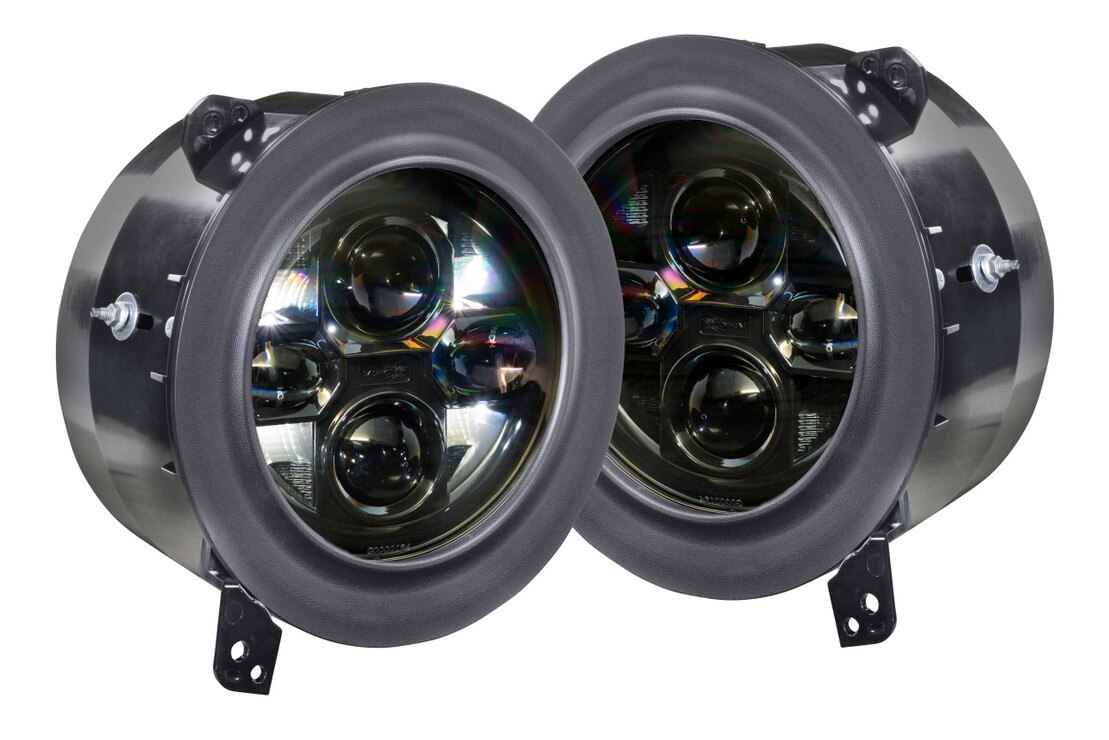

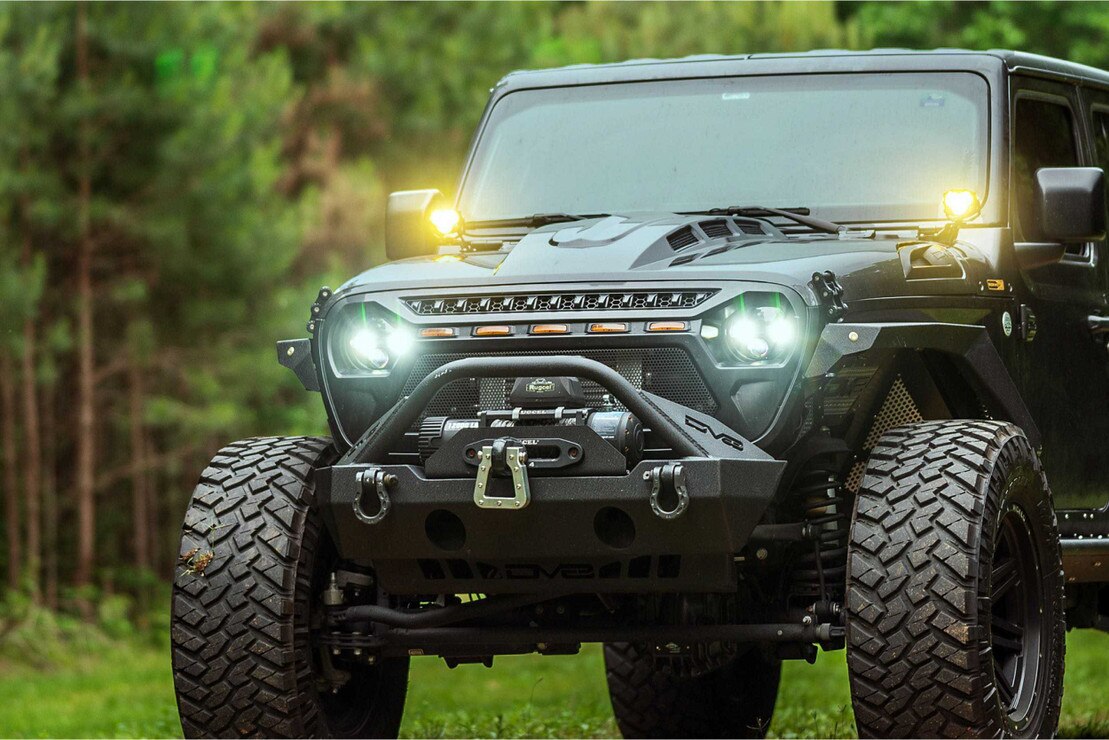

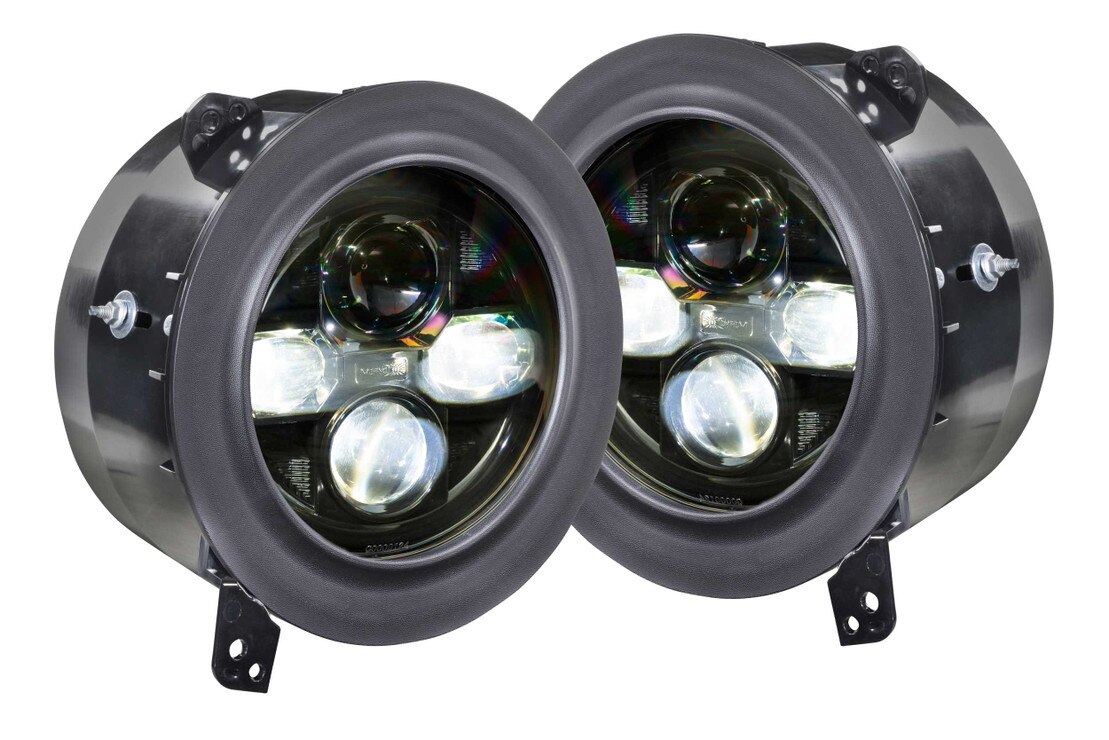

The Morimoto Sealed7 headlights are the perfect upgrade for your Gladiator JT. These headlights replace the OEM ones with a stylish and powerful option. They use the same LEDs as the 4Banger offroad pods, providing about 3000 lumens of light. With the high beam mode, the output increases to almost 4000 lumens. The quad-optic setup at the corners works as a bright white daytime running light and a switchback turn signal. When you signal, the white light flashes amber and then goes back to white. Setting them up is easy because they can be connected to the nearby turn signals or parking lights. These headlights are built to last with shatterproof UV-coated polycarbonate lenses. The sturdy die-cast housings also act as heat sinks to keep the LEDs cool. Inside, there is a special anti-flicker LED driver to ensure consistent performance. Overall, the Sealed7 headlights offer great style, brightness, and durability for your Gladiator JT.

FEATURES & BENEFITS

  • High Performance: Produces up to 3000 lumens in low and high beam modes, and nearly 4000 lumens in high beam mode.
  • Advanced Optics: Uses Nichia LEDs and Morimoto's Kuria Optic projector lens for efficient light distribution.
  • DRL and Turn Signal: Quad-optic setup acts as a high-intensity white daytime running light and switchback turn signal.
  • Durable: Shatterproof UV-coated Polycarbonate lens and heavy-duty die-cast housings.
  • Easy Installation: 3-wire DRL/Signal input connects to existing lights, with an anti-flicker LED driver.

WHAT’S INCLUDED

  • Headlights: 2x (One Pair) 2020+ Jeep Gladiator JT Sealed7 Headlights

  • Wiring: Plug and Play Wire Harness

  • Taps: For DRL/Turn Signal Operation

WARRANTY INFORMATION

This Morimoto product includes a 5 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

TECHNICAL SPECIFICATIONS

  • Traffic Pattern: LHD Only

  • Input: Delphi Multi-Pin OE Connection

  • Functions: Low and High Beam

  • Material: Power-coated Die-Cast Housing, UV-Treated Polycarbonate Lens

  • Optic: Kuria Optic Hi/Lo

  • Intensity: 2,860 Lumens (Low), 1020 Lumens (High)

  • LED: Nichia NCSW170C, Philips Luxeon 3535L

  • Kelvin Rating: 6300K

  • UV Coating: Momentive UVHC3000

LINE DRAWINGS

COMPATIBILITY

  • Jeep JT Gladiator: 2020-2024

  • Jeep JL Wrangler: 2018-2024

COMPLIANCE

DOT, SAE, FMVSS108 Standards

INSTALLATION DOCUMENTS

Gladiator JT: While every biz in the aftermarket has a catalog full of products for the new Gladiators, including headlights, somehow no brand has yet to deliver anything worthy of replacing the OEM headlights. When it comes to style, performance, features, quality, and compatibility: the Morimoto Sealed7 headlights are the category killer that every JT owner has been waiting for!

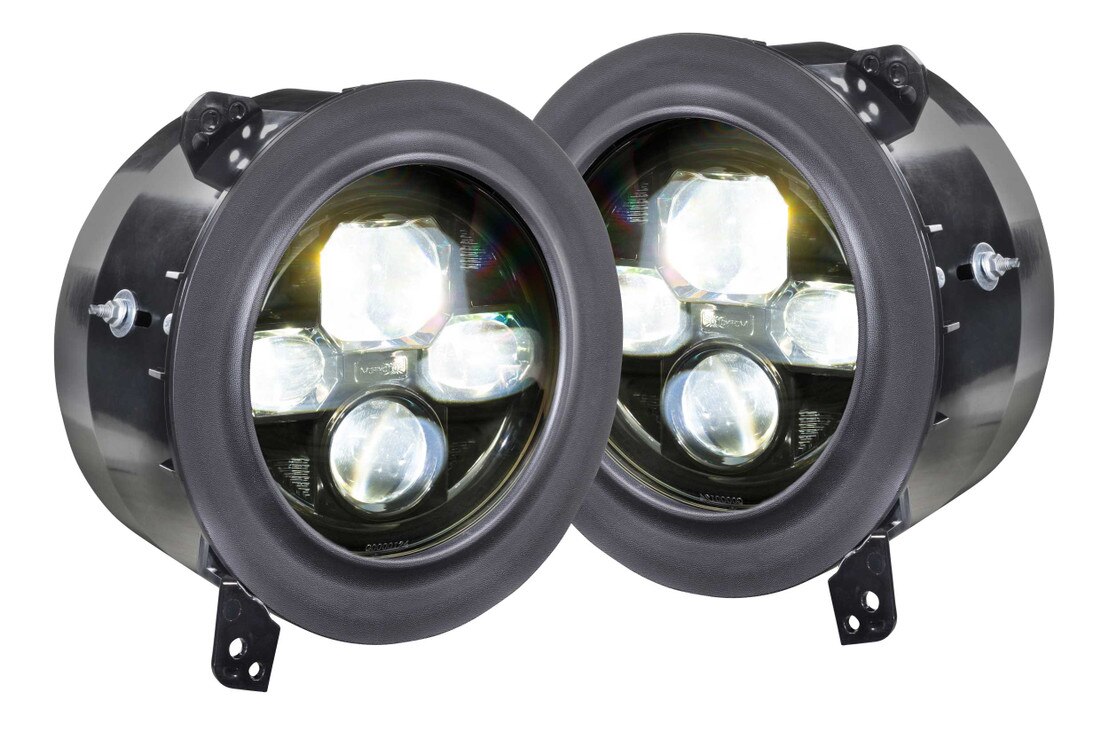

Output: The low and high beam optics are powered by the same LEDs used in the new 4Banger offroad LED pods (Nichia NCSW170--pair that with Morimoto's advanced Kuria Optic projector lens and the Sealed7 efficiently distributes roughly 3000 lumens on the road in a properly LHD-stepped beam pattern. Because the Sealed7 runs all optics together in high beam mode, the output is intensified to nearly 4000 mosquito-melting lumens there!

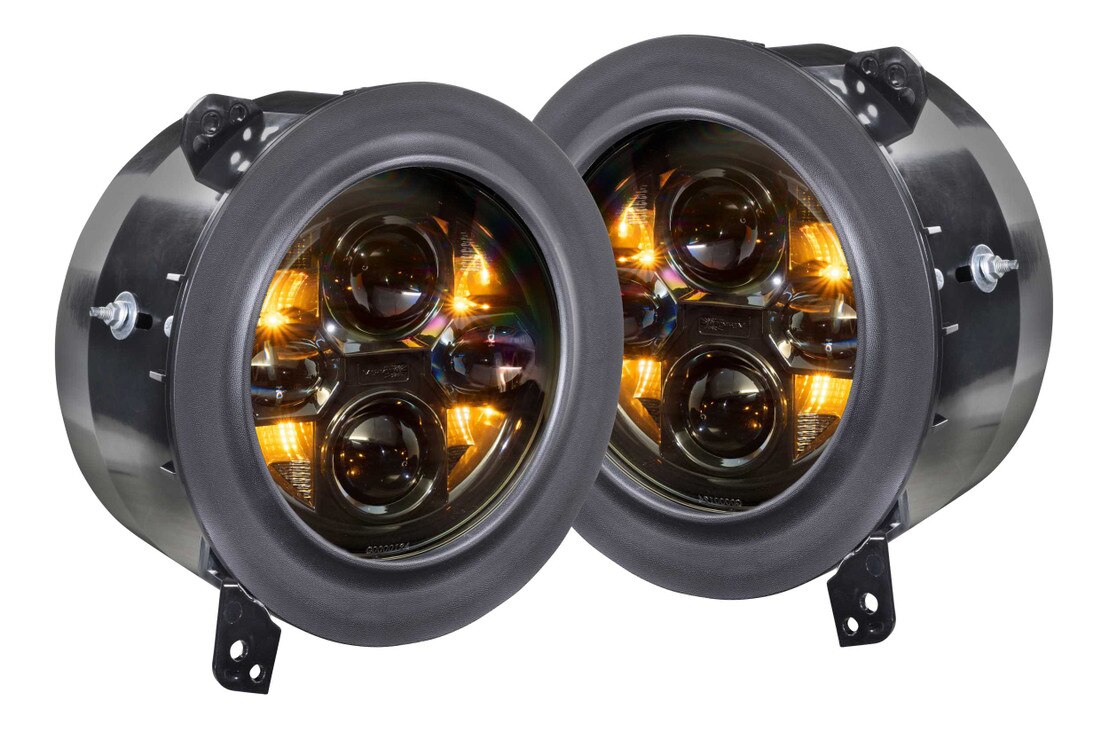

DRL / Switchback: The quad-optic setup at the corners acts as a high-intensity white daytime running light as well as a switchback turn signal to compliment the blinkers in the lower grille. The switchback setup on the turn signal will automatically interrupt the white DRL, flash, and then return to white once the signal stops. The 3-wire DRL/Signal input makes setup on your Gladiator easy too, since it can be tapped into the turn signals / parking lights that live nearby.


Quality: No expense was spared on the Sealed7 Spec sheet. At their core, Japanese LEDs from from Nichia and Philips-Lumileds. The UV coated Polycarbonate lens is shatter proof and will take years of abuse without fading. You can feel the precision in the heavy-duty die-cast housings that double as a heat-sink for the powerful LEDs. A special anti-flicker LED driver resides inside of the headlight to keep the LED's running strong despite inconsistent power-supply from the headlight circuit.
