Ford F-150 (21-23) Headlight & Tail Light Combo

(0) No Reviews yet
Questions?

Brand: Morimoto

B-BND-2123F150-TRS

$2,200.00

PRODUCT OPTIONS

PART #: 1 x LF498, 1 x LF734



*Guaranteed Fitment
Easy Return

DESCRIPTION

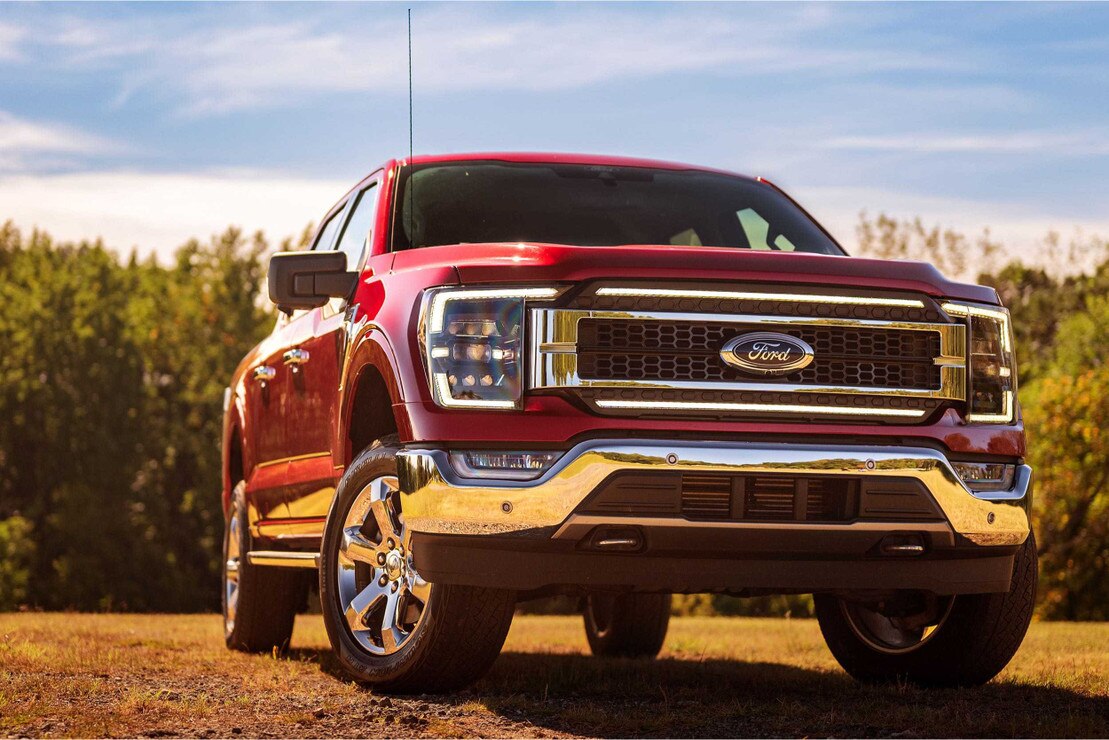

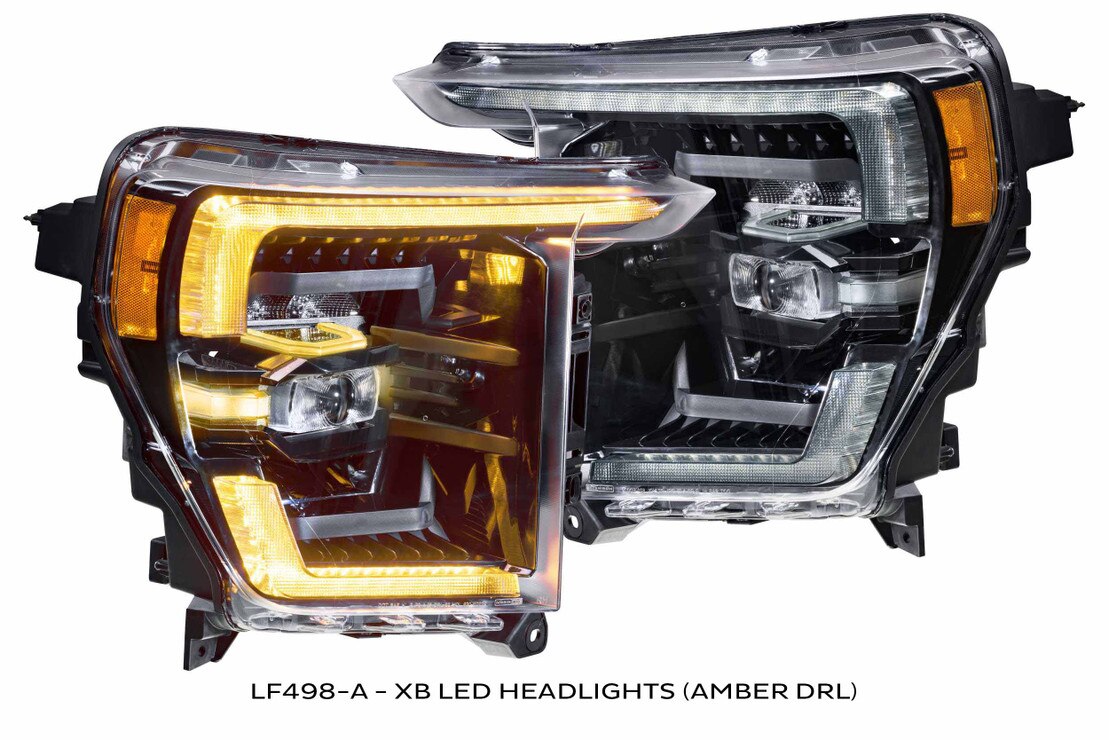

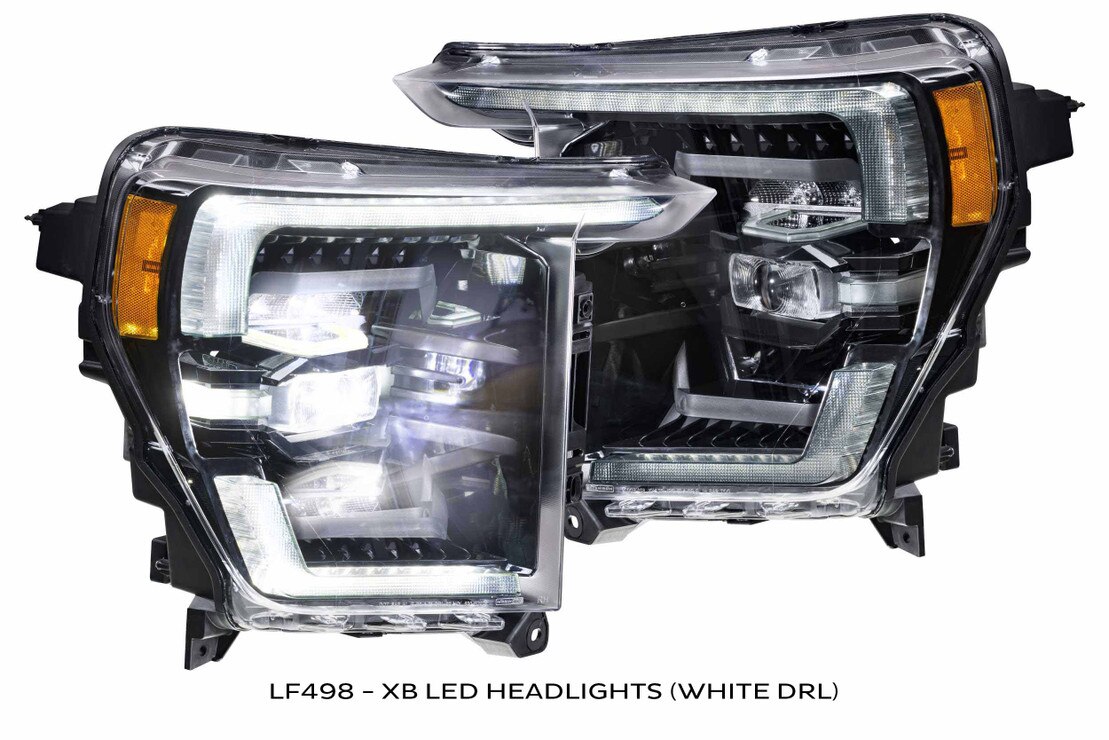

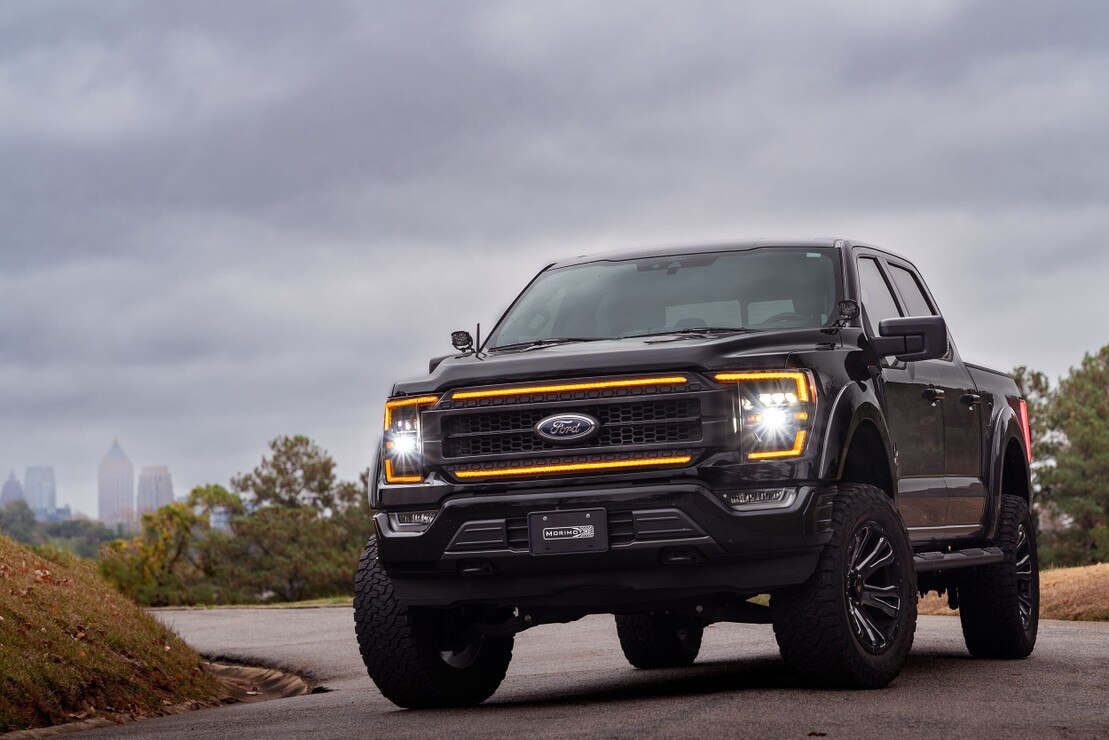

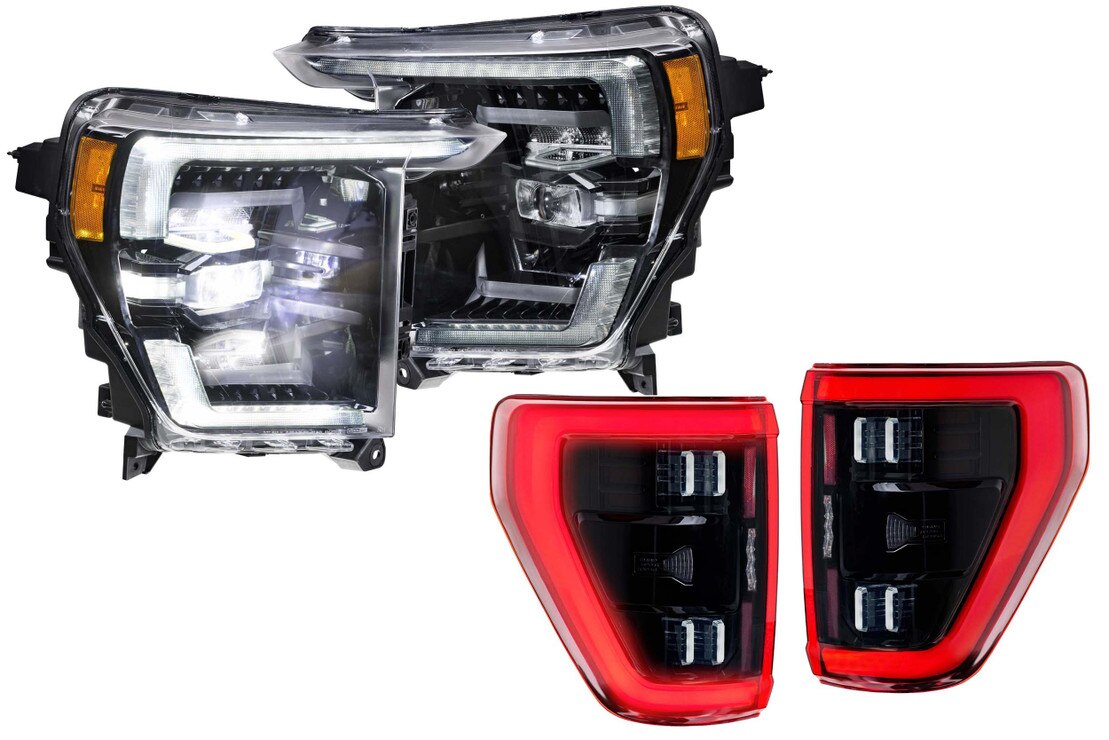

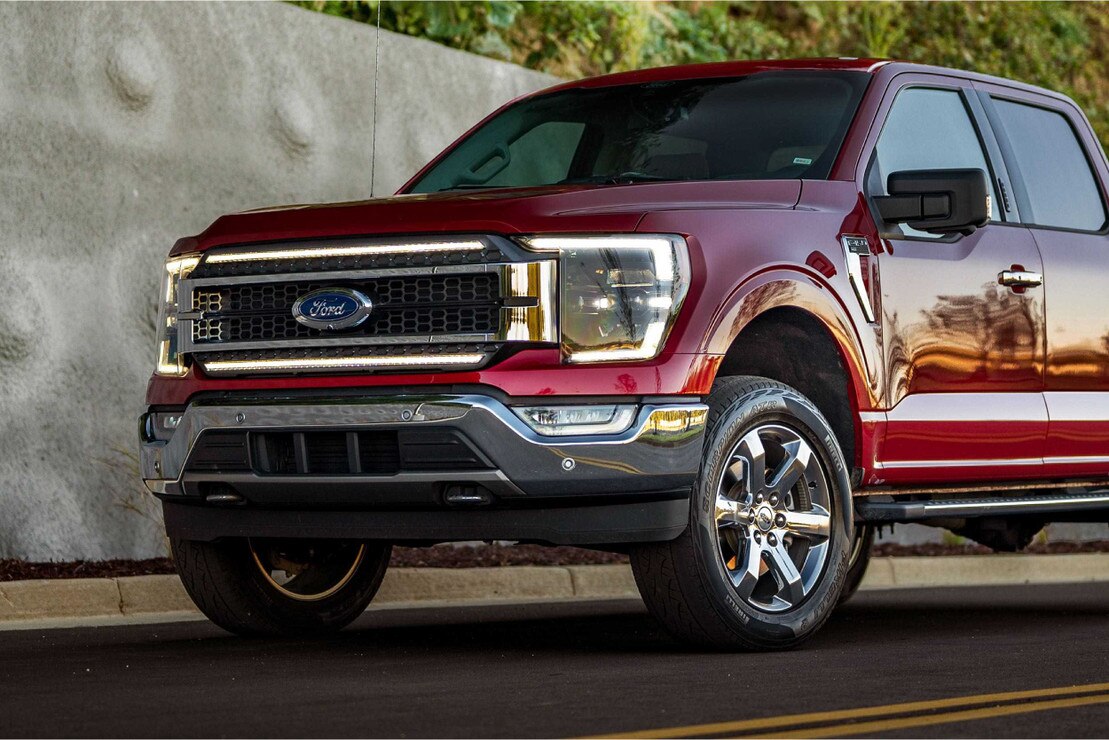

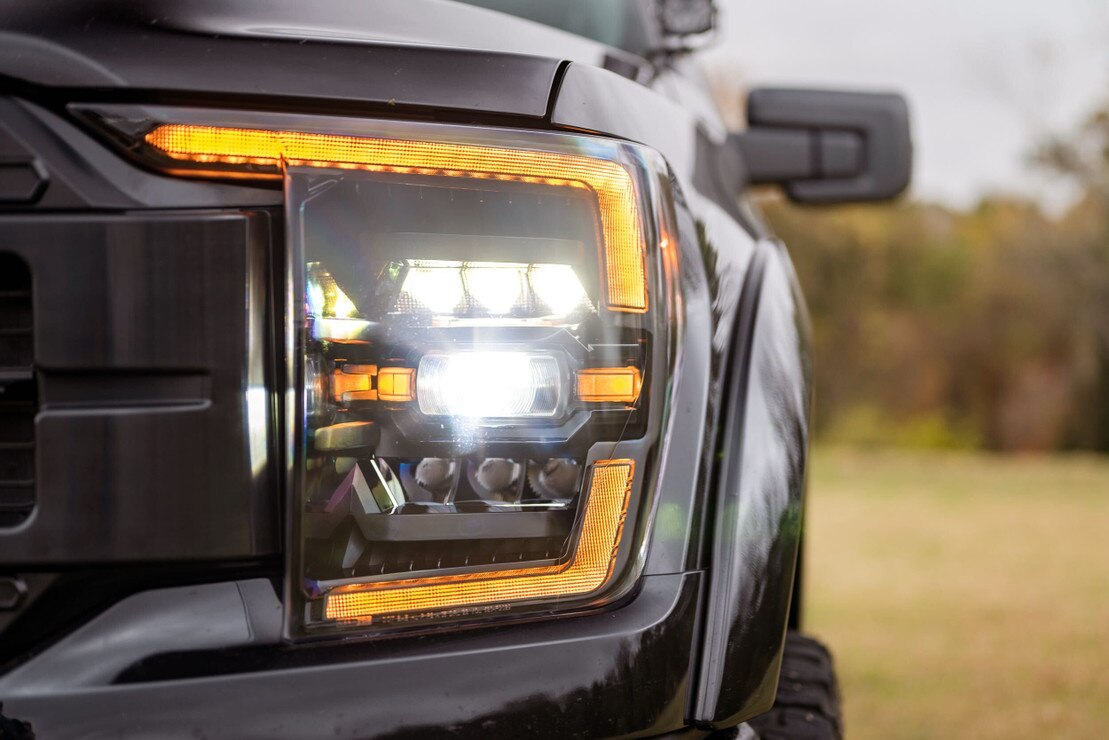

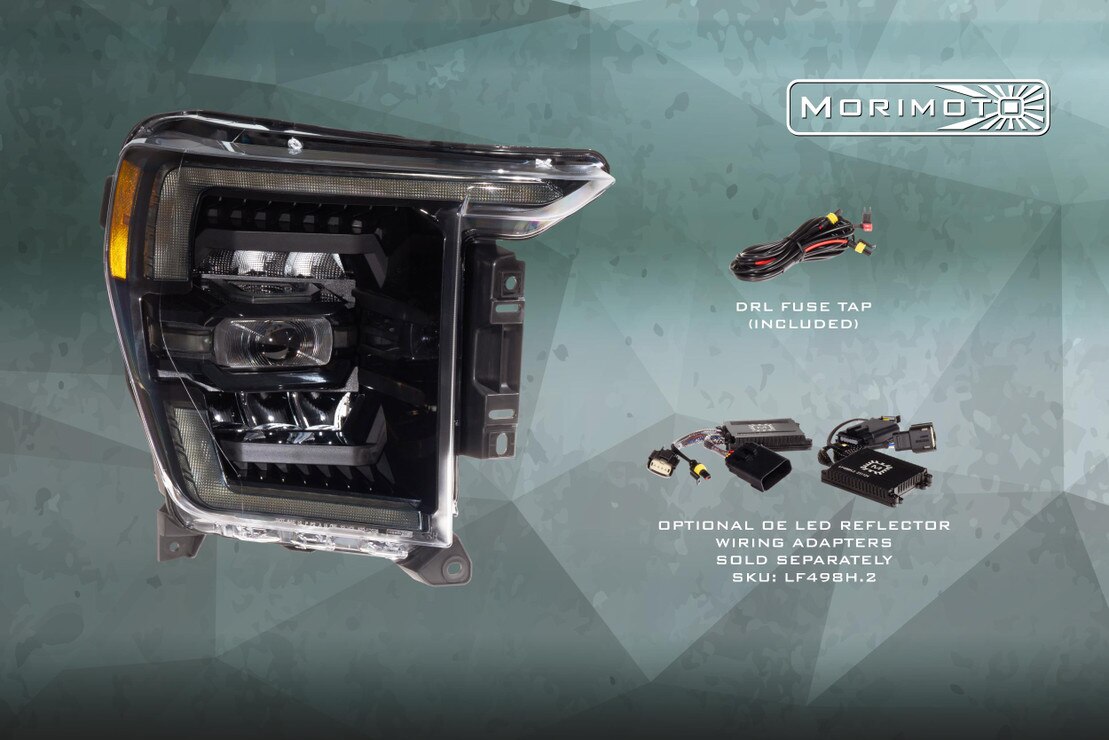

Introducing the ultimate lighting upgrade for your 21-23 Ford F150: the Morimoto XB LED Headlights and Tail Lights bundle. The Morimoto XB LED Headlights feature a sleek, modern design with a large rectangular projector and Ford GT-inspired shrouds, seamlessly blending into your F150's aesthetics. The redesigned C-shaped daytime running lights (DRL) replace the controversial L-shaped DRLs, offering a more traditional and stylish look. Equipped with oversized optics and LED reflectors, these headlights provide unmatched visibility, outshining both OEM halogen and LED headlights. DOT approved for safety and performance, they are also plug-and-play for easy installation, with no need for modifications. However, for F150s with OE Reflector-LED headlights, an LF498H adapter harness is required for full functionality.

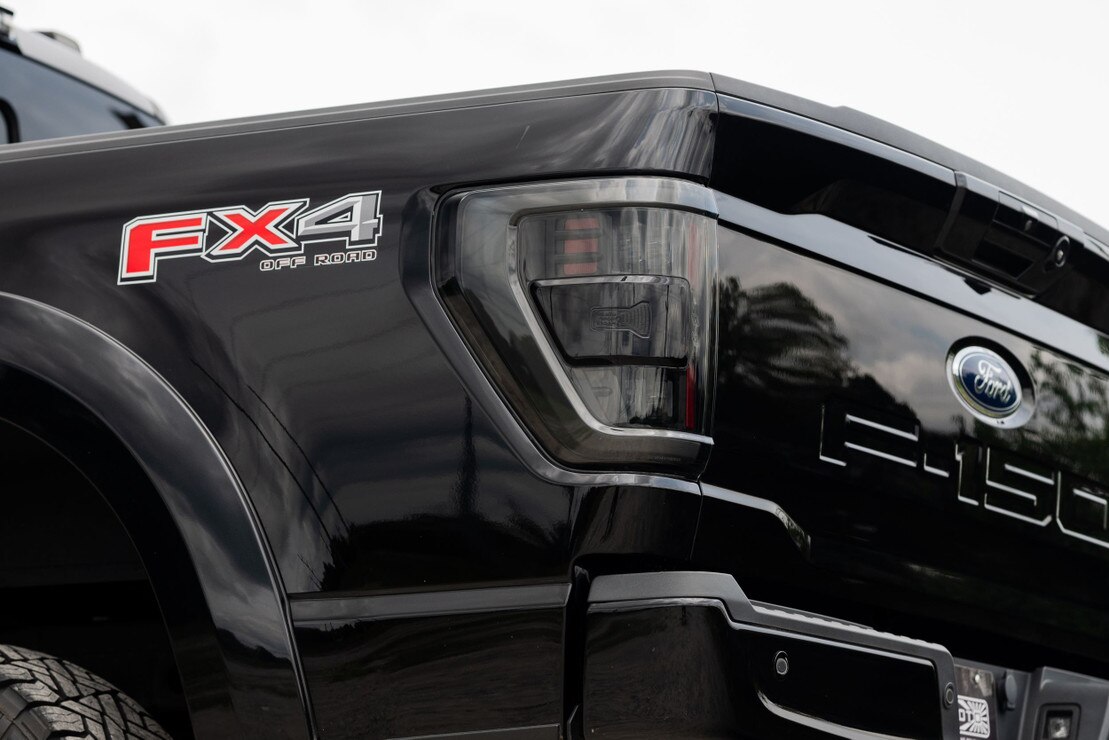

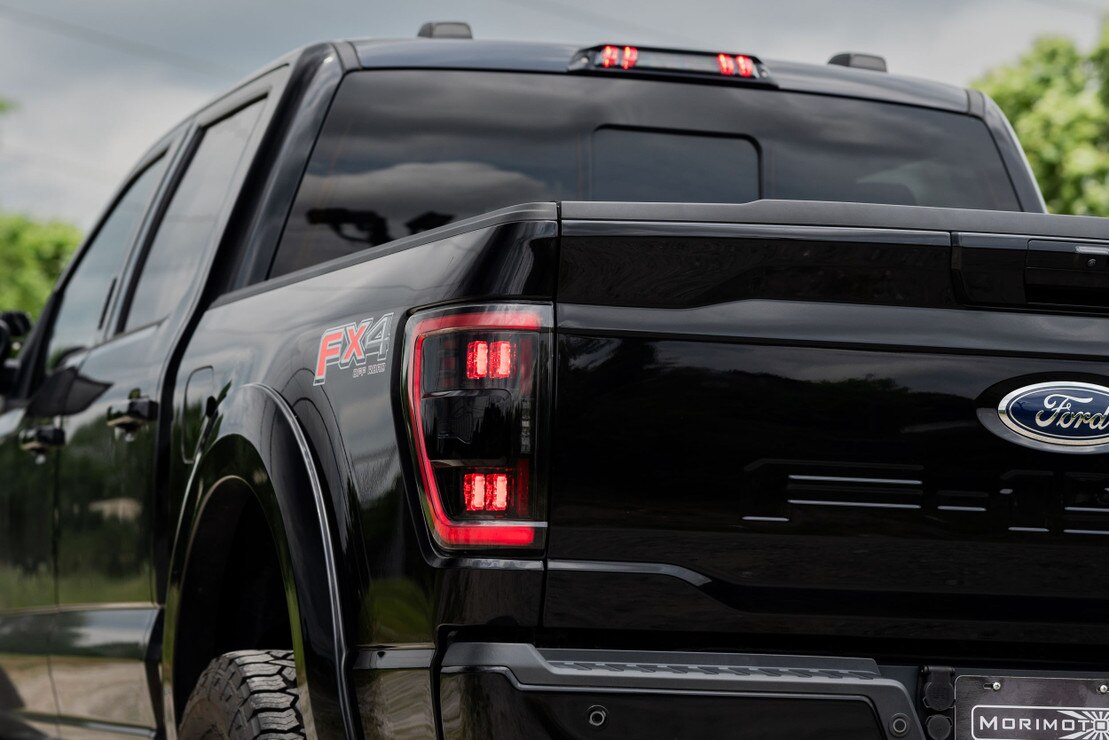

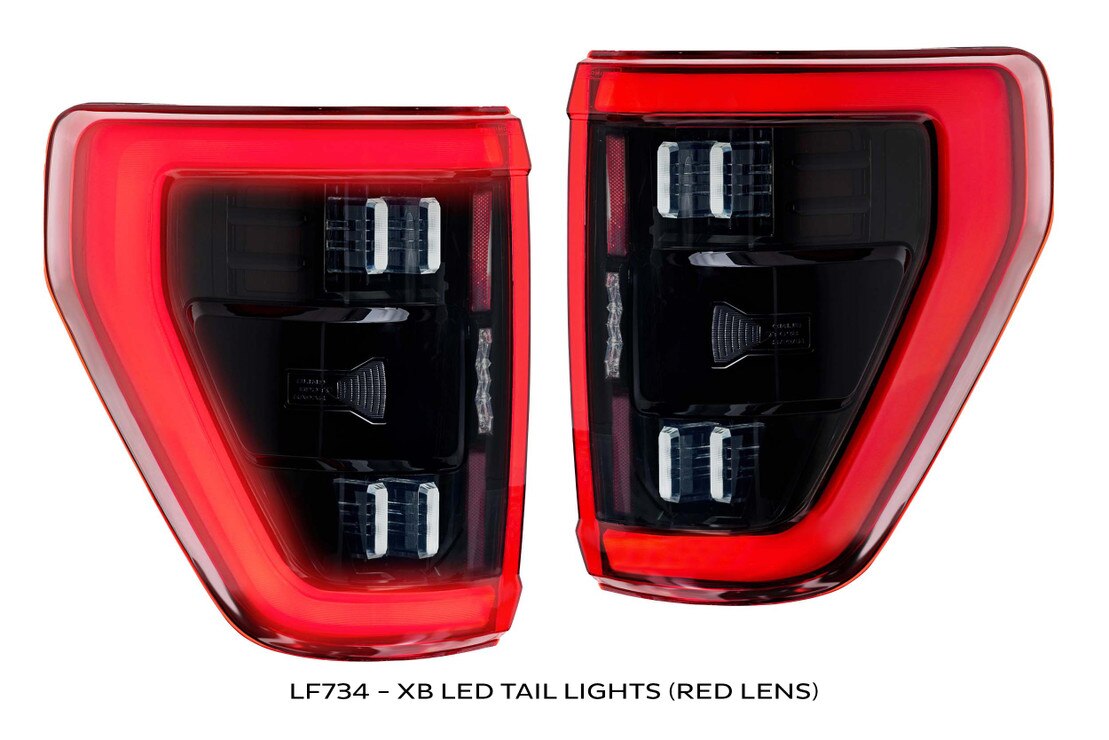

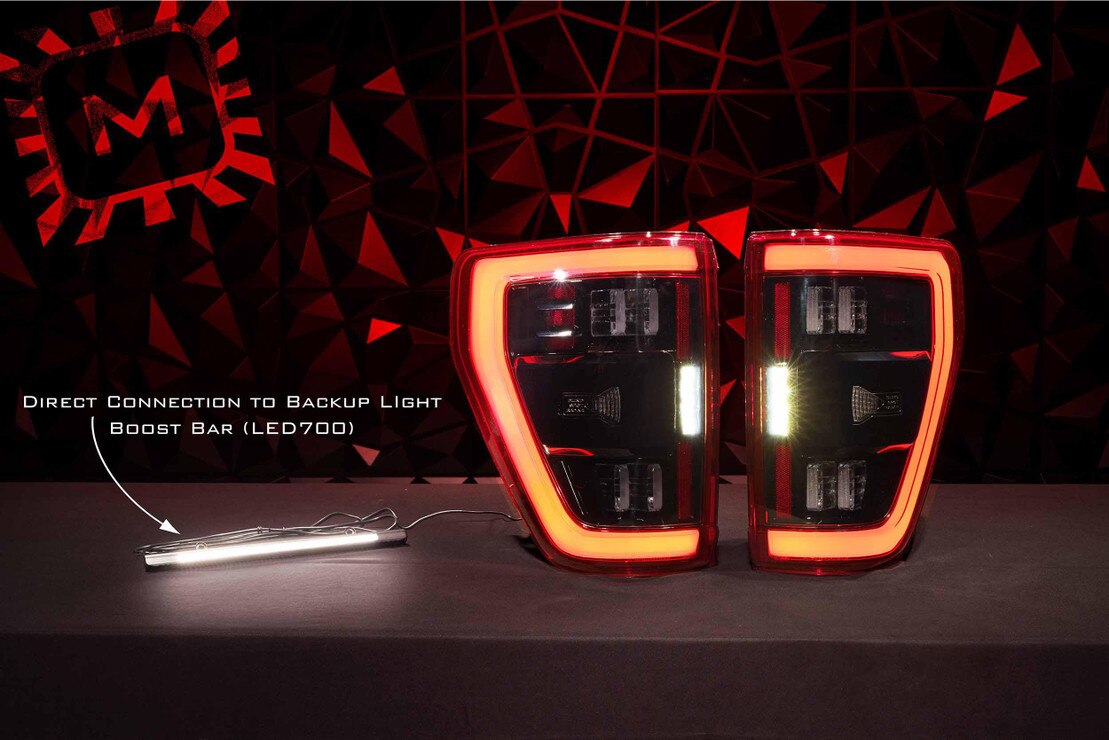

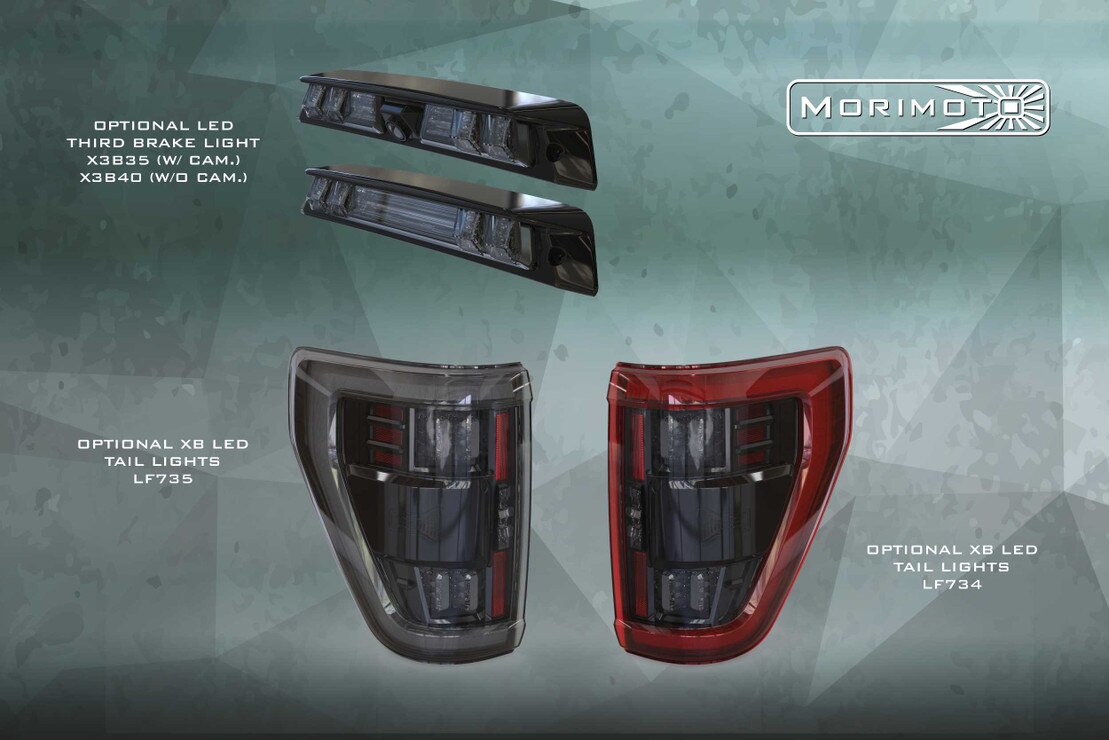

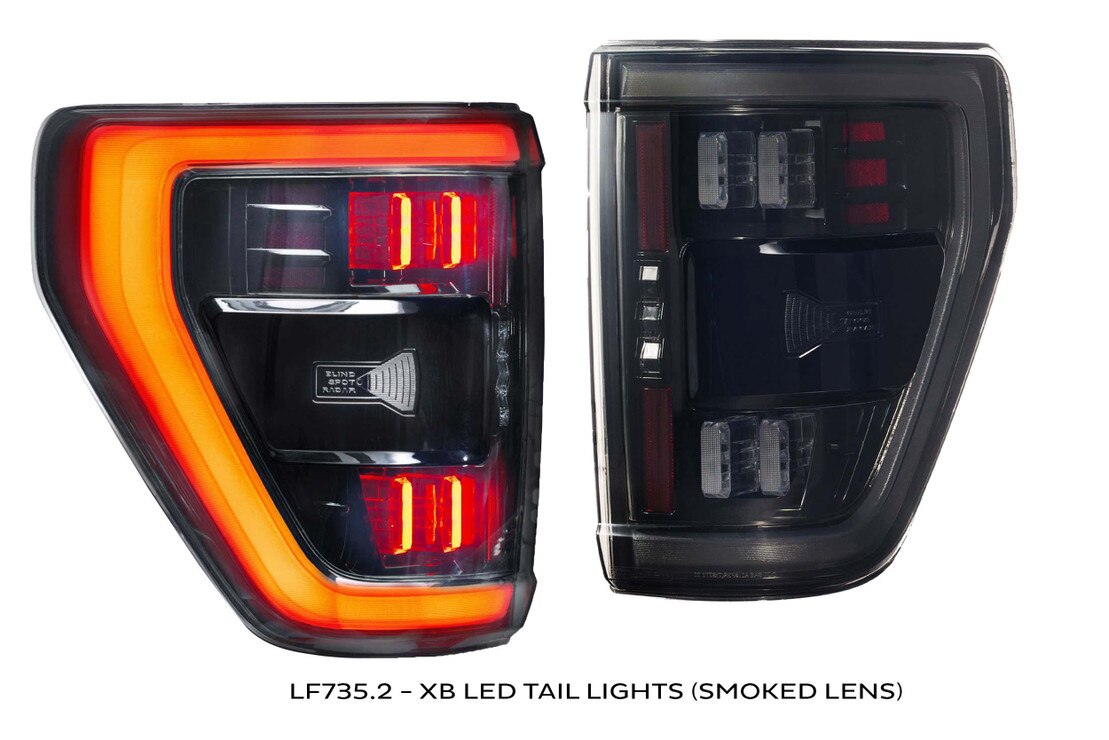

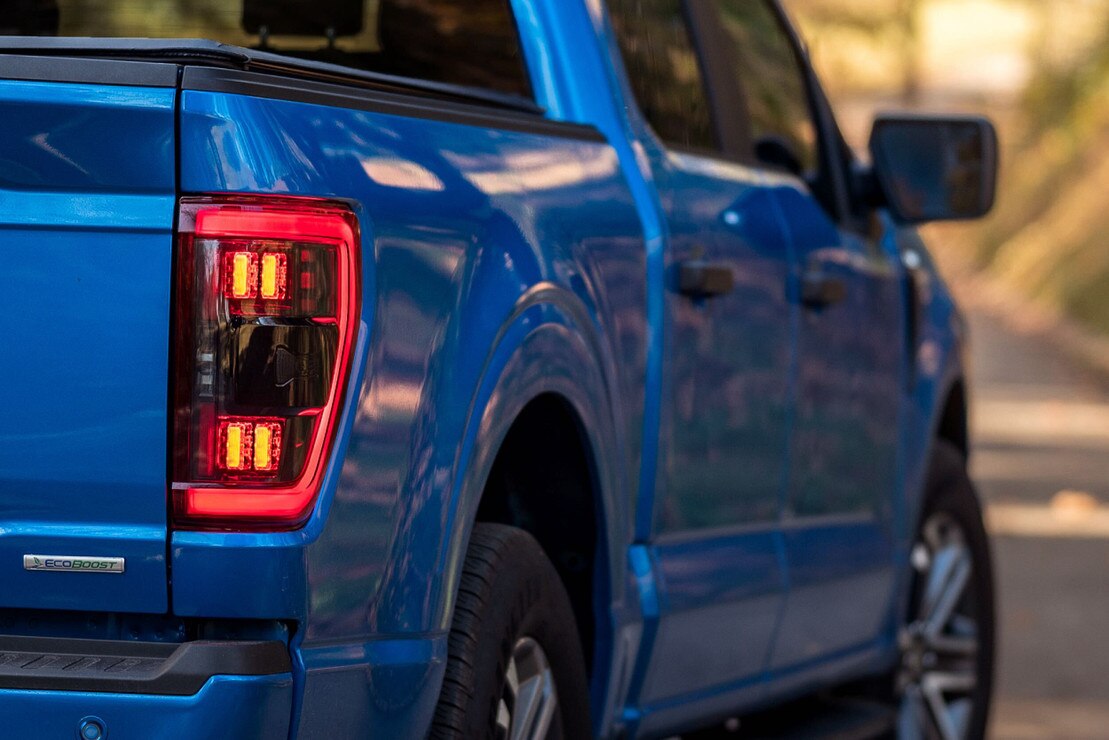

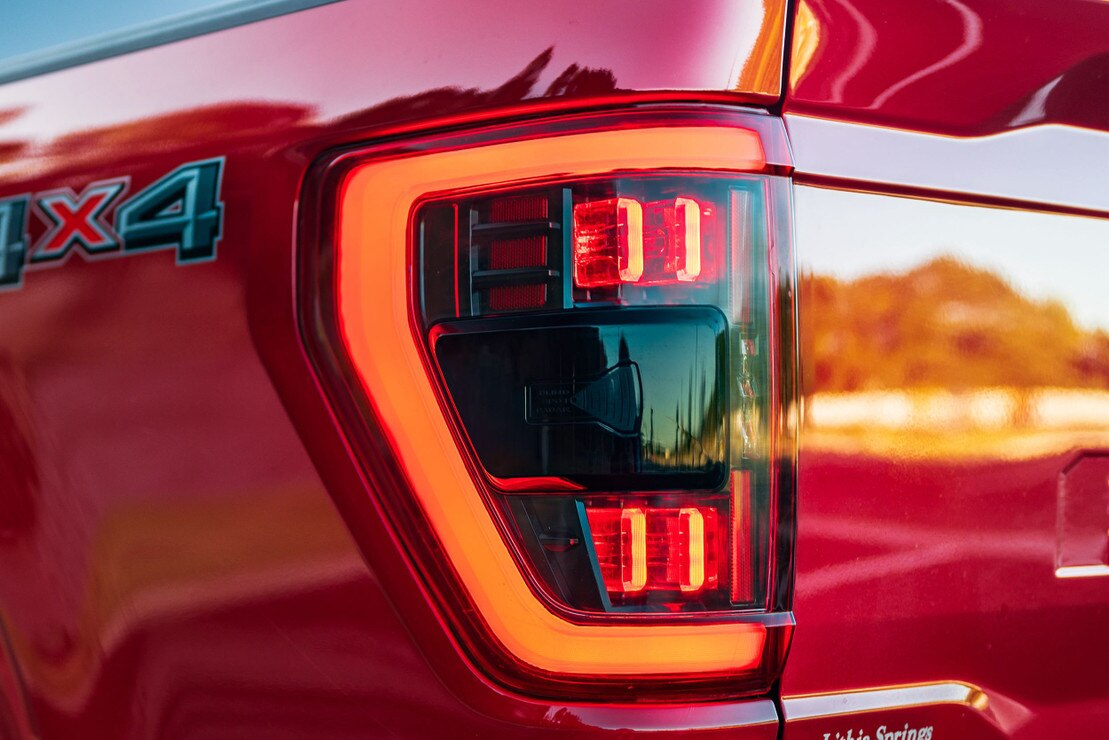

The Morimoto XB LED Tail Lights complete the upgrade, offering a perfect blend of style and practicality. Designed to fit all 21-24 F150 models, these tail lights include powerful LED reverse lights, with the option of adding an LED Backup Boost Bar that provides an additional 2,700 lumens of reverse lighting. Featuring 3D optics for brake lights and turn signals, they create a distinctive and modern appearance while meeting all DOT and SAE regulations for safety. The plug-and-play design ensures a hassle-free installation using the factory wiring harness, and they are available in smoked or red outer lens options to suit your preference.

FEATURES & BENEFITS

  • Enhanced Visibility: Morimoto XB LED Headlights offer 200% more light output than standard halogen lights, improving road visibility.
  • Easy Installation: Both headlights and tail lights are plug-and-play, ensuring hassle-free installation without voiding your factory warranty.
  • Durability: Built with UV-coated polycarbonate lenses and durable PPS plastic housing with die-cast aluminum heat sinks for lasting performance.
  • Modern Design: Features sequential LED DRLs and optional LED Backup Boost Bar for a sleek look and enhanced reverse lighting.
  • Regulation Compliance: Exceeds SAE, DOT, and FMVSS108 standards for safety and legal compliance.

WHAT’S INCLUDED

WARRANTY INFORMATION

These Morimoto products include a 5 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

TECHNICAL SPECIFICATIONS

  • Headlights:

  • Traffic Pattern: LHD Only

  • Input: Ford Multi-Pin OEM

  • Functions: DRL, Turn, Parking, Low, High

  • Material: ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)

  • Optic: Kuria Optic Bi-LED

  • Tail Lights:

  • Input: Ford Multi-Pin OEM

  • Material: ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)

  • Light Source: SSC LED

  • Brake Light: Red

  • Parking Light: Red

  • Turn Signal: Red

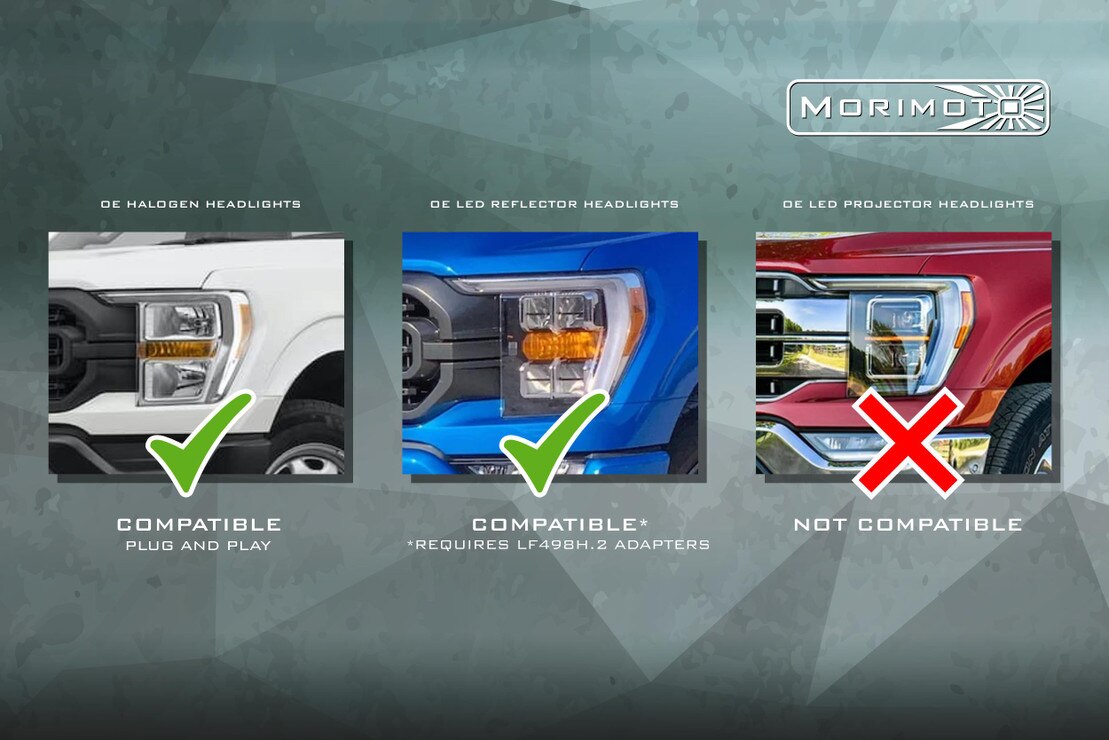

COMPATIBILITY

  • Ford F-150: 2021-2023 (All Models / Trim Levels without onboard scales)**

  • Plug n Play on: Trucks w/ Halogen Heads, OE LED/Incandescent Tail Lights + BLIS System (Requires swap of OE Modules)

  • Requires Optional LF498H Adapter Harness: Trucks w/ LED Reflector Heads

  • Not Compatible: Trucks w/ Dual-LED Projector Heads

  • **NOTE: Trucks with onboard scales / load leveling indicators are not compatible.

  • NOTE: These housings have been designed for, and tested on, US-Spec vehicles. Other countries' compatibility may vary and is not guaranteed nor always known.

COMPLIANCE

DOT, SAE, FMVSS108 Standards
