DESCRIPTION

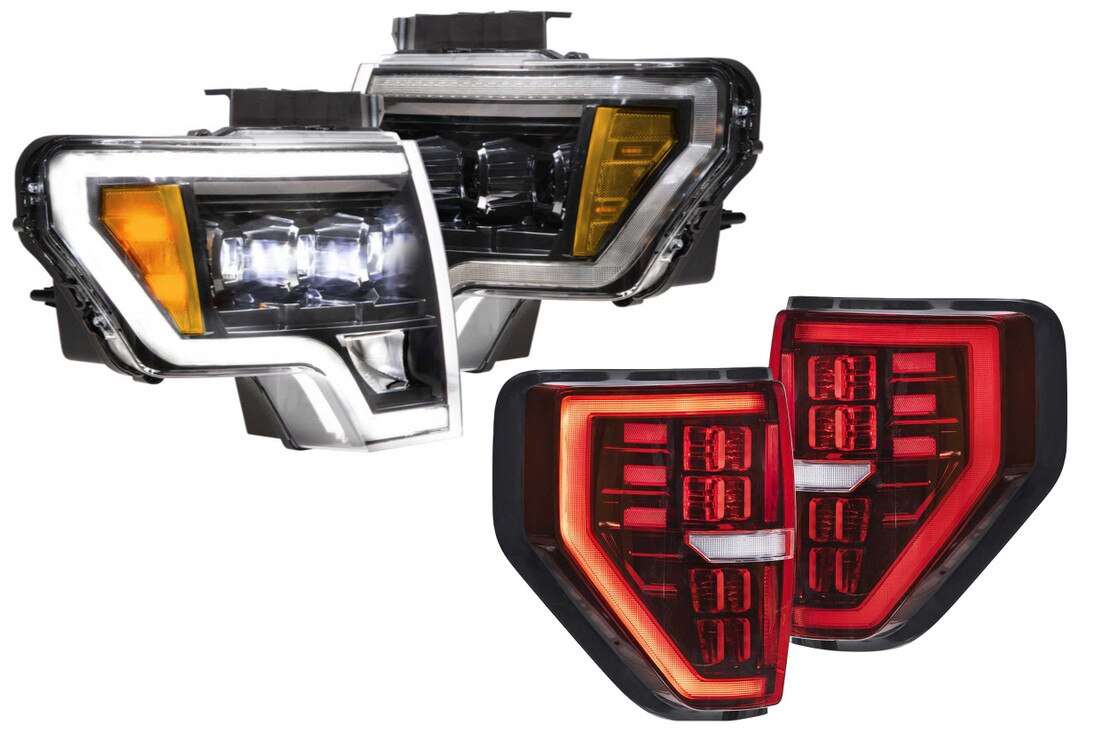

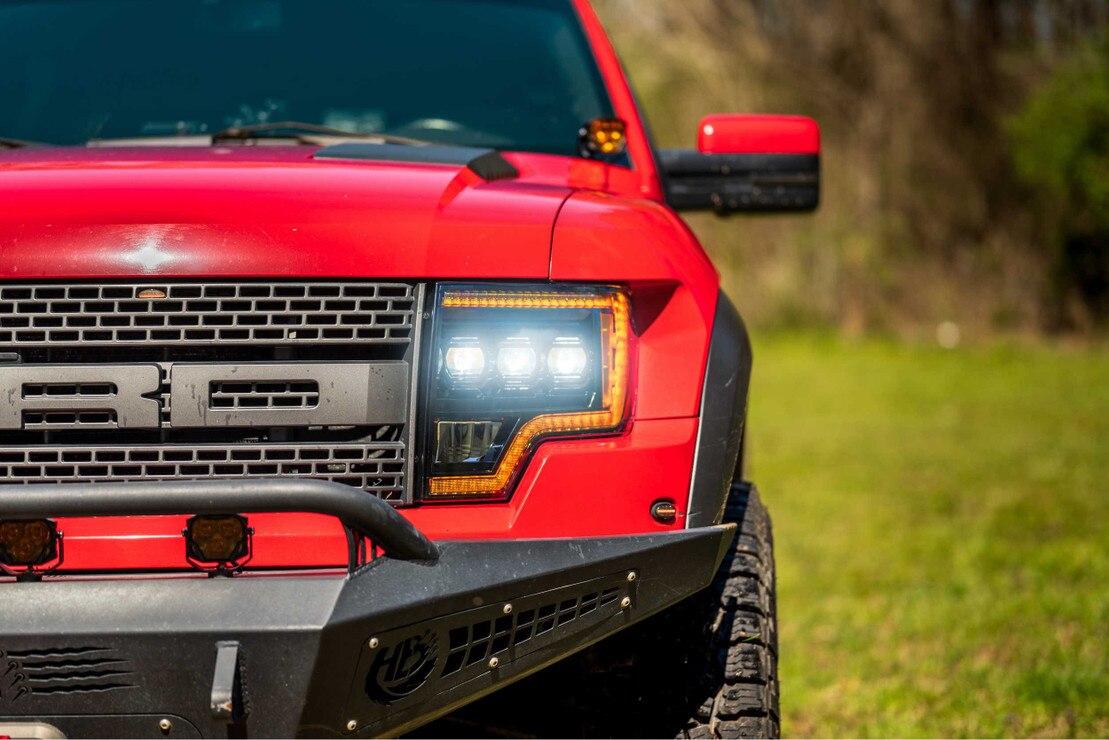

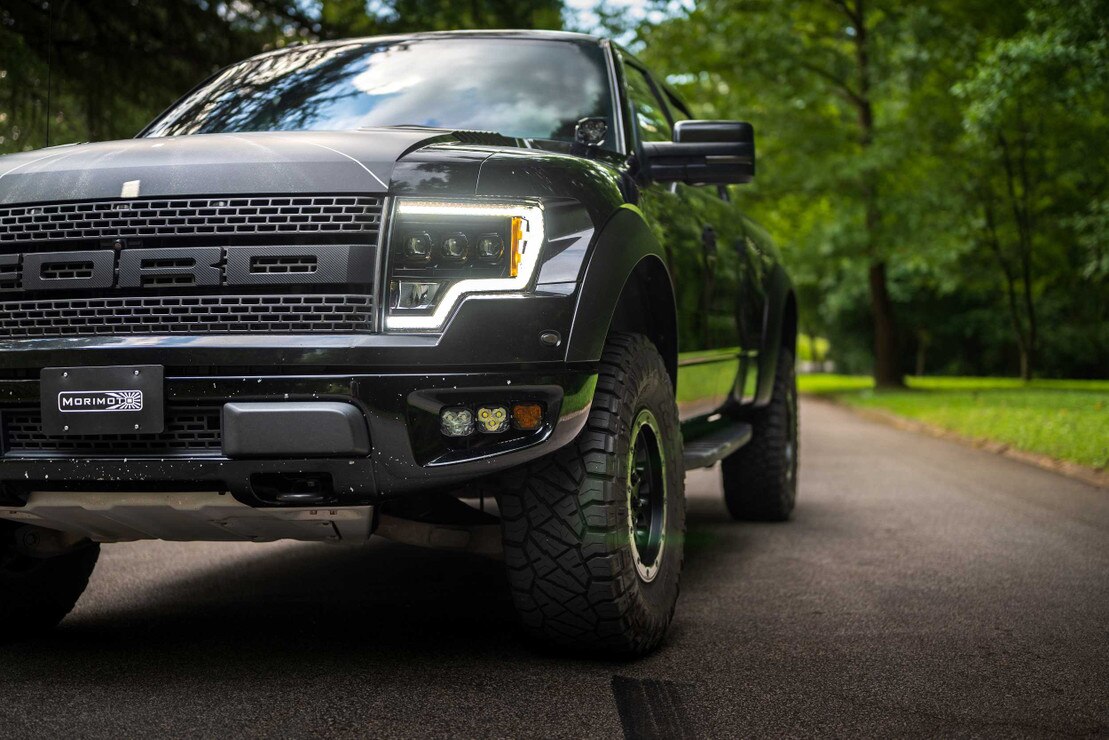

Upgrade your 2009-2014 Ford F-150 with the Morimoto XB LED Headlight & Tail Light Bundle, delivering superior illumination, style, and durability. The XB LED Headlights feature a well-defined beam pattern, sequential LED DRLs, and Osram LEDs, ensuring enhanced visibility and a modern look. With a plug-and-play installation, DOT approval, and rugged construction (including a UV-coated lens, PPS plastic housing, and die-cast aluminum heat-sinks) these headlights are built to last.

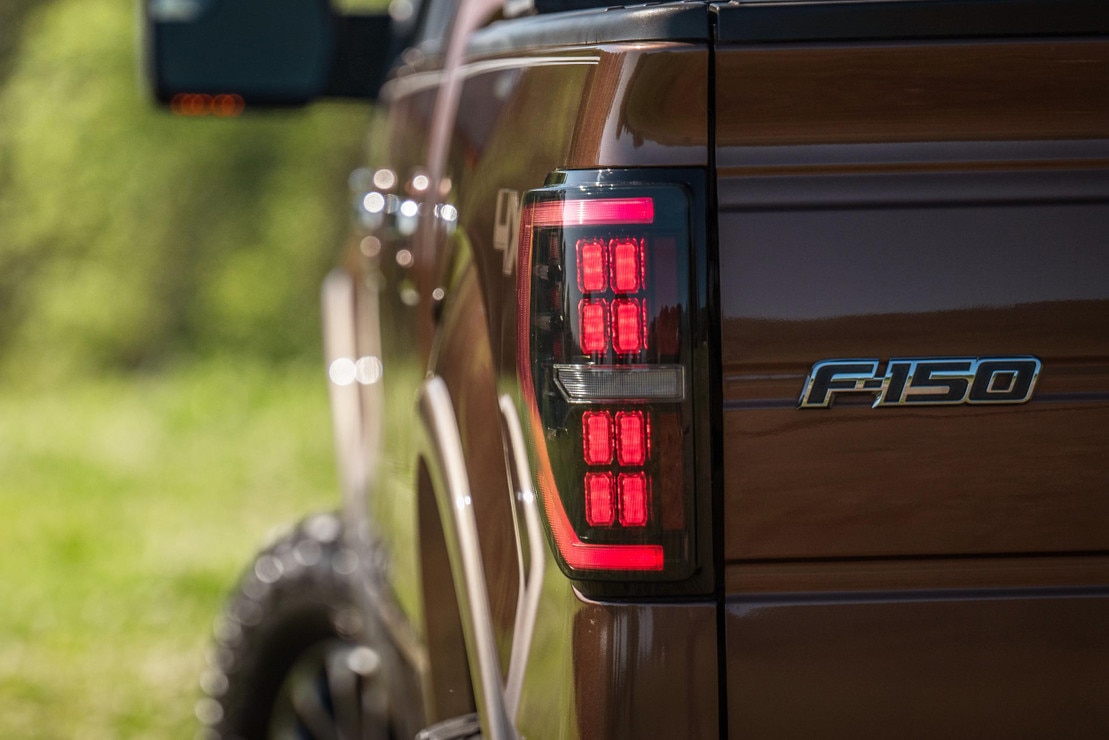

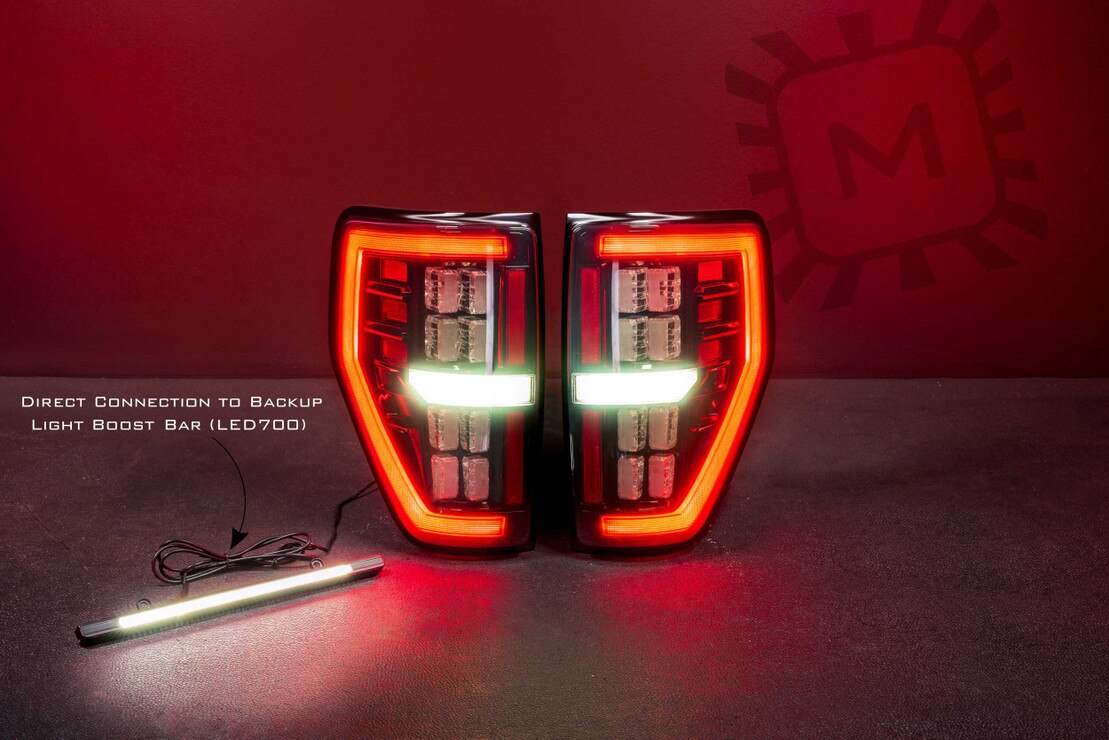

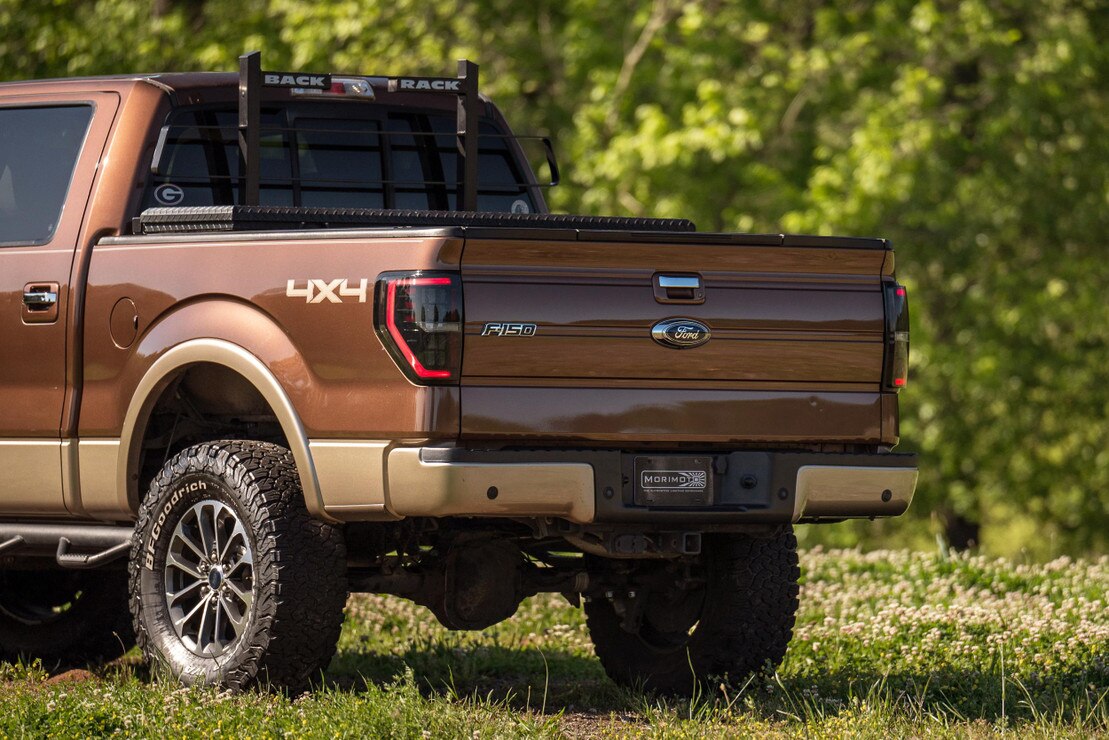

The XB LED Tail Lights offer a sleek, OEM-inspired design with dual 3D Optic clusters for brake lights and turn signals, plus an outer parking light optic for a bold appearance. Powerful LED reverse lights and the optional BLBB Backup Boost Bar provide 2,700 lumens for improved visibility. DOT and SAE compliant, this bundle is backed by Morimoto's industry-leading five-year warranty. Upgrade your F-150's lighting for unmatched performance, safety, and style.
FEATURES & BENEFITS
- Superior Illumination: Brighter, wider, and more uniform light output than halogens.
- Plug-and-Play Installation: No modifications, error codes, or flickering.
- Durable Construction: UV-coated lenses, PPS plastic housing, and die-cast aluminum cooling.
- Modern Aesthetics: Sequential turn signals, DRLs, and 3D Optics for a premium look.
- DOT & SAE Compliant: Meets and exceeds all safety regulations.
- Industry-Leading Warranty: Reliable performance backed by Morimoto’s guarantee.
WHAT’S INCLUDED
Headlight Choices :

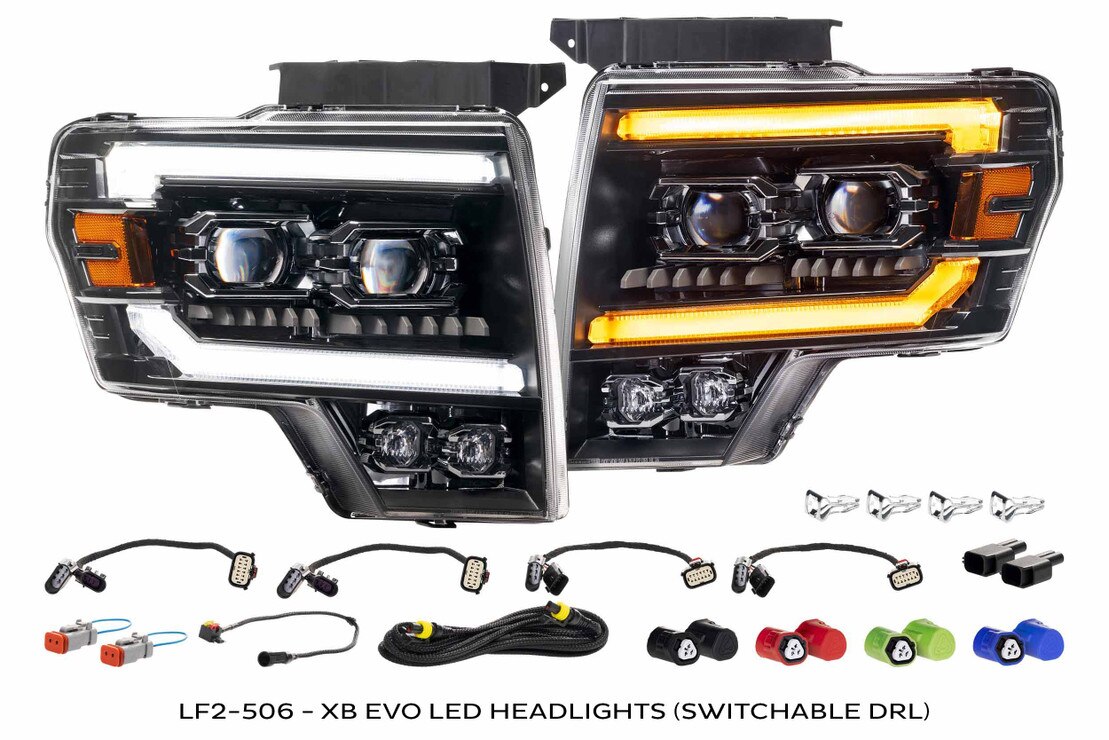

Morimoto XB Evo LED Headlights: 09-14 Ford F-150 (White/Amber DRL) Click for Details

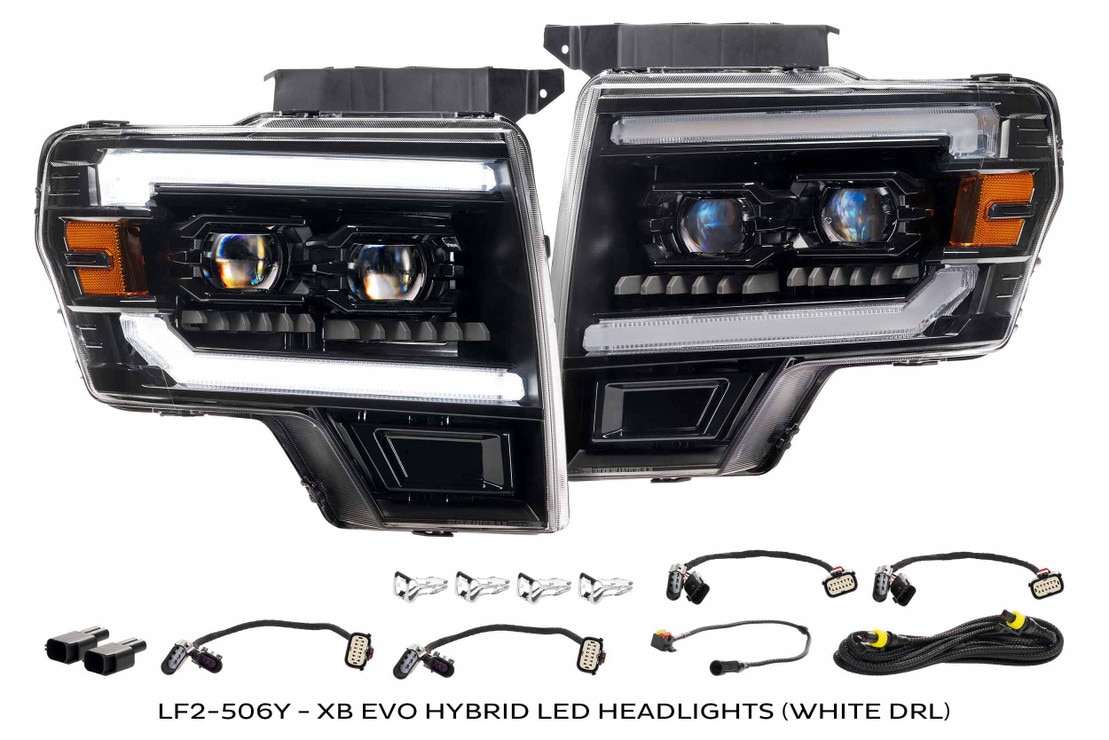

Morimoto XB Evo Hybrid LED Headlights: 09-14 Ford F-150 (White DRL) Click for Details

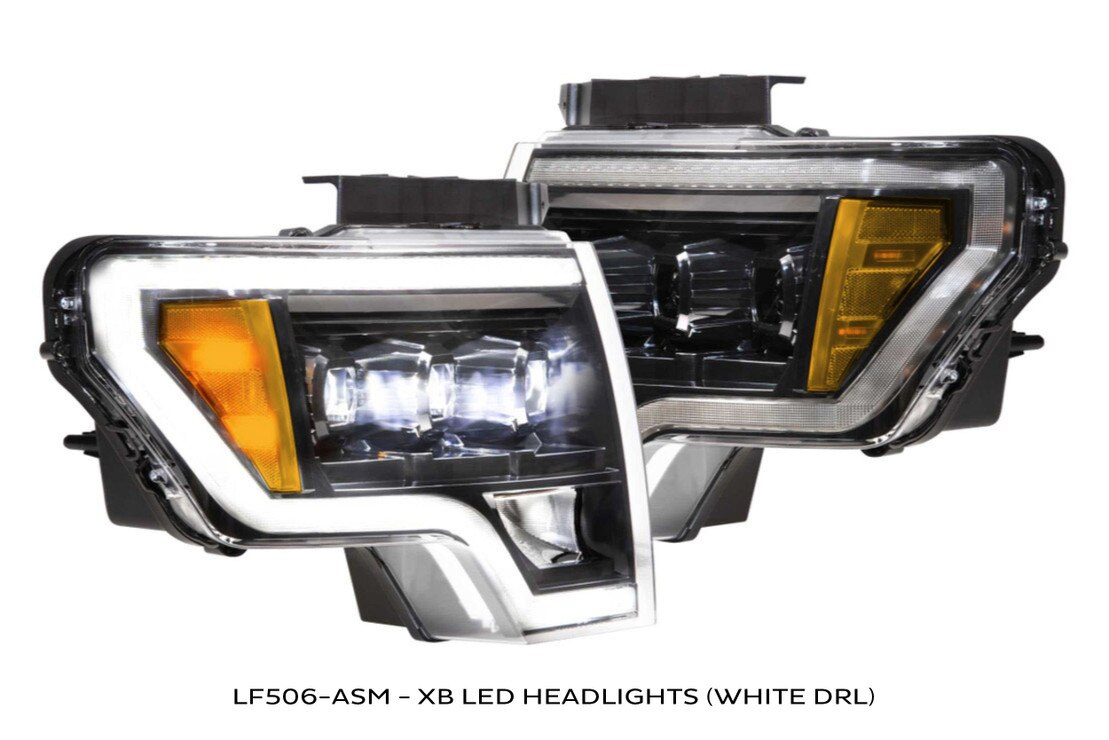

Morimoto XB LED Headlights: 09-14 Ford F-150 (White DRL) Click for Details

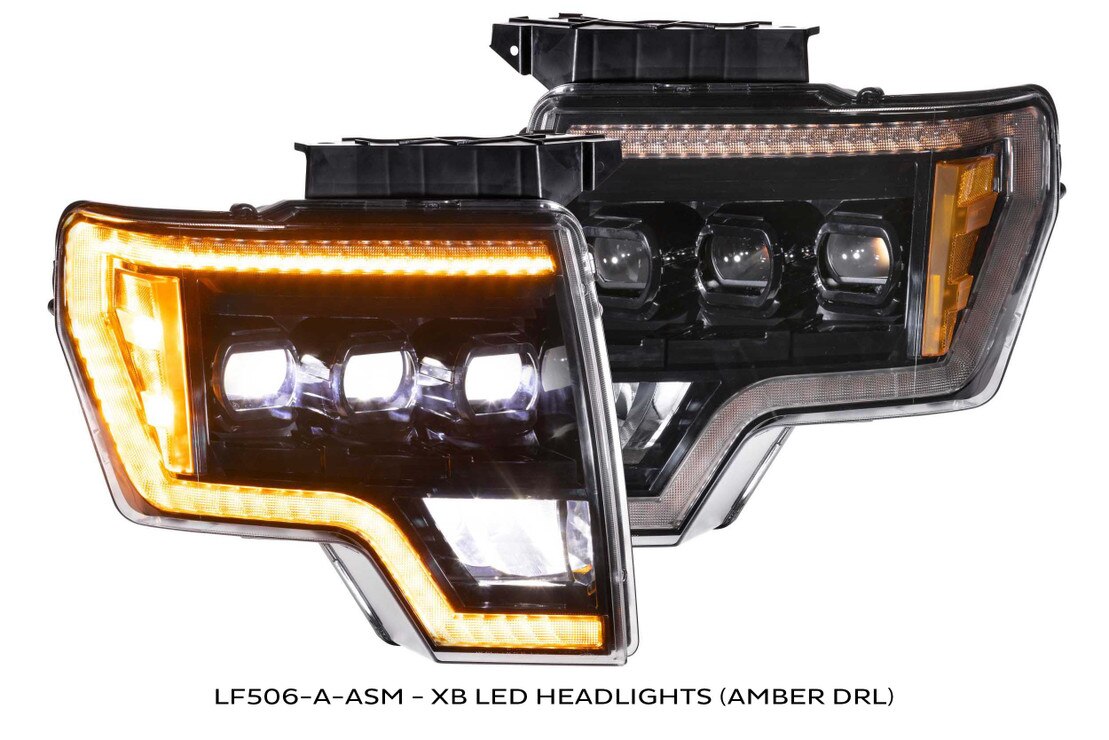

Morimoto XB LED Headlights: 09-14 Ford F-150 (Amber DRL) Click for DetailsTail Light Choices :

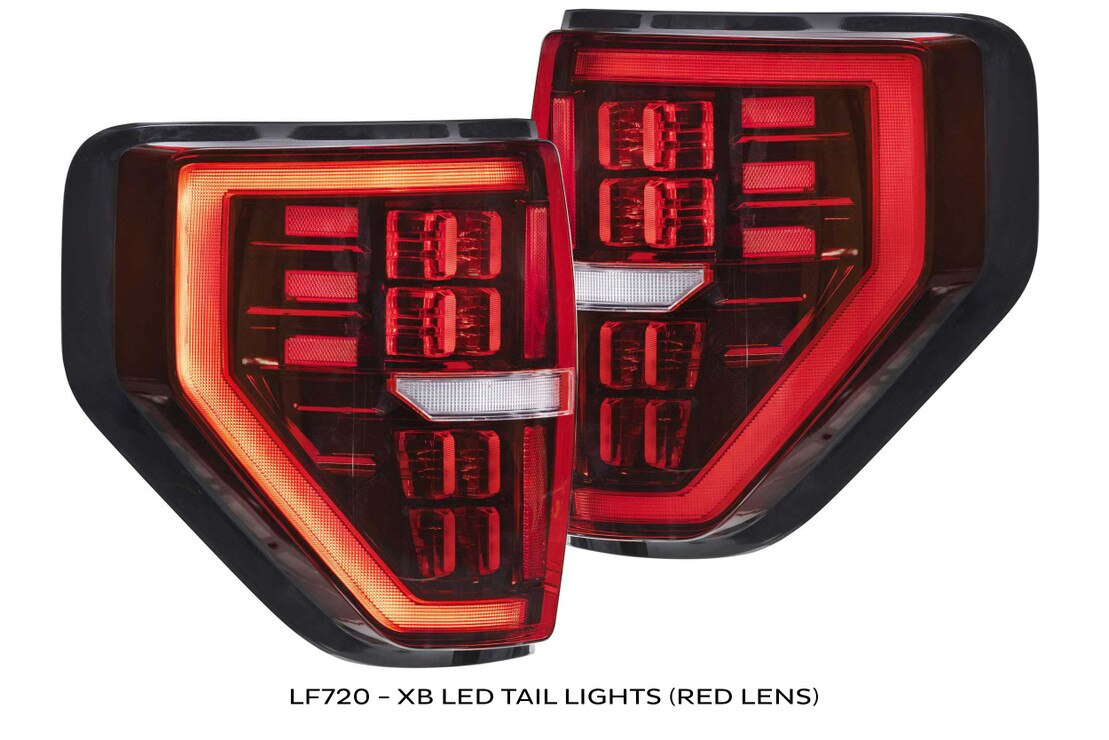

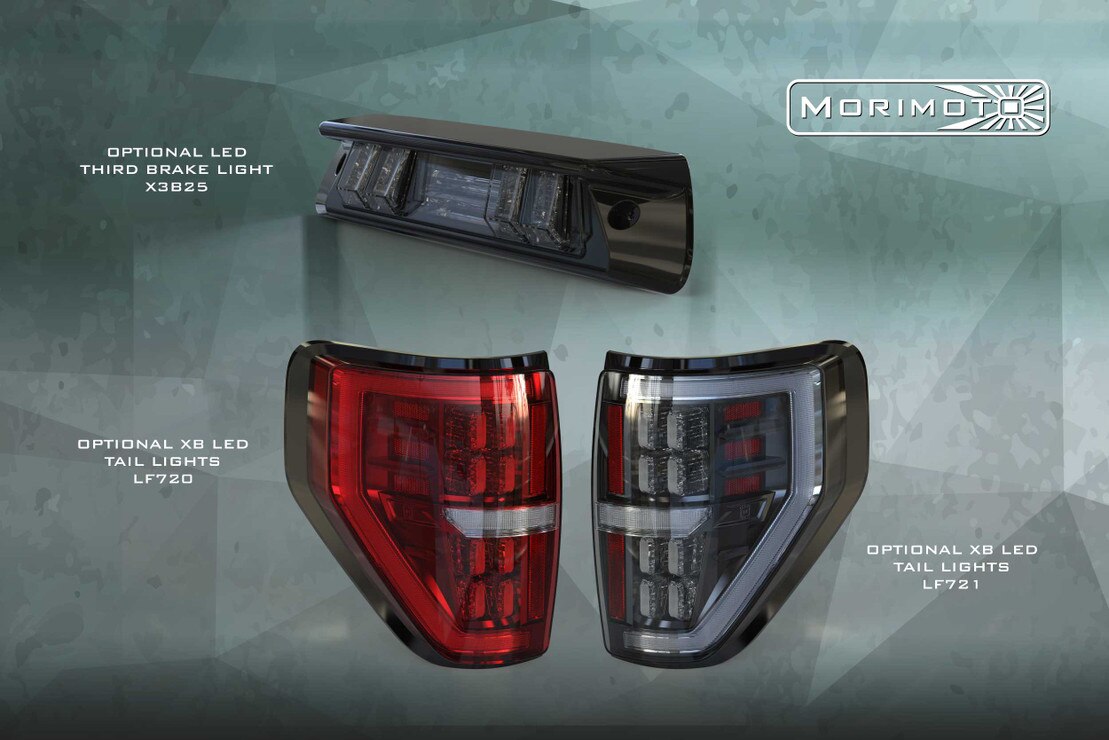

Morimoto XB LED Tail Lights: 09-14 Ford F-150 (Red Lens) Click for Details

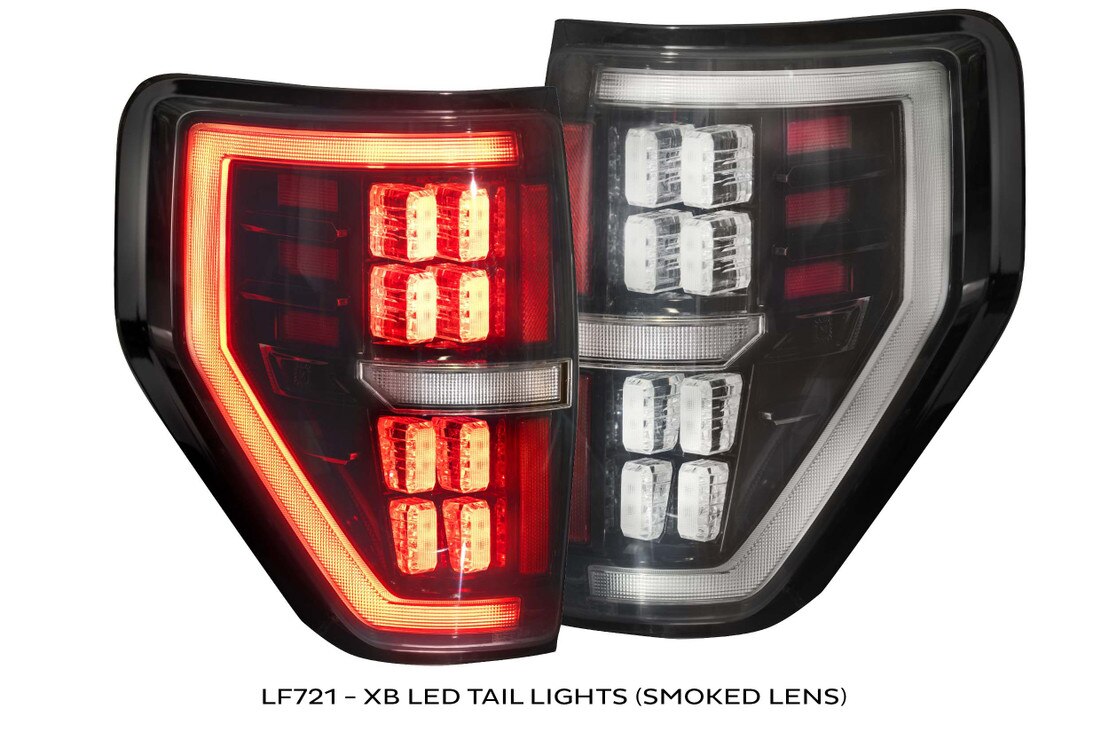

Morimoto XB LED Tail Lights: 09-14 Ford F-150 (Smoked Lens) Click for Details
WARRANTY INFORMATION
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.
TECHNICAL SPECIFICATIONS
XB Evo Headlights :
Traffic Pattern : LHD / Right Hand Traffic Only
Output (Standard Drivers) : DOT / FVMSS108 Compliant (LB2V and UB2)
Output (Supercharged Drivers) : +30-50% (Non-Compliant)
Main Optics : 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
High Beam Assist : 2x Morimoto 1Banger NCS Combo Beam*
Functions : Low, High, Park, Turn, DRL, Welcome, and Lens Heating
Turn Signal Modes : Sequential or Fade Off (Configurable)
DRL Colors : White or Amber (Configurable)
DRL/Signal Optics : Glass-like 3D Optics
Frost-Free System : Logic Controlled 50W Ceramic w/ circulation fans
Internal Finish : Two-Tone Piano Black and Titanium w/ contrasting textures
Side marker : Amber side reflex reflector (DOT compliant)
Wiring : Adapters Included for OEM Halogen and OEM HID inputs
Lens Details : Polycarbonate with UV shield hard coating (Exceeds OE Toyota benchmark)
XB Evo Hybrid Headlights :
Traffic Pattern : LHD / Right Hand Traffic Only
Output (Standard Drivers) : DOT / FVMSS108 Compliant (LB2V and UB2)
Output (Supercharged Drivers) : +30-50% (Non-Compliant)
Main Optics : 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
Functions : Low Beam, High Beam, Parking Light, Turn Signal, and DRL
Turn Signal Mode : Instant-On / Fade-Off
DRL Color : White
DRL/Signal Optics : Glass-like 3D Optics
Internal Finish : Piano Black w/ contrasting textures
Side marker : Amber side reflex reflector (DOT compliant)
Wiring : Adapters Included for OEM Halogen and OEM HID inputs
Lens Details : Polycarbonate with UV shield hard coating (Exceeds OE Toyota benchmark)
XB Headlights :
Traffic Pattern : LHD Only
Input : Ford Multi-Pin OEM
Functions : DRL (White or Amber), Turn, Parking, Low, High
Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Optic : Kuria Optic Bi-LED
UV Coating : Momentive UVHC3000
Tail Lights :
Input : Ford Multi-Pin OEM
Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Light Source : SSC LED
Brake Light : Red
Parking Light : Red
Turn Signal : Red
COMPATIBILITY
Ford F-150 : 2009-2014 incl. OEM HID Trucks
NOTE : Canadian trucks may require disabling OE DRL
Trucks with EcoBoost Engine : Small interference with vacuum pump underneath light. Needs minor adjustment to clear
NOTE : These housings have been designed for, and tested on, US-Spec vehicles. Other countries' compatibility may vary and is not guaranteed nor always known.
