DESCRIPTION

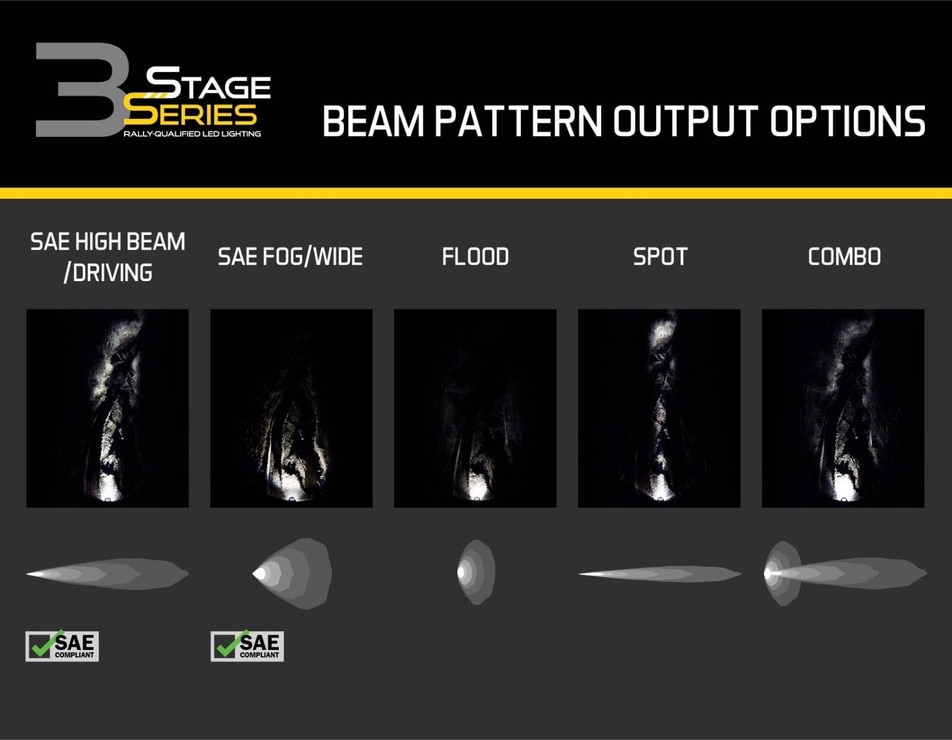

Introducing the SS3 3 inch LED Pod! Featuring higher output intensity than any other 3 inch light on the market these LED pods have been designed for maximum functionality with custom-engineered TIR optics shining in highly useful beam patterns all in a durable package. All Stage Series LED pods are available in a cool white or selective yellow color and sport or pro power levels.

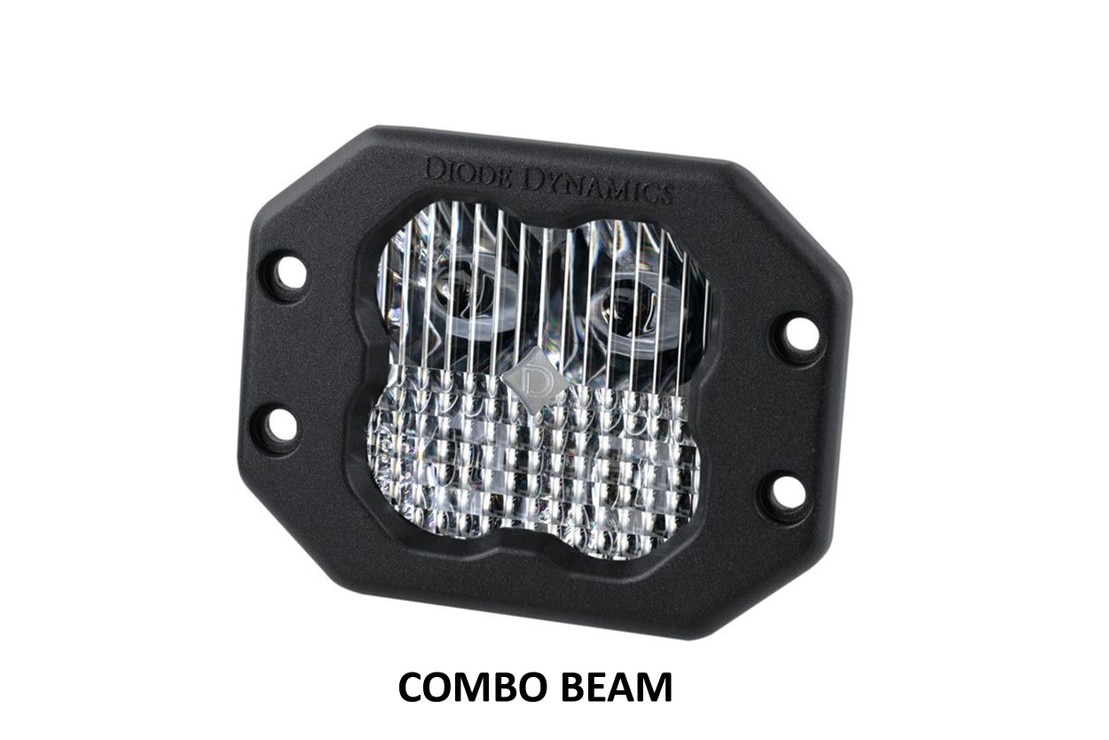

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the SS3 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency. The total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

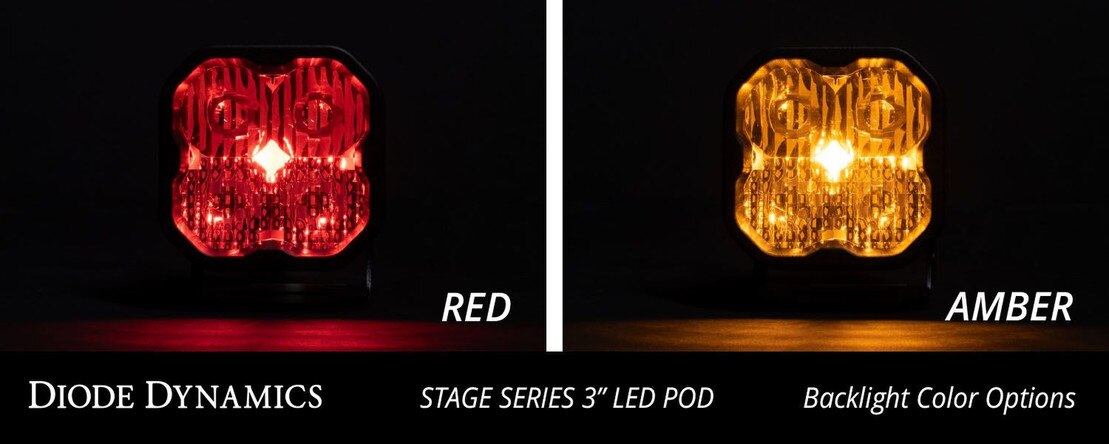

Backlight Functionality. The Stage Series 3 LED Pod is now available with a distinctive backlight in a brilliant amber or a deep red color. The SS3's backlight fully illuminates the TIR optic providing a more unique and modern look than the small indicator LEDs found in other products.
Simple connections. All SS3 LED pods feature a custom-molded DT type Deutsch-style connector on the back and come with a 6-inch pigtail with bare leads.
FEATURES & BENEFITS
- High Output: SS3 3-inch LED Pod provides superior brightness compared to other 3-inch lights.
- Custom TIR Optics: Directs light efficiently, reducing glare and improving intensity.
- Backlight Options: Choose from amber or red backlight for a unique modern look.
- Efficient Light Focus: TIR optics enhance light direction and overall intensity.
- Easy Setup: Includes a DT Deutsch-style connector and 6-inch pigtail with bare leads.

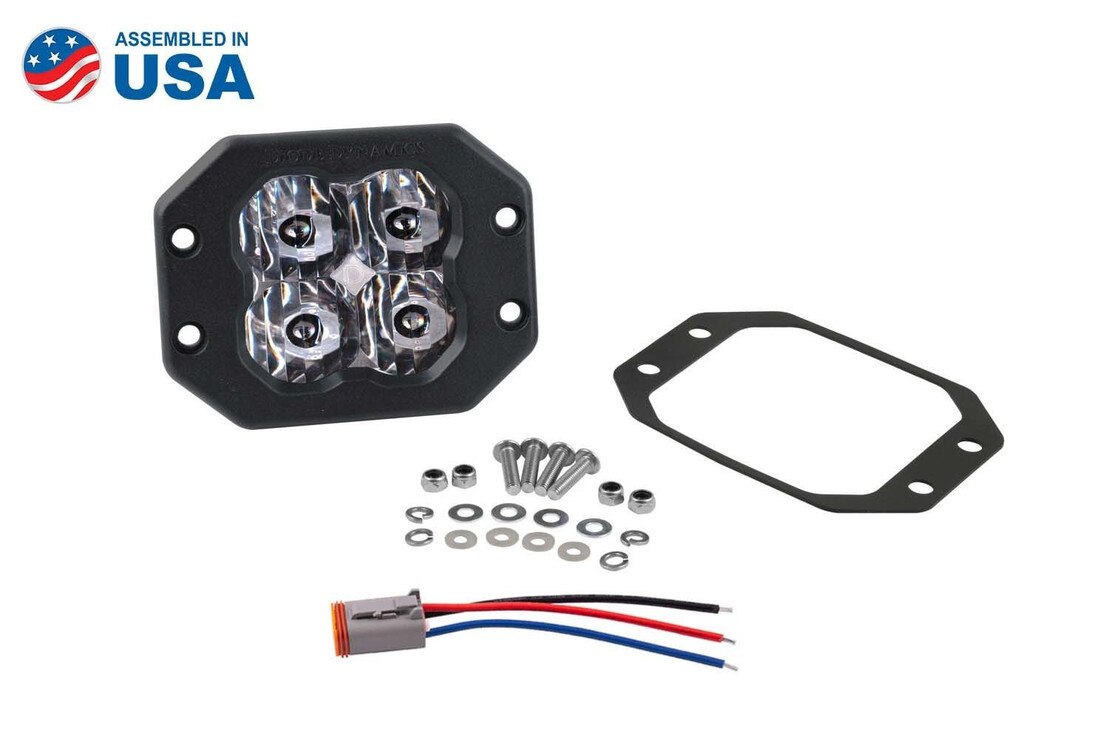

WHAT’S INCLUDED

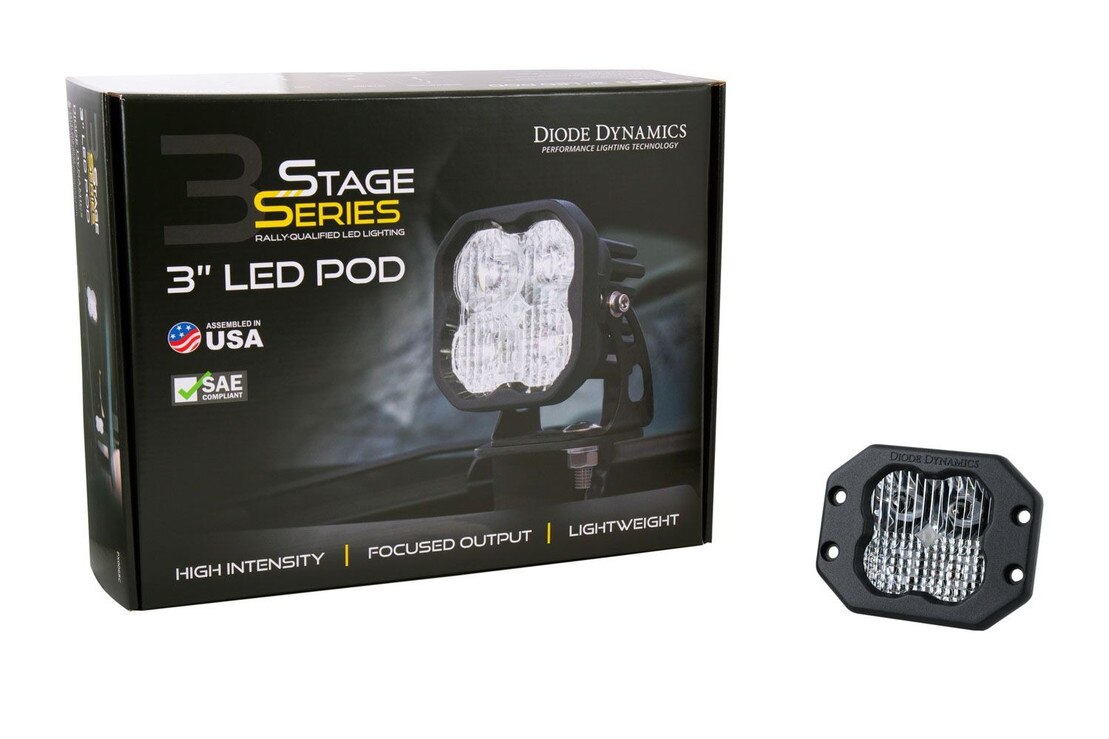

Light Pod: 1x (Single) SS3 Sport LED Light Pod
Hardware: Bracket, Mounting Hardware & drilling template, Flush Frame Gasket
Wiring: 1x Input Pigtail
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Operating Voltage: 9-30V
Color Temp (CCT): 6000K
Power (watts): Main Beam: 14.5, Backlight: 0.4
Current (amps @ 12.8V): Main Beam: 1.1, Backlight: 0.03
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Intrusion Ratings: IP69K Waterproof, High Pressure

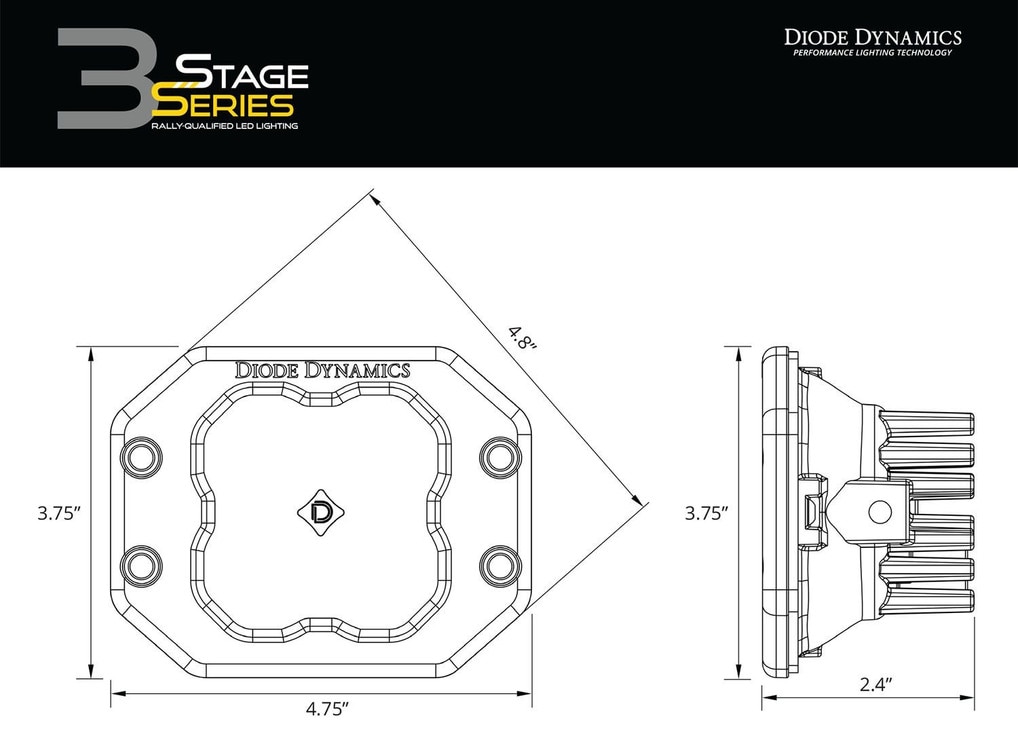

Product Dimensions (in): 3.3 x 3.3 x 2.4
Unit Weight (lb): 0.75
Product Weight (lb): 2.08
COMPATIBILITY

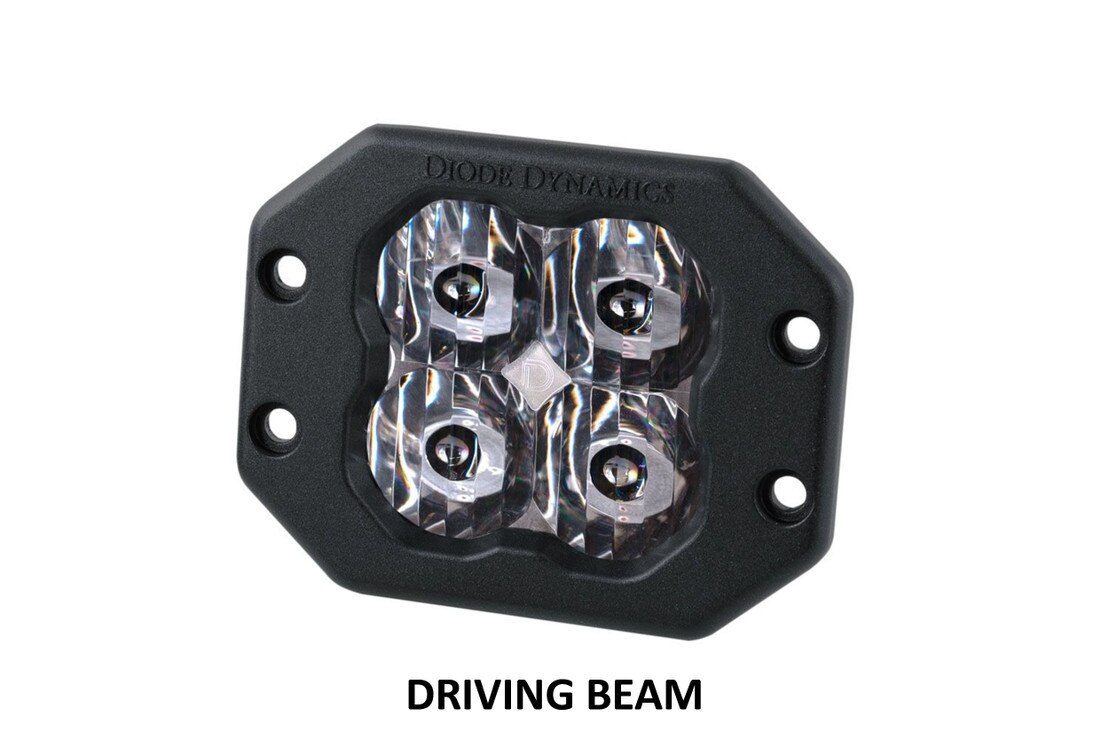

DD6912S: SS3 Sport ABL White SAE Driving Flush (Single) (Amber Back Light)

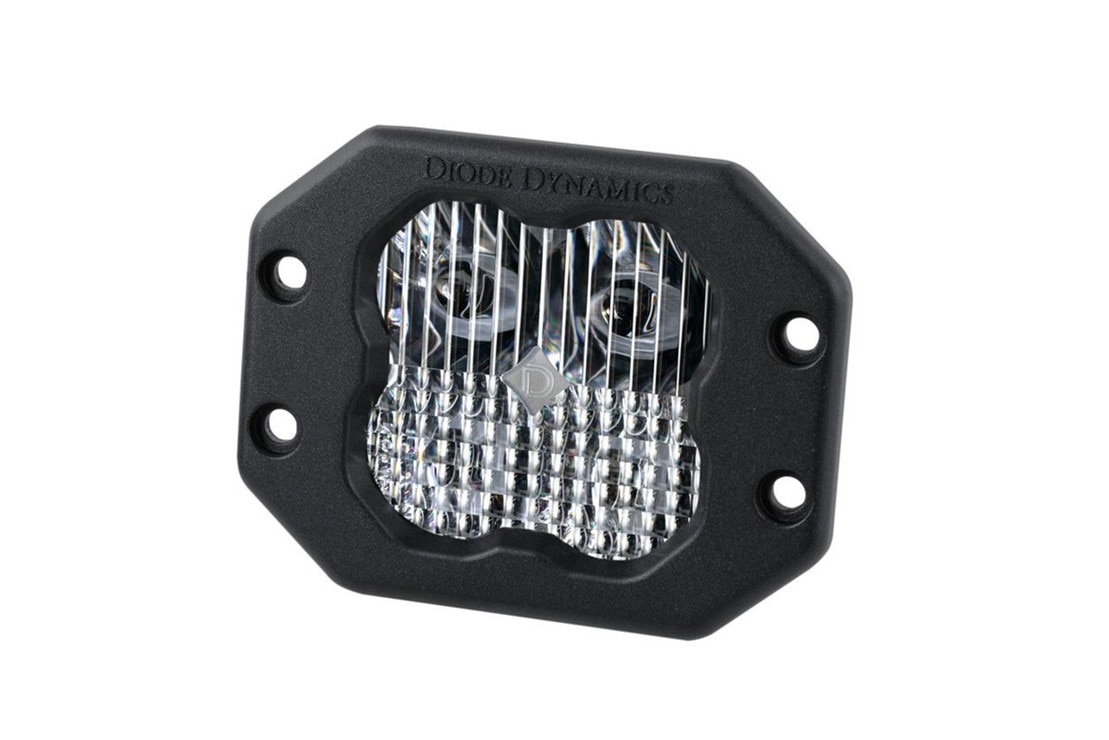

DD6921S: SS3 Sport RBL White Combo Flush (Single) (Red Back Light)
DD6920S: SS3 Sport ABL White Combo Flush (Single) (Amber Back Light)

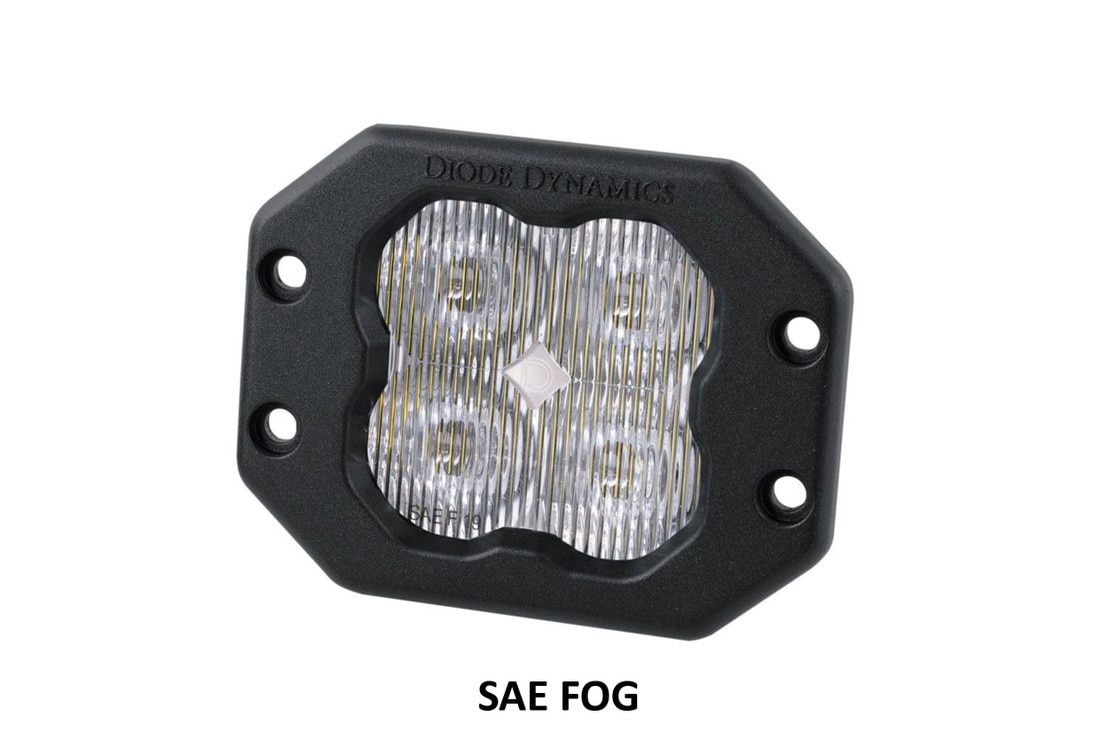

DD6914S: SS3 Sport ABL White SAE Fog Flush (Single) (Amber Back Light)

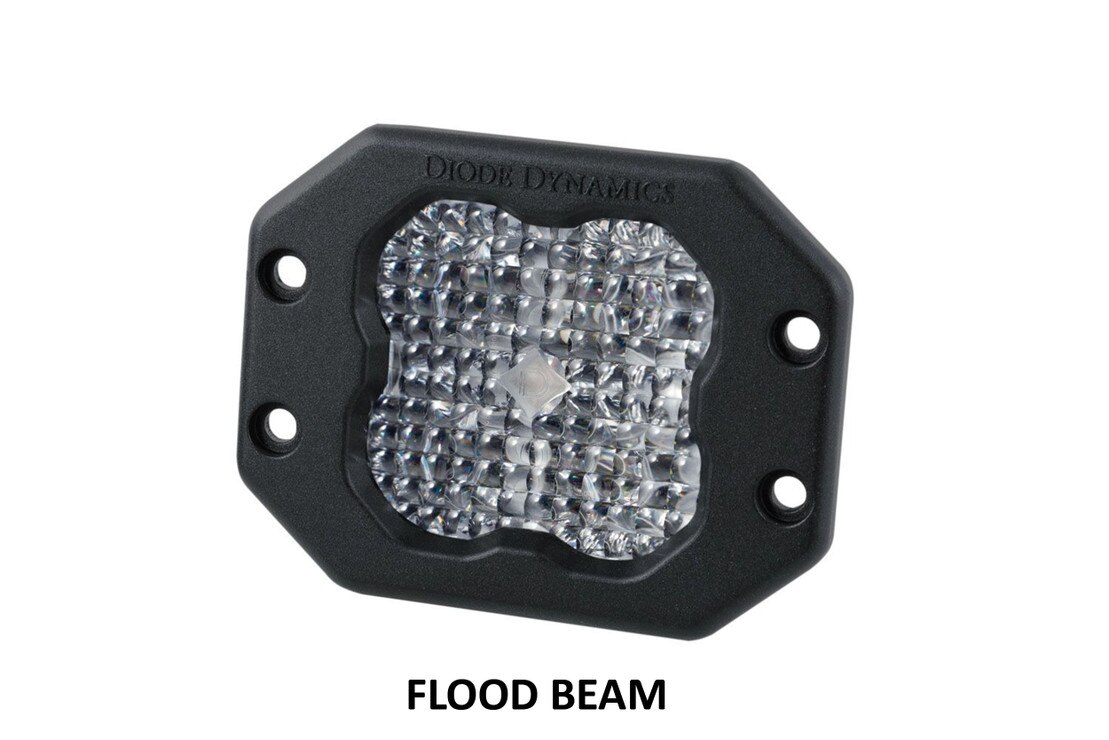

DD6917S: SS3 Sport RBL White Flood Flush (Single) (Red Back Light)
DD6916S: SS3 Sport ABL White Flood Flush (Single) (Amber Back Light)
