DESCRIPTION

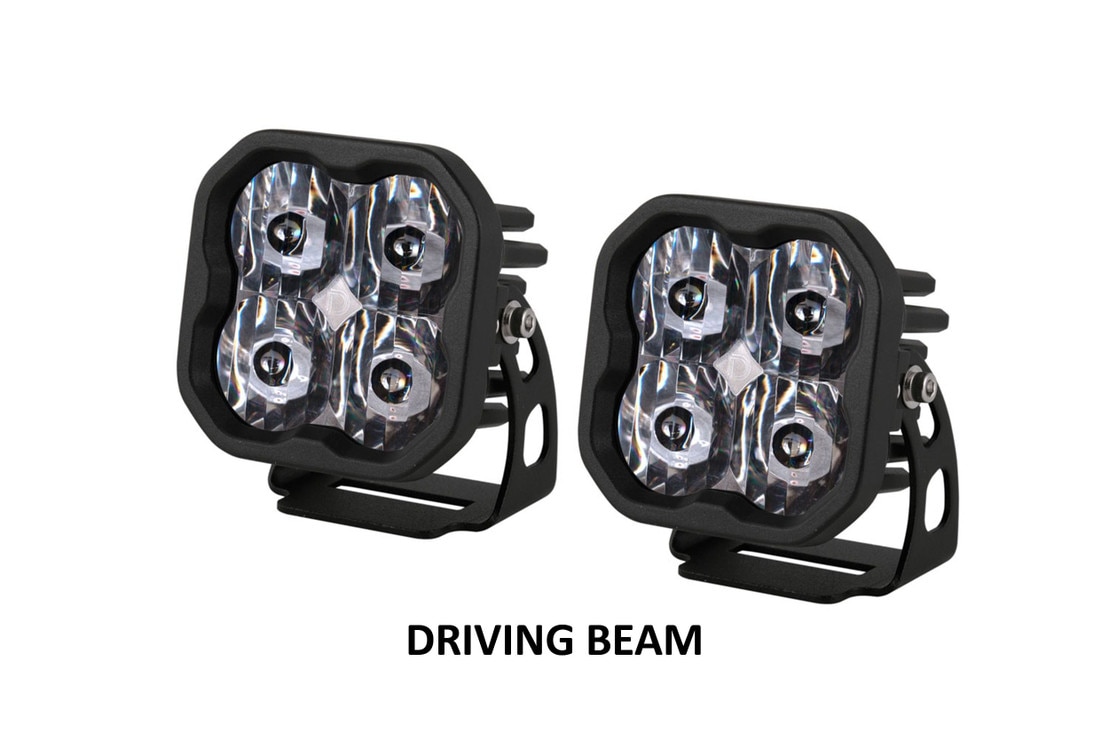

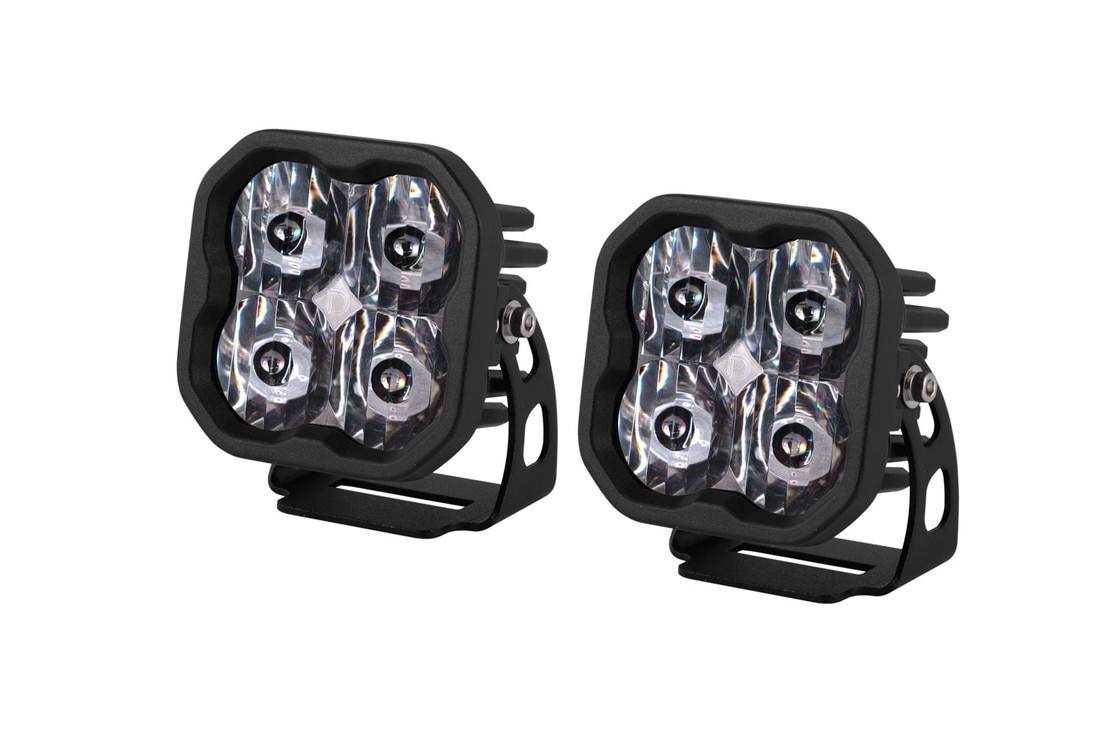

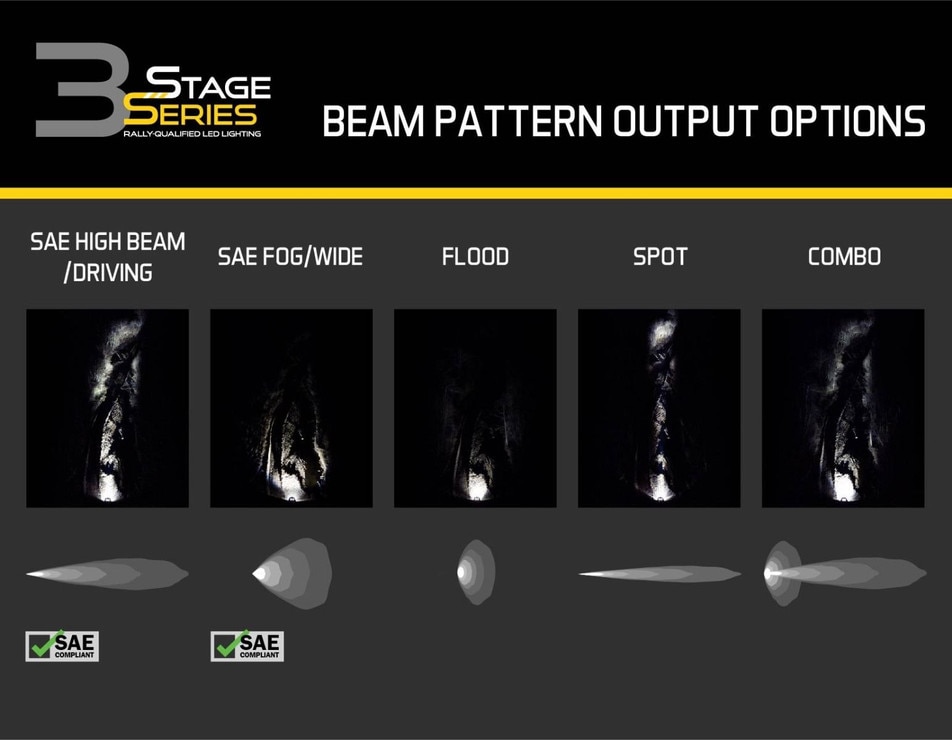

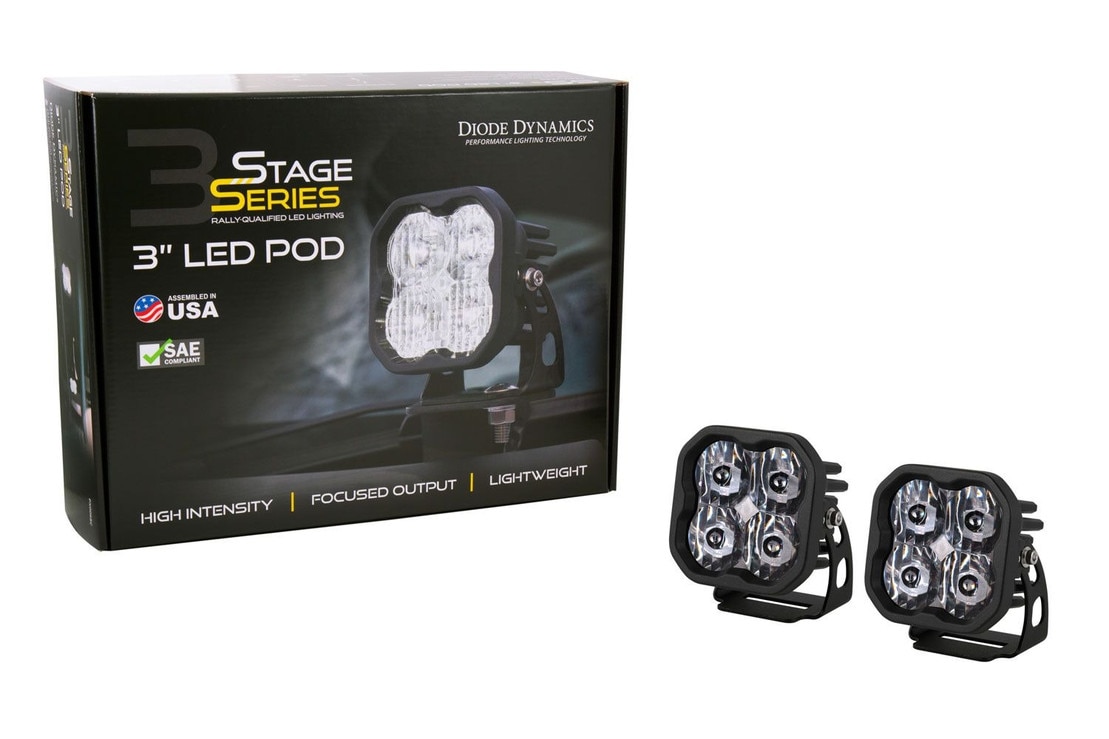

Introducing the SS3 3 inch LED Pod! Featuring higher output intensity than any other 3 inch light on the market these LED pods have been designed for maximum functionality with custom-engineered TIR optics shining in highly useful beam patterns all in a durable package. All Stage Series LED pods are available in a cool white or selective yellow color and sport or pro power levels.
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the SS3 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency. The total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

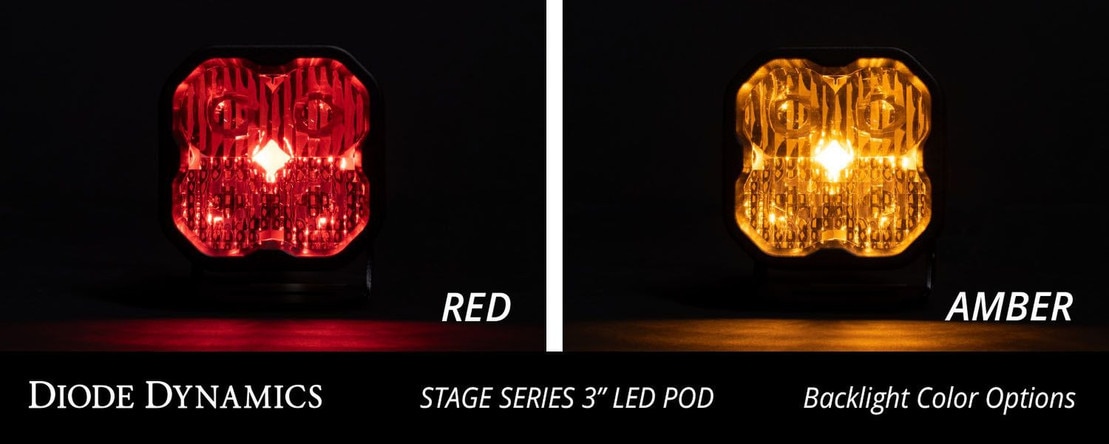

Backlight Functionality. The Stage Series 3 LED Pod is now available with a distinctive backlight in a brilliant amber or a deep red color. The SS3's backlight fully illuminates the TIR optic providing a more unique and modern look than the small indicator LEDs found in other products.
Simple connections. All SS3 LED pods feature a custom-molded DT type Deutsch-style connector on the back and come with a 6-inch pigtail with bare leads.
FEATURES & BENEFITS
- High Output: SS3 3-inch LED Pod delivers superior intensity with custom-engineered TIR optics.
- Focused Beam: TIR optics reduce glare and direct light where needed for better efficiency.
- Backlight: Available with amber or red backlight for a unique, modern look.
- Easy Connections: Comes with a custom DT connector and 6-inch pigtail with bare leads.

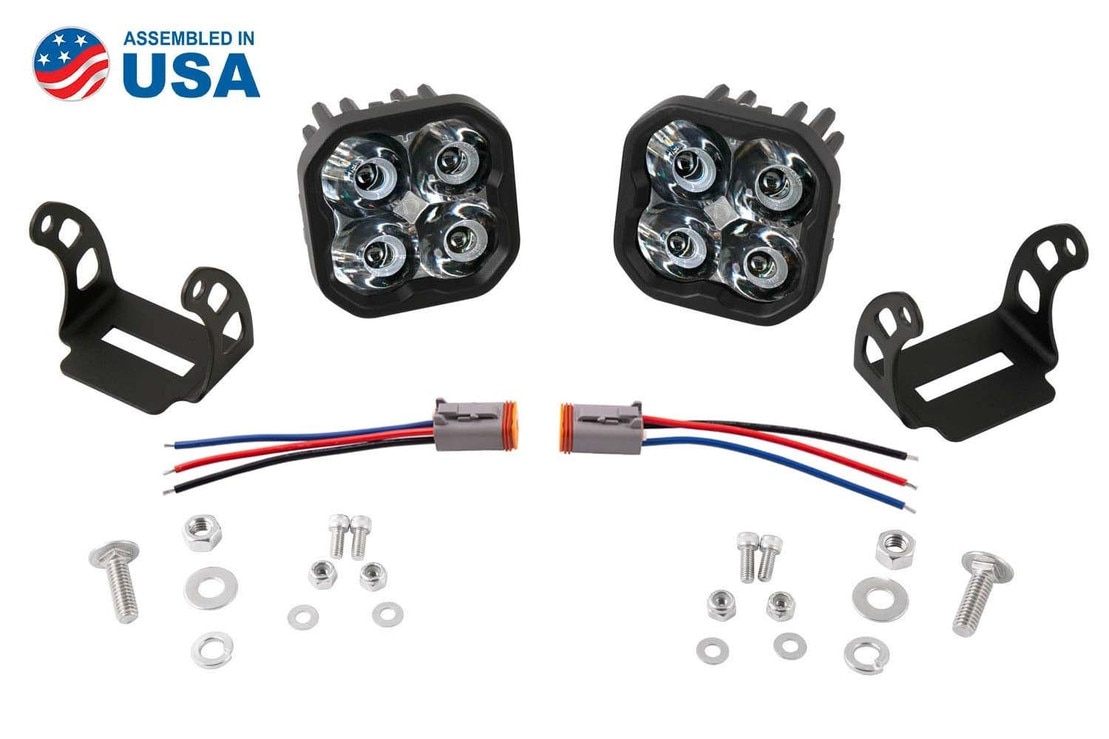

WHAT’S INCLUDED
Light Pods: 2x (One Pair) SS3 Pro LED Light Pods
Hardware: Brackets, Mounting Hardware
Wiring: 2x Input Pigtails
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Operating Voltage: 9-30V
Color Temp (CCT): 6000K
Power (watts): Main Beam: 36, Backlight: 0.4
Current (amps @ 12.8V): Main Beam: 2.7, Backlight: 0.03
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Cree XP-L HI
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Intrusion Ratings: IP69K Waterproof, High Pressure

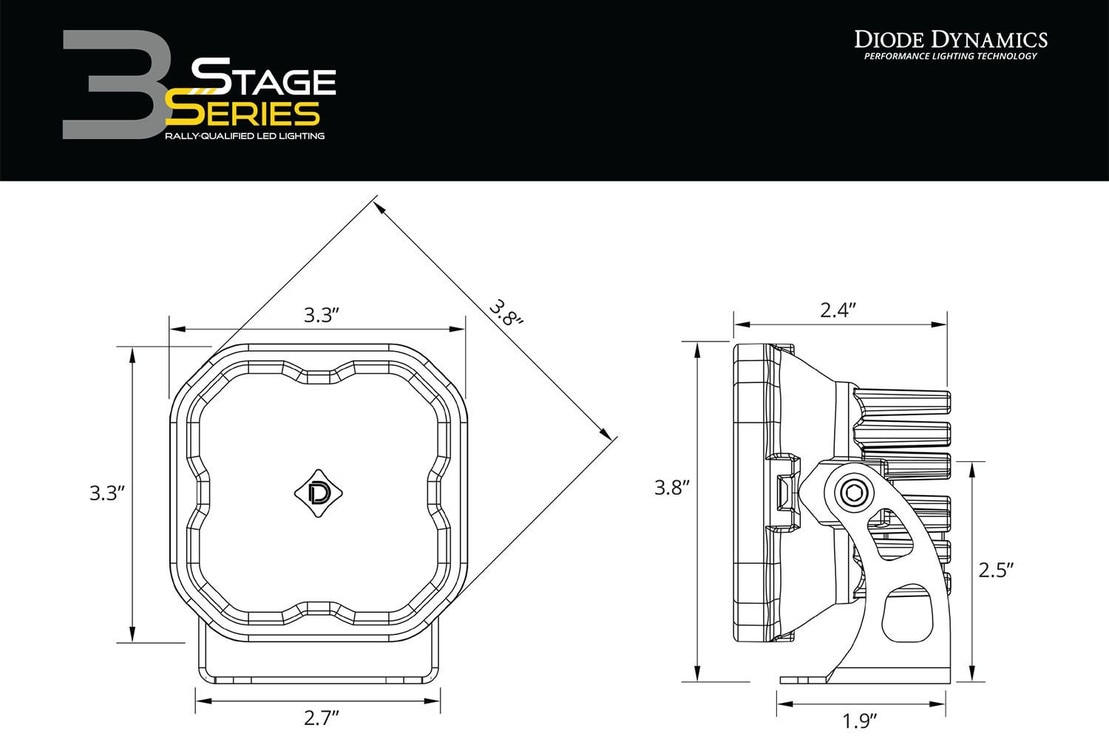

Product Dimensions (in): 3.3 x 3.3 x 2.4
Unit Weight (lb): 0.75
Product Weight (lb): 2.08
COMPATIBILITY
DD6874P: SS3 Pro ABL White SAE Driving Standard (Pair) (Amber Back Light)

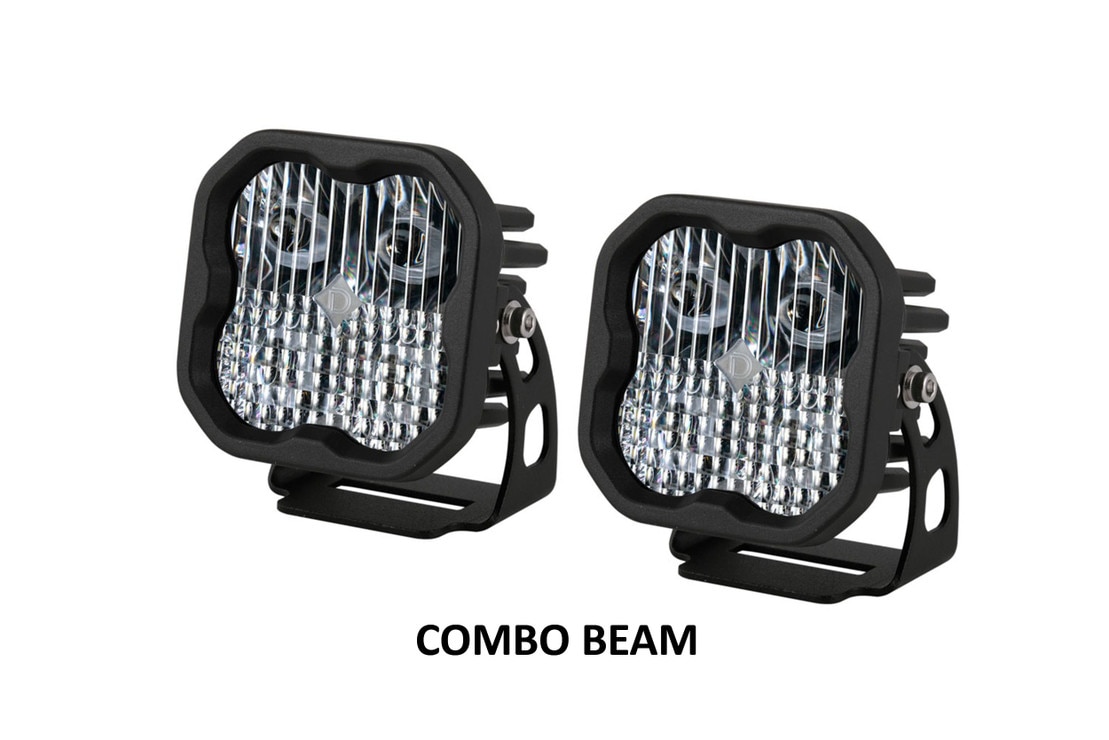

DD6886P: SS3 Pro ABL White Combo Standard (Pair) (Amber Back Light)
DD6887P: SS3 Pro RBL White Combo Standard (Pair) (Red Back Light)
DD6876P: SS3 Pro ABL White SAE Fog Standard (Pair) (Amber Back Light)

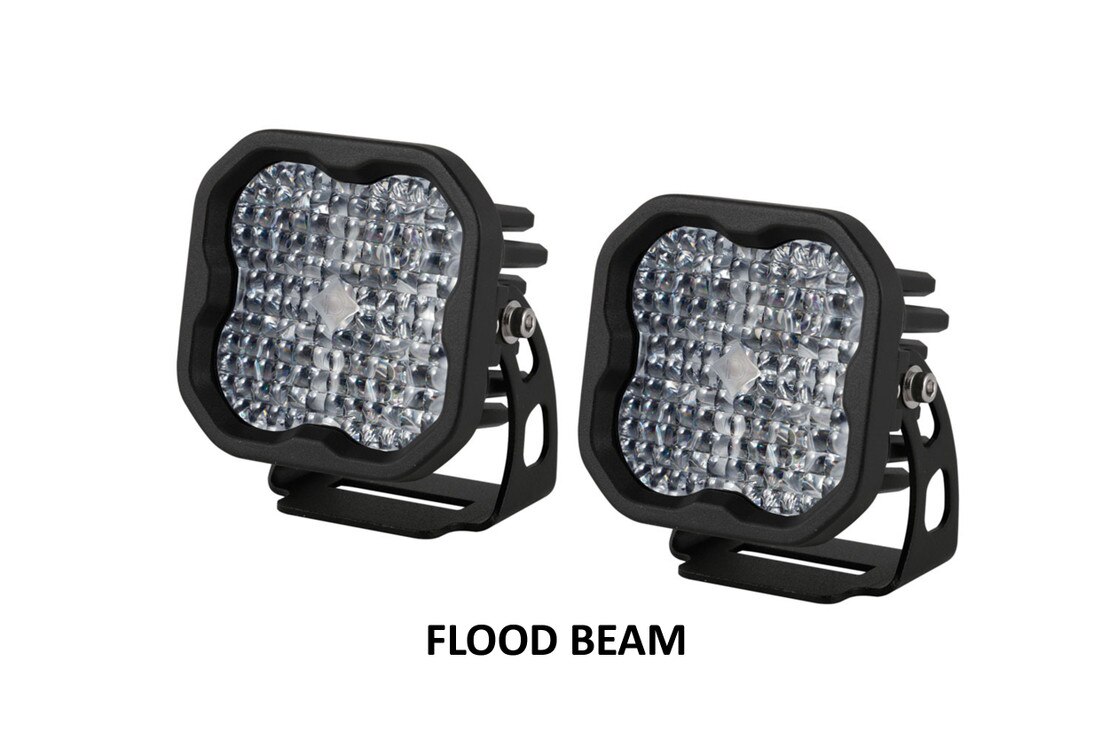

DD6879P: SS3 Pro RBL White Flood Standard (Pair) (Red Back Light)
DD6878P: SS3 Pro ABL White Flood Standard (Pair) (Amber Back Light)
DD6882P: SS3 Pro ABL White Spot Standard (Pair) (Amber Back Light)
