SS3 Max LED Pods (White)

(0) No Reviews yet
Questions?

Brand: Diode Dynamics

3P-DD168-TRS

$599.95

PRODUCT OPTIONS

PART #: 1 x DD6895P



Save 15% on Diode Dynamics products with code DIODE15 at checkout!

DESCRIPTION

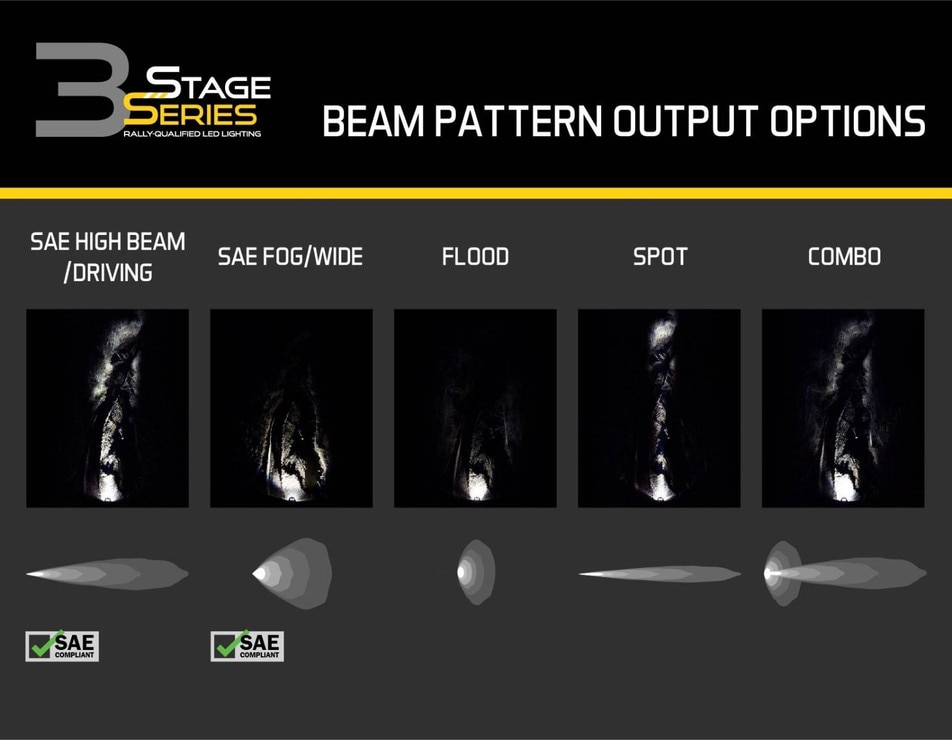

Introducing the SS3 3 inch LED Pod! Featuring higher output intensity than any other 3 inch light on the market these LED pods have been designed for maximum functionality with custom-engineered TIR optics shining in highly useful beam patterns all in a durable package. All Stage Series LED pods are available in a cool white or selective yellow color and sport or pro power levels.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the SS3 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency. The total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

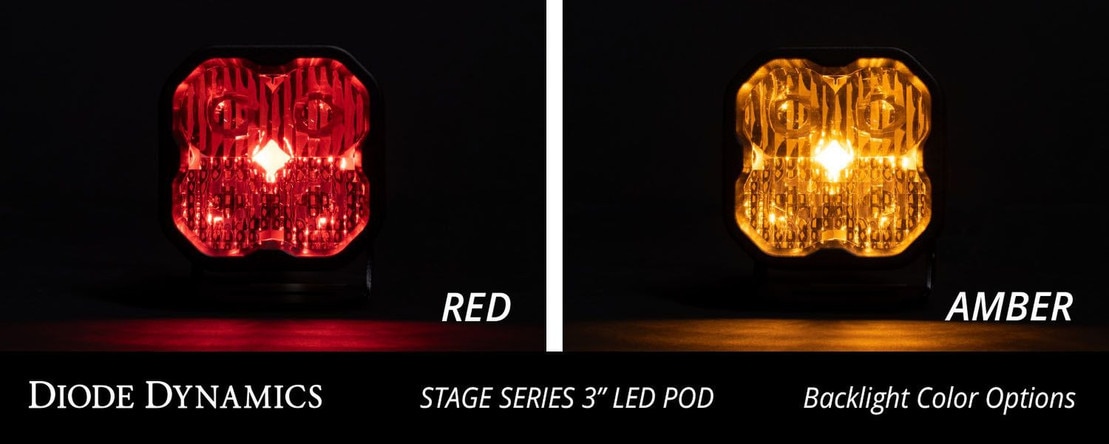

Backlight Functionality. The Stage Series 3inch LED Pod is now available with a distinctive backlight in your choice of amber or red. The SS3's backlight fully illuminates the TIR optic providing a more unique and modern look than the small indicator LEDs found in other products.

Simple connections. All SS3 LED pods feature a custom-molded DT type Deutsch-style connector on the back and come with a 6-inch pigtail with bare leads.

FEATURES & BENEFITS

  • High Output: SS3 LED Pod offers top intensity in a 3-inch size with custom TIR optics.
  • Efficient Beam: TIR optics reduce glare and focus light where needed.
  • Backlight Options: Choose between amber or red for a unique look.
  • Easy Wiring: Includes DT-style connector and 6-inch pigtail.

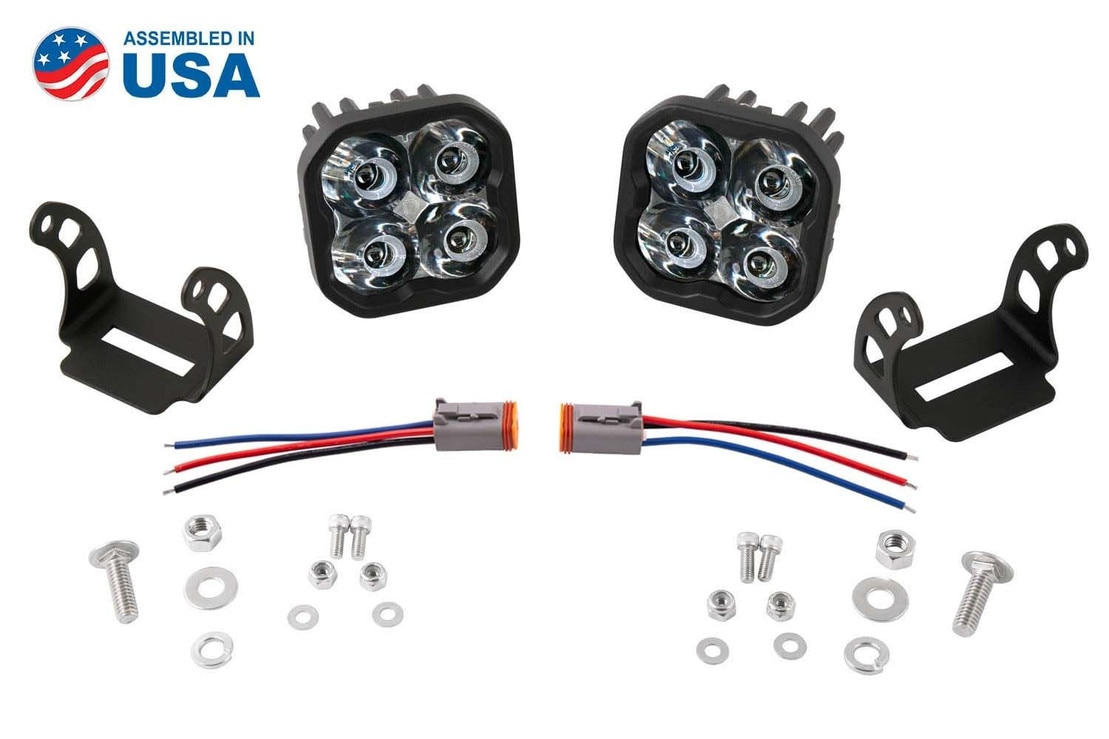

WHAT’S INCLUDED

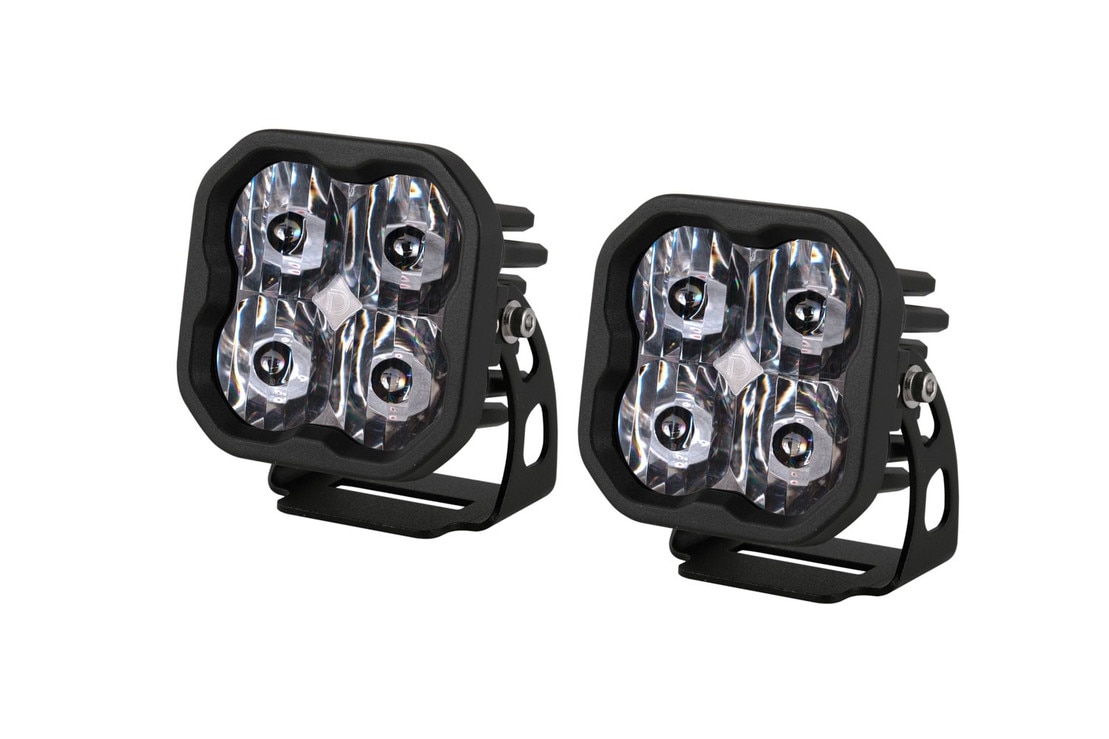

  • Light Pods: 2x (One Pair) SS3 Max LED Light Pods

  • Hardware: Brackets, Mounting Hardware

  • Wiring: 2x Input Pigtails

WARRANTY INFORMATION

This product is covered by a 8 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

  • Operating Voltage: 9-30V

  • Color Temp (CCT): 6000K

  • Power (watts): Main Beam:::38.5, Backlight:::0.4

  • Current (amps @ 12.8V): Main Beam:::3, Backlight:::0.03

  • Polarity: Polarity Specific

  • Operating Temperature: -40C to 85C (-40F to 185F)

  • LED Emitter: Osram Boost HX

  • Connectors: Deutsch DT Input

  • Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket

  • Cooling: Passive, Pin-Fin heatsink

  • Intrusion Ratings: IP69K Waterproof, High Pressure

  • Product Dimensions (in): 3.3 x 3.3 x 2.4

  • Unit Weight (lb): 0.75

  • Product Weight (lb): 2.08

COMPATIBILITY

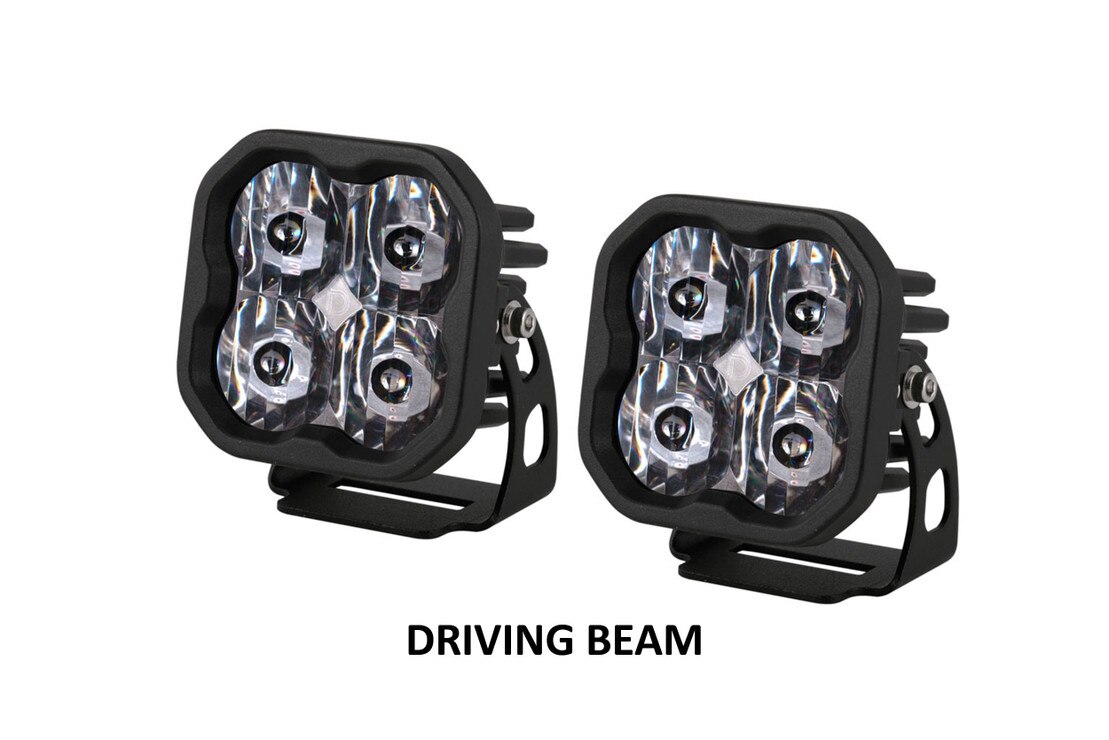

  • DD6895P: SS3 Max ABL White Driving Standard (Pair) (Amber Back Light)

  • DD6908P: SS3 Max RBL White Combo Standard (Pair) (Red Back Light)

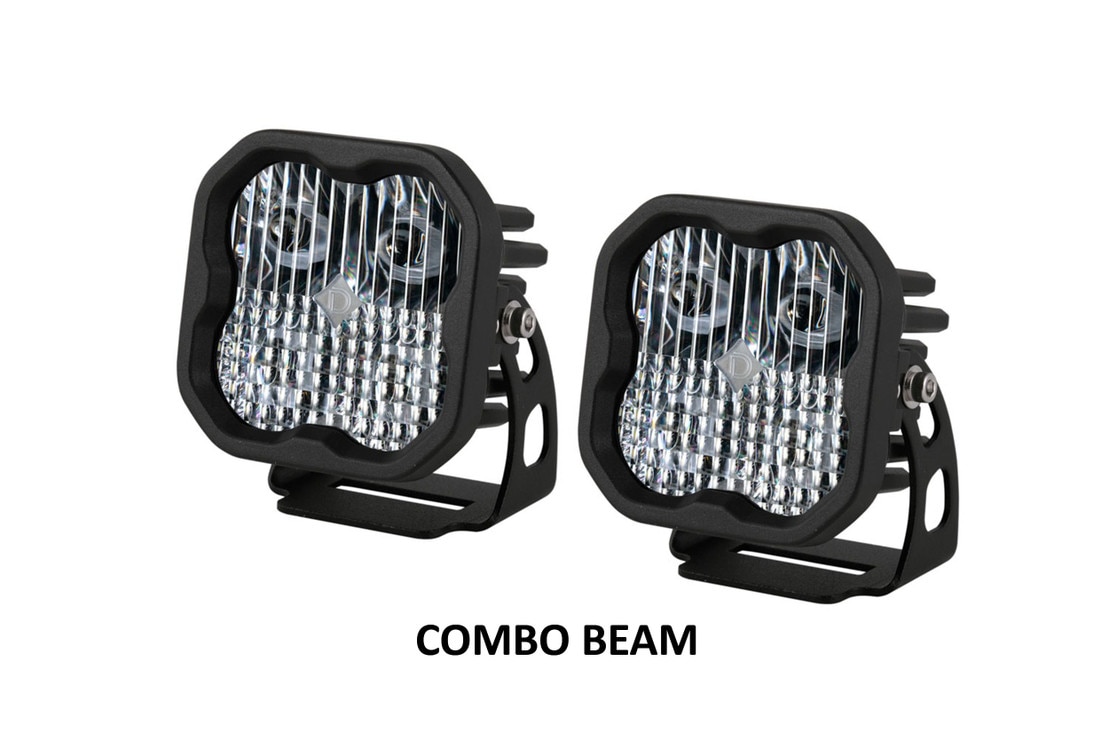

  • DD6907P: SS3 Max ABL White Combo Standard (Pair) (Amber Back Light)

  • DD6897P: SS3 Max ABL White SAE Fog Standard (Pair) (Amber Back Light)

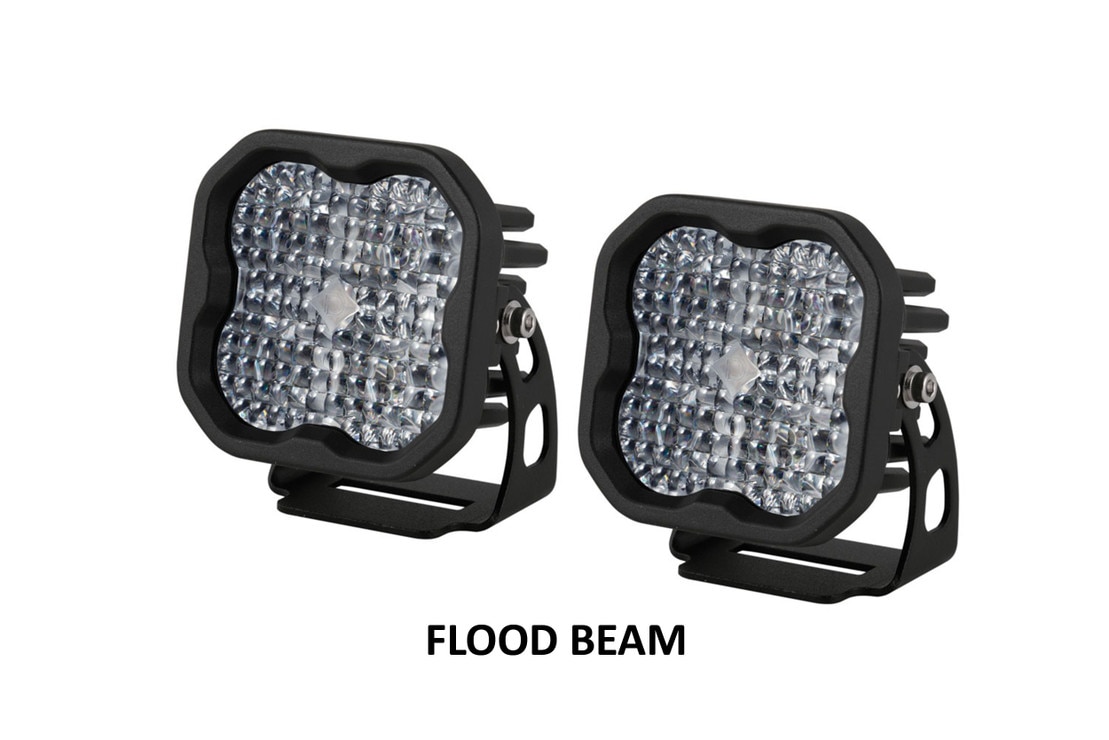

  • DD6900P: SS3 Max RBL White Flood Standard (Pair) (Red Back Light)

  • DD6899P: SS3 Max ABL White Flood Standard (Pair) (Amber Back Light)

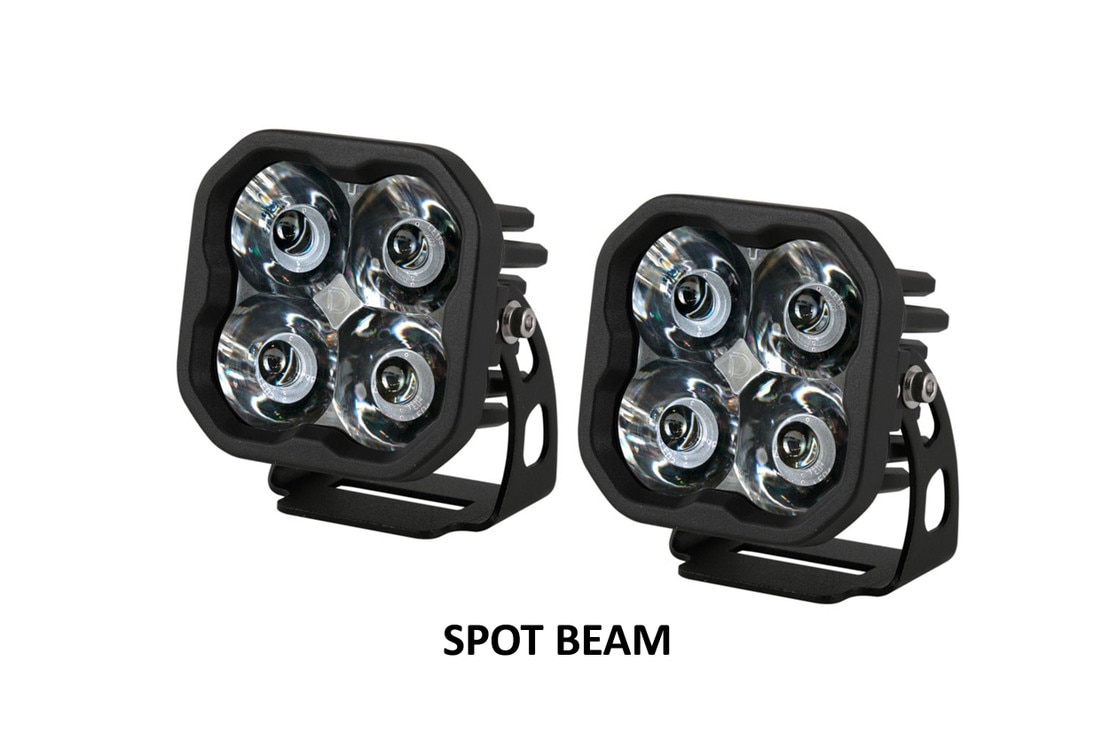

  • DD6903P: SS3 Max ABL White Spot Standard (Pair) (Amber Back Light)

COMPLIANCE

IP69K Waterproof
