Diode Dynamics HitchMount LED Pod Reverse Kit

(0) No Reviews yet

Brand: Diode Dynamics




PART #: 1 x DD7420


Elevate your nighttime driving experience with the Diode Dynamics Stage Series HitchMount LED Reverse Light Kit. Specifically designed for those who demand more from their vehicle's lighting, this kit allows the mounting of the SSC1 or C1R LED pod into a 2-inch trailer hitch receiver. Not only does it offer a powerful reverse light that automatically activates in reverse, but it also provides an additional running light and an optional 4th brake light with the C1R option. With Diode's patented TIR optics, this kit ensures a brighter and more uniform light output than factory reverse bulbs. The SafetyStrobe feature of the C1R model, which can be easily disabled, offers added visibility by flashing three times when brakes are applied. Installation is a breeze thanks to the snap-fit design, and the product's reliability is backed by extensive testing under various conditions.


  • Enhanced Reverse Lighting: Provides brighter output than factory reverse bulbs using patented TIR optics.
  • Multi-functional: Includes an additional running light and an optional 4th brake light with the C1R option.
  • SafetyStrobe Feature: C1R model offers brake light strobing for better visibility, with an option to disable.
  • Quick Installation: Snap-fit design ensures easy installation without the need for drilling or hitch pins.
  • Reliability: Thoroughly tested for long-term operation under various conditions, meeting SAE standards.

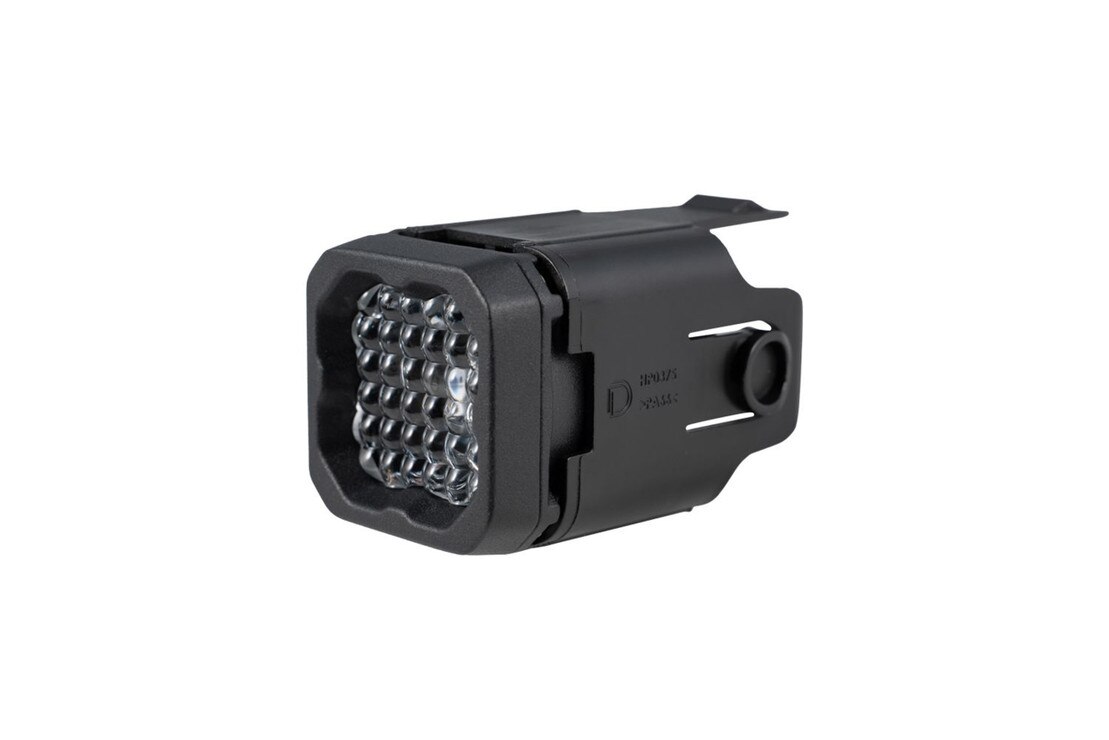

  • Hitch Light: 1x SSC1 or C1R HitchMount LED Pod

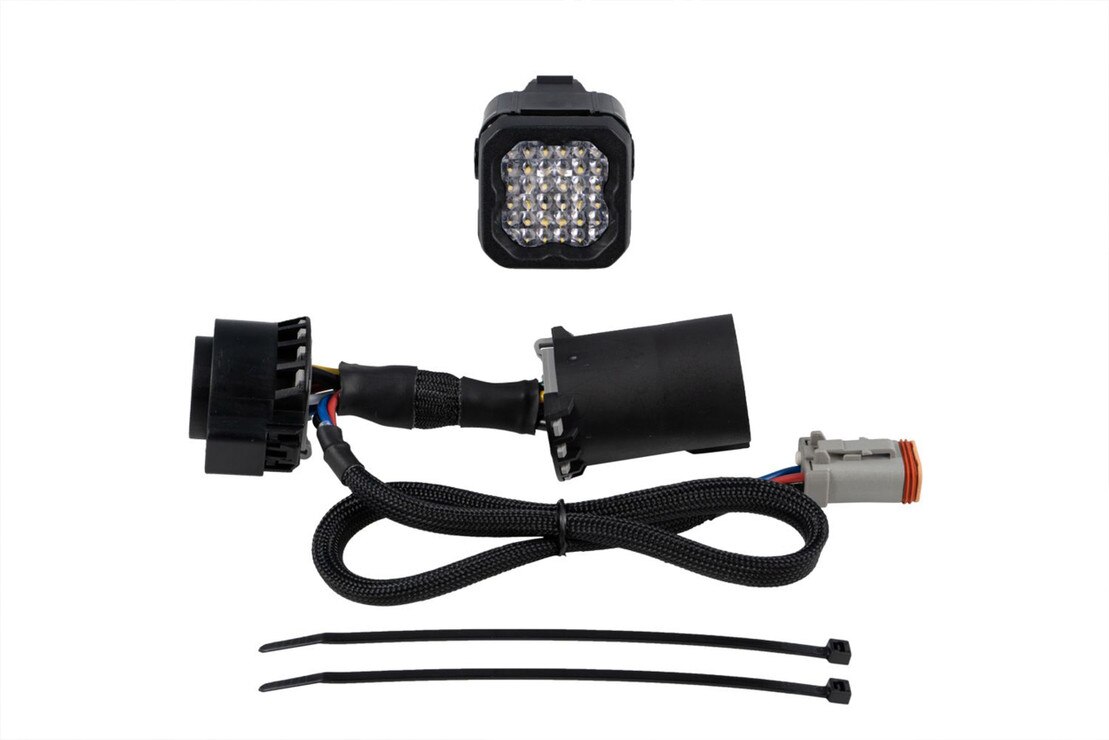

  • Wiring: 7-Pin Trailer Single Output Harness


This product is covered by a 8 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.


  • Material: Polycarbonate Lens, Aluminum Casting, Rubber Gasket

  • Color Temp: 6000K

  • Operating Voltage: 9-16V


  • Ford Trucks: Compatible

  • GM/Chevy Trucks: Not Compatible with 2020+ Trucks

  • Jeeps: Compatible

  • Toyota Trucks: Compatible (NOTE: Not Compatible with 05-15 Tacomas)



Diode Dynamics HitchMount LED Reverse Light: Add significantly more light output when backing up at night with the Diode Dynamics Stage Series HitchMount Reverse Light Kit! This kit allows you to mount one SSC1 or C1R LED pod in your 2-inch trailer hitch receiver, adding a high-power reverse light, additional running light, and an optional 4th brake light with the C1R option. With the included wiring harness, this kit connects to your vehicle's factory trailer hitch wiring for simple, everyday operation.

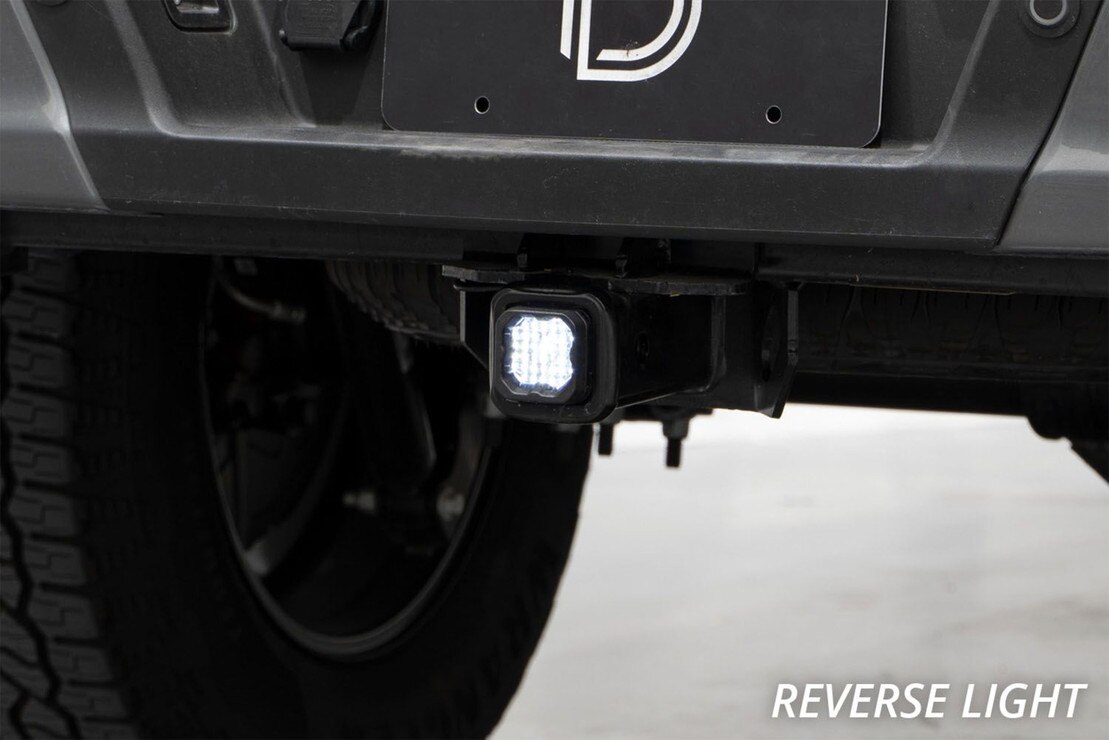

Brighter Backup: Factory reverse bulbs just don't provide enough light output to back up at night confidently. By pairing Diode's patented TIR optics with high-powered LEDs, the SSC1 and C1R included in this kit provide an additional reverse light that's several times brighter than stock bulbs alone. Plus, they automatically come on when the vehicle is put in reverse!

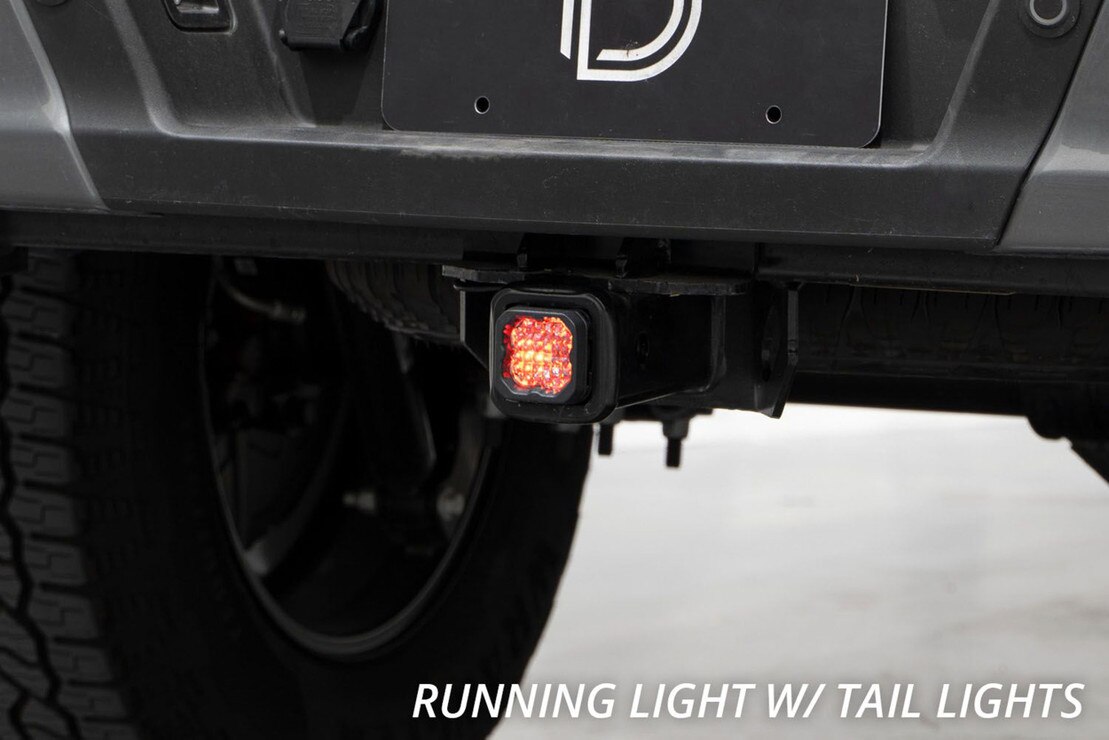

Additional Running Light: The Stage Series LED pods included with this kit feature a distinctive red backlight that can be used as an additional running light while driving! The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.

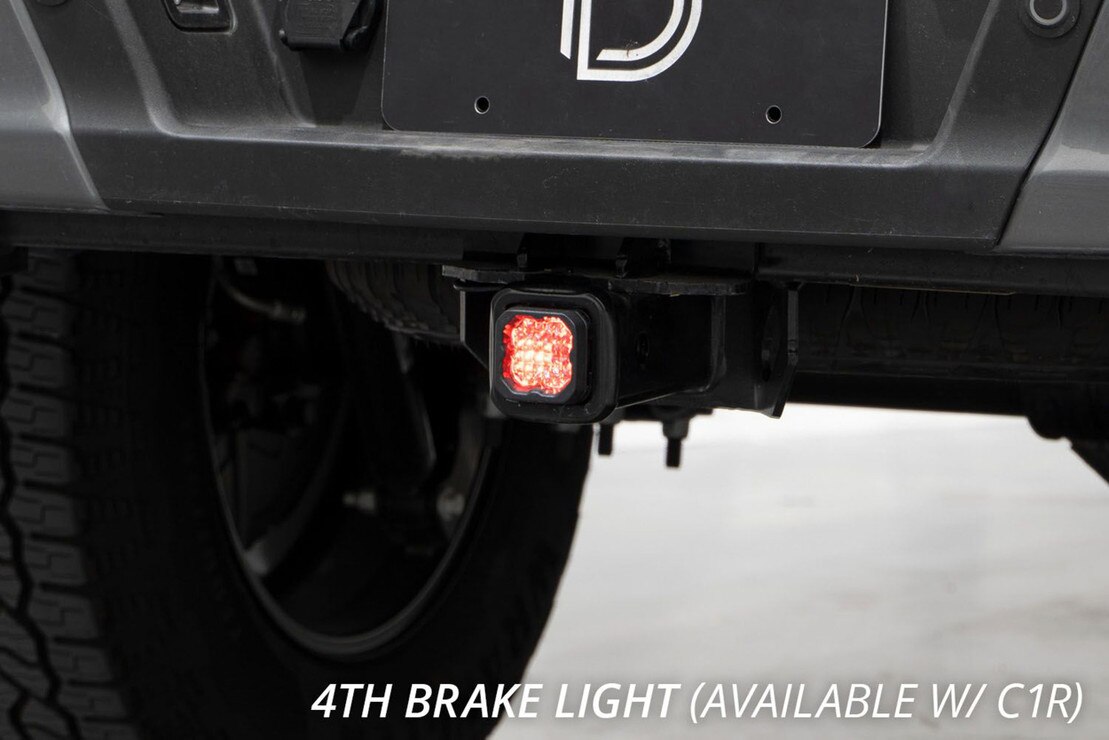

SafetyStrobe 4th Brake Light: The C1R option features a high-power red function to serve as a powerful 4th brake light, along with the low-power running light. The high-power red functionality activates anytime you apply your brakes, adding a 4th brake light to your vehicle.

The C1R also features optional brake light strobing. By default, the C1R will flash three times anytime the brake lights are applied, for greater visibility. The SafetyStrobe feature can be easily disabled if desired.

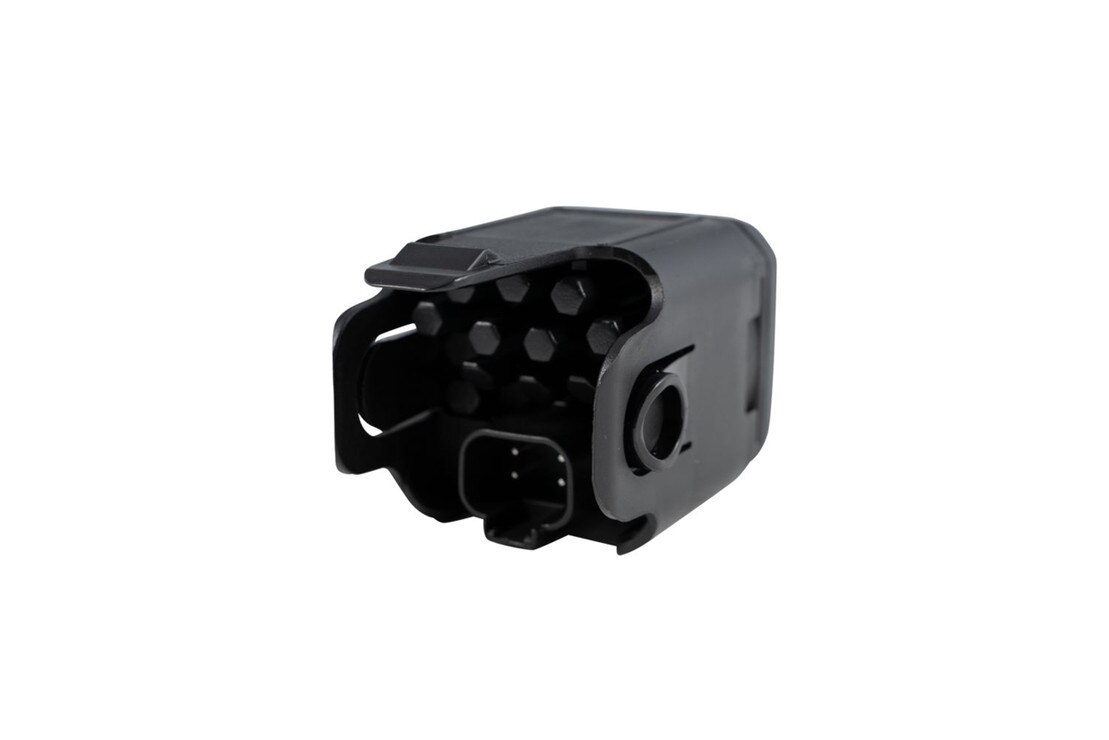

Simple Installation The patent-pending snap-fit design allows you to install this mount in minutes, without any drilling or need for a hitch pin. Simply insert the HitchMount into your trailer hitch receiver and the snap-fit side mounts will snap into place. Installation couldn't be easier and takes less than five minutes!

Proven Reliability Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
