  • Elite Series Type MR LED Fog Lights

Elite Series Type MR LED Fog Lights (White / Yellow)

(0) No Reviews yet
Questions?

Brand: Diode Dynamics

3P-DD85-TRS

$269.95

PRODUCT OPTIONS

PART #: 1 x DD5163P



DESCRIPTION

Elevate your driving experience with the Elite Series Fog Lamps by Diode Dynamics. These cutting-edge LEDs redefine fog light performance, delivering unparalleled brightness and visibility. Engineered with a patent-pending optic, multi-die emitters, and full-copper circuit boards, these fog lamps produce a remarkable output that's 5 times brighter than traditional halogens. Enjoy a hassle-free installation process and experience enhanced visibility in adverse weather conditions within minutes. Crafted with a meticulously designed single-piece PMMA lens, these fog lamps create a smooth, wide, and glare-free light pattern while meeting legal on-road standards. Choose between a cool white 6000K or a high-contrast selective yellow 3000K option, both guaranteeing unmatched efficiency. The integrated amber accent light adds a touch of elegance, and with an 8-year limited warranty, these USA-assembled lamps ensure long-lasting quality and reliability.

WHAT’S INCLUDED

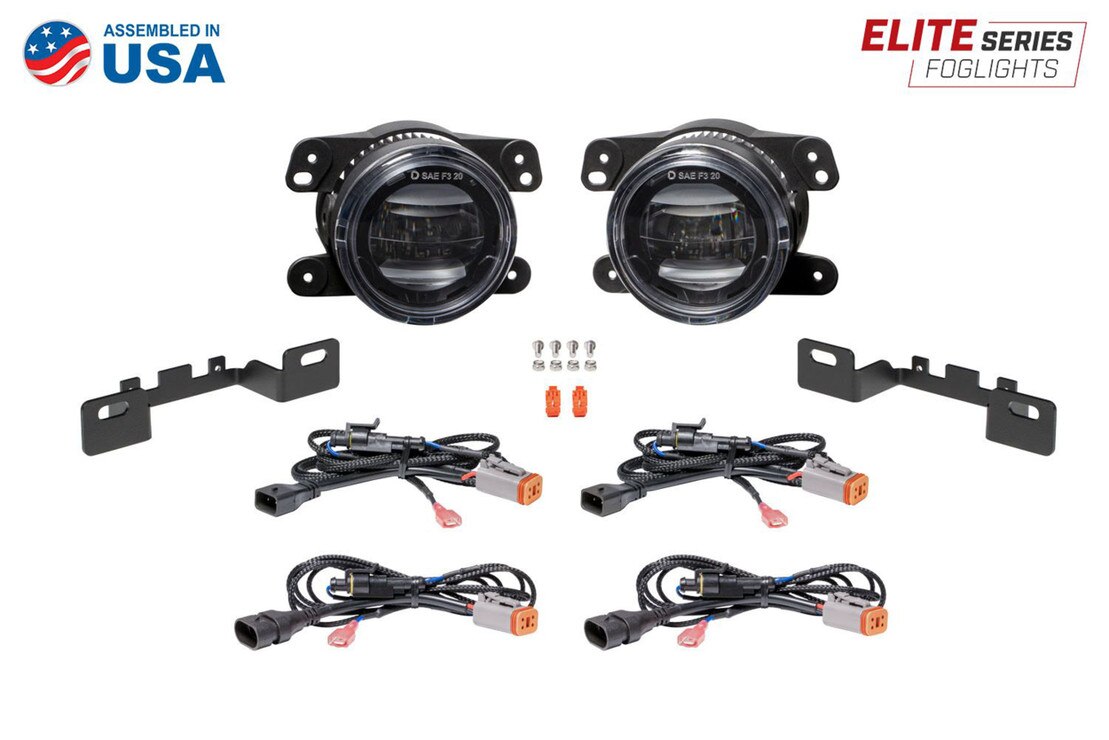

  • Fog Lights: 2x (One Pair) Elite Series Type MR Fog Lights

  • Wiring: 2x (One Pair) Plug-n-Play 9005/9006 4-pin DT Backlight Tap Wires / 5202 4-pin DT Backlight Tap Wires (2x T-taps included)

WARRANTY INFORMATION

This product is covered by a 8 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

  • Intensity: 1,850 lm / 10,200 cd (White), 1,650 lm / 8,700 cd (Yellow)

  • Color Temp: 6000K (White), 3000K (Yellow)

  • Power: Main Beam White: 17w, Main Beam Yellow: 15w, Backlight: 0.3w

  • Input Voltage: 9-16v

  • Current: Main Beam White: 1.3A, Main Beam Yellow: 1.2A, Backlight: 0.025A

  • Input: Deutsch DT Input (Polarity Specific)

  • Material: Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting

  • Compliance: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern

  • IP Rating: IP68 Waterproof

COMPATIBILITY

  • NOTE: This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.

  • Jeep JK Wrangler (10th Anniversary and Hard Rock edition): 2007-2018

  • Jeep JL Wrangler Rubicon (w/ Steel Bumper): 2018-2024

  • Jeep JT Gladiator Rubicon (w/ Steel Bumper): 2020-2024
