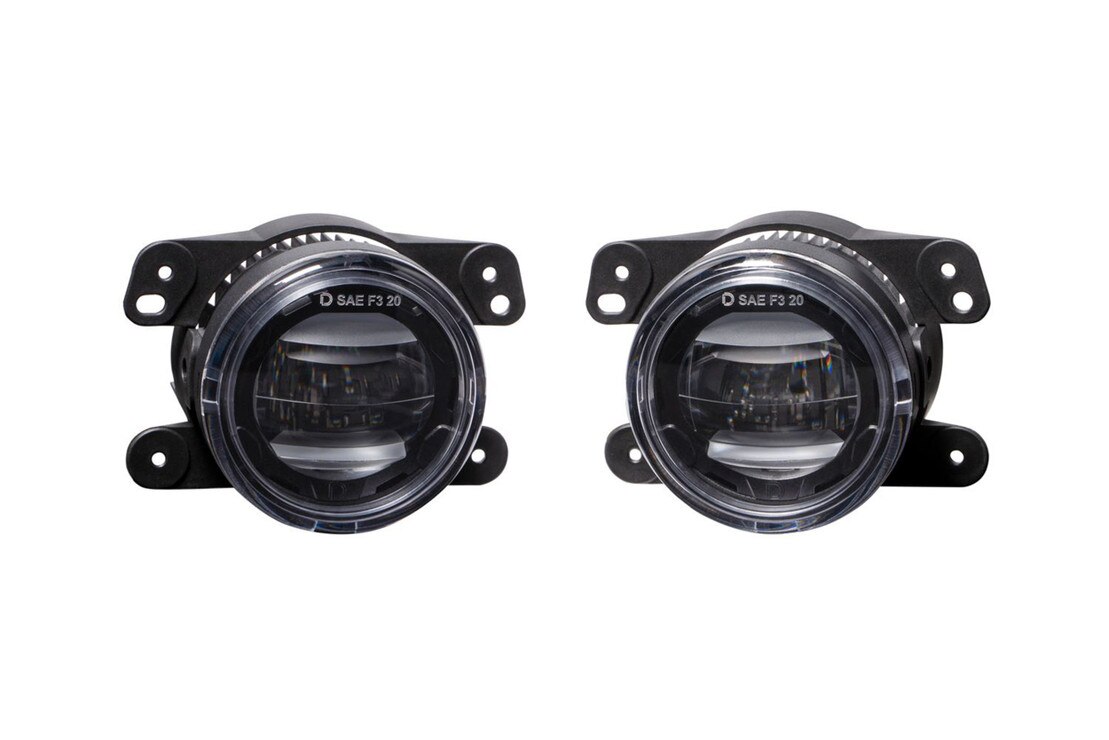

Elite Series Type M LED Fog Lights (White / Yellow)

(0) No Reviews yet
Questions?

Brand: Diode Dynamics

3P-DD84-TRS

$259.95

PRODUCT OPTIONS

PART #: 1 x DD5130P



DESCRIPTION

Elevate your driving experience with the game-changing Elite Series Fog Lamps, exclusively from Diode Dynamics. Designed by the leaders in automotive LED lighting, these fog lamps are engineered to outshine and outperform. With a patent-pending optic, multi-die emitters, and full-copper circuit boards, they deliver an astonishing output 5 times brighter than traditional halogens. Effortless plug-and-play installation ensures enhanced visibility in minutes. Experience a wider, smoother, and glare-free light pattern, meticulously crafted with a precision-engineered single-piece PMMA lens that adheres to legal on-road standards. Choose between the cool white 6000K or high-contrast selective yellow 3000K options, both exemplifying unparalleled efficiency. The integrated amber accent light adds a touch of elegance, and with an impressive 8-year limited warranty, these USA-assembled lamps are a testament to Diode Dynamics' commitment to quality and innovation.

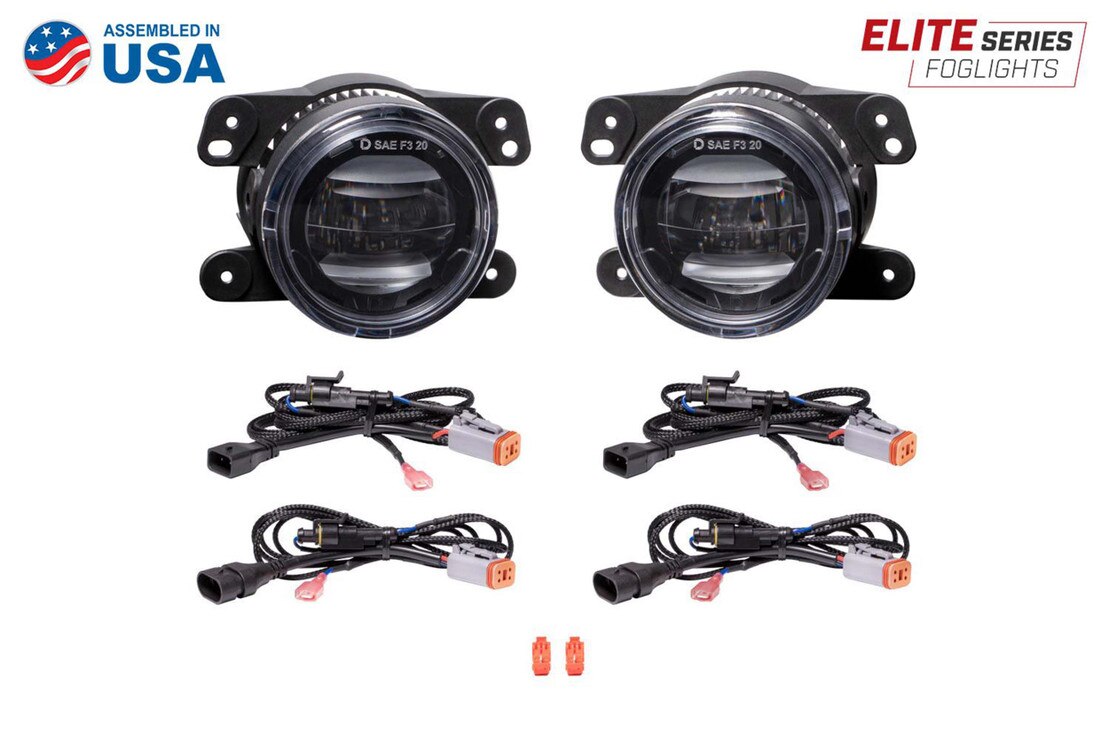

WHAT’S INCLUDED

  • Fog Lights : 2x (One Pair) Elite Series Type M Fog Lights

  • Wiring : 2x (One Pair) Plug-n-Play 9005/9006 4-pin DT Backlight Tap Wires / 5202 4-pin DT Backlight Tap Wires (2x T-taps included)

WARRANTY INFORMATION

This product is covered by a 8 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

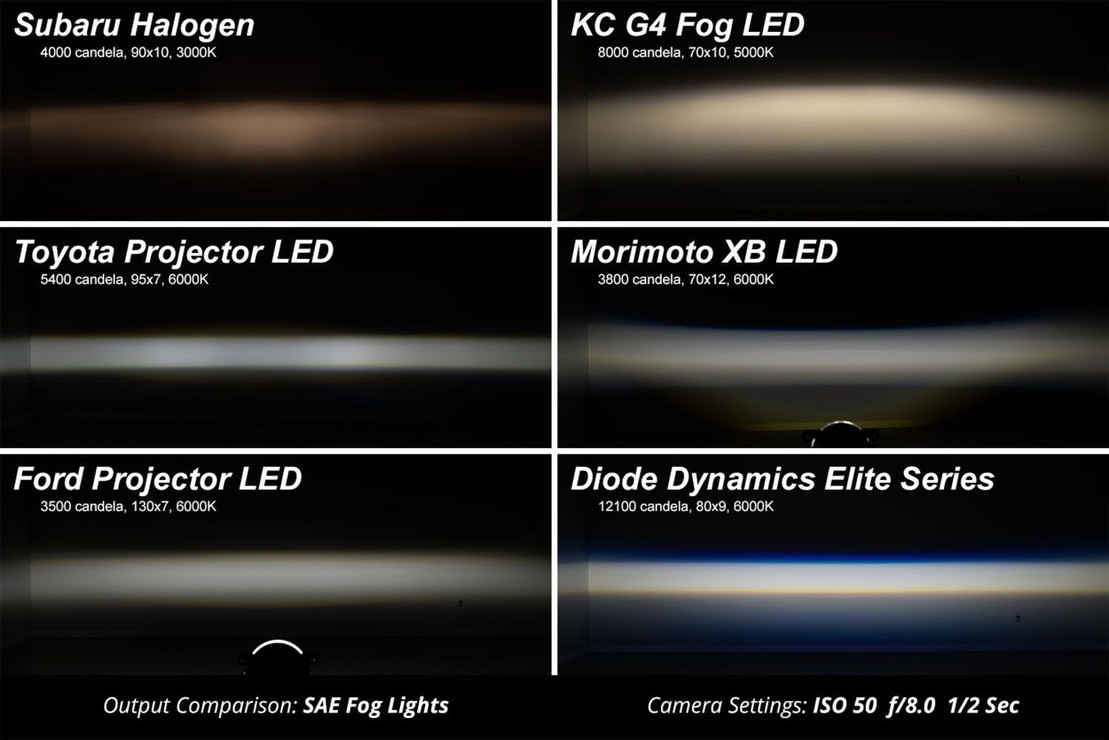

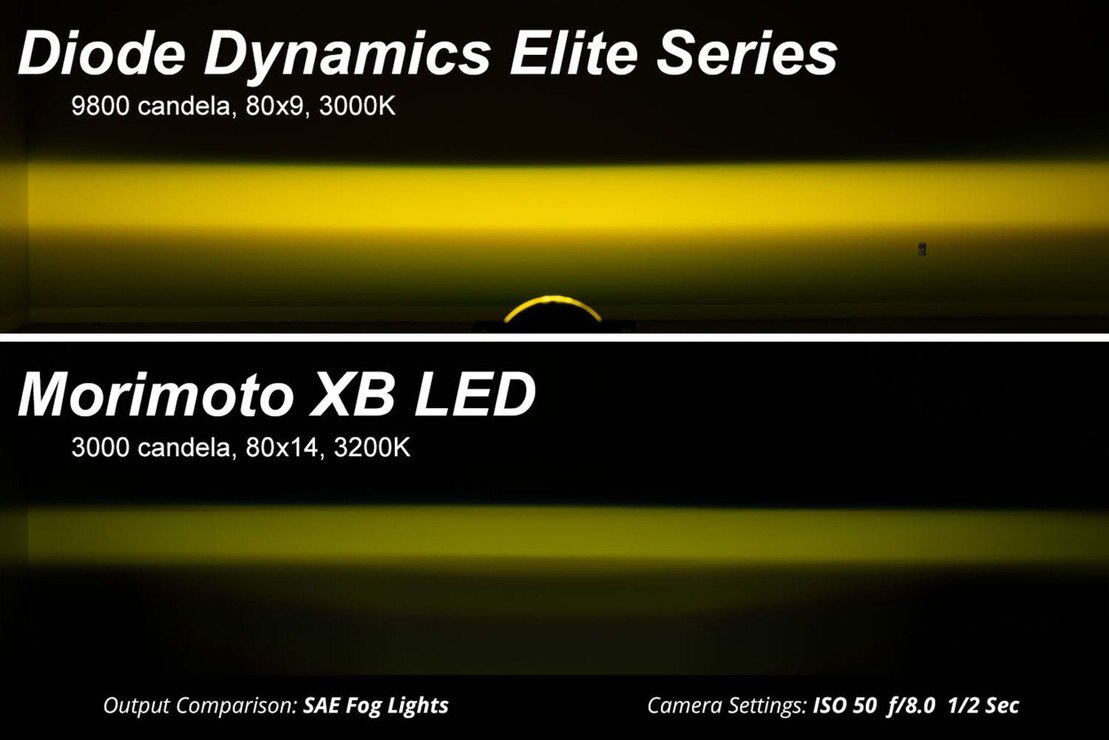

  • Intensity : 1,850 lm / 10,200 cd (White), 1,650 lm / 8,700 cd (Yellow)

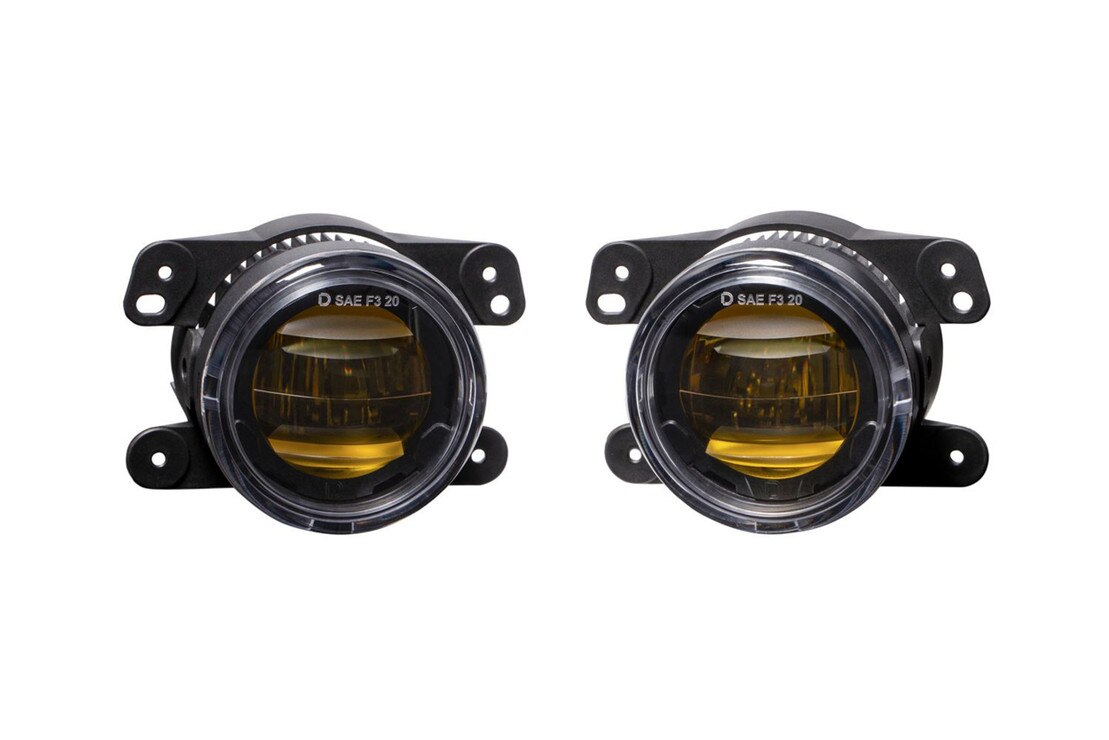

  • Color Temp : 6000K (White), 3000K (Yellow)

  • Power : Main Beam White: 17w, Main Beam Yellow: 15w, Backlight: 0.3w

  • Input Voltage : 9-16v

  • Current : Main Beam White: 1.3A, Main Beam Yellow: 1.2A, Backlight: 0.025A

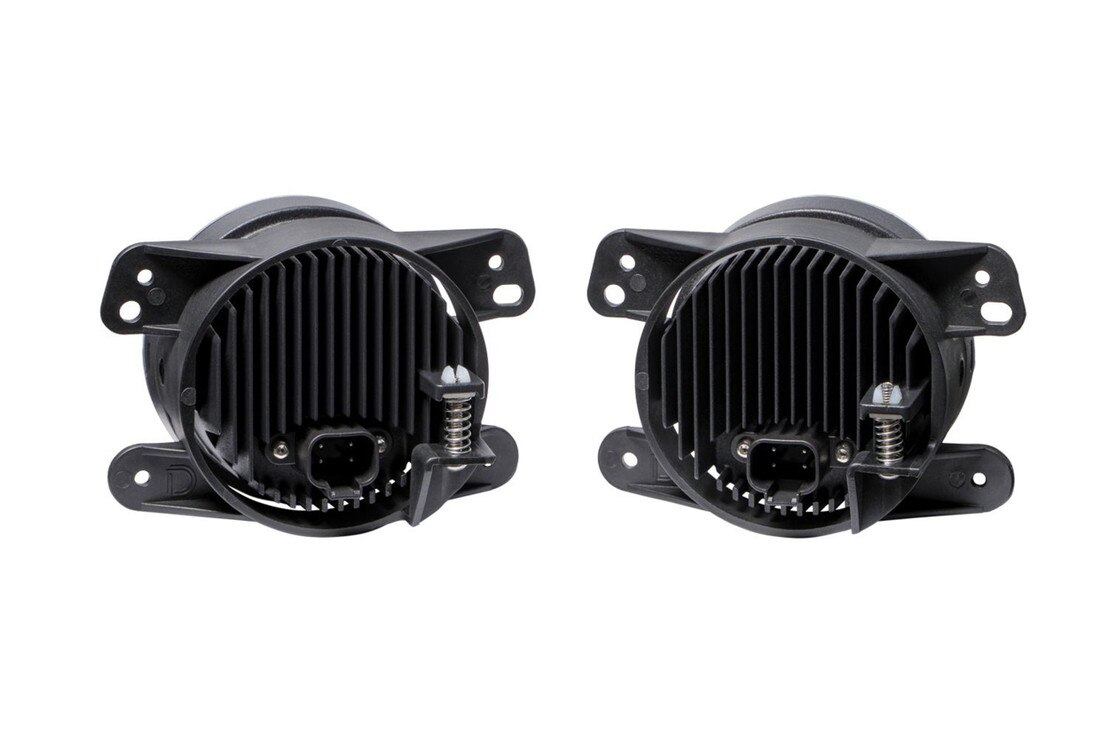

  • Input : Deutsch DT Input (Polarity Specific)

  • Material : Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting

  • Compliance : SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern

  • IP Rating : IP68 Waterproof

COMPATIBILITY

  • NOTE : This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.

  • Chrysler 300 : 2005-2010

  • Chrysler PT Cruiser : 2006-2009

  • Dodge Charger : 2011-2014

  • Dodge Journey : 2009-2019

  • Dodge Magnum : 2005-2007

  • Jeep Cherokee : 2014-2017

  • Jeep Grand Cherokee : 2011-2013

  • Jeep JK Wrangler : 2007-2018

  • Jeep JL Wrangler Sahara/Rubicon : 2018-2024 (w/ Plastic Bumper)

  • Jeep JT Gladiator Overland/Rubicon : 2020-2024 (w/ Plastic Bumper)
