DESCRIPTION
WHAT’S INCLUDED

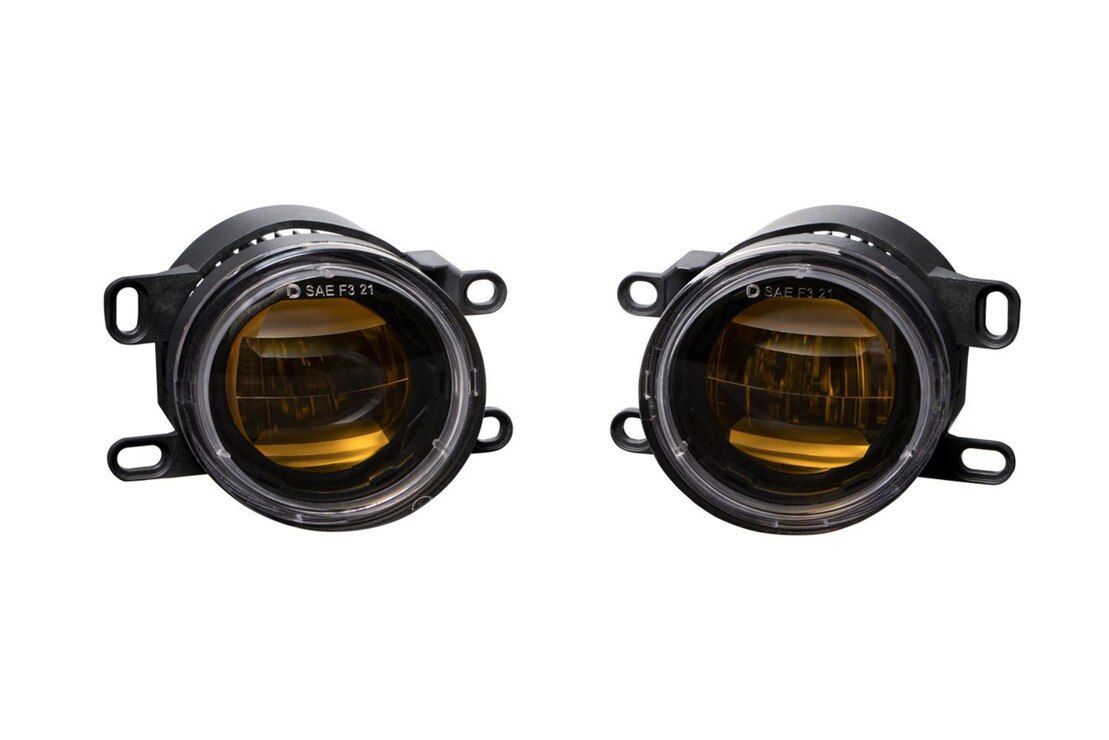

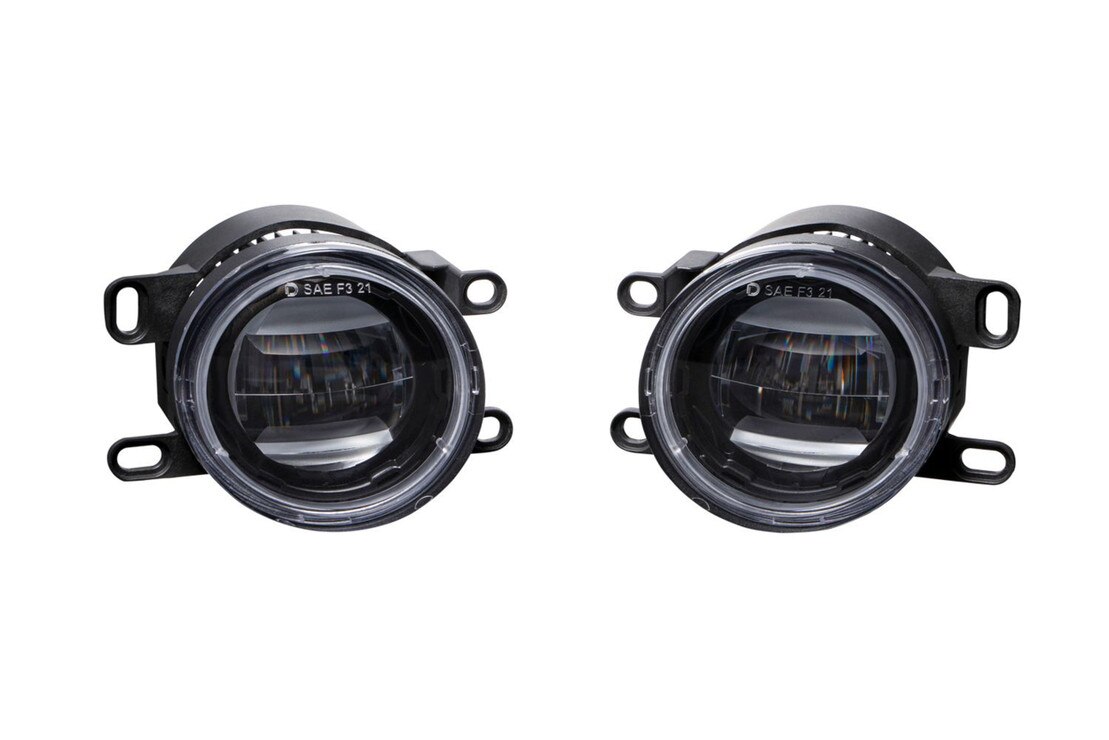

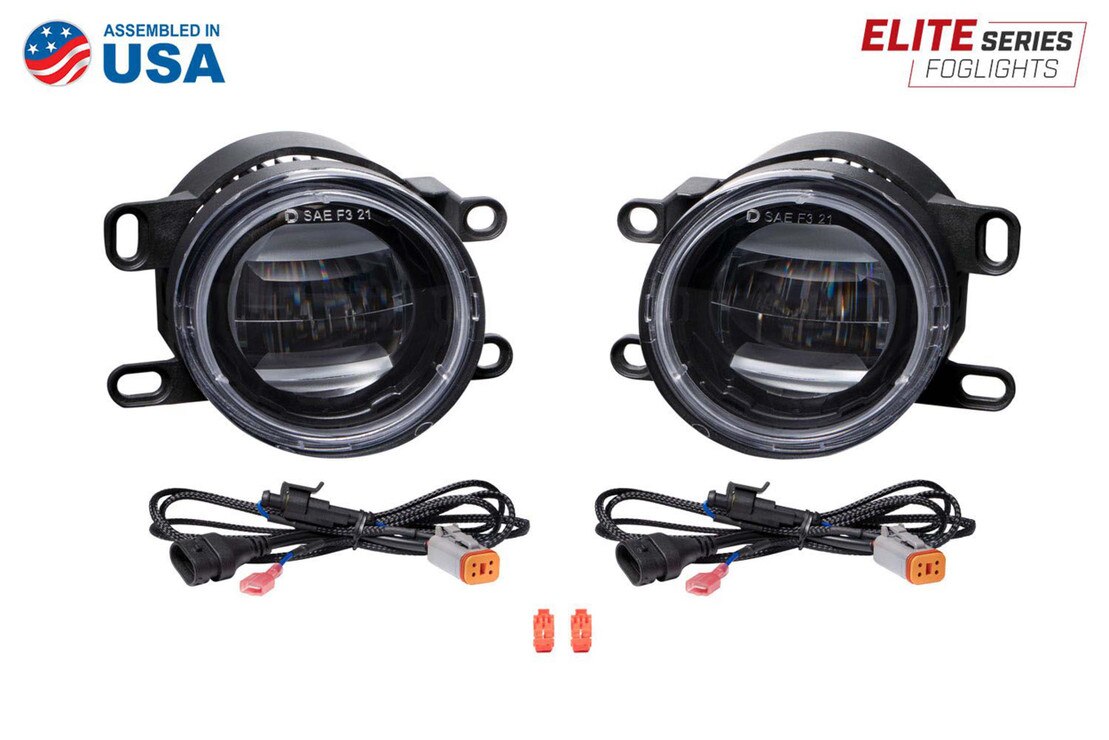

Fog Lights : 2x (One Pair) Elite Series Type CGX Fog Lights
Wiring : 2x (One Pair) Plug-n-Play H11 4-pin DT Backlight Tap Wires with T-taps
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS

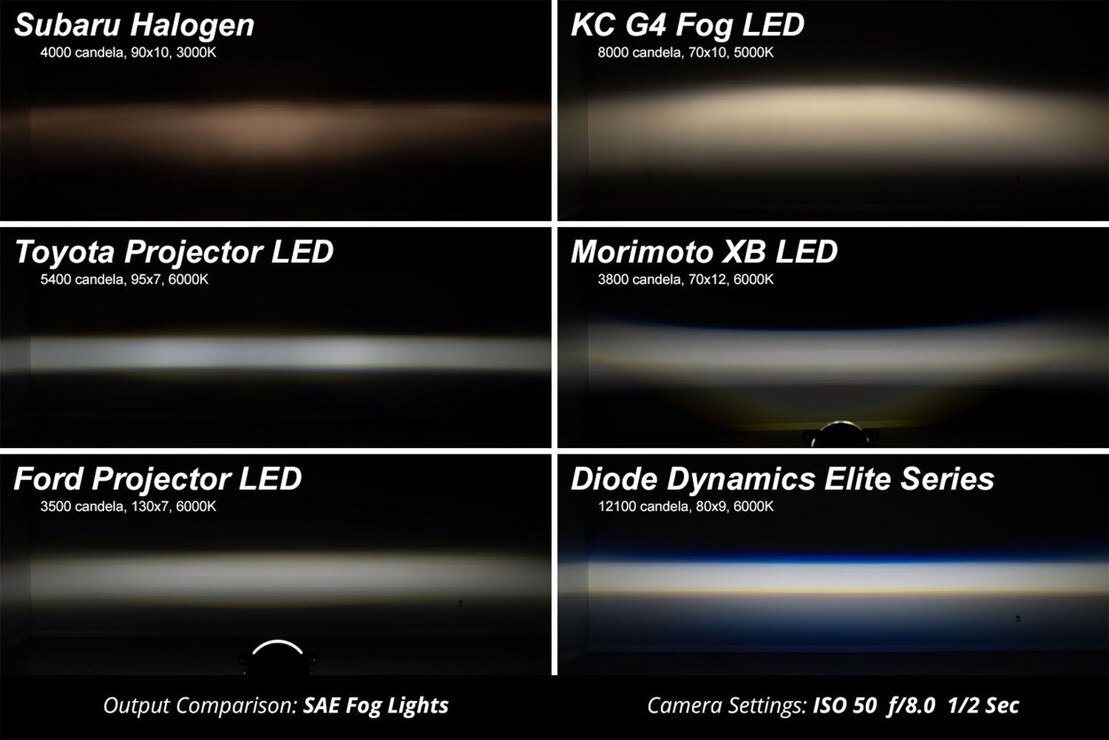

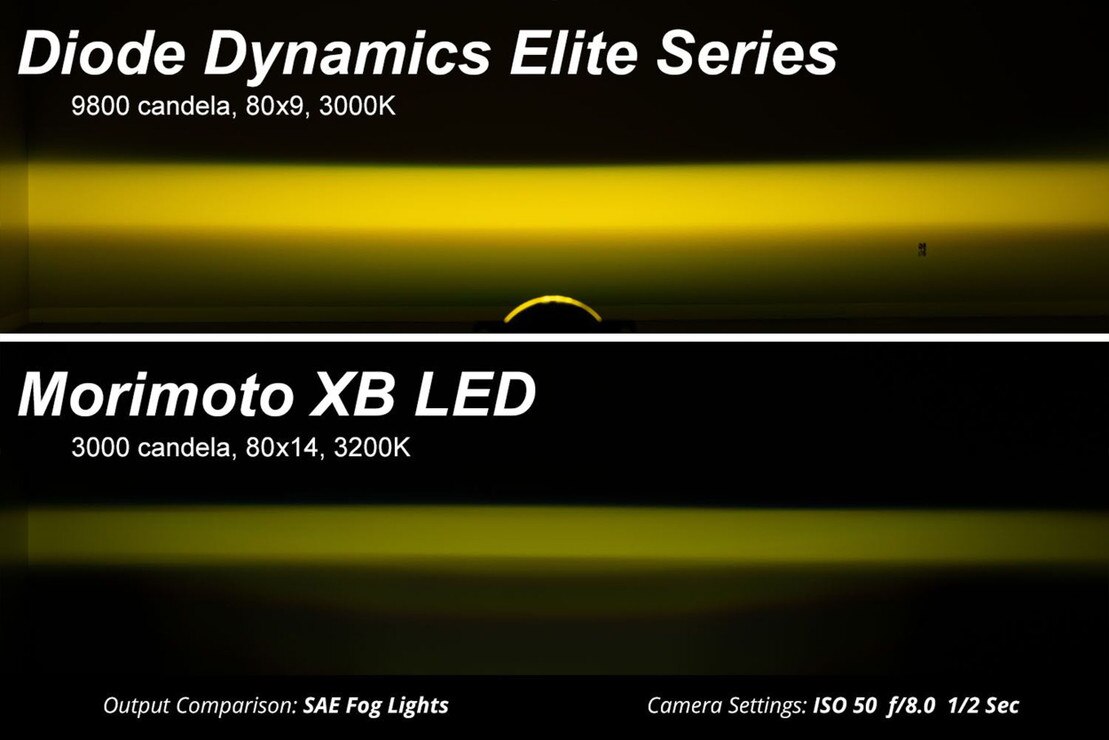

Intensity : 1,850 lm / 10,200 cd (White), 1,650 lm / 8,700 cd (Yellow)
Color Temp : 6000K (White), 3000K (Yellow)
Power : Main Beam White: 17w, Main Beam Yellow: 15w, Backlight: 0.3w
Input Voltage : 9-16v
Current : Main Beam White: 1.3A, Main Beam Yellow: 1.2A, Backlight: 0.025A

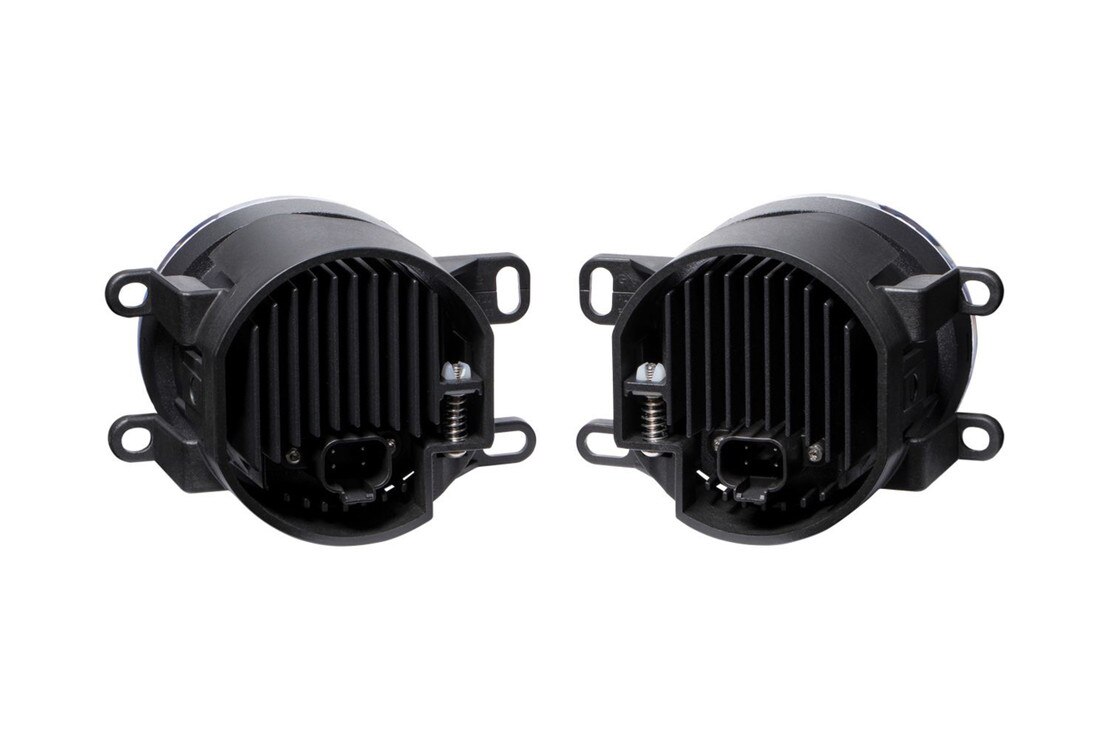

Input : Deutsch DT Input (Polarity Specific)
Material : Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting
Compliance : SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern
IP Rating : IP68 Waterproof
COMPATIBILITY
NOTE : This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.
Lexus CT200h : 2011-2013
Lexus GX460 : 2010-2013
Lexus IS250 A/T : 2011-2013
Lexus IS250 M/T : 2011-2012
Lexus IS250C A/T : 2014
Lexus IS250C A/T Convertible : 2012-2014
Lexus IS350 : 2011-2013
Lexus IS350C : 2014-2015
Lexus IS350C Convertible : 2013
Lexus IS350C Sport Convertible : 2012
Toyota Avalon : 2013-2015
Toyota 4Runner : 2010-2013
Toyota Prius : 2012-2014
Toyota Sienna : 2010-2016 / 2018-2020
