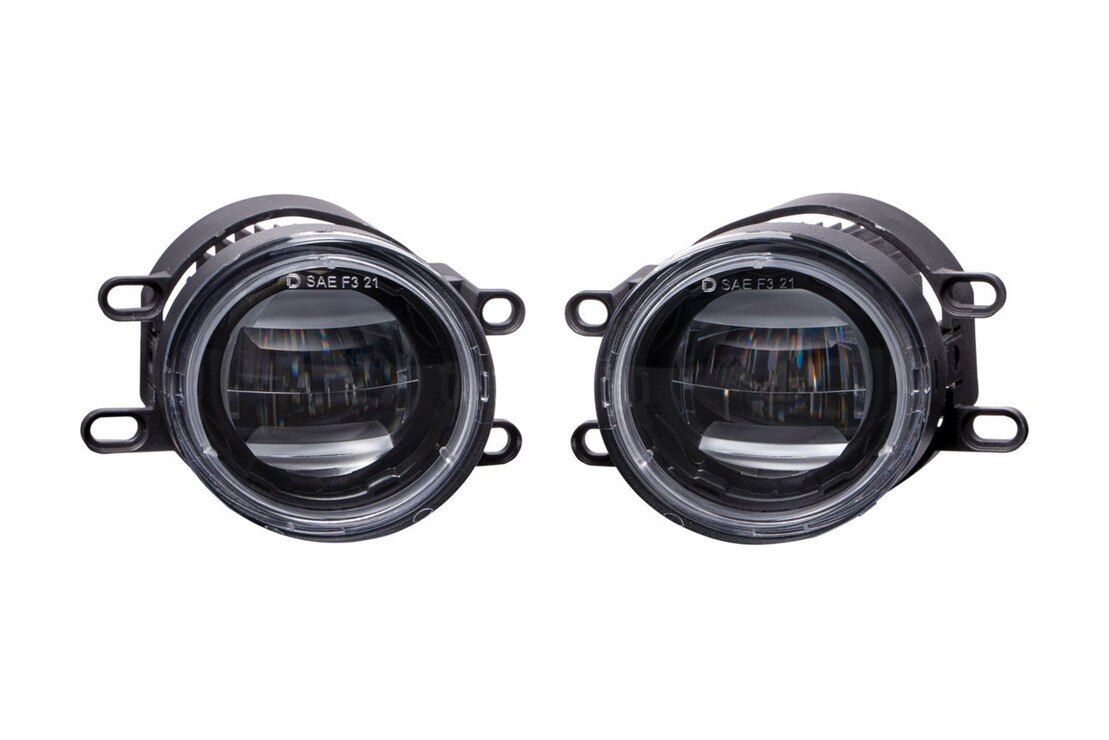

Elite Series Type B LED Fog Lights (White / Yellow)

(0) No Reviews yet
Questions?

Brand: Diode Dynamics

3P-DD81-TRS

$259.95

PRODUCT OPTIONS

PART #: 1 x DD5134P

DESCRIPTION

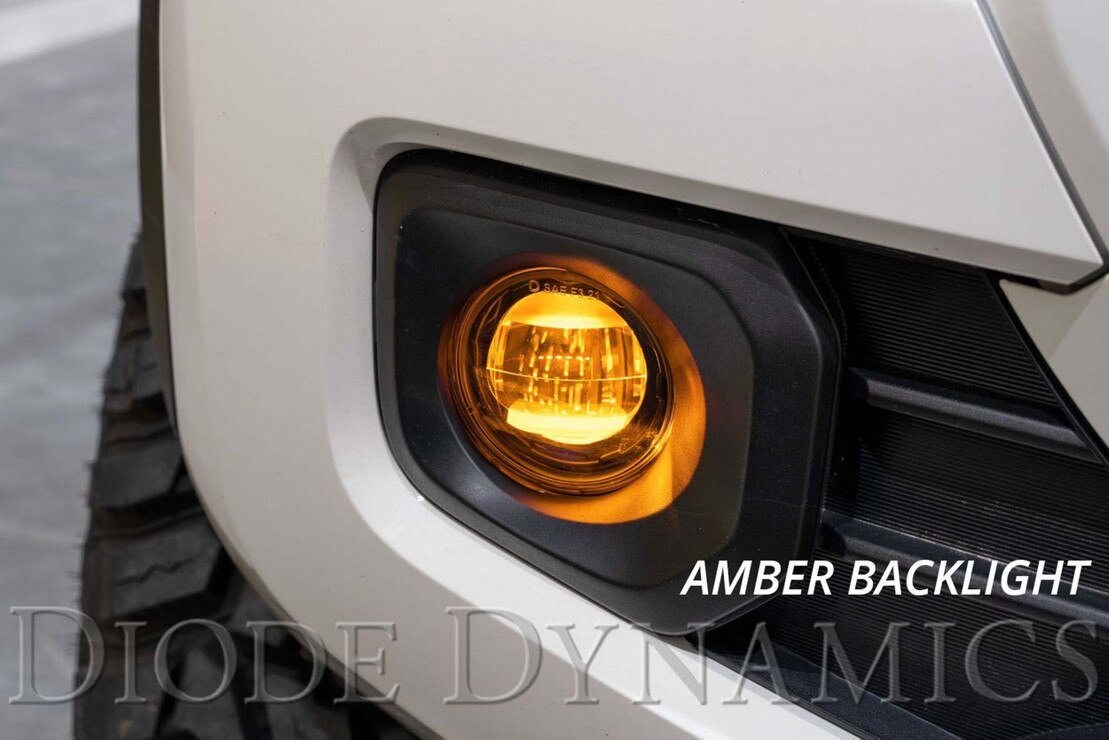

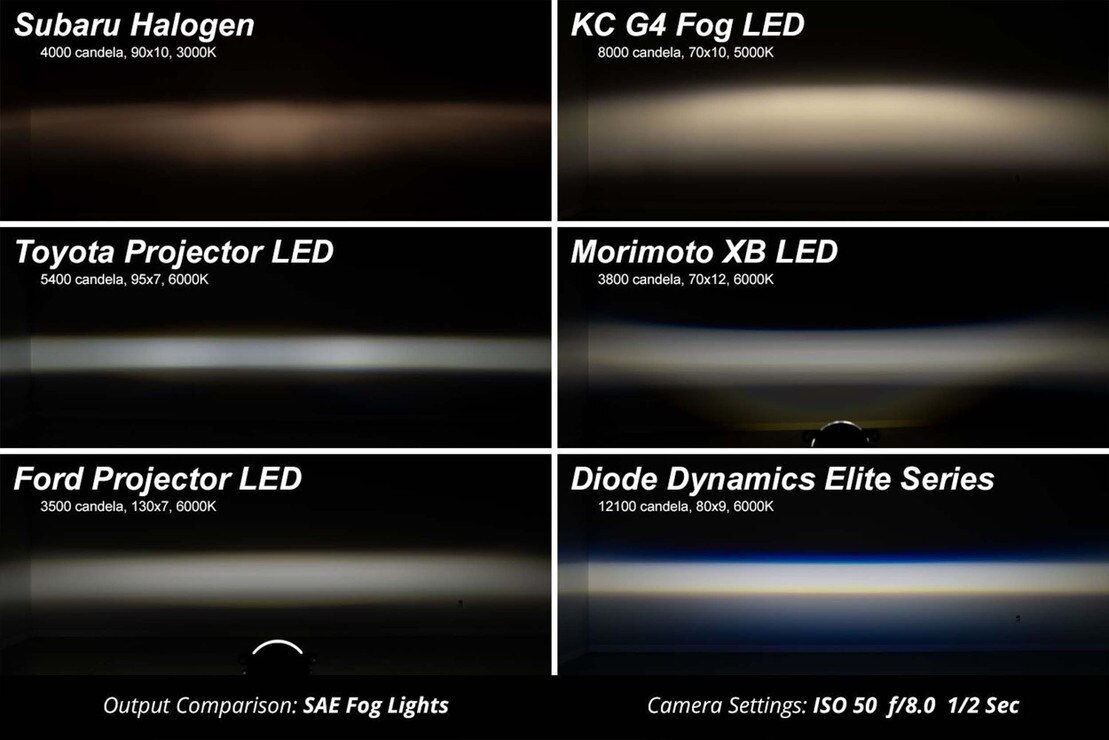

Elevate your driving experience with the Elite Series Fog Lamps, brought to you by the experts at Diode Dynamics. Say goodbye to lackluster factory fog lights and ordinary aftermarket alternatives. These cutting-edge LED fog lamps, designed by Diode Dynamics, redefine performance and visibility. With a custom-engineered patent-pending optic, multi-die automotive emitters, and high-power full-copper circuit boards, the Elite Series fog light delivers up to 5 times more output than halogen lamps. Designed for performance from the ground up, these fog lamps provide an 80-degree spread of intense light while adhering to legal on-road standards. Choose between a cool white 6000K or a high-contrast selective yellow 3000K option to suit your style and needs. The integrated amber accent light not only adds a touch of elegance but also enhances safety. Crafted with precision in the USA, these fog lamps come with an 8-year limited warranty.

WHAT’S INCLUDED

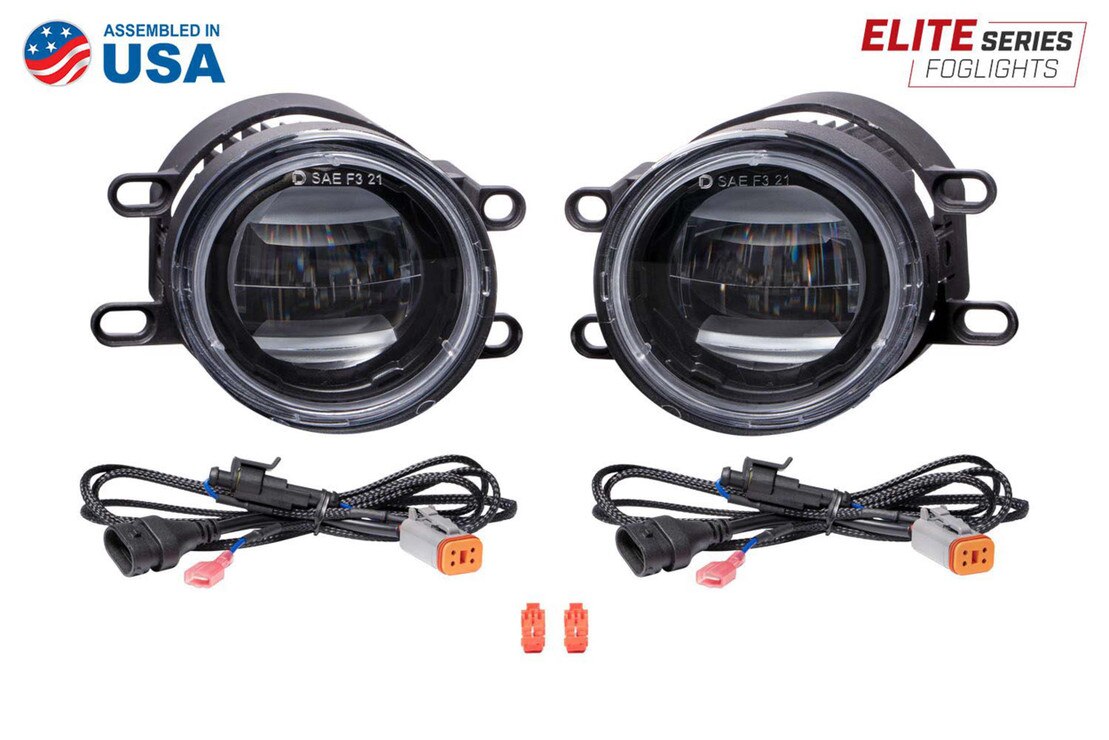

  • Fog Lights : 2x (One Pair) Elite Series Type B Fog Lights

  • Wiring : 2x (One Pair) Plug-n-Play H11 4-pin DT Backlight Tap Wires with T-taps

WARRANTY INFORMATION

This product is covered by a 8 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

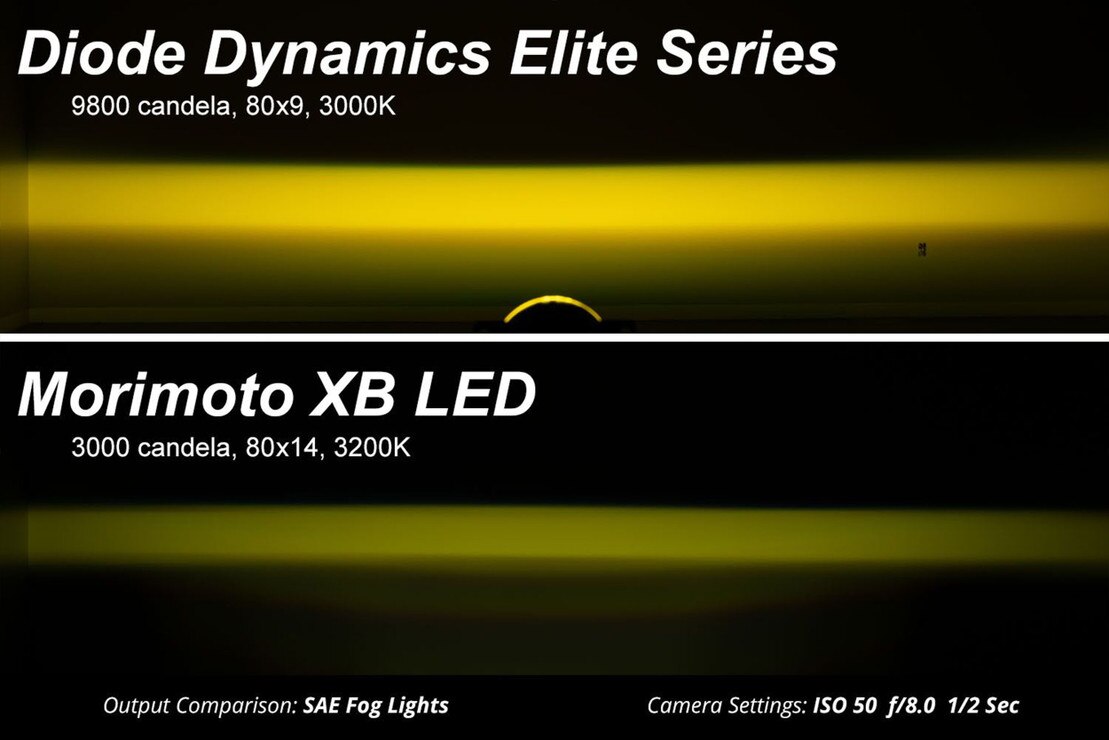

  • Intensity : 1,850 lm / 10,200 cd (White), 1,650 lm / 8,700 cd (Yellow)

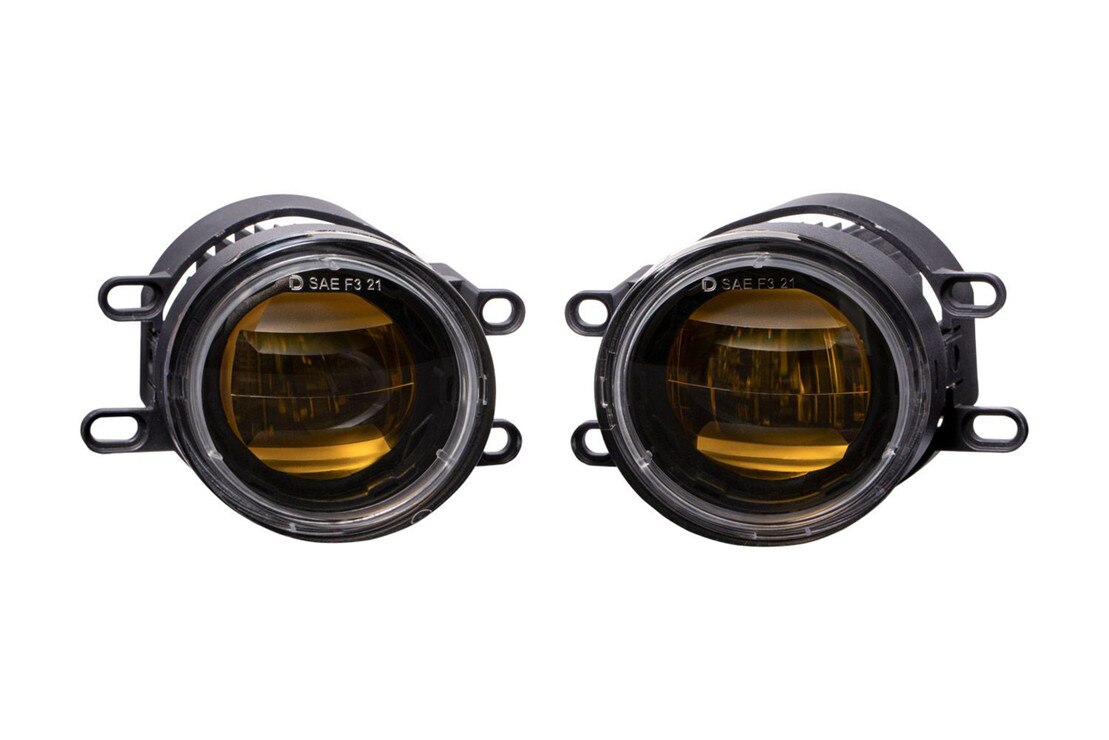

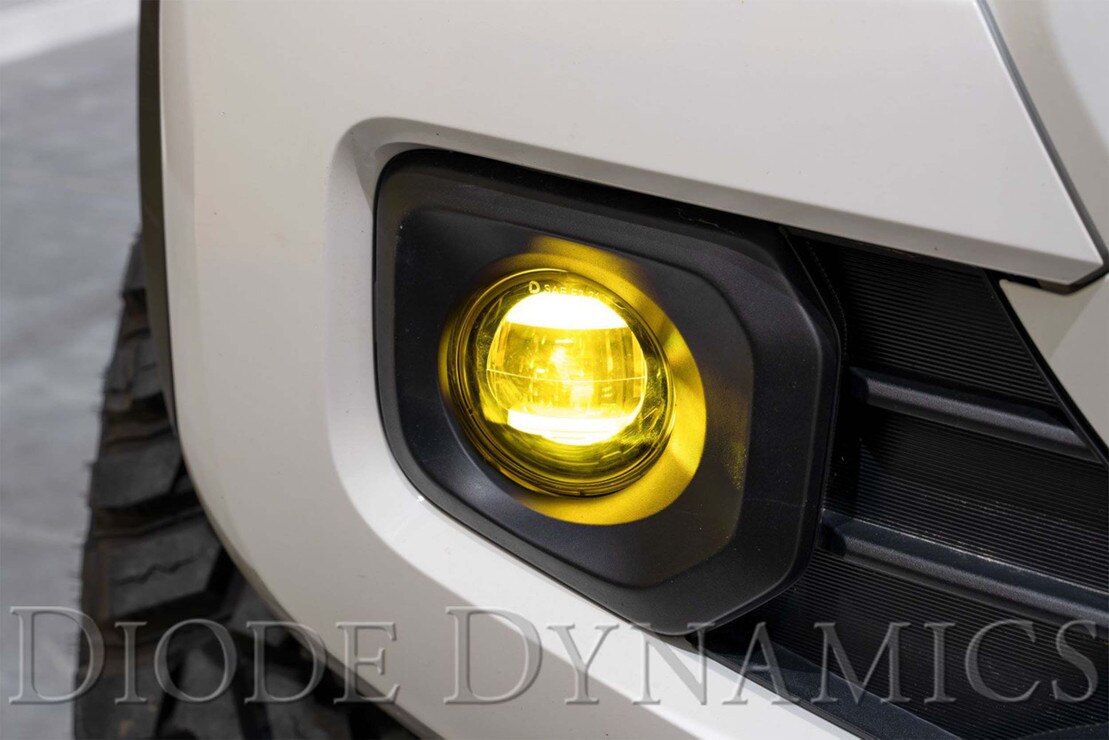

  • Color Temp : 6000K (White), 3000K (Yellow)

  • Power : Main Beam White: 17w, Main Beam Yellow: 15w, Backlight: 0.3w

  • Input Voltage : 9-16v

  • Current : Main Beam White: 1.3A, Main Beam Yellow: 1.2A, Backlight: 0.025A

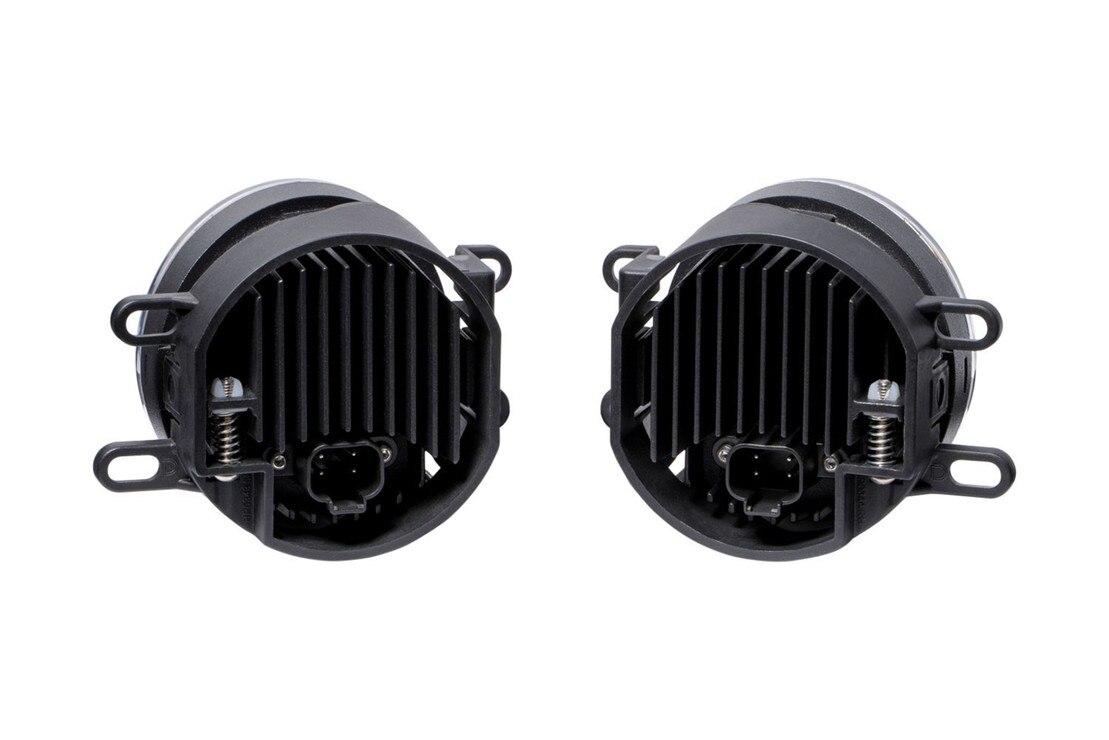

  • Input : Deutsch DT Input (Polarity Specific)

  • Material : Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting

  • Compliance : SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern

  • IP Rating : IP68 Waterproof

COMPATIBILITY

  • NOTE : This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.

  • Lexus CT200h : 2014-2017

  • Lexus ES350 : 2013-2018

  • Lexus ES300h : 2013-2018

  • Lexus GS200t : 2016-2017

  • Lexus GS350 : 2013-2020

  • Lexus GS450h : 2014-2018

  • Lexus HS250h : 2010-2012 (Base / Premuim)

  • Lexus HS250h : 2010-2011 (Ultra Premium)

  • Lexus IS200t : 2016

  • Lexus IS250 : 2014-2015

  • Lexus IS350 : 2014-2016

  • Lexus IS F : 2008-2014

  • Lexus LX570 : 2008-2011 / 2013-2015

  • Lexus NX200t : 2015-2017 (Base / Premium)

  • Lexus NX200t F Sport : 2017

  • Lexus NX300h : 2018-2020

  • Lexus NX300h : 2015-2020 (Base / Premium)

  • Lexus NX300h F Sport : 2018-2020

  • Lexus RX350 Base : 2014-2020

  • Lexus RX350 F Sport : 2013

  • Lexus RX350 F Sport : 2016-2021

  • Lexus RX350 Premium : 2014-2015

  • Lexus RX450h : 2010-2013

  • Lexus RX450 Base : 2015-2020

  • Lexus RX450 F Sport : 2016-2020

  • Lexus RX450 Premium : 2014-2015

  • Lexus RX450L : 2020

  • Subaru Legacy : 2015-2017

  • Toyota 4Runner : 2010-2024

  • Toyota Avalon : 2007-2011

  • Toyota Camry : 2007-2015

  • Toyota Corolla : 2009-2016

  • Toyota Highlander : 2008-2010

  • Toyota Highlander : 2014-2023

  • Toyota Matrix : 2009-2013

  • Toyota Prius : 2010-2011 / 2015-2016

  • Toyota Prius C/V : 2012-2016

  • Toyota RAV4 : 2006-2012 / 2016-2023

  • Toyota Solara : 2007-2008

  • Toyota Tacoma : 2012-2023

  • Toyota Tundra : 2014-2021

  • Toyota Venza : 2009-2014

  • Toyota Yaris : 2006-2014
