Elite Series Type A LED Fog Lights (White / Yellow)

(0) No Reviews yet
Questions?

Brand: Diode Dynamics

3P-DD80-TRS

$259.95

PRODUCT OPTIONS

PART #: 1 x DD5128P

DESCRIPTION

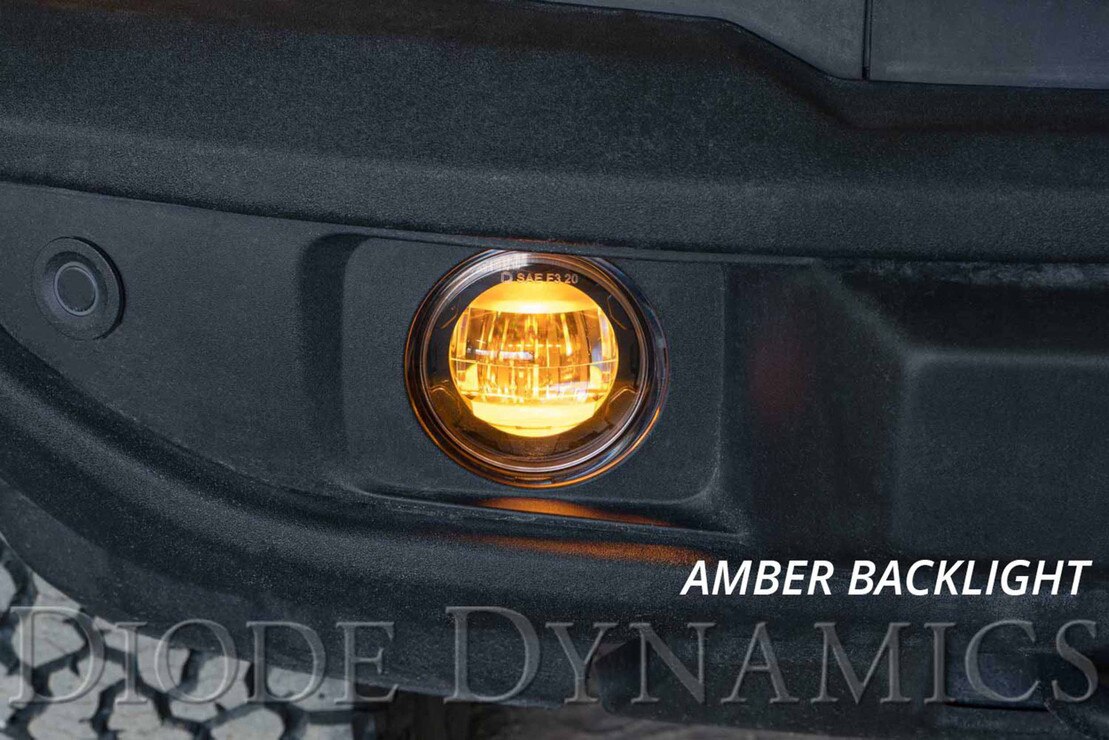

Elevate your driving experience with Diode Dynamics' groundbreaking Elite Series Fog Lamps. Designed to surpass standard factory and aftermarket fog lights, these LEDs redefine visibility. Engineered with a patent-pending optic, multi-die emitters, and full-copper circuit boards, they offer 5 times the brightness of halogens. Enjoy hassle-free plug-and-play installation for improved visibility in minutes. Experience a wider, smoother, glare-free light pattern with their precision-engineered single-piece PMMA lens, meeting legal on-road standards. Choose between cool white 6000K or high-contrast selective yellow 3000K options, both ensuring unmatched efficiency. The integrated amber accent light adds sophistication, and the USA-assembled lamps include an impressive 8-year limited warranty.

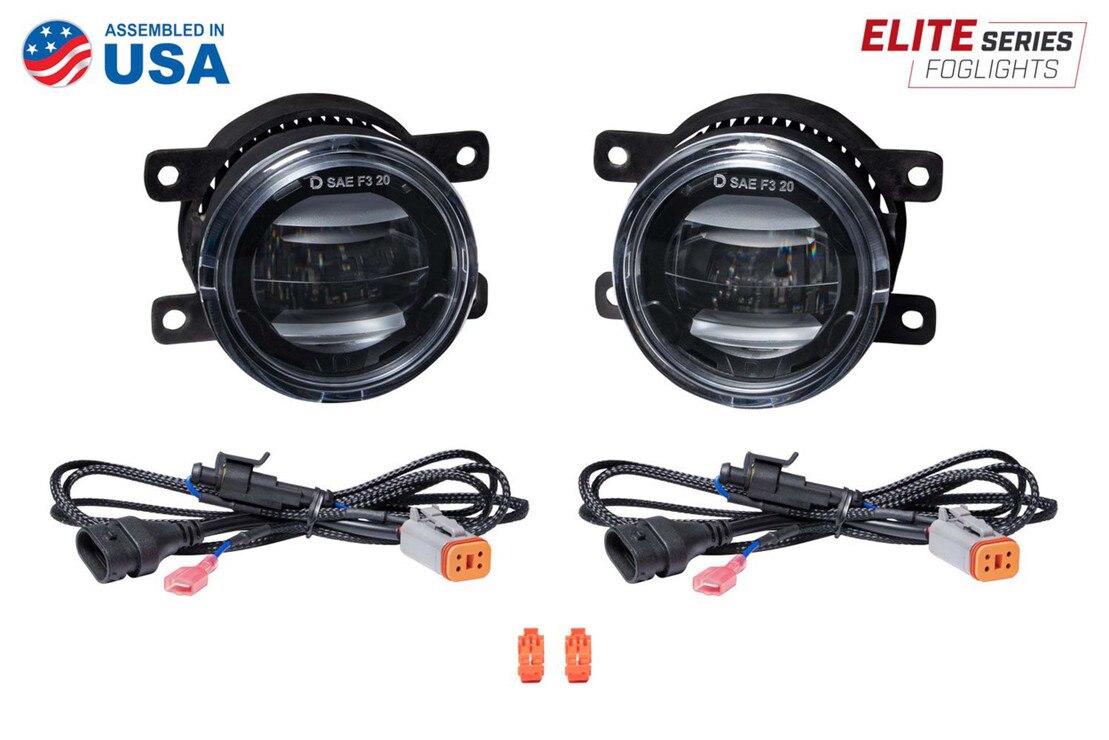

WHAT’S INCLUDED

  • Fog Lights : 2x (One Pair) Elite Series Type A Fog Lights

  • Wiring : 2x (One Pair) Plug-n-Play H11 4-pin DT Backlight Tap Wires with T-taps

WARRANTY INFORMATION

This product is covered by a 8 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

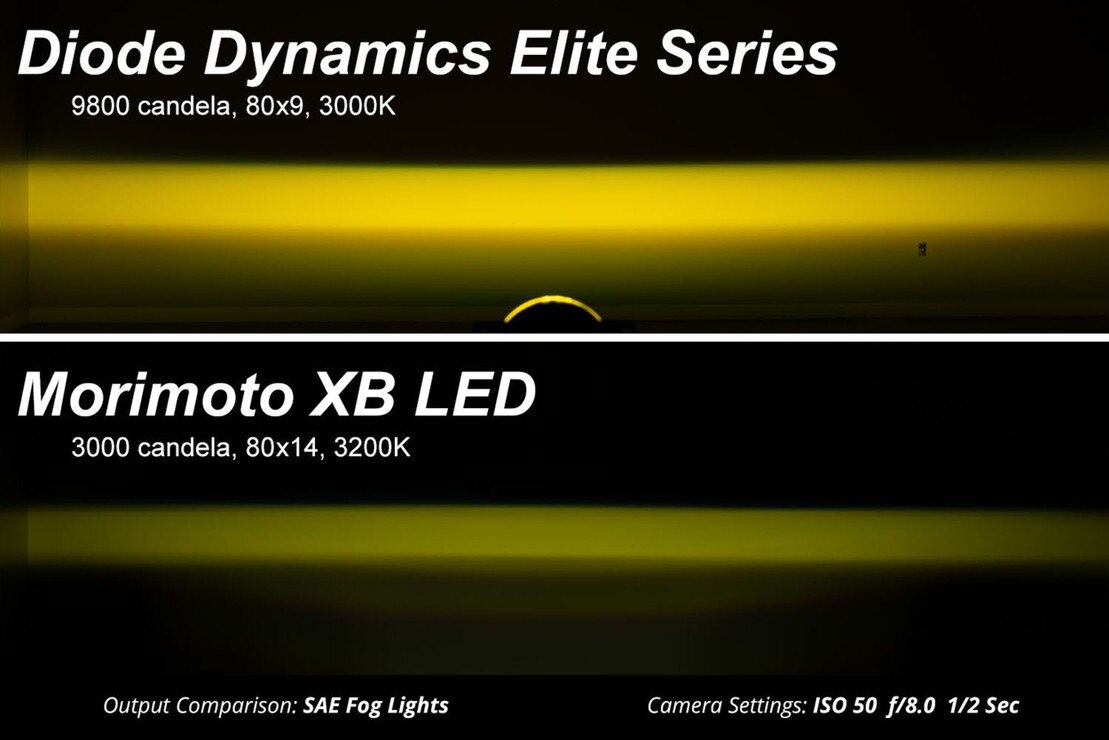

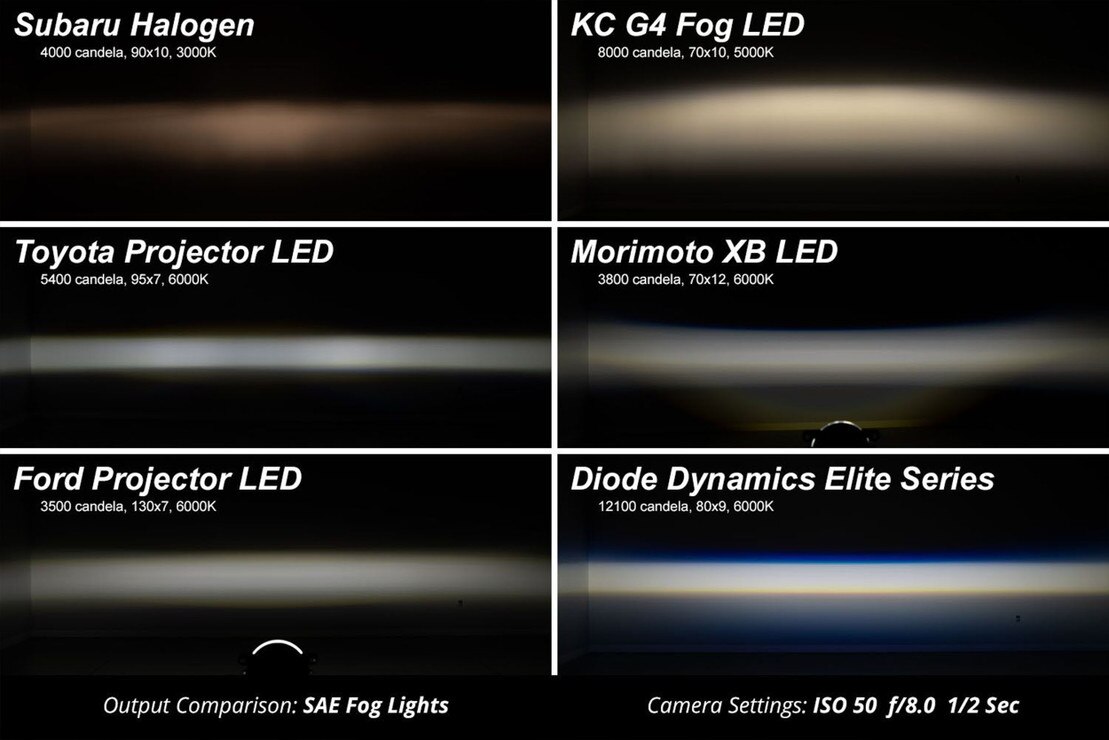

  • Intensity : 1,850 lm / 10,200 cd (White), 1,650 lm / 8,700 cd (Yellow)

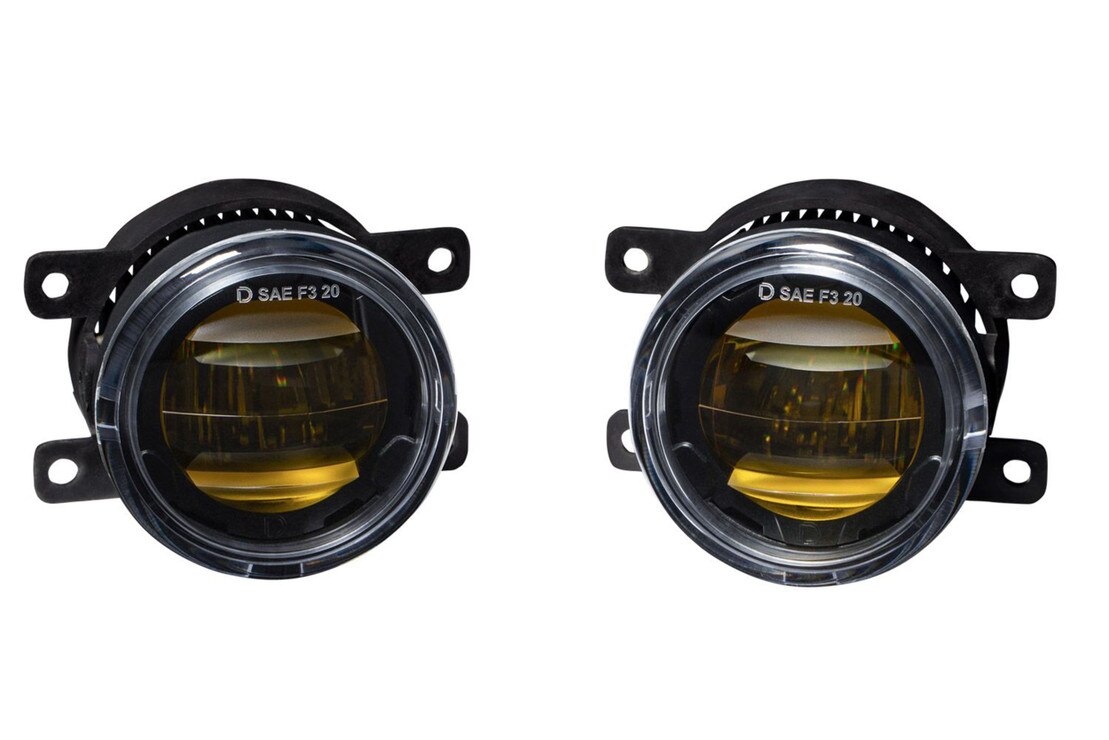

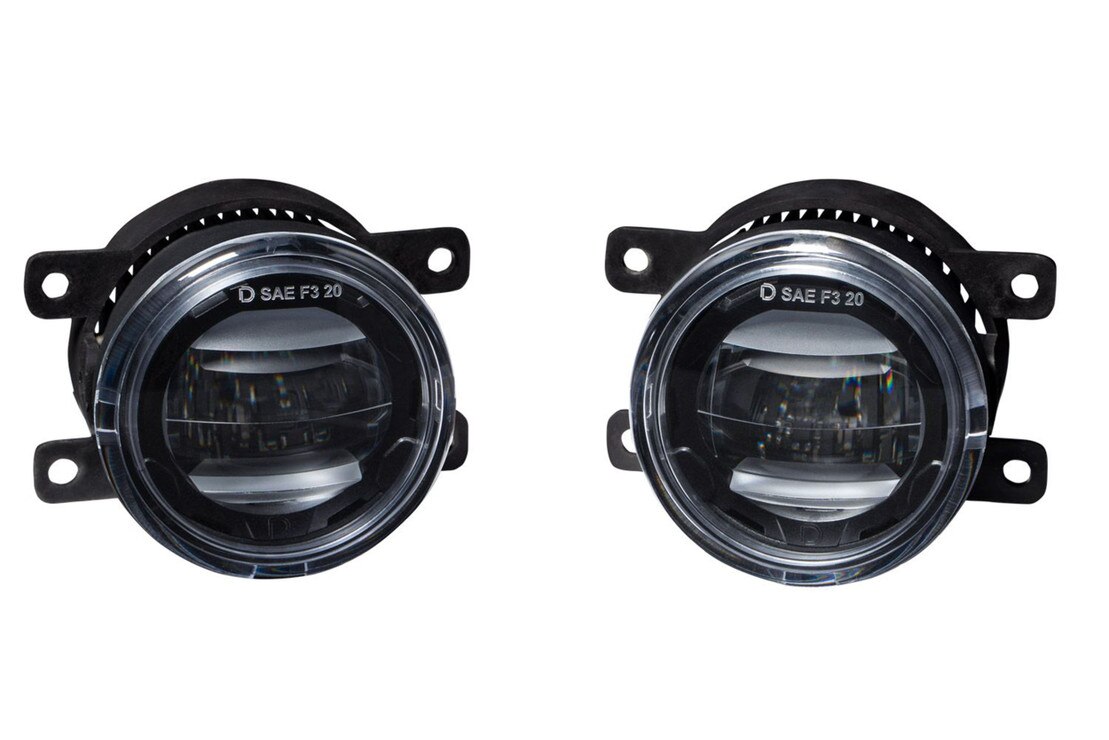

  • Color Temp : 6000K (White), 3000K (Yellow)

  • Power : Main Beam White: 17w, Main Beam Yellow: 15w, Backlight: 0.3w

  • Input Voltage : 9-16v

  • Current : Main Beam White: 1.3A, Main Beam Yellow: 1.2A, Backlight: 0.025A

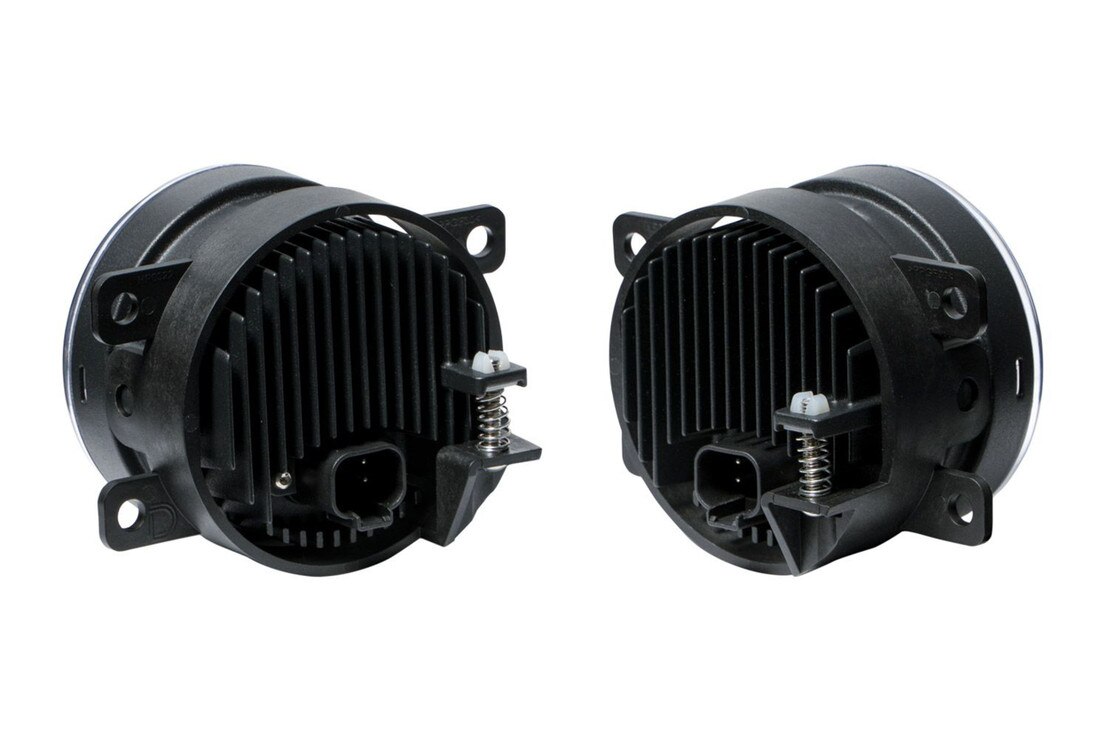

  • Input : Deutsch DT Input (Polarity Specific)

  • Material : Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting

  • Compliance : SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern

  • IP Rating : IP68 Waterproof

COMPATIBILITY

  • NOTE : This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.

  • Acura ILX : 2013-2018

  • Acura RDX : 2010-2018

  • Acura TL : 2012-2014

  • Acura TSX : 2011-2013

  • Ford Bronco : 2021-2023 (w/ Standard Bumper)

  • Ford C-Max : 2013-2016

  • Ford Explorer : 2012-2015

  • Ford Fiesta ST : 2014-2019

  • Ford Focus : 2009-2014

  • Ford Focus ST : 2013-2014

  • Ford Freestyle : 2005-2007

  • Ford Fusion : 2013-2016

  • Ford Mustang : 2006-2009 / 2015-2017

  • Ford Ranger : 2019-2023

  • Ford Ranger STX : 2005-2007

  • Ford Taurus X : 2008-2009

  • Ford Transit Connect : 2010-2018

  • Fiat 500 : 2012-2016

  • Honda Accord : 2013-2015

  • Honda Civic : 2016-2021

  • Honda Civic Si Sedan : 2013-2015

  • Honda Crosstour : 2013-2015

  • Honda CR-V : 2012-2014

  • Honda CR-Z : 2013-2016

  • Honda Fit : 2015-2017

  • Honda Insight : 2010-2014

  • Honda Odyssey : 2019-2020

  • Honda Pilot : 2012-2019

  • Nissan Frontier : 2009-2021

  • Nissan Sentra : 2007-2012

  • Nissan Titan : 2017-2019

  • Nissan Titan XD : 2016

  • Nissan Xterra : 2005-2015

  • Ram 1500 : 2019-2024 (non- LED)

  • Scion FR-S : 2013-2016

  • Subaru Ascent : 2019-2023

  • Subaru BRZ : 2013-2017

  • Subaru Crosstrek : 2016-2024

  • Subaru XV Crosstrek : 2013-2015

  • Subaru Forester : 2014-2023

  • Subaru Impreza : 2012-2014

  • Subaru Impreza : 2015-2023 (w/ Eyesight Package)

  • Subaru Legacy : 2010-2014

  • Subaru Legacy : 2018-2021

  • Subaru Outback Wilderness : 2024-2023

  • Subaru WRX : 2015-2021

  • Subaru WRX STi : 2015-2017
