DESCRIPTION
FEATURES & BENEFITS
- Revolutionary LED Fogs: Upgrade your Nissan Titan with Diode Dynamics' Elite Series for superior brightness.

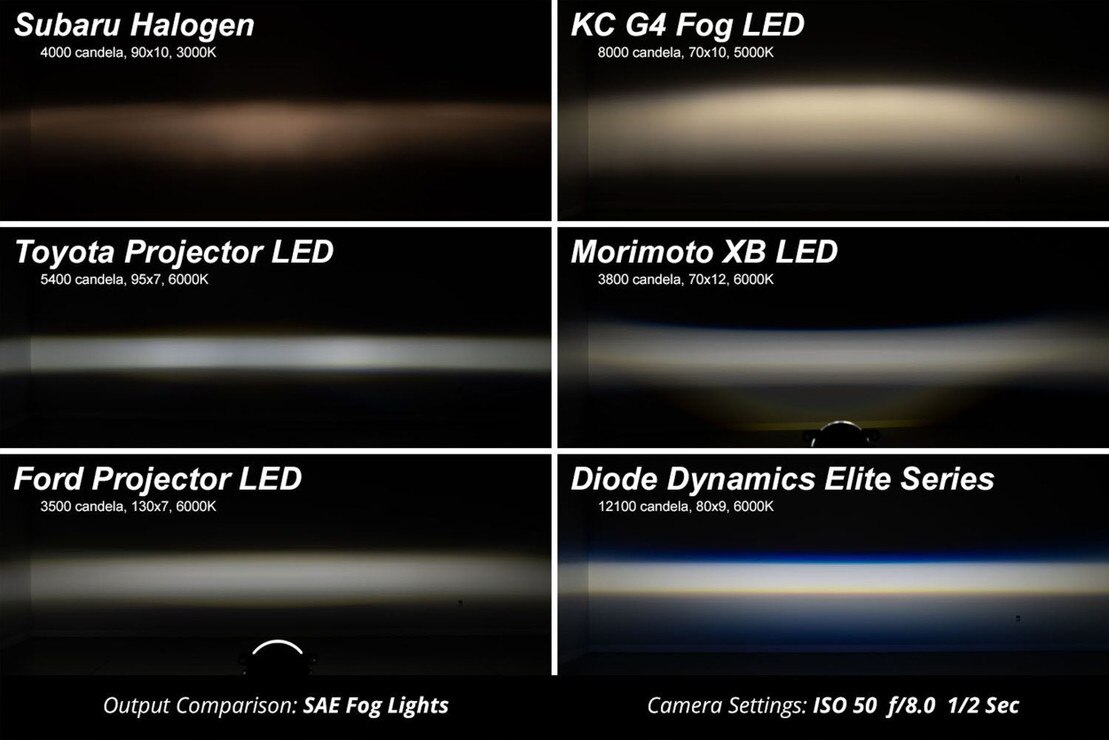

- Outshines Halogens: Emitting light five times more radiant, surpassing both factory and aftermarket options.
- Easy Plug-and-Play Installation: Enhanced visibility within minutes.
- Precision Engineered: PMMA lens ensures compliant, glare-free light pattern.

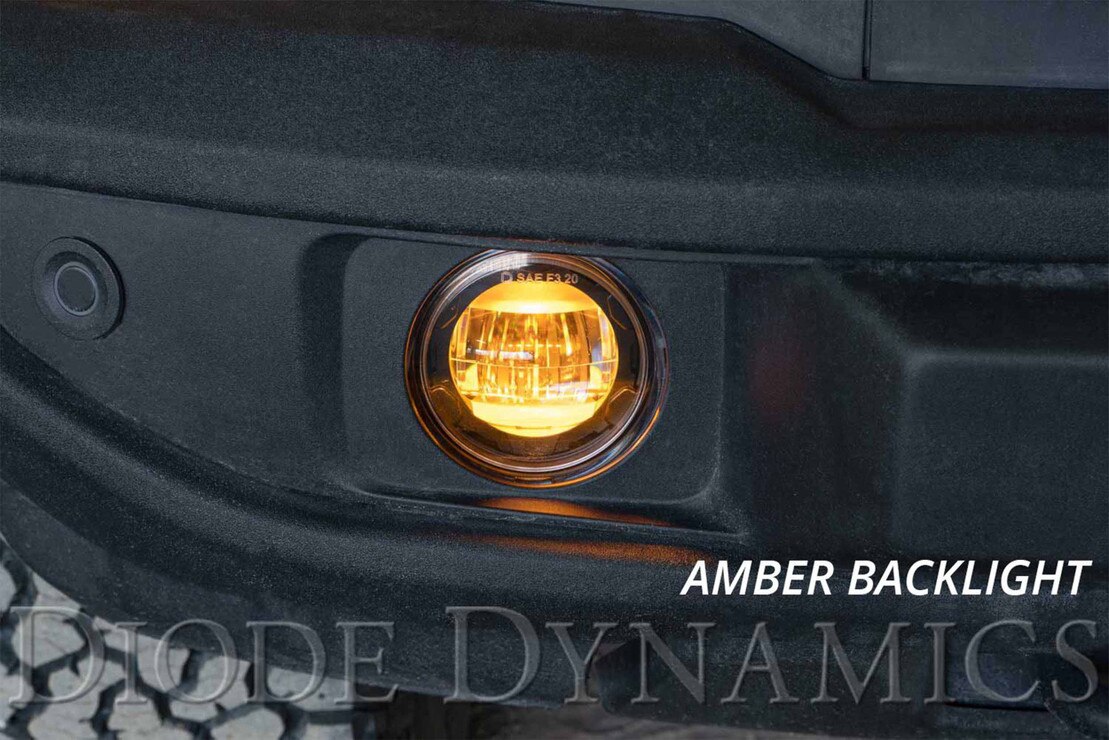

- Color Options and Amber Accent: Choose 6000K cool white or 3000K yellow with integrated amber accent light.
WHAT’S INCLUDED

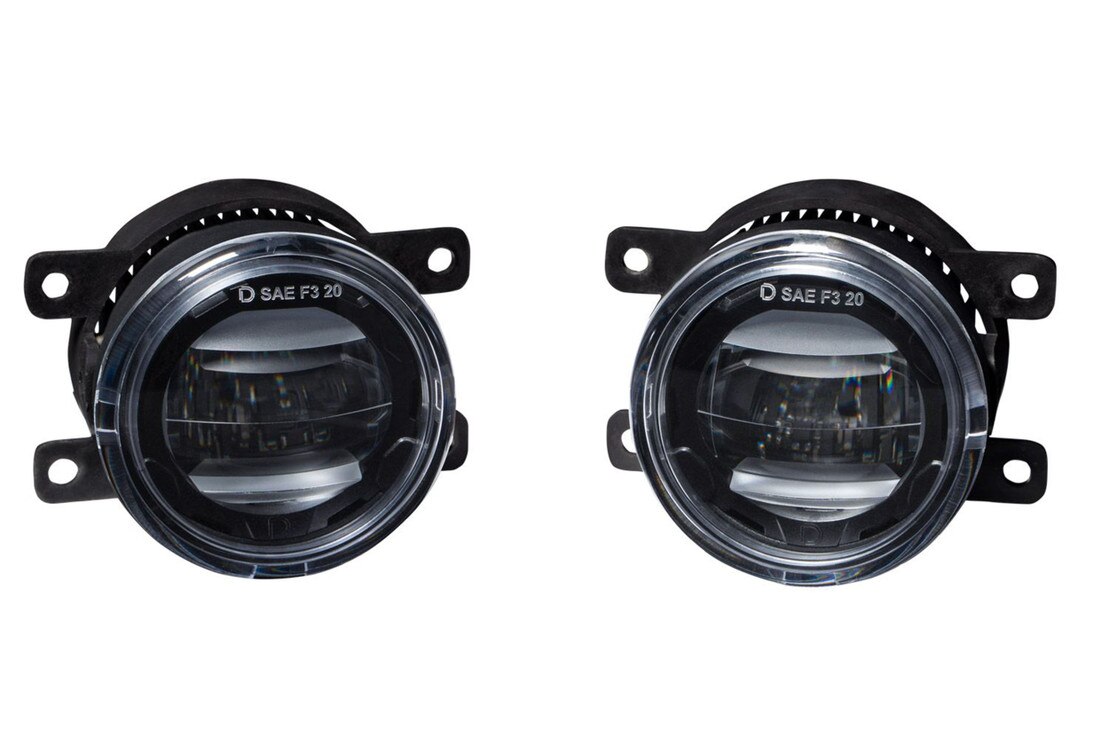

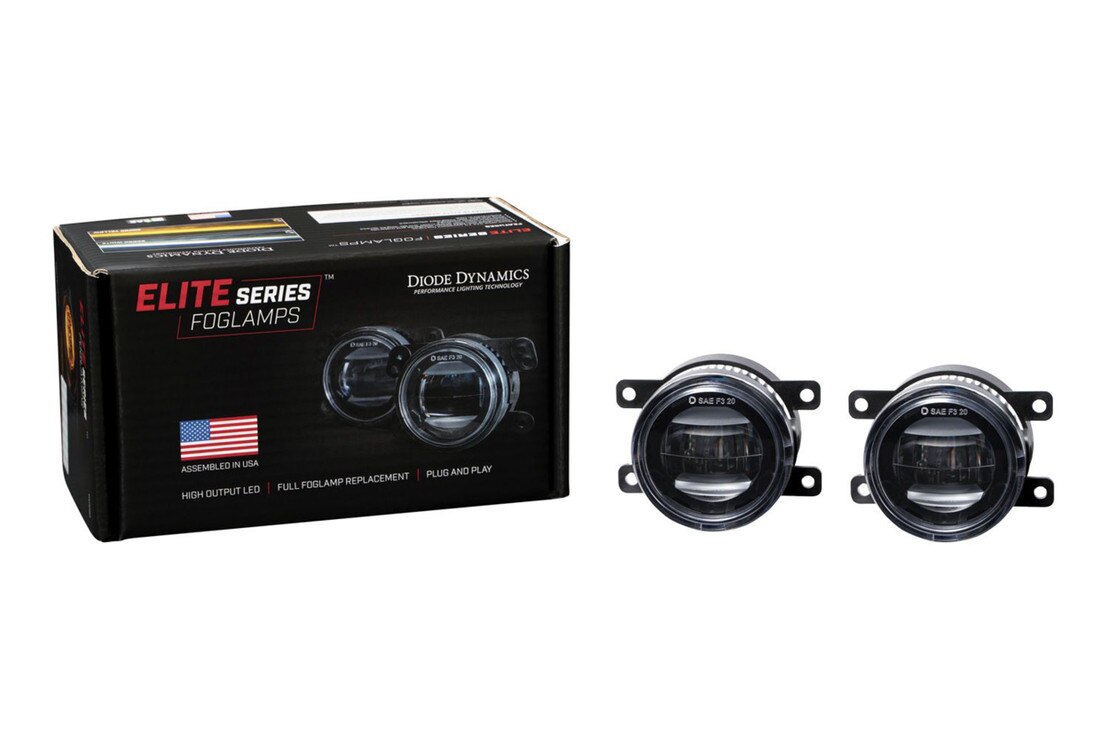

Fog Lights : 2x (One Pair) Elite Series Type A Fog Lights
Wiring : 2x (One Pair) Plug-n-Play H11 4-pin DT Backlight Tap Wires with T-taps
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Intensity : 1,850 lm / 10,200 cd (White), 1,650 lm / 8,700 cd (Yellow)
Color Temp : 6000K (White), 3000K (Yellow)
Power : Main Beam White: 17w, Main Beam Yellow: 15w, Backlight: 0.3w
Input Voltage : 9-16v
Current : Main Beam White: 1.3A, Main Beam Yellow: 1.2A, Backlight: 0.025A

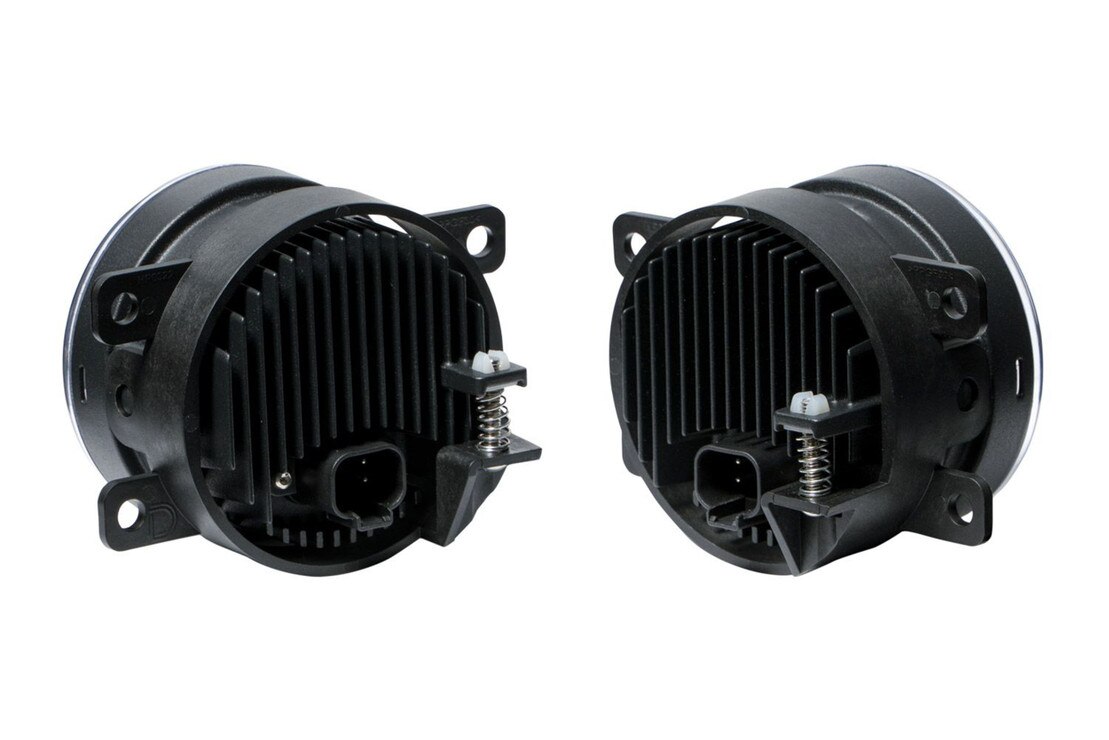

Input : Deutsch DT Input (Polarity Specific)
Material : Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting
Compliance : SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern
IP Rating : IP68 Waterproof
COMPATIBILITY
Nissan Titan : 2017-2019
Nissan Titan XD : 2016 Only:::NOTE:::This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.
