Toyota Tacoma (13-21) Elite Series LED Fog (White / Yellow)

(0) No Reviews yet

Brand: Diode Dynamics




PART #: 1 x DD5134P


Elevate your Toyota Tacoma driving experience with Diode Dynamics' Elite Series Fog Lamps, designed for models from 2013 to 2021. These cutting-edge LED fog lights outshine both factory and aftermarket alternatives, boasting a patent-pending optic, multi-die emitters, and full-copper circuit boards for a dazzling output that's five times brighter than traditional halogens. Enjoy a swift and hassle-free installation process thanks to the plug-and-play design, which enhances your visibility in just minutes. Crafted with precision, the single-piece PMMA lens guarantees a smooth, wide light pattern that aligns with on-road regulations and eliminates glare. Take your pick from the cool white 6000K or high-contrast selective yellow 3000K options, both ensuring top-tier efficiency. Plus, the integrated amber accent light adds a touch of sophistication, reflecting Diode Dynamics' renowned commitment to quality and innovation.


  • Elevate Your Drive: Diode Dynamics' Elite Series Fog Lamps for Toyota Tacoma (2013-2021).

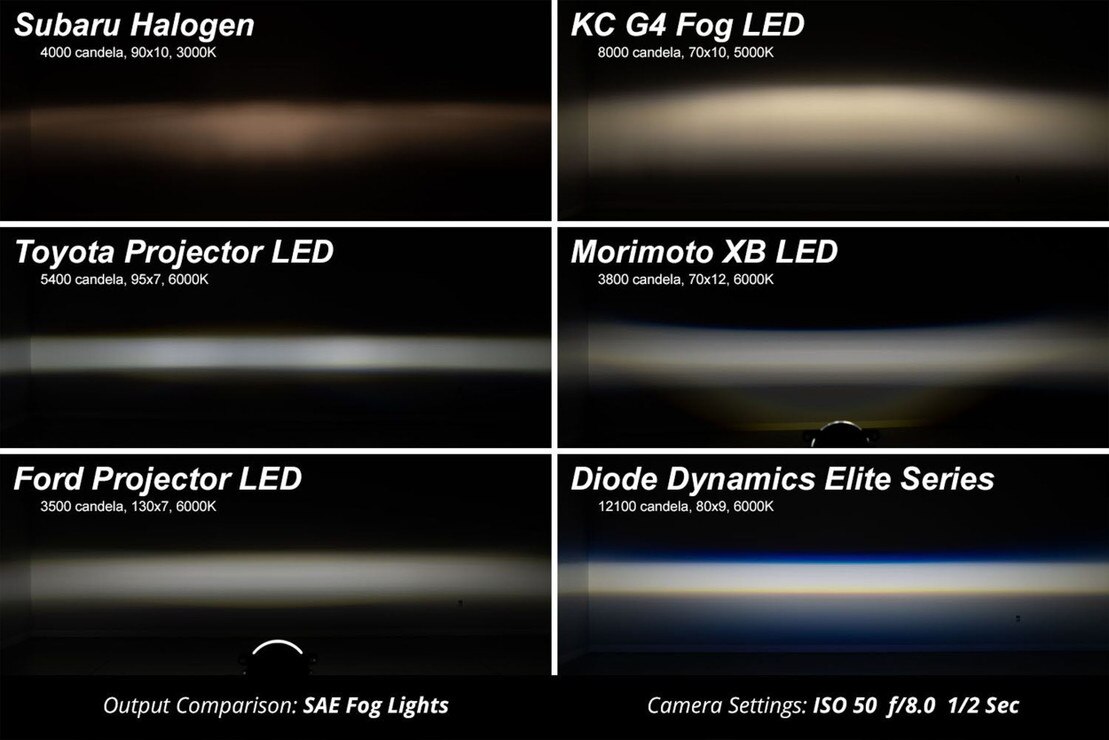

  • 5x Brighter: LED lights with patent-pending optics and copper circuit boards.
  • Easy Install: Plug-and-play design for quick visibility improvement.
  • Precision Lens: Smooth, glare-free light pattern, compliant with regulations.

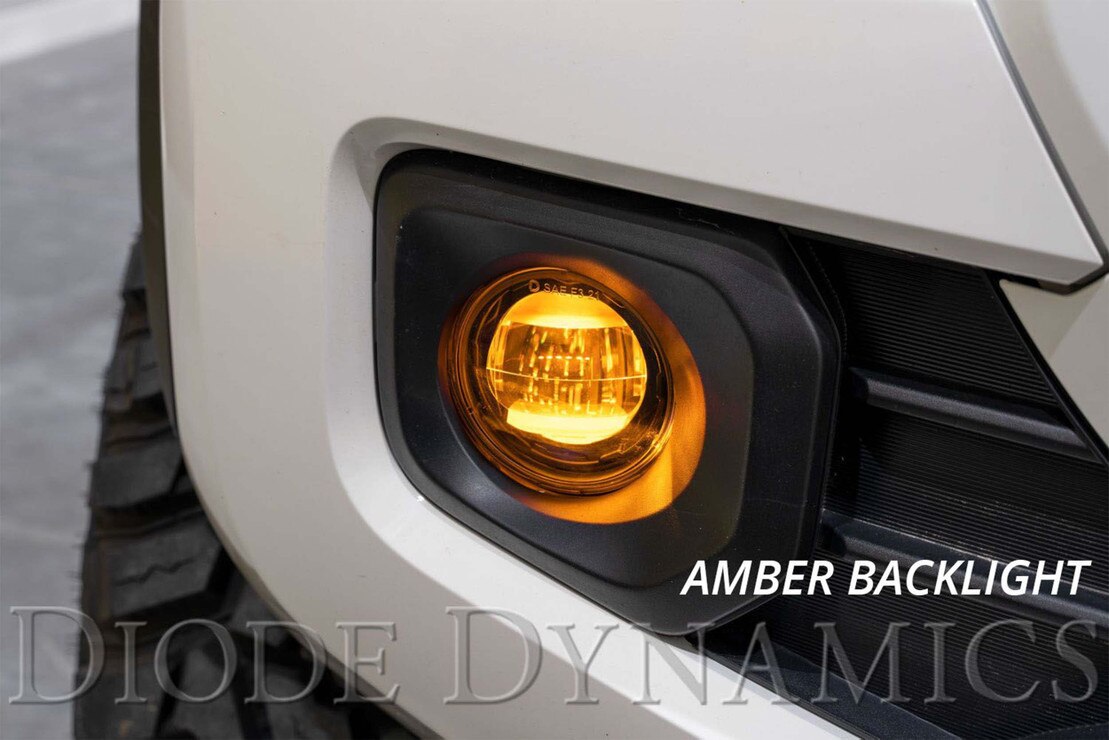

  • Color Options: Choose 6000K white or 3000K yellow, with integrated amber accent light.

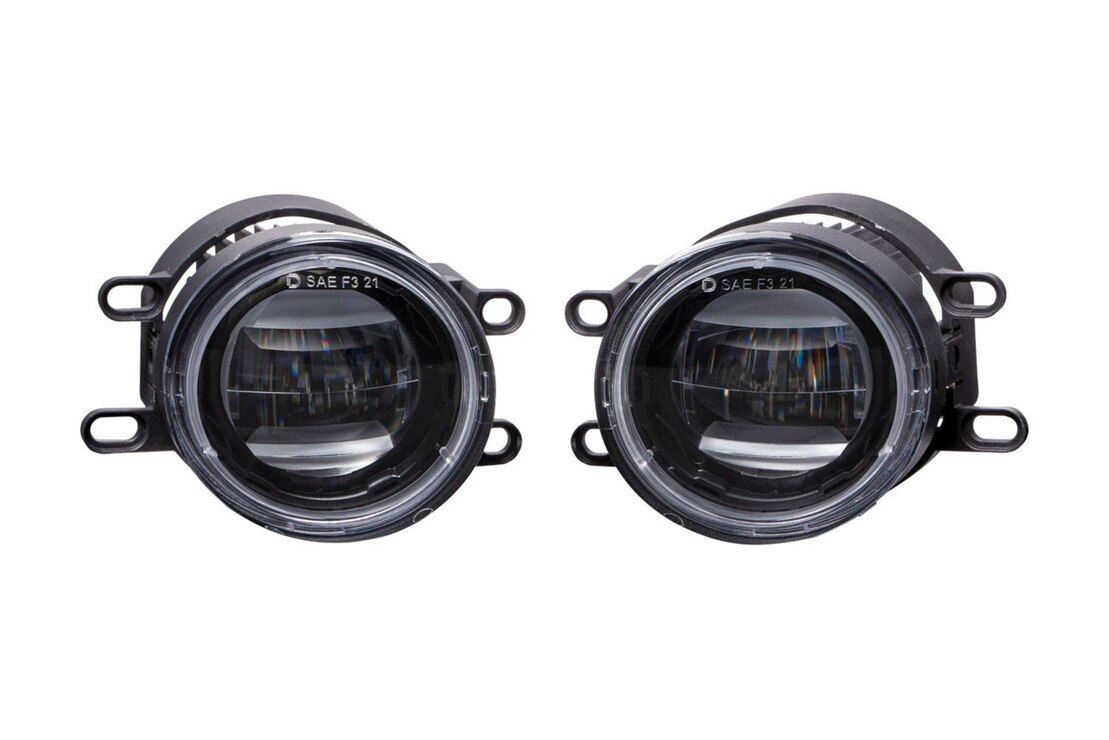

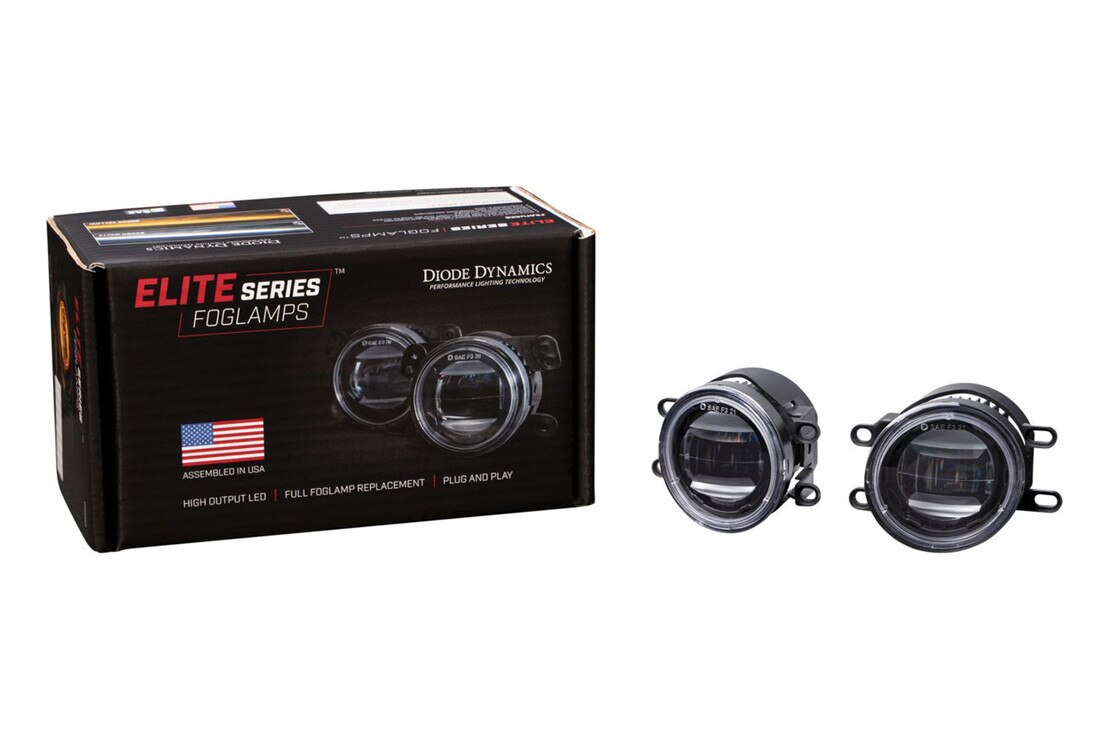

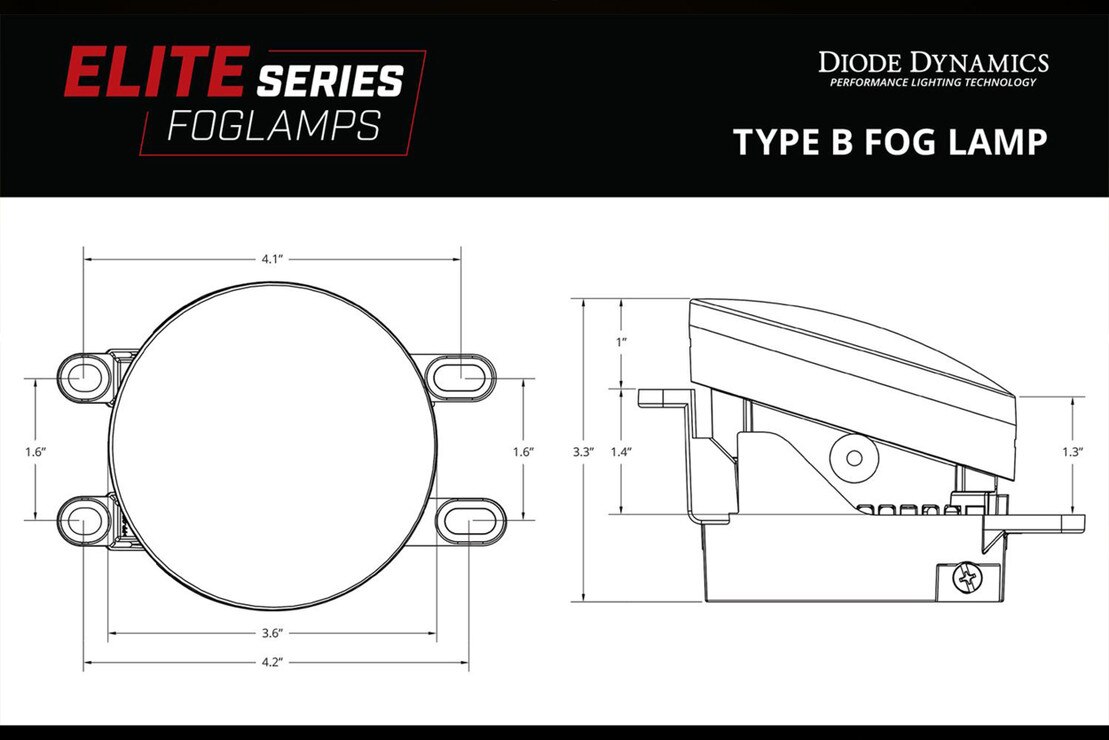

  • Fog Lights: 2x (One Pair) Elite Series Type B Fog Lights

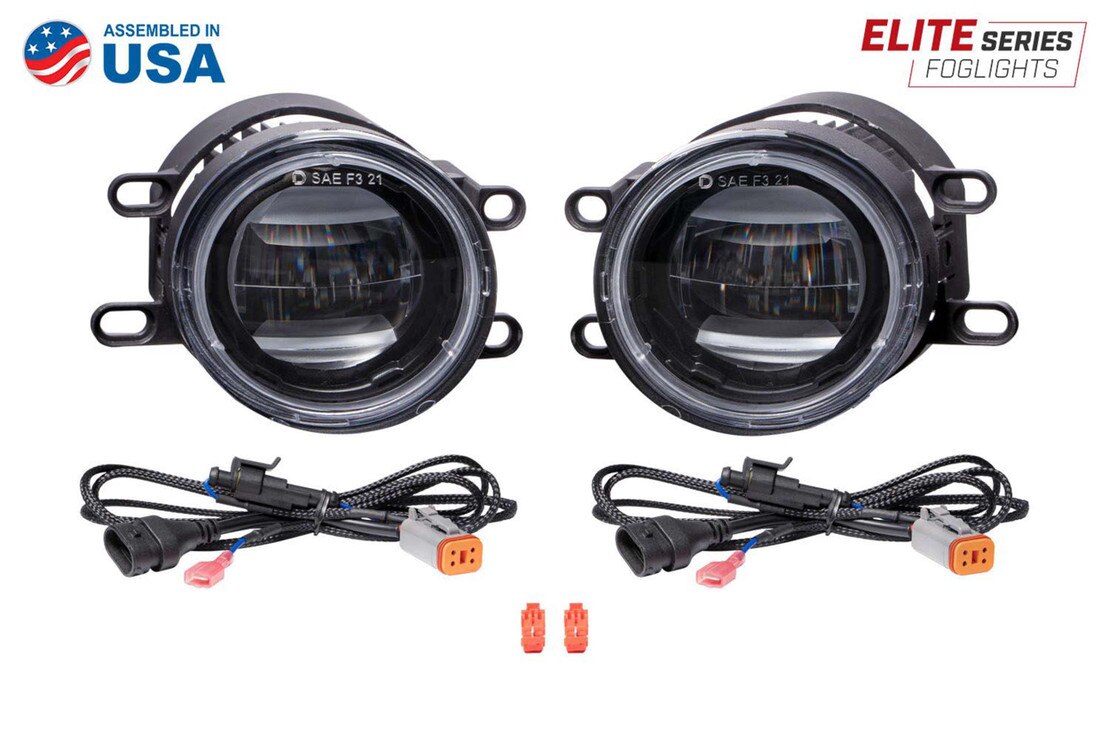

  • Wiring: 2x (One Pair) Plug-n-Play H11 4-pin DT Backlight Tap Wires with T-taps


This product is covered by a 3 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

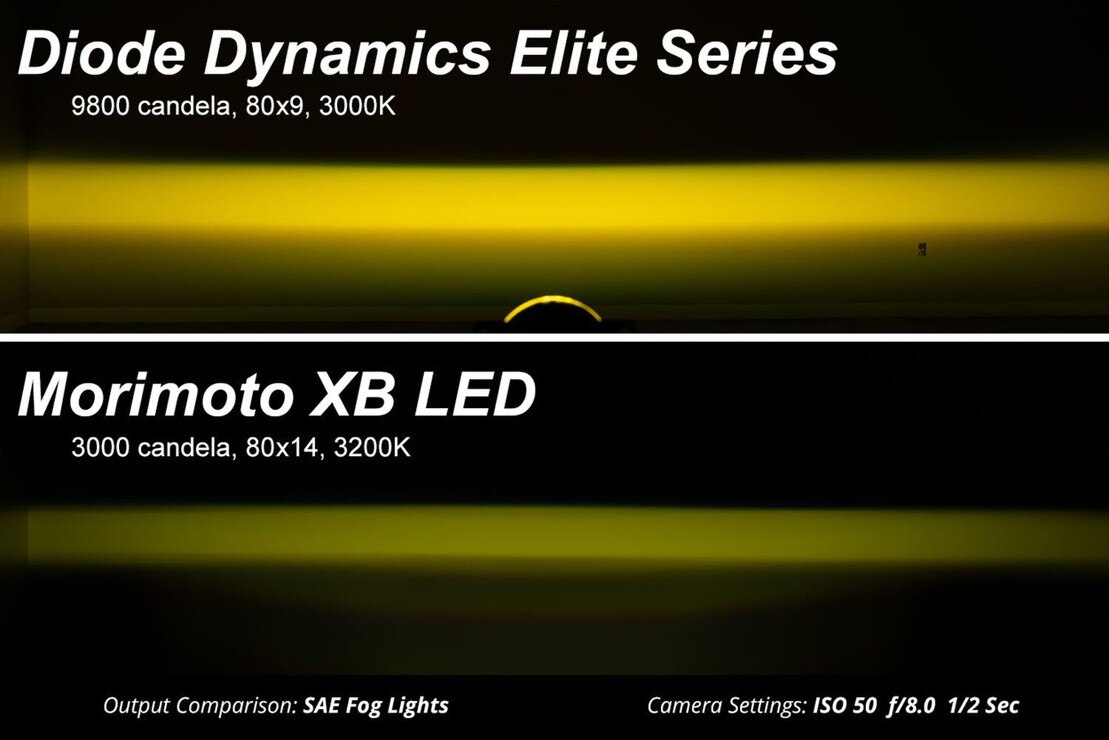

  • Intensity: 1,850 lm / 10,200 cd (White), 1,650 lm / 8,700 cd (Yellow)

  • Color Temp: 6000K (White), 3000K (Yellow)

  • Power: Main Beam White: 17w, Main Beam Yellow: 15w, Backlight: 0.3w

  • Input Voltage: 9-16v

  • Current: Main Beam White: 1.3A, Main Beam Yellow: 1.2A, Backlight: 0.025A

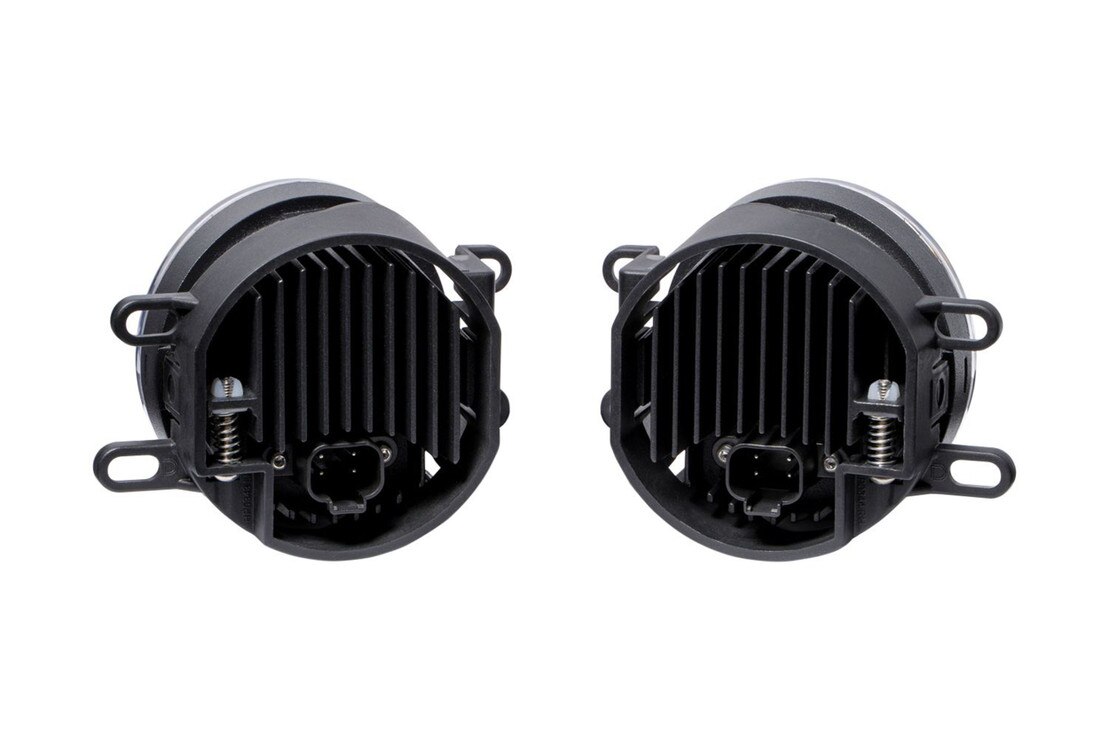

  • Input: Deutsch DT Input (Polarity Specific)

  • Material: Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting

  • Compliance: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern

  • IP Rating: IP68 Waterproof

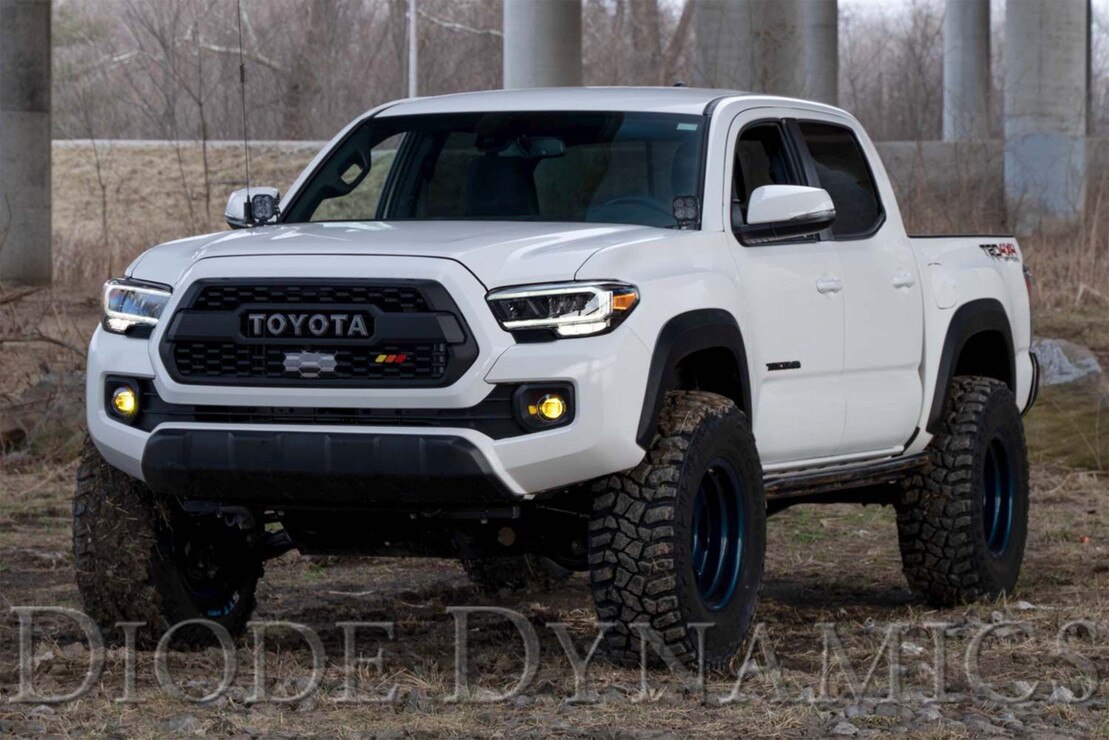

  • Toyota Tacoma: 2013-2021

  • NOTE: This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.
