Ford Super Duty (17-22) Elite Series LED Fog (White / Yellow)

(0) No Reviews yet
Questions?

Brand: Diode Dynamics

3P-DD87-TRS

$219.95

PRODUCT OPTIONS

PART #: 1 x DD5171P



DESCRIPTION

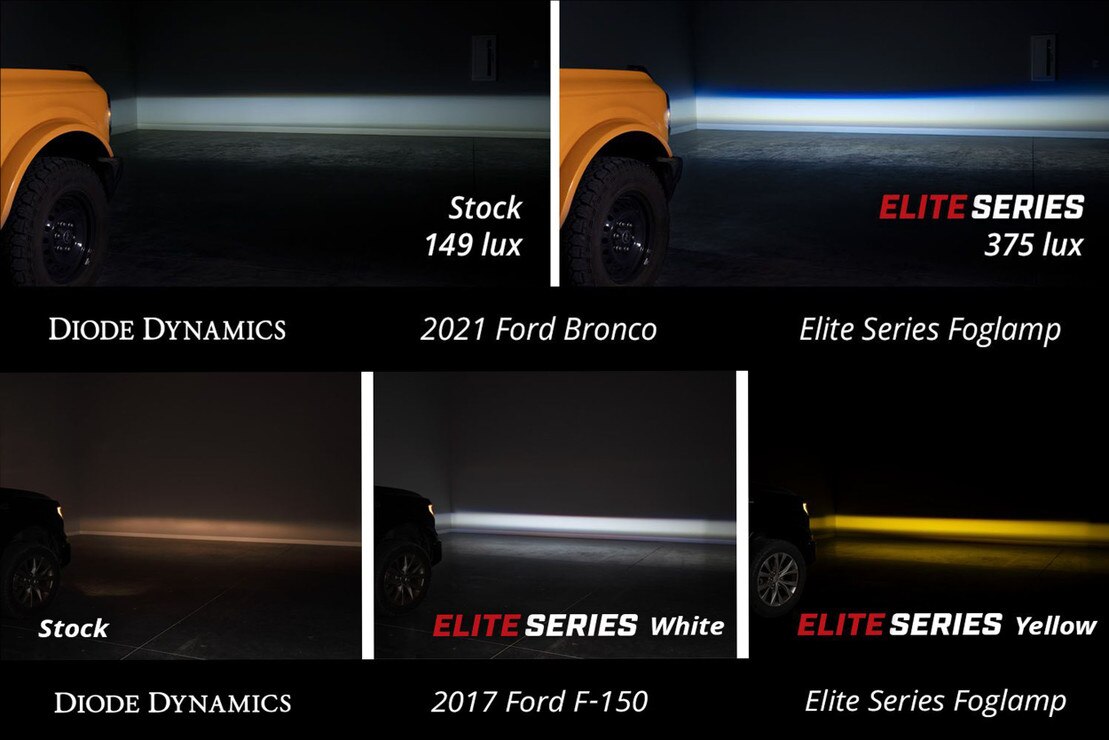

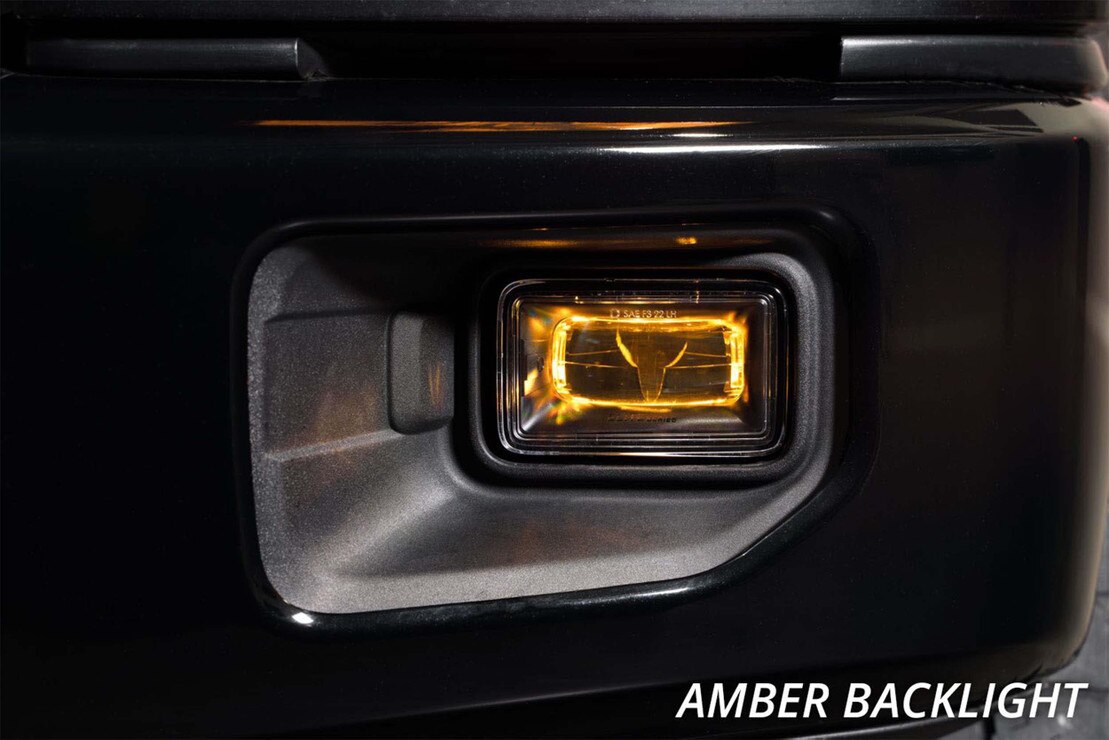

Enhance your driving journey with the revolutionary Elite Series Fog Lamps by Diode Dynamics, specially designed for 2017-2022 Ford Super Duty vehicles. These cutting-edge LED fog lamps redefine performance and style, surpassing both factory and aftermarket alternatives. Equipped with patent-pending optics, multi-die emitters, and full-copper circuit boards, they emit a striking brightness that's five times more powerful than traditional halogens. Installation is effortless with the plug-and-play design, instantly boosting visibility in challenging driving conditions. Crafted with precision, the single-piece PMMA lens ensures a superior light pattern that meets legal on-road standards, offering broader coverage and reduced glare. Tailor your look with a choice between a crisp 6000K cool white or a high-contrast 3000K selective yellow option, each maximizing efficiency. The integrated amber accent light adds a touch of elegance, and these USA-assembled lamps are backed by an impressive 8-year limited warranty. Elevate your driving adventure with unparalleled illumination and style.

FEATURES & BENEFITS

  • Revolutionary Performance: Enhance your drive with LED fog lamps offering 5x brightness of halogens.
  • Vehicle Compatibility: Designed for 2017-2022 Ford Super Duty.
  • Effortless Installation: Plug-and-play design for easy setup.
  • Customized Aesthetics: Choose between 6000K cool white or 3000K selective yellow.
  • 8-Year Warranty: Backed by an impressive 8-year limited warranty.

WHAT’S INCLUDED

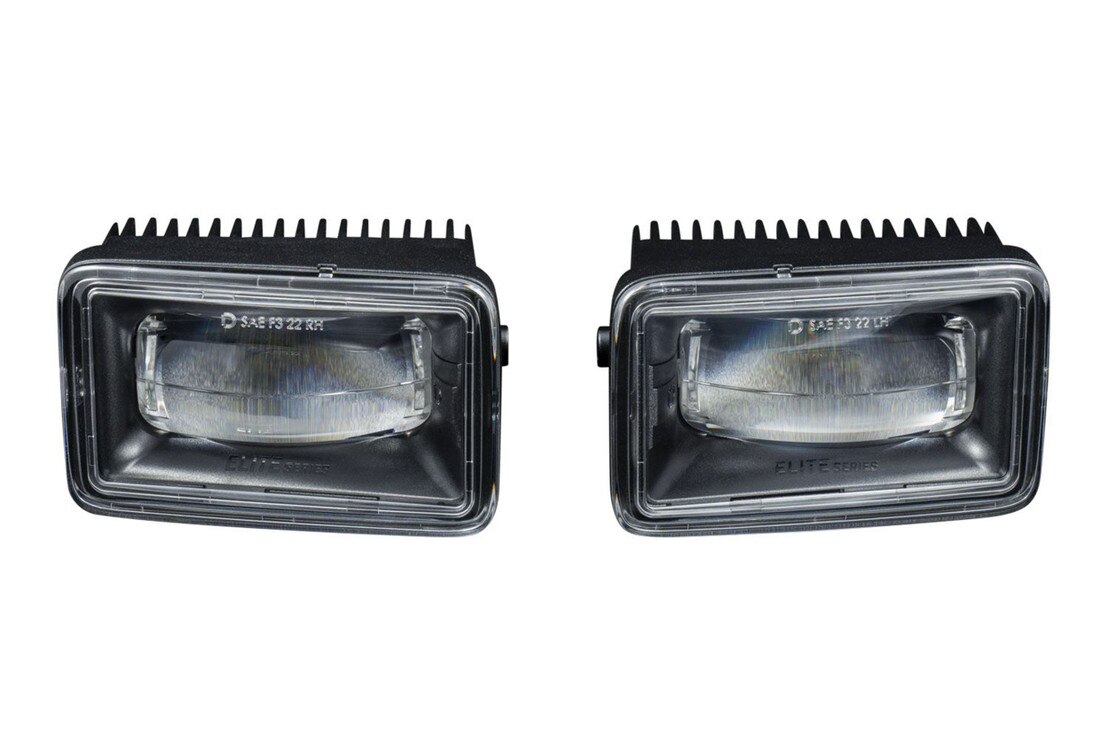

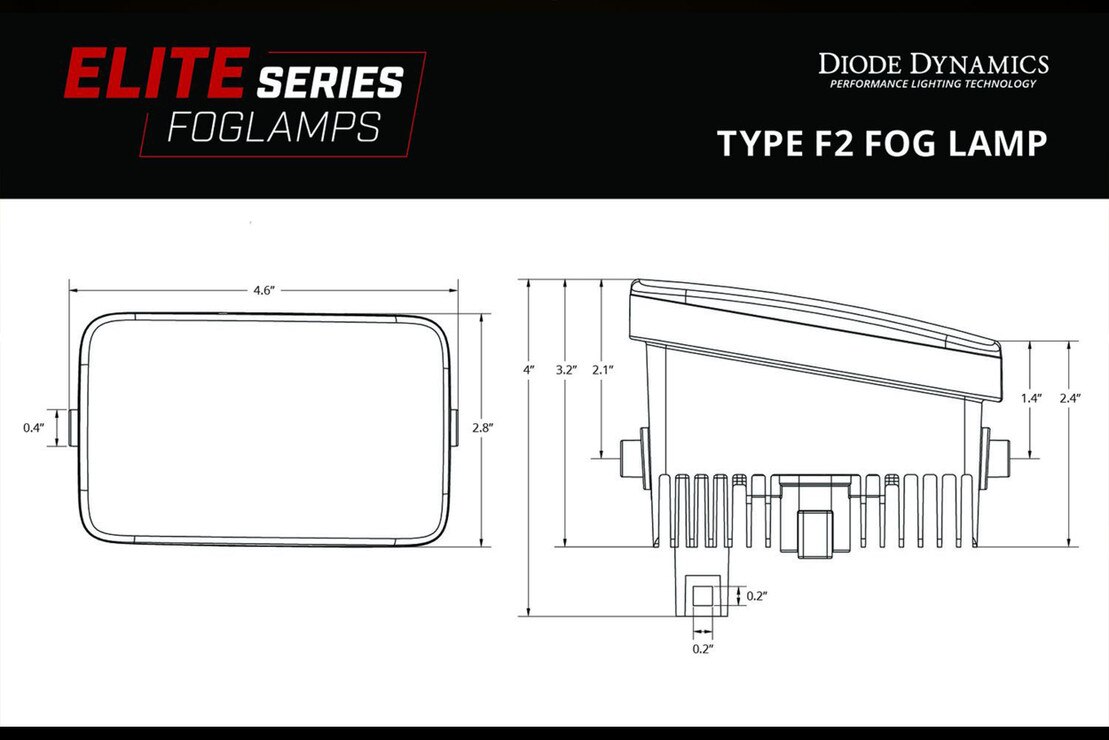

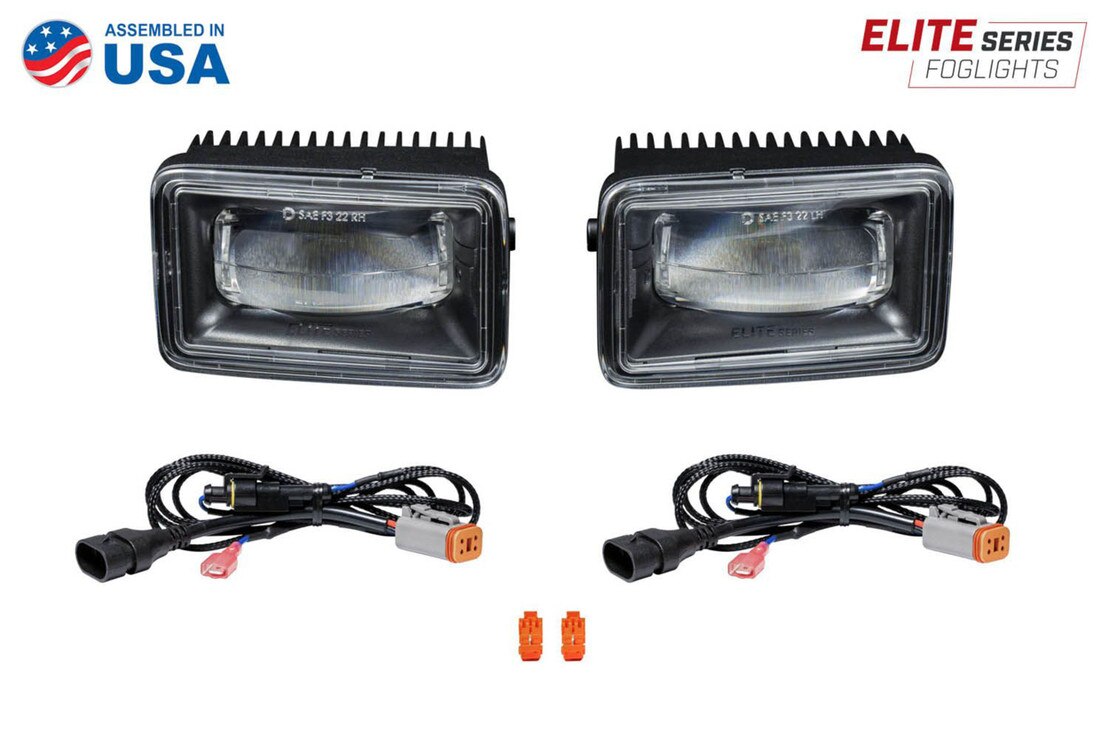

  • Fog Lights: 2x (One Pair) Elite Series Type F2 Fog Lights

  • Wiring: 2x (One Pair) Plug-n-Play 9005/9006 4-pin DT Backlight Tap Wires with T-taps

WARRANTY INFORMATION

This product is covered by a 8 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

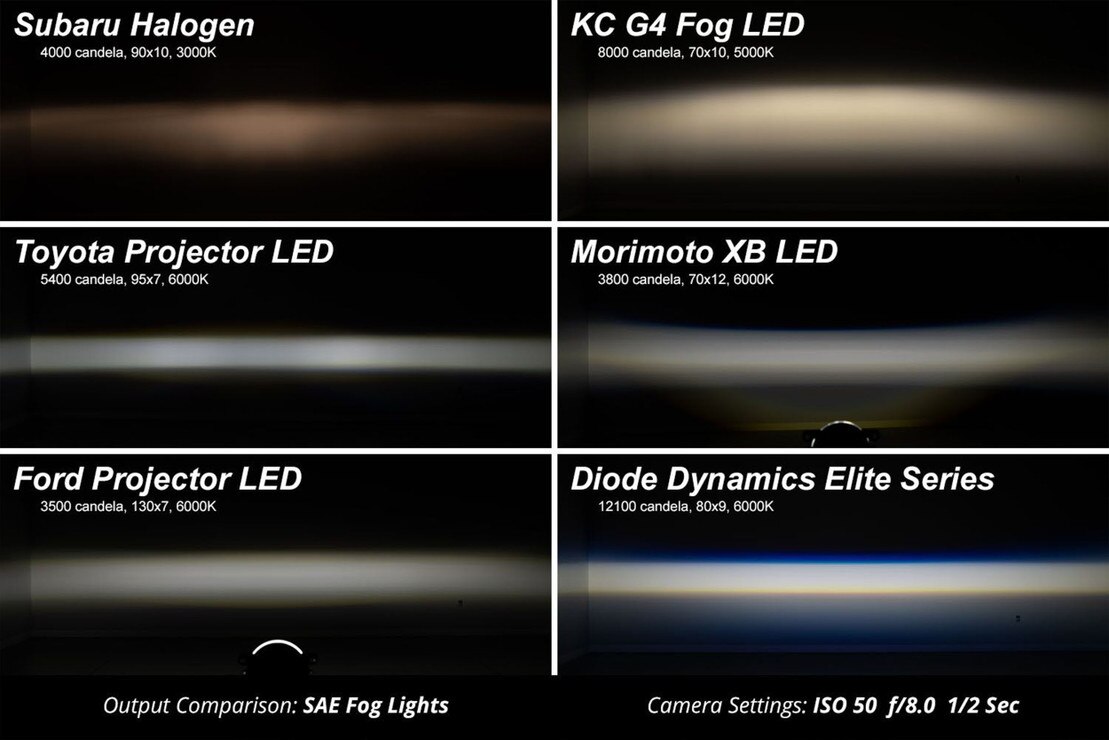

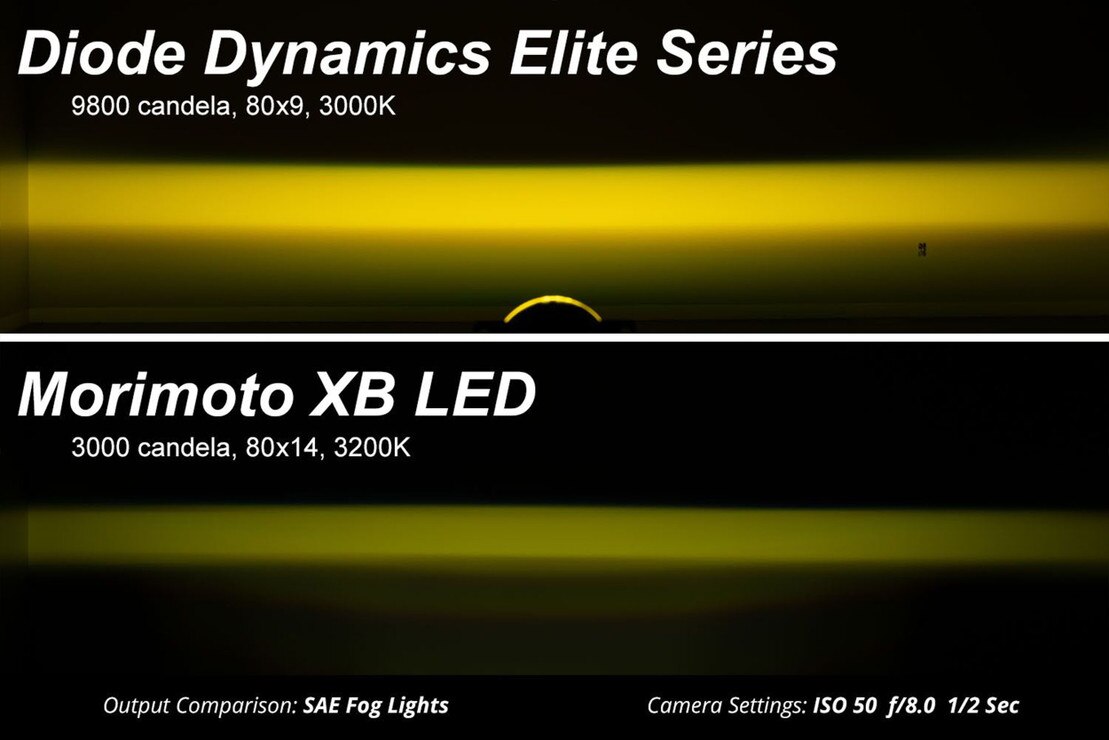

  • Intensity: 1,850 lm / 10,200 cd (White), 1,650 lm / 8,700 cd (Yellow)

  • Color Temp: 6000K (White), 3000K (Yellow)

  • Power: Main Beam White: 17w, Main Beam Yellow: 15w, Backlight: 0.3w

  • Input Voltage: 9-16v

  • Current: Main Beam White: 1.3A, Main Beam Yellow: 1.2A, Backlight: 0.025A

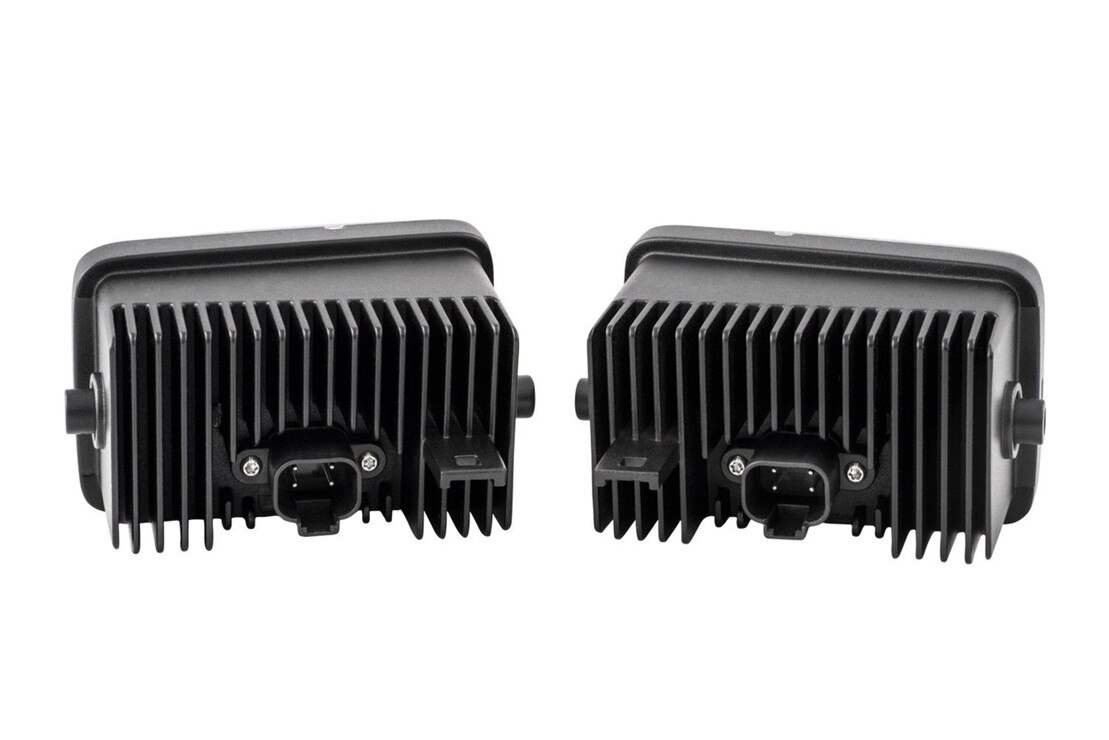

  • Input: Deutsch DT Input (Polarity Specific)

  • Material: Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting

  • Compliance: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern

  • IP Rating: IP68 Waterproof

COMPATIBILITY

  • Ford Super Duty: 2017-2022

  • NOTE: This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.
