Toyota Prius (10-16) Elite Series LED Fog (White / Yellow)

(0) No Reviews yet
Questions?

Brand: Diode Dynamics

3P-DD103-TRS

$259.95

PRODUCT OPTIONS

PART #: 1 x DD5134P



DESCRIPTION

Elevate your driving experience with the revolutionary Elite Series Fog Lamps designed for 10-16 Toyota Prius models. Crafted by industry leader Diode Dynamics, these innovative LED fog lights redefine visibility standards. Boasting a patent-pending optic, multi-die emitters, and full-copper circuit boards, they offer an astounding 5-fold increase in brightness compared to traditional halogens. Installation is a breeze thanks to the plug-and-play design, instantly upgrading your visibility in just minutes. Engineered with a single-piece PMMA lens, these fog lamps deliver a smooth, wide light pattern that aligns with on-road regulations while eliminating glare. Take your pick between the stylish cool white 6000K or the high-contrast selective yellow 3000K options, both ensuring exceptional efficiency. The integrated amber accent light adds a touch of elegance, backed by Diode Dynamics' renowned commitment to quality and innovation.

FEATURES & BENEFITS

  • Elevate Your Driving: Diode Dynamics' Elite Series Fog Lamps enhance visibility with advanced LED technology.
  • Superior Brightness: Outshining factory and aftermarket options, they deliver 5x more brightness than halogens.
  • Easy Installation: Plug-and-play setup ensures improved visibility in minutes.
  • Elegant Design: Available in 6000K cool white or 3000K selective yellow, with an integrated amber accent light.

WHAT’S INCLUDED

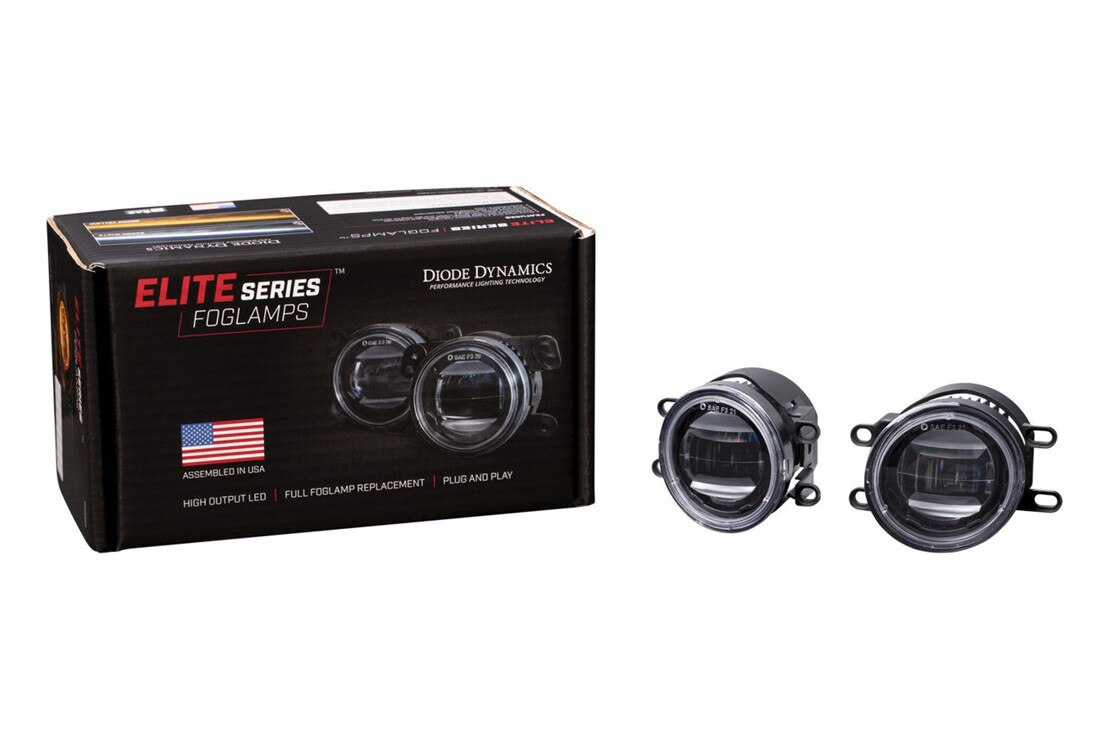

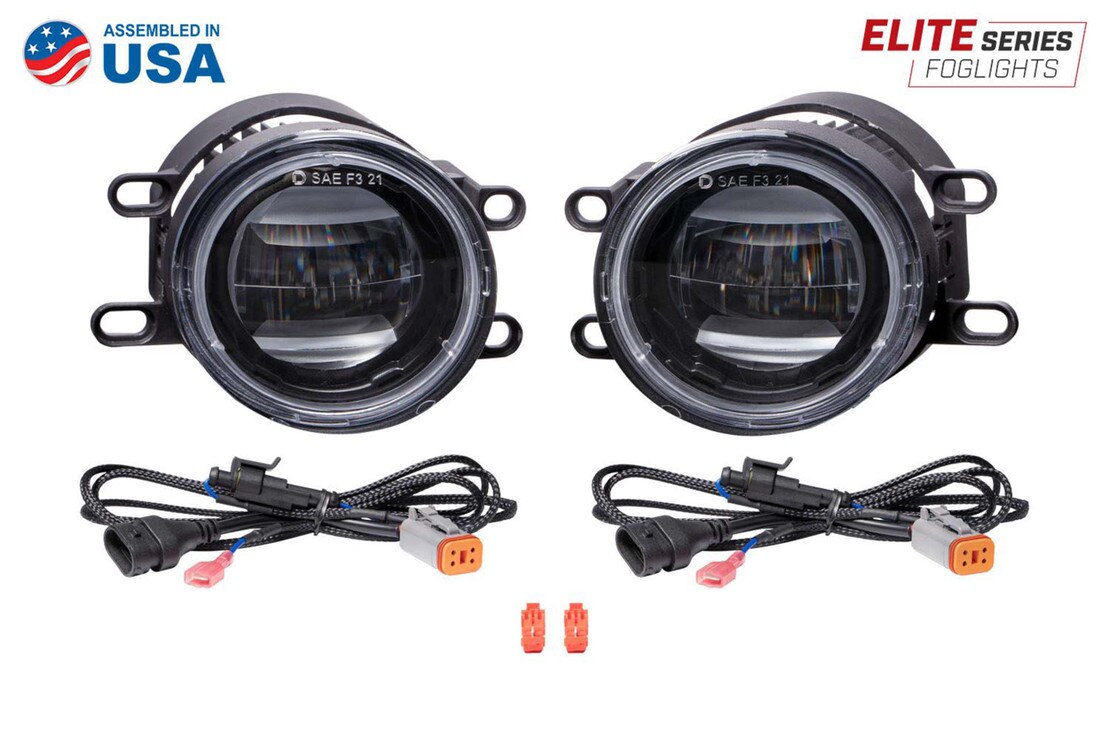

  • Fog Lights : 2x (One Pair) Elite Series Type B Fog Lights

  • Wiring : 2x (One Pair) Plug-n-Play H11 4-pin DT Backlight Tap Wires with T-taps

WARRANTY INFORMATION

This product is covered by a 8 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

  • Intensity : 1,850 lm / 10,200 cd (White), 1,650 lm / 8,700 cd (Yellow)

  • Color Temp : 6000K (White), 3000K (Yellow)

  • Power : Main Beam White: 17w, Main Beam Yellow: 15w, Backlight: 0.3w

  • Input Voltage : 9-16v

  • Current : Main Beam White: 1.3A, Main Beam Yellow: 1.2A, Backlight: 0.025A

  • Input : Deutsch DT Input (Polarity Specific)

  • Material : Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting

  • Compliance : SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern

  • IP Rating : IP68 Waterproof

COMPATIBILITY

  • Toyota Prius : 2010-2011 / 2015-2016

  • Toyota Prius C : 2012-2016

  • Toyota Prius V : 2012-2016

  • NOTE : This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.
