  • Ford Mustang (15-17) Elite Series LED Fog Lights

Ford Mustang (15-17) Elite Series LED Fog (White / Yellow)

(0) No Reviews yet

Brand: Diode Dynamics




PART #: 1 x DD5128P

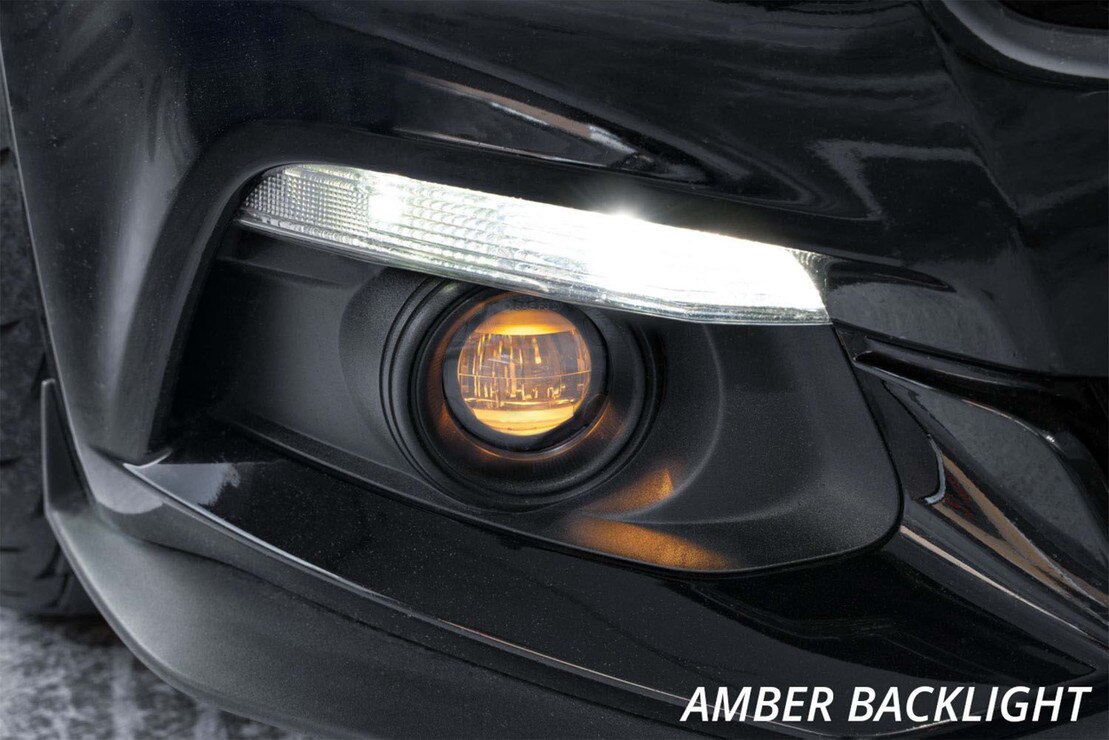

Revolutionize your drive with Diode Dynamics' Elite Series Fog Lamps for 15-17 Ford Mustangs. These cutting-edge LEDs redefine fog light performance, boasting a patent-pending optic, multi-die emitters, and full-copper circuit boards for 5x brighter output compared to halogens. Install in minutes with a plug-and-play setup, enhancing visibility in challenging conditions. Experience a wide, glare-free light pattern through the precision-engineered PMMA lens that meets on-road standards. Choose from cool white 6000K or high-contrast selective yellow 3000K options, both with unmatched efficiency. With an integrated amber accent light and an 8-year limited warranty, elevate your driving experience with Diode Dynamics' trusted LED innovation.


  • Brighter Fog Lights: 5x brighter than halogens for improved visibility.
  • Advanced LED Technology: Features patented optic, multi-die emitters, and copper circuit boards.
  • Easy Installation: Plug-and-play setup for quick installation.
  • Precise Light Pattern: PMMA lens ensures glare-free, road-compliant illumination.
  • Color Options & Warranty: Choose 6000K or 3000K light with an 8-year warranty.

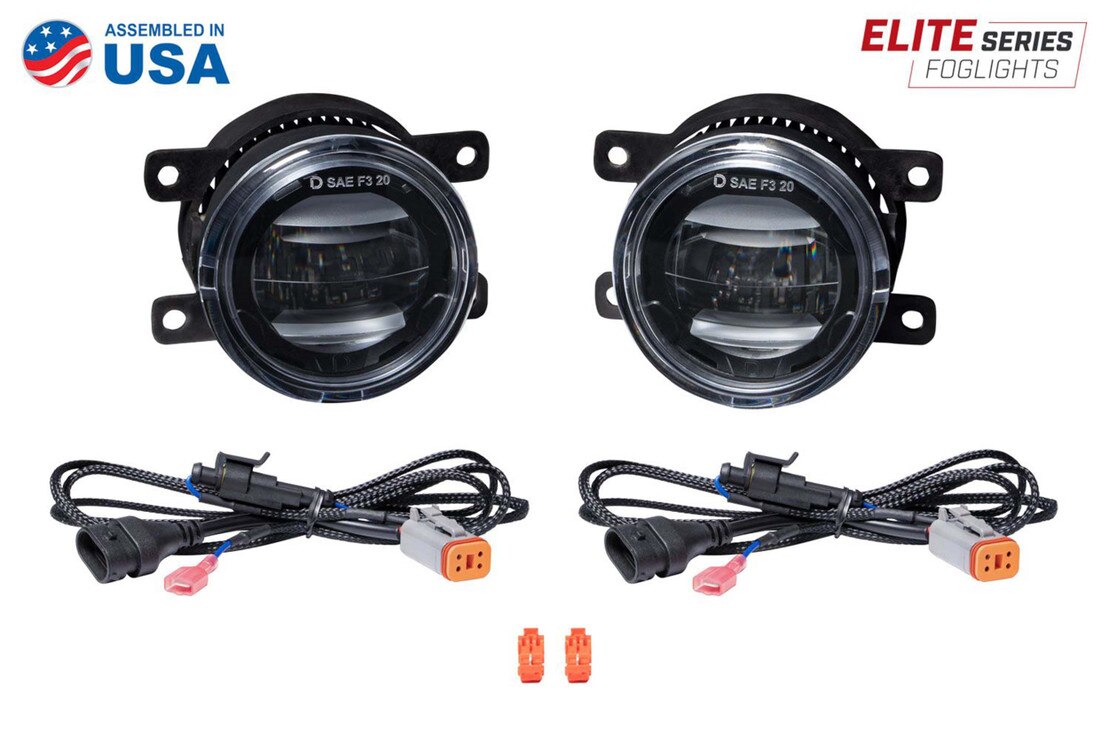

  • Fog Lights: 2x (One Pair) Elite Series Type A Fog Lights

  • Wiring: 2x (One Pair) Plug-n-Play H11 4-pin DT Backlight Tap Wires with T-taps


This product is covered by a 3 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.


  • Intensity: 1,850 lm / 10,200 cd (White), 1,650 lm / 8,700 cd (Yellow)

  • Color Temp: 6000K (White), 3000K (Yellow)

  • Power: Main Beam White: 17w, Main Beam Yellow: 15w, Backlight: 0.3w

  • Input Voltage: 9-16v

  • Current: Main Beam White: 1.3A, Main Beam Yellow: 1.2A, Backlight: 0.025A

  • Input: Deutsch DT Input (Polarity Specific)

  • Material: Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting

  • Compliance: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern

  • IP Rating: IP68 Waterproof


  • Ford Mustang: 2015-2017

  • NOTE: This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.
