Ford F-150 (15-20) Elite Series LED Fog (White / Yellow)

(0) No Reviews yet
Questions?

Brand: Diode Dynamics

3P-DD86-TRS

$219.95

PRODUCT OPTIONS

PART #: 1 x DD5171P



DESCRIPTION

Enhance your driving experience with Diode Dynamics' Elite Series Fog Lamps, tailored for 2015-2020 Ford F-150 trucks. Unveiling a new era of illumination, these advanced LED fog lamps outshine both factory and aftermarket alternatives in performance and aesthetics. Engineered with pioneering features including patent-pending optics, multi-die emitters, and full-copper circuit boards, they achieve an unparalleled brightness, surpassing traditional halogens by 5 times. Designed for effortless plug-and-play setup, these lamps instantly improve visibility in challenging driving conditions. Crafted with a meticulously engineered single-piece PMMA lens, they ensure a compliant on-road light pattern, offering broader coverage, reduced glare, and the option to select either a crisp 6000K cool white or a high-contrast 3000K selective yellow light. The integrated amber accent light adds an extra layer of refinement to your vehicle. Crafted in the USA, these fog lamps are backed by an impressive 8-year limited warranty, reflecting their quality and durability.

FEATURES & BENEFITS

  • Enhanced Driving: Diode Dynamics' Elite Series Fog Lamps for 2015-2020 Ford F-150 trucks.

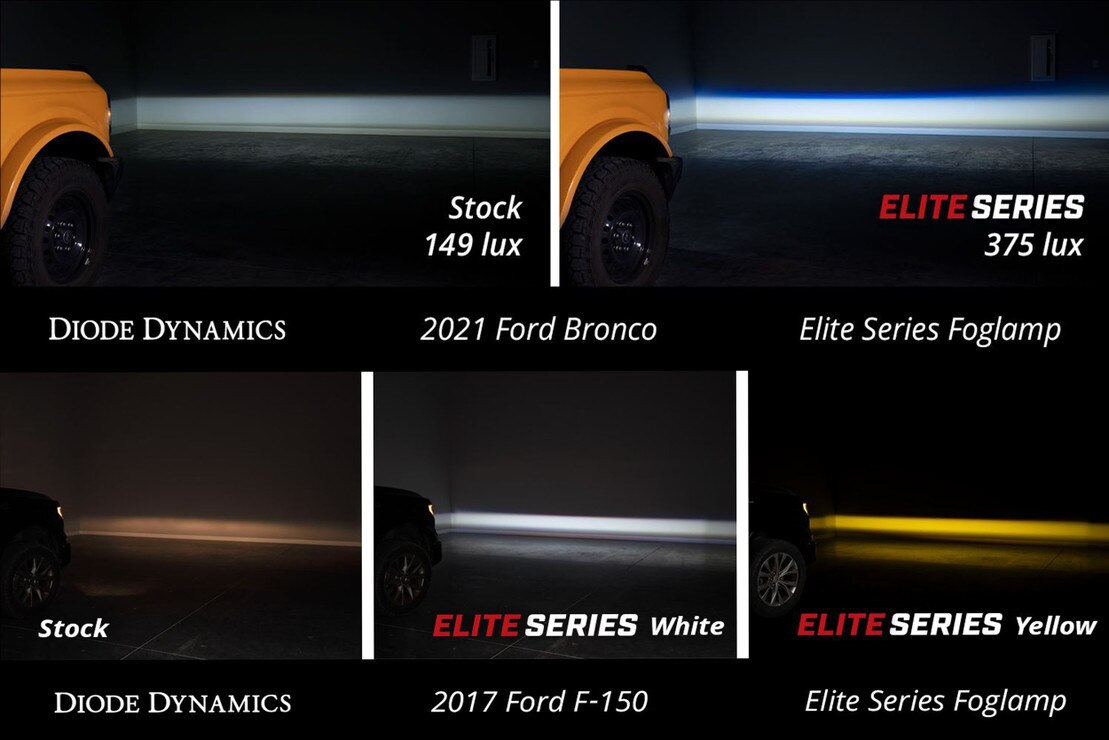

  • Superior Illumination: LED lamps outshine others with patent-pending optics and 5x brightness.
  • Easy Setup: Plug-and-play installation, compliant on-road light pattern, and color options.
  • Premium Quality: Crafted in the USA, backed by an 8-year warranty.

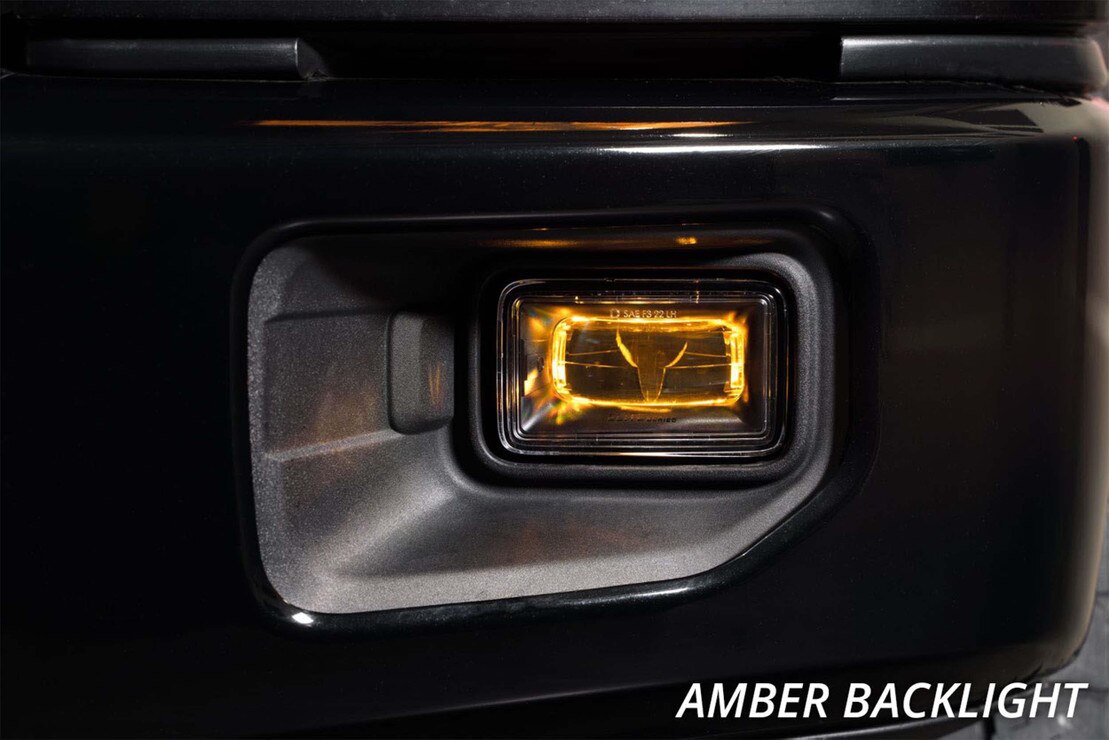

  • Distinctive Style: Integrated amber accent light adds refinement to your vehicle.

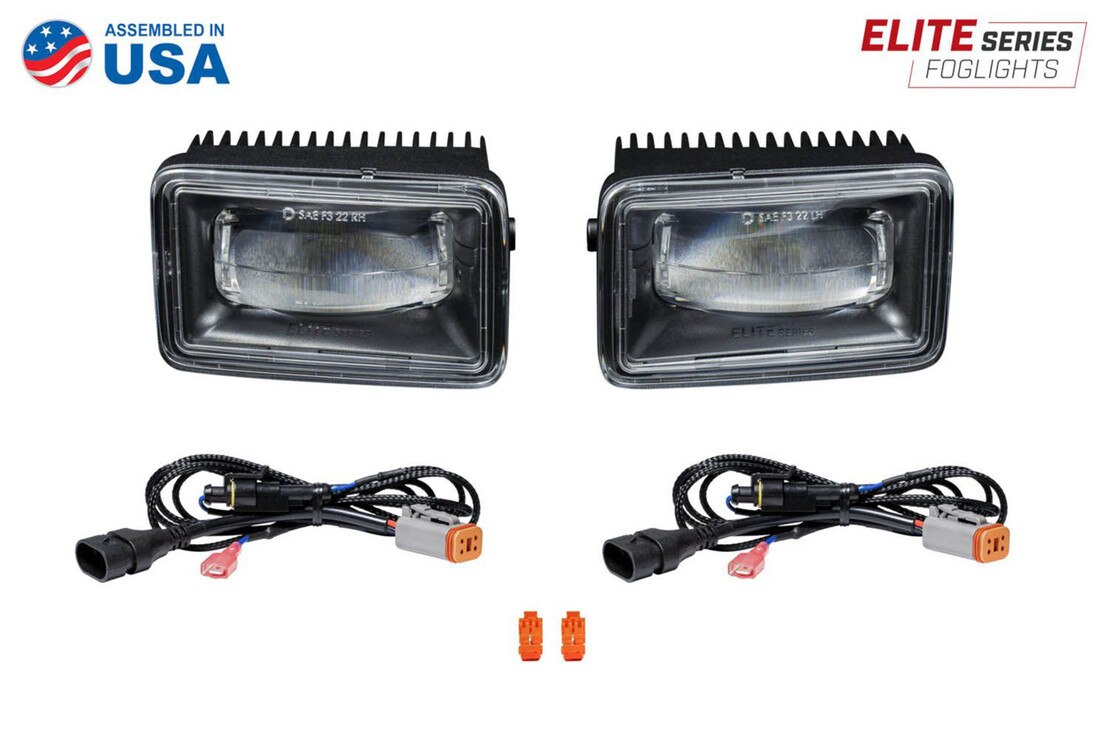

WHAT’S INCLUDED

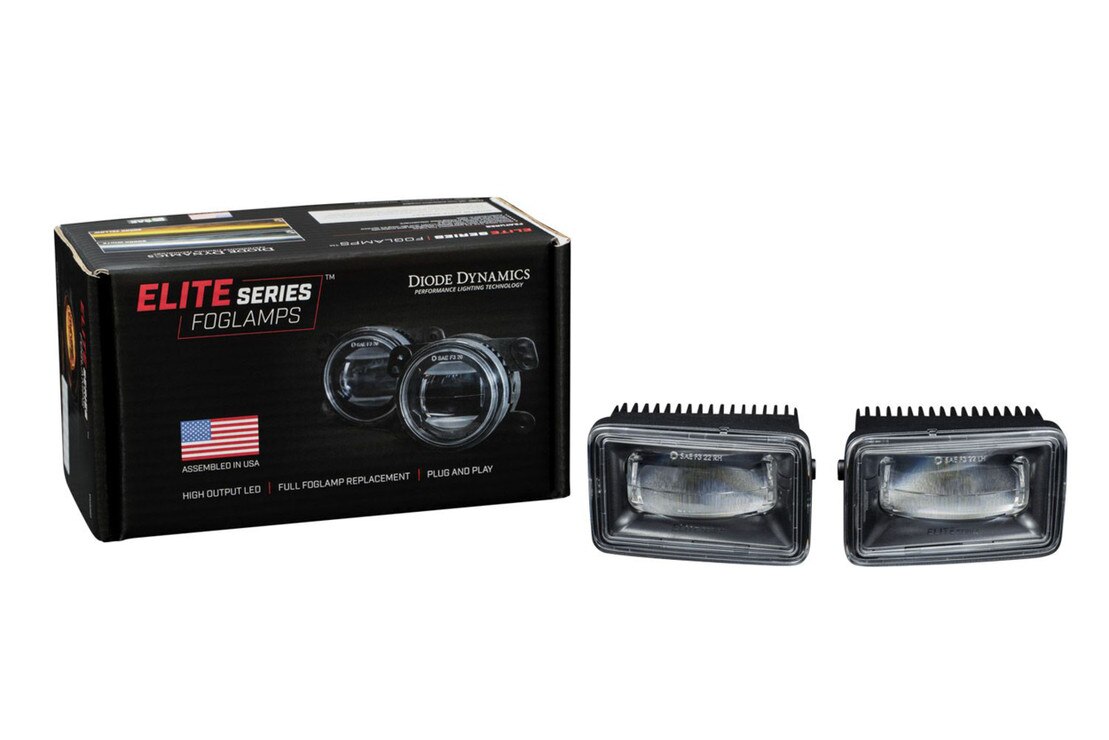

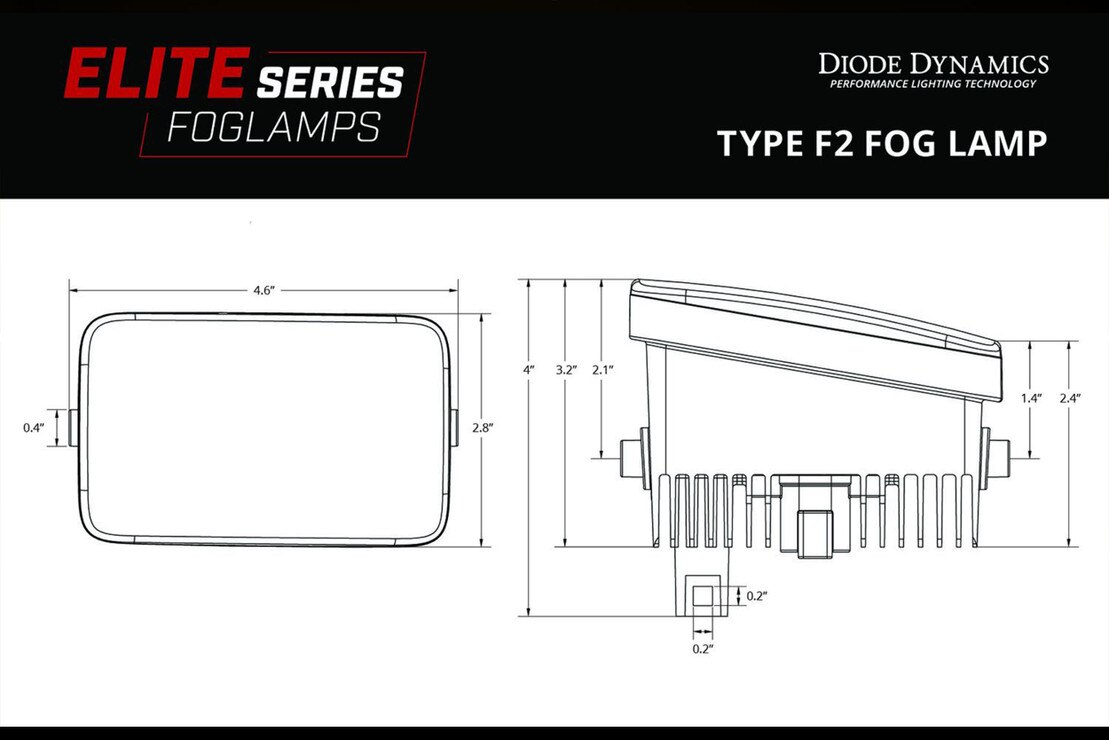

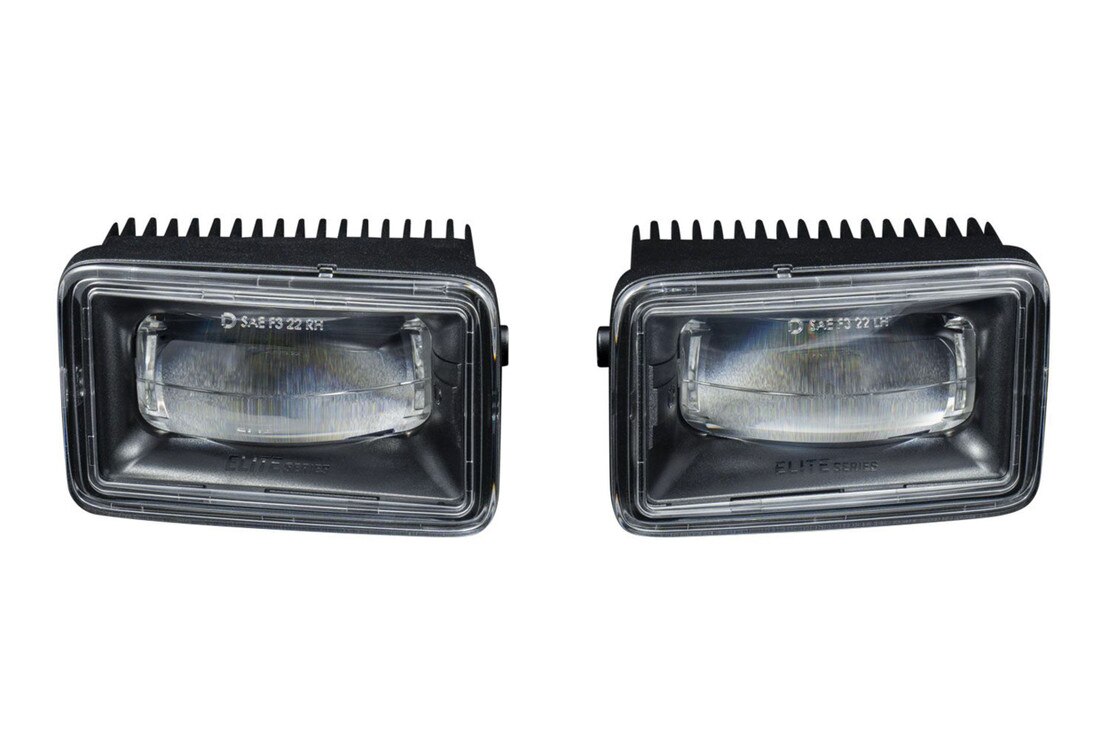

  • Fog Lights: 2x (One Pair) Elite Series Type F2 Fog Lights

  • Wiring: 2x (One Pair) Plug-n-Play 9005/9006 4-pin DT Backlight Tap Wires with T-taps

WARRANTY INFORMATION

This product is covered by a 8 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

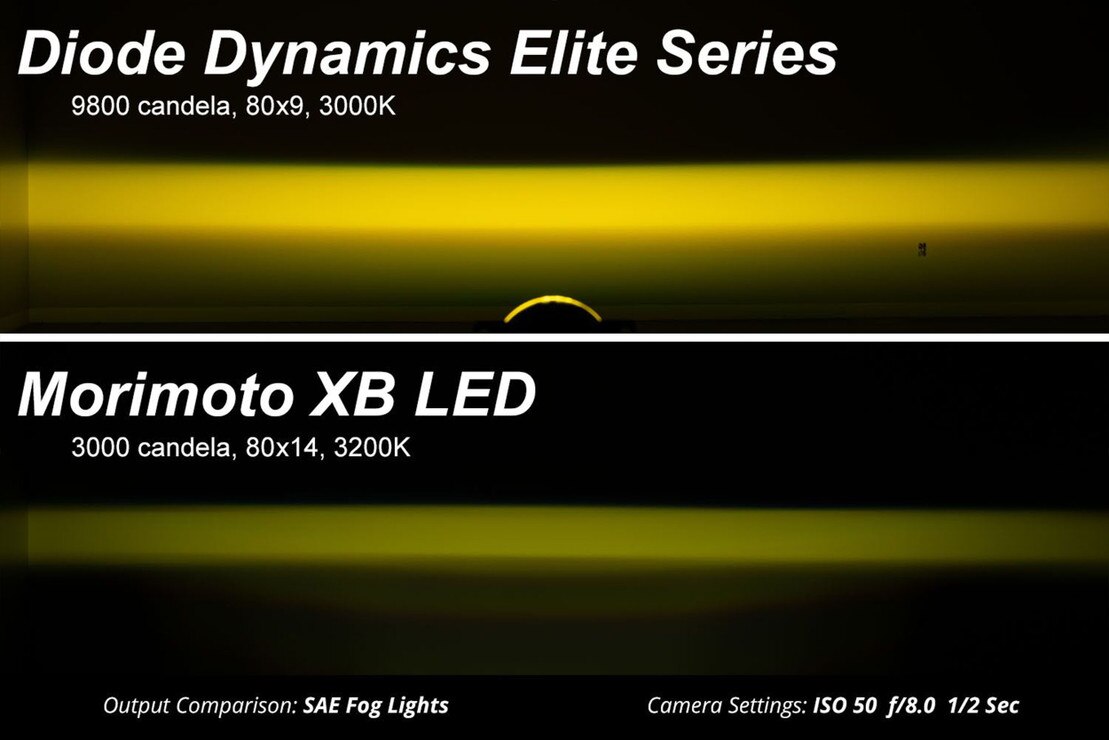

  • Intensity: 1,850 lm / 10,200 cd (White), 1,650 lm / 8,700 cd (Yellow)

  • Color Temp: 6000K (White), 3000K (Yellow)

  • Power: Main Beam White: 17w, Main Beam Yellow: 15w, Backlight: 0.3w

  • Input Voltage: 9-16v

  • Current: Main Beam White: 1.3A, Main Beam Yellow: 1.2A, Backlight: 0.025A

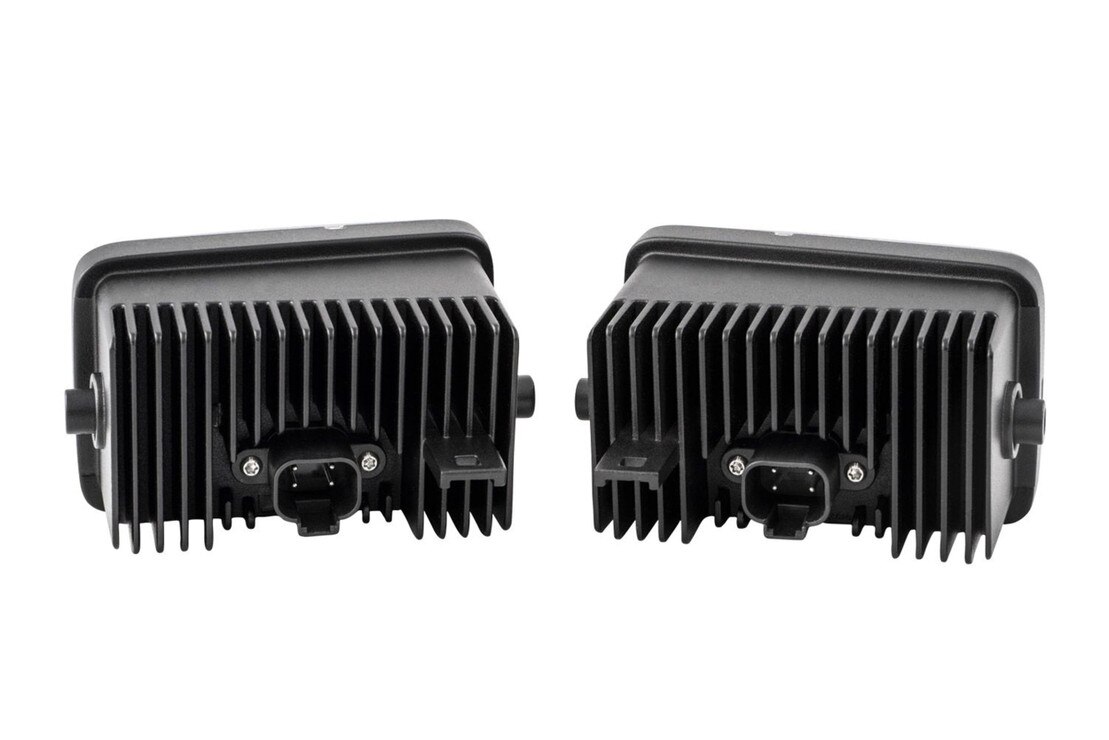

  • Input: Deutsch DT Input (Polarity Specific)

  • Material: Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting

  • Compliance: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern

  • IP Rating: IP68 Waterproof

COMPATIBILITY

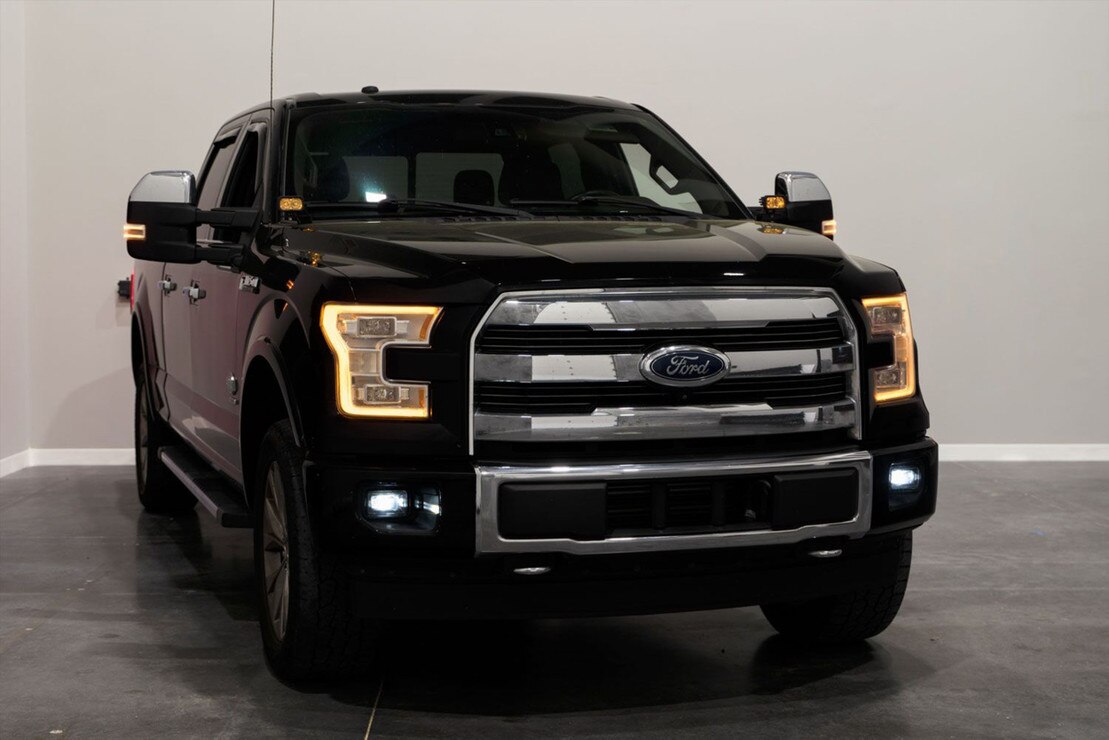

  • Ford F-150: 2015-2020

  • NOTE: This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.
