DESCRIPTION
FEATURES & BENEFITS
- Enhanced Visibility: Elite Series Fog Lamps redefine visibility with advanced LED technology.
- Brightness: Five times brighter than halogens, thanks to patent-pending optics and full-copper circuitry.
- Easy Upgrade: Plug-and-play design for quick installation in minutes.
- Regulation-Compliant: One-piece PMMA lens for wide, glare-free light dispersion.
- Customizable: Choose 6000K or 3000K options, with an elegant built-in amber accent light.
WHAT’S INCLUDED

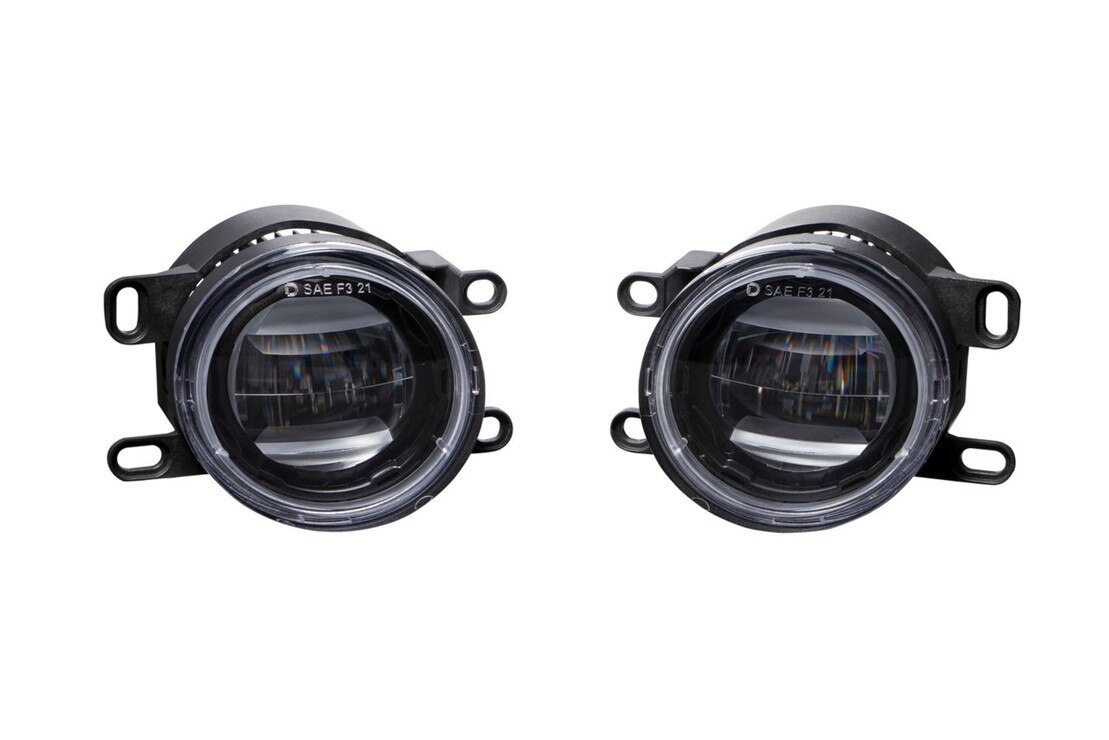

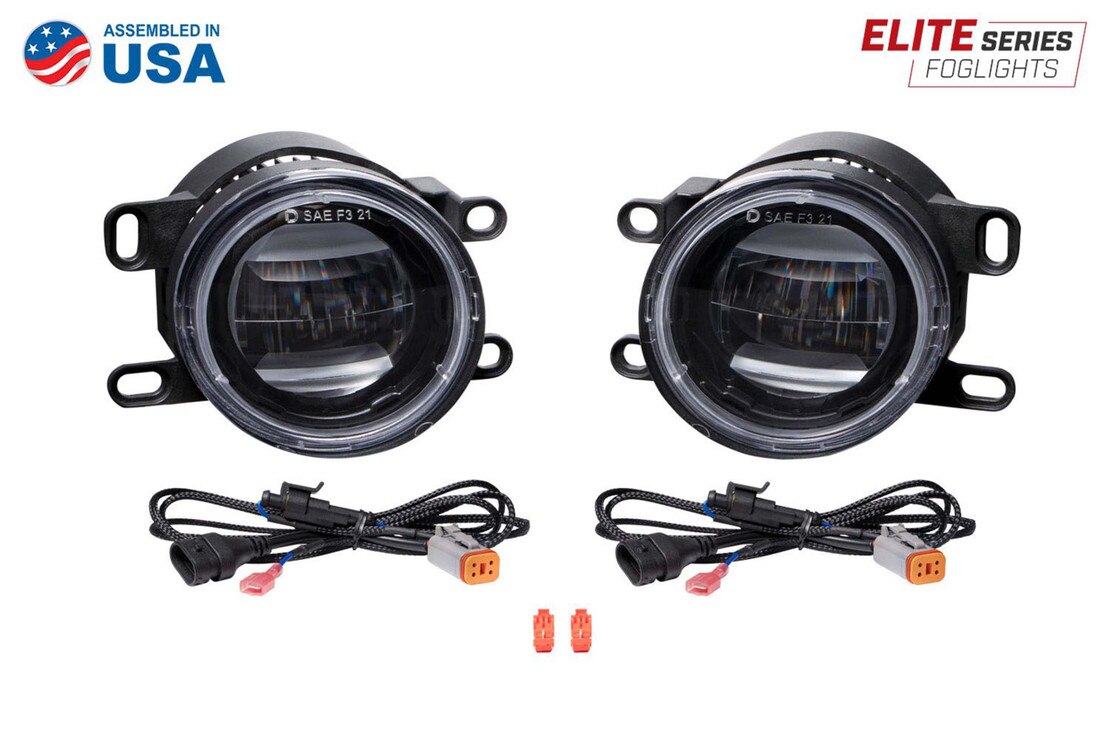

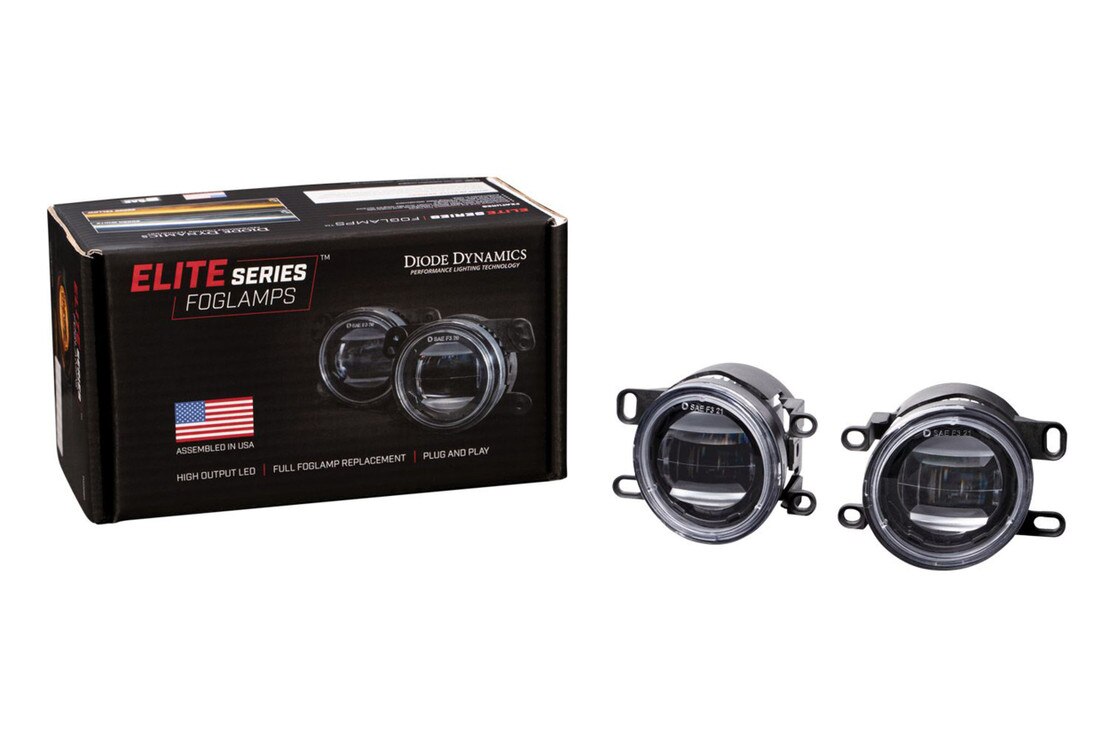

Fog Lights : 2x (One Pair) Elite Series Type CGX Fog Lights
Wiring : 2x (One Pair) Plug-n-Play H11 4-pin DT Backlight Tap Wires with T-taps
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS

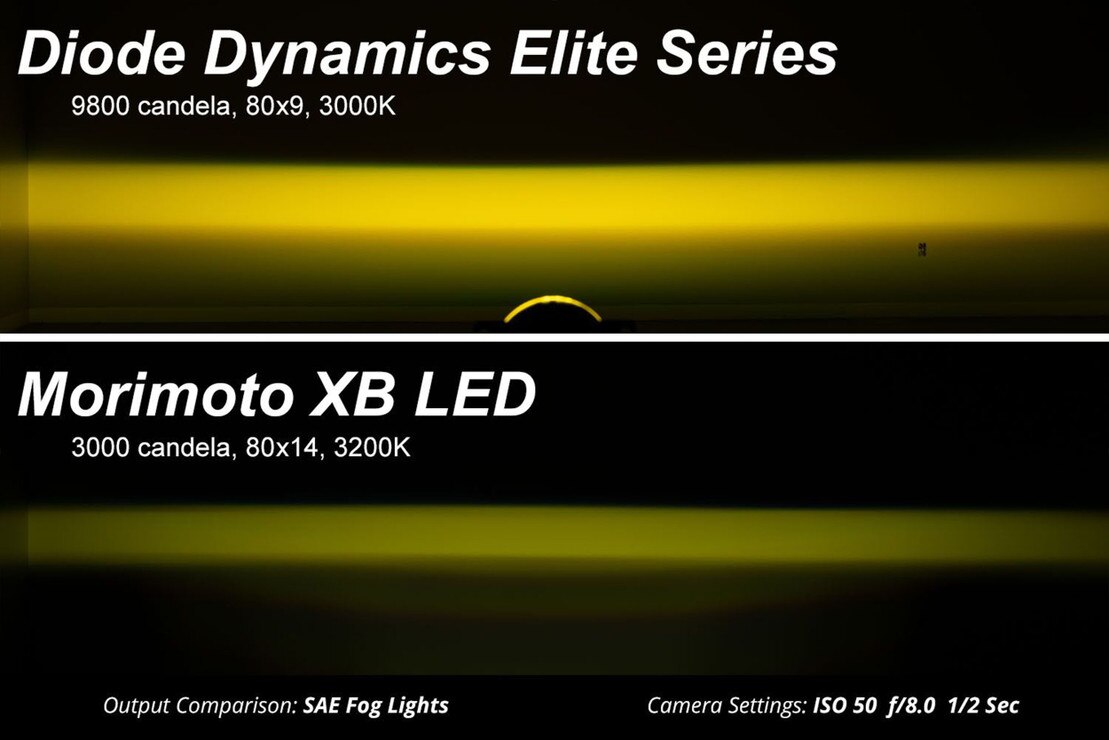

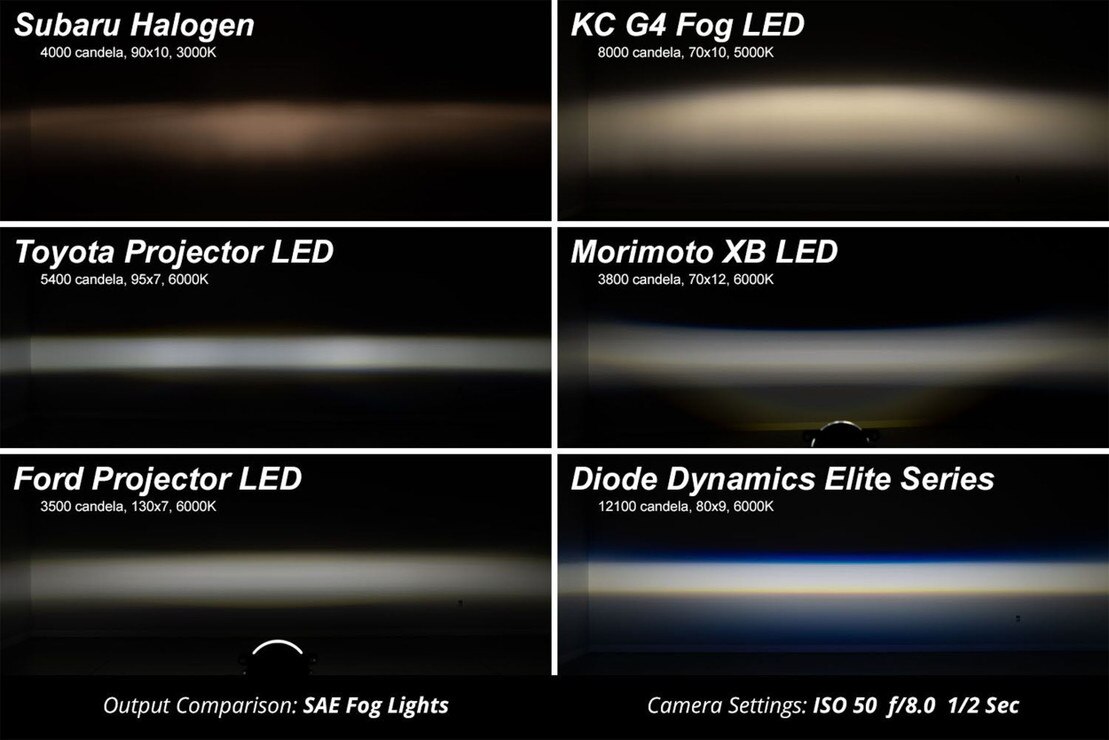

Intensity : 1,850 lm / 10,200 cd (White), 1,650 lm / 8,700 cd (Yellow)
Color Temp : 6000K (White), 3000K (Yellow)
Power : Main Beam White: 17w, Main Beam Yellow: 15w, Backlight: 0.3w
Input Voltage : 9-16v
Current : Main Beam White: 1.3A, Main Beam Yellow: 1.2A, Backlight: 0.025A

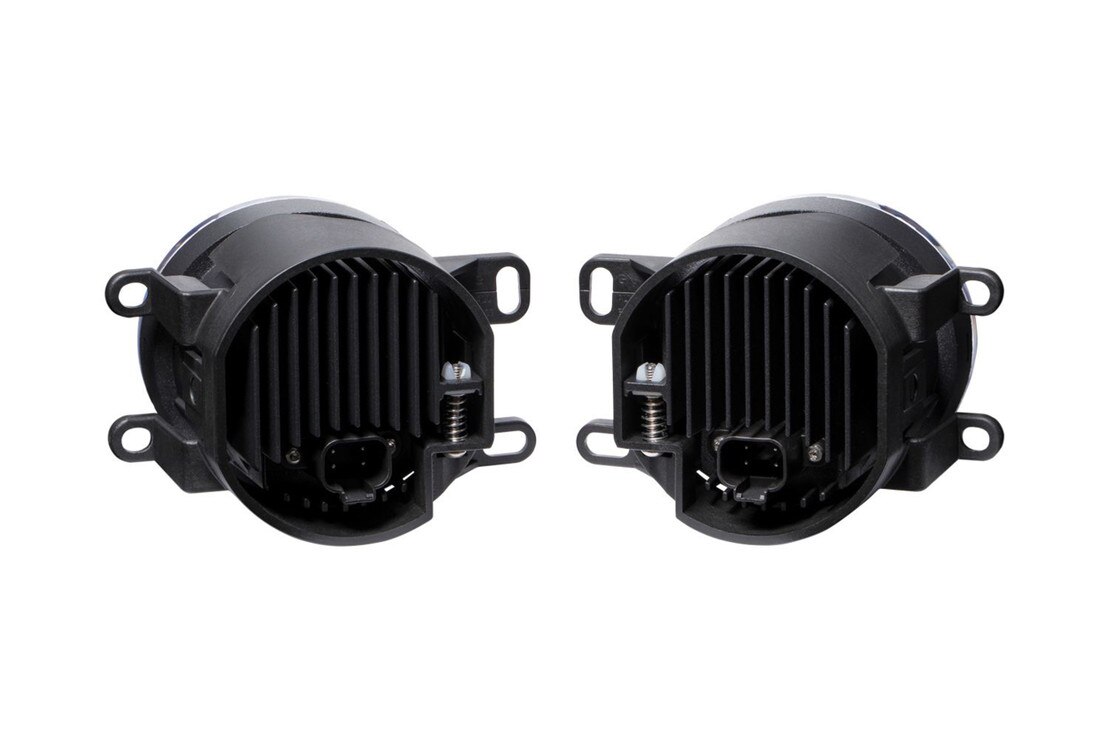

Input : Deutsch DT Input (Polarity Specific)
Material : Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting
Compliance : SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern
IP Rating : IP68 Waterproof
COMPATIBILITY
Toyota 4Runner : 2010-2013
NOTE : This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.
