Bolt-On by Diode Dynamics
Bumper-Mount LED Light Bar Kit: Colorado/Canyon (15-20)3P-DD59-TRS
[ In Stock: 0 pieces ]

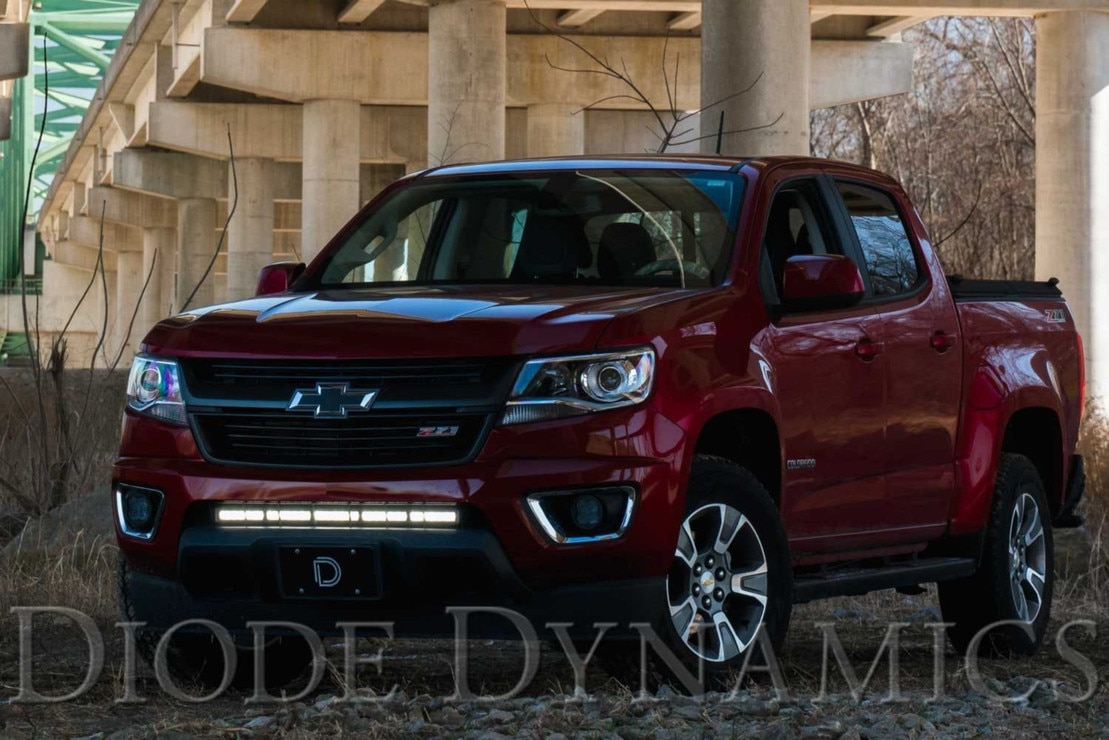

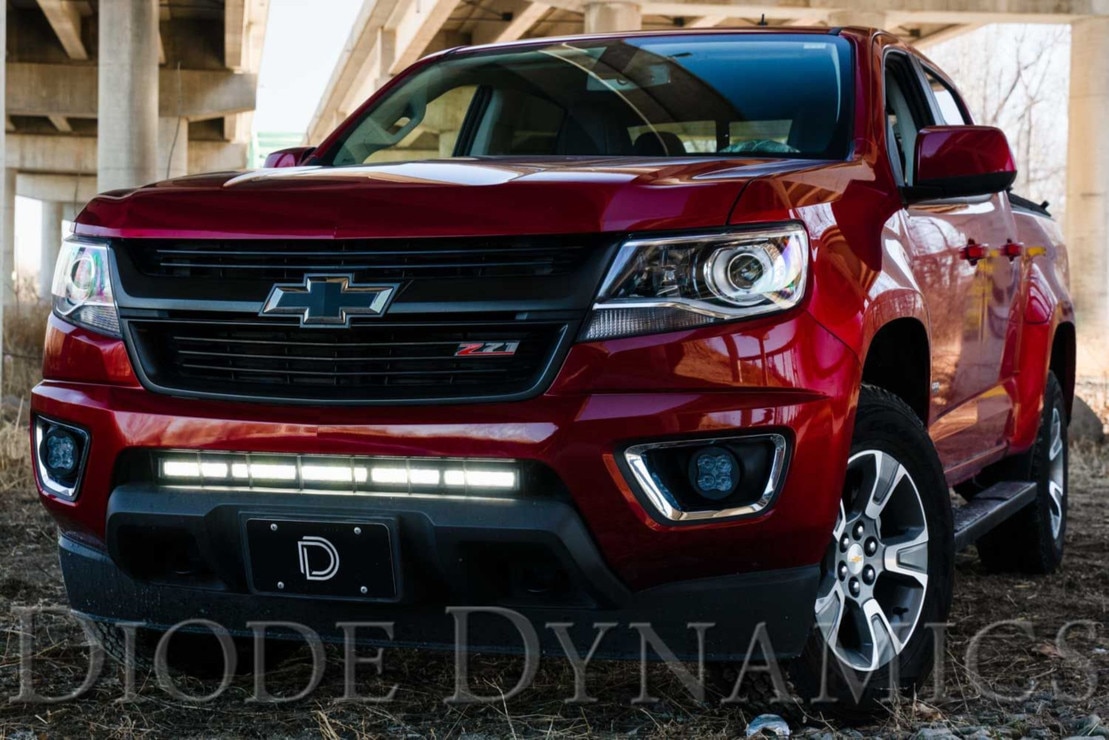

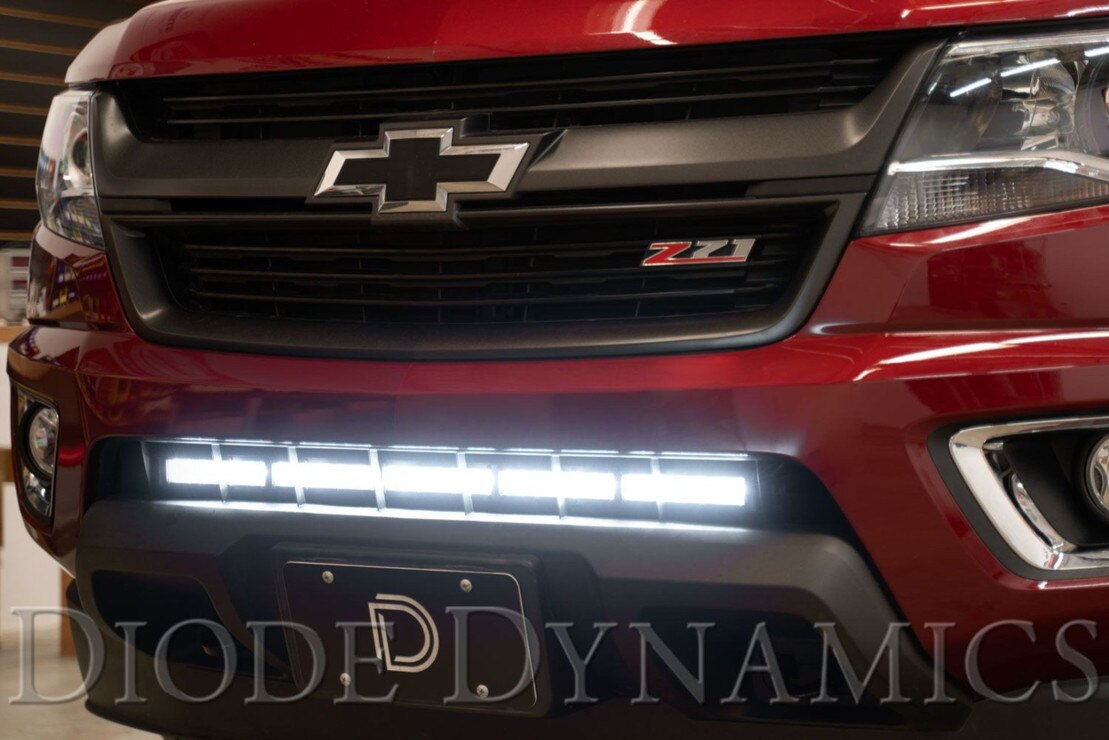

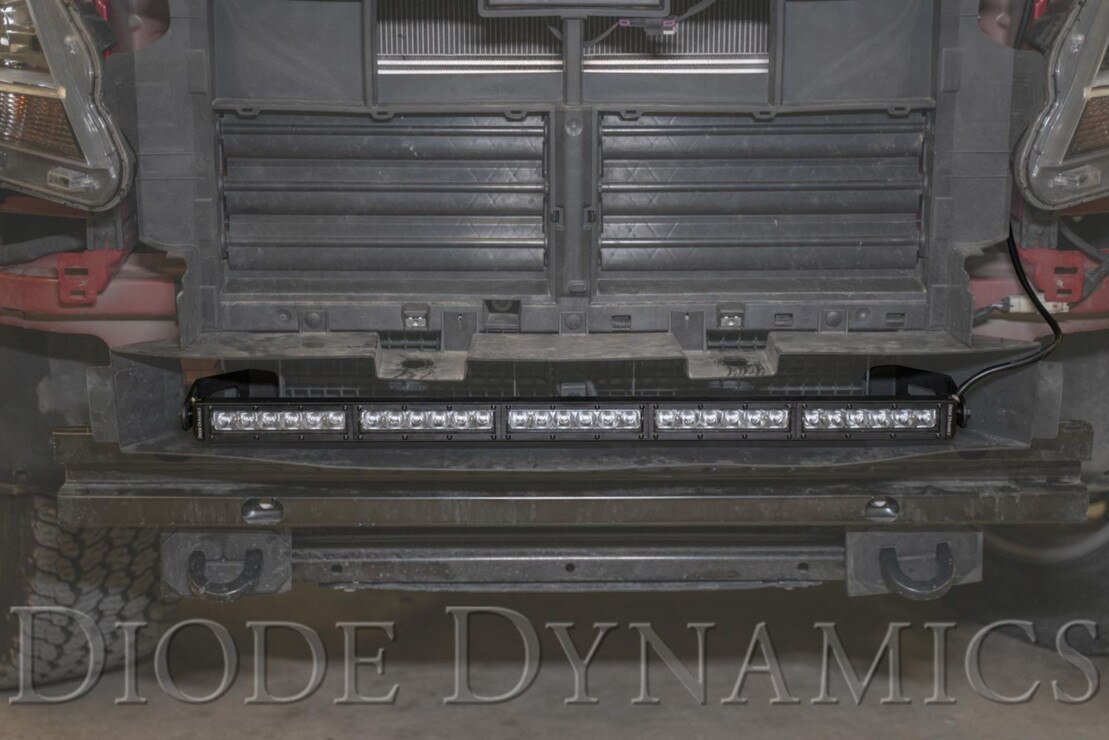

Perfect fitment: The Stealth LED Light Bar Kit for the 2015-2020 Chevrolet Colorado from Diode Dynamics allows you to easily mount a 30" light bar in the factory lower bumper opening. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! This kit retains the factory lower grille for a clean, OEM-like appearance.
Designed For Performance Using optical simulation model'g, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market.

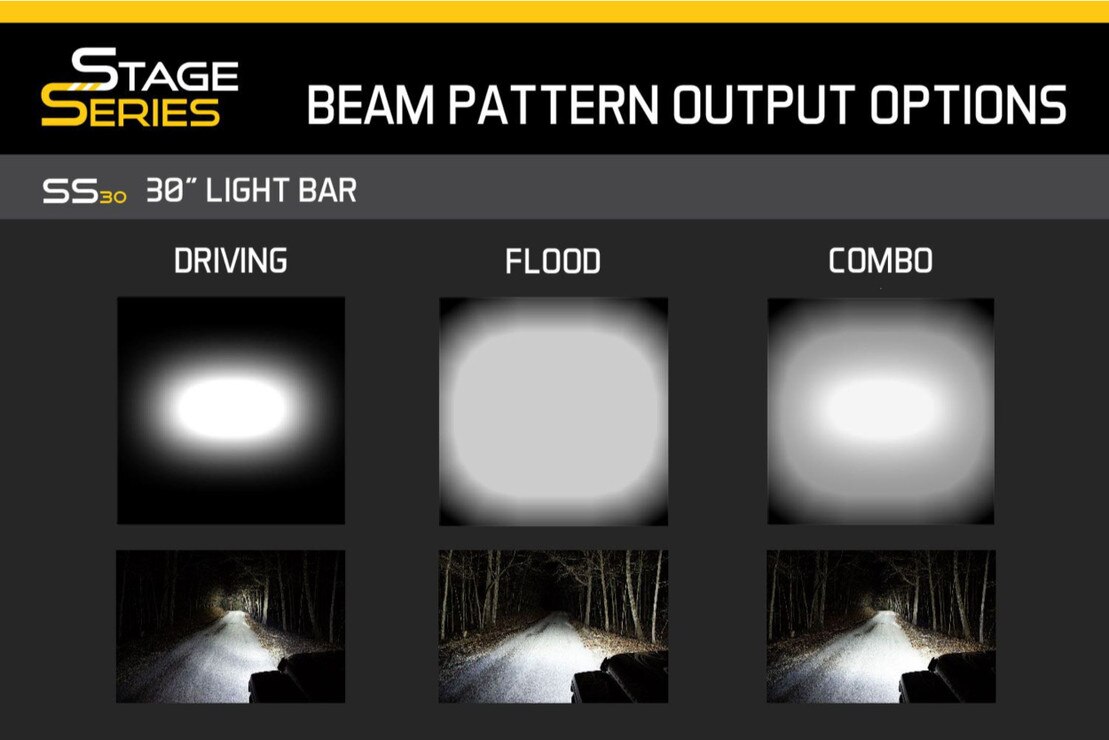

Functional Patterns All Stage Series beam pattern options were designed with optical simulation model'g, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!
The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.

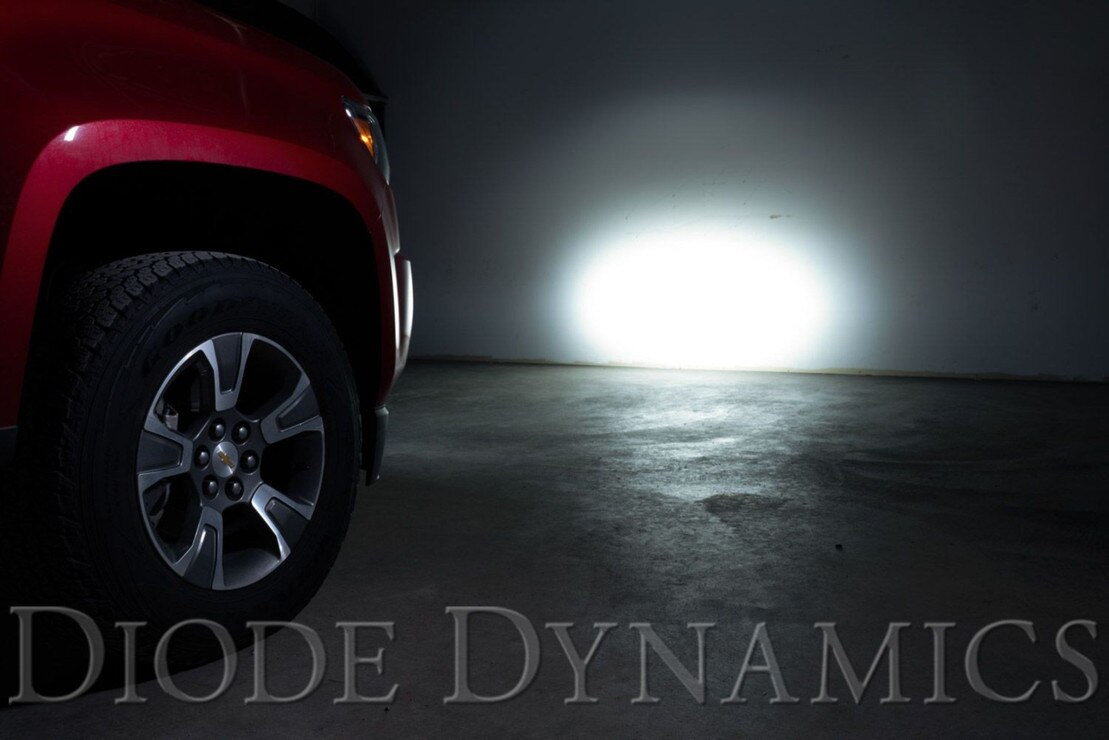

The Flood pattern was designed to provide uniform, even illumination and a full 80Wx50H degree spread of light. Unlike generic "flood" light optics that are simply a heavily diffused spot, our flood optic is a true optically designed spread, resulting in the biggest spread in the industry! It is perfect for lighting up anything at low speeds, a backup or reverse light, or to light up a worksite.

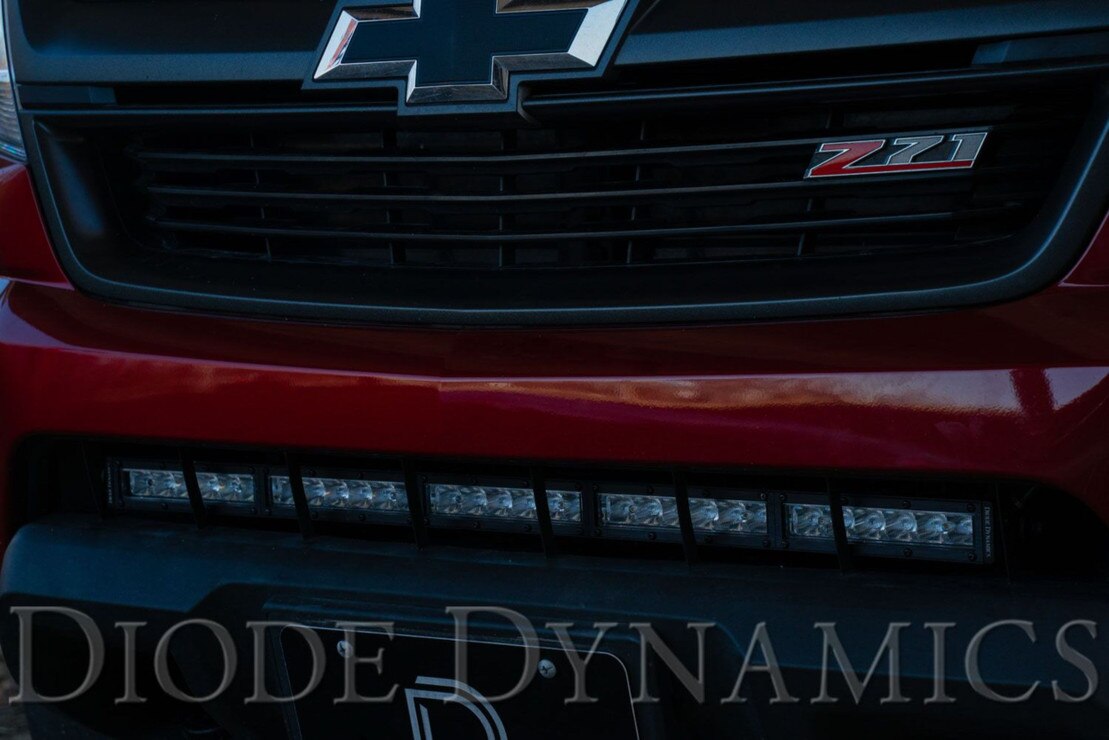

The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating area around it in a full 80Wx50H degree spread. The Stage Series 30in combo Light Bar features three driving lenses in the middle with two flood lenses on the outer edges.
Made in the USA: If you're a lighting enthusiast who only buys American; Diode Dynamics is a clear winner in that category. One of very few brands in the automotive lighting industry who designs, engineers, and proudly produces their products right here in St. Louis, MO. We've sold their products for many years and are confident you won't be let down in the performance or quality departments. There's no better place to buy Diode Dynamics lighting upgrades for your car or truck.
Focus: Since 2005, we have focused our efforts on lighting and that's it. Experience means we know the products. We know the technology. We know our competitors, and most importantly, we know our customers. We like to wrench. We like to drive, we like to ride, and like you: we demand the best for whatever it is that gets us going. That's why at LED Concepts; we only stock the shelves with today's best, brightest, and most badass LED Lighting upgrades.

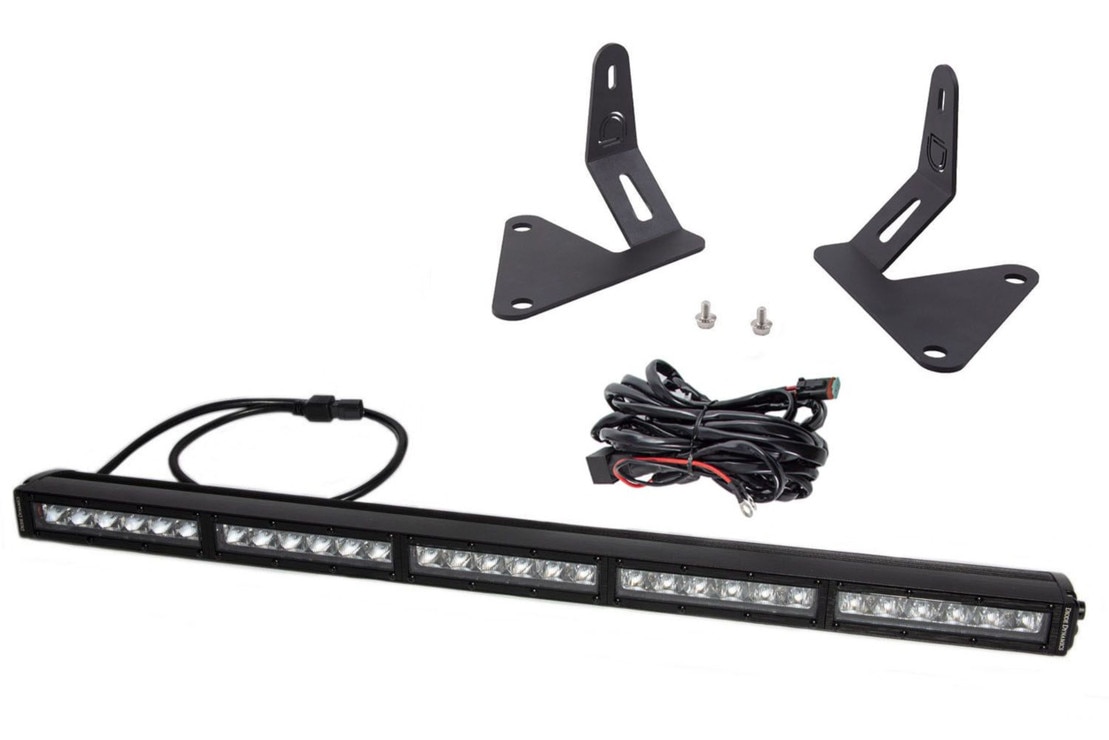

2x: Application-specific heavy-duty steel brackets for installation on 2015-2020 Colorad/Canyon
Quantity: One (1) SS30 Stage Series 30" Light Bars
1x: OEM Auxillary Switch Dual-Output Harness
1x: Heavy Duty Dual-Output Harness
Hardware: All Necessary Hardware
1x: Installation Guide
Warranty: 3 year warranty
100%: Satisfaction Guarantee
Chevrolet Colorado: 2015-2020
GMC Canyon: 2015-2020
Color Temp (CCT): 2000K, 6000K
Beam Angle: Driving, 20degx8deg, Combo (Driving and Flood), Flood, 80degx50deg
Power (watts): 137.2
Operating Voltage: 9-16V
Current (amps @ 13.2V): 9.8
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES
Connector(s): Deutsch DT Input
Materials: Aluminum PCB
Cooling: Passive, heatsink
Product Dimensions (in): 31x3x1.63
