Jeep Wrangler JL (18-25) DOT LP6 LED Headlight Kit

(0) No Reviews yet
Questions?

Brand: Baja Designs

3P-BD101-TRS

$999.95

PRODUCT OPTIONS

PART #: 1 x BD44-8303

*Guaranteed Fitment

DESCRIPTION

Your Jeep deserves headlights as capable as the vehicle itself. The Baja Designs DOT LP6 is their first-ever road-legal headlight kit designed to fit seamless in the Jeep Wrangler JL and Gladiator JT with factory LED or Halogen headlights. Inspired by the same LP6 trusted in the toughest off-road races, it's been re-engineered utilizing projector optics to meet FMVSS 108 standards delivering maximum road-legal performance with Baja Designs racing DNA maintain that same iconic look. Featuring a standard high and low beam the DOT LP6 has integrated white, amber daytime running lights. And with JL/JT-specific brackets and wiring harness integration is effortless, with a factory fit that feels like it was always meant to be there. Backed by Baja Designs' 30-Day Satisfaction Guarantee and Lifetime Limited Warranty, the DOT LP6 is the ultimate combination of rugged durability, style, and road-legal usability.

FEATURES & BENEFITS

  • Street-Legal Power: Meets FMVSS 108 standards with projector optics for maximum legal brightness.
  • Vehicle-Specific Fit: Custom-built for Jeep JL/JT with factory LED or Halogen headlights.
  • Enhanced Visibility: High/low beams plus white and amber DRLs improve safety and style.
  • Race-Proven Design: Built on the LP6 platform trusted in extreme off-road racing.
  • Effortless Install: Includes JL/JT brackets, harness, and backed by a lifetime warranty.

WHAT’S INCLUDED

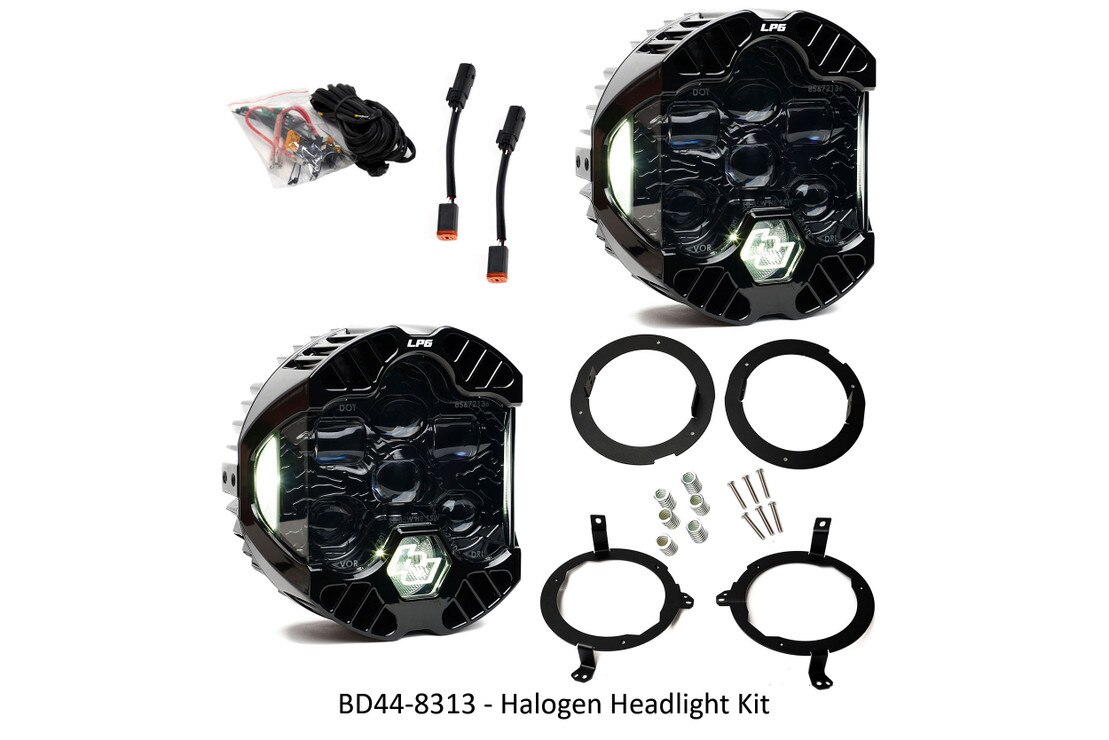

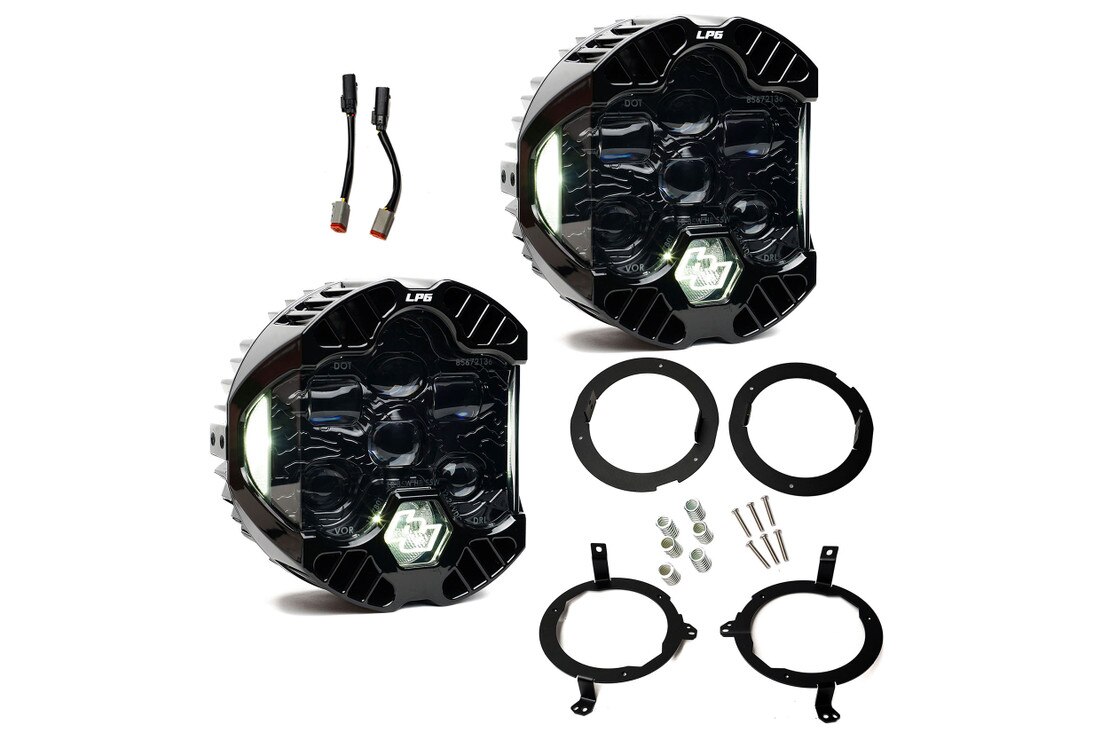

  • Headlights : 2x (One Pair) Baja Designs DOT LP6 Headlight (White or Amber DRL)

  • Hardware : 4x (Two Pair) JL/JT Headlight Brackets / All Necessary Mounting Hardware

  • Wiring : 2x (One Pair) Wiring Harness for Jeeps with LED or Halogen Headlights (variable by selection)

WARRANTY INFORMATION

This product is covered by a Lifetime Limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

  • Intensity : 3,480lm (Low Beam) / 5,280 (High Beam)

  • Output Color : 5000K Daylight White

  • Wattage : 26W (L) / 40W (H) / 5W (DRL)

  • Voltage : 10.5 to 32V

  • Amperage : 1.8A (L) / 2.8A (H) / 0.4A (DRL)

  • Beam Pattern : Low Beam:::10Lux out to 50meters (Standard Spec for DOT Headlights)

  • Compliance : IP69K, IK10, MIL-STD810G, FMVSS 108

  • Material : Hard Coated Polycarbonate (Lens), Anodized Aluminum (Housing), Billet Aluminum (Bezel), Stainless Steel (Hardware, Bracket)

COMPATIBILITY

  • Jeep Wrangler JL : 2018-2025

  • NOTE : Jeeps with OEM LED Headlights require standard version, Non-LED Jeeps require Halogen Headlight version.

COMPLIANCE

Meets IP69K, IK10, MIL-STD810G, and FMVSS 108 Standards
