Shocker LED Light Bars

(0) No Reviews yet
Questions?

Brand: Vision X

3P-VX80-TRS

$749.99

PRODUCT OPTIONS

PART #: 1 x SHK-BV6WPA



DESCRIPTION

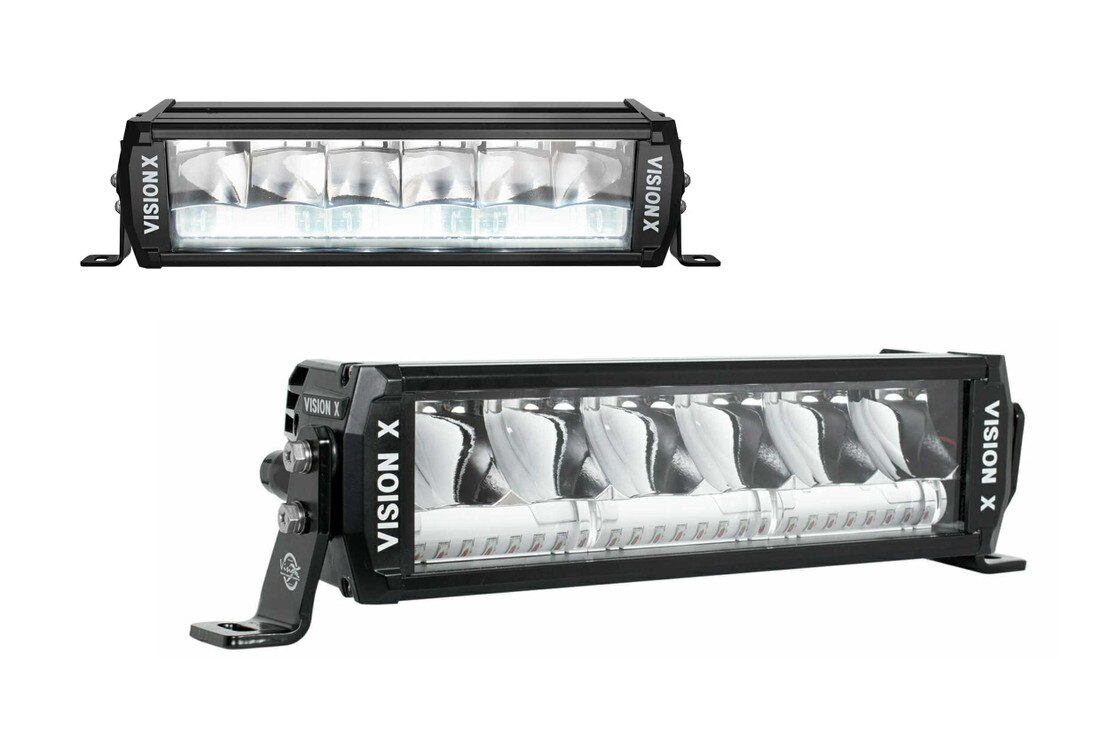

Illuminate the unknown with the Shocker Dual Action LED Light Bar. This state-of-the-art lighting solution is crafted for those who demand excellence and versatility in every journey. Whether you're traversing city streets or exploring off-road terrains, the Shocker ensures you're equipped with optimal lighting. The VRT (Vector Reflector Technology) casts a broad spot beam, illuminating vast expanses, making night drives safer and more enjoyable. For those foggy mornings or dusty trails, the PLC (Photon Light Core Technology) offers a lifeline, emitting Amber LED lighting that cuts through the haze. And it's not just about the light; the Shocker's race-inspired mounts are a testament to its robustness, designed to withstand the rigors of the road. With customizable output options, it's more than a light bar; it's a driving companion.

FEATURES & BENEFITS

  • Dynamic Dual-Action Tailor your lighting to diverse driving conditions.
  • Vector Reflector Technology Achieve a broad spot beam for extensive coverage.
  • Photon Light Core Navigate through fog and dust with precision and clarity.
  • Sturdy Side Mounts Built for endurance, ensuring consistent performance.
  • Customizable Output Opt between standard and high-output beams for your needs.

WHAT’S INCLUDED

  • Light Bar: 1x Shocker LED Light Bar

  • Hardware: Mounting Brackets, Hardware

  • Wiring: 1x Wire Harness

WARRANTY INFORMATION

This product is covered by a Lifetime Limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

  • Intensity: 3,550-6,420lm (12in), 7,100-12,840lm (20in), 10,650-19,260lm (30in), 14,200-25,680lm (40in)

  • Power: 60-70w (12in), 125-140w (20in), 195-220w (30in), 250-300w (40in)

  • Current: 5.0-5.8A (12in), 10.42-11.67A (20in), 16.25-18.33A (30in), 20.83-25.0A (40in) @ 12V DC

COMPATIBILITY

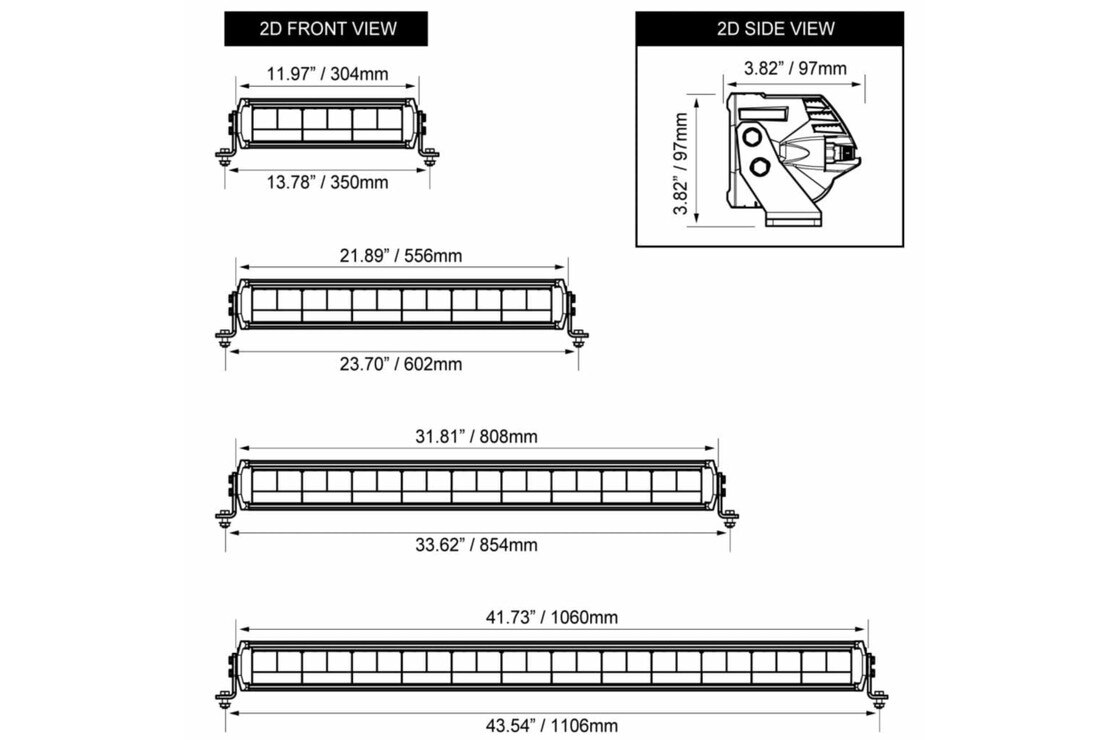

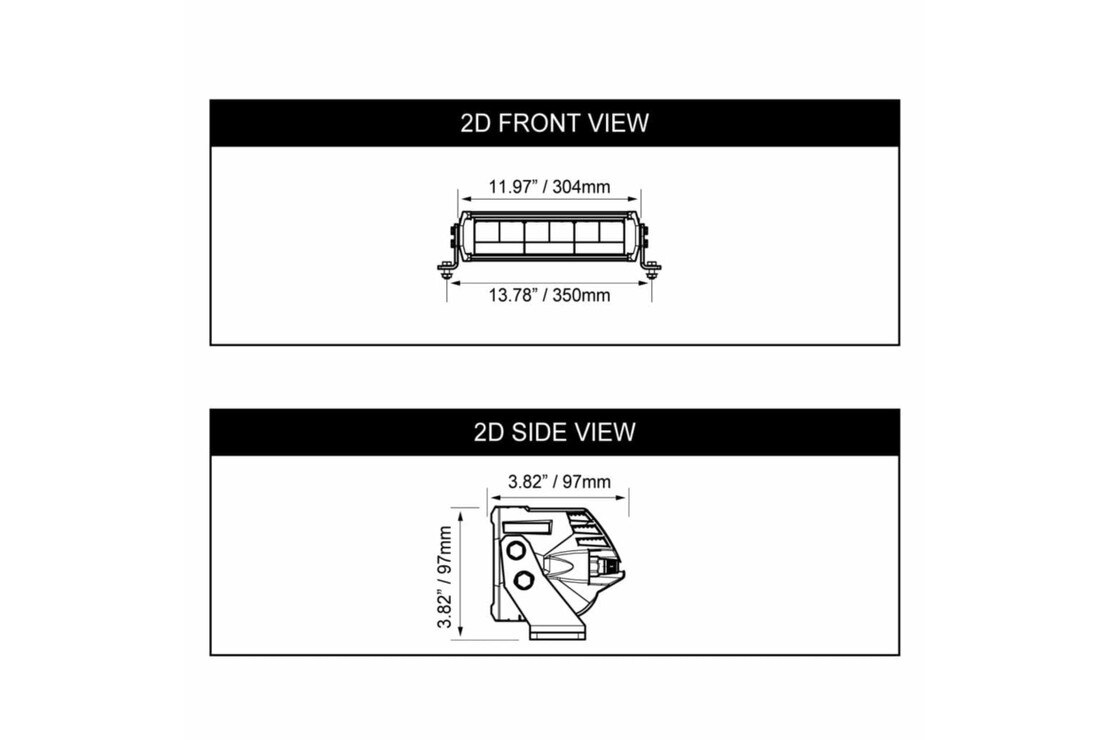

  • SHK-BV6WPA: Vision X Shocker LED Light Bar: 11.97" (Amber Photon Light Pipe / With Harness)

  • SHK-BV6WPW: Vision X Shocker LED Light Bar: 11.97" (White Photon Light Pipe / With Harness)

  • SHK-BV6WRA: Vision X Shocker LED Light Bar: 11.97" (Amber Photon Light Pipe / With Harness / Race Version)

  • SHK-BV12WPA: Vision X Shocker LED Light Bar: 20" (Amber Photon Light Pipe / With Harness)

  • SHK-BV12WPW: Vision X Shocker LED Light Bar: 20" (White Photon Light Pipe / With Harness)

  • SHK-BV12WRA: Vision X Shocker LED Light Bar: 20" (Amber Photon Light Pipe / With Harness / Race Version)

  • SHK-BV18WPA: Vision X Shocker LED Light Bar: 30" (Amber Photon Light Pipe / With Harness)

  • SHK-BV18WPW: Vision X Shocker LED Light Bar: 30" (White Photon Light Pipe / With Harness)

  • SHK-BV18WRA: Vision X Shocker LED Light Bar: 30" (Amber Photon Light Pipe / With Harness / Race Version)

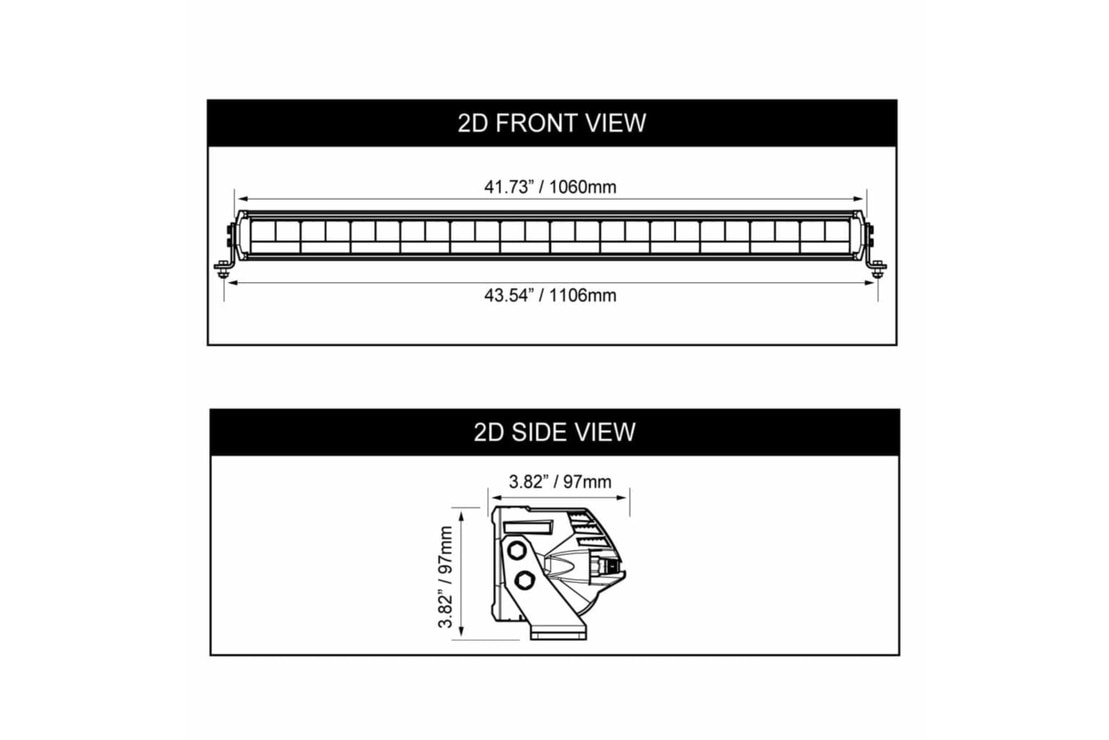

  • SHK-BV24WPA: Vision X Shocker LED Light Bar: 40" (Amber Photon Light Pipe / With Harness)

  • SHK-BV24WPW: Vision X Shocker LED Light Bar: 40" (White Photon Light Pipe / With Harness)

  • SHK-BV24WRA: Vision X Shocker LED Light Bar: 40" (Amber Photon Light Pipe / With Harness / Race Version)

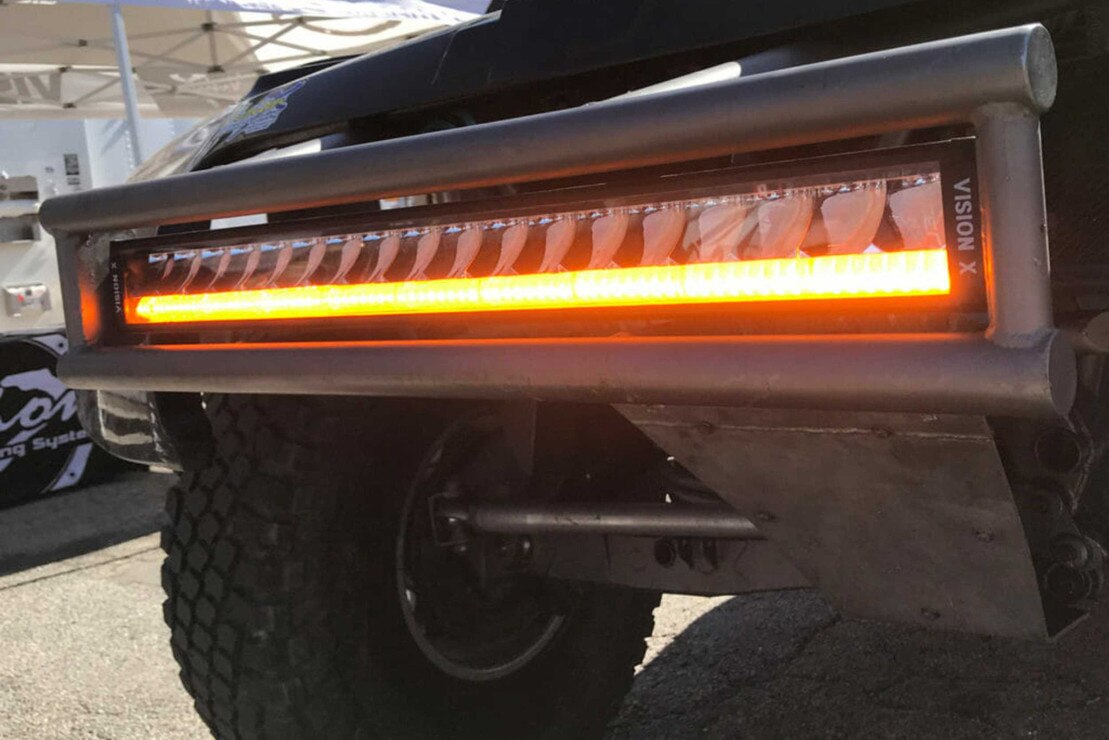

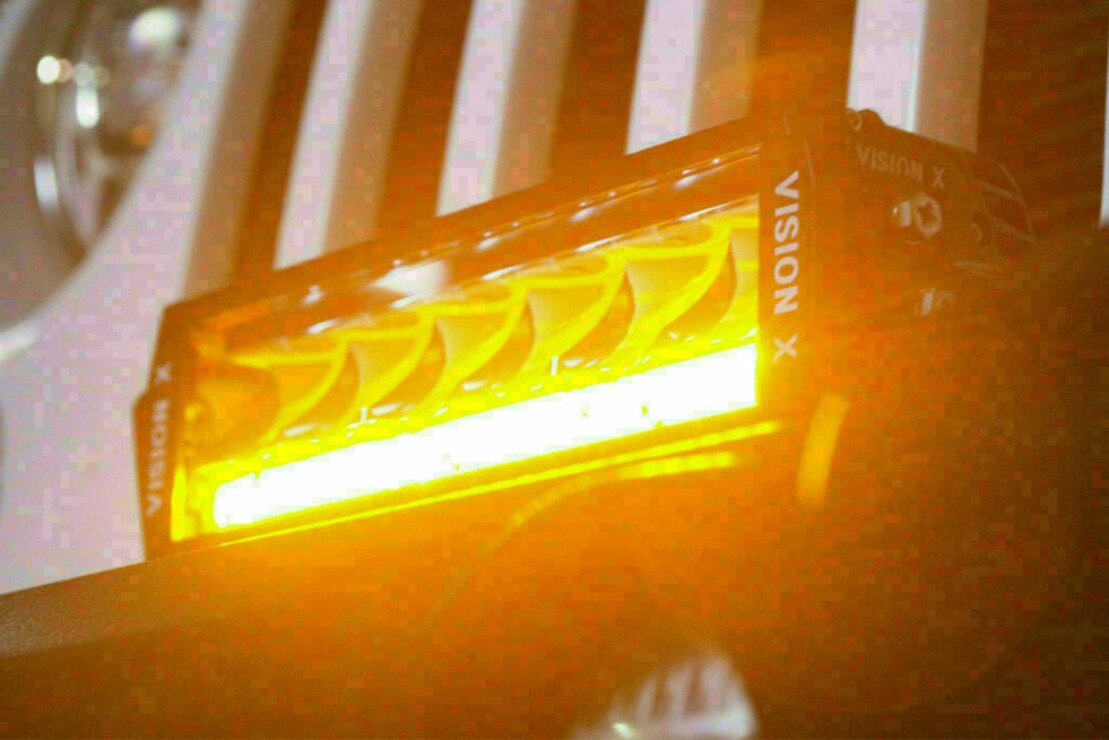

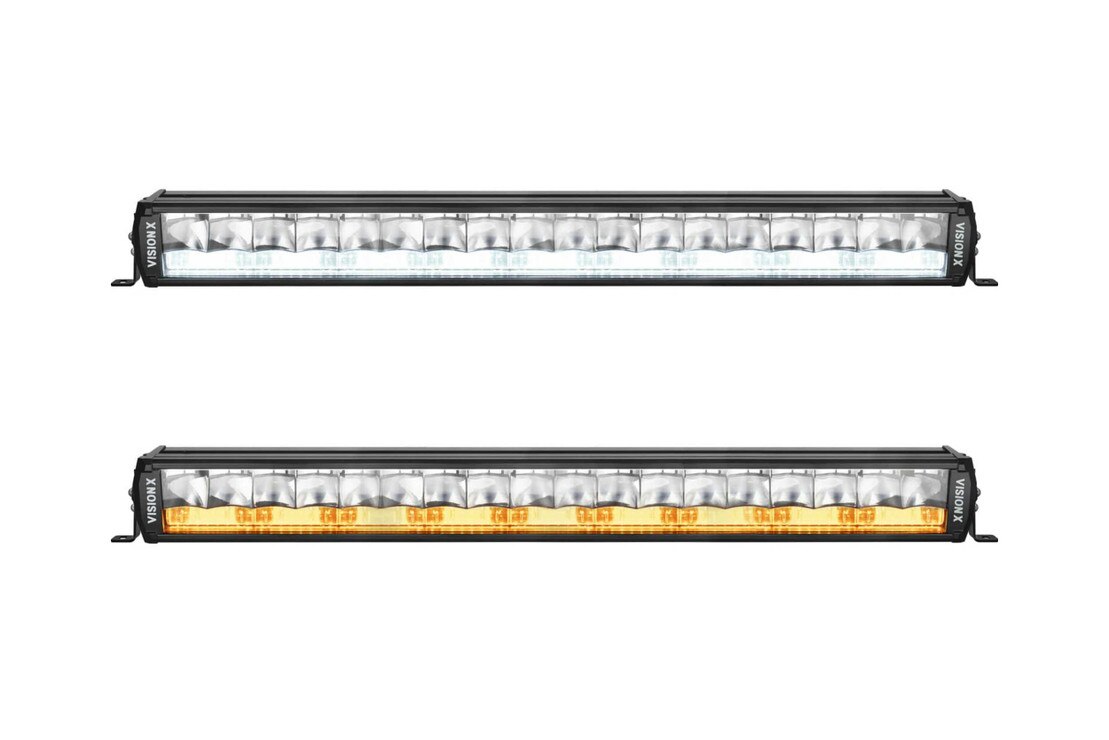

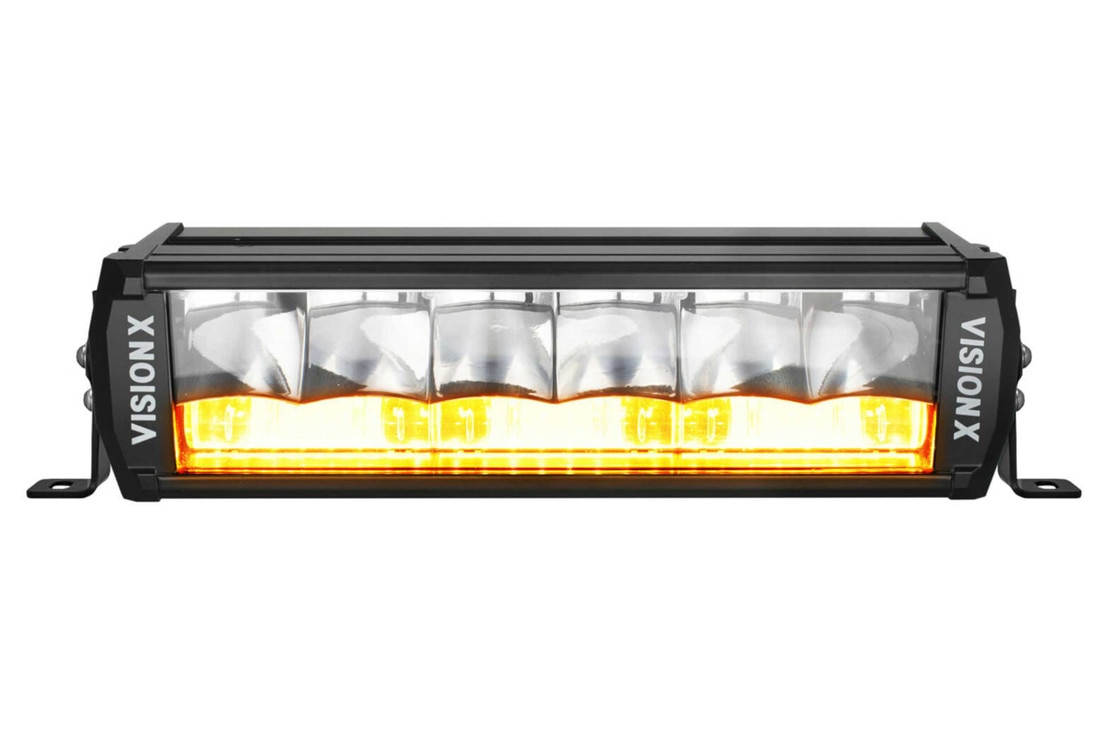

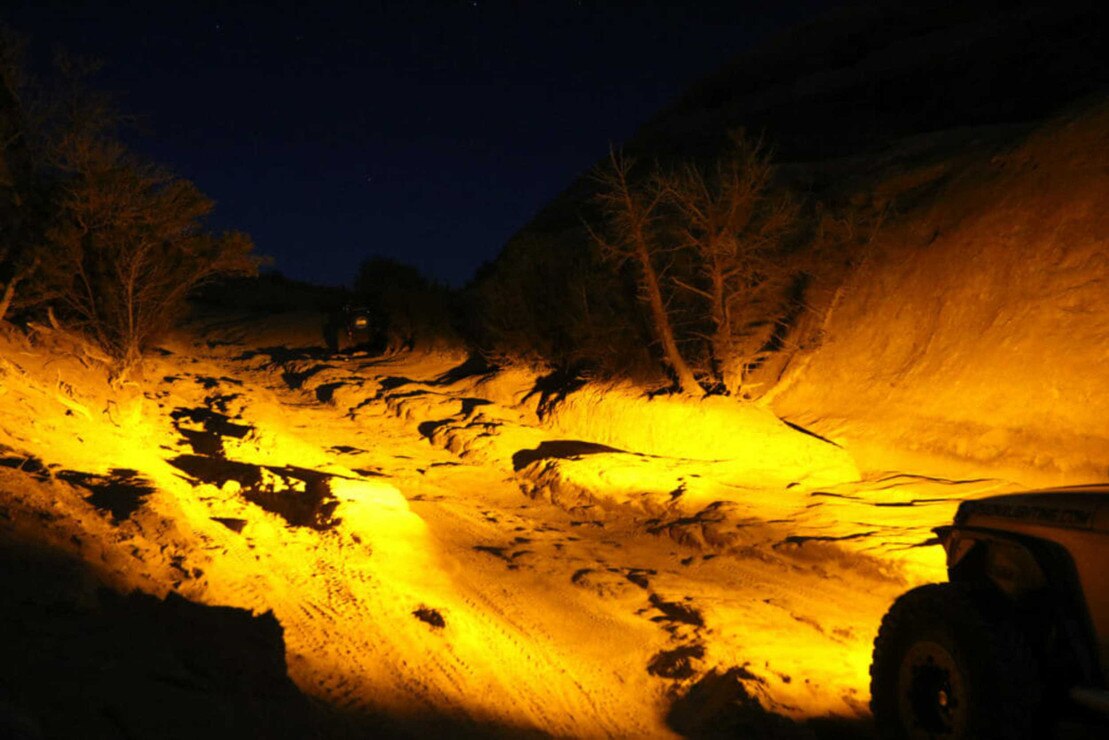

Shocker Dual-Action LED Light Bar: The Shocker Dual Action LED Light Bar brings versatility and lighting power to the forefront by allowing you to adjust your lighting to the ever-changing driving conditions with the flick of a switch. Experience the all-new VRT (Vector Reflector Technology) at high speeds by shining a long distance, broad spot beam that fans across the trail. When dust and fog tries to slow you down, engage the Amber PLC (Photon Light Core Technology) to pierce the night by reducing shadows and white-out through the proper Amber LED lighting spectrum and wide-elliptical shaped beam. For added dust & fog penetration, the Shocker Race model utilizes a special LED Chip configuration which emits maximum Amber brightness while still offering an extremely wide elliptical driving pattern. The Shocker LED Light Bar is also available in White PLC (Photon Light Core Technology) models which will ignite a bright white ultra-wide beam to clearly see the trails and roads edges with over 170deg of illumination.


Dual Function Lighting Technology: The Shocker Bars all-new VRT (Vector Reflector Technology) and PLC (Photon Light Core) provide both a distance spot beam and an elliptical wide spread beam into a single dual functioning light bar.

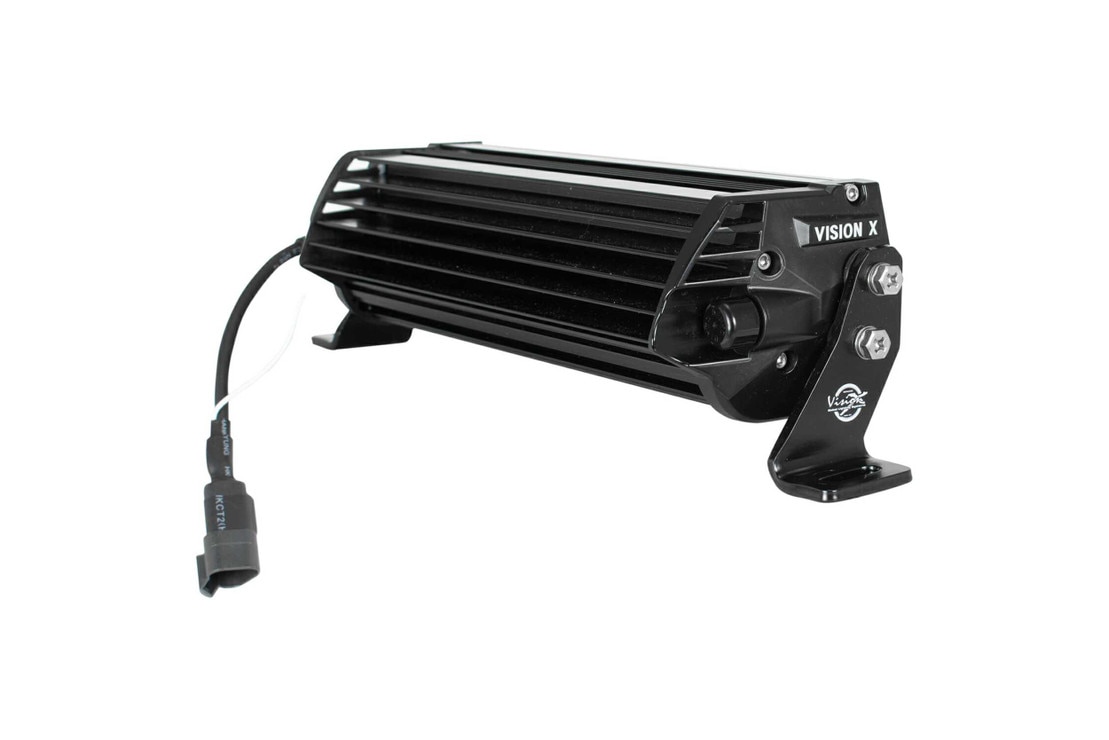

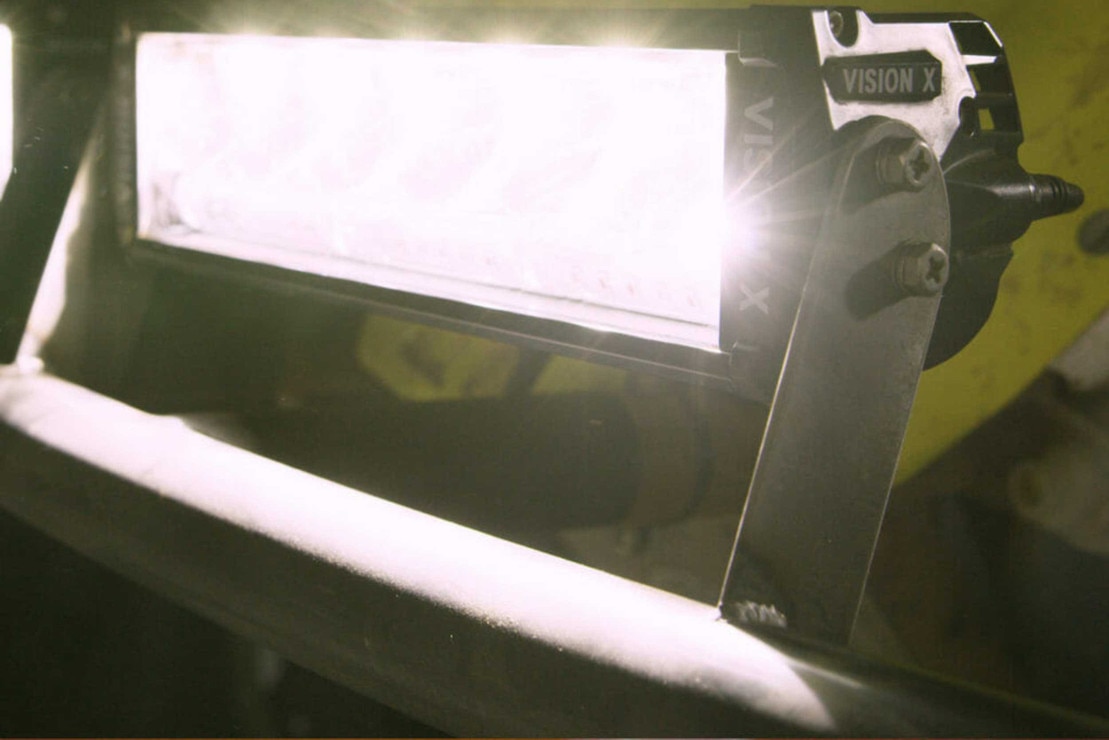

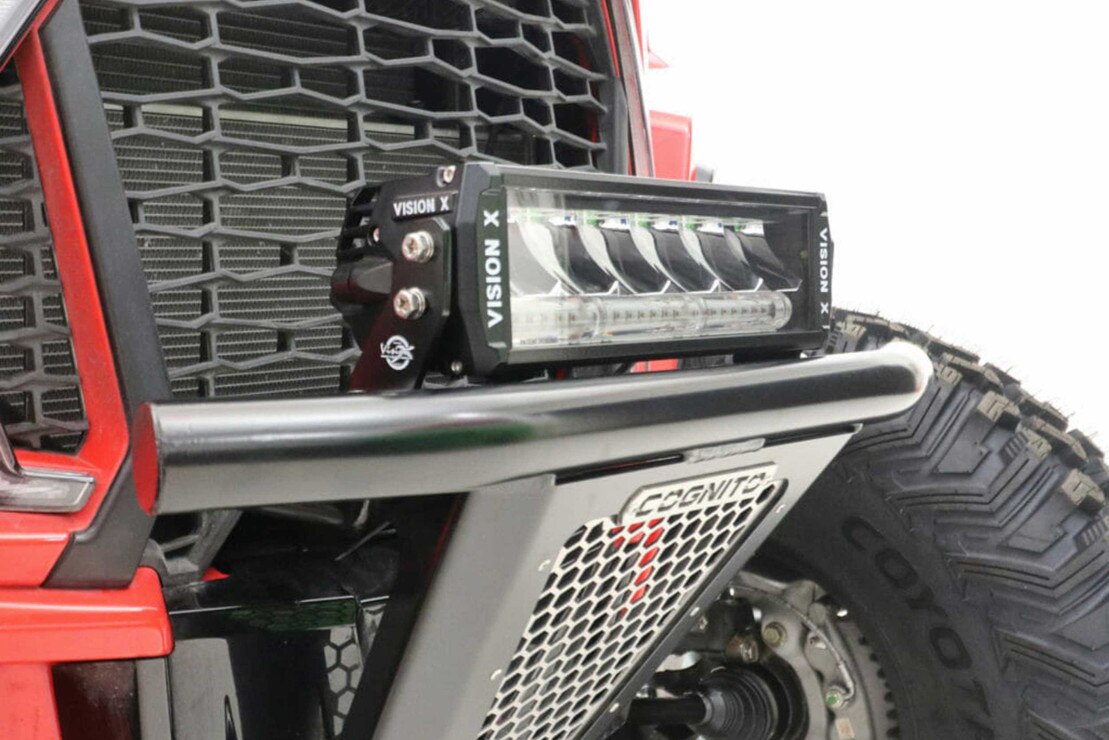

Race Inspired Side Mounts: The extremely durable race-ready side mounts are built to outlive any abuse and provide the Shocker with vertical light angle adjustment.

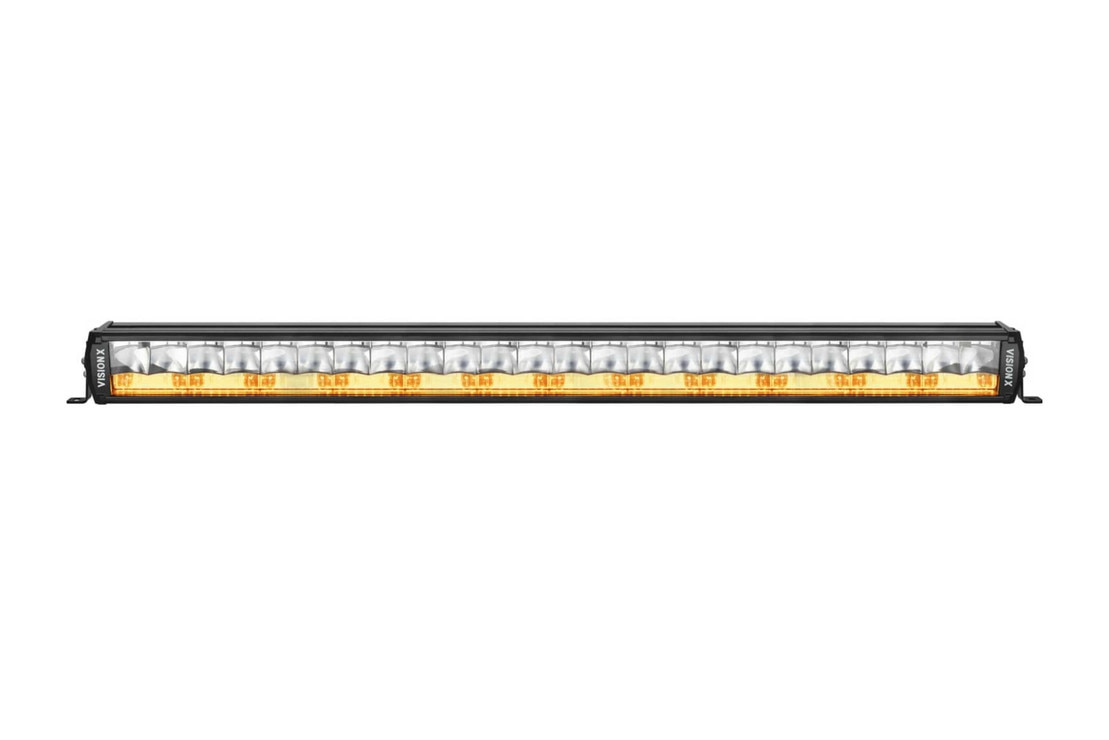

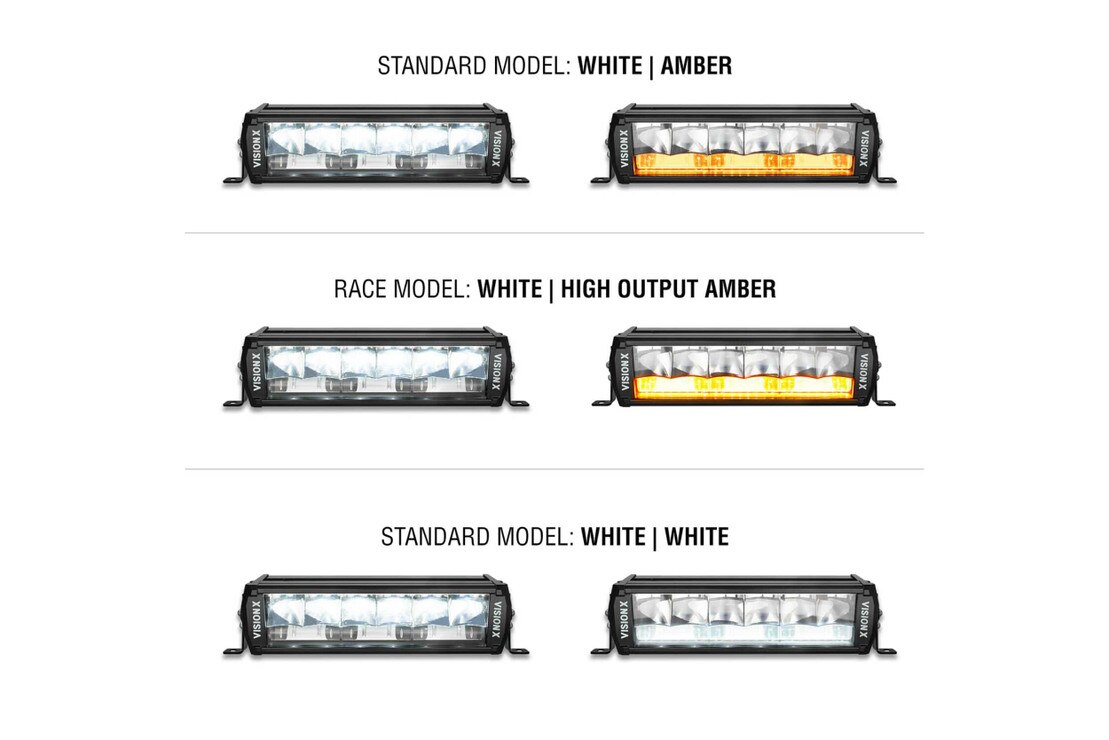

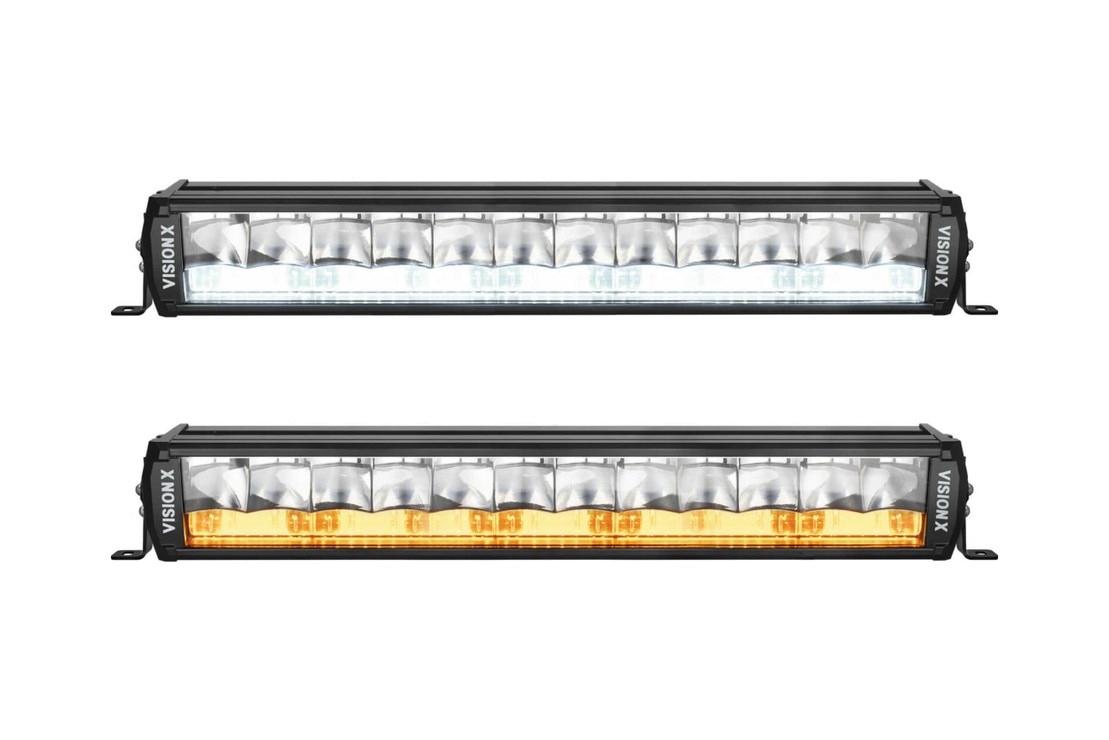

Standard & Race Elliptical Beam Output Options: Standard Output Shocker: Available with White LEDs for the Broad Spot Beam (Vector Reflector) and Amber LEDs for the Elliptical Beam (Photon Light Core) OR White LEDs on both functions. Race Output Shocker: Available with White LEDs for the Broad Spot Beam (Vector Reflector) and features upgraded High-Output Amber LEDs for the Elliptical Beam (Photon Light Core).


Vision X: Is known for producing some of the automotive industry's most unique, highest performing LED Light bars and LED Spot lights for the modern demands of enthusiasts today. Their products perform on par with the best names in the business like Rigid, KC, and Baja, are affordable, bomb proof, and look great too. Vision X has their North American Headquarters in Washington State, and Headlight Revolution has been a proud master distributor for the brand for many years.
