Vision X LED Headlights (4x6")

(0) No Reviews yet

Brand: Vision X




PART #: 1 x XIL-46DA


Introducing the Vision X 4x6 LED Assemblies! Upgrade your vehicle's headlights with the plug-and-play VX Series LED Headlights. These DOT Compliant headlights come with H4 Factory Plugs and are available in Polished Chrome and Black Chrome finishes. Say goodbye to separate high and low beams – thisDual All-In-One design combines both into a single housing, complete with an LED Halo for added style and safety. Experience improved visibility with the advanced IRIS Reflector technology, delivering long-range illumination for high beams and a wide beam pattern for low beams. Plus, the precisely positioned elliptical beam LEDs ensure you light up the road ahead and to the sides without blinding oncoming traffic. Vision X is your trusted source for high-performance LED lighting solutions, and the 4x6 LED Assemblies are no exception. Elevate your driving experience with unmatched safety and style – upgrade to Vision X today!


  • Plug-and-Play Upgrade: Easily replace your existing headlights.
  • All-In-One Design: Dual high and low beams with an LED Halo.
  • Advanced Illumination: IRIS Reflector for long-range and wide beams.
  • Precise Beam Placement: Prevents glare for oncoming traffic.
  • Trusted Performance: Vision X, a DOT-compliant leader in LED lighting.


  • Headlight: 1x 4x6in LED Sealed Beam Headlights


This product is covered by a Lifetime Limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.


  • Intensity: 4,210lm (Raw), 2,947lm (Effective)

  • Power: 43w

  • Current: 3.58A @ 12V DC


  • XIL-46DA: Vision X LED Headlights: (Each / 4x6" Rectangle / Chrome / Amber Halo)

  • XIL-46DB: Vision X LED Headlights: (Each / 4x6" Rectangle / Black / Amber Halo)

  • XIL-46D: Vision X LED Headlights: (Each / 4x6" Rectangle / Chrome / White Halo)

  • XIL-46DBA: Vision X LED Headlights: (Each / 4x6" Rectangle / Black / White Halo)

4x6 LED Assemblies: The 4 x6inVX Series LED Headlights from Vision X Lighting is a complete plug and play replacement for vehicles that utilize a 4 x6infixture. These headlights are DOT Compliant, and include a H4 Factory Plugs. Available in Polished Chrome and Black Chrome as well as in two light kits, the VX Series LED Headlight is the perfect option for those looking to improve their visibility.

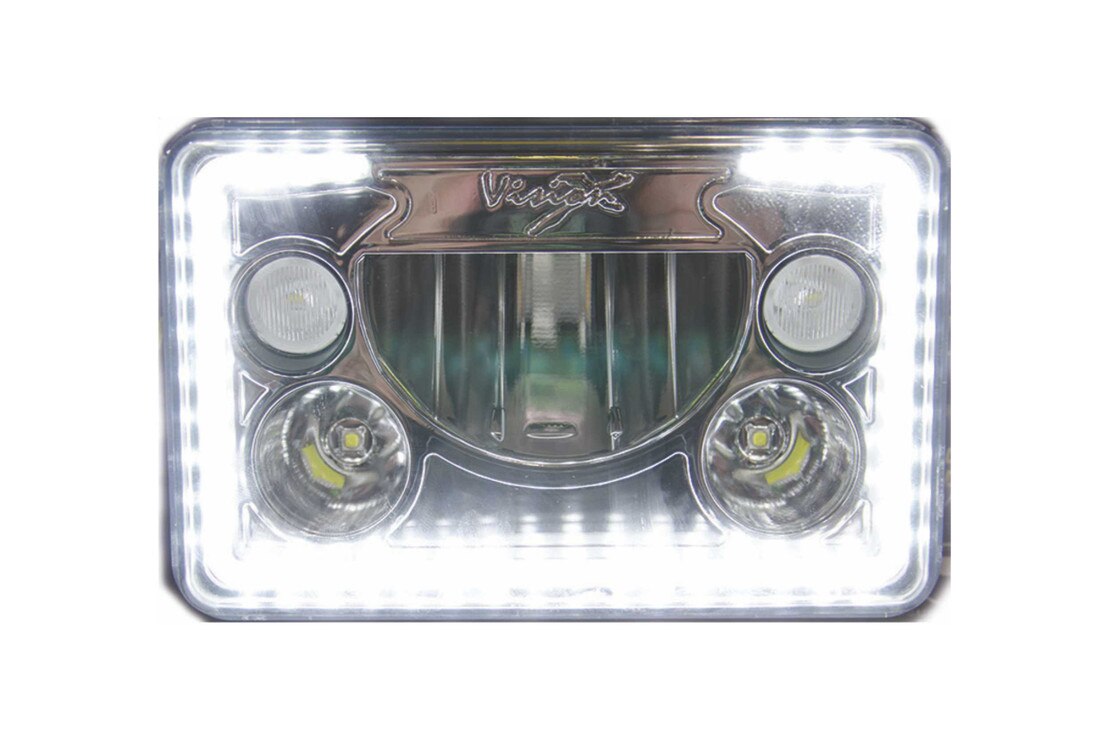

Dual All In One : High and Low Beam: The 4 x6inVX Series combines High Beam and Low Beam in a single housing, with an LED Halo (Positioning Light or Day Time Running Light). Allowing you to reduce the number of lights used, or to run a DOT Compliant 4 head light system. Providing the driver unsurpassed visibility and safety.

Multiple LEDS for Improved Visibility: High beams on the VX Series LED headlights utilize the same IRIS Reflector technology that's used in the popular Light Cannon series from Vision X. These long-range reflectors help push the light from the high beam LEDs to surprising distances, where as the reflector for the low beam LED was engineered to produce a wide beam pattern to cover the entire roadway. Each beam is precisely positioned to keep light out of the eyes of traffic, ensuring they are unimpaired from the light. Two elliptical beam LEDs in head light are aimed to fill in the roadway right in front and to the sides of the vehicle. Increasing safety, and comfort while driving.

Vision X: Is known for producing some of the automotive industry's most unique, highest performing LED Light bars and LED Spot lights for the modern demands of enthusiasts today. Their products perform on par with the best names in the business like Rigid, KC, and Baja, are affordable, bomb proof, and look great too. Vision X has their North American Headquarters in Washington State, and Headlight Revolution has been a proud master distributor for the brand for many years.
