DESCRIPTION
FEATURES & BENEFITS
- Superior Brightness Multi-LED CG2 Light Cannons deliver 2,250 Lumens for optimal visibility.

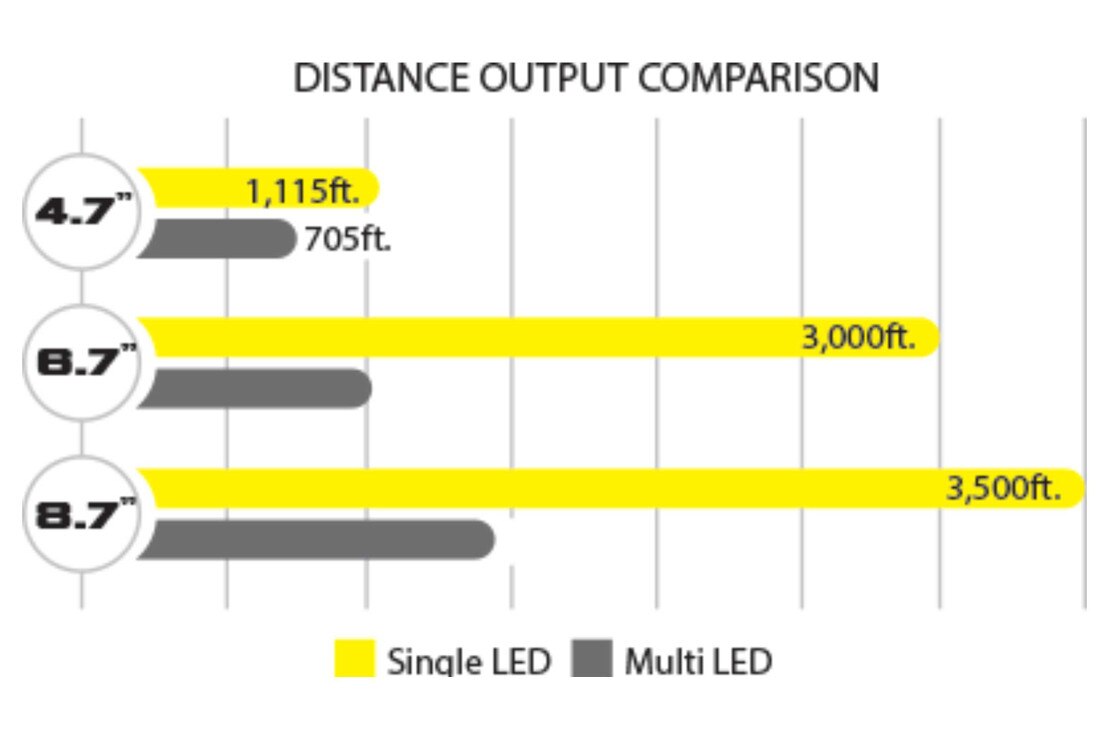

- Remarkable Reach Larger Single LED CG2 models shine up to an incredible 3,500 feet.
- Consistent Performance Advanced circuitry paired with an aluminum heat sink ensures uninterrupted light output.
- Durable and Reliable Equipped with a Deutsch plug for weatherproof protection.
- Customizable Direction Steel trunnion mount offers 45deg of lighting adjustment with a steadfast locking mechanism.
WHAT’S INCLUDED
Light Pods: 1x CG2 Cannon LED Light Pods
Hardware: Mounting Bracket, Hardware
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS

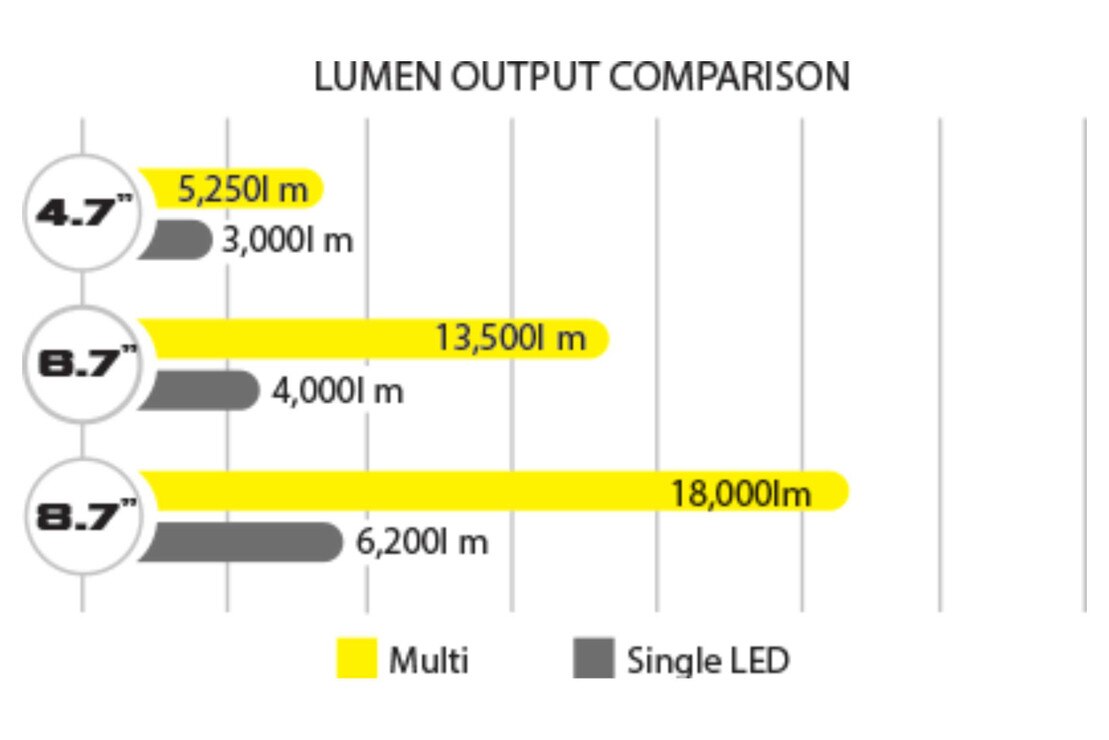

Intensity: 2,250-6,250lm
Power: 21-100w
Current: 1.75-8.3A @ 12V DC
COMPATIBILITY

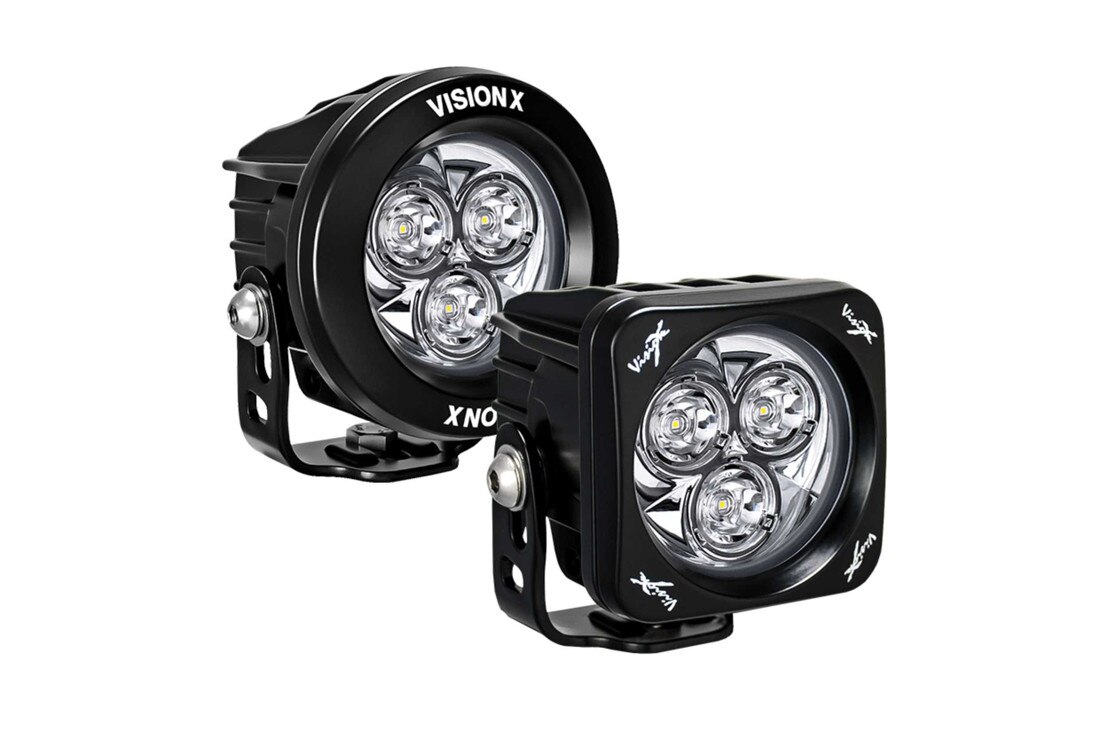

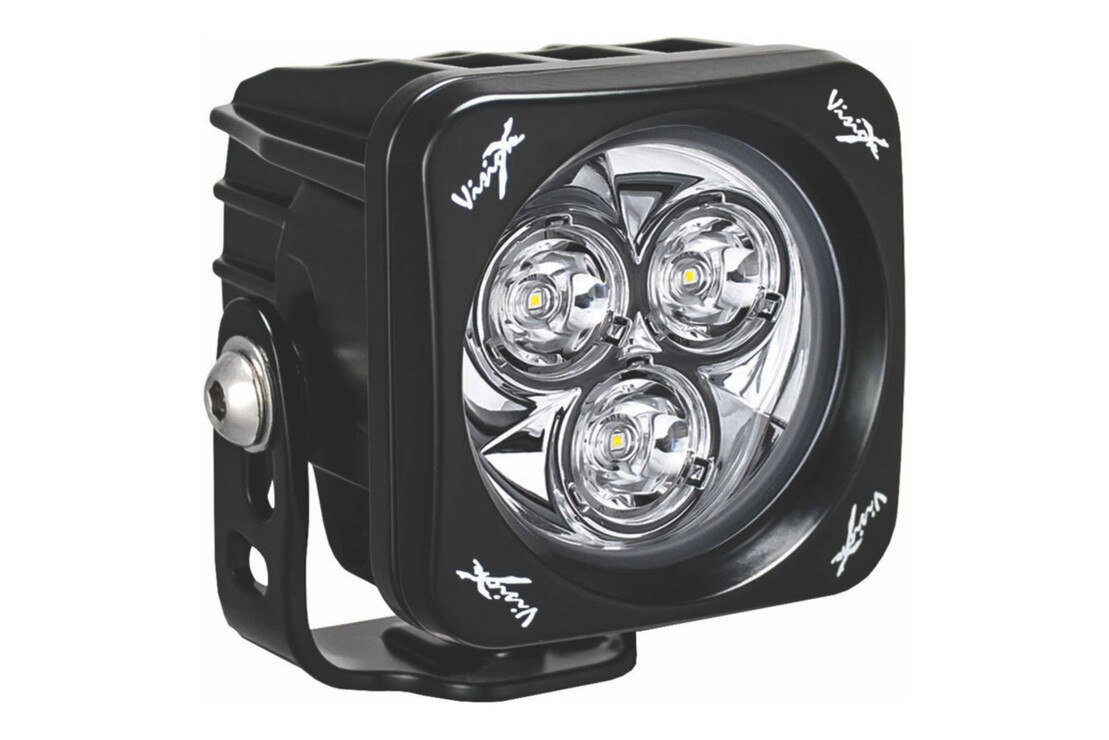

CG2-OPM310: Vision X CG2 Cannon Pod: (3.0" / Square / 3 LED / 42W)
CG2-OP110: Vision X CG2 Cannon Pod: (3.0" / Square / 3 LED / 42W)
CG2-CPM310: Vision X CG2 Cannon Pod: (3.7" / Round / 3 LED / 42W)
CG2-CPR110: Vision X CG2 Cannon Pod: (3.7" / Round / 1 LED / 10W)

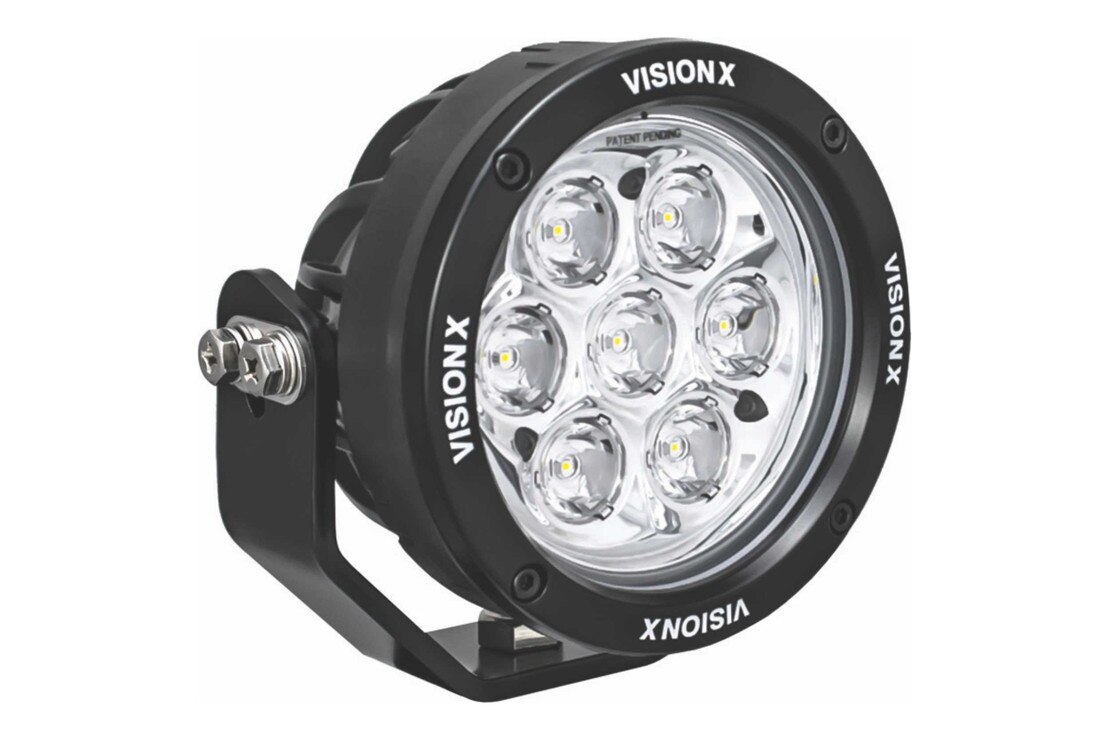

CG2-CPM710: Vision X CG2 Cannon Pod: (4.7" / Round / 7 LED / 98W)
CG2-CPZ110: Vision X CG2 Cannon Pod: (4.7" / Round / 1 LED / 40W)

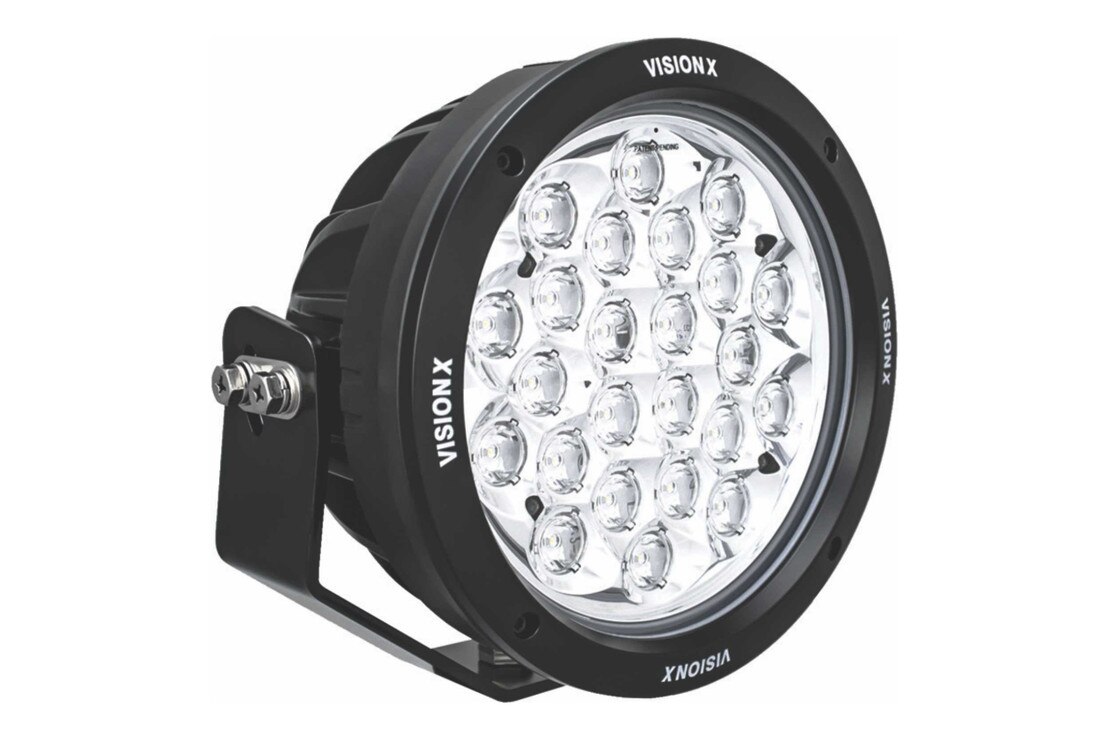

CG2-CPM1810 : Vision X CG2 Cannon Pod: (6.7" / Round / 18 LED / 252W)
CG2-CPZ610: Vision X CG2 Cannon Pod: (6.7" / Round / 1 LED / 70W)
CG2-CPM2410: Vision X CG2 Cannon Pod: (8.7" / Round / 24 LED / 168W)
CG2-CPZ810: Vision X CG2 Cannon Pod: (8.7" / Round / 1 LED / 100W)
CGA-CPMH14M: Vision X Cannon: 8.7" (14 LED / Mixed Beam / Adventure Series w/ Halo)
CGA-CPMH8M: Vision X Cannon: 6.7" (8 LED / Mixed Beam / Adventure Series w/ Halo)
INSTALLATION DOCUMENTS

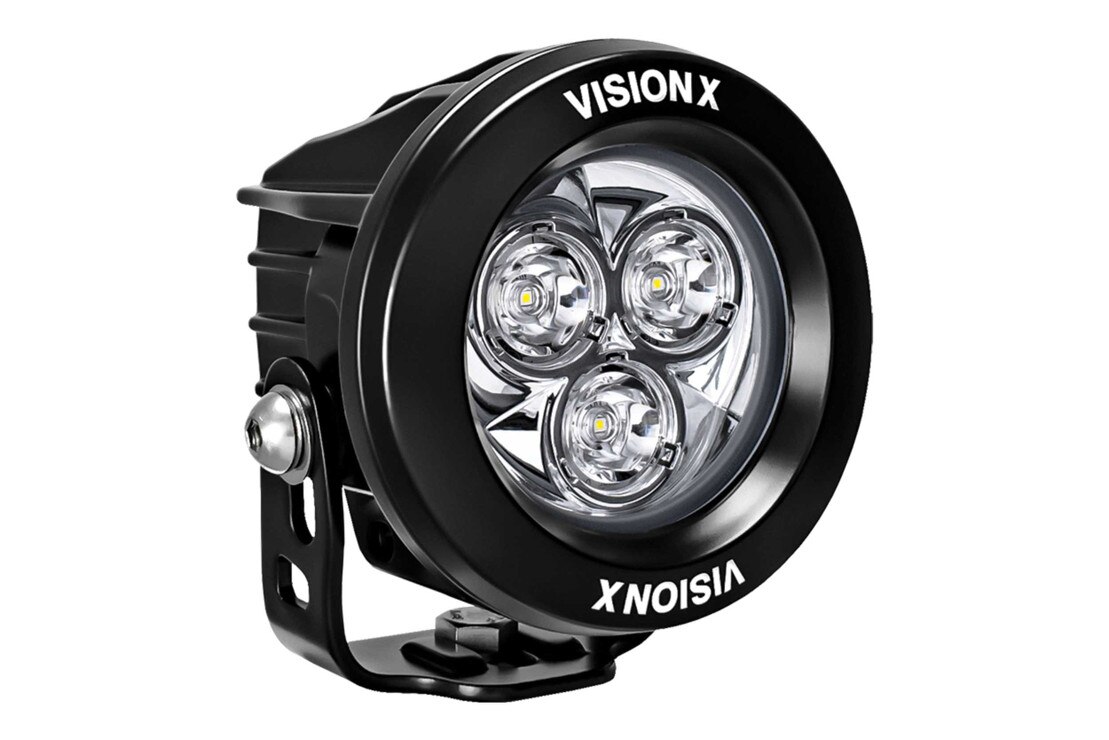

CG2 Light Cannons: Multi-LED CG2 LED Light Cannons are the ultimate light for blasting through the night with a powerful broad driving beam pattern and an outstanding 2,250 Lumens (ea) of medium distance lighting coverage. These coupled with Single LED Cannons and there is nothing left in the dark.

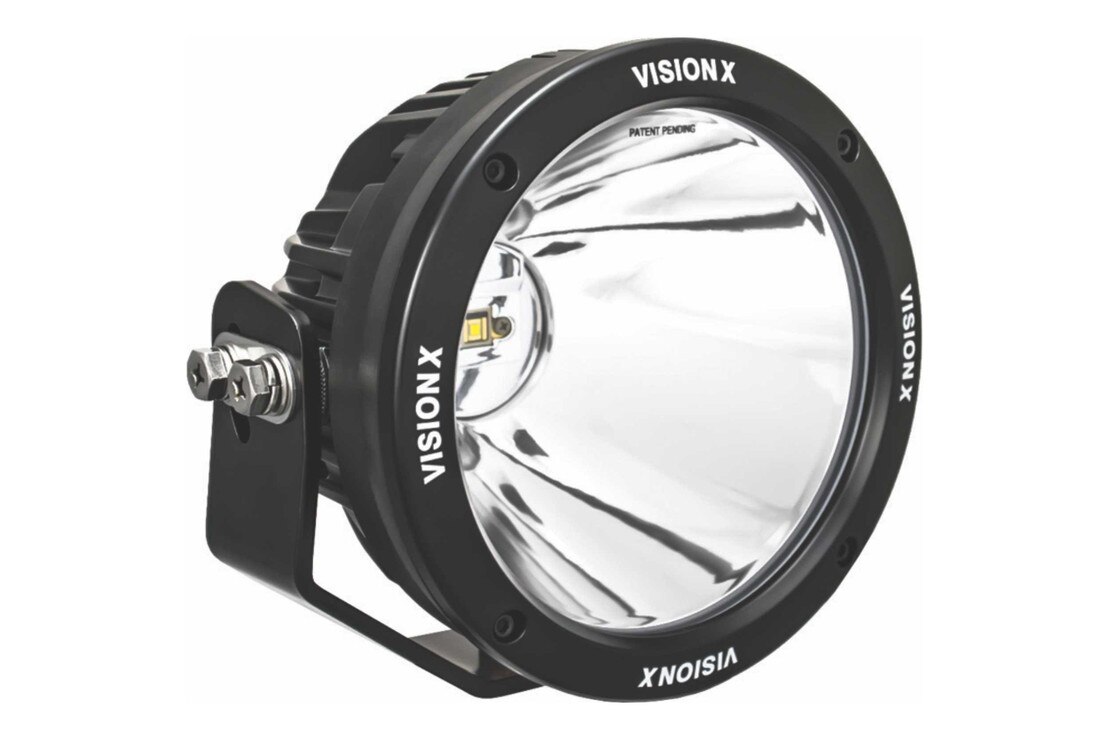

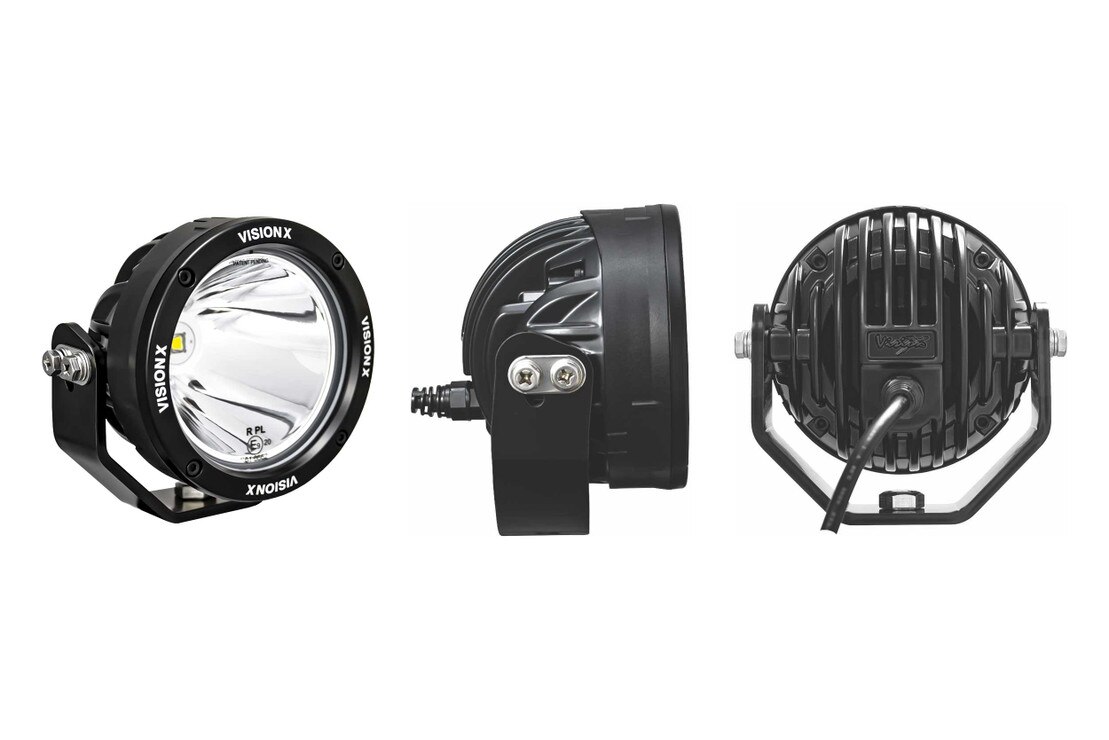

Larger Light Cannon Models: Single LED CG2 Light Cannons take lighting to uncharted territory with incomparable distances. The industry-leading Lumin Ous Big Chip LED and Iris Reflector throws a violent blast of light that penetrates the night up to 3,500 feet. If you need superior distance from your lighting, this is the solution.
HEAT MANAGEMENT SYSTEM: Advanced circuitry and aluminum heat sink design ensures maximum light output during sustained periods of use.
WEATHERPROOF CONNECTOR: The Deutsch plug ensures the functionality of every Light Cannon even in the harshest conditions.

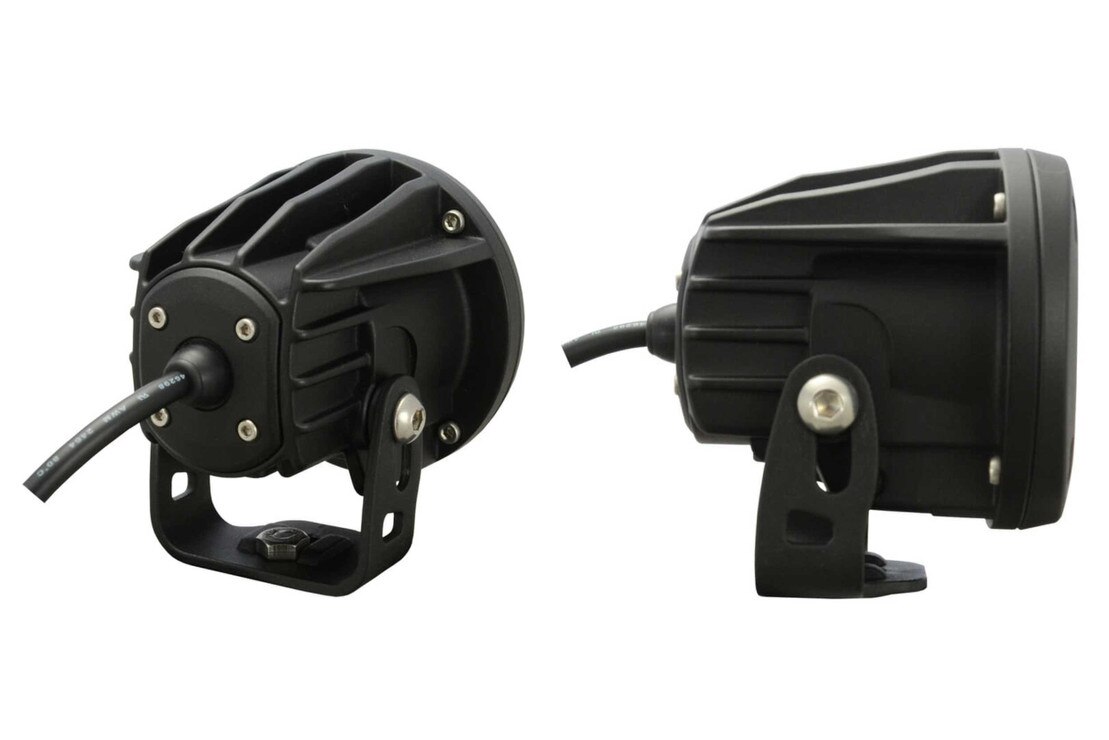

ADJUSTABLE AIMING SYSTEM: Steel trunnion mount provides 45deg of lighting adjustment and secured by a robust bolt locking system.
Vision X: Is known for producing some of the automotive industry's most unique, highest performing LED Light bars and LED Spot lights for the modern demands of enthusiasts today. Their products perform on par with the best names in the business like Rigid, KC, and Baja, are affordable, bomb proof, and look great too. Vision X has their North American Headquarters in Washington State, and Headlight Revolution has been a proud master distributor for the brand for many years.
