2Banger LED Drift Light System: Subaru BRZ (12-20)

(0) No Reviews yet
Questions?

Brand: Morimoto

B-2B-PILR-BAF149-2-TRS

$333.63 Original Price:$392.5015% OFF

PRODUCT OPTIONS

PART #: 1 x BAF102, 1 x BAF149, 1 x BAF000H



*Guaranteed Fitment
Easy Return

DESCRIPTION

The Morimoto Drift Light system is a great way to make your sports car brighter at night. It's designed for cars like the 2012-2020 BRZ and it fits perfectly without needing any modifications. The kit includes high-performance LED pods, brackets, and a wire harness that makes installation easy. Each bracket is made from tough stainless steel, so they won't bend or break easily. The lights come in two versions: white for all-around visibility and yellow for better performance in rain, snow, or fog. The LEDs are specially designed to cut through particles in the air, making them effective in bad weather. The LED pods are built to last, with features like a copper thermal path to manage heat and a durable aluminum shell to protect against wear. The wiring is neatly managed with clips, and everything is designed for a clean, reliable setup. The lights offer different beam patterns to suit various needs, from wide beams for foggy conditions to spot beams that can light up to 800 meters ahead. Whether you're driving on backroads or a track, these lights will help you see clearly and stay safe.

FEATURES & BENEFITS

  • Perfect Fit: Designed for easy, modification-free installation on your car's hood hinges.
  • Durable Construction: Laser cut from 304 stainless steel for unmatched strength and longevity.
  • Compatibility: Works with Morimoto 1/2/4Banger LED pods and other leading brands.
  • Reliable Performance: Say goodbye to poor fitment issues with these branch-proof lighting solutions.
  • Lifetime Warranty: Includes the same limited lifetime warranty that comes with the Banger Pods.

WHAT’S INCLUDED

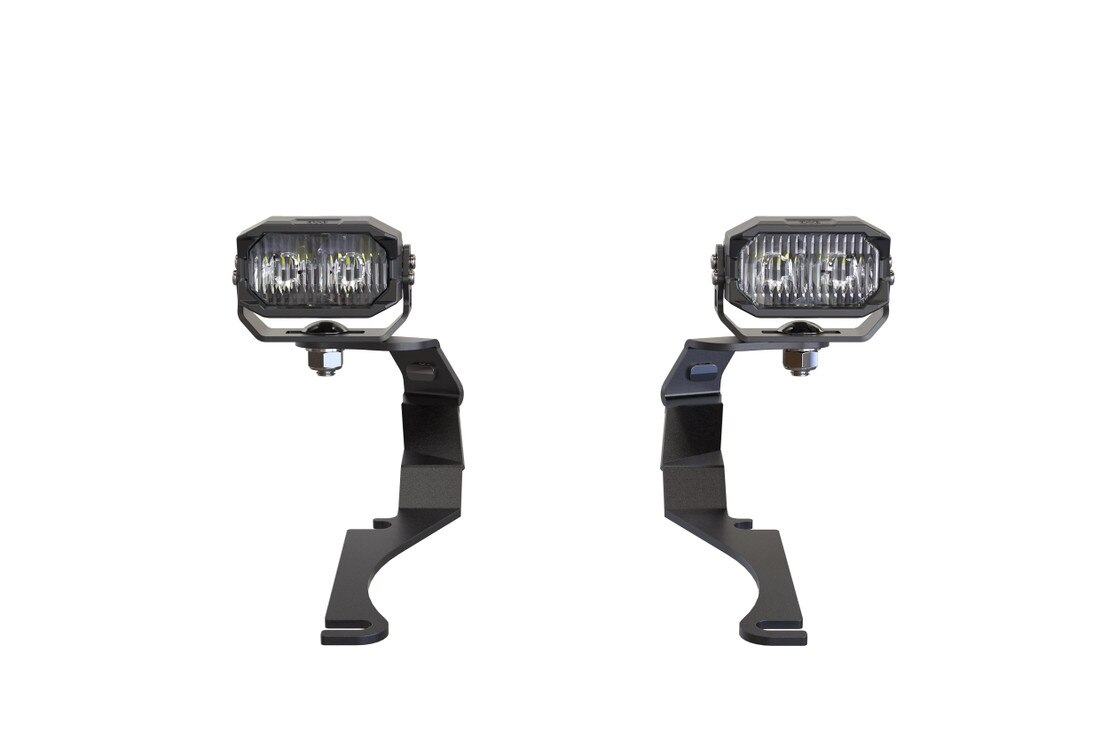

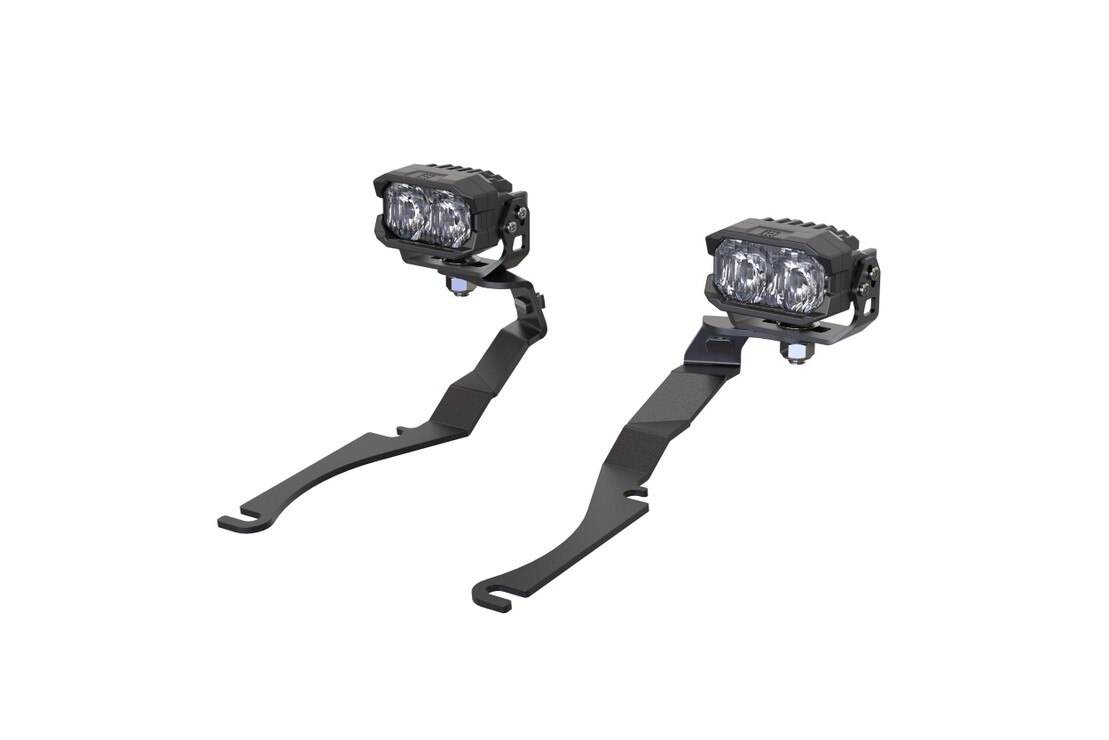

  • Drift Brackets: 2x (One Pair) BAF149 Brackets

  • Hardware: 2x Plastic cable clips

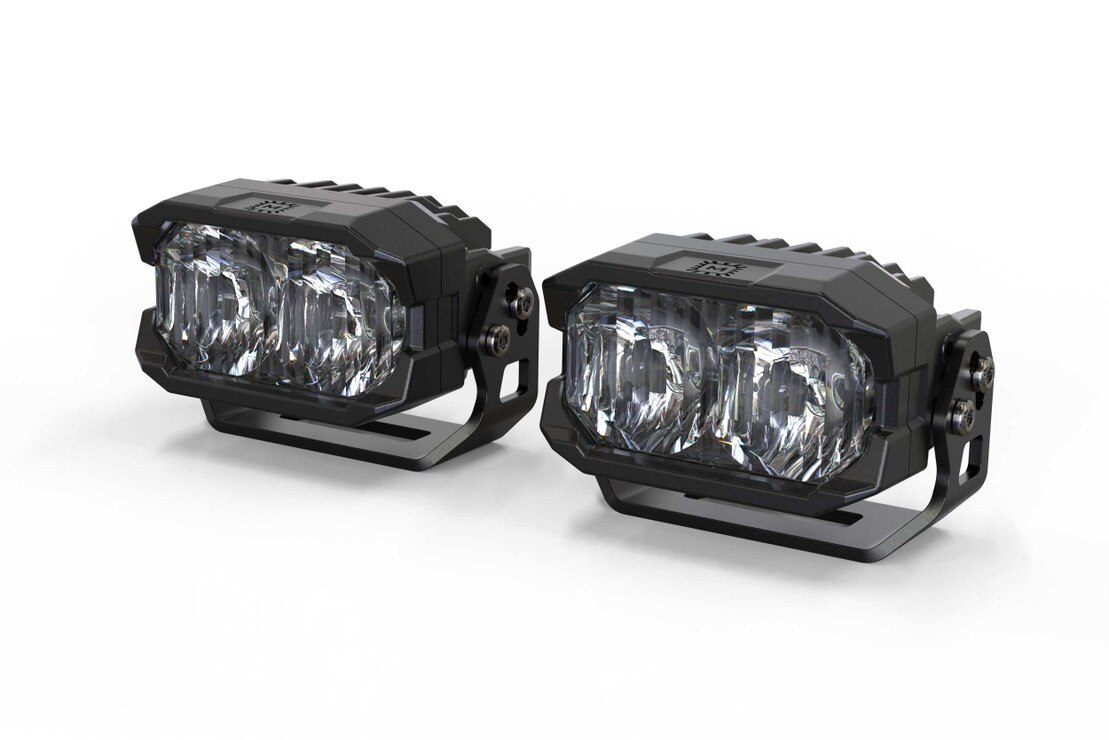

  • Optional LED Pods: 2x Morimoto 2Banger (Optional Color / Beam)

  • Optional Wiring: 1x Morimoto Power Harness or 2x Deutsch DT pigtails

  • Warranty: Lifetime Limited

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

TECHNICAL SPECIFICATIONS

  • Note: These specifications are per pod / each!

  • Intensity (HXB Flood White): 900 Cd (9 lux @ 10m)

  • Intensity (HXB Flood Yellow): 625 Cd (6.25 lux @ 10m)

  • Intensity (HXB Spot White): 147,500 Cd (1,475 lux @ 10m)

  • Intensity (HXB Combo White): 65,000 Cd (650 lux @ 10m)

  • Intensity (HXB Combo Yellow): 42,500 Cd (425 lux @ 10m)

  • Intensity (HXB Wide White): 12,700 Cd (127 lux @ 10m)

  • Intensity (HXB Wide Yellow): 8,400 Cd (84 lux @ 10m)

  • Intensity (NCS Flood White): 475 Cd (4.75 lux @ 10m)

  • Intensity (NCS Flood Yellow): 230 Cd (2.3 lux @ 10m)

  • Intensity (NCS Spot White): 97,500 Cd (975 lux @ 10m)

  • Intensity (NCS Spot Yellow): 55,000 Cd (550 lux @ 10m)

  • Intensity (NCS Combo White): 42,000 Cd (420 lux @ 10m)

  • Intensity (NCS Combo Yellow): 21,000 Cd (210 lux @ 10m)

  • Intensity (NCS Wide White): 8,000 Cd (80 lux @ 10m)

  • Intensity (NCS Wide Yellow): 4,250 Cd (42.5 lux @ 10m)

  • Peak Luminosity (lm)(Raw): 900 lm (NCS), 2000 lm (HXB)

  • Power (stabilized): 13.5 w (NCS), 24 w (HXB)

  • Current (amps @ 13.5V DC): 1.0A (NCS), 1.78A (HXB)

  • Color: 2400K (Yellow NCS), 2700K (Yellow HXB), 5600K (White NCS), or 5700K (White HXB))

  • Light Source: 2x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost

  • Input: Integrated Deutsch DT 2-Pin

  • Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

LINE DRAWINGS

COMPATIBILITY

  • Subaru BRZ: 2012-2020 (All)

  • Morimoto LED Pods: 2Banger (All)

INSTALLATION DOCUMENTS

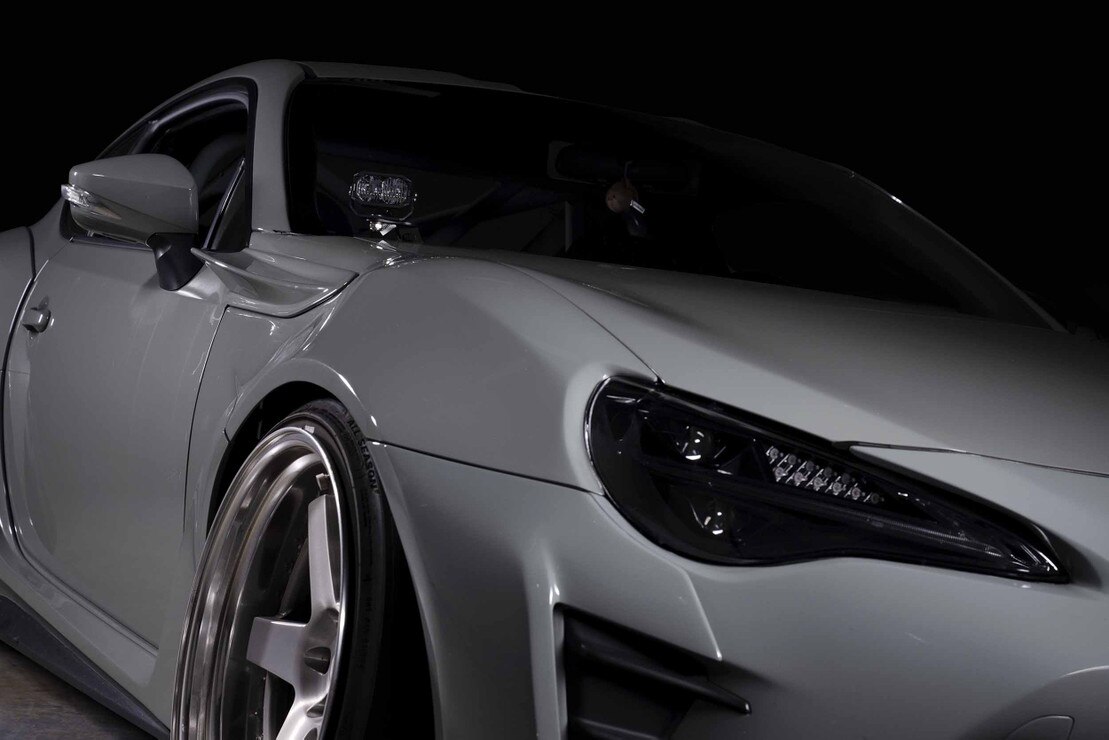

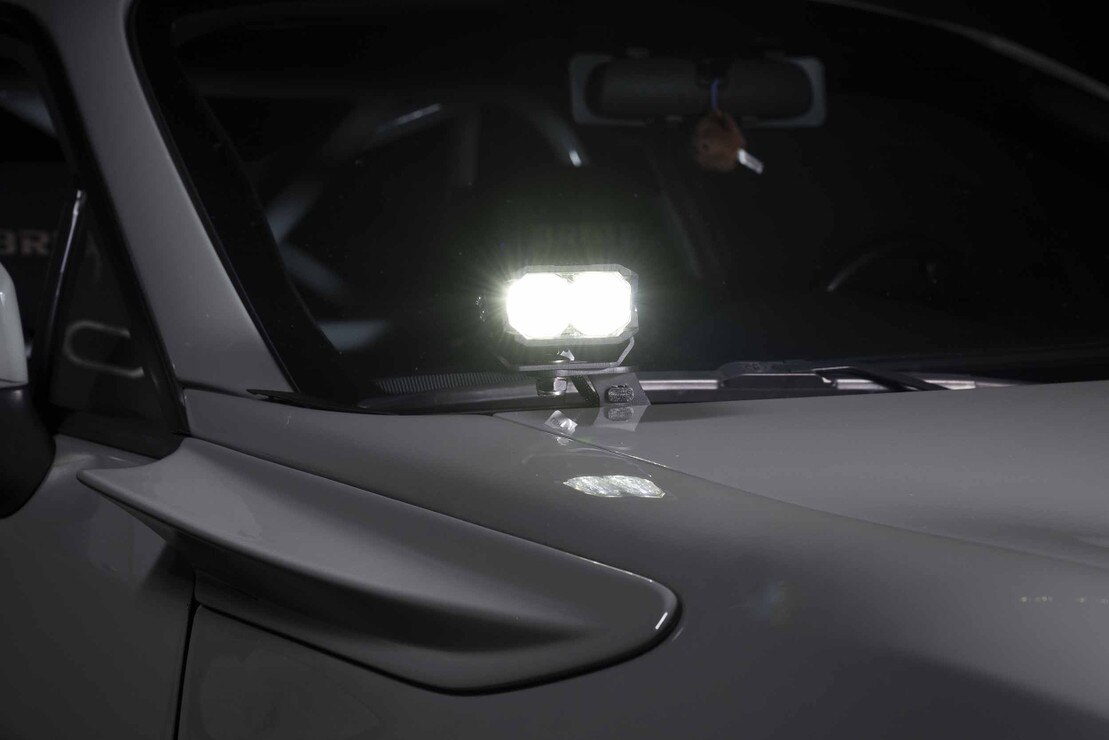

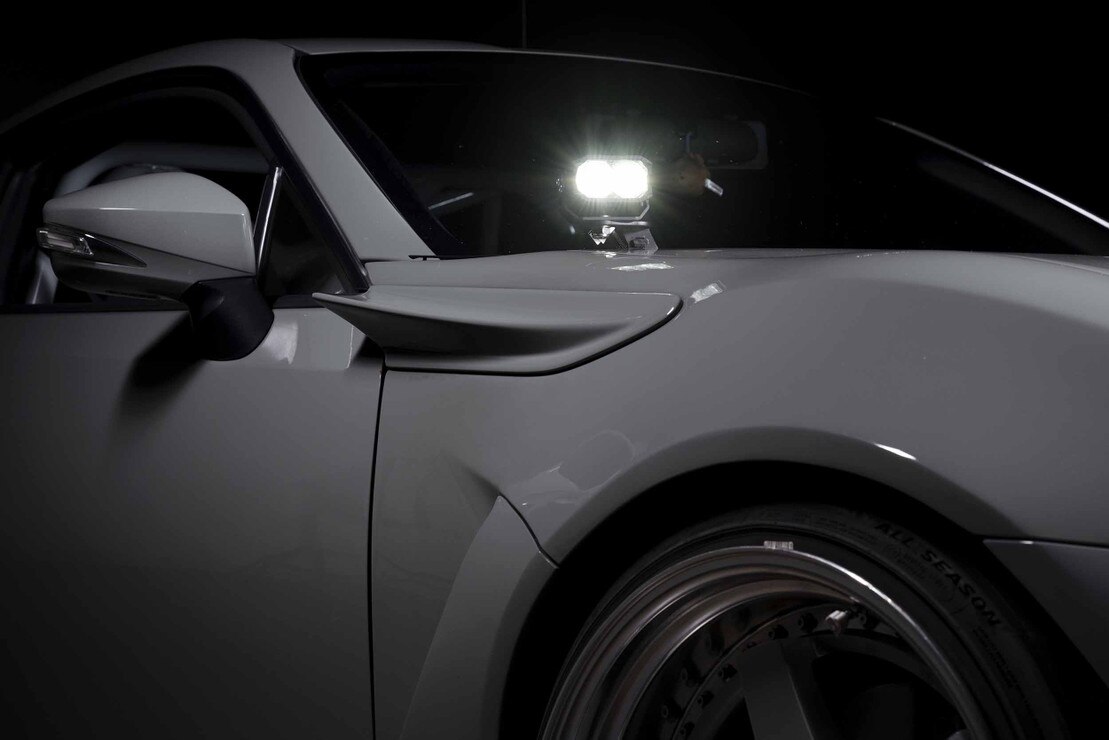

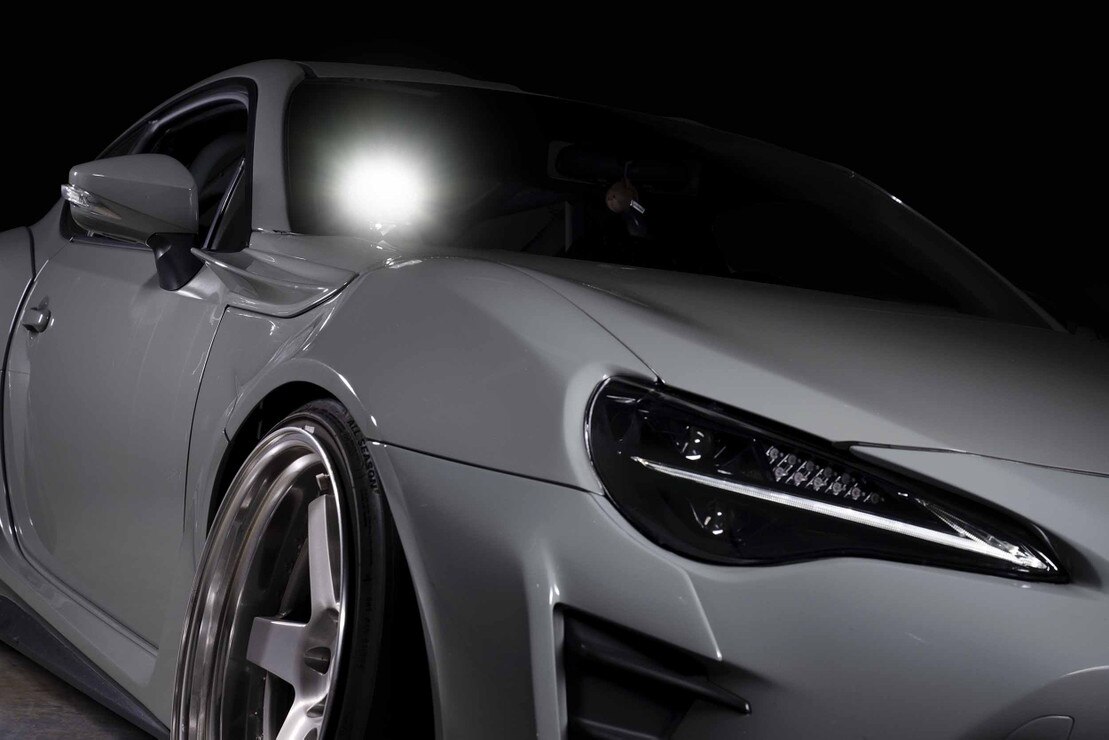

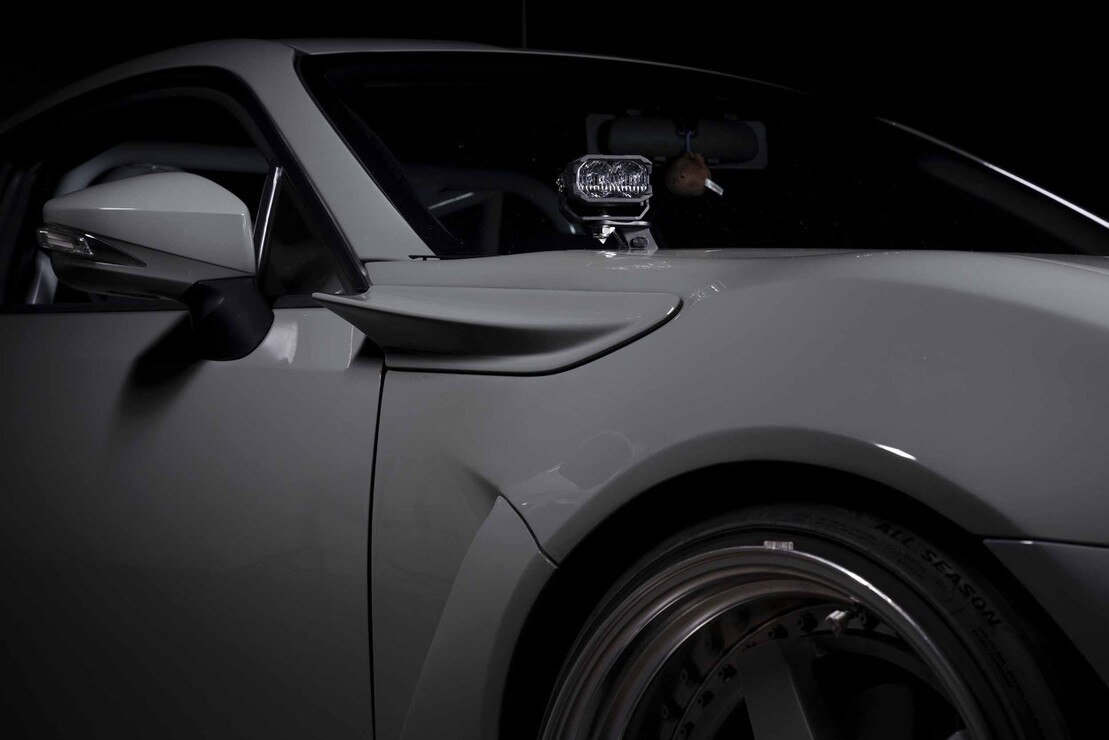

Bolt on Brighter: The Morimoto Drift Light system is the perfect bolt-on solution to drastically boost light output for your sports car in the dark. Whoever declared that this was only appropriate for trucks forgot that sports cars are faster, meaning the drivers need to see further. They are often driven on the track or backroads at night, both of which call for maximum visibility for your safety, and so that Bambi can make it home too. Simply select a set of high-performance Banger LED pods in your choice of beam pattern, pair that with the brackets to make installation a breeze, and power it properly with our switched wire harness!

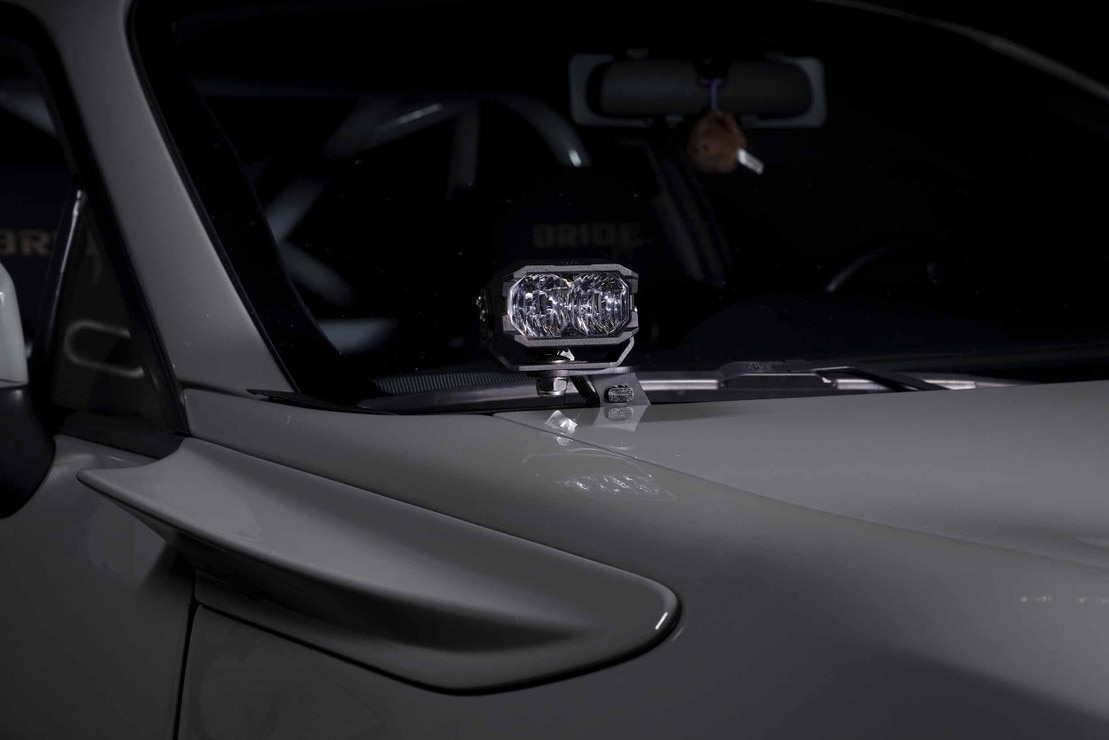

Engineered Fitment: Morimoto's drift light kit for the 2012-2020 FR-S, BRZ, and GT86 has been through numerous rounds of design, prototyping and testing directly on the car to ensure perfect compatibility. Everything lines up with pre-existing mounting points under the hood to create an installation that is truly modification-free.

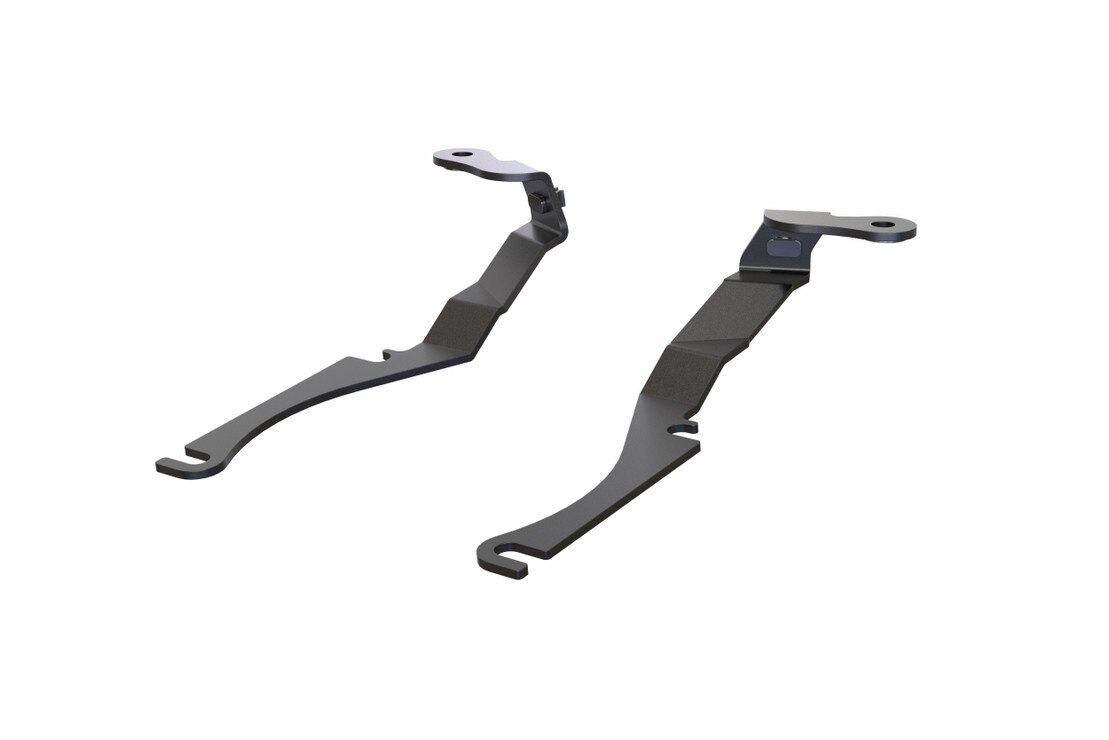

Bomb Proof: Each bracket is laser cut from 304 stainless steel, then powder coated. Put simply, the fenders on your car are going to rip off way before our drift light kit even flexes a muscle. These are off-road tough.

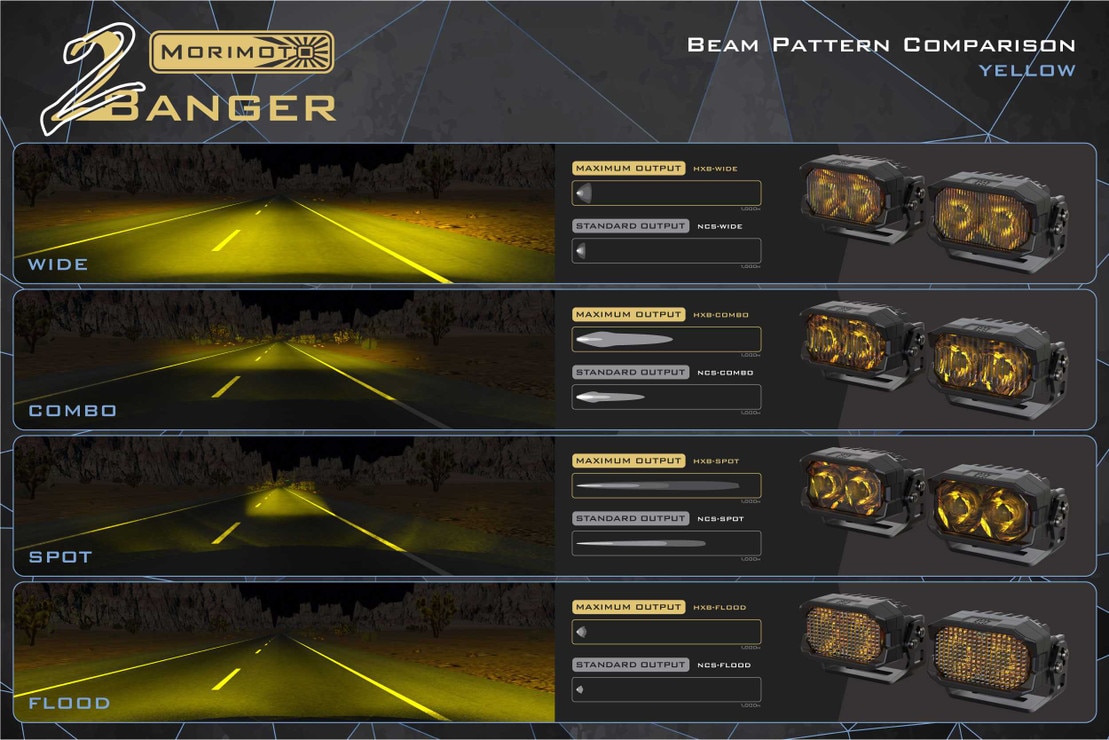

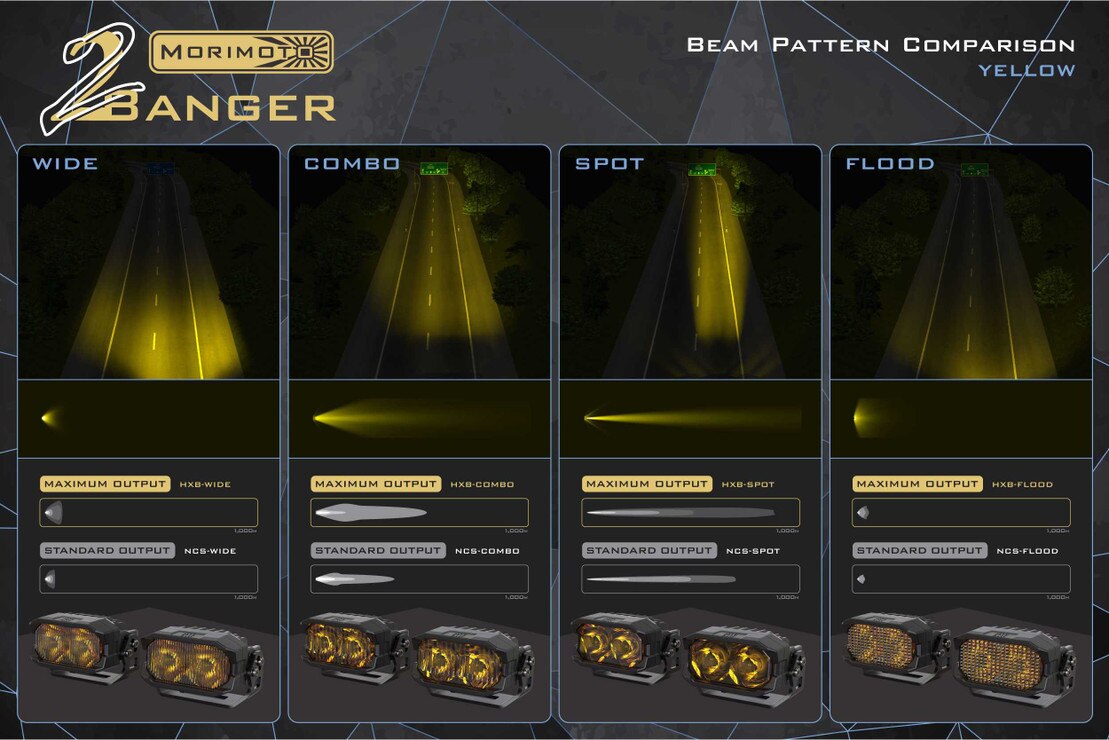

All Weather: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog--the Yellow-output version will slay in shady weather. Morimoto has opted for Phosphor-Converted Yellow LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather).


Reliability: With power comes great responsibility. Extensive effort went into ensuring the reliability of the pods. High power means high heat, which is why our Banger LED pods feature a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The potted internals, over-molded input wiring, and main gasket are all designed according to IP69K standards for full weather resistance.


Wiring & Cable Management: No sloppy wiring allowed. We have incorporated several mounting locations and cable routing clips on the stem of the bracket to direct the input wiring from your LED pods down into the engine bay. From there, you can plug n play with Morimoto's switched relay wire harness for a clean and reliable install.

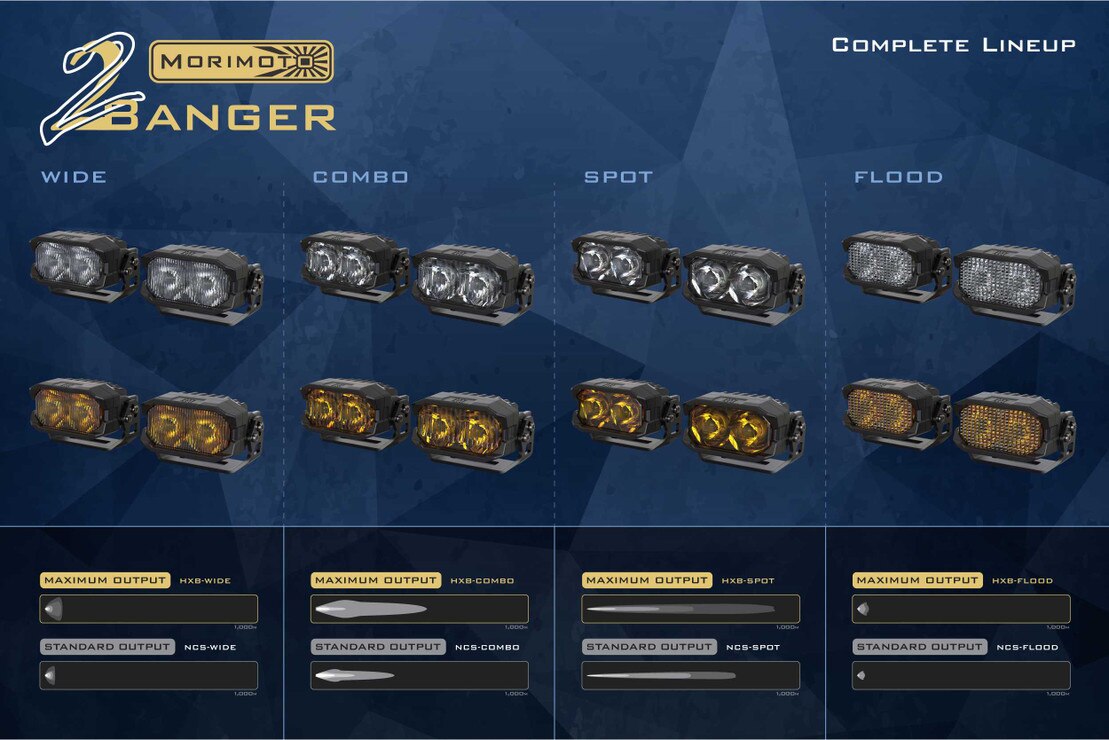

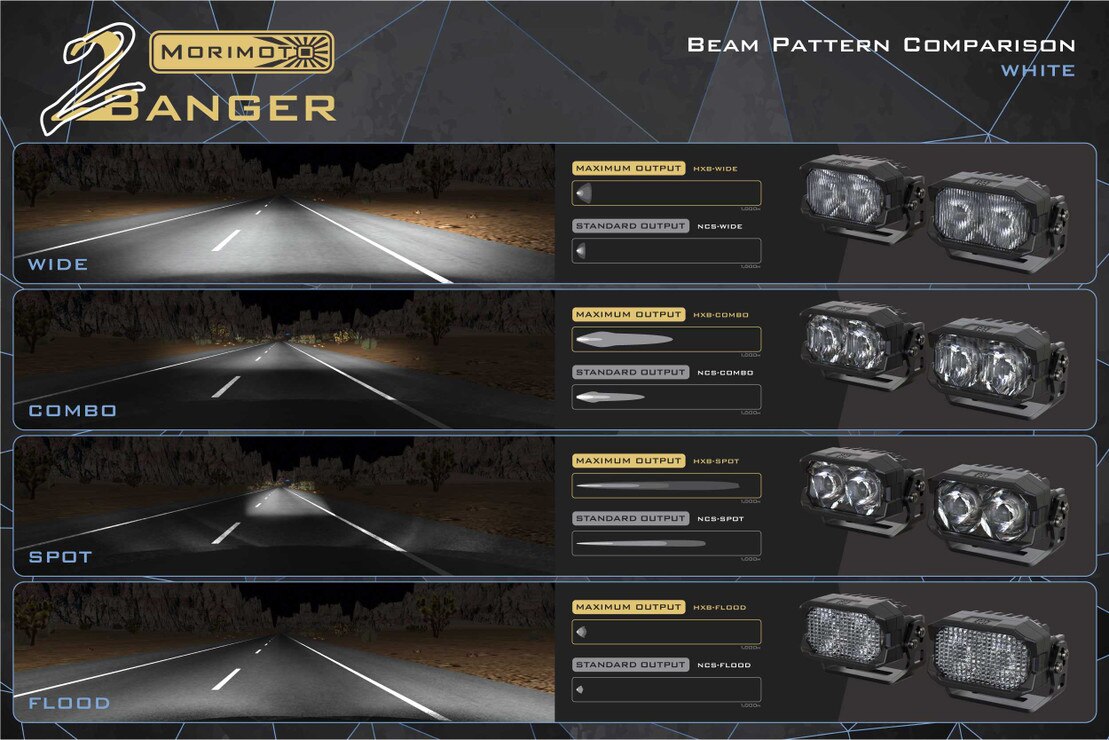

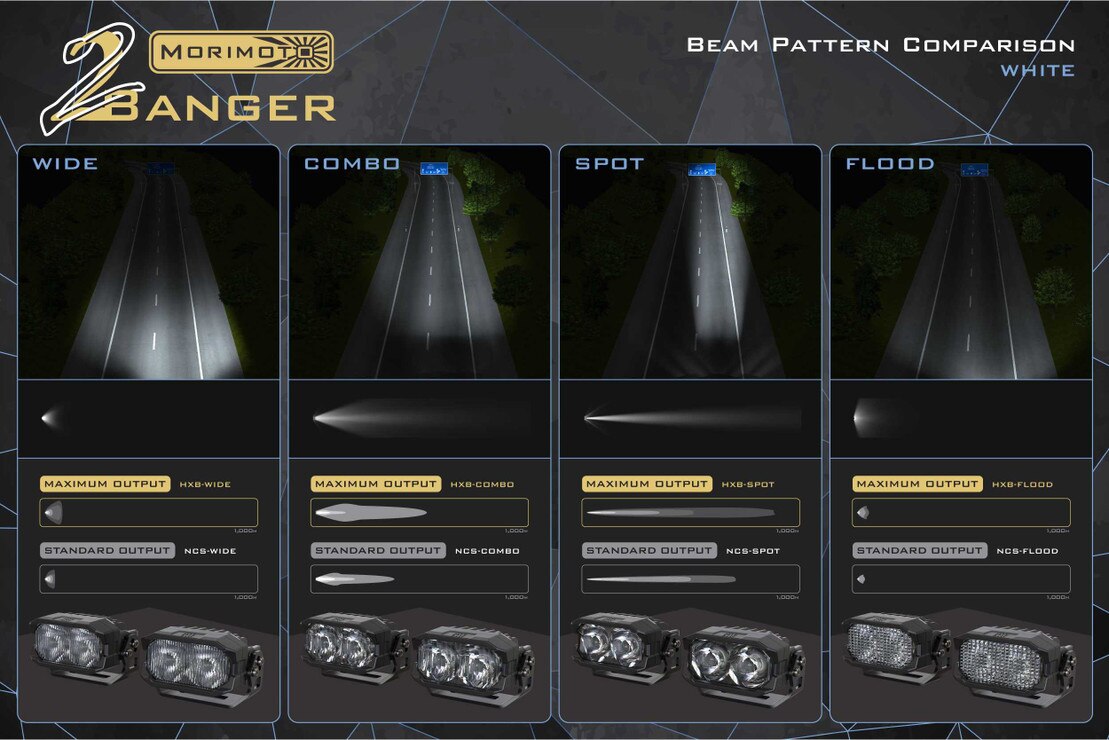

Performance: Just like the brackets, every element of the patented line of LED pods is proprietary. LucidShape was used to optimize performance around the most modern, lumen-dense LEDs from Nichia and Osram. Optics are produced according to world-class standards. Thermal dynamics have been optimized using SolidWorks. They are available with five industry-leading beam patterns to suit every need. Wide/Fog, Spot, Combo, Flood, and Trail.


Combo Beam: Illuminates a clear path with medium range. The Combo beam provides a blend of width and distance illumination making every day driving in the middle of nowhere far more comfortable. The 8H x 4V oval hot spot with a 10V degree spread at beam center has been perfectly tuned to produce an ideal flood beam. The Combo pattern is an excellent aid to any set of high-performance headlights.


Spot Beam: Illuminates far into the distance unlike anything else on the market. The HXB Spot comes standard with the most powerful Osram LEDs, which in combination with the optics produces a beam pattern capable of penetrating up to 800 meters into your future. No matter the speed, you'll never outrun your ability to see with the Banger Spot beams.


SAE Wide Beam: Illuminates the ground directly in front of the vehicle. The optics feature dual axis control: 1) for width, and 2) active hot spot control to project peak intensity right along the top of the beam pattern. The proper vertical gradient and sharp cutoff has proven SAE-Compliant for use on road as a fog light. The wide beam delivers the best combination of width, intensity, and control -- making it the most effective LED fog light in the world.


Flood Beam: When focus is irrelevant and broad output to illuminate everything in your immediate locale is priority number one, the Flood beam is where it's at. Designed to diffuse the output of the potent Nichia or Osram chips within, the flood lens emits a very broad (but shallow) range of output.

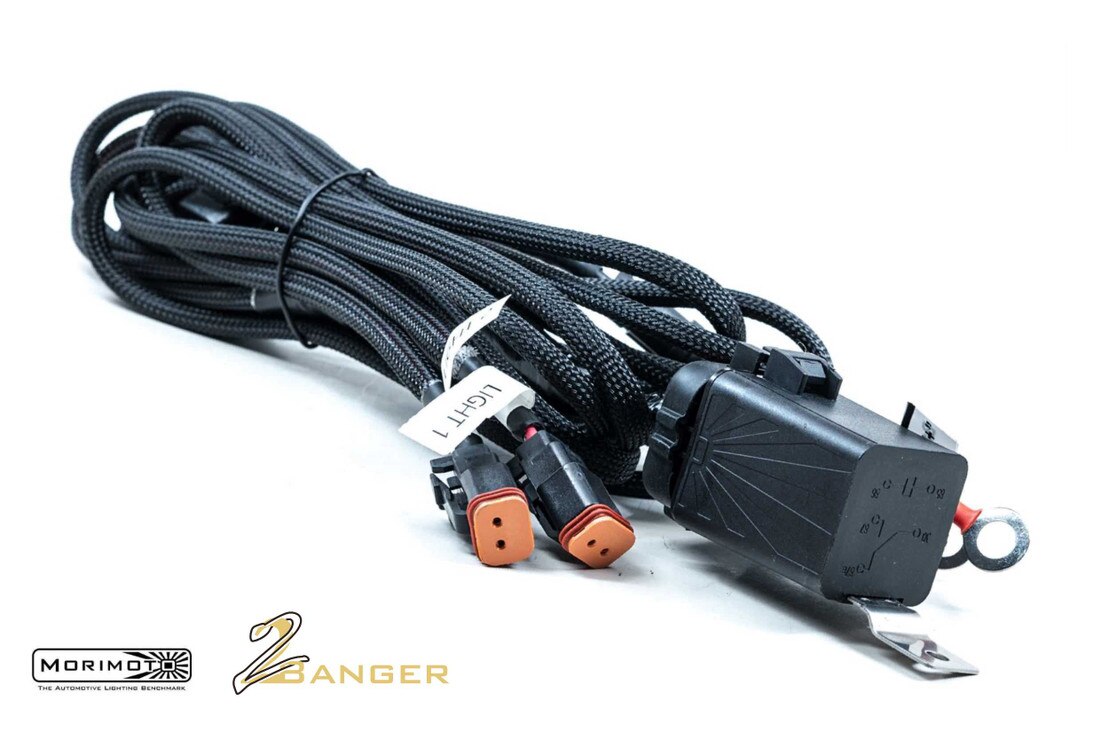

Power Up: The Morimoto Banger LED pods have been developed from the ground up to set a new standard in their segment, and the same goes for the optional wire harness. If you want the best, bingo. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with Yellow-LED backlight.
