4Banger Bar: 6 Pod / 24.5"

(0) No Reviews yet
Questions?

Brand: Morimoto

B-2RBAR-24.5IN-TRS

$1,370.00

PRODUCT OPTIONS

PART #: 2 x BAF003.2, 1 x BAF005.2, 1 x BAF088SF, 5 x BAF088, 1 x BAF088SB, 1 x BAF130H



DESCRIPTION

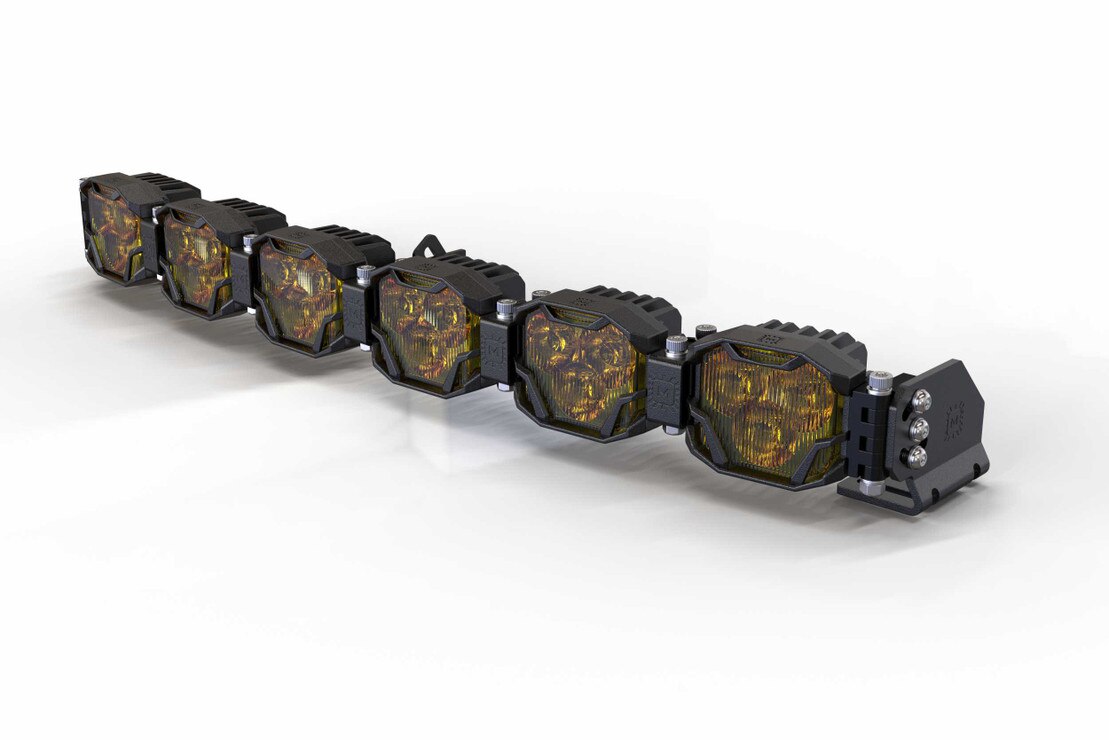

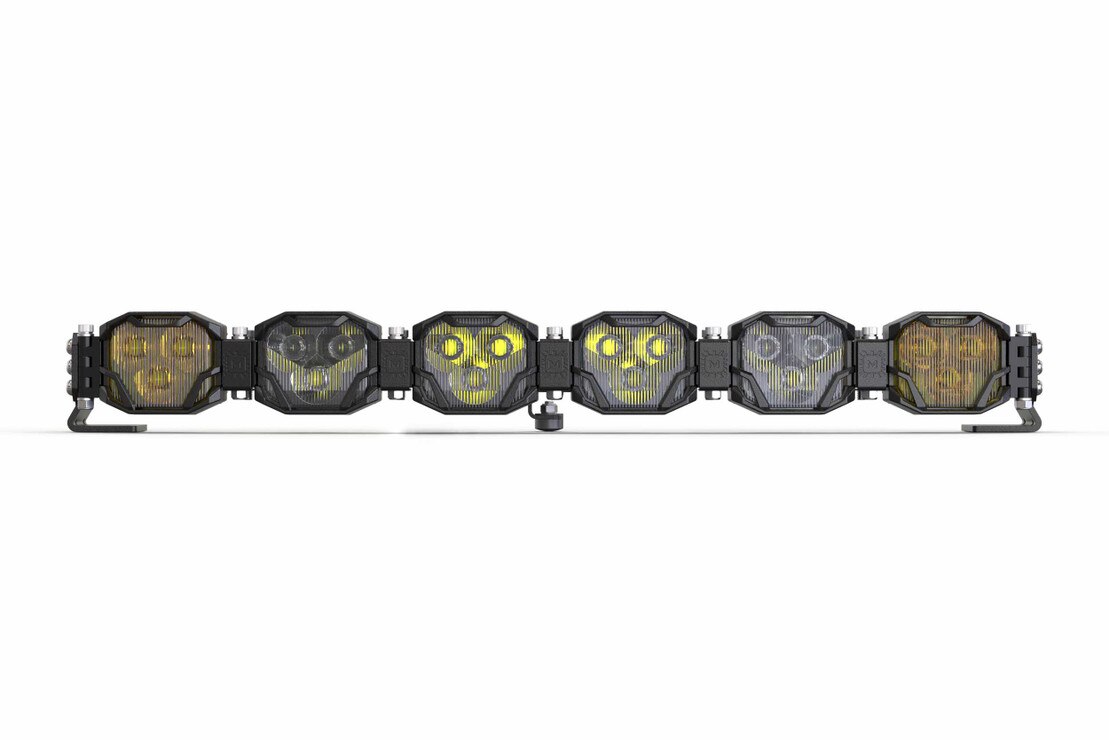

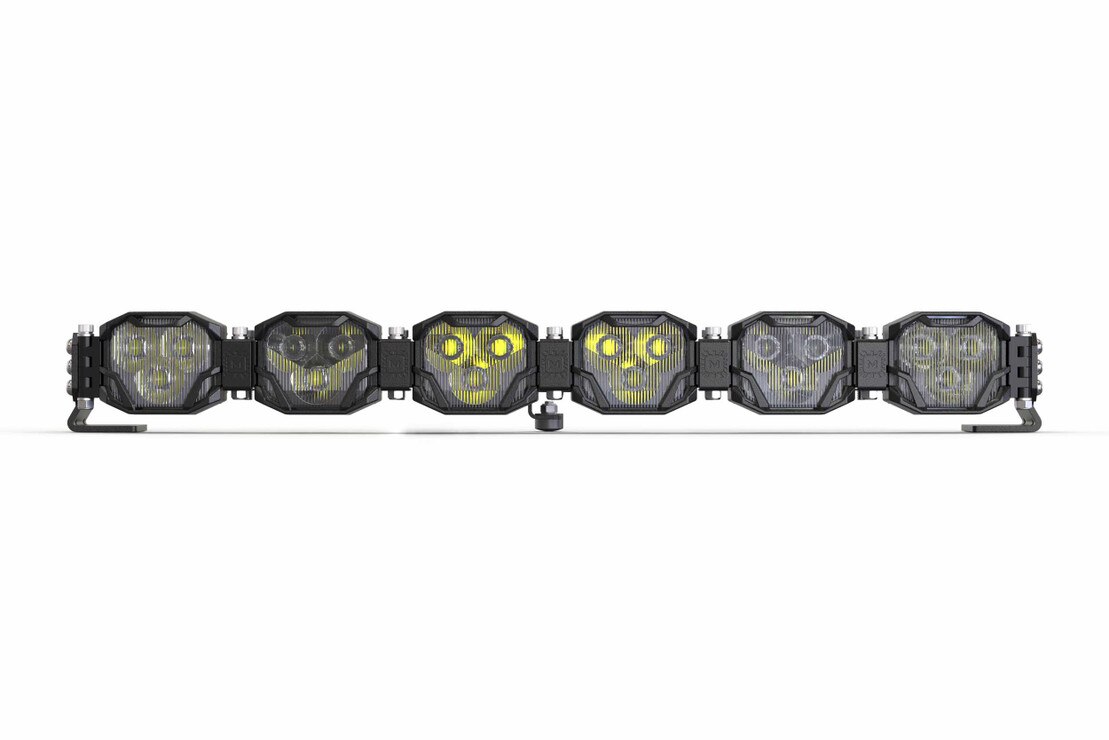

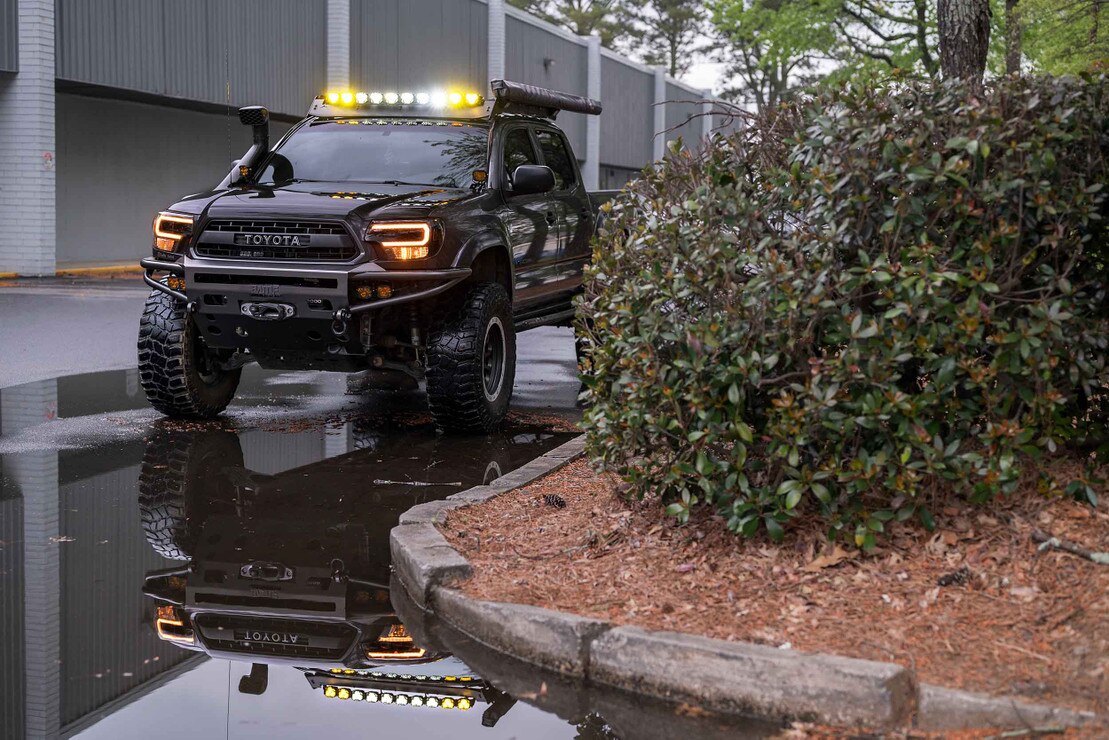

Introducing the Morimoto Double Row BangerBar – Off-Road Reinvented! Since 2008, Morimoto has been the industry leader in crafting top-notch automotive lighting upgrades, and this bespoke light bar is no exception. With customizable power, color, length, and radius options, you're in control. Equipped with 4Banger Pods, CNC machined aluminum links, and universal end-mounts, it's ready to tackle any challenge. Choose between the 4Banger NCS for optimal value or the HXB for maximum performance, both featuring Osram LED chips. Versatility is key, as you can set it up straight or curved to suit your needs. The combo, spot, and wide beam pods ensure intense illumination and coverage, even in adverse weather conditions. Count on the Morimoto Double Row BangerBar for durability, thanks to its copper DTP PCB, cast aluminum shell, and IP69K-rated components. Plus, the comprehensive wire harness, sealed relay, and push-button switch guarantee a hassle-free installation. Elevate your off-road adventures with Morimoto's groundbreaking innovation – the Double Row BangerBar!

FEATURES & BENEFITS

  • Customizable: Tailor the BangerBar to your preferences with power, color, length, and radius options.
  • High Performance: Advanced LEDs provide superior visibility with spot, combo, and wide beam pods.
  • Versatile Design: Configure the bar straight or curved for various applications.
  • All-Weather Ready: Choose white or yellow output for optimal visibility in any conditions.
  • Durable Build: Built to last with a copper DTP PCB, IP69K weather resistance, and CNC-machined aluminum.

WHAT’S INCLUDED

  • LED Pods: 4x Morimoto 4Banger Combo (White or Yellow)

  • LED Pods: 2x Morimoto 4Banger Wide (White or Yellow)

  • Pod Links: 5x 4Banger Adjustable CNC Links w/ Hardware

  • Center Support Legs: 2x Adjustable Central Support Legs w/ Hardware

  • Universal Mounting Feet: 1x Adjustable Surface Mounts w/ Hardware

  • Relay Harness: 1x Morimoto Switched Power Harness

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

TECHNICAL SPECIFICATIONS

  • Peak Luminosity (raw): 8,100lm (NCS), 18,000lm (HXB)

  • Intensity (HXB White): 356,800 Cd (3,568 lux @ 10m)

  • Intensity (HXB Dual Color): 341,400 Cd (3,414 lux @ 10m)

  • Intensity (HXB Yellow): 247,800 Cd (2,478 lux @ 10m)

  • Intensity (NCS White): 250,800 Cd (2,508 lux @ 10m)

  • Intensity (NCS Dual Color): 239,360 Cd (2,394 lux @ 10m)

  • Intensity (NCS Yellow): 172,760 Cd (1,728 lux @ 10m)

  • Power (stabilized): 93.6w (NCS), 252.0w (HXB)

  • Current (amps @ 13.5V DC): 9.00A (NCS), 19.20A (HXB)

COMPATIBILITY

  • Universal: Mounts anywhere w/ included mounting Feet

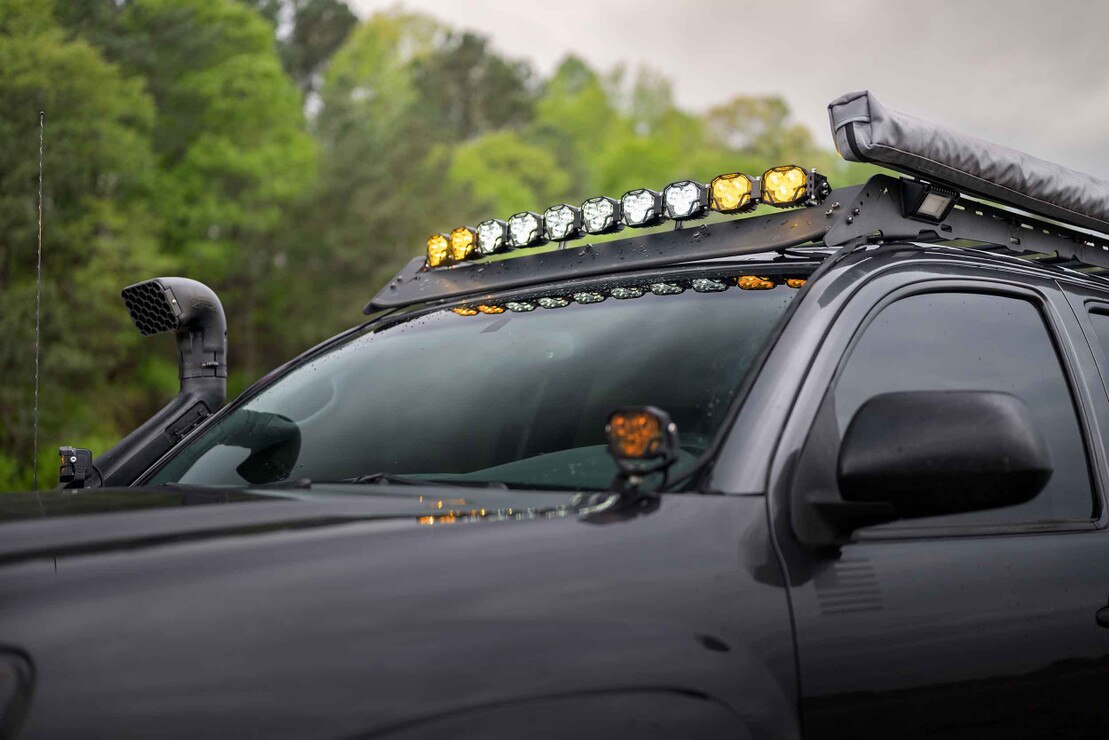

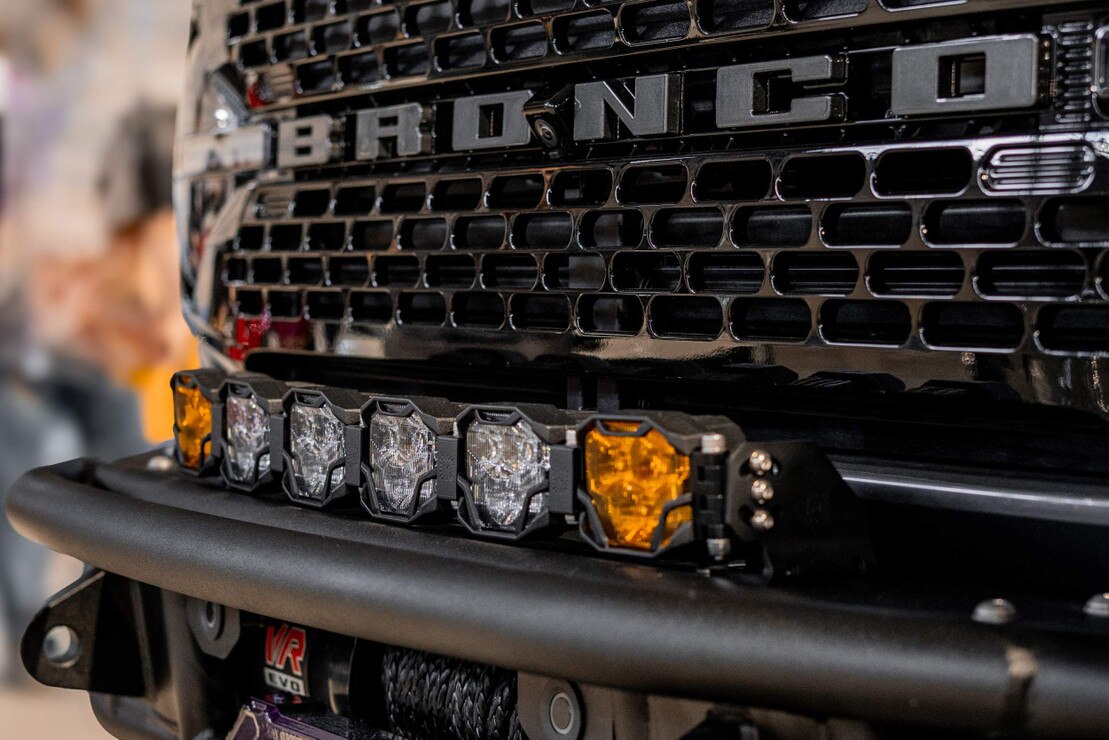

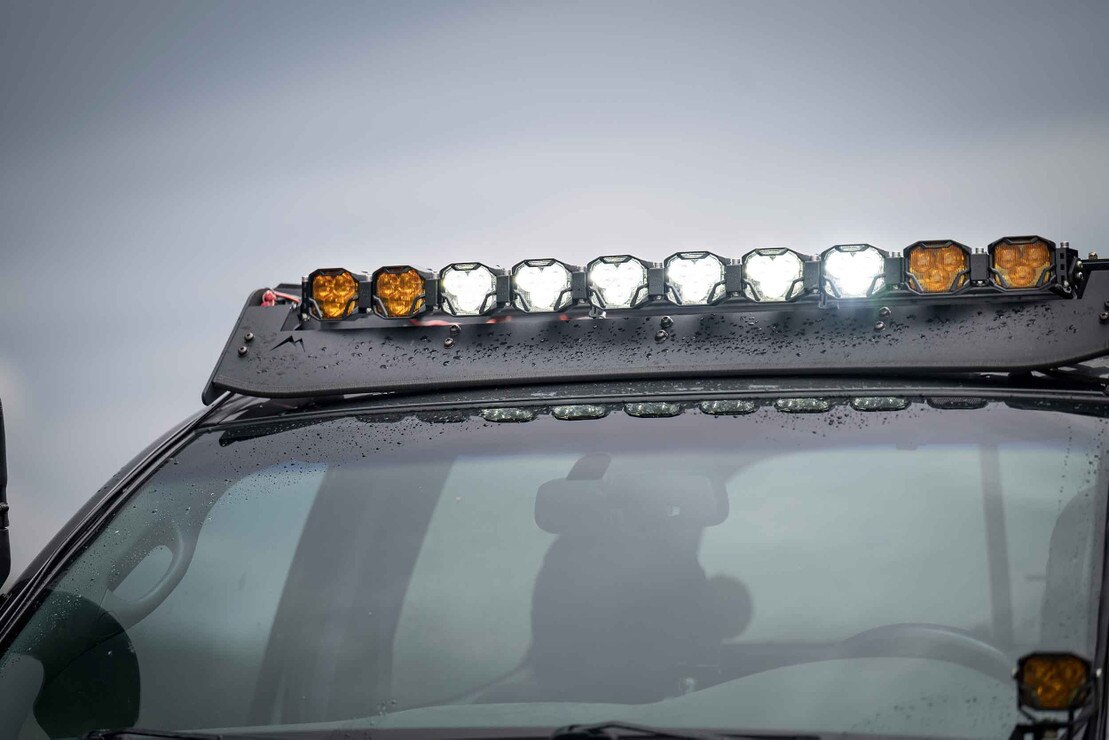

  • Ideal for: Steel Roof Racks and Bumpers

  • Width: 62.28cm / 24.52in

  • Height: 49.8mm / 1.96in

  • Depth: 59.2mm / 2.33in

  • Weight: 5.38kg / 11.85lb

  • Mounting Width Range: 22.27-27.02" / 56.57-68.63cm

INSTALLATION DOCUMENTS
