4Banger Bar: 4 Pod / 16.5"

(0) No Reviews yet
Questions?

Brand: Morimoto

B-2RBAR-16.5IN-TRS

$990.00

PRODUCT OPTIONS

PART #: 1 x BAF003.2, 1 x BAF005.2, 1 x BAF088SF, 3 x BAF088, 1 x BAF130H



DESCRIPTION

Introducing the Morimoto BangerBar, the ultimate solution for off-road illumination! For over a decade, Morimoto has been setting the standard in automotive lighting upgrades, and the Double Row BangerBar continues this tradition. This custom light bar empowers you to tailor power, color, length, and radius to your specific needs, ensuring you'll conquer darkness like never before. Featuring the included 4Banger Pods, cutting-edge Osram LEDs, and advanced optics, this bar guarantees outstanding visibility. Whether you prefer a combo, spot, or wide beam pattern, the BangerBar offers it all. Plus, with the NCS and HXB versions available, you can choose the perfect balance of performance and output to match your driving style. Engineered for durability, the BangerBar boasts robust construction, efficient heat dissipation, and weather-resistant components—all backed by Morimoto's renowned reliability. And don't forget the premium wire harness included for easy installation and control. Elevate your off-road adventures with the Morimoto BangerBar—reimagine your journey with unmatched lighting prowess!

FEATURES & BENEFITS

  • Customizable: Available in your choice of lengths, 4Banger light bars can be configured as straight or curved. Customization has never been easier.
  • Light Source: Banger pods are built around the high performance Nichia NCS or Osram HX Boost LEDs for incredible output.

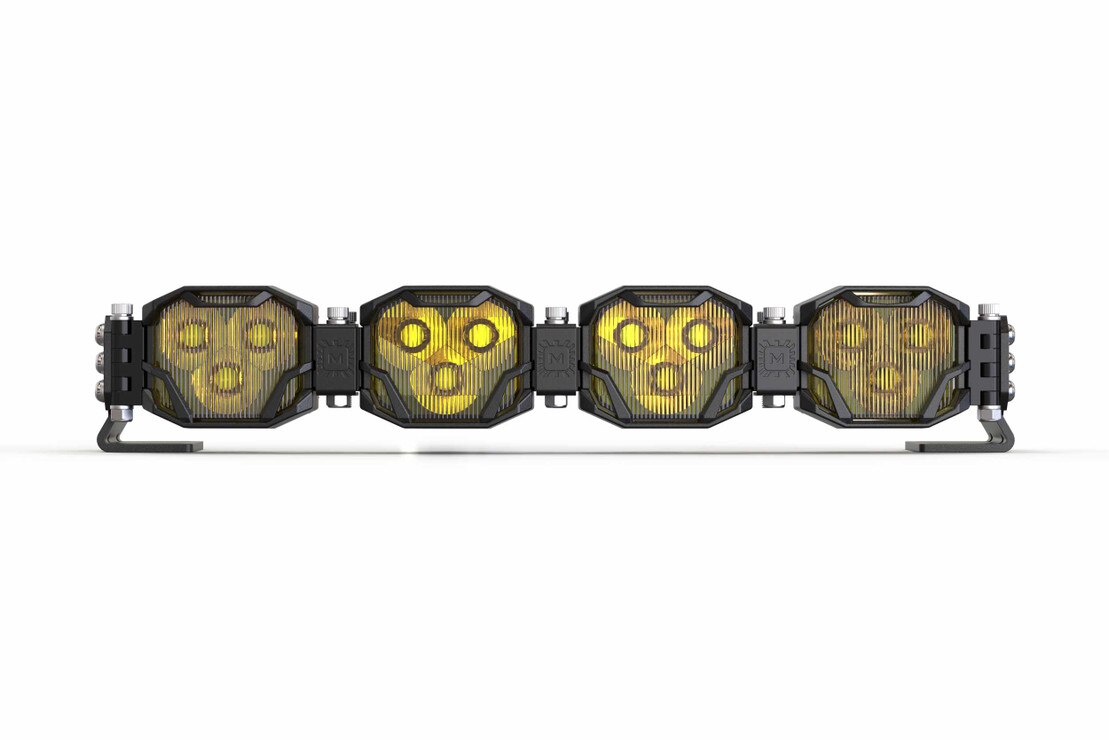

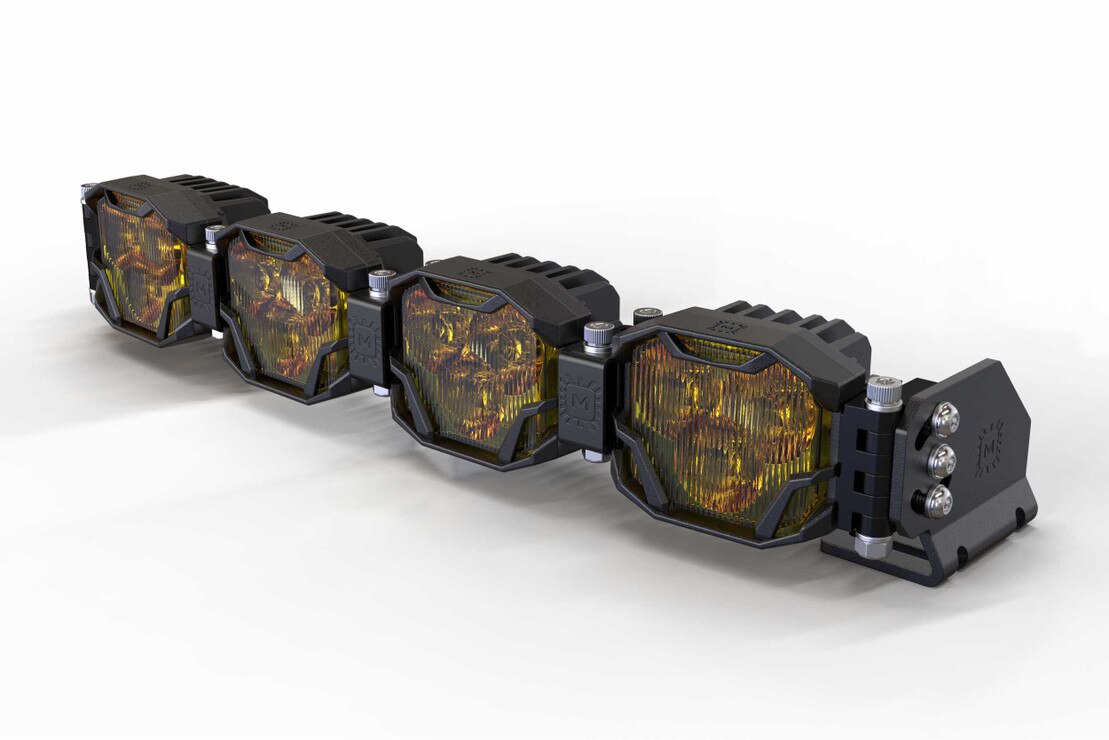

  • All-Weather Versatility: Designed to IP69K weather resistance standards and available in white or yellow output for optimal visibility.
  • Beam Patterns: Curated lens options offer a bright and useful output at both low and high speeds.
  • US-Based Engineering: Designed, engineered, and tested by our team of enthusiasts in Atlanta, GA.

WHAT’S INCLUDED

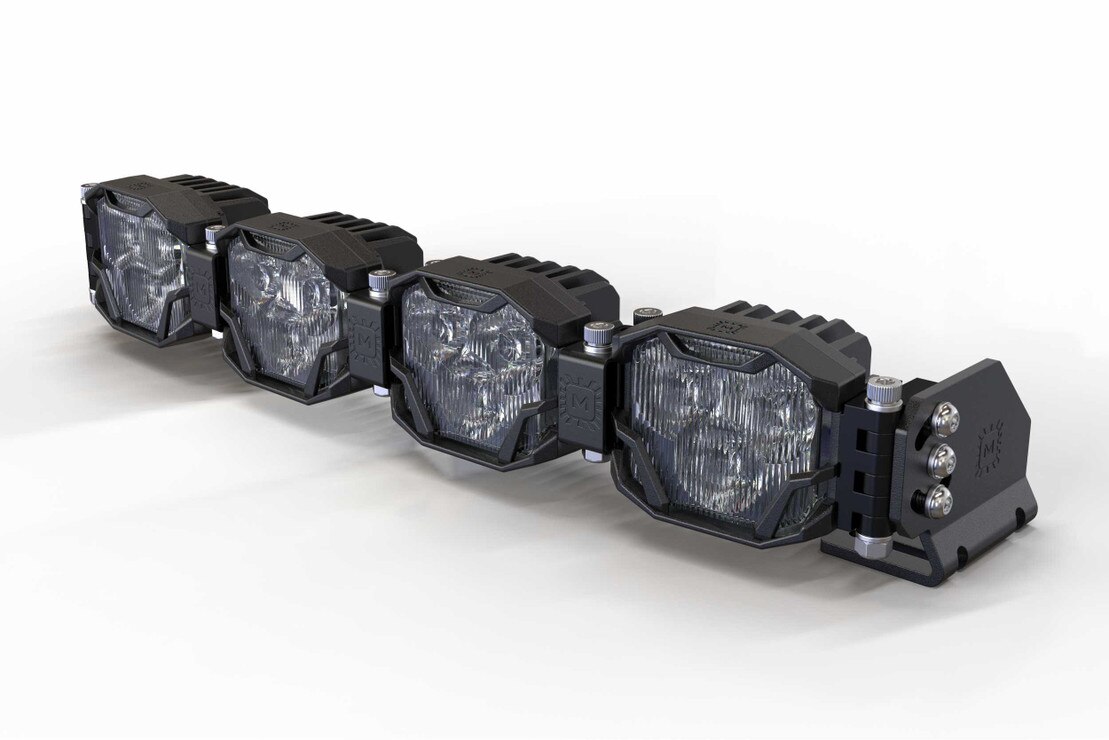

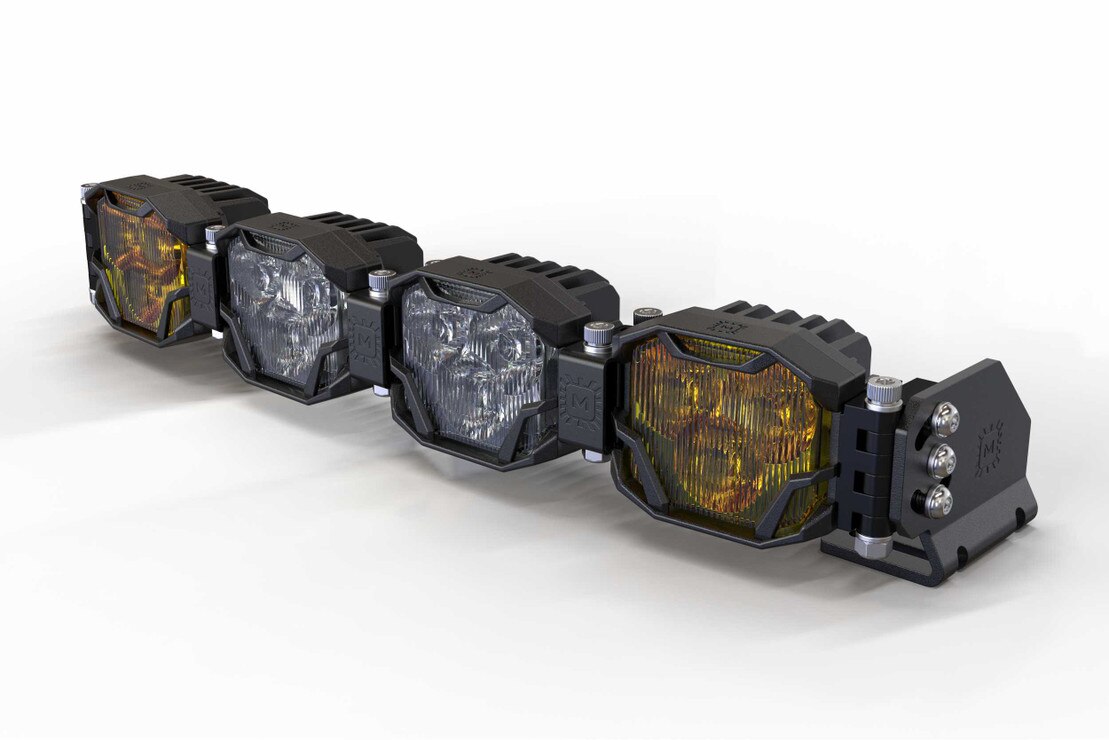

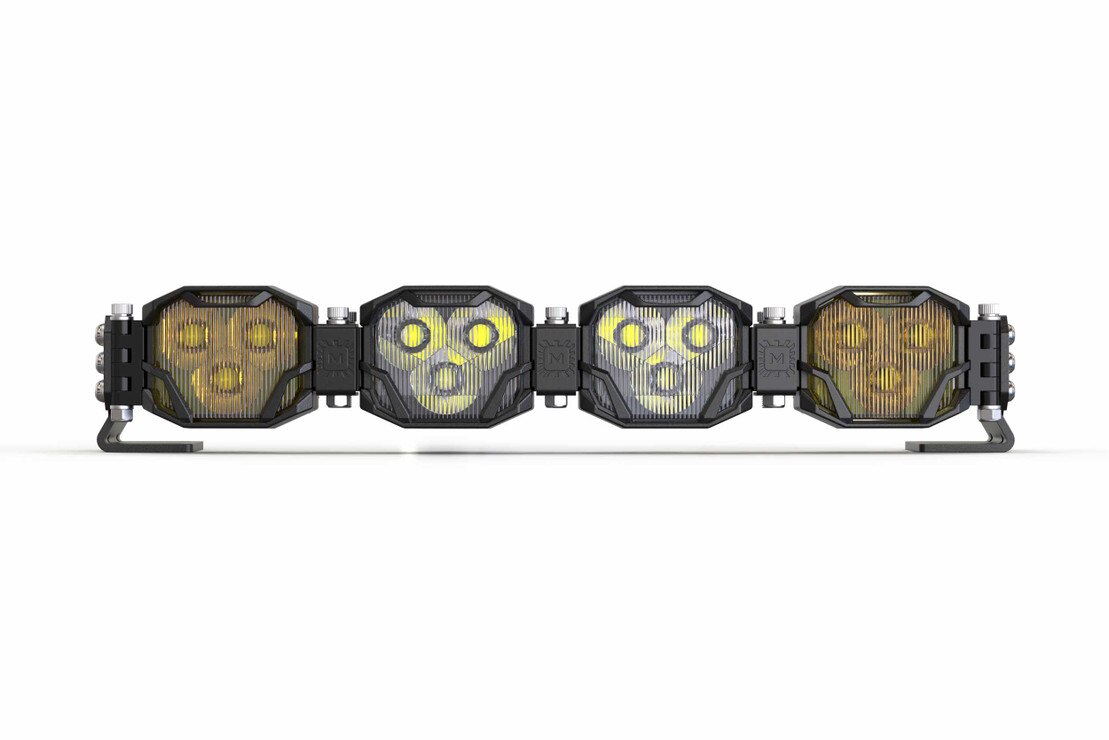

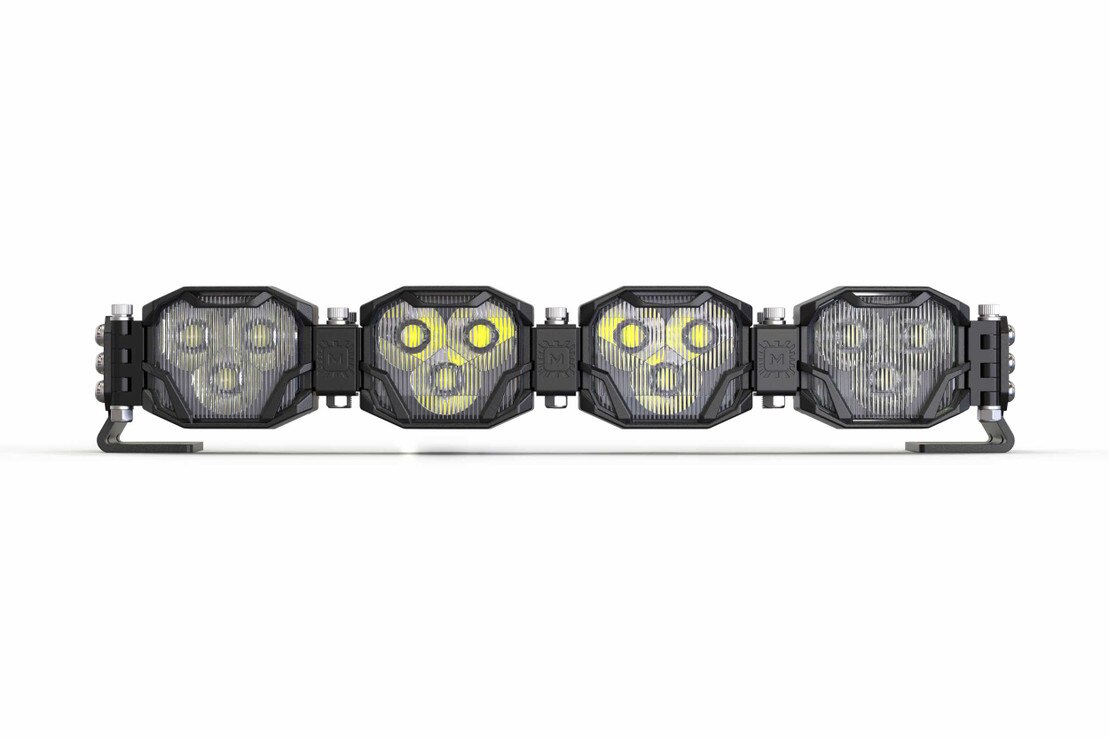

  • LED Pods: 2x Morimoto 4Banger Combo (White or Yellow)

  • LED Pods: 2x Morimoto 4Banger Wide (White or Yellow)

  • Pod Links: 3x 4Banger Adjustable CNC Links w/ Hardware

  • Universal Mounting Feet: 2x Adjustable Surface Mounts w/ Hardware

  • Relay Harnesses: 2x Morimoto Switched Power Harnesses

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).

TECHNICAL SPECIFICATIONS

  • Peak Luminosity (raw): 5,400 lm (NCS), 12,000 lm (HXB)

  • Intensity (HXB White): 200,800 Cd (2,008 lux @ 10m)

  • Intensity (HXB Dual Color): 185,400 Cd (1,854 lux @ 10m)

  • Intensity (HXB Yellow): 138,600 Cd (1,386 lux @ 10m)

  • Intensity (NCS White): 139,800 Cd (1,398 lux @ 10m)

  • Intensity (NCS Dual Color): 128,360 Cd (1,284 lux @ 10m)

  • Intensity (NCS Yellow): 95,060 Cd (951 lux @ 10m)

  • Power (stabilized): 62.4w (NCS), 168.0w (HXB)

  • Current (amps @ 13.5V DC): 6.00A (NCS), 12.80A (HXB)

COMPATIBILITY

  • Universal: Mounts anywhere w/ included mounting Feet

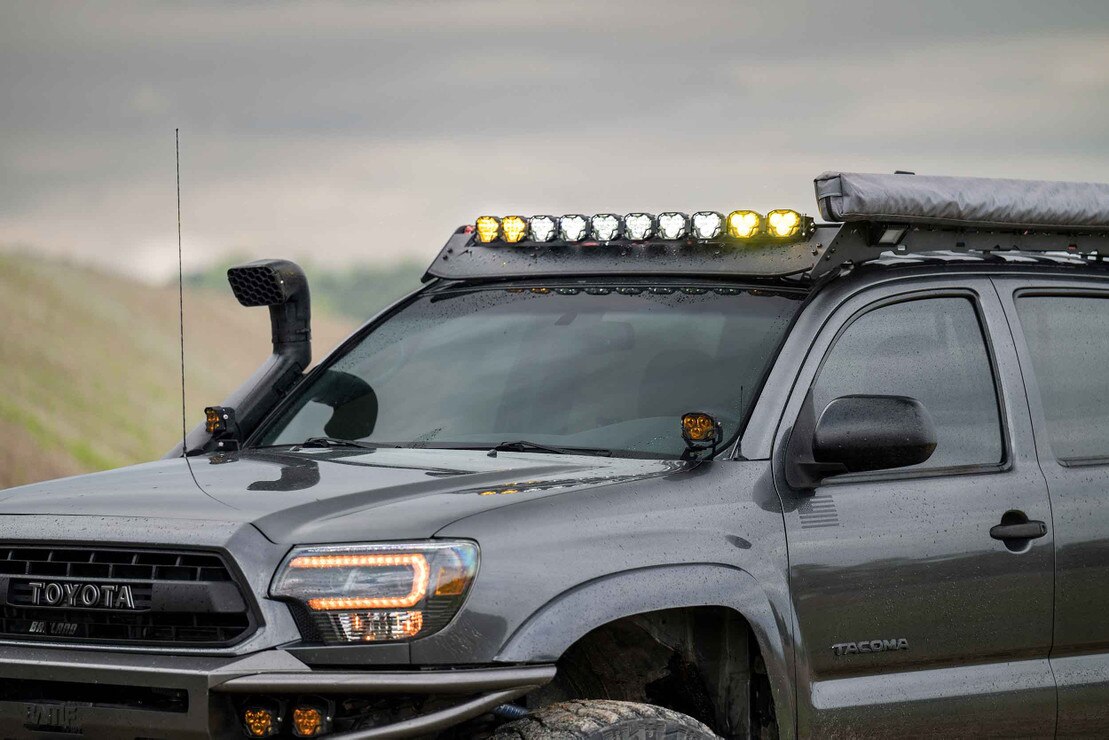

  • Ideal for: Steel Roof Racks and Bumpers

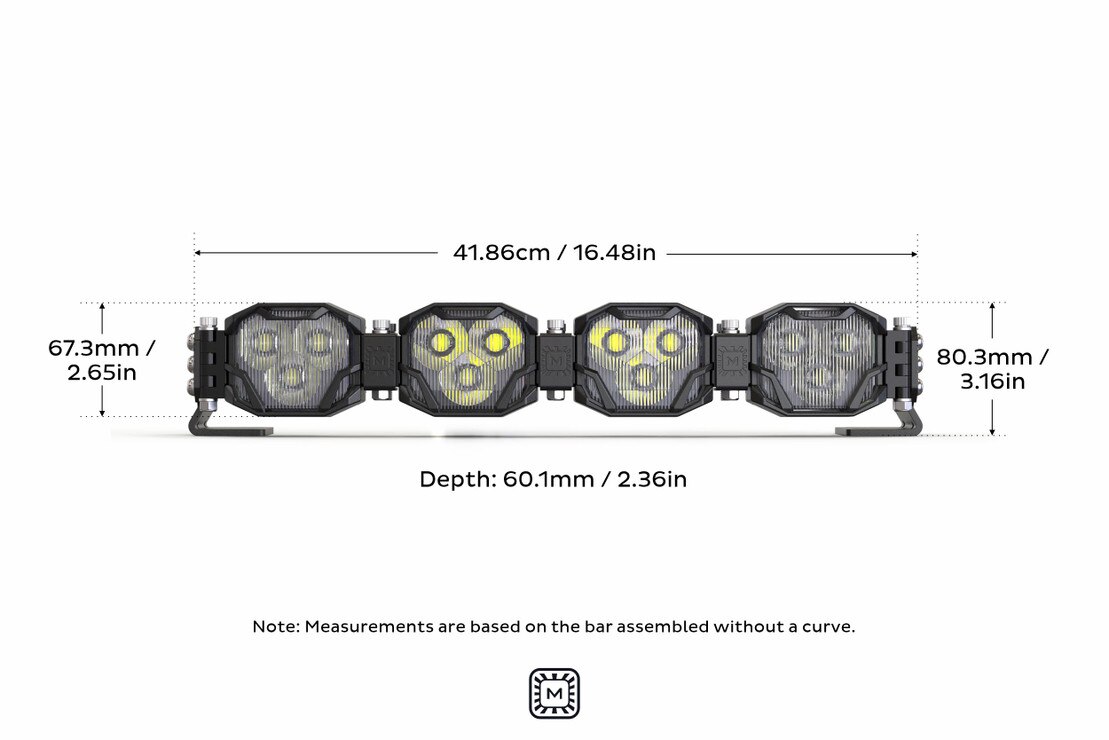

  • Width: 41.86cm / 16.48in

  • Height: 80.3mm / 3.16in

  • Depth: 60.1mm / 2.36in

  • Weight: 3.40kg / 7.49lb

  • Mounting Width Range: 14.23-18.98" / 36.14-48.21cm

INSTALLATION DOCUMENTS
