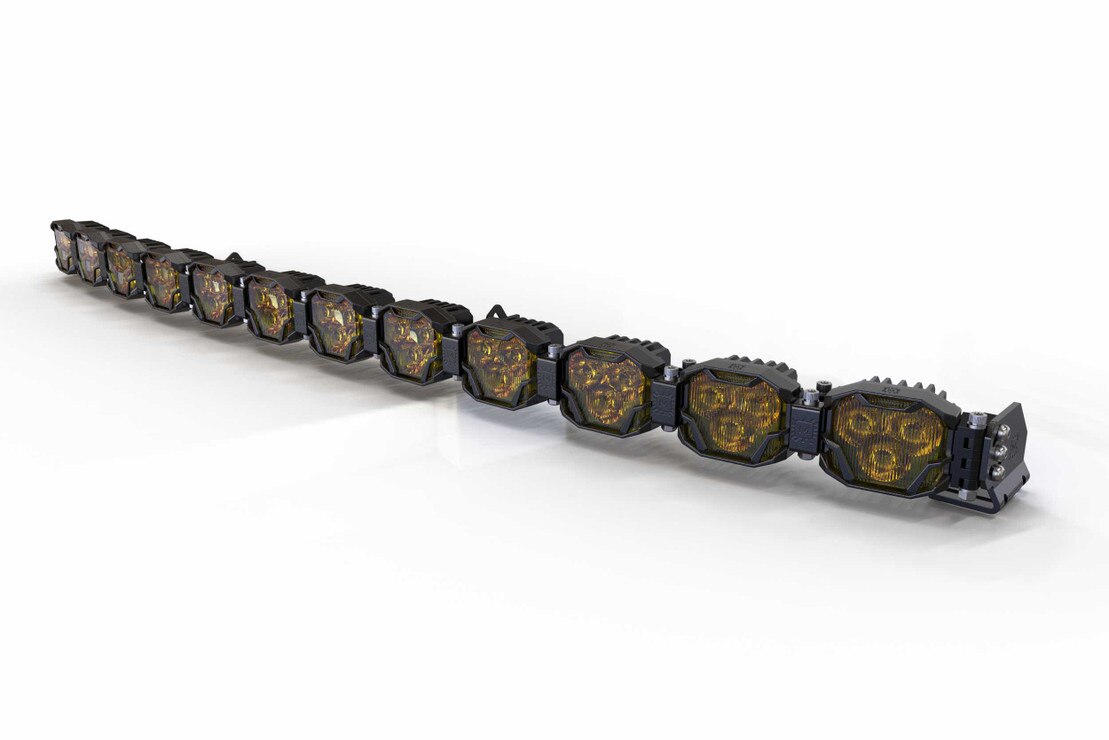

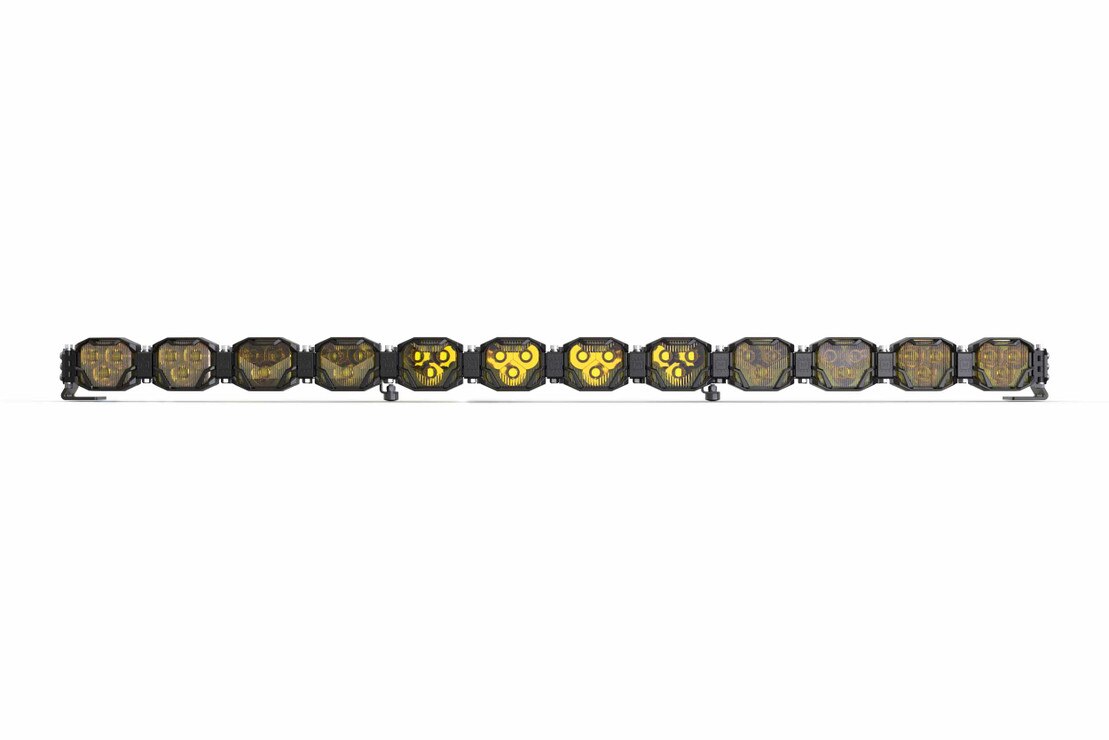

4Banger Bar: 12 Pod / 48.5"

(0) No Reviews yet
Questions?

Brand: Morimoto

B-2RBAR-48.5IN-TRS

$2,520.00

PRODUCT OPTIONS

PART #: 1 x BAF001.2, 3 x BAF003.2, 2 x BAF005.2, 1 x BAF088SF, 11 x BAF088, 2 x BAF088SB, 1 x BAF131H

DESCRIPTION

Introducing the Morimoto BangerBar -- the ultimate automotive lighting upgrade! Since 2008, Morimoto has been synonymous with top-tier performance, reliability, and style. Our Double Row BangerBar takes it to the next level, offering you the power to customize your lighting experience. Choose your power, color, length, and radius, and watch as the darkness disappears. With 4Banger NCS and HXB options, you'll experience unparalleled performance, thanks to cutting-edge Osram LED chips. The versatile design allows for both straight and curved setups, making it a perfect fit for any vehicle. Whether you prefer a combo, spot, or wide beam, our Double Row BangerBar has you covered, providing exceptional intensity and coverage. No matter the weather conditions, Morimoto has you covered. Opt for the white-output version for maximum visibility or the yellow-output version for adverse weather conditions. For ultimate versatility, choose the white/yellow combo setup. We've taken reliability seriously, with a copper DTP PCB, IP69K-rated design, and solid aluminum construction. Plus, our proprietary wire harness ensures a hassle-free installation, giving you full control over your lighting setup.

FEATURES & BENEFITS

  • Customizable: Available in your choice of lengths, 4Banger light bars can be configured as straight or curved. Customization has never been easier.
  • Light Source: Banger pods are built around the high performance Nichia NCS or Osram HX Boost LEDs for incredible output.

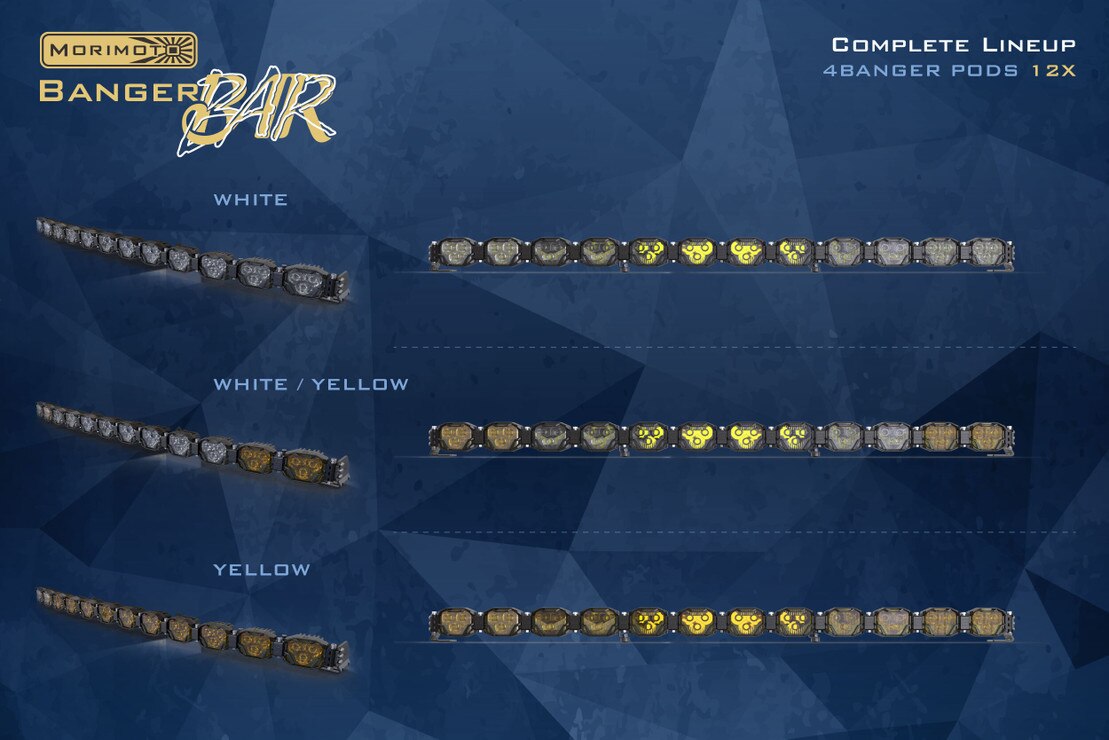

  • All-Weather Versatility: Designed to IP69K weather resistance standards and available in white or yellow output for optimal visibility.
  • Beam Patterns: Curated lens options offer a bright and useful output at both low and high speeds.
  • US-Based Engineering: Designed, engineered, and tested by our team of enthusiasts in Atlanta, GA.

WHAT’S INCLUDED

  • LED Pods: 2x Morimoto 4Banger Spot (White or Yellow)

  • LED Pods: 6x Morimoto 4Banger Combo (White or Yellow)

  • LED Pods: 4x Morimoto 4Banger Wide (White or Yellow)

  • Pod Links: 11x 4Banger Adjustable CNC Links w/ Hardware

  • Center Support Legs: 2x Adjustable Central Support Legs w/ Hardware

  • Universal Mounting Feet: 2x Adjustable Surface Mounts w/ Hardware

  • Relay Harness: 1x Morimoto Switched Power Harness

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

TECHNICAL SPECIFICATIONS

  • Peak Luminosity (raw): 16,200lm (NCS), 36,000lm (HXB)

  • Intensity (HXB White): 897,600 Cd (8,976 lux @ 10m)

  • Intensity (HXB Dual Color): 866,800 Cd (8,668 lux @ 10m)

  • Intensity (HXB Yellow): 624,400 Cd (6,244 lux @ 10m)

  • Intensity (NCS White): 600,600 Cd (6,006 lux @ 10m)

  • Intensity (NCS Dual Color): 577,720 Cd (5,778 lux @ 10m)

  • Intensity (NCS Yellow): 414,820 Cd (4,148 lux @ 10m)

  • Power (stabilized): 187.2w (NCS), 504.0w (HXB)

  • Current (amps @ 13.5V DC): 18.00A (NCS), 38.40A (HXB)

COMPATIBILITY

  • Universal: Mounts anywhere w/ included mounting Feet

  • Ideal for: Steel Roof Racks and Bumpers

  • Width: 119.4cm / 47.00in

  • Height: 49.8mm / 1.96in

  • Depth: 59.2mm / 2.33in

  • Weight: 12.85kg / 28.33lb

  • Mounting Width Range: 46.38-51.13" / 117.81-129.87cm
