  • LED Ditch Light System: Ford Super Duty (11-16)

LED Ditch Light System: Ford Super Duty (11-16)

(0) No Reviews yet
Questions?

Brand: ProComp

B-EXP-PILRKIT16-TRS

$206.00

PRODUCT OPTIONS

PART #: 1 x EXP76413P, 1 x BAF040



DESCRIPTION

Introducing the ProComp A-Pillar LED system -- your ultimate solution for superior illumination! This versatile kit brings brightness where you need it most, from long-range spotlights for high-speed driving to convenient ditch lights. With a design rigorously tested for perfect fitment on 11-16 Ford Super Duty trucks, it's truly modification-free. Crafted from laser-cut 304 stainless steel and powder-coated for durability, these brackets ensure your lights stay in place, even in rugged terrain. The ProComp LEDs offer proprietary technology, optimized for top-notch performance, with options for white or yellow output and four beam patterns. They're compact, making them ideal for various applications, and they can even be linked together to create a custom light bar. These pods are built to last, with advanced thermal dynamics, weather resistance, and SAE compliance, ensuring safety and reliability. Don't miss out on the ProComp -- the best in class for all your lighting needs!

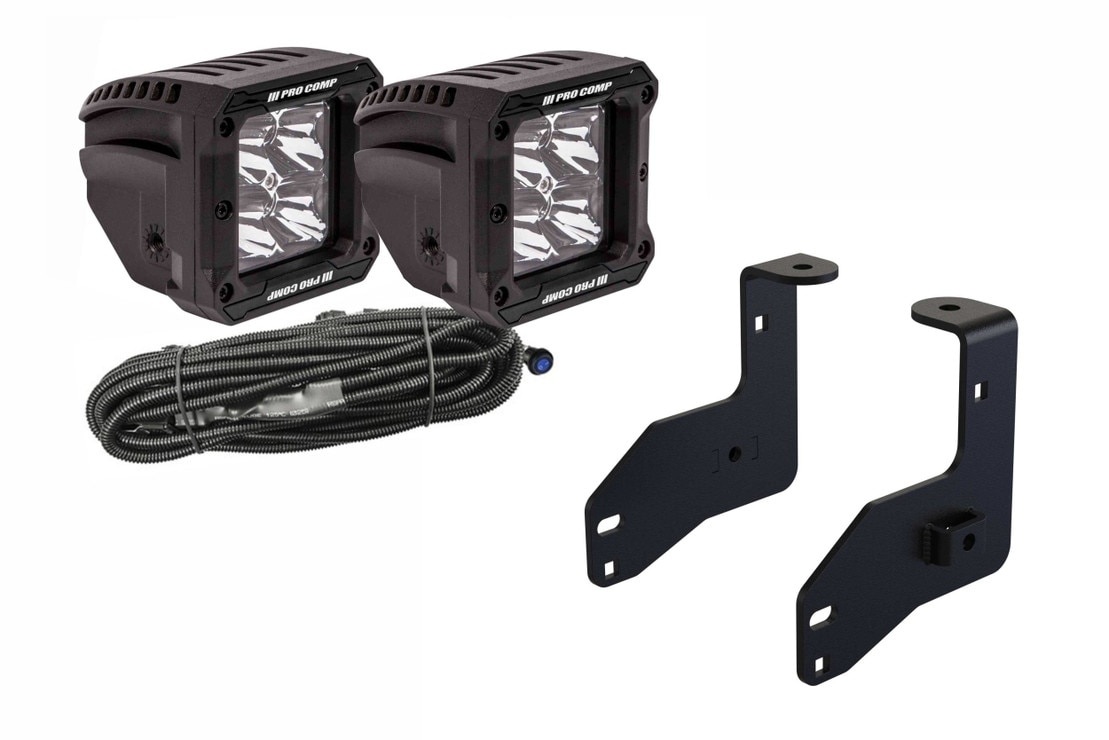

WHAT’S INCLUDED

  • Ditch Light Brackets: 2x (One Pair) Ditch Brackets (BAF040 / Ford Super Duty)

  • Hardware: Stainless bolts & plastic cable clips

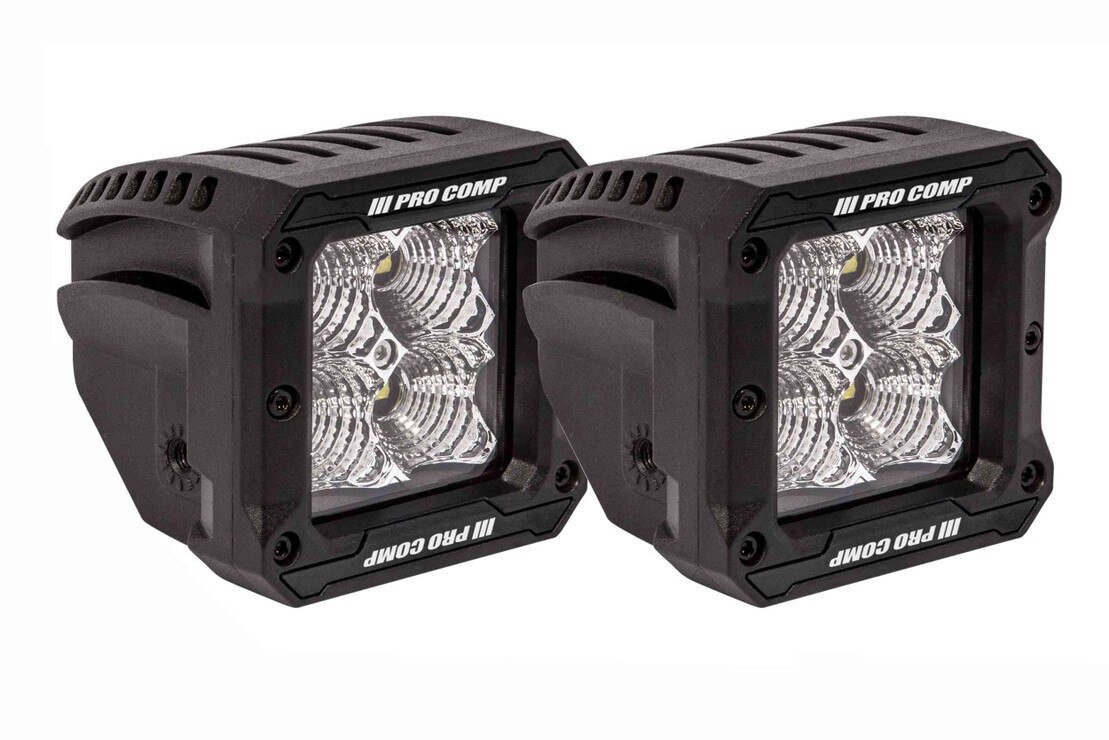

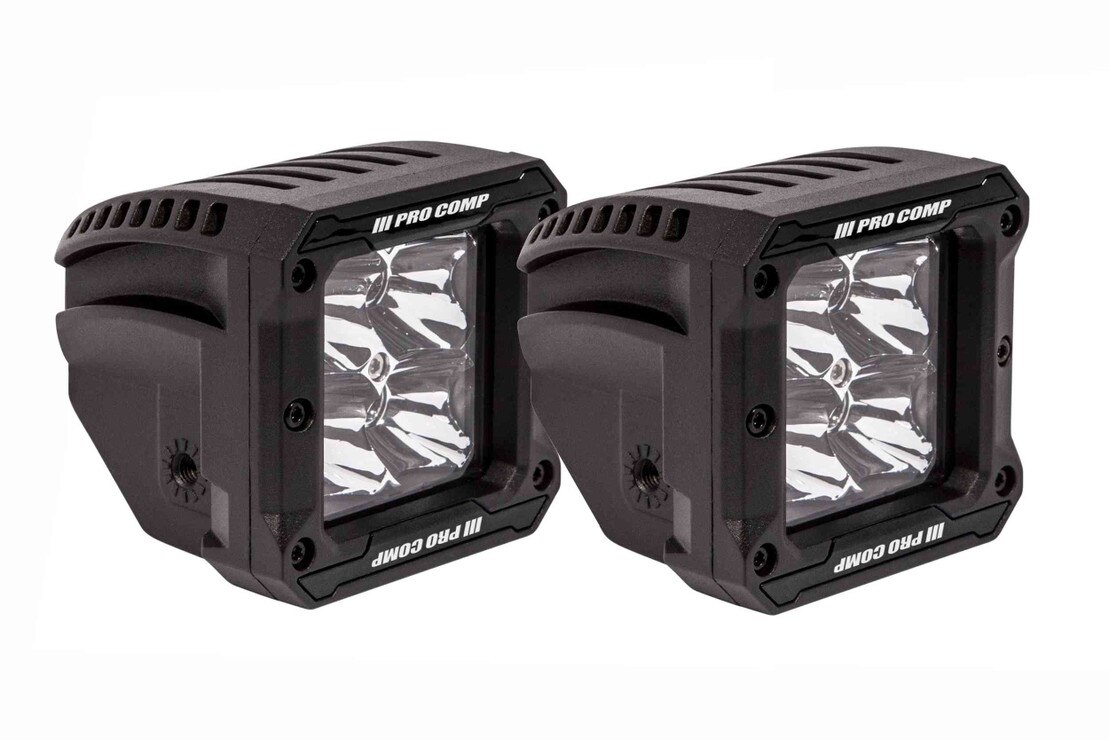

  • LED Pods: 2x ProComp Gen 3 Pods (Flood or Spot Beam)

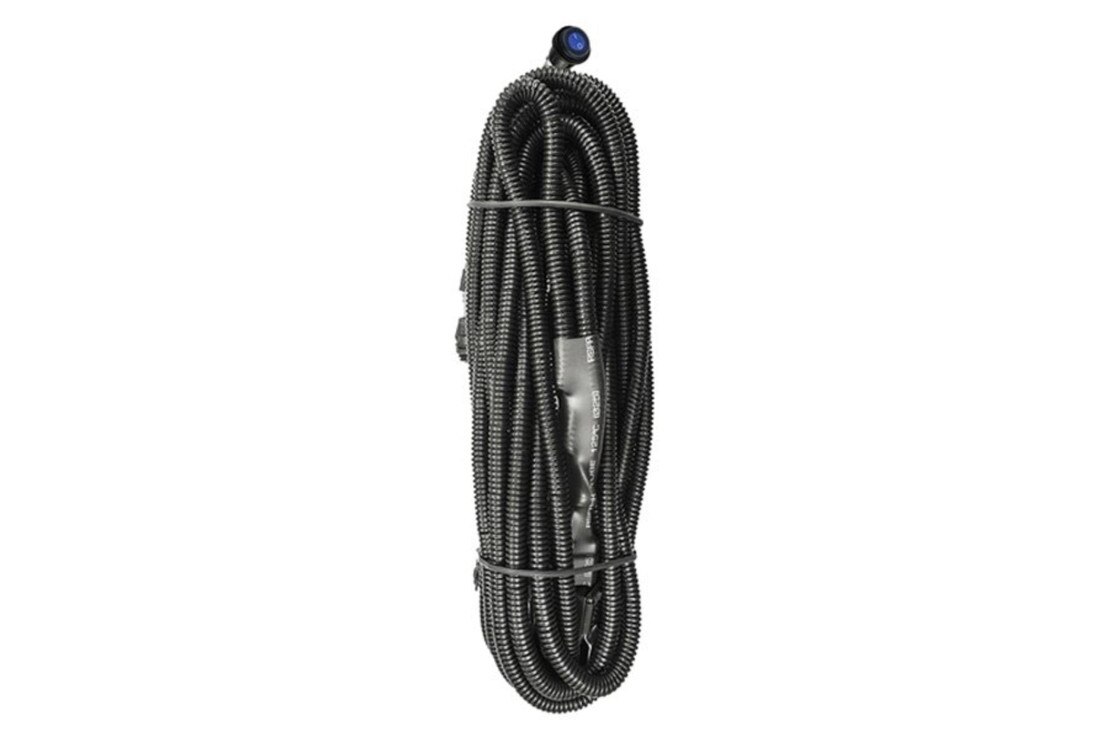

  • Wiring: 1x ProComp Relay Harness

  • Warranty: Lifetime Limited

WARRANTY INFORMATION

This product includes a Lifetime Limited warranty, serviced and supported by our team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, contact us.
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

TECHNICAL SPECIFICATIONS

  • Peak Luminosity (lm, Raw): 1,680 lm

  • Input Voltage: 12-24V DC

  • Power: 12w (Each)

  • Current: 1.37A @ 12V DC, 0.68A @ 24V DC

  • Input: Deutsch DT 2-Pin

  • Dimensions: 3.25in W, 3.75in H, 3.1in D

  • Light Source: 4x Osram 6000K LED

  • Material: Aluminum (Housing), Polycarbonate (Lens)

  • Compliance: IP14

COMPATIBILITY

  • Ford F-250 Super Duty: 2011-2016

  • Ford F-350 Super Duty: 2011-2016

  • Ford F-450 Super Duty: 2011-2016

COMPLIANCE

IP67 Rated

INSTALLATION DOCUMENTS
