DESCRIPTION
FEATURES & BENEFITS
- Easy Installation: Seamlessly integrate with Morimoto's harnesses.
- Versatile Options: Choose 2-pin or 4-pin versions.
- DT Compatibility: Works with DT (Deutsch) connections.
- Custom Wiring: Easily convert into a power pigtail.
- Top Quality: Matches Morimoto's high standards for durability.
WHAT’S INCLUDED

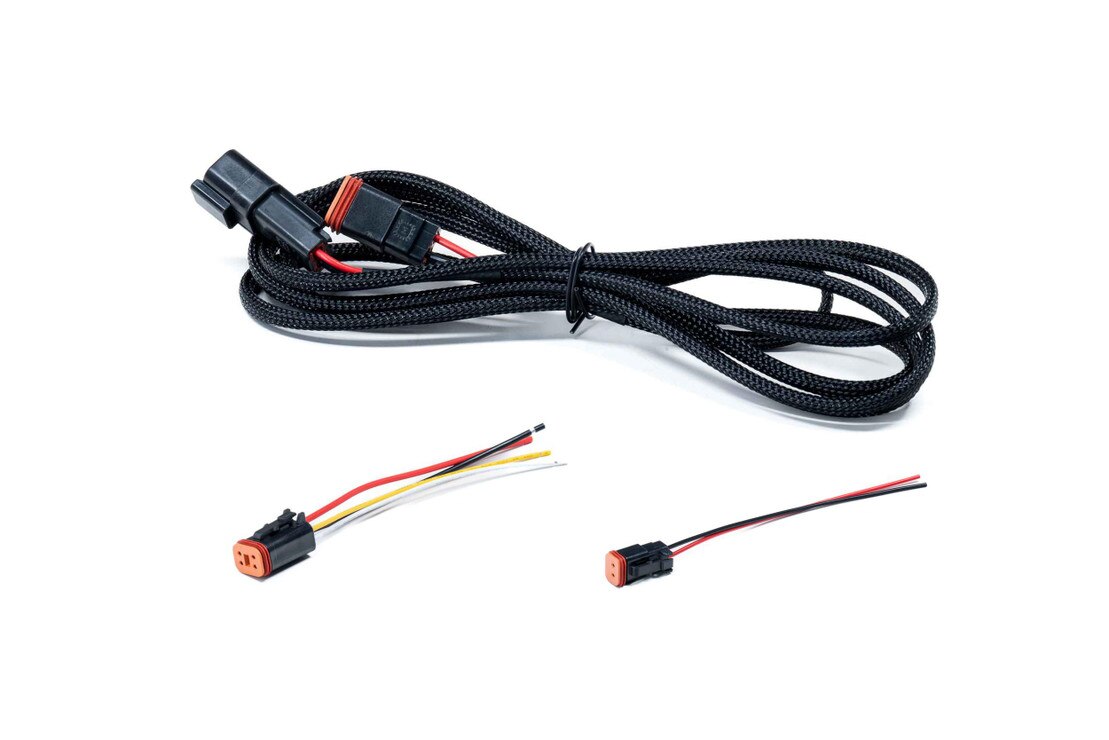

Wiring Part: Qty and Type as Selected
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Input: Deutsch DT 2-Pin or Bare Wire
Output: Deutsch DT 2-Pin or 4-Pin Female
Length: 150mm/5.9in or 2m/78.7in
Wiring: 18AWG Copper Stranded (BAF136H has 14AWG Power/Ground)
Insulation: Black Tech Flex Braided Mesh (BAF134H Only)
COMPATIBILITY

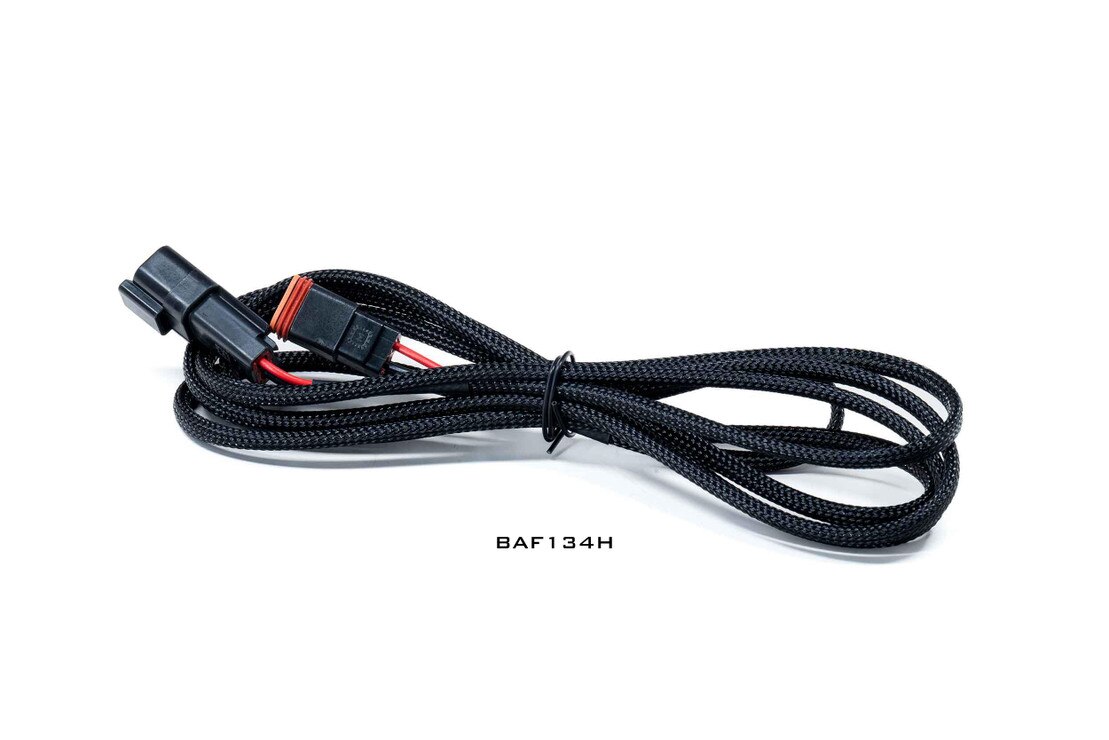

BAF134H: Morimoto 1Banger, 2Banger, or 4Banger

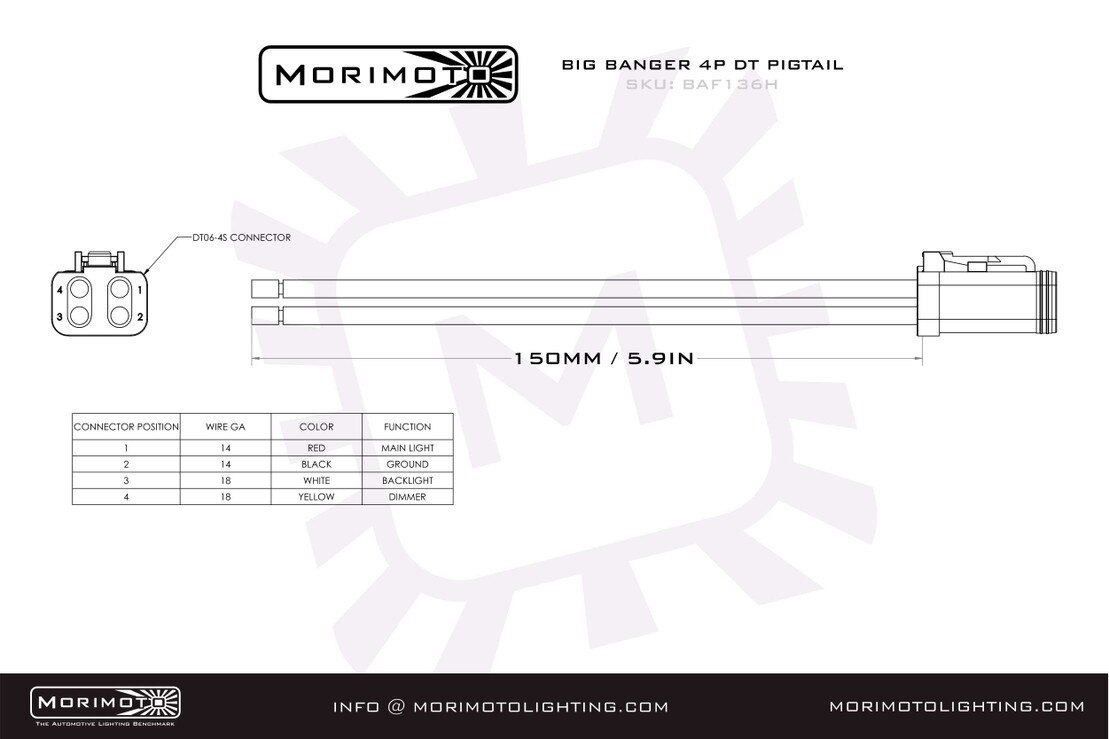

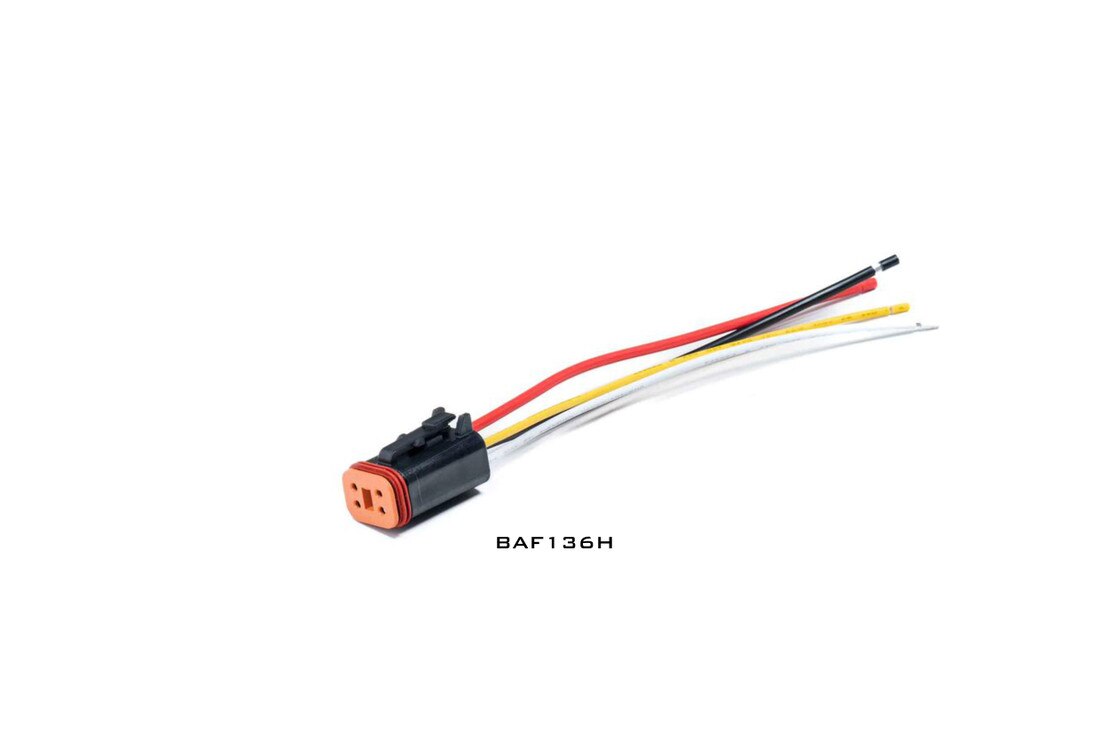

BAF136H: Morimoto BigBanger

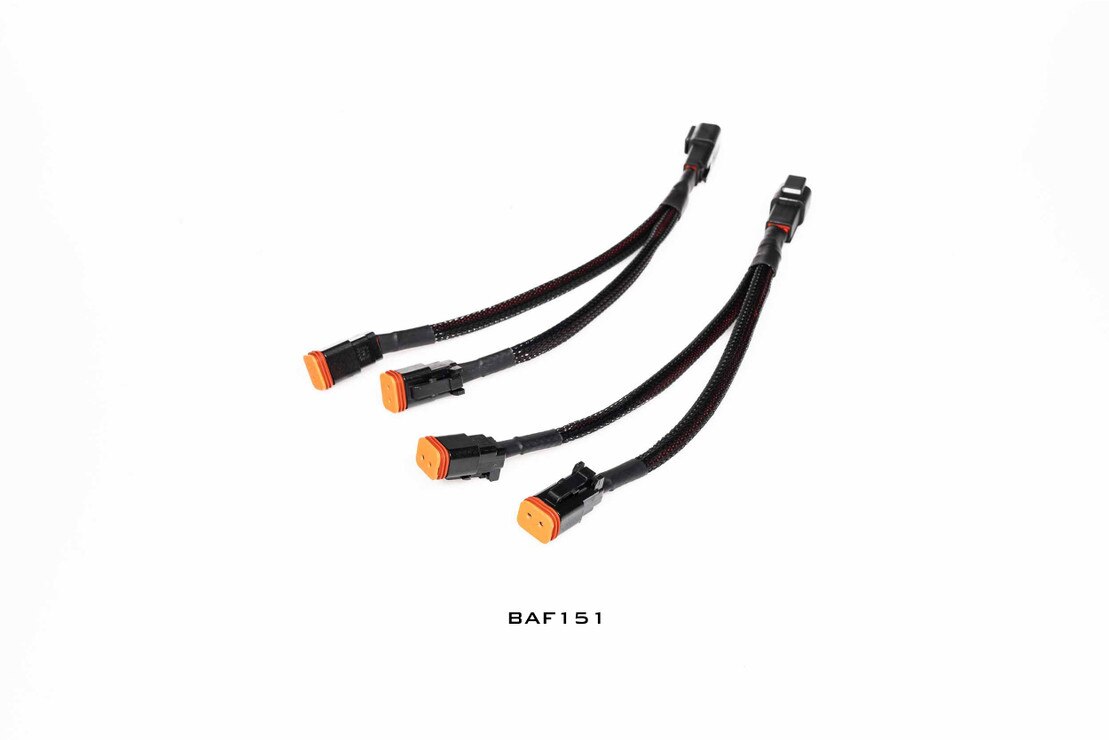

BAF151: Morimoto 1Banger, 2Banger, or 4Banger

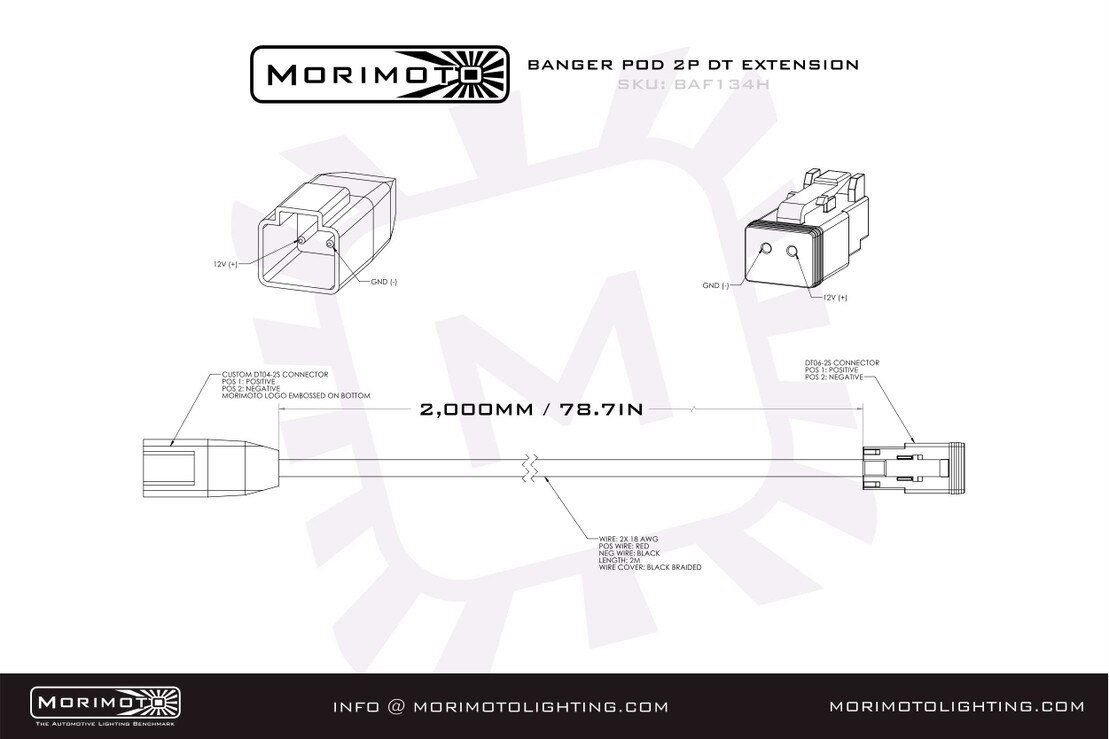

Extension: This harness is designed to provide extra length to the outputs on any of the Morimoto off-road LED pod relay harnesses. They are available in either a two-pin version for the 1,2, or 4Banger, or a four-pin version for the BigBanger.

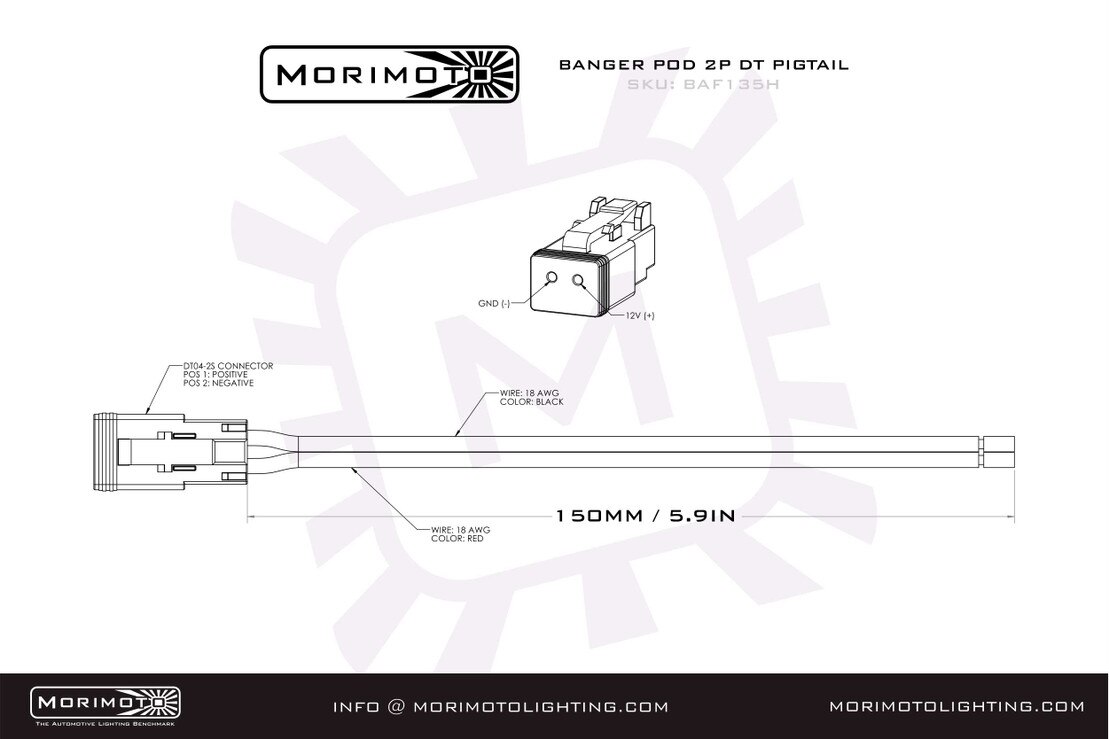

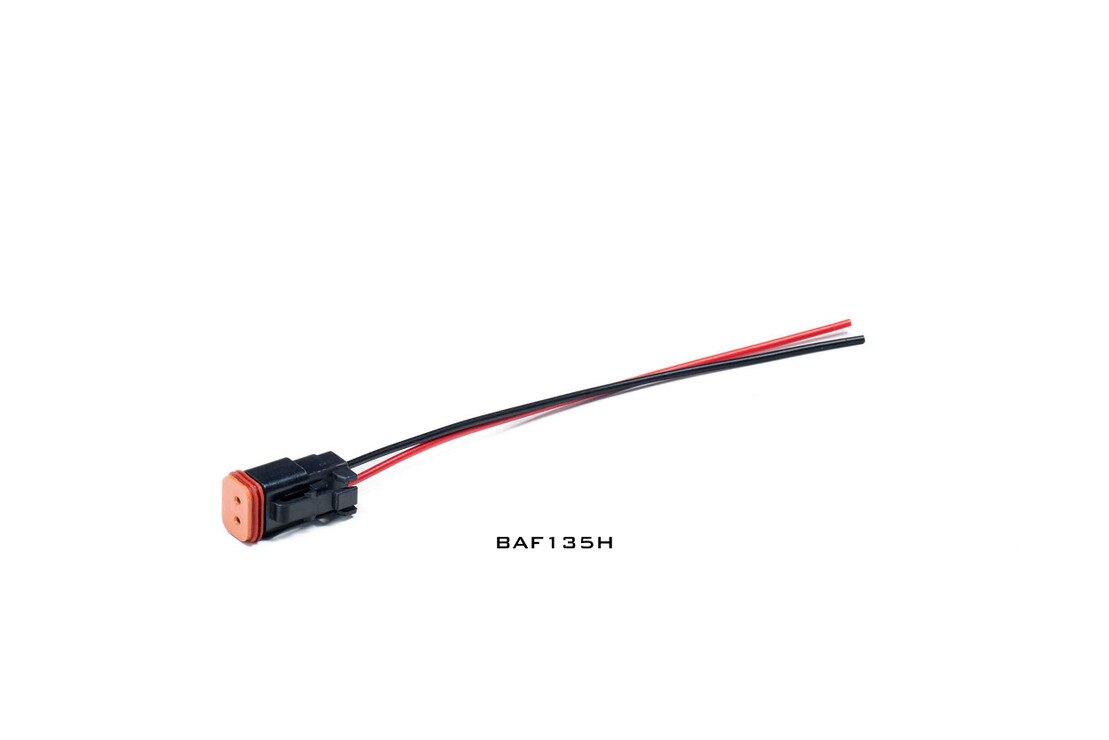

DT Standard: They are compatible with all products designed around DT (Deutsch) connections. Alternatively, you can cut the input connection off and use it as a power pigtail for your own custom wiring.
OEM+: Not one component on the harness was overlooked for the sake of pinching pennies. These extensions are durable, meeting the same quality standards as the harnesses and pods they are designed to work with.
