Universal Backup Light Boost Bar

3 Reviews
Questions?

Brand: Morimoto

B-ASY-LED700-TRS

$62.00 Original Price:$77.5020% OFF

PRODUCT OPTIONS

PART #: 1 x LED700



Easy Return

DESCRIPTION

The ultimate in reverse lights, the Morimoto Backup Light Bar! Designed to fit US/CA-spec license plate hole spacing, this bar features an array of 45 CREE J Series 2835 LEDs behind a uniquely-designed polycarbonate lens. The Backup Light Bar is constructed with a durable powdercoated die-cast aluminum housing designed to IP69K standards for water and dust intrusion. The optical-grade and UV-coated polycarbonate lens was designed in-house with a focused 45-degree beam pattern, which provides more useful reverse light pattern compared to an unrefined standard clear lens. Technical specifications include 45 CREE J Series 2835 LEDs with a 4500K/80CRI rating, driven by a 180mA driver that produces 29.9W of power. This translates to an impressive 2700 raw lumens, providing you with 1950 real lumens after passing through the lens.

FEATURES & BENEFITS

  • Enhanced Visibility: Maximize brightness for better reverse visibility.
  • Easy Installation: Direct fit to US/CA-spec License Plate mounts.
  • Durable: Die-cast aluminum housing for long-lasting performance.
  • Optical Excellence: Advanced optics for efficient beam pattern.
  • Impressive Specs: 45 CREE J Series LEDs, 4500K/80CRI, 1950 real lumens output.

WHAT’S INCLUDED

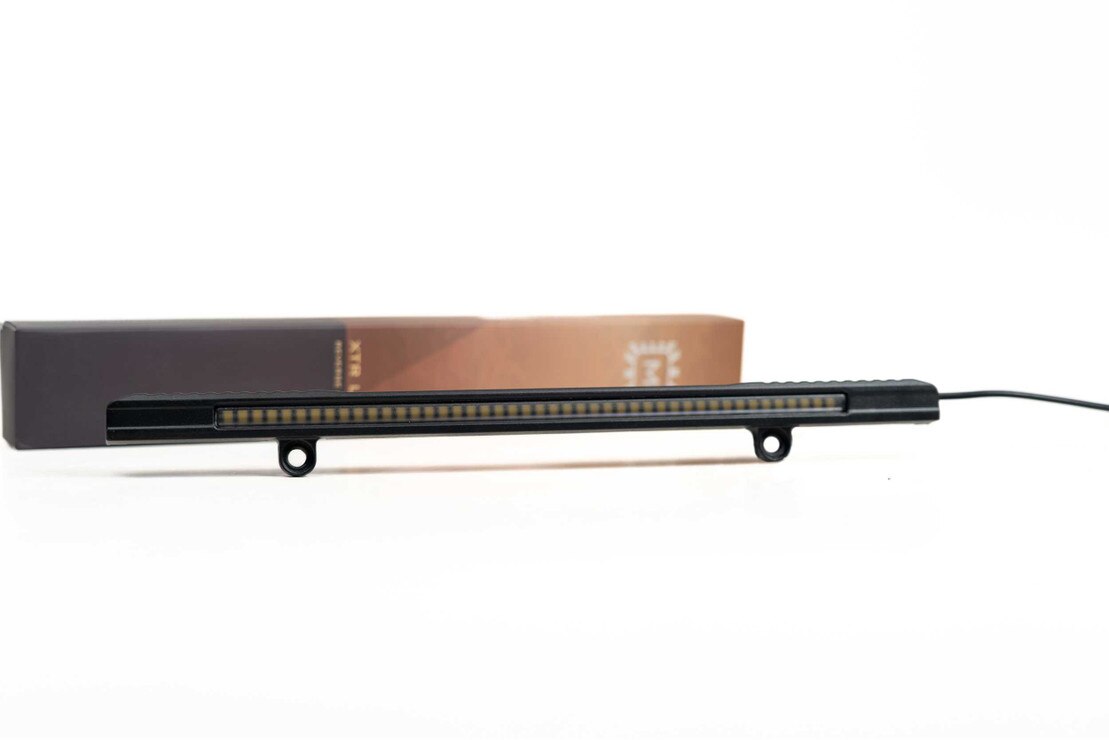

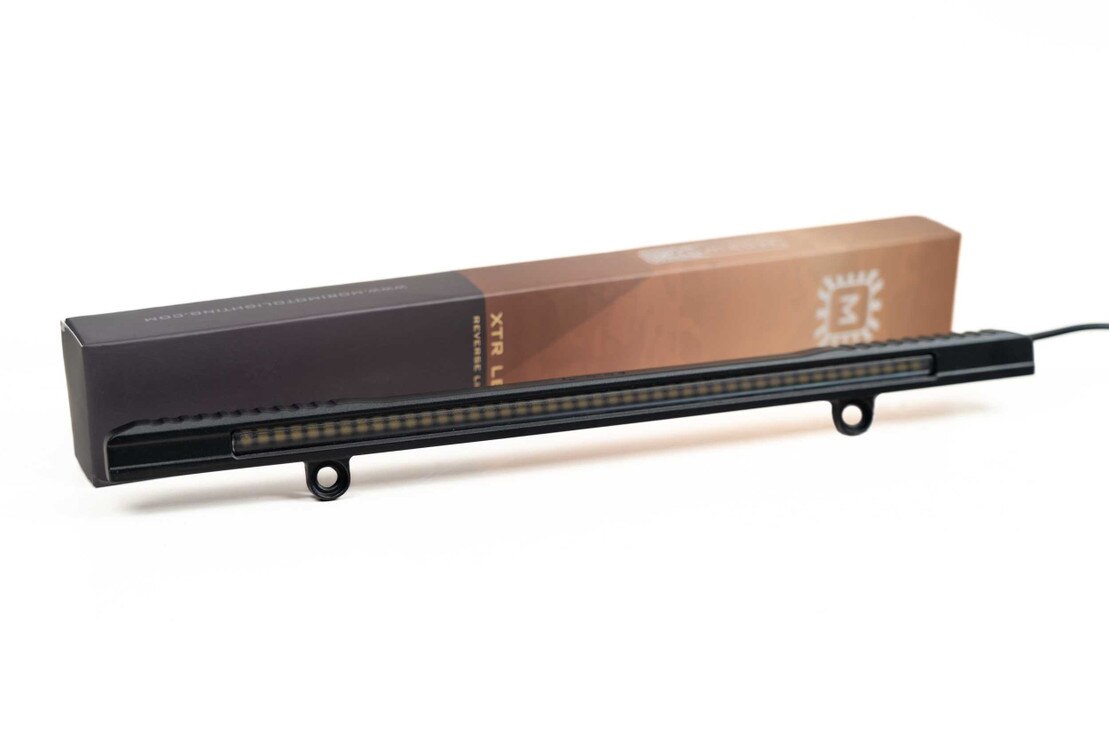

  • Reverse Light: 1x Morimoto Backup Light Boost Bar

  • Wiring: 1x Power Tap Kit

  • Warranty: Five (5) Years

WARRANTY INFORMATION

This Morimoto product includes a 5 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

TECHNICAL SPECIFICATIONS

  • Intensity: 2,700lm (Raw), 1,950lm (Effective)

  • Power: 29w

  • Optic: -30deg to +15deg vertical range

  • Light Source: 45x CREE J Series 2835 LEDs (4500K / Warm White)

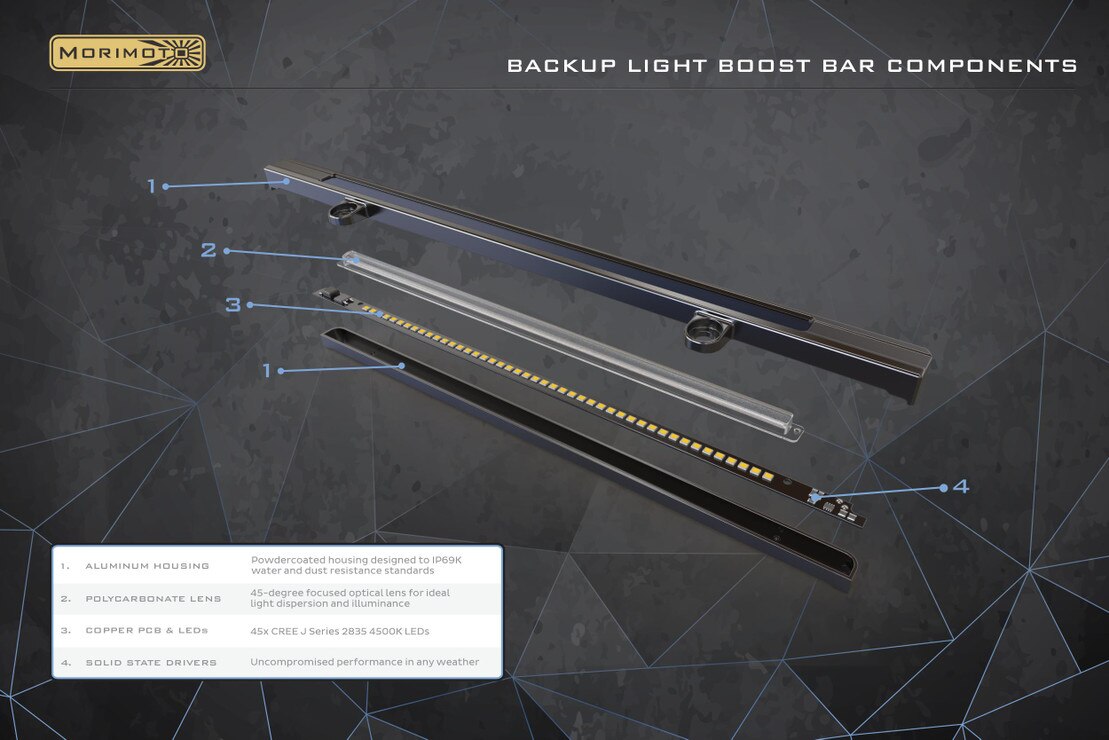

  • Material: Powdercoated Cast Aluminum (Housing), Focused Beam Optical-Grade Polycarbonate (Lens), Copper PCB, Epoxy-Sealed

COMPATIBILITY

  • Plug n Play: With 'Backup Light Boost' enabled Morimoto XB Tail Lights

  • Universal Setup: All 9-16V Reverse Light Circuits (w/ Wire Taps)

  • License Plates: US-Spec Plate Mounts (excl. 19+ Ram 1500 due to bumper shape)

INSTALLATION DOCUMENTS

High Output: While there are plenty of LED bulb upgrades out there for stock reverse lights; when it comes to a backup light boost that will compliment your Morimoto XB LED tail lights, this is a no brainer. The BLBB bolts on. It's Plug n Play. It generates maximum output... in reverse!

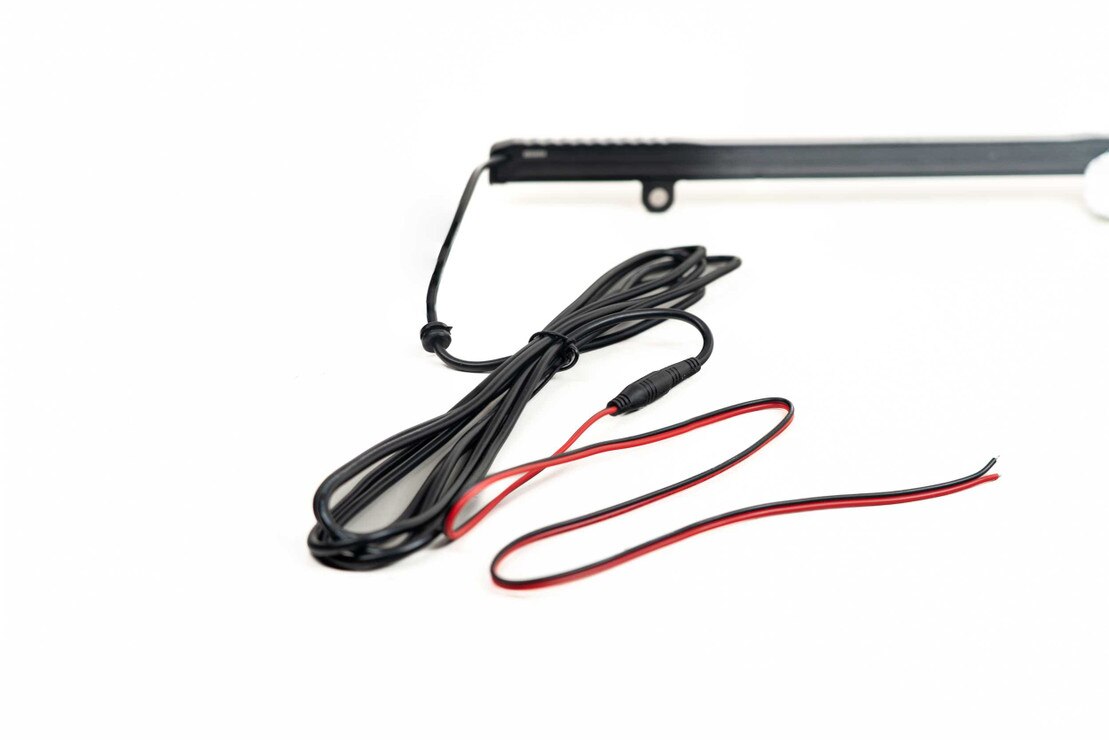

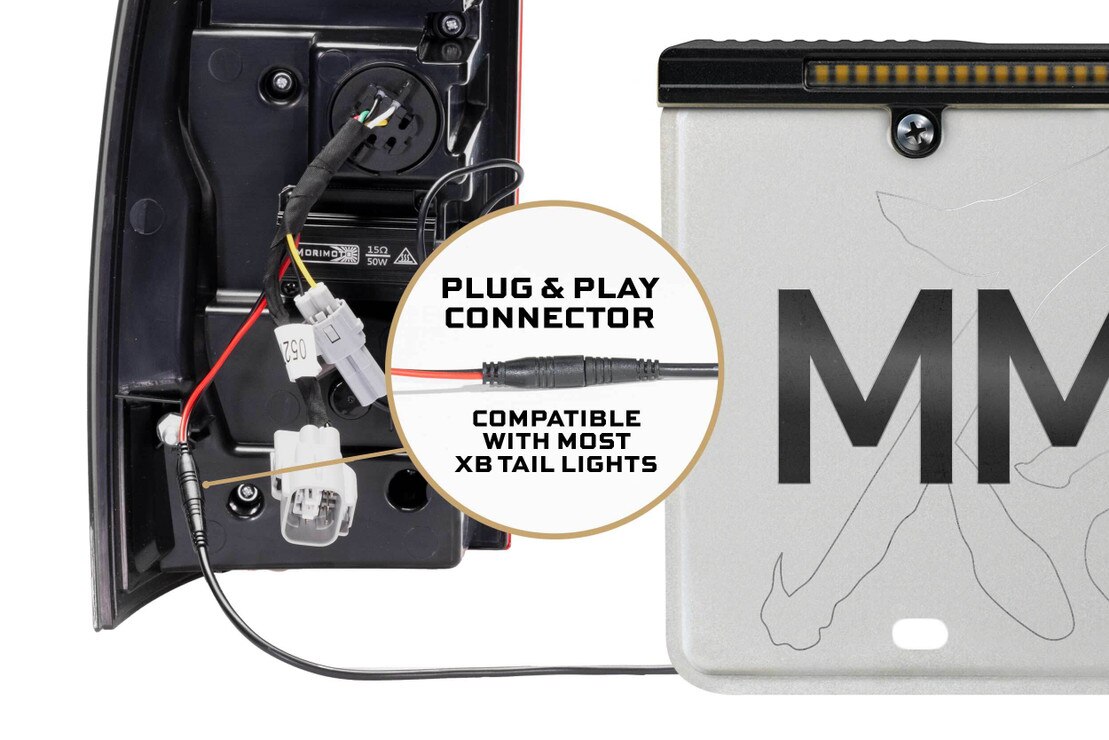

Easy Setup: If you're running a set of the new Morimoto XB tail lights with the Backup Light Boost connection, these will be super easy to install since the input connector will plug n play with the reverse light circuit wiring on the back of your tail lights. No Backup Light Boost connection? No problem. The system includes 1.5 meters of integrated wiring and a high-quality tap kit to draw 12V from your factory reverse light harness. An integrated rubber grommet keeps moisture and dust out of a pass-through hole if necessary too.

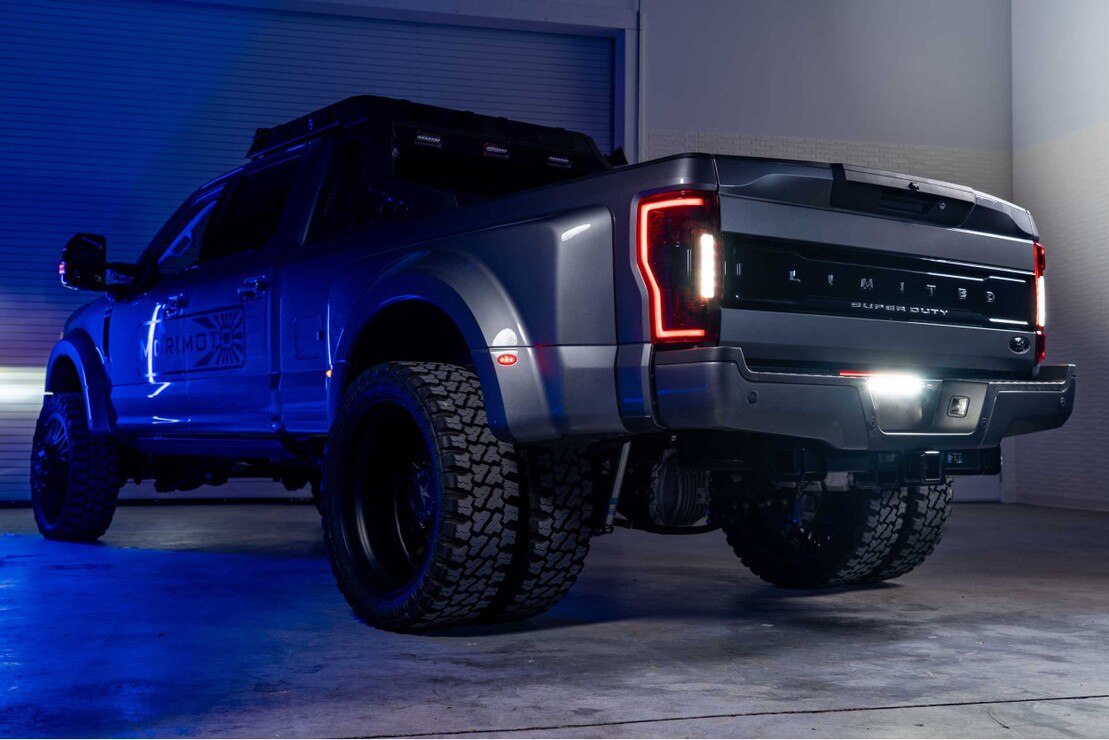

Bolt-On: The Backup Light Bar will bolt onto your vehicle's top two license plate mounts. Its die-cast aluminum housing is contoured according to the geometry of US-spec license plates for a flush fit, and the mounting points are positioned according to the same universal standard. The system is finished in a satin black powder coat.


Optically Advanced: The Morimoto Backup light boost light bar relies on a combination of optical refinement and raw power to produce the perfect reverse light beam pattern. Morimoto's optical engineering team optimized the lens to distribute the most possible light in the most effective beam pattern based on typical surface mounting angles. This is a fully engineered product, and that shows in the results.


Technically Speaking: At a 10-degree mounting angle, the vertical range is -20 to +25 degrees. At the most typical 0-degree mounting angle, the Morimoto Reverse Light Bar provides a -30 to +15 degree vertical spread, which easily exceeds the illumination range of any standard backup for spread. Though great to experience, its worth noting that the output produced by this product far exceeds the legal limit for a reverse light application.


Tech Specs: 45 CREE J Series 2835 LEDs rated at 4500K/80CRI. 180mA driver produces 29.9W of maximum power pumps out 2700 raw lumens that's translated into 1950 real lumens after transmission through the optical lens.
