Morimoto 4Banger LED Pods: NCS Spot BeamB-4B-NCSSPOT-TRS
[ In Stock: 0 pieces ]
Off-Road Reinvented: Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... Consistently turning out products packed with more performance, reliability, and best in-class fitment & style. As a new player in the off-road game, we have embraced that philosophy big time, pumped up the Redbull intake, and now it's time for the old competition to rethink their strategy. The brand new, patent-pending line of 4Banger NCS Off-Road LED lights were completely designed, engineered, and tested in the USA, and everything about them is truly next level.

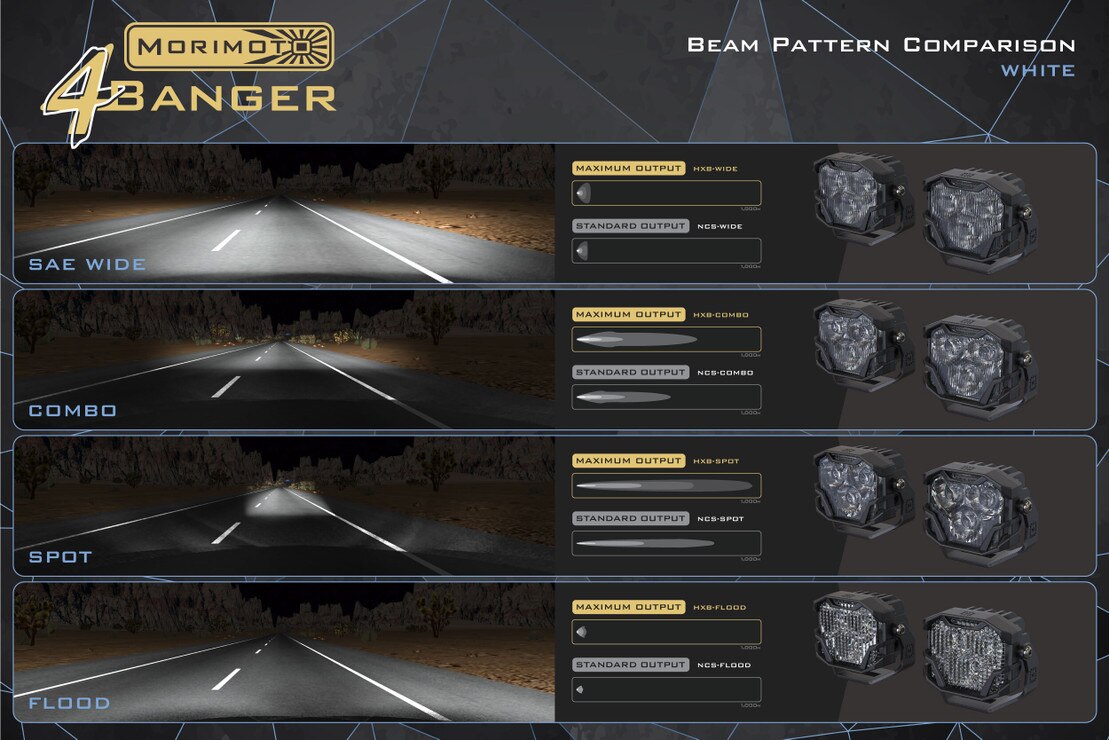

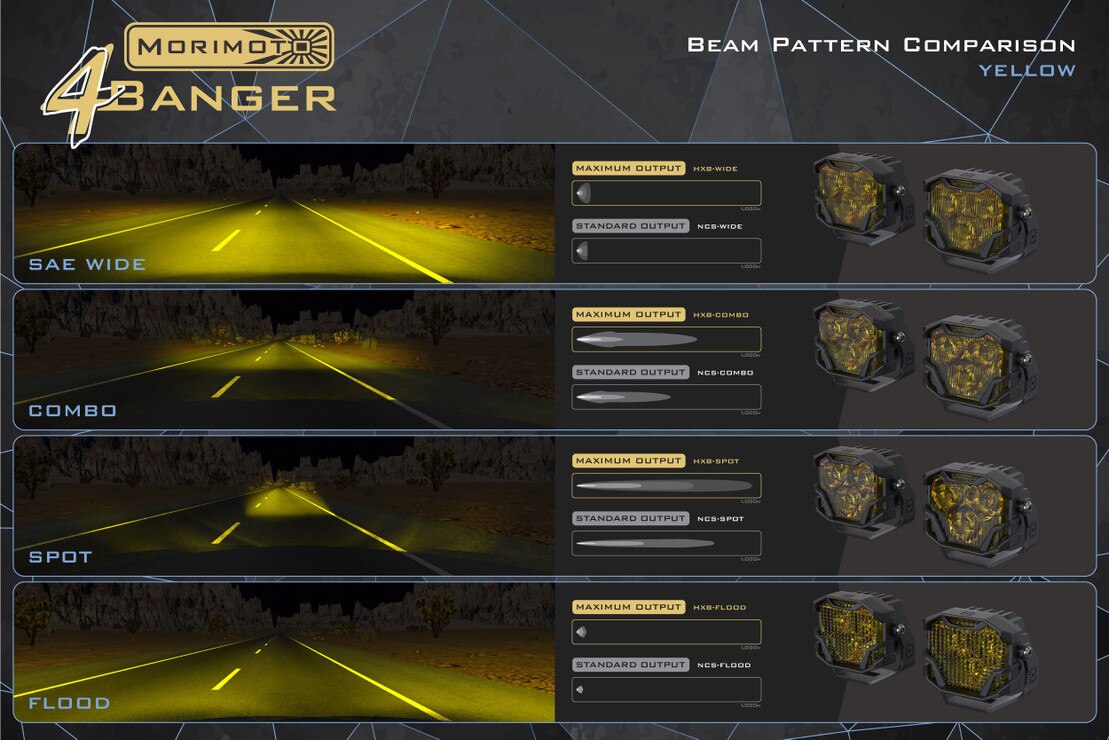

NCS Spot Beam: Illuminates well into the distance. The NCS Spot features a highly focused 5-degree hot spot that's surrounded by a 14H x 4C degree flood beam, making it the perfect weapon for long range visibility. While not quite as powerful as the 4Banger HXB Spot (which uses Osram LEDs), when paired up with a set of NCS Combos, you will have no problems avoiding deer in the distance.

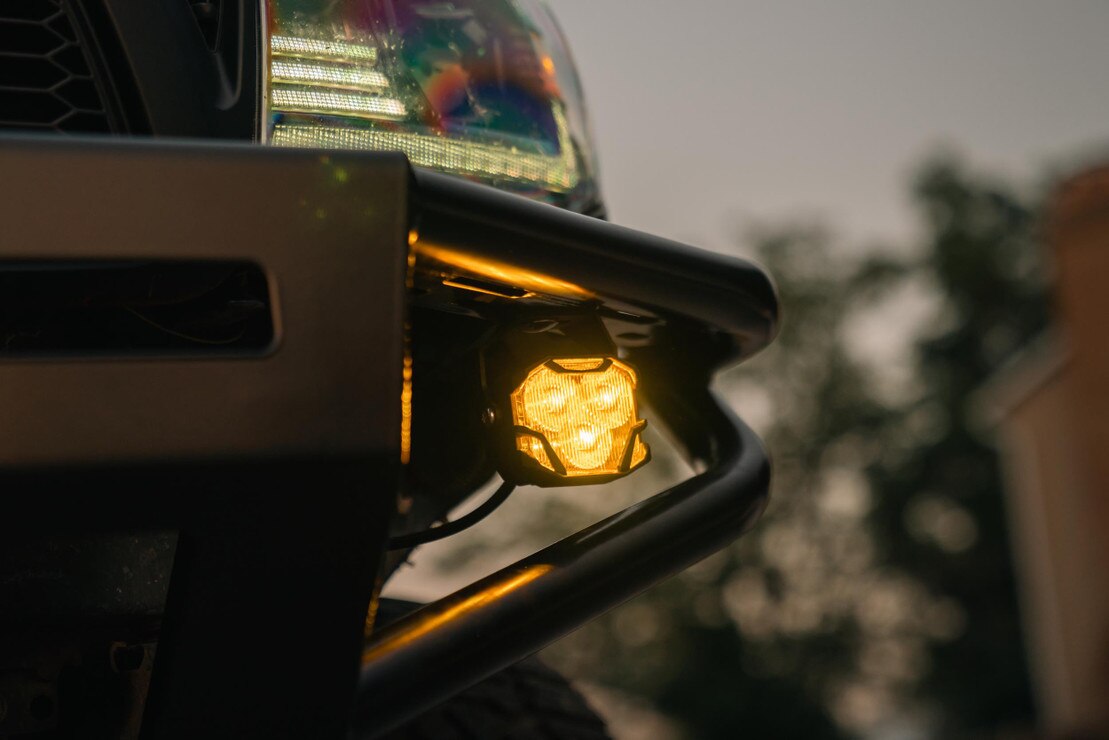

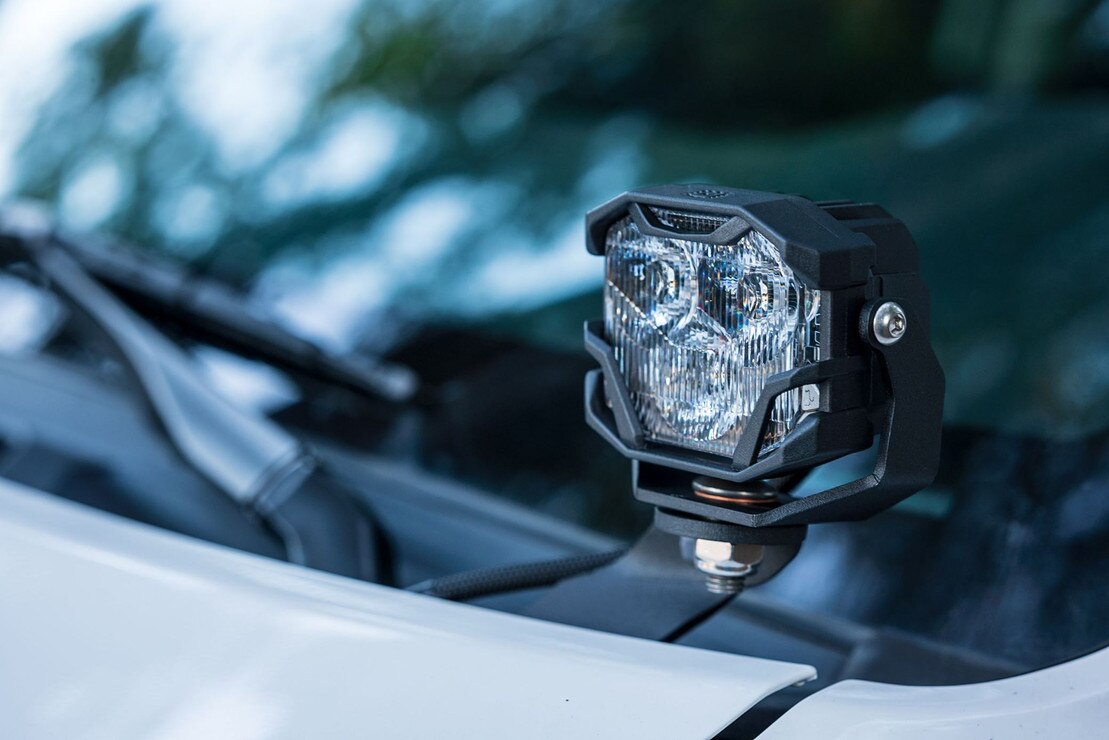

Form Meets Function: The overall footprint of the 4Banger NCS is approximately 30% smaller than alternatives that offer comparable performance. This allows for an unbeatable OEM+ like fitment when paired with Morimoto's fog light or A-Pillar mounting kits, which are available for today's most popular trucks. Don't be that guy with LED pods bulging out of your bumper.

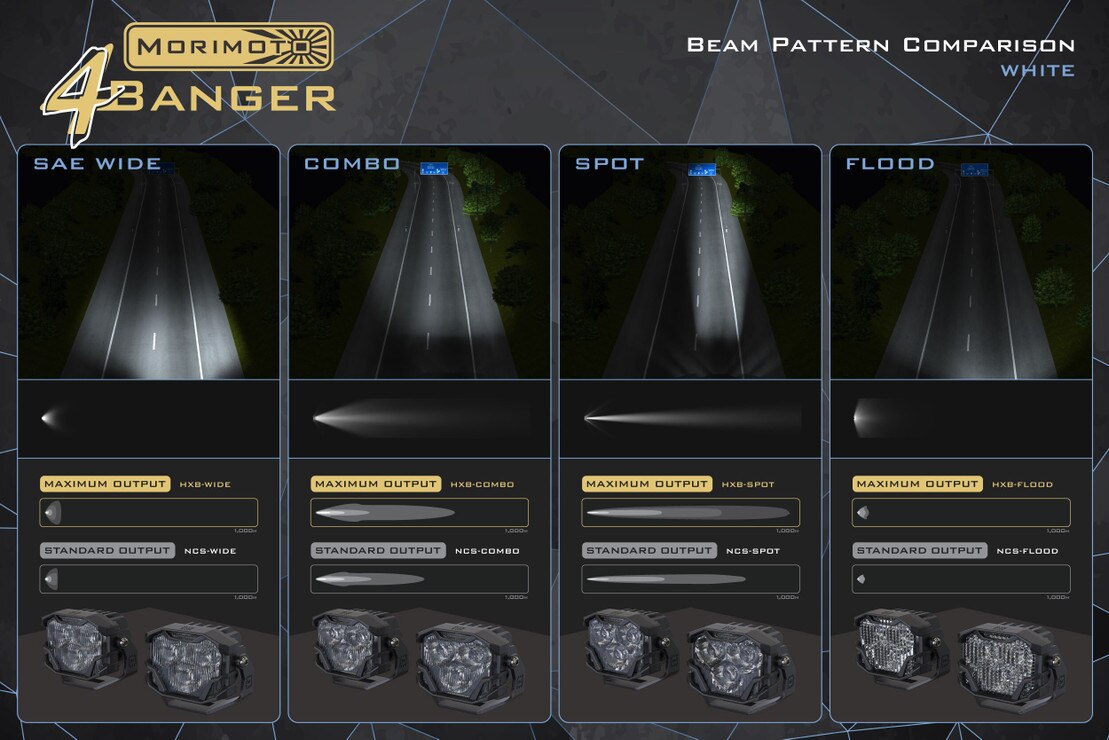

Performance: There are no "off the shelf" guts inside of a fancy housing here. Every element of the 4Banger NCS is proprietary. LucidShape was used to optimize performance around the most modern, lumen-dense LEDs from Nichia. Thermal dynamics have been optimized using SolidWorks. The 4Banger NCS is available with three industry-leading beam patterns to suit every need. Wide/Fog, Spot, and Combo. Patent Pending Design.

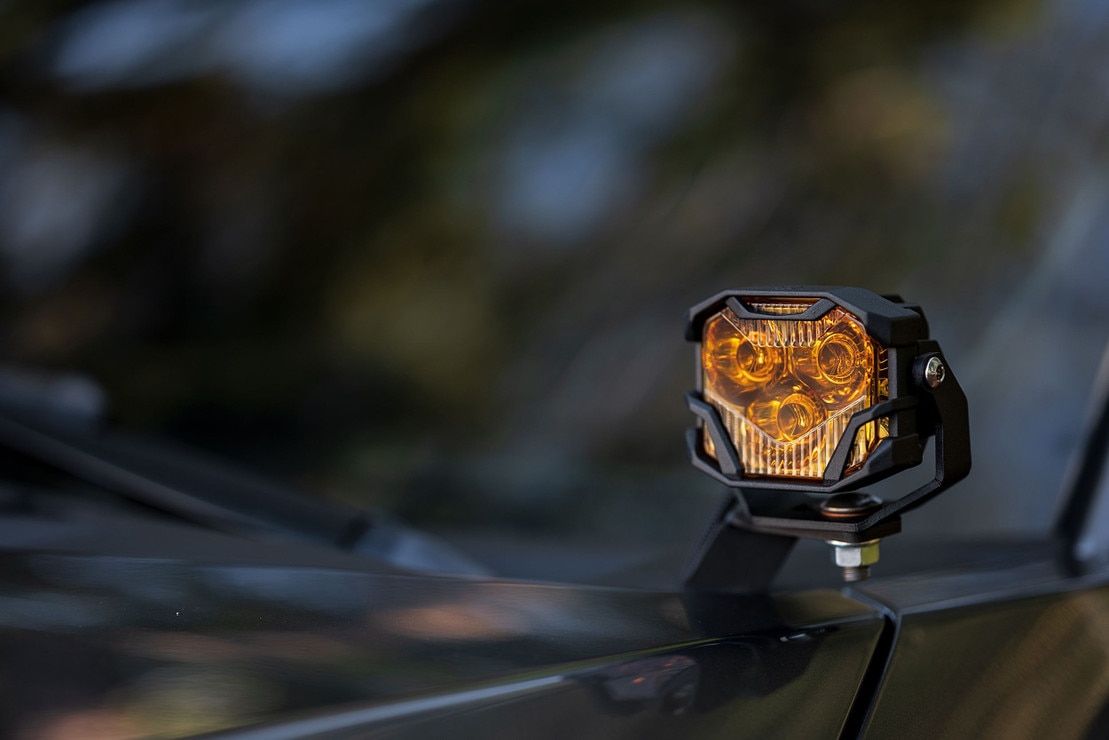

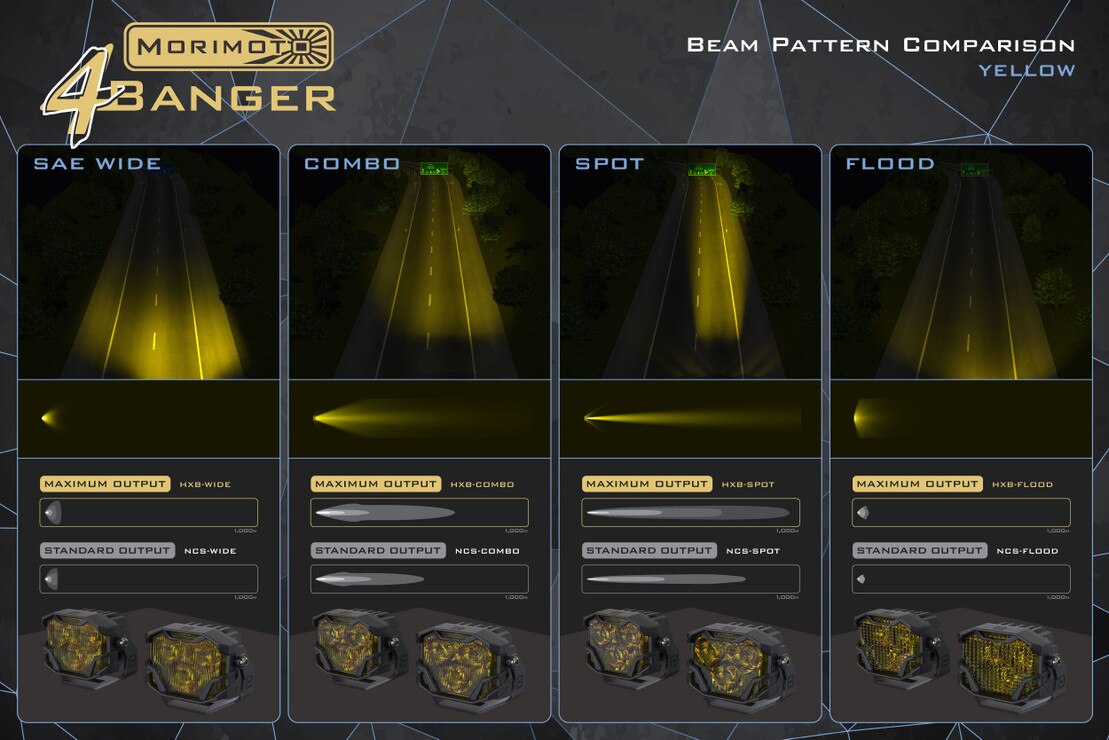

All Weather: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog--the Yellow-output version will slay in shady weather. Morimoto has opted for Phosphor-Converted Yellow LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather).

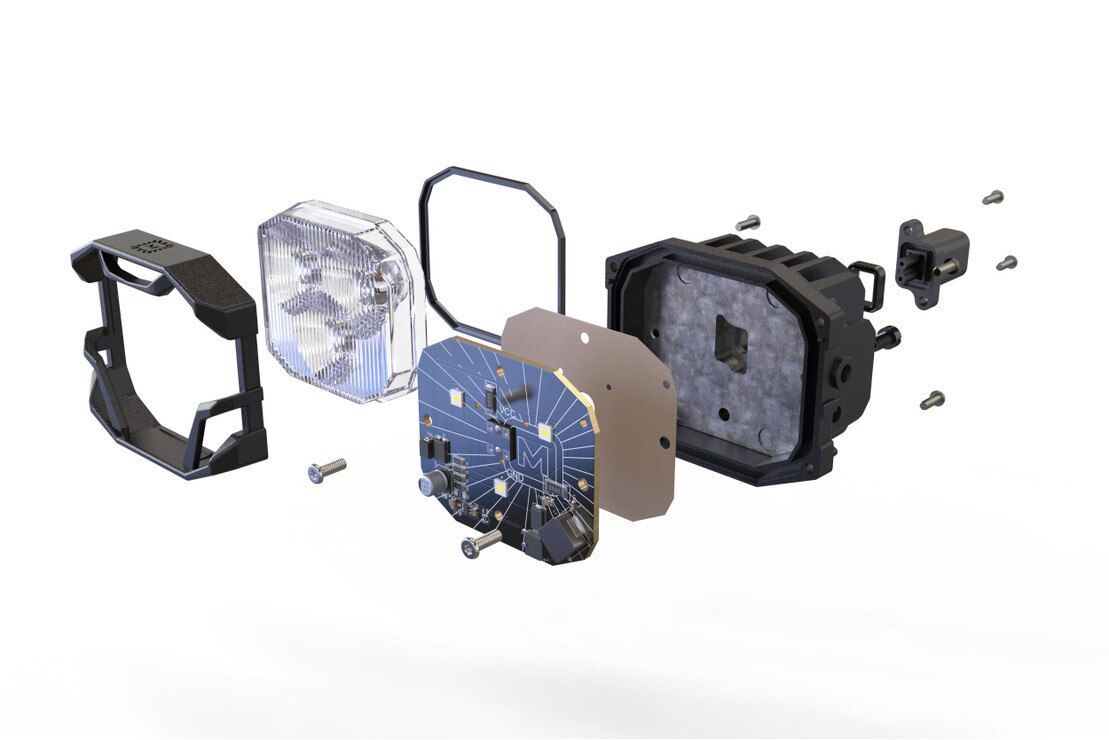

Reliability: With power comes great responsibility. Extensive effort went into ensuring the reliability of the product. High power means high heat, which is why the 4Banger features a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The potted internals, over-molded input wiring, and main gasket are all designed according to IP69K standards for full weather resistance.

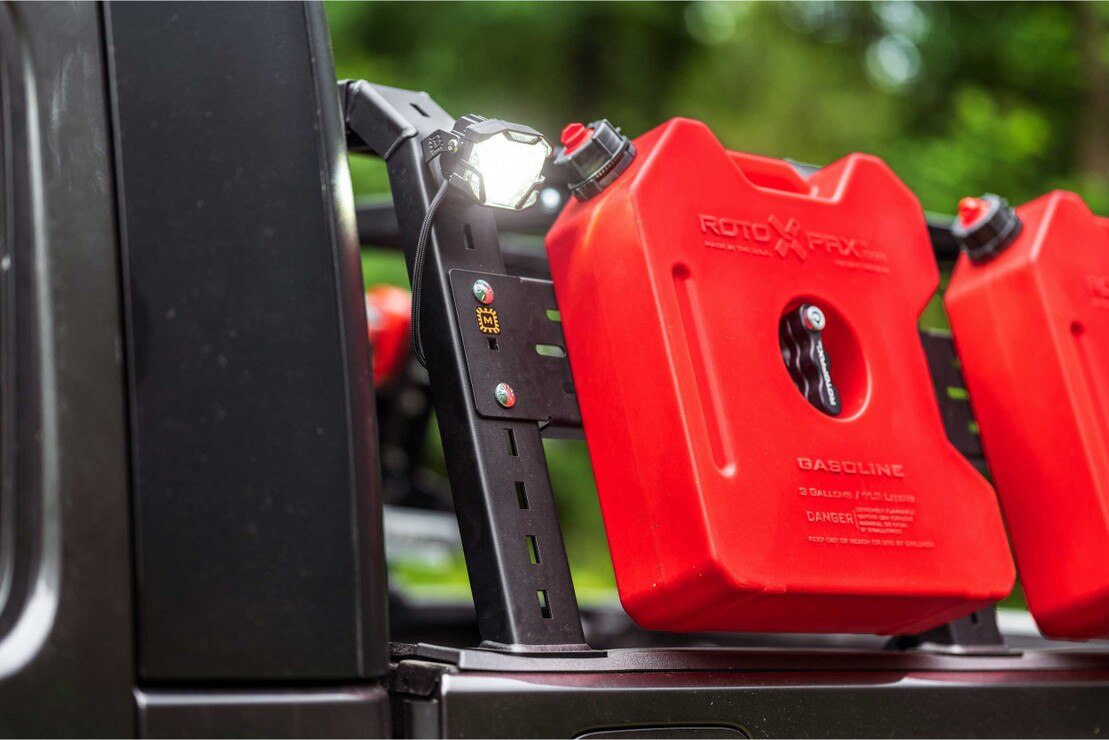

Bolt-On: Each set of Morimoto 4Banger LED pods include a set of pedestal mounts for a universal fitment. Morimoto also offers a variety of application-specific mounting bracket kits for fog lights and A-Pillars that make them bolt-on for many of today's most popular trucks. Check out the full lineup for details on what's available for your application.

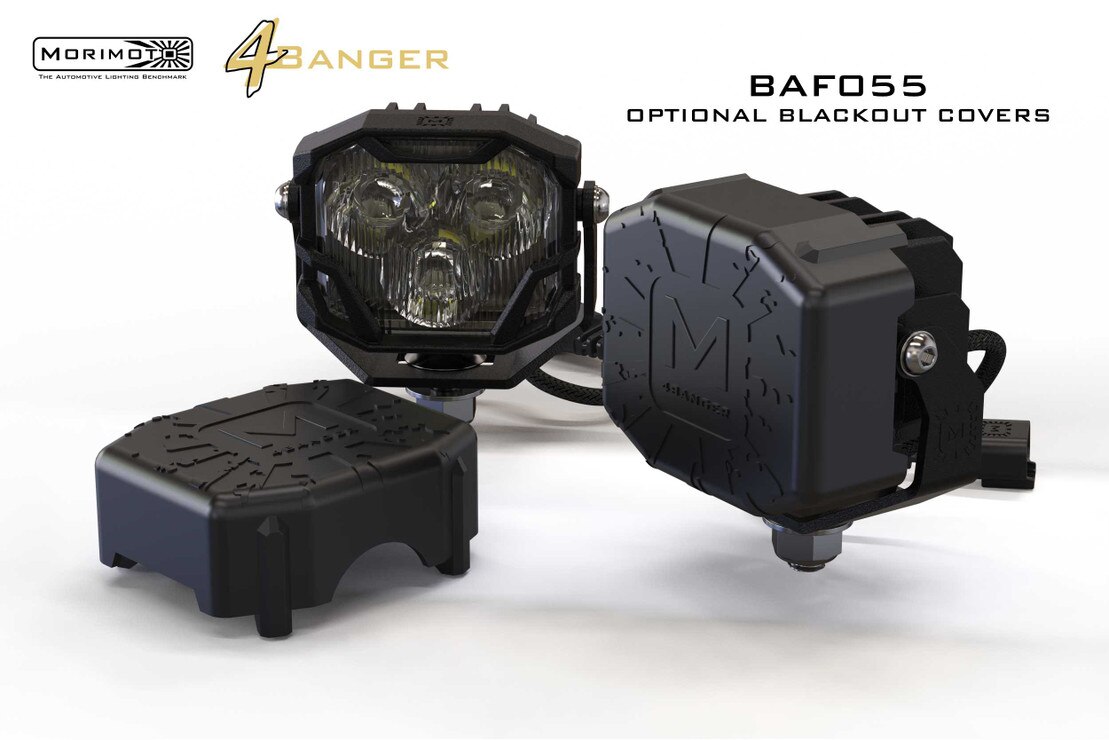

Street Legality: When aimed properly, the Spot and Combo beams comply with SAE J581 standards for an for auxiliary high beam. If you're looking for a high-performance street-legal LED pod to use as a fog light, the NCS Wide beam model is compliant with the latest SAE F3 regulation there, compared to the HXB Wide Beam Model, which has a very similar beam pattern, but is too bright to pass SAE regulations. Some localities require auxiliary lights to be covered for everyday driving. To comply, the optional Blackout Covers are designed to fit all Morimoto 4Banger LED Pods, and are a friction + clip fit that installs with ease, and can be removed in seconds.

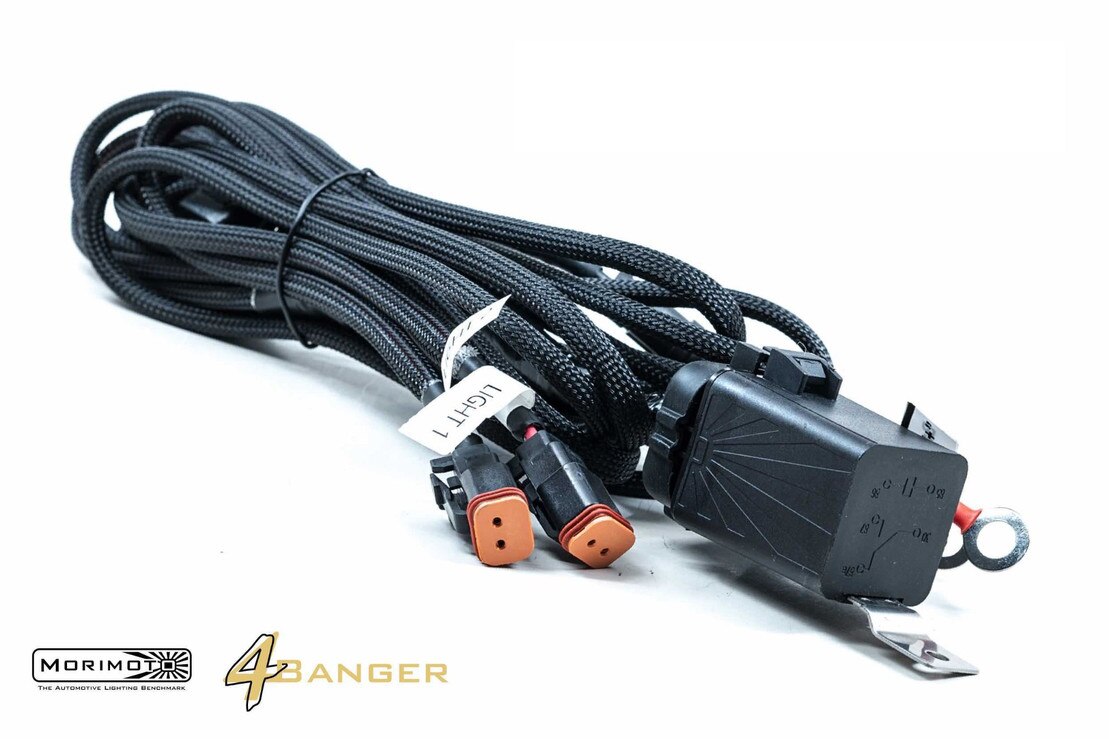

Power Up: The Morimoto 4Banger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the optional wire harness. If you want the best, bingo. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with Yellow-LED backlight.
Trusted: For more than a decade, we've worked hard to earn our killer reputation. Car guys world-wide know that The Retrofit Source carries the internet's best selection of high-performance HID and LED lighting upgrades for their car or truck at the best prices, and we've got the best, most knowledgeable team of real enthusiasts to help back it up. The Buyer's Guide on our homepage is the best way to see what we've got in store for your application! We also do wholesale, so if you're interested in opening up an account, contact TRS Today!

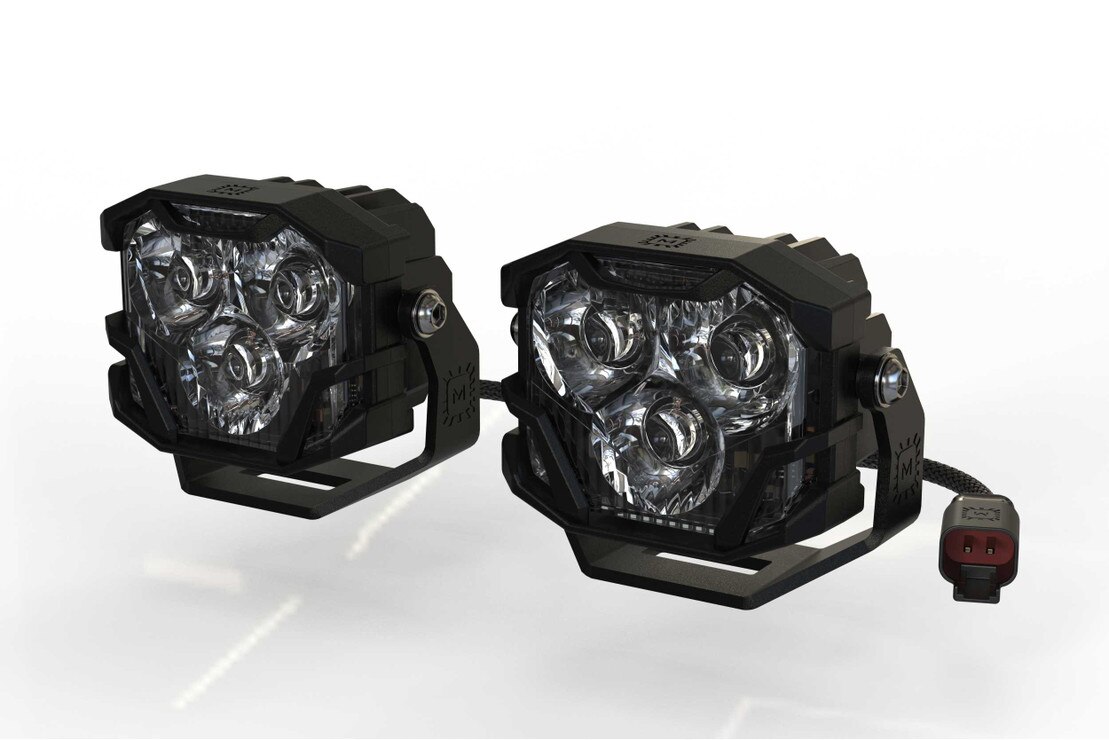

LED Pods: 2x (One Pair) Morimoto 4Banger NCS Spot (White or Yellow)

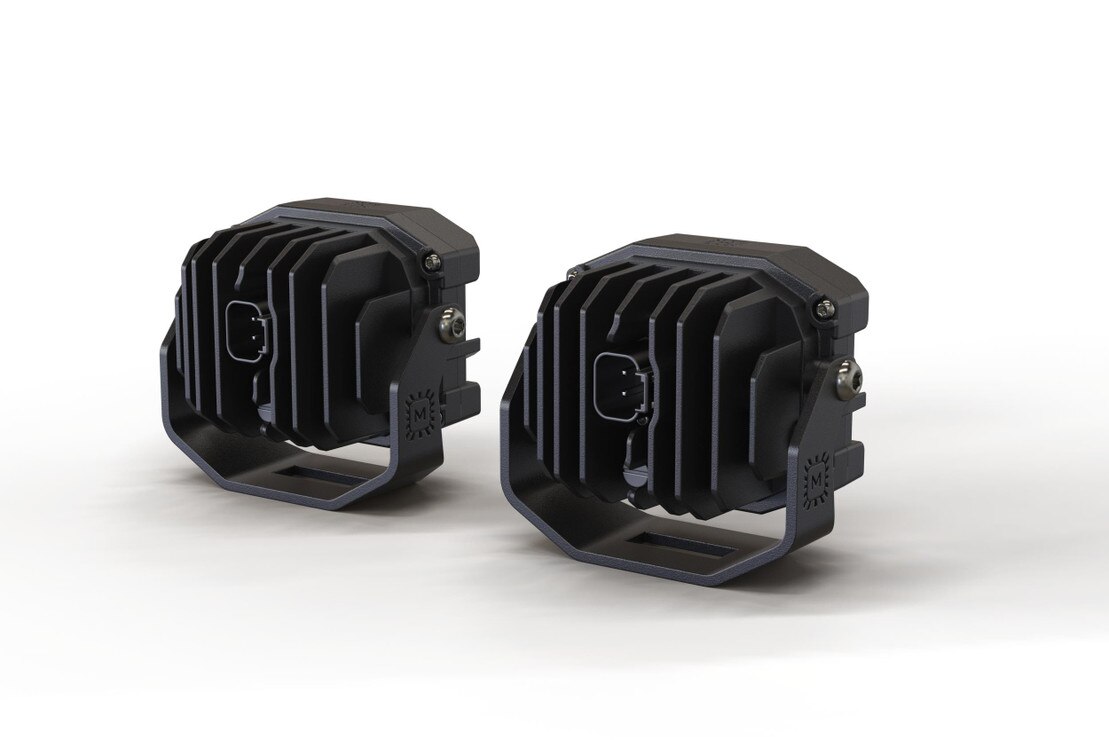

Brackets: 2x (One Pair) Universal U-Shape Mounts
Hardware: Complete pack (stainless steel)
Optional Wiring: 1x Morimoto 4Banger Switched Relay Harness or DT Connectors
Warranty:Limited Lifetime (Click for Details)
Universal: With Included U Brackets
Ford F150: 15-20 with BAF013 and BAF038
Ford F150: 07-14 with BAF020 and BAF037
Ford Raptor: 16-21 with BAF024 and BAF038
Ford Super Duty: 17-21 with BAF013 and BAF039
Ford Super Duty: 99-16 with BAF021 and BAF040
4Runner: 2010+ With BAF014 and BAF027
Tacoma: 05-13 with BAF019 and BAF029
Tacoma: 14-21 with BAF014 and BAF028
Tundra: 07-13 with BAF019 and BAF030
Tundra: 14-21 with BAF014 and BAF026
Silverado/Sierra: 14-19 with BAF015 and BAF031
Silverado/Sierra: 07-13 with BAF032
Colorado/Canyon: 15-21 with BAF015
Ram (all): 06-08 with BAF045
Ram 1500: 2019+ with BAF016
Ram 1500: 09-18 with BAF018 and BAF033
Ram HD: 09-18: with BAF017
Ram HD: 2019+ with BAF034
Nissan Trucks: 05-20 with BAF018
Subarus (Most): 10-18 with BAF018
Wrangler JK: 07-17 with BAF023 and BAF035
Wrangler JL: 18-21 with BAF036
Cherokee: 11-17 with BAF023
Intensity (White): 105,000 Cd (Post Warm-Up) (1,005lux @ 10m)
Intensity (Yellow): 73,500 Cd (Post Warm-Up) (735lux @ 10m)
Input: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
Input Voltage: 9-18V DC
Current: 1.5A @ 13.V DC
Dimensions: 82mm W, 67mm H, 60mm D
Light Source: 3x Nichia NCSY131F (5700K) or 3x Nichia NCSW131F (3000K)
Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
