4Banger LED Pods: HXB Flood Beam

(0) No Reviews yet

Brand: Morimoto




PART #: 1 x BAF126.2, 1 x BAF046

Easy Return


Introducing the Morimoto 4Banger Off-Road LED Pod Lights – the ultimate lighting solution for off-road enthusiasts! These cutting-edge lights are proudly designed, engineered, and tested in the USA, guaranteeing top-notch quality. Key to their brilliance is the Flood Beam pattern, providing ample ambient light in all directions. Ideal for low-speed driving, rock crawling, back-up lights, and campsite illumination, the flood optics create a comfortable, well-lit environment around your vehicle. The 4Banger boasts a compact design, 30% smaller than alternatives with similar performance, ensuring a perfect fit when paired with Morimoto's mount kits for popular trucks and SUVs. Performance is optimized with lumen-dense Osram LEDs and SolidWorks-based thermal dynamics. Built for all-weather reliability, these lights feature a copper DTP PCB for efficient heat transfer, IP69K-rated weather resistance, and a robust aluminum shell. Additionally, Morimoto offers versatile mounting options to suit your vehicle.

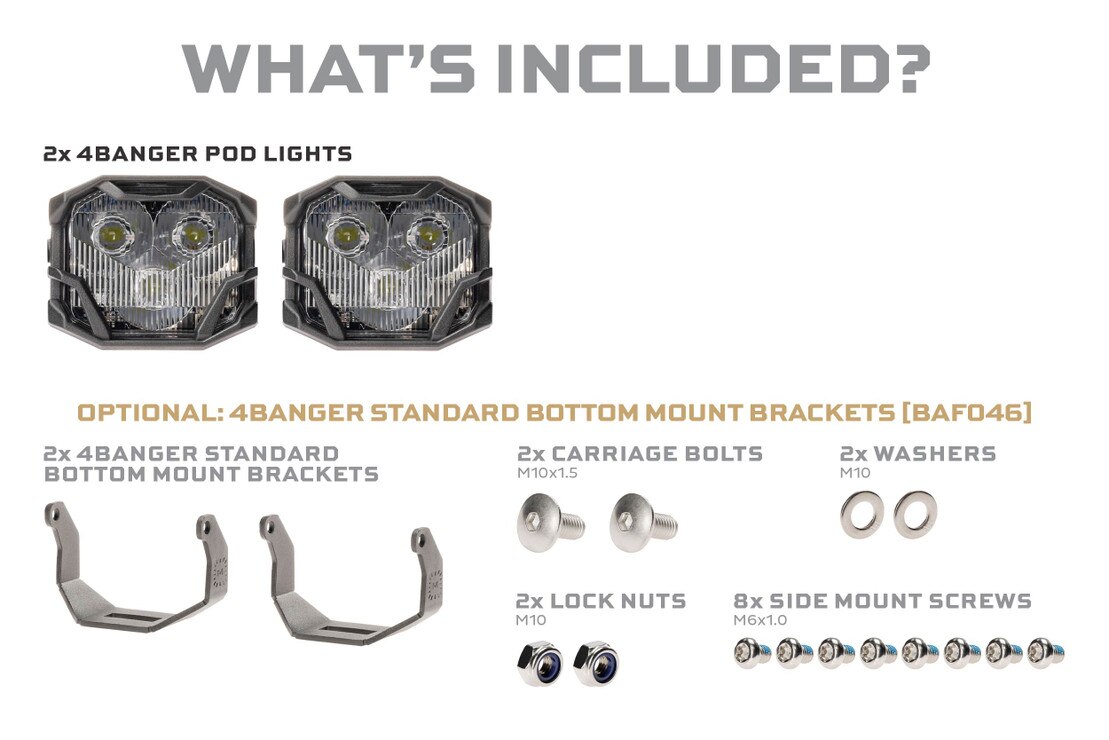

  • LED Pods: 2x (One Pair) Morimoto 4Banger HXB Flood (White or Yellow)

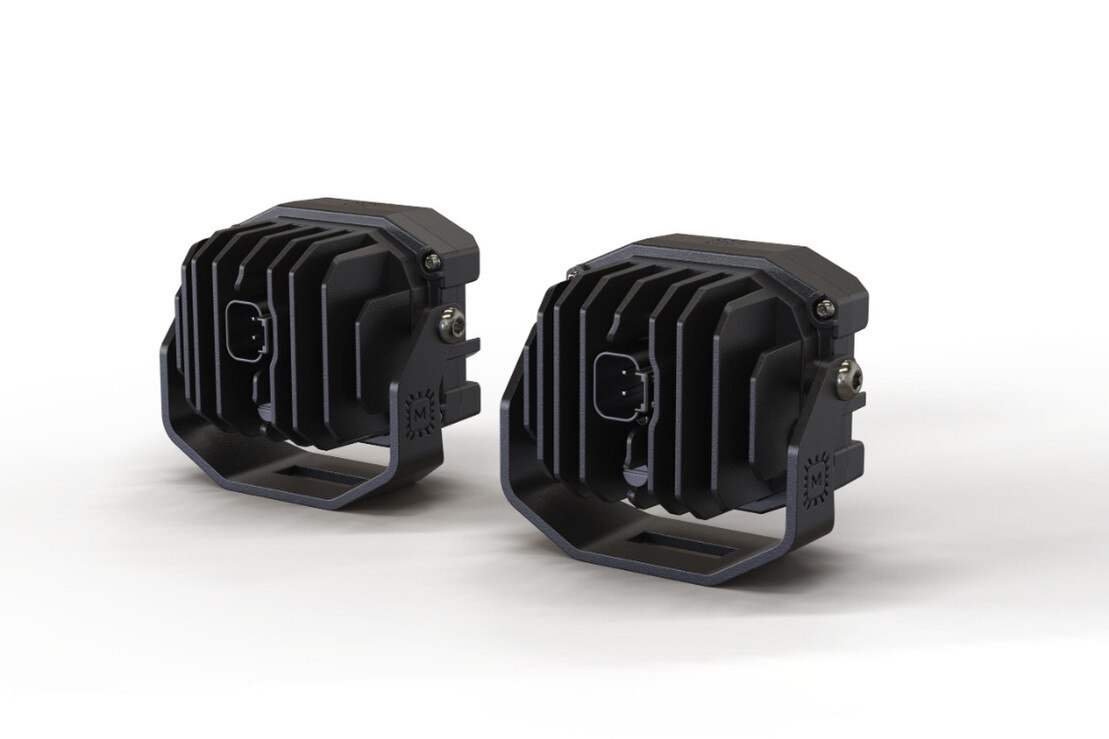

  • Brackets: 2x (One Pair) Universal U-Shape Mounts

  • Hardware: Complete pack (stainless steel)

  • Optional Wiring: 1x Morimoto Switched Relay Harness or 2x Deutsch DT Pigtails

  • Optional Covers: 2x Rubber Blackout Covers


This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.


  • Note: These specifications are per pod / each!

  • Intensity (White): 1,750 Cd (Post Warm-Up) (17.5lux @ 10m)

  • Intensity (Yellow): 1,225 Cd (Post Warm-Up) (12.25lux @ 10m)

  • Input: Proprietary Overmolded Deutsch DT 2-Pin

  • Input Voltage: 9-18V DC

  • Power (stabilized): 42w

  • Current: 3.2A @ 13.5V DC

  • Peak Luminosity (raw): 3,000lm

  • Dimensions: 82mm W, 67mm H, 60mm D

  • Hardware: M6 x 1.0 x 8mm (4Banger to U-Bracket), M10 x 1.5 x 20mm (U-Bracket base)

  • Light Source: 3x Osram HX Boost (5700K)

  • Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

  • IP Rating: IP69K (Dust / High Pressure Water Resistant)


  • Universal: With Included U Brackets

OFF-ROAD REINVENTED: Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... Consistently turning out products packed with more performance, reliability, and best in-class fitment & style. As a new player in the off-road game, we have embraced that philosophy big time, pumped up the Redbull intake, and now it's time for the old competition to rethink their strategy. The brand new, patented line of 4Banger Off-Road LED lights were completely designed, engineered, and tested in the USA, and everything about them is truly next level.

FLOOD BEAM: Provides plenty of ambient light with coverage in every direction, making them the perfect solution for low speed driving, rock crawling, back-up lights, or even illuminating your campgrounds. Flood optics do not project far into the distance, but are undoubtedly the weapon of choice for comfortably illuminating everything in the local space directly around your vehicle.

FORM MEETS FUNCTION: The overall footprint of the 4Banger is approximately 30% smaller than alternatives that offer comparable performance. This allows for an unbeatable fitment when paired with Morimoto's flush mount or A-Pillar mounting kits, which are available for today's most popular trucks and SUVs.

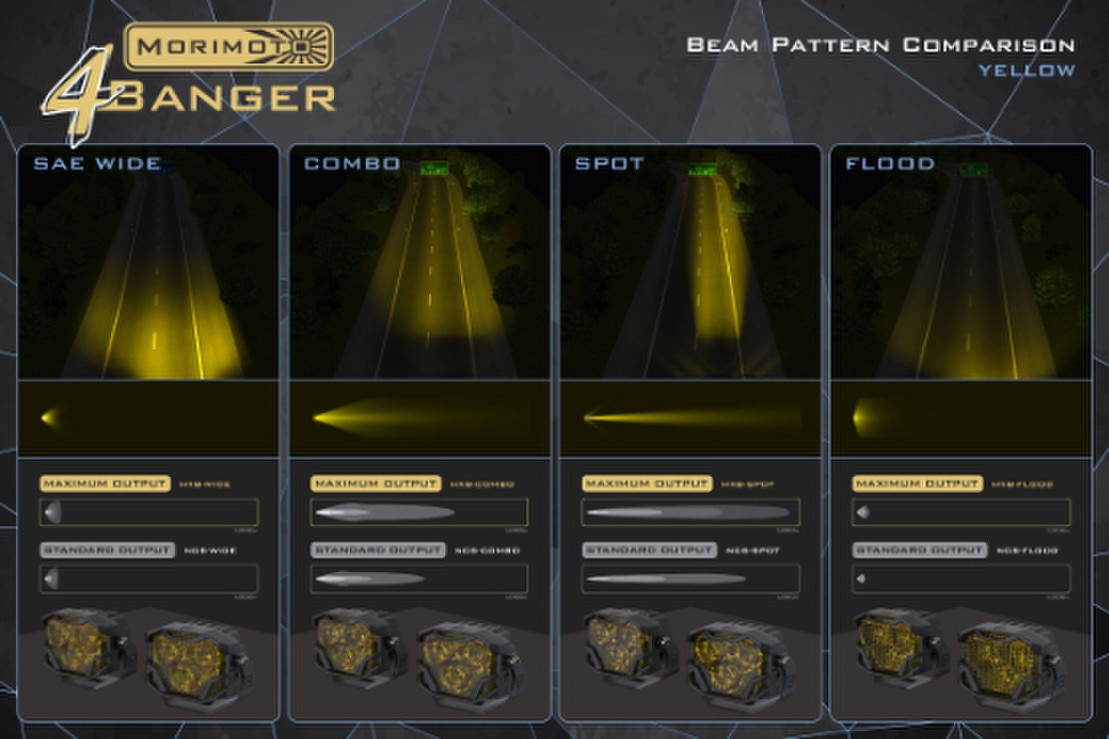

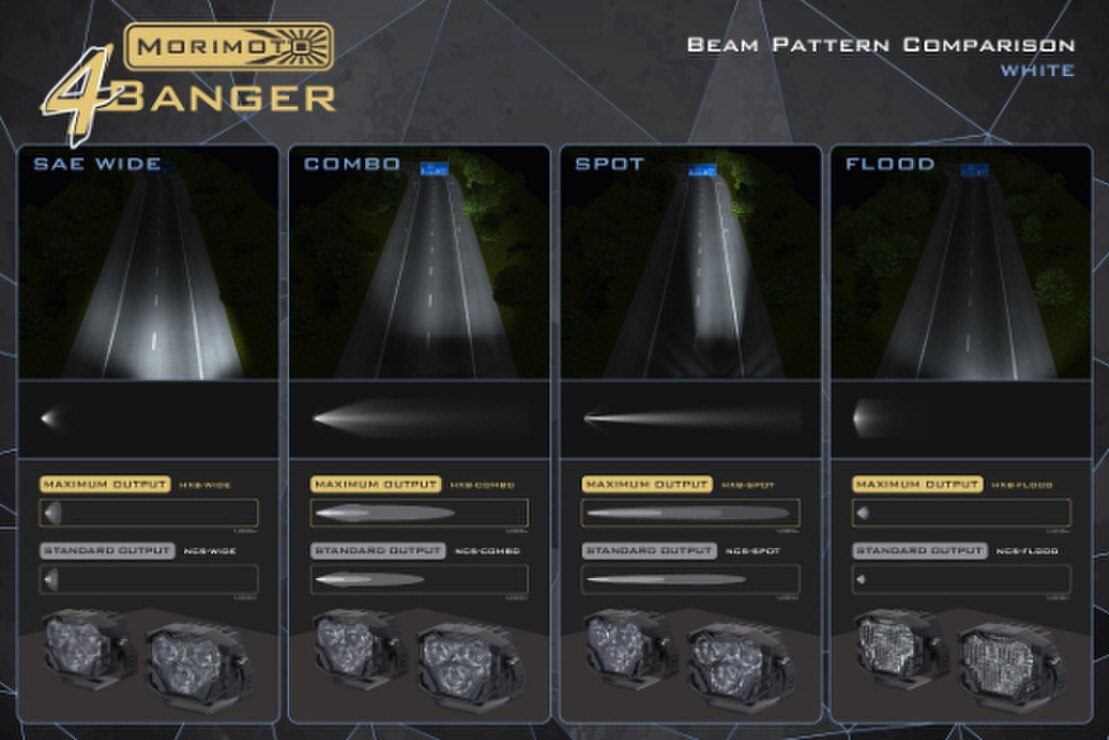

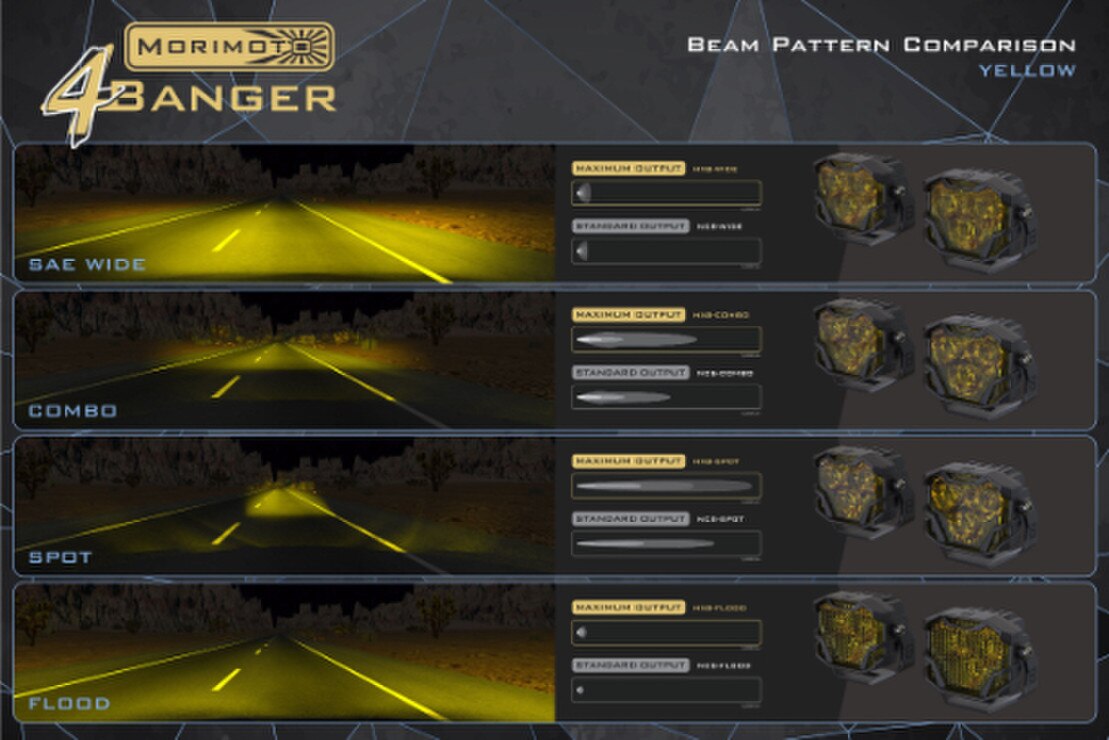

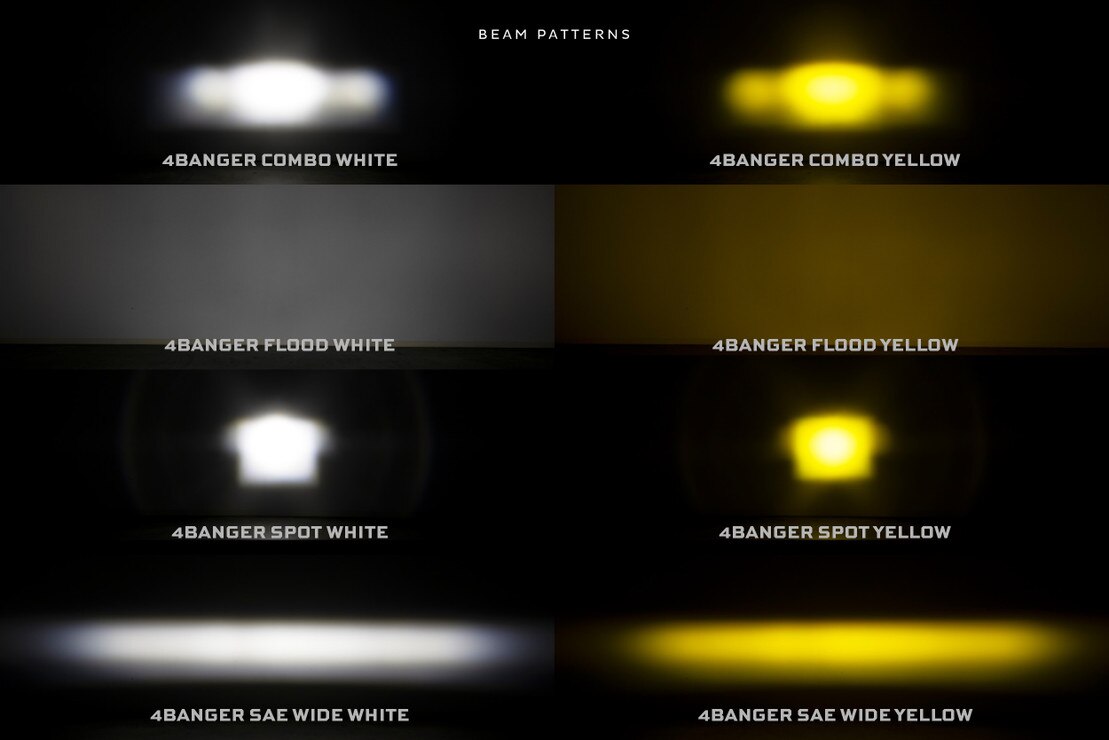

PERFORMANCE: There are no "off the shelf" guts inside of a fancy housing here. Every element of the 4Banger is proprietary. LucidShape was used to optimize performance around the most modern, lumen-dense LEDs from Osram. Thermal dynamics have been optimized using SolidWorks. The 4Banger is available with four industry-leading beam patterns to suit every need. SAE wide/Fog, Spot, Flood, and Combo.

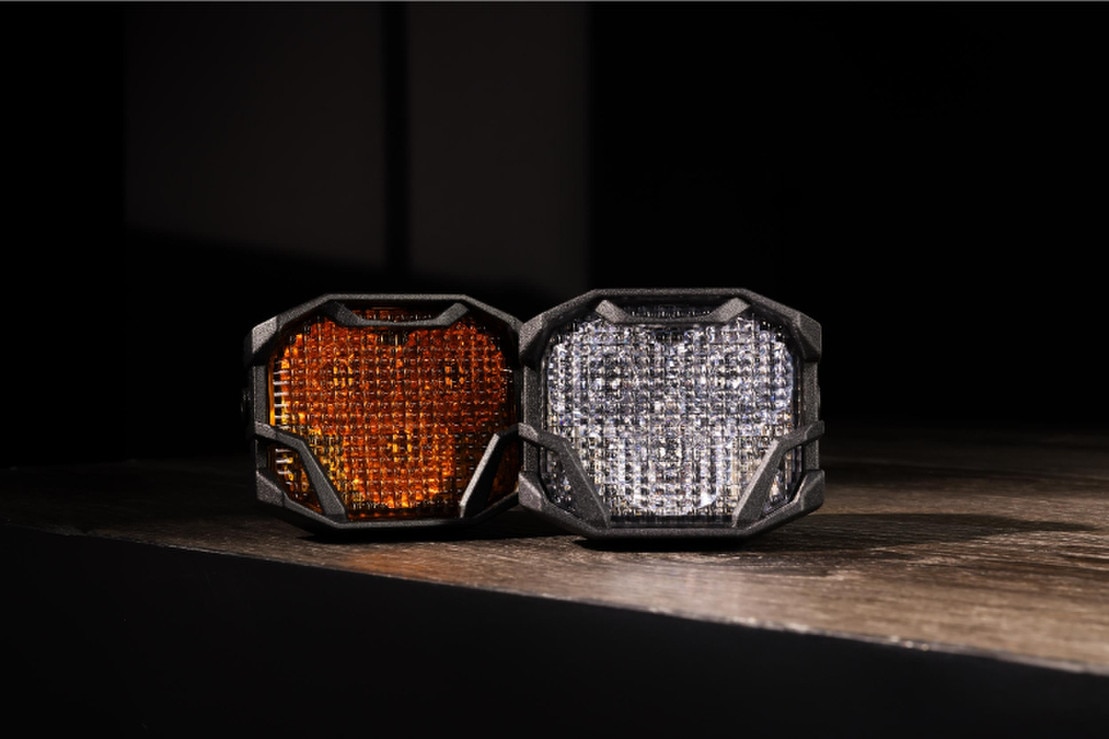

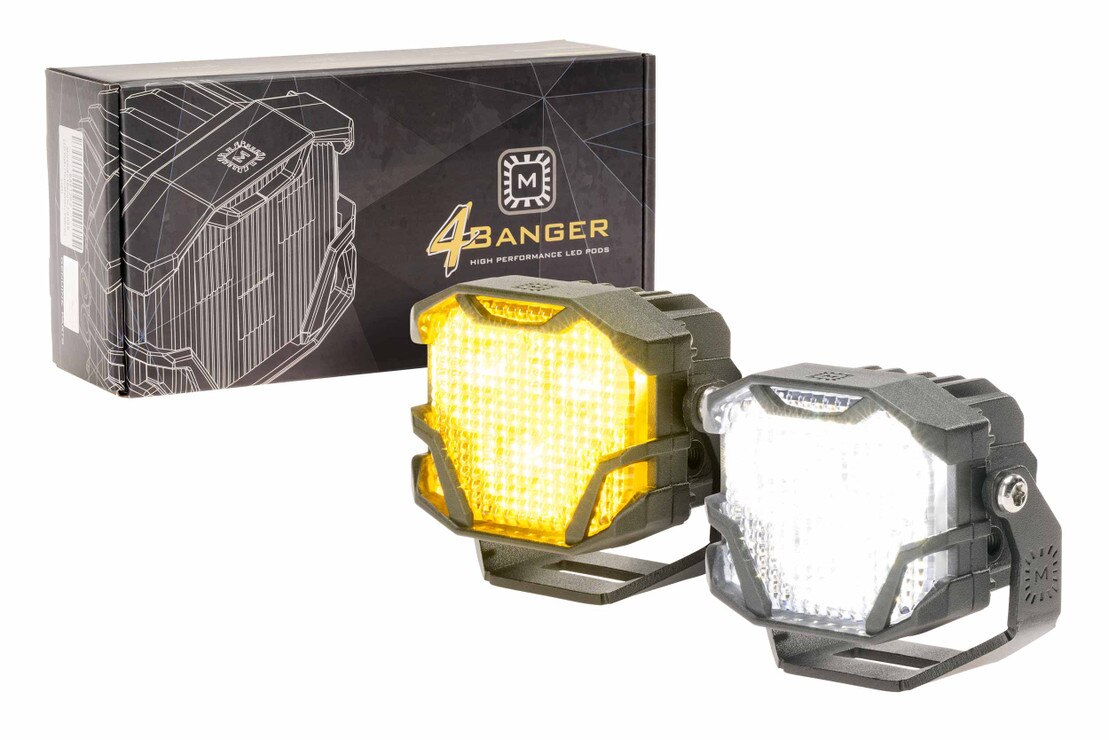

ALL WEATHER: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog--the Yellow-output version will slay in shady weather. Morimoto has opted for phosphor-converted yellow LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather).

RELIABILITY: With power comes great responsibility. Extensive effort went into ensuring the reliability of the product. High power means high heat, which is why the 4Banger features a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The potted internals, over-molded input wiring, and main gasket are all designed according to IP69K standards for full weather resistance.

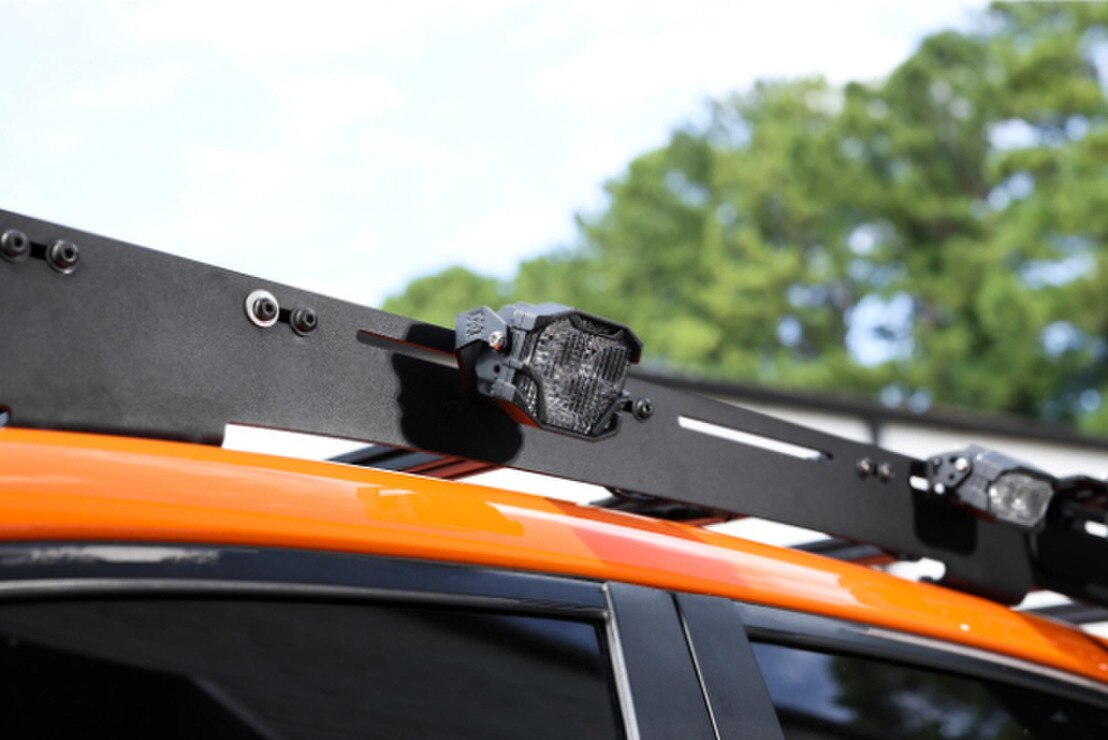

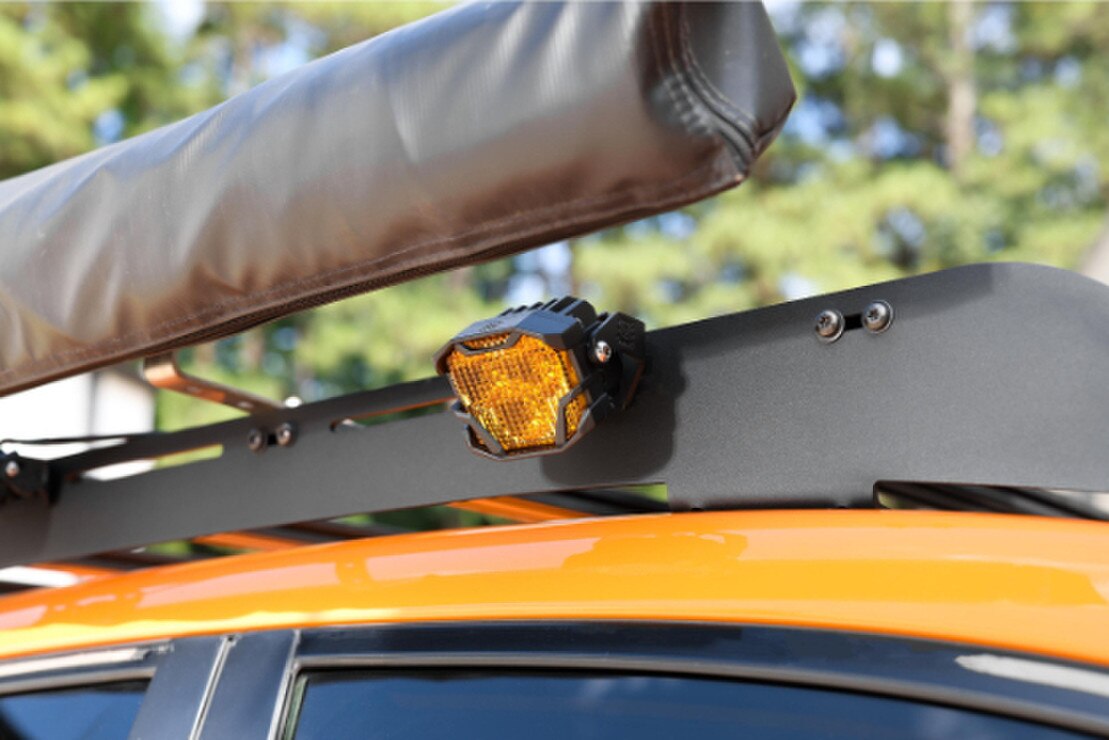

BOLT-ON: Morimoto offers a variety of application-specific mounting bracket kits for A-Pillars that make them bolt-on for many of today's most popular trucks. We also offer universal U-bracket mounts, and an industry-leading universal flush mount bracket too. Check out the full lineup for details on what's available for your application.

POWER UP: The Morimoto 4Banger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the optional wire harness. If you want the best, bingo. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with Yellow-LED backlight.
